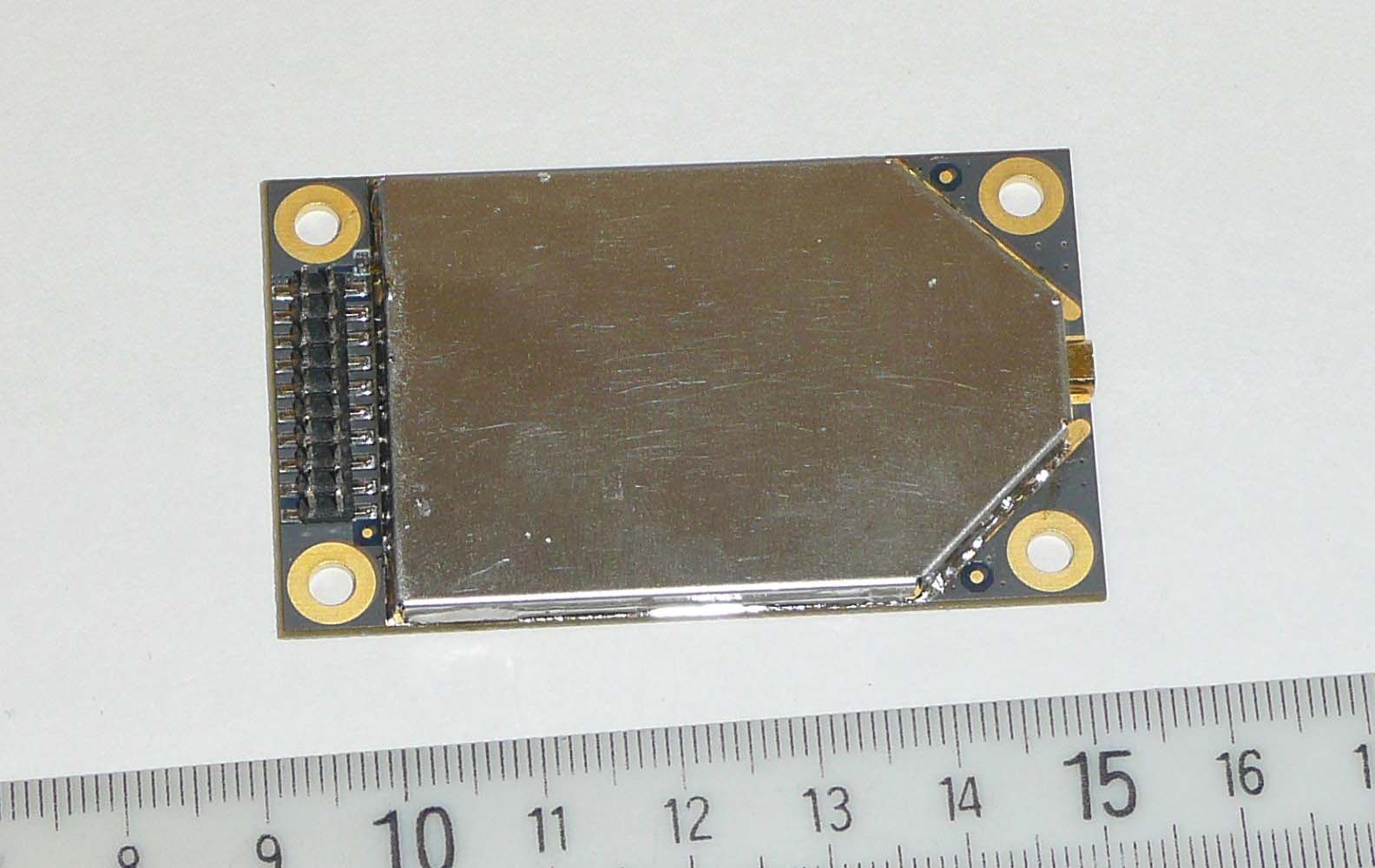

MCQ-9XTENDBXTend RF module

Digi International Inc. 11001 Bren Road East Minnetonka, MN 55343 877 912-3444 or 952 912-3444 http://www.digi.com XTend™ RF Module Firmware versions supported in this manual: Standard firmware: 2x6x For DigiMesh version refer to XTend DigiMesh manual (90002166_A) 90000958_E 2012.09.7 XTend™ RF Module - Product Manual © 2012 Digi International, Inc. ii © 2012 Digi International, Inc. All rights reserved The contents of this manual may not be transmitted or reproduced in any form or by any means without the written permission of Digi International, Inc.. XTend™ is a trademark of Digi International, Inc. AES Encryption Source Code © 2012 Dr. Brian Gladman, Worcester, UK. All rights reserved. Conditions: - Distributions of AES source code include the above copyright notice, this list of conditions and disclaimer. - Distributions in binary form include the above copyright notice, this list of con- ditions and disclaimer in the documentation and/or other associated materials. - The copyright holder's name is not used to endorse products built using this software without specific written permission. Alternatively, provided that this notice is retained in full, this product may be dis- tributed under the terms of the GNU General Public License (GPL), in which case the provisions of the GPL apply INSTEAD OF those given above. Disclaimer - This AES software is provided 'as is' with no explicit or implied war- ranties in respect of its properties, including, but not limited to, correctness and/or fitness for purpose. Technical Support: Phone: (801) 765-9885 Live Chat: www.digi.com E-support: http://www.digi.com/support/eservice/eservicelogin.jsp Contents XTend™ RF Module – Product Manual © 2012 Digi International, Inc. iii 1. XTend RF Module4 Key Features 4 Worldwide Acceptance 4 Specifications 5 Pin Signals 6 Electrical Characteristic 7 Timing Specifications 7 Mechanical Drawings 9 2. RF Module Operation10 Serial Communications 10 UART Data Flow 10 Flow Control 11 Transparent Operation 12 API Operation 12 DigiMesh Operation 12 Modes of Operation 13 Idle Mode 13 Transmit Mode 13 Receive Mode 14 Shutdown Mode 15 Sleep Mode 15 Command Mode 17 3. RF Module Configuration20 Programming Examples 20 AT Commands 20 Binary Commands 20 Command Reference Table 21 Command Descriptions 23 API Operation 41 API Frame Specifications 41 API Types 42 4. RF Communication Modes44 Addressing 45 Address Recognition 45 Basic Communications 46 Streaming Mode (Default) 46 Multi-transmit Mode 47 Repeater Mode 48 Polling Mode (Basic) 51 Acknowledged Communications 52 Acknowledged Mode 52 Polling Mode (Acknowledged) 53 5. Appendix A: Agency Certifications55 FCC (United States) Certification 55 Integrator Labeling Requirements 55 FCC Notices 55 Limited Modular Approval 56 FCC-approved Antennas 56 IC (Industry Canada) Certification 60 Labeling Requirements 60 Transmitters for Detachable Antennas 60 Detachable Antennas 61 C-TICK (Australia) Certification 61 Power Requirements 61 6. Appendix B: Development Guide62 Development Kit Contents 62 Interfacing Hardware 62 XTIB-R RS-232/485 Interface Board 63 Automatic DIP Switch Configurations 64 Adapters 65 Interfacing Protocols 67 RS-232 Operation 67 RS-485 (2-wire) Operation 69 RS-485 (4-wire) & RS-422 Operation 70 X-CTU Software 72 Installation 72 Serial Communications Software 72 7. Appendix C: Additional Information73 1-Year Warranty 73 Contact Digi 74 © 2012 Digi International Inc. 4 1. XTend RF Module The XTend RF Module was engineered to provide customers with an easy-to-use RF solution that provides reliable delivery of critical data between remote devices. The module transfers a standard asynchronous serial data stream, operates within the ISM 900 MHz frequency band and sustains up to 115.2 Kbps data throughput. Key Features Long Range Data Integrity 1 Watt Power Output (variable 1mW - 1W) Range (@9,600 bps throughput data rate): • Indoor/Urban: up to 3000’ (900 m) • Outdoor RF line-of-sight: up to 14 miles (22 km) w/dipole antenna • Outdoor RF line-of-sight: up to 40 miles (64 km) w/high-gain antenna Range (@115,200 bps throughput data rate): • Indoor/Urban: up to 1500’ (450 m) • Outdoor RF line-of-sight: up to 7 miles (11 km) w/dipole antenna • Outdoor RF line-of-sight: up to 20 miles (32 km) w/high-gain antenna Continuous RF data stream up to 115,200 bps Receiver Sensitivity: -110 dBm (@ 9600 baud), –100 dBm (@ 115200 baud) Advanced Networking & Security True Peer-to-Peer (no Master device required), Point-to-Point, Point-to-Multipoint & Multidrop Retries and Acknowledgements FHSS (Frequency Hopping Spread Spectrum) 10 hopping channels, each with over 65,000 unique network addresses available 256-bit AES Encryption - performed using a FIPS 197 certified implementation on a Phillips LPC microcontroller 128-bit AES for international variant Low Power 2.8 - 5.5 V Supply Voltage Pin, Serial Port and Cyclic software sleep modes supported Shutdown pin enables hardware sleep mode that draws only 5 μA (typical) Easy-to-Use No configuration necessary for out-of box RF communications Free X-CTU Software (Testing and configuration software) RF Modules easily configured using standard AT & binary commands Transparent Operation (Wireless links replace serial wires) API Operation (Frame-based communications) Portable (small form-factor easily designed into a wide range of data systems) Software-selectable I/O interfacing rates Multiple data formats supported (parity, start and stop bits, etc.) XII™ Interference Immunity No Master/Slave setup dependencies Worldwide Acceptance FCC Approved (USA) Refer to Appendix A [p55] for FCC Requirements. Systems that include XTend RF Modules inherit Digi’s Certifications. ISM (Industrial, Scientific & Medical) license-free 902-928 MHz frequency band Manufactured under ISO 9001:2000 registered standards ESD (Electrostatic Discharge) immunity - ESD-hardened and IEC1000-4-2 (Level 4) tested XTend™ RF Module - Product Manual © 2012 Digi Internatonal, In…

Text truncated - open the document above for the full version.

September 10, 2012 Ultratech Engineering Labs Inc. 3000 Bristol Circle Oakville, ON Canada L6H 6G4 Subject: Application for Equipment Certification under FCC Part 15, Subpart C, Section 15.247 - Frequency Hopping Spread Spectrum (FHSS) Operating within 902-928 MHz Band. Applicant: Digi International Inc Product: XTend Model No.: XT09B FCC ID: MCQ-9XTENDB Dear Sir/Madam: As appointed agent for Digi International Inc, we submit the application for certification of the above product. Kindly review all files uploaded to your electronic filing site. This application is subject to FCC certification for modular approval, kindly refer to Applicant’s letter requesting for limited modular approval according to the modular approval requirements in Section 15.212 rules. If you have any queries, please do not hesitate to contact us. Yours truly, Dan Huynh Dan Huynh, Authorized Agent UltraTech Group of Labs Ultratech’s Accreditations: 0685 FCC 91038 1309 46390-2049 NvLap Lab Code 200093-0 SL2-IN-E-1119R Korea KCC-RRL CA2049 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

FCC Part 15, Subpart C, Section 15.247 - FHSS Page 46 XTend, Model XT09B FCC ID: MCQ-9XTENDB ULTRATECH GROUP OF LABS File #: DIGI-068F15C247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 September 10, 2012 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.5. RF EXPOSURE REQUIRMENTS [§§ 15.247(b)(5), 1.1310 & 2.1091] The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation. FCC 47 CFR § 1.1310: 5.5.1. Method of Measurements Refer to Sections 1.1310, 2.1091. In order to demonstrate compliance with MPE requirements (see Section 2.1091), the following information is typically needed: (1) Calculation that estimates the minimum separation distance (20 cm or more) between an antenna and persons required to satisfy power density limits defined for free space. (2) Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement (3) Any caution statements and/or warning labels that are necessary in order to comply with the exposure limits (4) Any other RF exposure related issues that may affect MPE compliance FCC Part 15, Subpart C, Section 15.247 - FHSS Page 47 XTend, Model XT09B FCC ID: MCQ-9XTENDB ULTRATECH GROUP OF LABS File #: DIGI-068F15C247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 September 10, 2012 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) Calculation Method of RF Safety Distance : 22 44r EIRP r GP S       Where: P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm 5.5.2. RF Evaluation Evaluation of RF Exposure Compliance Requirements RF Exposure Requirements Compliance with FCC Rules Minimum calculated separation distance between antenna and persons required: 23 cm (see note) Manufacturer’ instruction for separation distance between antenna and persons required: 30 cm. Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement. Antenna installation and device operating instructions shall be provided to installers to maintain and ensure compliance with RF exposure requirements. Caution statements and/or warning labels that are necessary in order to comply with the exposure limits. Refer to User’s Manual for RF Exposure Information. Any other RF exposure related issues that may affect MPE compliance None. NOTE: The minimum separation distance between the antenna and bodies of users are calculated using the following formula: RF Exposure Distance Limits S EIRP S GP r      44 S = 902.9/1500 mW/cm 2 = 0.602 mW/cm 2 EIRP = 36 dBm = 10 36/10 mW = 3981 mW (Worst Case) (Minimum Safe Distance, r) = cm S EIRP 23 )602.0(4 3981 4     

XTend Model: XT09B FCC ID: MCQ-9XTENDB Applicant: Digi International Inc. 11001 Bren Road East Minnetonka, MN 55343 In Accordance With Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.247 Frequency Hopping Spread Spectrum (FHSS) Operating within 902-928 MHz Band UltraTech's File No.: DIGI-068F15C247 This Test report is Issued under the Authority of Tri M. Luu Vice President of Engineering UltraTech Group of Labs Date: September 10, 2012 Report Prepared by: Dan Huynh Issued Date: September 10, 2012 Tested by: Mr. Hung Trinh Test Dates: July 22 - August 28, 2012  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] FCC Korea KCC-RRL 91038 1309 46390-2049 NvLap Lab Code 200093-0 SL2-IN-E-1119R CA2049 FCC Part 15, Subpart C, Section 15.247 – FHSS Contents i XTend, Model XT09B FCC ID: MCQ-9XTENDB ULTRATECH GROUP OF LABS File #: DIGI-068F15C247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 September 10, 2012 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION.............................................................................................................................................. 1 1.1. SCOPE ........................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 1 1.3. NORMATIVE REFERENCES ...................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT.................................................................................................................... 2 2.1. CLIENT INFORMATION .............................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ................................................................................................... 2 2.3. EUT’S TECHNICAL SPECIFICATIONS....................................................................................................................... 3 2.4. ASSOCIATED ANTENNA DESCRIPTIONS ................................................................................................................ 3 2.5. LIST OF EUT’S PORTS............................................................................................................................................... 3 2.6. ANCILLARY EQUIPMENT ........................................................................................................................................... 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS............................................... 5 3.1. CLIMATE TEST CONDITIONS.................................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS..................................................................... 5 EXHIBIT 4. SUMMARY OF TEST RESULTS ..................................................................................................................... 6 4.1. LOCATION OF TESTS ................................................................................................................................................ 6 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS .......................................................................6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ................................................ 6 EXHIBIT 5. TEST DATA ..................................................................................................................................................... 7 5.1. POWER LINE CONDUCTED EMISSIONS [§15.207(a)].............................................................................................. 7 5.2. COMPLIANCE WITH FCC PART 15 – GENERAL TECHNICAL REQUIREMENTS ................................................. 12 5.3. PROVISIONS FOR FREQUENCY HOPPING SYSTEMS [§ 15.247(a)(1)]................................................................ 1 4 5.4. PEAK OUTPUT POWER & EQUIVALENT ISOTROPIC RADIATED POWER (EIRP) [§ 15.247(b)]......................... 32 5.5. RF EXPOSURE REQUIRMENTS [§§ 15.247(b)(5), 1.1310 & 2.1091]...................................................................... 46 5.6. TRANSMITTER BAND-EDGE & SPURIOUS CONDUCTED EMISSIONS [§ 15.247(d)].......................................... 48 5.7. TRANSMITTER SPURIOUS RADIATED EMISSIONS AT 3 METERS [§§ 15.247(d), 15.209 & 15.205].................. 65 EXHIBIT 6. TEST EQUIPMENT LIST ............................................................................................................................... 95 EXHIBIT 7. MEASUREMENT UNCERTAINTY................................................................................................................. 96 7.1. LINE CONDUCTED EMISSION MEASUREMENT UNCERTAINTY ......................................................................... 96 7.2. RADIATED EMISSION MEASUREMENT UNCERTAINTY ....................................................................................... 96 FCC Part 15, Subpar…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 1 Power Line Conducted Emissions (Tx Mode) ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 2 Power Line Conducted Emissions (Tx Mode) ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 3 Power Line Conducted Emissions (Rx Mode) ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 4 Power Line Conducted Emissions (Rx Mode) ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 5 Radiated Emissions at 3 m EUT with 2.1 dBi Monopole Antenna (Orthogonal Position 1) ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 6 Radiated Emissions at 3 m EUT with 2.1 dBi Monopole Antenna (Orthogonal Position 2) ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 7 Radiated Emissions at 3 m EUT with 2.1 dBi Monopole Antenna (Orthogonal Position 3) ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 8 Radiated Emissions at 3 m EUT with 2.1 dBi Monopole Antenna ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 9 Radiated Emissions at 3 m EUT with 3.0 dBi Multi-path Antenna ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 10 Radiated Emissions at 3 m EUT with 3.0 dBi Multi-path Antenna ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 11 Radiated Emissions at 3 m EUT with 3.0 dBi Multi-path Antenna ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 12 Radiated Emissions at 3 m EUT with 8.1 dBi Omni-directional Antenna ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 13 Radiated Emissions at 3 m EUT with 8.1 dBi Omni-directional Antenna ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 14 Radiated Emissions at 3 m EUT with 8.1 dBi Omni-directional Antenna ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 15 Radiated Emissions at 3 m EUT with 15.1 dBi Yagi Antenna ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 16 Radiated Emissions at 3 m EUT with 15.1 dBi Yagi Antenna ANNEX 1 - TEST SETUP PHOTOS Digi International, Inc. XTend, Model XT09B FCC ID: MCQ-9XTENDB A1 - 17 Radiated Emissions at 3 m EUT with 15.1 dBi Yagi Antenna
