MCQ-CCIMX6ConnectCore6 (i.MX6)

ConnectCore 6 ® ConnectCore for i.MX6 Preliminary Hardware Reference Manual 90001394 Copyright and Trademarks © 2014 Digi International Inc. All rights reserved. Digi, Digi International, the Digi logo, and ConnectCore 6 ® are trademarks or registered trademarks in the United States and other countries worldwide. All other trademarks mentioned in this document are the property of their respective owners. Information in this document is subject to change without notice and does not represent a commitment on the part of Digi International. Digi provides this document “as is,” without warranty of any kind, expressed or implied, including, but not limited to, the implied warranties of fitness or merchantability for a particular purpose. Digi may make improvements and/or changes in this manual or in the product(s) and/or the program(s) described in this manual at any time. Contacting Technical Support Digi International Inc. World Headquarters 11001 Bren Road East Minnetonka, MN 55343 Phone: (866) 765-9885 toll-free U.S.A. & Canada (801) 765-9885 Worldwide 8:00 am - 5:00 pm (U.S. Mountain Time) Online Support: www.digi.com/support/ Email: [email protected] Fax: 952-912-4952 Revision Record Revision Date (MM/DD/YY) Description 1PPreliminary draft release © 2014 Digi International Inc. iii ConnectCore for i.MX6 Hardware Reference Manual Table of Contents Using this Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Conventions used in this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Digi Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Document Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 About the ConnectCore 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ConnectCore 6 Features and Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 IEEE 802.11 a/b/g/n and Bluetooth Features and Functionality. . . . . . . . . . . . . . . . . . . . . . . .9 Module Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Block Diagram of the Freescale i.MX6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Power Supply Architecture of the ConnectCore 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Bootstrap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Module Pinout of the ConnectCore 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 ConnectCore 6 Pinout Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Signal Usage Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 About the ConnectCore 6 Adapter Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Features of the ConnectCore 6 Adapter Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 ConnectCore 6 Adapter Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 ConnectCore 6 GPIO Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 I2C Address Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 I2C2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 I2C3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Boot Switches for the ConnectCore 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Boot Mode Switch, SW6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Boot Source Switch, SW5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Configuration Resistors for the ConnectCore 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Gigabit Ethernet PHY Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 USB Host. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59 ConnectCore 6 Gigabit LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Gigabit Ethernet LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 5V Regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60 Coin Cell Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 © 2014 Digi International Inc. iv ConnectCore for i.MX6 Hardware Reference Manual Table of Contents Coin Cell Connector, P5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Gigabit Ethernet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62 Gigabit PHY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63 Gigabit Connector, J3 . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

September 9, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia , Maryland 21046 To Whom it May Concern: We attest to the following: • Per FCC KDB 443999 D01 v01r02 and RSS 210 Annex 9, this device will not transmit in the 5600 - 5650 MHz band • Per FCC KDB 848637 D01 V01, the device is a client device with no radar detection capability. The client software and associated drivers will not initiate any transmission on DFS frequencies without initiation by a master. This includes restriction on transmissions for beacons and support for ad-hoc peer-to-peer modes. • Per FCC KDB 594280 D01 v02r01, the device complies with the requirements for software configuration control. The device meets the definition of FCC 15.202 client device and does not have the ability to be configured by end users or professional installers to operate outside the authorized bands • Per FCC 15.407(c), the device will automatically discontinue transmission in case of either absence of information to transmit or operational failure. Mike Siegler, Director of Engineering Etherios, A division of Digi international [email protected] Cell: +1 (612) 524-7143

WTD 13.4.9 FCC Compliance Opinion ETHE0008 Information about the Applicant Grantee (Company Name) Digi, International Inc. FCC Contact Person Scott McCall Address 1101 Bren Road East City, State, Zip Minnetonka, MN 55343 Job Number ETHE0008 Model Connect Core (i.MX6) FCC ID MCQ-CCIMX6 Agent Approval Type Original Equipment Class DTS Digital Transmission System, UNII Unlicensed National Information Infrastructure Rule Part 15.247, 15.407 Overview This application is for the original approval of a radio module model ConnectCore6 (i.MX6), FCC ID: MCQ-CCIMX6. The radio is an 802.11 a/b/g/n compliant module. Although some of the exhibits refer to a Bluetooth operation supported by the module, the Bluetooth function is not covered under this application, and is not implemented for this ID number. Confidentiality requested for allowed files. Request is properly addressed and referenced. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 9/17/2014

Digi International 11001 Bren Road East Minnetonka, MN 55343 Tel: 952‐912‐3444 Fax: 952‐912‐4991 September, 09 2014 Subject: Application for Equipment Authorization FCC ID: MCQ‐CCIMX6 Applicant: Digi International FRN: 0010283307 To whom it may concern: This is an application for Original Certification and a Grant of Equipment Authorization pursuant to Subpart C and E of Part 15 of FCC rules (CFR 47) in regards to international radiators for the following product: Model: ConnectCore6 (i.MX6) FCC ID: MCQ‐CCIMX6 IC: 1846A‐CCIMX6 The ConnectorCore6 is an ultra compact and highly integrated system on module (SOM) solution. With processor speed up to 1.2GHz single/dual/quad core, a WiFi IEEE 802.11 a/b/g/n. Please contact me if there are any questions regarding this application Sincerely, Mike Siegler, Director of Engineering Etherios, A division of Digi international [email protected] Cell: +1 (612) 524-7143

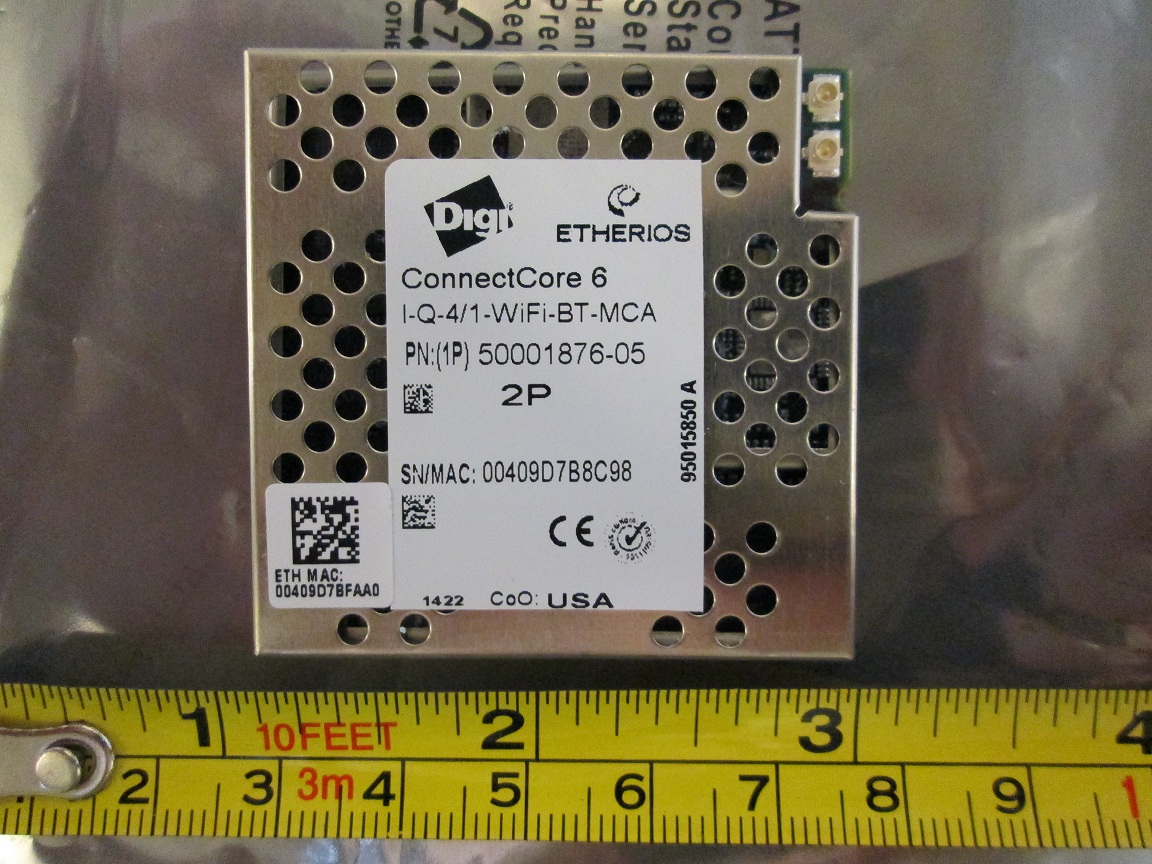

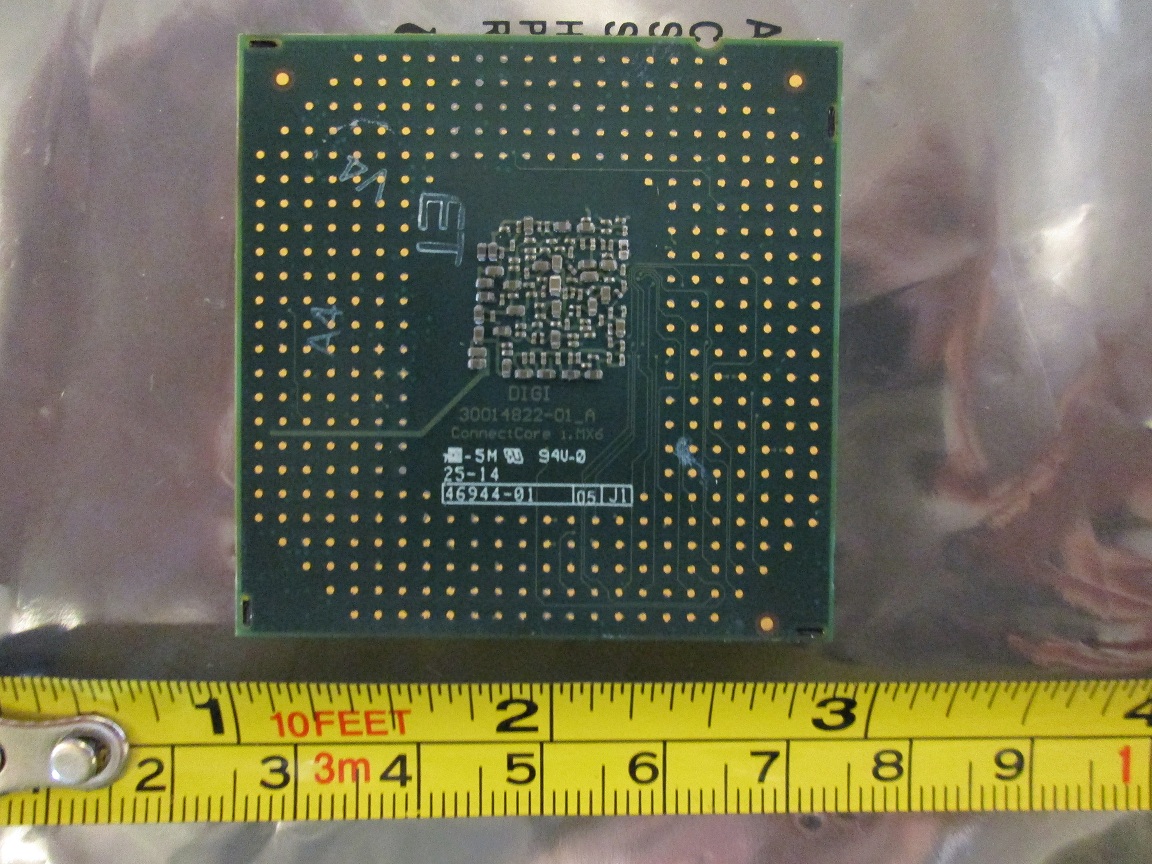

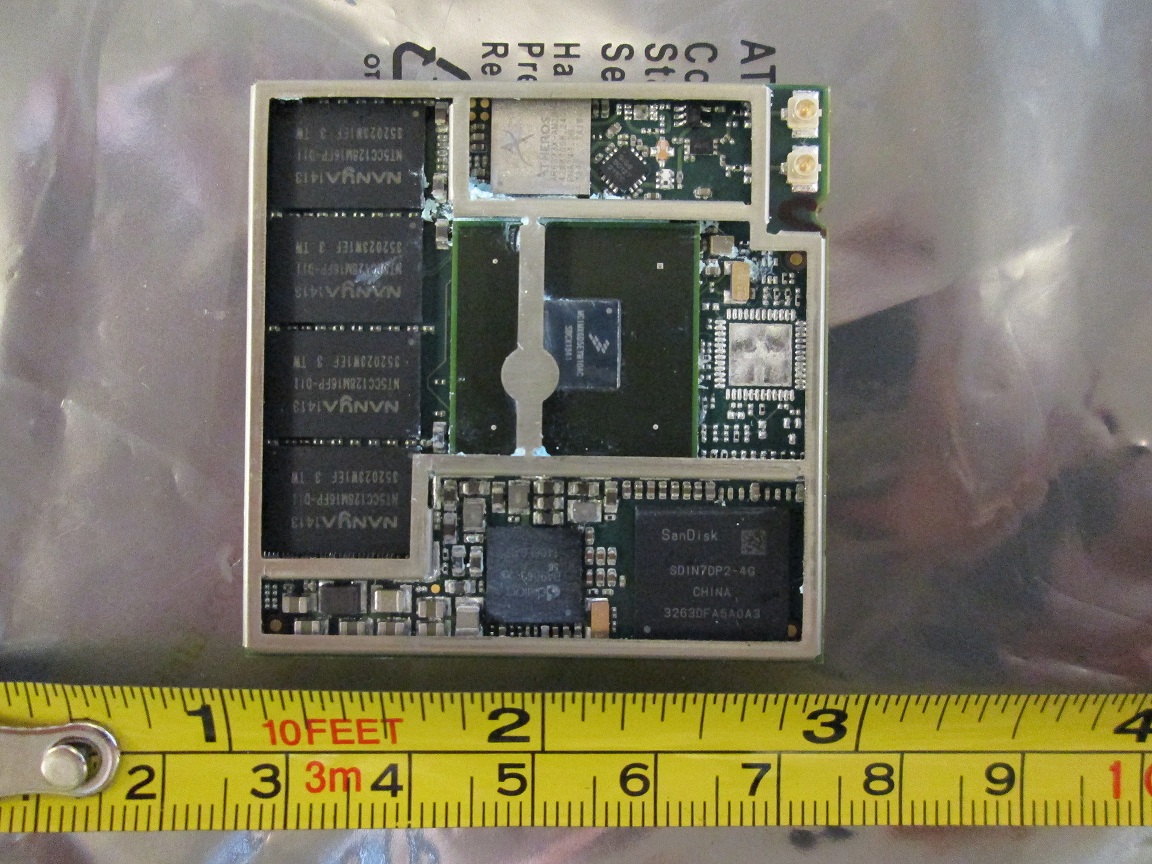

SAMPLE MODULAR APPROVAL LETTER 09/05/2014 Dear Application Examiner: ConnectCore6, MCQ-CCIMX6 is seeking modular approval. The radio meets the requirements for modular approval as detailed in FCC 15.212. Compliance to each of the requirements is described below: 1. “The modular transmitter must have its own RF shielding.” The radio portion of the module is contained in its own RF shielding. The shielding is installed at the factory. Please see the Internal Photos exhibit. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs to insure compliance with Part 15 requirements under conditions of excessive data rates or over-modulation. Please see the Schematics exhibit. 3. “The modular transmitter must have its own power supply regulation.” The EUT has its own power supply regulation to insure compliance with Part 15 requirements regardless of the quality or level of external DC supplying the module from the host unit. Please see Schematics exhibit. Also, the technical report exhibit contains AC power line conducted emissions data taken with the EUT powered from a linear power supply that contains no EMC suppression components. 4. “The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements. Please see Antenna information exhibit and internal photos exhibit. 5. “The modular transmitter must be tested in a stand-alone configuration.” The EUT was tested in a stand-alone configuration. The module was greater than 10 cm from the host device. Please see test setup photos exhibit and technical report exhibit. 6. “The modular transmitter must be labeled with its own FCC ID number.” The EUT is labeled with its own FCC ID number. Please see FCC ID label & location exhibit. If the FCC ID number will not be visible when the module is installed inside a host device, another label with the FCC ID will be applied to the exterior of the host device. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the User Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. Please see RF Exposure Exhibit. Please contact me if you have additional questions. Your attention to this matter is greatly appreciated. Best regards,

Ethertronics’ Prestta series of Isolated Magnetic Dipole™ (IMD) trace antennas address the challenges facing today’s product designers. IMD’s high perfor- mance and isolation characteristics offer better con- nectivity and minimal interference. IMD antennas can be used in a variety of devices:  Notebook Computers & Tablets  Access Points, Gateways, STB  WiFi enabled Televisions & Monitors  Trackers... PRODUCT: WLAN Prestta TM WLAN Embedded Antenna 2.4/4.9/5.2/5.8 GHz (802.11 a/b/g/n + Japan) Part No. 1001932 TECHNOLOGY ADVANTAGES Prestta WLAN antennas use patented IMD technology in a trace configuration to provide high performance. IMD antennas requires a smaller design keep-out area, carry lower program development risk which yields a quicker time-to-market, without sacrificing RF performance. Stays in Tune IMD antenna technology provides superior RF field containment, resulting in less interaction with surrounding components. Ethertronics IMD antennas resist de-tuning; providing a robust radio link regardless of the usage position. ETHERTRONICS 9605 Scranton Road, Suite 300 | San Diego, CA 92121 - USA | www.ethertronics.com tel +(1) 858.550.3820 | fax +(1) 858.550.3821 | contact: [email protected] KEY BENEFITS SERVICE AND SUPPORT Extensive RF Experience  Our WLAN antennas are supported by documentation, and when needed, by the expertise of RF engineers who have integrated hundreds of antenna designs into wireless devices. Global Operations & Design Support  Ethertronics’ global operations supports an integrated network of design centers that can take projects from concept to production. END USER ADVANTAGES Unique Form Factors Support Advanced Industrial Designs  Smaller, more efficient IMD embedded antennas break through restrictive design rules and provide new free- dom in component placement. Superior Range & Signal Strength  Better antenna function means longer range and great- er sensitivity to critically precise signals—delivering greater customer satisfaction while building brand loy- alty. DESIGN ADVANTAGES Quicker Time-to-Market  By optimizing antenna size, performance and emis- sions, customer and regulatory specifications are more easily met. Greater Flexibility  Ethertronics’ first-in-class IMD technology enables you to develop concept designs that are more advanced and that deliver superior performance in reception- critical applications.  Multiple cable lengths to fit a variety of devices. RoHS Compliant  Ethertronics’ antennas are fully compliant with the European RoHS Directive 2002/95/EC. PRODUCT: WLAN a/b/g/n + Japan - P/N 1001932 Dimensions 35.2 x 8.5 x 0.40 mm (Height up to 1.80mm at soldering point) Weight 0.30 g Cable / Connector 1.13 mm diameter & u.fl compatible connector Cable Length 1001932—Antenna with 100 mm cable No Adhesive in the back side Mechanical Specifications Antenna Radiation Patterns Typical Performances 2.390 - 2.490 GHz Band 4.900 - 5.900 GHz Band VSWR Efficiency Ethertronics’ Internal (Embedded) Antenna Specifications. Below are the typical specs for a WLAN application. WLAN a WLAN b,g © 2013 Ethertronics. All rights reserved. Ethertronics, the Ethertronics logo, shaping antenna technology, Prestta, Savvi, Tavvel, Isolated Magnetic Dipole and the iMD logo are trademarks of Ethertronics. All other trademarks are the property of their respective owners. Specifications subject to change and are dependent upon actual implementation. 1001932 1May2013 x Z y Z y x Electrical Specifications Typical Characteristics (In reference device housing made of PC/ABS plastic) WLAN a/b/g/n + Japan Antenna (GHz) 2.390-2.490 b, g 4.900-5.100 Japan 5.150-5.350 a 5.70-5.900 a Peak Gain 1.5-2.5 dBi 3.0-5.0 dBi 3.0-5.0 dBi 3.0-5.0 dBi Efficiency 65% 65% 65% 50% VSWR Match <2.0:1 <2.5:1 <2.0:1 <2.5:1 Feed Point Impedance 50 Ω unbalanced (other if required) WLAN b,g 1 2 3 2370 2390 2410 2430 2450 2470 2490 2510 Freq in MHz VSWR (:1) WLAN a 1 2 3 VSWR (:1) 4800 5000 5200 5400 5600 5800 Freq in MHz 0% 100% 90% 80% 70% 60% 50% 40% 30% 20% 10% 2300 2350 2400 2450 2500 2550 Freq in MHz 0% 100% 90% 80% 70% 60% 50% 40% 30% 20% 10% 4800 5000 5200 5400 5600 5800 Freq in MHz Z X Y

This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. This Report may only be duplicated in its entirety Etherios Design Solutions ConnectCore 6 (I.mx) FCC 2.1091:2014 Maximum Permissible Exposure Report # ETHE0008.5 NVLAP Lab Code: 200881-0 WTD 13.9.30 CERTIFICATE OF EVALUATION Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Last Date of Test: August 29, 2014 Etherios Design Solutions Model: ConnectCore 6 (I.mx) Radio Equipment Testing Standards Specification Method FCC 2.1091:2014 KDB 447498 D01 v05r02 Results Method Clause Test Description Applied Results Comments 7.1 Maximum Permissible Exposure Yes Pass Deviations From Test Standards None Approved By: Don Facteau, IT Manager Report No. ETHE0008.52/9 REV 2012.08.02 REVISION HISTORY Revision Number Description Date Page Number 00 None Barometric Pressure The recorded barometric pressure has been normalized to sea level. Report No. ETHE0008.53/9 REV 2012.05.24 ACCREDITATIONS AND AUTHORIZATIONS United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC Guide 65 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea KCC / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Hong Kong OFTA – Recognized by OFTA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ Report No. ETHE0008.54/9 REV 2013.06.28 FACILITIES Oregon Labs EV01-12 22975 NW Evergreen Pkwy Hillsboro, OR 97124 (503) 844-4066 California Labs OC01-13 41 Tesla Irvine, CA 92618 (949) 861-8918 New York Labs NY01-04 4939 Jordan Rd. Elbridge, NY 13060 (315) 685-0796 Minnesota Labs MN01-08 9349 W Broadway Ave. Brooklyn Park, MN 55445 (763) 425-2281 Washington Labs NC01-0 5,SU02,SU07 19201 120 th Ave. NE Bothell, WA 98011 (425) 984-6600 VCCI A- 0108 A- 0029 A- 0109 A- 0110 Industry Canada 2834D-1, 2834D-2 2834B-1, 2834B-2, 2834B-3 2834E-1 2834F-1 NVLAP NVLAP Lab Code: 200630-0 NVLAP Lab Code: 200676-0 NVLAP Lab Code: 200761-0 NVLAP Lab Code: 200881-0 NVLAP Lab Code: 200629-0 Report No. ETHE0008.55/9 WTD 12.5.23 PRODUCT DESCRIPTION Client and Equipment Under Test (EUT) Information Company Name: Etherios Design Solutions Address: 110 N 5th Street, Suite 400 City, State, Zip: Minneapolis, MN 55413 Test Requested By: Moshe Peri Model: ConnectCore 6 (I.mx) First Date of Test: August 07, 2014 Last Date of Test: August 22, 2014 Receipt Date of Samples: August 05, 2014 Equipment Design Stage: Production Equipment Condition: No Damage Information Provided by the Party Requesting the Test Functional Description of the EUT (Equipment Under Test): Module with Wifi only (BT not populated), Dual core iMAX6 processor, Kinetis microcontroller and two antennas connected. Testing Objective: To demonstrate compliance to FCC 2.1091 Maximum Permissible Exposure requirements Report No. ETHE0008.56/9 WD.12.29.11 Maximum Permissible Exposure (MPE) OVERVIEW Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. ANSI C95.1-1992 specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 20 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed persons to maintain a specified distance from the transmitter or to limit their exposure durations and usage conditions to ensure compliance. If the use of warning labels on a transmitter is not effective or desirable, the alternative of performing SAR evaluation with the device at its closest range to persons under normal operating conditions may be used. The field strength and power density limits adopted by the FCC are based on whole-body averaged exposure and the assumption of RF field levels relate most accurately to estimating whole-body averaged SAR. This means some local values of exposures exceeding the stated field strength and power density limits may not necessarily imply non-compliance if the spatial average of spatially averaged RF fields over the exposed portions of a p…

Text truncated - open the document above for the full version.

NORTHWEST EMC TEST EQUIPMENT ID Interval (mo) RFW12 AMI12 TIK36 AAX12 TEST DESCRIPTION AgilentE4440A Attenuator - 20db, 'SMA'SM Electronics XMit 2014.02.07 4/28/2014 OCCUPIED BANDWIDTH SA26B-204/3/2014 Testing was performed using the mode(s) of operation and configuration(s) noted within the report. The individuals and/or the organization requesting the test provided the modes, configurations and settings used to complete the evaluation. The actual test parameters are specified in the test data, this includes items such as investigated frequency range (scanned) and test levels. The testing methods and performance specifications, as well as the test site used for the evaluation are indicated in the test data. Spectrum Analyzer 40 GHz DC blockFairview MicrowaveSD33799/26/2013 DescriptionManufacturerModelLast Cal. Signal Generator MXGAgilentN5183A6/7/2012 The 6dB occupied bandwidth was measured using 100 kHz resolution bandwidth and 300 kHz video bandwidth. The 99.9% (approximate 26 dB) emission bandwidth (EBW) was also measured at the same time. The EUT was set to low, medium and high transmit frequencies. The measurement was made using a direct connection between the RF output of the EUT and the spectrum analyzer. The EUT was transmitting at the data rate(s) listed in the datasheet. OCCUPIED BANDWIDTH XMit 2014.02.07 NORTHWEST OCCUPIED BANDWIDTH NweTx 2014.07.18.3 EMC EUT: ConnectCore6 (i.MX6)Work Order: ETHE0008 Serial Number: 00409D7B8CA2Date: Customer: Etherios Design SolutionsTemperature: 23°C Attendees: NoneHumidity: 59% Project: NoneBarometric Pres.: 1016.5 Tested by: Trevor BulsPower: 5.0VDCJob Site: MN08 TEST SPECIFICATIONSTest Method COMMENTS DEVIATIONS FROM TEST STANDARD Signature Limi t Value(>)Result Port 1 802.11(b) 1 Mbps Low Channel 1, 2412 MHz10.077 MHz500 kHzPass Mid Channel 6, 2437 MHz10.086 MHz500 kHzPass High Channel 11, 2462 MHz10.088 MHz500 kHzPass 802.11(b) 11 Mbps Low Channel 1, 2412 MHz10.766 MHz500 kHzPass Mid Channel 6, 2437 MHz10.235 MHz500 kHzPass High Channel 11, 2462 MHz9.953 MHz500 kHzPass 802.11(g) 6 Mbps Low Channel 1, 2412 MHz16.554 MHz500 kHzPass Mid Channel 6, 2437 MHz16.579 MHz500 kHzPass High Channel 11, 2462 MHz16.556 MHz500 kHzPass 802.11(g) 36 Mbps Low Channel 1, 2412 MHz16.482 MHz500 kHzPass Mid Channel 6, 2437 MHz16.473 MHz500 kHzPass High Channel 11, 2462 MHz16.502 MHz500 kHzPass 802.11(g) 54 Mbps Low Channel 1, 2412 MHz16.514 MHz500 kHzPass Mid Channel 6, 2437 MHz16.482 MHz500 kHzPass High Channel 11, 2462 MHz16.511 MHz500 kHzPass 802.11(n) MCS0 Low Channel 1, 2412 MHz17.714 MHz500 kHzPass Mid Channel 6, 2437 MHz17.681 MHz500 kHzPass High Channel 11, 2462 MHz17.751 MHz500 kHzPass 802.11(n) MCS7 Low Channel 1, 2412 MHz17.737 MHz500 kHzPass Mid Channel 6, 2437 MHz17.748 MHz500 kHzPass High Channel 11, 2462 MHz17.746 MHz500 kHzPass 802.11(a) 6 Mbps Low Channel 149, 5745 MHz16.471 MHz500 kHzPass Mid Channel 157, 5785 MHz16.425 MHz500 kHzPass High Channel 165, 5825 MHz16.455 MHz500 kHzPass 802.11(a) 36 Mbps Low Channel 149, 5745 MHz16.45 MHz500 kHzPass Mid Channel 157, 5785 MHz16.468 MHz500 kHzPass High Channel 165, 5825 MHz16.434 MHz500 kHzPass 802.11(a) 54 Mbps Low Channel 149, 5745 MHz16.508 MHz500 kHzPass Mid Channel 157, 5785 MHz16.452 MHz500 kHzPass High Channel 165, 5825 MHz16.416 MHz500 kHzPass 802.11(n) MCS0 - UNII Low Channel 149, 5745 MHz17.679 MHz500 kHzPass Mid Channel 157, 5785 MHz17.658 MHz500 kHzPass High Channel 165, 5825 MHz17.648 MHz500 kHzPass 802.11(n) MCS7 - UNII Low Channel 149, 5745 MHz17.687 MHz500 kHzPass Mid Channel 157, 5785 MHz17.614 MHz500 kHzPass High Channel 165, 5825 MHz17.658 MHz500 kHzPass Port 2 802.11(b) 1 Mbps Low Channel 1, 2412 MHz9.84 MHz500 kHzPass Mid Channel 6, 2437 MHz10.073 MHz500 kHzPass High Channel 11, 2462 MHz9.783 MHz500 kHzPass 802.11(b) 11 Mbps Low Channel 1, 2412 MHz10.296 MHz500 kHzPass Mid Channel 6, 2437 MHz9.815 MHz500 kHzPass High Channel 11, 2462 MHz9.993 MHz500 kHzPass 802.11(g) 6 Mbps Low Channel 1, 2412 MHz16.557 MHz500 kHzPass Mid Channel 6, 2437 MHz16.559 MHz500 kHzPass High Channel 11, 2462 MHz16.551 MHz500 kHzPass 802.11(g) 36 Mbps Low Channel 1, 2412 MHz16.506 MHz500 kHzPass Mid Channel 6, 2437 MHz16.485 MHz500 kHzPass High Channel 11, 2462 MHz16.49 MHz500 kHzPass 802.11(g) 54 Mbps Low Channel 1, 2412 MHz16.507 MHz500 kHzPass Mid Channel 6, 2437 MHz16.498 MHz500 kHzPass High Channel 11, 2462 MHz16.499 MHz500 kHzPass 802.11(n) MCS0 Low Channel 1, 2412 MHz17.695 MHz500 kHzPass Mid Channel 6, 2437 MHz17.734 MHz500 kHzPass High Channel 11, 2462 MHz17.699 MHz500 kHzPass OCCUPIED BANDWIDTH 08/22/14 Configuration #1 FCC 15.247:2014 ANSI C63.10:2009 None None 802.11(n) MCS7 Low Channel 1, 2412 MHz17.702 MHz500 kHzPass Mid Channel 6, 2437 MHz17.763 MHz500 kHzPass High Channel 11, 2462 MHz17.754 MHz500 kHzPass 802.11(a) 6 Mbps Low Channel 149, 5745 MHz16.499 MHz500 kHzPass Mid Channel 157, 5785 MHz16.472 MHz500 kHzPass High Channel 165, 5825 MHz16.433 MHz500 kHzPass 802.11(a) 36 Mbps Low Channel 149, 5745 MHz16.417 MHz500 kHzPass Mid Channel 157, 5785 MHz16.433 MHz500 kHzPass High Channel 165, 5825 MHz16.388 MHz500 kHzPass 802.11(a) 54 Mbps Low Channel 149, 5745 MHz16.475 MHz500 kHzPass Mid Channel 157, 5785 MHz16.421 MHz500 kHzPass High Channel 165, 5825 MHz16.417 MHz500 kHzPass 802.11(n) MCS0 - UNII Low Channel 149, 5745 MHz17.667 MHz500 kHzPass Mid Channel 157, 5785 MHz17.694 MHz500 kHzPass High Channel 165, 5825 MHz17.654 MHz500 kHzPass 802.11(n) MCS7 - UNII Low Channel 149, 5745 MHz17.694 MHz500 kHzPass Mid Channel 157, 5785 MHz17.653 MHz500 kHzPass High Channel 165, 5825 MHz17.668 MHz500 kHzPass OCCUPIED BANDWIDTH XMit 2014.02.07 NORTHWEST OCCUPIED BANDWIDTH NweTx 2014.07.18.3 EMC Limit Value(>)Result 10.077 MHz500 kHzPass Limit Value(>)Result 10.086 MHz500 kHzPass OCCUPIED BANDWIDTH Port 1, 802.11(b) 1 Mbps, Low Channel 1, 2412 MHz Port 1, 802.11(b) 1 Mbps, Mid Channel 6, 2437 MHz OCCUPIED BANDWIDTH XMit 2014.02.07 NORTHWEST OCCUPIED BANDWIDTH NweTx 2014.07.18.3 EMC Limit Value(>)Resu…

Text truncated - open the document above for the full version.

This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. This Report may only be duplicated in its entirety Etherios Design Solutions ConnectCore6 (i.MX6) FCC 15.207:2014 FCC 15.247:2014 Report # ETHE0008 NVLAP Lab Code: 200881-0 WTD 13.9.30 CERTIFICATE OF TEST Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Last Date of Test: September 10, 2014 Etherios Design Solutions Model: ConnectCore6 (i.MX6) Radio Equipment Testing Standards Specification Method FCC 15.247:2014 ANSI C63.10:2009 FCC 15.207:2014 ANSI C63.10:2009 Results Method Clause Test Description Applied Results Comments 6.2 Powerline Conducted Emissions Yes Pass 6.5, 6.6 Spurious Radiated Emissions Yes Pass 6.7 Band Edge Compliance Yes Pass 6.7 Spurious Conducted Emissions Yes Pass 6.9.1 Occupied Bandwidth Yes Pass 6.10.2 Output Power Yes Pass 6.11.2 Power Spectral Density Yes Pass 7.5 Duty Cycle Yes N/A Characterization of radio operation. Deviations From Test Standards None Approved By: Tim O'Shea, Operations Manager REV 2012.08.02 REVISION HISTORY Revision Number Description Date Page Number 00 None Barometric Pressure The recorded barometric pressure has been normalized to sea level. REV 2014.08.11 ACCREDITATIONS AND AUTHORIZATIONS United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC Guide 65 as a product certifier. This allows Northwest EMC …

Text truncated - open the document above for the full version.
