MCQ-EX50W5G NR/LTE Router

RELATED PRODUCTS APPLICATION EXAMPLE Manage this device with Digi Remote Manager FEATURES AND BENEFITS – – Future-proof and ready for new use cases such as 4G dual-APN, SD-WAN, 4K/8K cameras and AR/VR High-speed 4G LTE-Advanced Pro Cat 20 connectivity cellular radio – Enterprise-grade Wi-Fi 6 and dual 2.5 Gigabit Ethernet – Extended operating temperature range for wider use cases – Standards-based Power over Ethernet simplifies installation – Multiple mounting options and accessories – Serial port for remote, out-of-band management – Securely deploy, monitor and control devices with Digi Remote Manager® Digi EX12 Digi EX15 4G LTE Advanced Pro enterprise solution for primary or backup wireless connectivity Business has forever changed with millions of employees working remotely. The Digi EX40 cellular router with 4G LTE Advanced Pro connectivity provides your business with a fast, secure and resilient enterprise-grade network that changes the work-from-anywhere experience for good. Digi EX40 is an ideal choice for your business as you adapt to the new normal. The small form factor of Digi EX40 makes it the 4G enterprise solution where the work is happening: at the headquarters for backup connectivity, at the branch for cost-optimized primary connectivity, or at the IT-managed home office for secure, all-in-one connectivity with Wi-Fi. Part of Digi enterprise solutions, this router comes with industry-leading software, including Digi Accelerated Linux (DAL OS), Digi TrustFence® security framework, and the Digi Remote Manager® configuration and management platform. These tools deliver security, reliability and system-wide management of your entire infrastructure. DIGI EX40 Dual-SIM slots provide carrier flexibility and wireless failover, and with 4G LTE and 3G fallback, you’re covered in areas where 5G is not yet deployed. The latest generation Wi-Fi 6 radios in the Digi EX50 router operate simultaneously for higher speed, capacity, quality of service and range than previous Wi-Fi products. Dual 2.5 Gigabit Ethernet ports break the Gigabit barrier and deliver 4G speeds for future-ready networks. Digi EX40 supports indoor use-cases with an extended operating temperature range, such as smart factories, warehouses, construction sites or infrastructure sheds. An available serial port with Cisco straight-through pinout enables secure out-of-band (OOB) management of other on- site equipment. To simplify installation, Digi EX40 can be directly powered by an active PoE+ switch or a DC IN barrel connector as the primary or backup power source for redundancy. PUBLIC G/G NETWORK DIGI EX40 HEADQUARTERS DIGITAL SIGNAGE SECURITY CAMERAS TERMINALS / PRINTERS PA / MUSIC POS TABLETS INTERNET Wired, DSL, Fiber Ethernet DIGI REMOTE MANAGER® CLOUD APPS DISTRIBUTION SWITCH KIOSK POINT OF SALE SECURITY SYSTEM BACK OFFICE UPS BACKUP POWER ETHERNET DATA/POWER SERIAL OOB MGMT BACK OFFICE OR IN STORE GUEST WI-FI SECURE POS WI-FI Digi Remote Manager Digi IX10Digi IX20 SPECIFICATIONS DIGI.COM CELLULAR CONNECTIVITY 5G NR Bands: not supported 4G LTE-ADVANCED PRO Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71; CBRS, LAA 3G HSPA+ Bands: B1, B2, B3, B4, B5, B6, B8, B9, B19 ANTENNA CONNECTORS (4) 50 Ω SMA (center pin: female) SIM SLOTS (2) Mini-SIM (2FF); sof ware selectable, hardware switchable; SIM slot cover plate SOFTWARE AND MANAGEMENT SOFTWARE Digi Accelerated Linux(DAL OS); secure, reliable, intelligent, customizable REMOTE MANAGEMENT Digi Remote Manager®; security, management, updates, alerts, scheduling and intelligence LOCAL MANAGEMENT Web Interface (HTTPS); Command Line Interface (SSH, serial port) PERFORMANCE ETHERNET THROUGHPUT 2.0 Gbps CELLULAR THROUGHPUT 1.0 Gbps IPSEC VPN THROUGHPUT 500 Mbps VPN TUNNELS 10 tunnels CLIENT COUNT 50 clients (typical) PROCESSOR APPLICATION PROCESSOR ARM® Cortex®-A53, 1.8 GHz, quad-core, 64-bit MEMORY 512 MB RAM, 512 MB flash ETHERNET PORTS (2) RJ-45; 10/100/1000/2500 Mbps (auto-sensing) WI-FI RADIOS Wi-Fi 6 / 802.11ax, enterprise-grade, dual-band simultaneous, 2x2 MIMO; 2.4 GHz: 802.11b/g/n/ax; 2.4 GHz and 5 GHz: 802.11a/n/ac/ax ANTENNAS Integrated 2x2 MIMO, 2.4 GHz (8 dBi gain) and 5 GHz (5 dBi gain) SECURITY Open, Enhanced Open, WPA, WPA2, WPA3; Personal, Enterprise MODES (4) Wi-Fi access points; (2) Wi-Fi clients; (50) Wi-Fi users (typical) SERIAL PORTS (1) RS-232 (RJ-45); Cisco straight-through pinout; for out-of-band management of network appliances and servers PHYSICAL DIMENSIONS (L x W x H) 158 mm x 158 mm x 35 mm (6.2 in x 6.2 in x 1.4 in) WEIGHT 600 g (21 oz) STATUS LEDs (14) total for easy visual troubleshooting; Power, LAN, WAN, Wi-Fi 2.4/5, Online, Cellular Signal, Cellular Service, SIM 1/2 ENCLOSURE Hybrid (die-cast aluminum + ABS plastic); Kensington Security Slot POWER REQUIREMENTS DC BARREL INPUT 19 VDC / 2.5 A barrel connector, 2.5 mm pin, center-positive POWER OVER ETHERNET Standards-based, IEEE 802.3at, PoE+ (25.5 W) POWER CONSUMPTION 8 W (idle), 15 W (typical), 25 W (maximum) ENVIRONMENTAL OPERATING TEMPERATURE 0° C to 40° C (32° F to 104° F) with included commercial-rated power supply; -30° C to 60° C (-22° F to 140° F) with Power over Ethernet or industrial-rated power supply RELATIVE HUMIDITY 5% to 95% (non-condensing) APPROVALS CELLULAR Visit www.digi.com/resources/certificationsfor latest certifications EMISSIONS / IMMUNITY CE; RED; FCC Part 15 Subpart B; CAN ICES-003 SAFETY IEC62368-1, CB, EN62311 WARRANTY PRODUCT WARRANTY 3-year* DIGI EX4 0 *Standard 3-year warranty upgradeable to 5 years with purchase of a Digi Remote Manager Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager. DIGI.COM DIGI REMOTE MANAGER® PRODUCT IMAGES 158 mm 158 mm 35 mm DIGI EX 40 BACK LAN/ PoE+ Serial DC Power Input DIGI EX40 FRONT DIGI EX 40 TOP WAN SIM Select Er…

Text truncated - open the document above for the full version.

RELATED PRODUCTS APPLICATION EXAMPLE Manage this device with Digi Remote Manager FEATURES AND BENEFITS – Future-proof and ready for new use cases such as 5G network slicing, SD-WAN, 4K/8K cameras and AR/VR – High-speed 5G NR and 4G LTE-Advanced Pro Cat 20 dual connectivity cellular radio – Enterprise-grade Wi-Fi 6 and dual 2.5 Gigabit Ethernet – Extended operating temperature range for wider use cases – Standards-based Power over Ethernet simplifies installation – Multiple mounting options and accessories – Serial port for remote, out-of-band management – Securely deploy, monitor and control devices with Digi Remote Manager® Digi EX12 Digi EX15 5G / 4G LTE cellular connectivity in a compact, all-in-one solution for primary or backup fixed wireless access (FWA) connectivity Business has forever changed with millions of employees working remotely. The Digi EX50 router with 5G/4G dual connectivity provides businesses with a secure, resilient and optimized enterprise-grade network that changes the work from anywhere experience for good. Its small form factor allows device placement where the work is happening. Reduce the complexity of managing multiple devices, and simplify installations and day-to-day management with Digi Remote Manager®. Establish valuable network resilience with 4G failover in cases of 5G disruption, and gain additional security and enterprise features. The Digi EX50 is an ideal choice for businesses as they adapt to the new normal. The latest generation Wi-Fi 6 radios in the Digi EX50 router operate simultaneously on 2.4 and 5 GHz with higher speed, DIGI EX50 capacity, quality of service and range than previous Wi-Fi 5 products to support many clients, bandwidth-intensive devices and new use cases such as AR/VR. Dual SIM slots provide carrier flexibility and wireless failover, and with 4G LTE and 3G fallback, you’re covered in areas where 5G is not yet deployed. Digi EX50 supports a wide range of indoor use-cases beyond A/C controlled spaces with an extended operating temperature range, such as smart factories, warehouses, construction sites or infrastructure sheds. An available serial port with Cisco straight-through pinout can provide out-of-band (OOB) management for other on-site equipment. To simplify installation, Digi EX50 can be directly powered by an active PoE+ switch or a DC IN barrel connector as the primary or backup power source for redundancy. PUBLIC G/G/G NETWORK DIGI EX50 HEADQUARTERS DIGITAL SIGNAGE SECURITY CAMERAS TERMINALS / PRINTERS PA / MUSIC POS TABLETS INTERNET Wired, DSL, Fiber Ethernet DIGI REMOTE MANAGER® CLOUD APPS DISTRIBUTION SWITCH KIOSK POINT OF SALE SECURITY SYSTEM BACK OFFICE UPS BACKUP POWER ETHERNET DATA/POWER SERIAL OOB MGMT BACK OFFICE OR IN STORE GUEST WI-FI SECURE POS WI-FI Digi Remote Manager Digi IX10Digi IX20 SPECIFICATIONS DIGI.COM CELLULAR CONNECTIVITY 5G NR Bands: n1, n2, n3, n5, n28, n41, n66, n71, n78, n79; C-Band 4G LTE-ADVANCED PRO Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71; CBRS, LAA 3G HSPA+ Bands: B1, B2, B3, B4, B5, B6, B8, B9, B19 ANTENNA CONNECTORS (4) 50 Ω SMA (center pin: female) SIM SLOTS (2) Mini-SIM (2FF); sof ware selectable, hardware switchable; SIM slot cover plate SOFTWARE AND MANAGEMENT SOFTWARE Digi Accelerated Linux(DAL OS); secure, reliable, intelligent, customizable REMOTE MANAGEMENT Digi Remote Manager®; security, management, updates, alerts, scheduling and intelligence LOCAL MANAGEMENT Web Interface (HTTPS); Command Line Interface (SSH, serial port) PERFORMANCE ETHERNET THROUGHPUT 2.0 Gbps CELLULAR THROUGHPUT 1.0 Gbps IPSEC VPN THROUGHPUT 500 Mbps VPN TUNNELS 10 tunnels CLIENT COUNT 50 clients (typical) PROCESSOR APPLICATION PROCESSOR ARM® Cortex®-A53, 1.8 GHz, quad-core, 64-bit MEMORY 512 MB RAM, 512 MB flash ETHERNET PORTS (2) RJ-45; 10/100/1000/2500 Mbps (auto-sensing) WI-FI RADIOS Wi-Fi 6 / 802.11ax, enterprise-grade, dual-band simultaneous, 2x2 MIMO; 2.4 GHz: 802.11b/g/n/ax; 2.4 GHz and 5 GHz: 802.11a/n/ac/ax ANTENNAS Integrated 2x2 MIMO, 2.4 GHz (8 dBi gain) and 5 GHz (5 dBi gain) SECURITY Open, Enhanced Open, WPA, WPA2, WPA3; Personal, Enterprise MODES (4) Wi-Fi access points; (2) Wi-Fi clients; (50) Wi-Fi users (typical) SERIAL PORTS (1) RS-232 (RJ-45); Cisco straight pinout; for out-of-band management of network appliances and servers PHYSICAL DIMENSIONS (L x W x H) 158 mm x 158 mm x 35 mm (6.2 in x 6.2 in x 1.4 in) WEIGHT 600 g (21 oz) STATUS LEDs (14) total for easy visual troubleshooting; Power, LAN, WAN, Wi-Fi 2.4/5, Online, Cellular Signal, Cellular Service, SIM 1/2 ENCLOSURE Hybrid (die-cast aluminum + ABS plastic); Kensington Security Slot POWER REQUIREMENTS DC BARREL INPUT 19 VDC / 2.5 A barrel connector, 2.5 mm pin, center-positive POWER OVER ETHERNET Standards-based, IEEE 802.3at, PoE+ (25.5 W) POWER CONSUMPTION 8 W (idle), 15 W (typical), 25 W (maximum) ENVIRONMENTAL OPERATING TEMPERATURE RELATIVE HUMIDITY 5% to 95% (non-condensing) APPROVALS CELLULAR Visit www.digi.com/resources/certificationsfor latest certifications EMISSIONS / IMMUNITY CE; RED; FCC Part 15 Subpart B; CAN ICES-003 SAFETY IEC62368-1, CB, EN62311 WARRANTY PRODUCT WARRANTY 3-year* DIGI EX50 *Standard 3-year warranty upgradeable to 5 years with purchase of a Digi Remote Manager Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager. ! "# $%&' ! "# ( )$* )+, -. / 0/ , %1 1 02, )3-423$0/ 5%( 026. 55-7849! "# $%&7! "# ( )$* : %( 02%; 02<$* 02+0$%2)+/ . 6$2)3-423$0/ 5%( 026. 55-7 DIGI.COM DIGI REMOTE MANAGER® PRODUCT IMAGES 158 mm 158 mm 35 mm DIGI EX50 BACK LAN/ PoE+ Serial DC Power Input DIGI EX50 FRONT DIGI EX50 TOP WAN SIM Select Erase Digi Remote Manager is the technology platform that brings networks to the next level, allowing networks — and the people who manage them — to work smarter. With Dig…

Text truncated - open the document above for the full version.

DIGI INTERNATIONAL 9350 Excelsior Blvd, Suite 700 Hopkins, MN 55343, USA Tel: +1 (952) 912-3444 Fax: +1 (952) 912-4991 October 22, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Attestation of Wi-Fi Non-US Channels for FCC ID: MCQ-EX50W To whom it may concern: We declare that the device does not support channel 12 through 13 in the 2.4 GHz band and any non-US channels in all the operational mode(s) for the following product. Product: 5G NR/LTE Router FCC ID: IC: MCQ-EX50W 1846A-EX50W Models (HVIN): Digi EX40, Digi EX50 Applicant: Digi International Inc. FRN: 0010283307 Sincerely, _____________________________ Name: Harald Remmert Title: Sr. Director of Engineering

DIGI INTERNATIONAL 9350 Excelsior Blvd, Suite 700 Hopkins, MN 55343, USA Tel: +1 (952) 912-3444 Fax: +1 (952) 912-4991 October 22, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Declaration Letter: Models Digi EX40 and Digi EX50 for FCC ID: MCQ-EX50W To whom it may concern: For our business and marketing requirements, we would like to list both of the following model numbers for the above FCC ID: • Model: Digi EX40 • Model: Digi EX50 Model Differences: Digi EX40 uses the same construction and Wi-Fi radio as the Digi EX50, but is paired with a different cellular modem. There are no other electrical or software differences between the two models. Product: 5G NR/LTE Router FCC ID: IC: MCQ-EX50W 1846A-EX50W Models (HVIN): Digi EX40, Digi EX50 Applicant: FRN: Digi International Inc. 0010283307 Sincerely, _____________________________ Name: Harald Remmert Title: Sr. Director of Engineering

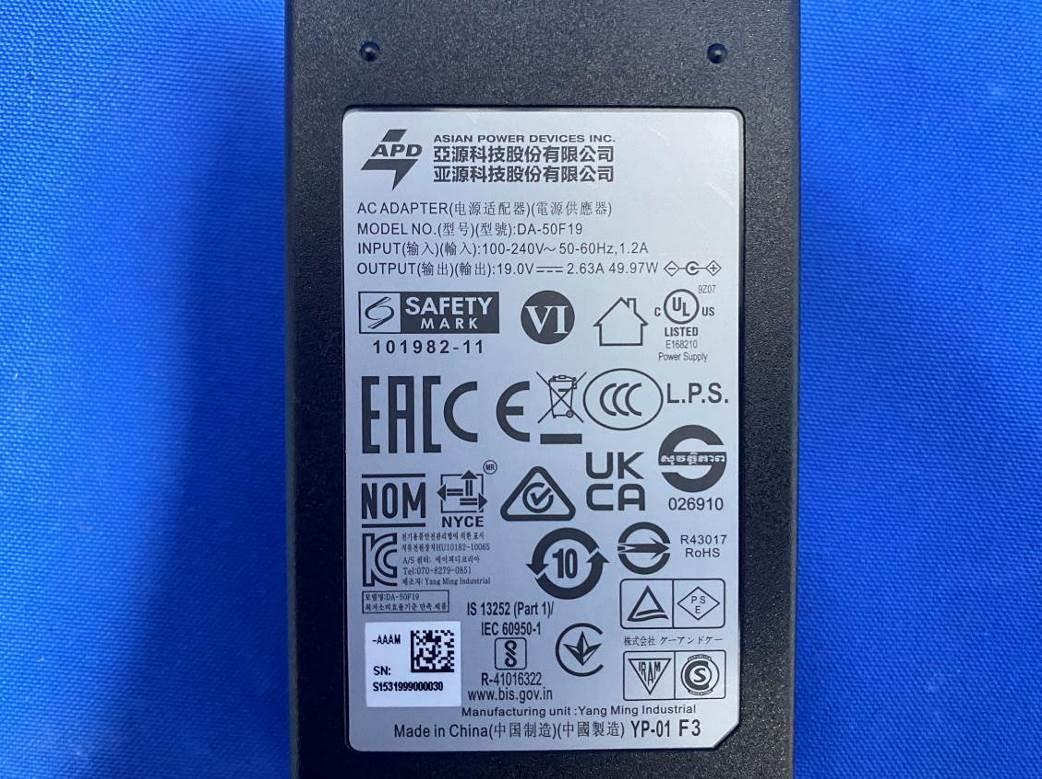

Report No.: 2106RSU041-UE 1 of 7 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2106RSU041-UE 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 2106RSU041-UE 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 2106RSU041-UE 4 of 7 (7) EUT Photo (8) EUT Photo Report No.: 2106RSU041-UE 5 of 7 (9) EUT Photo (10) EUT Photo (LTE module and 5G NR module Antennas) Report No.: 2106RSU041-UE 6 of 7 (11) EUT Photo (12) EUT Photo Report No.: 2106RSU041-UE 7 of 7 (13) EUT Photo

Label Label Location Bottom Side Label Here

Report No.: 2106RSU041-UE 1 of 11 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2106RSU041-UE 2 of 11 (3) EUT Photo (4) EUT Photo (EX40) Report No.: 2106RSU041-UE 3 of 11 (5) EUT Photo (EX40) (6) EUT Photo (EX40) Report No.: 2106RSU041-UE 4 of 11 (7) EUT Photo (EX40) (8) EUT Photo (EX40 module) Report No.: 2106RSU041-UE 5 of 11 (9) EUT Photo (EX40 module) (10) EUT Photo (EX50) Report No.: 2106RSU041-UE 6 of 11 (11) EUT Photo (EX50) (12) EUT Photo (EX50) Report No.: 2106RSU041-UE 7 of 11 (13) EUT Photo (EX50) (14) EUT Photo (EX50 module) Report No.: 2106RSU041-UE 8 of 11 (15) EUT Photo (EX50 module) (16) EUT Photo Report No.: 2106RSU041-UE 9 of 11 (17) EUT Photo (18) EUT Photo Report No.: 2106RSU041-UE 10 of 11 (19) EUT Photo (20) EUT Photo Report No.: 2106RSU041-UE 11 of 11 (21) EUT Photo (22) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2106RSU041-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 11-16-2021 1 of 189 FCC ID: MCQ-EX50W Applicant: Digi International Inc. Application Type: Certification Product: 5G NR/LTE Router Model No.: Digi EX40, Digi EX50 Brand Name: DIGI FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15 Subpart C (Section 15.247) Test Procedure(s): ANSI C63.10-2013, KDB 662911 D01v02r01 Test Date: July 17 ~ August 27, 2021 Reviewed By: Kevin Guo Approved By: Robin Wu MEASUREMENT REPORT FCC PART 15C / WLAN 802.11b/g/n/ax The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2106RSU041-U1 2 of 189 Revision History Report No. Version Description Issue Date Note 2106RSU041-U1 Rev. 01 Initial Report 11-16-2021 Valid Report No.: 2106RSU041-U1 3 of 189 CONTENTS Description Page 1. General Information .............................................................................................................. 5 1.1. Applicant ...................................................................................................................... 5 1.2. Manufacturer ............................................................................................................... 5 1.3. Testing Facility ............................................................................................................. 5 1.4. Product Information ..................................................................................................... 6 1.5. Radio Specification ...................................................................................................... 7 1.6. Working Frequencies ................................................................................................... 7 1.7. Antenna Details ........................................................................................................... 7 1.8. Test Mode .................................................................................................................... 8 1.9. Test System Connection Diagram ................................................................................ 8 1.10. Test System Details ..................................................................................................... 9 1.11. Test Software ............................................................................................................... 9 1.12. Duty Cycle ................................................................................................................... 9 1.13. Test Environment Condition ....................................................................................... 10 2. Antenna Requirements ....................................................................................................... 11 3. Test Equipment Calibration Date ....................................................................................... 12 4. Measurement Uncertainty .................................................................................................. 14 5. Test Result ........................................................................................................................... 15 5.1. Summary ................................................................................................................... 15 5.2. 6dB Bandwidth Measurement .................................................................................... 16 5.2.1. Test Limit ............................................................................................................... 16 5.2.2. Test Procedure used .............................................................................................. 16 5.2.3. Test Setting ............................................................................................................ 16 5.2.4. Test Setup .............................................................................................................. 16 5.2.5. Test Result ............................................................................................................. 17 5.3. Output Power Measurement ...................................................................................... 24 5.3.1. Test Limit ............................................................................................................... 24 5.3.2. Test Procedure Used ............................................................................................. 24 5.3.3. Test Setting ............................................................................................................ 24 5.3.4. Test Setup .............................................................................................................. 24 5.3.5. Test Result ............................................................................................................. 25 5.4. Power Spectral Density Measurement ....................................................................... 27 5.4.1. Test Limit ............................................................................................................... 27 5.4.2. Test Procedure Used ............................................................................................. 27 5.4.3. Test Setting ............................................................................................................ 27 Report No.: 2106RSU041-U1 4 of 189 5.4.4. Test Setup ............................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 2106RSU041-U1 41 of 189 802.11ax-HE40 - AVGPSD - Ant 1 Channel 03 (2422MHz) Channel 06 (2437MHz) Channel 09 (2452MHz) Report No.: 2106RSU041-U1 42 of 189 5.5. Conducted Band Edge and Out-of-Band Emissions 5.5.1.Test Limit The limit for out-of-band spurious emissions at the band edge is 30dB below the fundamental emission level, as determined from the in-band power measurement of the DTS channel performed in a 100 kHz bandwidth per the PSD procedure. 5.5.2.Test Procedure Used ANSI C63.10-2013 - Section 11.11 5.5.3.Test Settitng Reference level measurement 1. Set instrument center frequency to DTS channel center frequency 2. Set the span to ≥ 1.5 times the DTS bandwidth 3. Set the RBW = 100 kHz 4. Set the VBW ≥ 3 x RBW 5. Detector = peak 6. Sweep time = auto couple 7. Trace mode = max hold 8. Allow trace to fully stabilize Emission level measurement 1. Set the center frequency and span to encompass frequency range to be measured 2. RBW = 100kHz 3. VBW = 300kHz 4. Detector = Peak 5. Trace mode = max hold 6. Sweep time = auto couple 7. The trace was allowed to stabilize Report No.: 2106RSU041-U1 43 of 189 5.5.4.Test Setup Report No.: 2106RSU041-U1 44 of 189 5.5.5.Test Result Test Site NS-TR2 Test Engineer Flag Yang Test Date 2021/07/27~2021/08/06 Test Mode Data Rate / MCS Channel No. Frequency (MHz) Limit Result 802.11b 1Mbps 01 2412 30dBc Pass 802.11b 1Mbps 06 2437 30dBc Pass 802.11b 1Mbps 11 2462 30dBc Pass 802.11g 6Mbps 01 2412 30dBc Pass 802.11g 6Mbps 06 2437 30dBc Pass 802.11g 6Mbps 11 2462 30dBc Pass 802.11n-HT20 MCS0 01 2412 30dBc Pass 802.11n-HT20 MCS0 06 2437 30dBc Pass 802.11n-HT20 MCS0 11 2462 30dBc Pass 802.11n-HT40 MCS0 03 2422 30dBc Pass 802.11n-HT40 MCS0 06 2437 30dBc Pass 802.11n-HT40 MCS0 09 2452 30dBc Pass 802.11ax-HE20 MCS0 01 2412 30dBc Pass 802.11ax-HE20 MCS0 06 2437 30dBc Pass 802.11ax-HE20 MCS0 11 2462 30dBc Pass 802.11ax-HE40 MCS0 03 2422 30dBc Pass 802.11ax-HE40 MCS0 06 2437 30dBc Pass 802.11ax-HE40 MCS0 09 2452 30dBc Pass Report No.: 2106RSU041-U1 45 of 189 802.11b Out-of-Band Emissions - Ant 0 Channel 01 (2412MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 2106RSU041-U1 46 of 189 Channel 11 (2462MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Report No.: 2106RSU041-U1 47 of 189 802.11g Out-of-Band Emissions - Ant 0 Channel 01 (2412MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 2106RSU041-U1 48 of 189 Channel 11 (2462MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Report No.: 2106RSU041-U1 49 of 189 802.11n-HT20 Out-of-Band Emissions -Ant 0 Channel 01 (2412MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 2106RSU041-U1 50 of 189 Channel 11 (2462MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Report No.: 2106RSU041-U1 51 of 189 802.11n-HT40 Out-of-Band Emissions - Ant 0 Channel 03 (2422MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 2106RSU041-U1 52 of 189 Channel 09 (2452MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Report No.: 2106RSU041-U1 53 of 189 802.11ax-HE20 Out-of-Band Emissions -Ant 0 Channel 01 (2412MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 2106RSU041-U1 54 of 189 Channel 11 (2462MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Report No.: 2106RSU041-U1 55 of 189 802.11ax-HE40 Out-of-Band Emissions - Ant 0 Channel 03 (2422MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 2106RSU041-U1 56 of 189 Channel 09 (2452MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Report No.: 2106RSU041-U1 57 of 189 802.11b Out-of-Band Emissions - Ant 1 Channel 01 (2412MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 2106RSU041-U1 58 of 189 Channel 11 (2462MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission

Report No.: 2106RSU041-U1 59 of 189 802.11g Out-of-Band Emissions - Ant 1 Channel 01 (2412MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 2106RSU041-U1 60 of 189 Channel 11 (2462MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Report No.: 2106RSU041-U1 61 of 189 802.11n-HT20 Out-of-Band Emissions -Ant 1 Channel 01 (2412MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 2106RSU041-U1 62 of 189 Channel 11 (2462MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Report No.: 2106RSU041-U1 63 of 189 802.11n-HT40 Out-of-Band Emissions - Ant 1 Channel 03 (2422MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 2106RSU041-U1 64 of 189 Channel 09 (2452MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Report No.: 2106RSU041-U1 65 of 189 802.11ax-HE20 Out-of-Band Emissions -Ant 1 Channel 01 (2412MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 2106RSU041-U1 66 of 189 Channel 11 (2462MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Report No.: 2106RSU041-U1 67 of 189 802.11ax-HE40 Out-of-Band Emissions - Ant 1 Channel 03 (2422MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 2106RSU041-U1 68 of 189 Channel 09 (2452MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Report No.: 2106RSU041-U1 69 of 189 5.6. Radiated Spurious Emission Measurement 5.6.1.Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [uV/m] Measured Distance [Meters] 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 5.6.2.Test Procedure Used ANSI C63.10 - 2013 - Section 11.11 & 11.12 ANSI C63.10 - 2013 - Section 6.3 (General Requirements) ANSI C63.10 - 2013 - Section 6.4 (Standard test method below 30MHz) ANSI C63.10 - 2013 - Section 6.5 (Standard test method above 30MHz to 1GHz) ANSI C63.10 - 2013 - Section 6.6 (Standard test method above 1GHz) 5.6.3.Test Setting Table 1 - RBW as a function of frequency Frequency RBW 9 ~ 150 kHz 200 ~ 300 Hz 0.15 ~ 30 MHz 9 ~ 10 kHz 30 ~ 1000 MHz 100 ~ 120 kHz > 1000MHz 1MHz Report No.: 2106RSU041-U1 70 of 189 Quasi-Peak Measurements below 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. Span was set greater than 1MHz 3. RBW = as specified in Table 1 4. Detector = CISPR quasi-peak 5. Sweep time = auto couple 6. Trace was allowed to stabilize Peak Measurements above 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Average Measurements above 1GHz (Method VB) 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW; If the EUT is configured to transmit with duty cycle ≥ 98%, set VBW = 10 Hz. If the EUT duty cycle is < 98%, set VBW ≥ 1/T. T is the minimum transmission duration. 4. Detector = Peak 5. Sweep time = auto 6. Trace mode = max hold 7. Trace was allowed to stabilize Report No.: 2106RSU041-U1 71 of 189 5.6.4.Test Setup Below 1GHz Test Setup: Above 1GHz Test Setup: Report No.: 2106RSU041-U1 72 of 189 5.6.5.Test Result Test Site NS-AC1 Test Engineer Dillon Diao Test Date 2021/07/31 Test Mode 802.11b Remark 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Channel Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 01 3762.5 43.5 -0.1 43.4 74.0 -30.6 Peak Horizontal 4995.0 39.6 3.6 43.2 74.0 -30.8 Peak Horizontal 11480.5 34.3 16.4 50.7 74.0 -23.3 Peak Horizontal 4672.0 39.3 3.0 42.3 74.0 -31.7 Peak Vertical 7485.5 36.4 10.5 46.9 74.0 -27.1 Peak Vertical 12424.0 36.8 15.2 52.0 74.0 -22.0…

Text truncated - open the document above for the full version.
