MCQ-WDNUIIWDNU-II

Digi International Inc
WDNU-II - FCC ID MCQ-WDNUII - Digi International Inc
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 30, 2015
Application Purpose
Original Equipment
Date of Application
Jul 30, 2015
Equipment Note
WDNU-II
Frequency Range
2412.00000000 - 2462.00000000
Company
Digi International Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗
↗

Operational Description

↗
↗

RF Exposure Info

↗

Test Report

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Theory of Operations and User Manual SPF‐005 GEAS WDNU‐II SDRL A036 Digi Part Number: 90001937 Revision Control Revision Author(s) DescriptionDateReviewed By Approved By 1.0 Tom Manley Initial draft for customer submittal12/31/14Travis Wenzel Tom Wolf — Tom Manley, Steve Stack Incorporated GE Comments from 01/21/15, added SIM activation section, added web interface section, formatting and editing 03/16/15Travis Wenzel Tom Wolf 1.1 Matt Schellin Added Certification Section4/20/2015 GE Aviation WDNU‐II Revision: —, 03/16/15 A036 –Operations and User Manual Digi Part Number: 90001937 © 2015 Etherios 2 of 27 Table of Contents 1 Overview or Purpose ....................................................................................................................................................... 5 2 Scope ................................................................................................................................................................................ 6 3 Reference Material .......................................................................................................................................................... 7 3.1 Reference Documents ............................................................................................................................................. 7 3.2 Acronyms, Terms and Definitions ........................................................................................................................... 7 4 WDNU‐II Overview ........................................................................................................................................................... 9 4.1 General Description ................................................................................................................................................ 9 4.2 Physical Description ................................................................................................................................................ 9 4.3 WDNU‐II Interfaces ............................................................................................................................................... 10 4.3.1 Radio Power On Discrete .................................................................................................................................. 11 4.3.2 Radio Power Off Discretes ................................................................................................................................ 12 4.3.3 Ethernet Interface ............................................................................................................................................. 12 4.3.4 Universal Serial Bus (USB) Serial ....................................................................................................................... 12 4.3.5 RS‐232 Interface ................................................................................................................................................ 12 4.4 WDNU‐II RF Interfaces .......................................................................................................................................... 12 4.4.1 Wi‐Fi Connection ............................................................................................................................................... 12 4.4.2 GSM Connection ............................................................................................................................................... 12 5 WDNU‐II Functional Description .................................................................................................................................... 13 5.1 Network Interfaces ............................................................................................................................................... 13 5.1.1 Ethernet ............................................................................................................................................................ 13 5.1.2 Wi‐Fi .................................................................................................................................................................. 13 5.1.3 Cellular .............................................................................................................................................................. 14 5.2 Services ................................................................................................................................................................. 15 5.2.1 Command‐Line Interface (CLI) .......................................................................................................................... 16 5.2.2 Command Handler Interface Protocol (CHIP) ................................................................................................... 16 5.2.3 Web User Interface ........................................................................................................................................... 16 5.3 Network Interface Configuration .......................................................................................................................... 16 5.4 Python ................................................................................................................................................................... 17 5.5 Startup Sequence .................................................................................................................................................. 17 6 Detailed WDNU‐II‐Specific Description ......................................................................................................................... 18 6.1 CHIP ....................................................................................................................................................................... 18 6.1.1 CHIP Commands ....................................................................…

Text truncated - open the document above for the full version.

External Photos

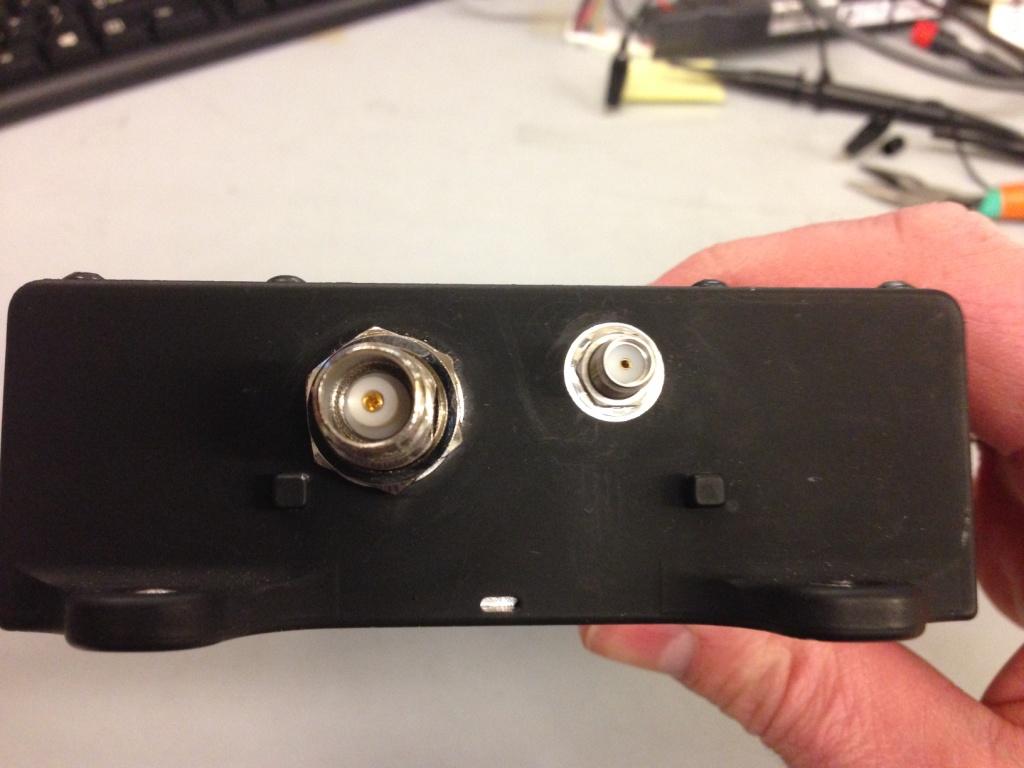

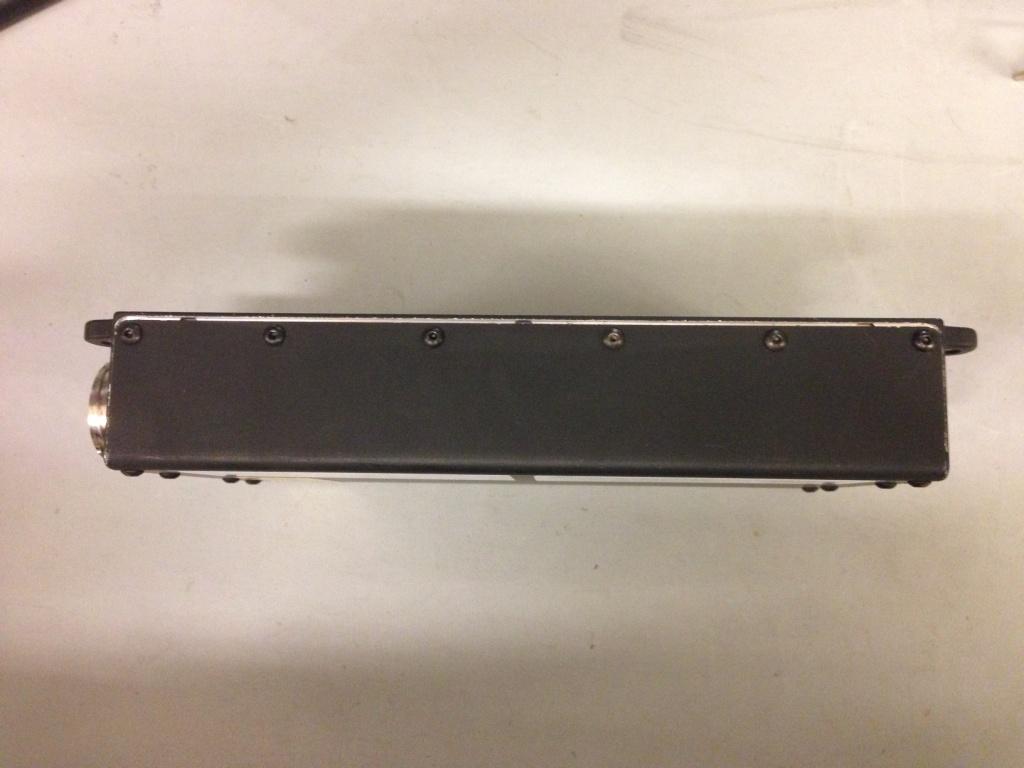

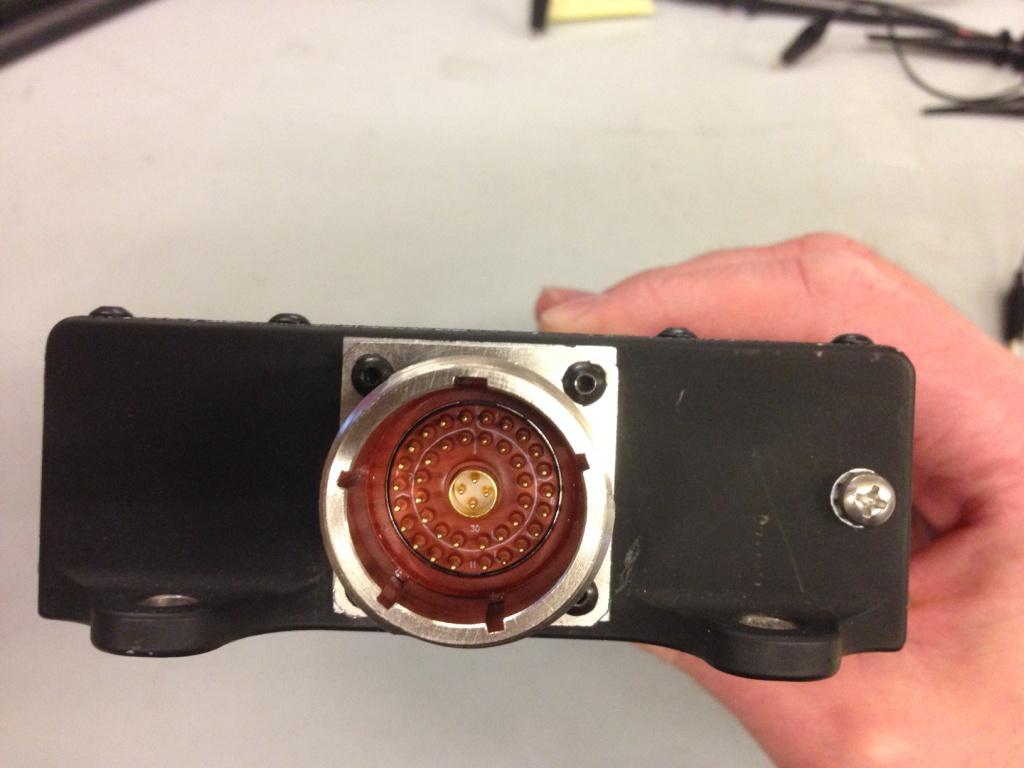

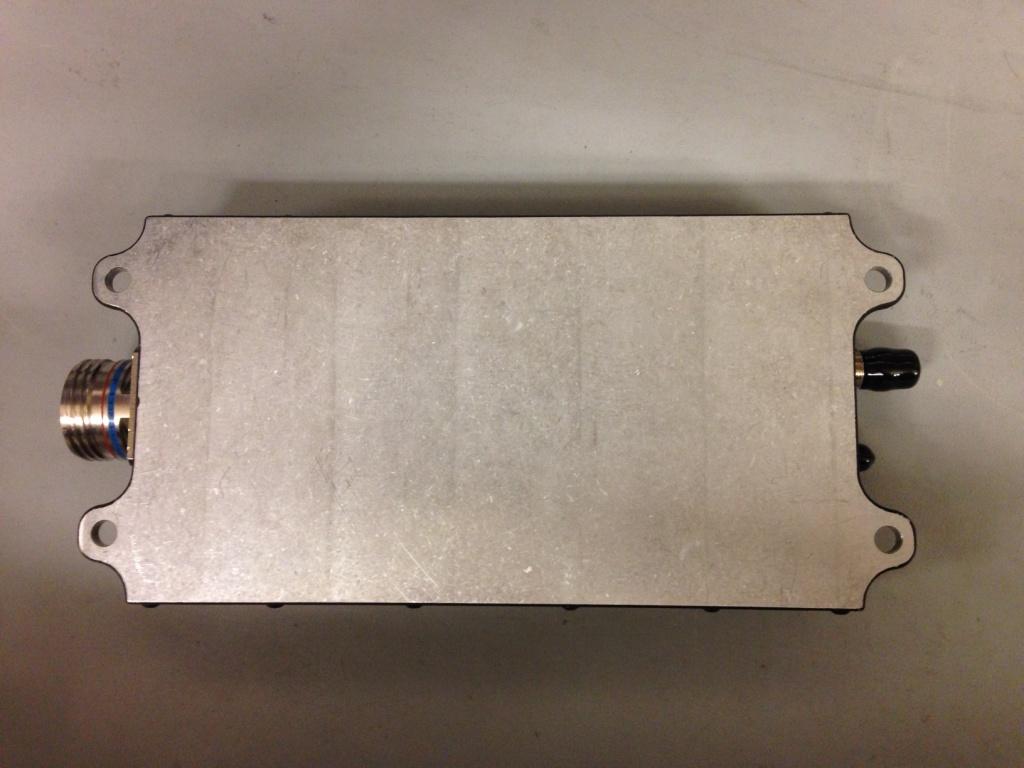

Top Side: Side A: Side B: Left Side: Right Side: Bottom:

Internal Photos

With Cover Off: Top of PCB:

Internal Photos

Top with SOM removed: Bottom of PCB:

Operational Description

L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845 WWW.L-COM.COM E-MAIL: [email protected] PHONE: 1-800-343-1455 FAX: 1-978-689-9484 © L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks. HyperLink Wireless 698-960/1710-2700 MHz 3 dBi Magnetic Mount Omni Antenna Models: HG72703MGURB and HG72703MGURW Applications  DAS (Distributed Antenna Systems)  700 MHz, cellular and LTE networks  AWS (Advanced wireless services) band applications  PCS (Personal communications service) band applications  Ideal for use on vehicles Features  Frequency coverage for 700 MHz, 850 MHz, AWS and PCS bands  Compact size, available in White or Black  Radome enclosed, ideal for outdoor use  TAD/NMO mounting  Magnetic base with 10 foot high performance low-loss cable Description The Antenna The antenna featured in this kit is the HyperLink HG72703UR-NMO series. They are compact 3 dBi omnidirectional antennas specifically designed for DAS (Distributed Antenna Systems). The HG72703UR-NMO combines several different frequency bands to allow multi-user options. They are ideal for multipoint and mobile applications Measuring only 3.8 inches long, the HG72703UR-NMO series features an aesthetic ABS plastic radome available in White or Black. It is designed with a standard TAD/NMO Motorola-type connection that allows for ease of installation to similar TAD/NMO mounting systems. Because of its near-invisible design this antenna is ideal for use on vehicles where vandal-resistance and aesthetics are important. Magnetic Mount The magnetic mount included with this kit features a chrome base with a heavy-duty magnet to ensure positive mounting. It is well suited for mobile applications including service vehicles, public transportation, law enforcement, mining and construction vehicles. A 10 foot high performance low-Loss 195 series cable is provided and multiple connector options are available. L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845 WWW.L-COM.COM E-MAIL: [email protected] PHONE: 1-800-343-1455 FAX: 1-978-689-9484 © L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks. Model Numbers Model Number Color HG72703MGURB-xxx* Black HG72703MGURW-xxx* White *See drawing for connector options Specifications Antenna Mechanical Specifications Connector TAD/NMO Dimensions (length x Dia.) 3.8 x 1.4 in. (96 x 36 mm) Weight 0.20 lb. (0.09kg) Rated Wind Velocity 130mph (210km/h) Operating Temperature -40° C to 60° C (-40° F to 140° F) Antenna Electrical Specifications Frequency 698-960/1710-2700 MHz Gain 3 dBi Polarization Vertical Horizontal Beamwidth 315° (700 MHz) / 360° (2700 MHz) Vertical Beamwidth 80° (700 MHz) / 55° (2700 MHz) VSWR ≤3.0 Impedance 50 Ohm Maximum Power 100W Lightning Protection DC Open Magnetic Mount Specifications Diameter 3 in. (76.2mm) Height (Mount Only) 1.2 in. (31.7mm) Height (with Antenna) 4.7 in. (119mm) Weight (Mount Only) 0.89 lbs. (.40kg) Weight (with Antenna) 1.10 lbs. (.50kg) Mount Connector TAD/NMO Cable Black Low-Loss 195 Series – 10 foot L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845 WWW.L-COM.COM E-MAIL: [email protected] PHONE: 1-800-343-1455 FAX: 1-978-689-9484 © L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks. RF Antenna Patterns L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845 WWW.L-COM.COM E-MAIL: [email protected] PHONE: 1-800-343-1455 FAX: 1-978-689-9484 © L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks.

Operational Description

Antenna #1: HG72703MGURB‐NM Manufactory: Antenna #1: L‐com Global Connectivity Model number: Antenna #1: HG72703MGURB‐NM Gain (dB): Antenna #1: 698‐960/1710‐2700MHz – 3dBi Description: Antenna #1: 3dbi DAS antenna; Radiation pattern – Omni Physical dimensions: Antenna #1: 3.8 x 1.4 in.

RF Exposure Info

This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. This Report may only be duplicated in its entirety Etherios Design Solutions WDNU-II FCC 2.1091:2015 Report # ETHE0024.1 NVLAP Lab Code: 200881-0 CERTIFICATE OF EVALUATION 2014-12-10 Product compliance is the responsibility of the client; therefore, the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. This report reflects only those tests from the referenced standards shown in the certificate of test. It does not include inspection or verification of labels, identification, marking or user information. Last Date of Test: June 22, 2015 Etherios Design Solutions Model: WDNU-II Radio Equipment Testing Standards Specification Method FCC 2.1091:2015 KDB 447498 D01 General RF Exposure Guidance v05r02 Results Method Description Applied Results Comments 7.2 Maximum Permissible Exposure Yes Pass Deviations From Test Standards None Approved By: Don Facteau, IT Manager Report No. ETHE0024.12/9 REVISION HISTORY REV 2014.10.14 Revision Number Description Date Page Number 00 None Report No. ETHE0024.13/9 ACCREDITATIONS AND AUTHORIZATIONS REV 2015.2.19 United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC 17065 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea MSIP / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Israel MOC – Recognized by MOC as a CAB for the acceptance of test data. Hong Kong OFCA – Recognized by OFCA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ http://gsi.nist.gov/global/docs/cabs/designations.html Report No. ETHE0024.14/9 FACILITIES REV 2015.2.19 California Labs OC01-13 41 Tesla Irvine, CA 92618 (949) 861-8918 Minnesota Labs MN01-08, MN10 9349 W Broadway Ave. Brooklyn Park, MN 55445 (612)-638-5136 New York Labs NY01-04 4939 Jordan Rd. Elbridge, NY 13060 (315) 554-8214 Oregon Labs EV01-12 22975 NW Evergreen Pkwy Hillsboro, OR 97124 (503) 844-4066 Texas Labs TX01-09 3801 E Plano Pkwy Plano, TX 75074 (469) 304-5255 Washington Labs NC01-05 19201 120 th Ave NE Bothell, WA 9801 (425)984-6600 NVLAP NVLAP Lab Code: 200676-0 NVLAP Lab Code: 200881-0 NVLAP Lab Code: 200761-0 NVLAP Lab Code: 200630-0 NVLAP Lab Code:201049-0 NVLAP Lab Code: 200629-0 Industry Canada 2834B-1, 2834B-3 2834E-1 N/A 2834D-1, 2834D-2 2834G-1 2834F-1 BSMI SL2-IN-E-1154R SL2-IN-E-1152R N/A SL2-IN-E-1017 SL2-IN-E-1158R SL2-IN-E-1153R VCCI A-0029 A-0109 N/A A-0108 A-0201 A-0110 Recognized Phase I CAB for ACMA, BSMI, IDA, KCC/RRA, MIC, MOC, NCC, OFCA US0158 US0175 N/A US0017 US0191 US0157 Report No. ETHE0024.15/9 PRODUCT DESCRIPTION 2014-12-10 Client and Equipment Under Test (EUT) Information Company Name: Etherios Design Solutions Address: 110 N 5th Street, Suite 400 City, State, Zip: Minneapolis, MN 55413 Evaluation Requested By: Moshe Peri Model: WDNU-II Evaluation Date: June 22, 2015 Information Provided by the Party Requesting the Test Functional Description of the EUT: The device is a Wireless Data Network Unit (WDNU) installed in an airplane. It contains WiFi and Cellular radio modules. They can transmit simultaneously through the same antenna. Evaluation Objective: To demonstrate compliance with FCC requirements for RF exposure for 2.1091 mobile devices. Compliance with the stand-alone and simultaneous transmission configurations are evaluated. This report will support an application for certification for the device, and a Class I permissive change for the cellular modem FCC KDB 447498 D01 General RF Exposure Guidance v05r02, Section 3, Item 3 states: " When transmitter modules are incorporated in host devices that qualify for RF exposure test exclusion and no other testing or equipment approval is required, the standalone and simultaneous transmission configurations and test exclusion conditions must be fully documented in the grantee’s records according to Class I permissive change requirements." Report No. ETHE0024.16/9 MAXIMUM PERMISSIBLE EXPOSURE (MPE) WTD.2014.12.17 OVERVIEW Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. ANSI C95.1-2005 + Amd 1:2010 specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitt…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Erik Reynolds(Director of Engineering)
[email protected]952-912-4248Fax: 952-912-4248

Test Firm

Northwest EMC, Inc.Greg Kiemel
[email protected]503-844-4066Fax: 503-844-3826

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz892.00 mW
Confidentiality
Long Term
Grant Notes
Output power is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 22 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
