MCQ-WMPX5FWMP100

ConnectPort™ X5 Family User’s Guide ConnectPort X5 R ConnectPort X5 Fleet ConnectPort X5 K 90001100_C 2 ©Digi International Inc. 2010. All Rights Reserved. The Digi logo, Digi Connect, iDigi, ConnectPort, Digi SureLink, Digi Dialserv are trademarks or registered trademarks of Digi International, Inc. All other trademarks mentioned in this document are the property of their respective owners. Information in this document is subject to change without notice and does not represent a commitment on the part of Digi International. Digi provides this document “as is,” without warranty of any kind, either expressed or implied, including, but not limited to, the implied warranties of fitness or merchantability for a particular purpose. Digi may make improvements and/or changes in this manual or in the product(s) and/or the program(s) described in this manual at any time. This product could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes may be incorporated in new editions of the publication. 3 Contents Contents........................................................................................................................................................................................3 About this guide ...........................................................................................................................................................................7 Purpose ................................................................................................................................................................................7 Audience..............................................................................................................................................................................7 Scope ...................................................................................................................................................................................7 Where to find more information..........................................................................................................................................7 Digi contact information .....................................................................................................................................................8 Chapter 1: Introduction............................................................................................................................................................9 Important Safety Information ..............................................................................................................................................9 ConnectPort X5 Family products ......................................................................................................................................10 Wireless carrier certifications............................................................................................................................................11 Features .............................................................................................................................................................................12 User interfaces .........................................................................................................................................................12 Quick reference for configuring features ................................................................................................................13 Hardware features ...................................................................................................................................................19 Network interface features......................................................................................................................................19 Configurable network services ................................................................................................................................19 IP protocol support ..................................................................................................................................................20 Mobile/Cellular features and protocol support........................................................................................................24 RealPort software ....................................................................................................................................................25 Alarms .....................................................................................................................................................................25 Modem emulation ...................................................................................................................................................25 Security features ......................................................................................................................................................26 Configuration management .....................................................................................................................................27 Customization capabilities ......................................................................................................................................27 Supported connections and data paths in Digi devices.....................................................................................................28 Interfaces for configuring, monitoring, and administering Digi devices ..........................................................................31 Configuration capabilities .......................................................................................................................................31 Configuration interfaces .......................................................................................................…

Text truncated - open the document above for the full version.

Northwest EMC TCB Compliance Opinion Rev. 12/08/09 DGII0004 Information about the Applicant Grantee (Company Name) Digi International FCC Contact Person Trinh Huynh Address 11001 Bren Road East City, State, Zip Minnetonka, MN 55343 Job Number DGII0004 Model Connectport X5 WWAN Radio FCC ID MCQ-WMPX5F Agent Approval Type Original Equipment Class PCB-PCS Licensed transmitter Rule Part 22H, 24E Overview This application is for a limited modular approval of a GSM cellular modem, Model WMP100, FCC ID: MCQ-WMPX5F. This device will be installed in vehicle-mounted telematics gateway, Model X5 Fleet. The WMP100 will be co-located in the host device with 3 other previously approved radio modules, FCC IDS: MCQ-XBEEPRO2, MCQ-50M1589 and an Orbcomm Leo Satellite Transceiver, which operated under an Orbcomm blanket license, FCC Call Sign E940534, 10 FCC Red 6572 (1995). Test reports and technical exhibits demonstrate compliance with FCC Parts 22H and 24E. A Cetecom test report is submitted for the Wavecom WMP100, FCC ID:O9EWMP100 for antenna direct connect measurements, while the Northwest EMC report shows radiated emission measurements. The Wavecom model WMP100 and the Digi Model WMP100 are electrically and mechanically identical. This device is considered a mobile device for RF Exposure considerations. Confidentiality requested for allowed files. Request is properly addressed and referenced. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 5/18/2010

March 29, 2010 Sierra Wireless, Inc 2200 Faraday Ave Suite 150 Carlsbad, CA 92008 760-476-8700 RE: Digi FCC filing MCQ- WMPX5F To whom it may concern, Sierra Wireless, Inc hereby respectfully requests that under the provision of 47 CFR 0.459, the documents listed below and attached with this application for certification be provided with confidential status. • Schematics • Theory of Operation • Frequency Block Diagrams Any exhibit / information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to Sierra Wireless, Inc. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to Sierra Wireless, Inc could result should they be made available to the public. Sincerely, Brad Teeter FAE Manager

~_J~._ 11001 BrOIl Road East Minnetonka, MN 55343 952·912·3444101 952·912·4991 central fax To whom it may concern, Digi International is submitting our GSM cellular modem, Model WMPI 00, for FCC limited modular approval certification. The FCC ID number is MCQ-WMPX5F. It will be installed in our vehicle-mounted telematics gateway, Model X5 Fleet. The X5 Fleet also contains three other radio modules, a Wi-Fi (FCC ID: MCQ-50MI589), a Zigbee (FCC ID: MCQ-XBEEPR02), and an Orbcomm LEO satellitetransceiverModel MobiAppsm IO. Regarding the Orbcomm Leo satellite transceiver module, the FCC has issued Orbcornm a blanket license to operate mobile earth terminals with its non-voice, non-geostationary mobile satellite system, FCC Call Sign E940534, 10 FCC Red 6572 (1995). Pursuant to the Blanket License and Sections 25.115(d) and 25.135 ofthe FCC's rules, the FCC has delegated to Orbcornm the responsibility for equipment approval with respect 10 the mobile earth terminals operating in conjunction with the Orbcornm system. Pursuant to that responsibility, Orbcomm has certified the Orbcornm Leo Satellite Transceiver, Model mlO (see following page). Hence, there is no FCC ID on the Model m I O. The test reports and other teclmical exhibits demonstrate compliance to FCC Parts 22H and 24E. The Cetecom test report for the Wavecom WMPIOO, FCC ID: 09EWMPIOO is used to for all the antenna port direct connect measurements, and the NWEMC test report is used for the radiated power and spurious radiated emissions measurements. Note that the Wavecom WMPIOO and Digi Model WMPlOO are electrically and mechanically identical. A RF Exposure exhibit documents compliance with FCC Part 2.1091 as a mobile device. Sincerely, TrinbHuynb Homologotion specialist Digi International

~~~ '.,....~ 11001 Bren Road East Minnetonka, MN 55343 952-912-3444 tel 952-912-4991 central fax LIMITED MODULAR APPROVAL LETTER April 9, 2010 Dear Application Examiner: Digi International is seeking limited modular approval oftheir model WMPIOO, FCC ill: MCQ-WMPX5F. The radio meets the requirements for limited modular approval as detailed in FCC 15.212. Compliance to each of the requirements is described below: I. "Themodulartrausmittermustbaveitsown RFshielding." Theradioportion ofthemoduleis containedinitsown RF shielding. The shielding is installed at the factory. Please see the Internal Photos exhibit. 2. "Tbe modular trausmitter must bave buffered modulation/data inputs." The EUT has buffered data inputs 10 insure compliance with Part 15 requirements under conditions of excessive data rates or over-modulation. Please see the Schematics exhibit. 3. "The modular transmitter must bove its own power supply regulOtiolL" The EUT has its own power supply regulation to insure compliance with Part 15 requirements regardless of the quality or level of external DC supplying the module from the host unit. Please see Schematics exhibit. 4. "The modular transmitter must <omply wilb Ibe antenna requirements ofSediou 15.203 and 15.204«)." The EUT meets the FCC antenna requirements. Please see Antenna information exhibit and internal pholos exhibit. 5. "Tbe modular tnmsmitter must be tested in 0 stand-oloue couligorotiou." The EUT was not tested in a stand-alone configuration. The module was installed in a host device, thus the request for limited modular approval. Please see test setup photos exhibit and technical report exhibit 6. "'The modular trausmitter must be labeled witb its own FCC ID lIumber." The EDT is not labeled with its own FCC ill number. The grantee is installing the module in its own host device and it is not user accessible, thus the request for limited modular approval. A labeldisplayingtheFCC innumberoftheradiowill heapplied10theexterior ofthehost(withtheverbiageContains FCC ill: MCQ-WMPXSF). Please see FCC ill label & local1on exhibit 7. "The modular tra...mitter must <omply with any spedfi< nde or operating requirements appli<able tu the transmitter and the manufacturer must provide adequate iostrumons olong wilb the module to explain any sueb requirements." The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given Ulthe User Manual. 8. ''The modular transmitter must comply wilb any applkable RF uposnre requirements." The EUT is compliant with all applicable RF exposure requirements. Please see RF Exposure Exhibit. Please contae! me if you have additional questions. Your attention to this malter is greatly appreciated. Best regards,

Refer to STD OP Proc: 840 General Purpose Label Template - Revision: C, 01/09/98 Printed: 4/23/2010 Page: 1 of 1 95014913_D.doc 3.25” x 1.50” FILL IN ONLY THE APPLICABLE LABEL INFORMATION (To include layout, lines, barcodes, etc.) : 1) Text Label Part Number: 95014913 , 2) Text Label Revision: D , ENGINEERING 3) Digi Part Number: 50001730-02 , Xata PN: XD-1000 SN = yydddxxxx. & 4) General Information (i.e. Description, need for serial numbers, barcodes by type, etc.): MARKETING Xata Logo ` CPX5-Fleet, GPRS Desc 1 & 2 . SAT XATA PN: XXXXXXXXXXX ||| |||| || || ||| ||||||||| ||||||| _Barcodes are 3 of 9 or 128 . SN : yydddxxxx |||||||||||||||| ||||||| |||||||||||||||| Other Module tracking numbers CoO :USA YYWW 950xxxxx ? 5) Label Stock Digi Part Number: 28000367 . 6) Regulatory Symbol: CE; MET cus RECOGNIZED, UL 60950-1,CSA C22.2, No. 60950-1, E112790; RoHS; ChinaRoHS50; e24xxxx;WEEE; FCC Part 15: This device complies with Part 15 of the FCC Rules; C-Tick N11702; CoO: USA; Contains FCC ID: MCQ-X5FLEETWMP100 MCQ-WMPX5F, FCC ID: MCQ-XBEEPRO2, FCC ID: MCQ-50M1589, IC:1846A-X5FLEET WMP100 1846A- WMPX5F, IC: 1846A-XBEEPRO2, IC: 1846A-50M1589. -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- - -- -- -- -- -- -- -- -- - OPS ** When Completed, Place A “PRINTED” Label Over The Diagram ** D ECO001991 FCCIC was MCQ-X5FleetWMP100, IC was 1846A-X5Fleet WMP100 GO 04/23/10 C ECO001963 Xata PN wasXD-1001,del e24,add FCC ID’s GO 04/15/10 B ECO001867 Convert to Xata label (add FCC info) GO 03/03/10 REV ECO/NPRO DESCRIPTION OF CHANGE BY: CKD: APPR: DATE: TITLE: Text,3.25 PNBC 50001730-02 LBL DRAWING NO. - REV DIGI INTERNATIONAL 95014913 D

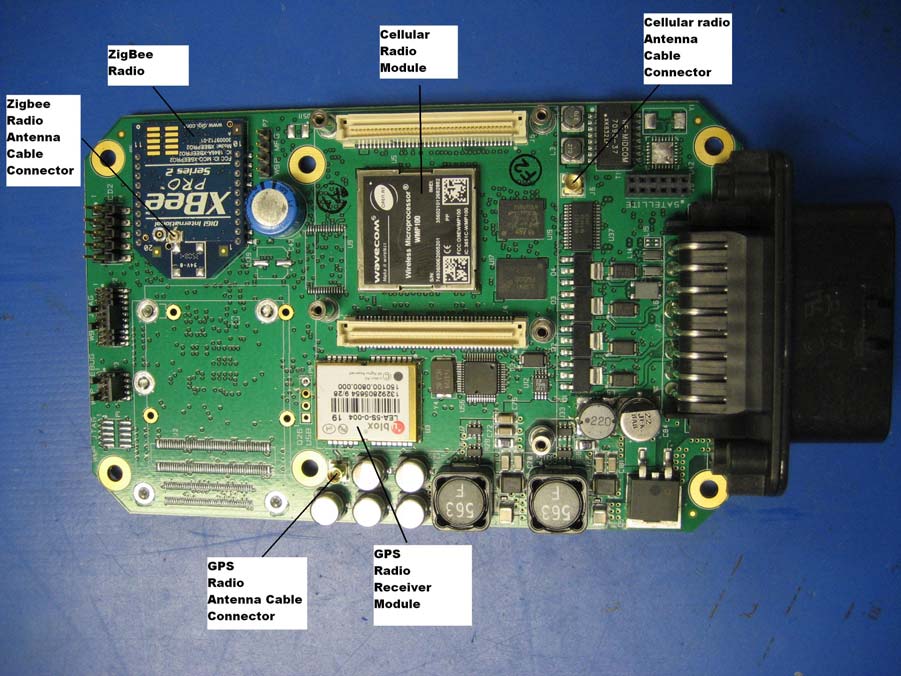

Internal photos of host device Internal photos of module

© All Rights Reserved Taoglas Limited, Unit 3 Enniscorthy Technology Centre, Enniscorthy, Co. Wexford, Ireland www.taoglas.com SPECIFICATION Model No. : SGP.25c Part No. : SGP.1575.25.4.C.02 Specification No : SP03AB15753-0040(03A28B600011120)(SMA1575A)V03 Product Name : GPS SMT Patch Antenna Features : 25mm*25mm*4mm 1575MHz Centre Frequency RoHS  Photo : REVISION STATUS Version Date Page Revision Description Prepared Approved 01 17 th July 2008 All New format TW Product Centre Ronan Quinlan 02 23 rd July 2009 All New Solder Pads TW Product Centre Ronan Quinlan © All Rights Reserved Taoglas Limited, Unit 3 Enniscorthy Technology Centre, Enniscorthy, Co. Wexford, Ireland www.taoglas.com 1.0 Introduction This ceramic GPS patch antenna is based on smart XtremeGain™ technology. It is mounted via SMT process and has been selected as optimal solution for the 45*45mm ground plane. 2.0 Key Antenna Performance Indicators Original Patch Specification tested on 35mm ground plane No Parameter Specification 1 Range of Receiving Frequency 1575MHz +/- 1.023MHz 2 Center Frequency** 1575MHz ± 3MHz when tested on a 45m² Ground Plane 3 Bandwidth 5 MHz min with Return Loss <-10dB 4 VSWR 1.5 max 5 Gain at Zenith +2.0 dBic typ. 6 Gain at 10° Elevation -3.0 dBic typ. 7 Impedance 50 Ω 8 Axial Ratio 3.0 dB max 9 Polarization Right Hand Circular Polarization 10 Frequency Temperature Coefficient 0 ± 20 ppm/ ºC max @ -40ºC to +105ºC 11 Operating Temperature -40ºC to +105ºC **Changes in user groundplane and environment will offset centre frequency © All Rights Reserved Taoglas Limited, Unit 3 Enniscorthy Technology Centre, Enniscorthy, Co. Wexford, Ireland www.taoglas.com 3.0 Mechanical Specifications 3.1 Dimensions and Drawing 3.2 Antenna footprint © All Rights Reserved Taoglas Limited, Unit 3 Enniscorthy Technology Centre, Enniscorthy, Co. Wexford, Ireland www.taoglas.com 3.3 Test Jig and Dimension 3.4 Test Fixture set up and measurements © All Rights Reserved Taoglas Limited, Unit 3 Enniscorthy Technology Centre, Enniscorthy, Co. Wexford, Ireland www.taoglas.com 3.5 Delivery Mode © All Rights Reserved Taoglas Limited, Unit 3 Enniscorthy Technology Centre, Enniscorthy, Co. Wexford, Ireland www.taoglas.com 4.0Electrical Specifications 4.1 Smith Chart

Attestation from Grantee The grantee attests that there is no tune-up procedure. This is submitted to satisfy the requirements of 47 CFR 2.1033 c 9

Digi International WMP100 Report No. DGII004.3 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2010 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Last Date of Test: May 21, 2009 Digi International Model: WMP100 Emissions Test Description Specification Test Method Pass/Fail Maximum Permissible Exposure FCC 2.1091:2010 OET Bulletin 65, Supplement C Ed 01-01 Pass Approved By: Tim O’Shea. Operations Manager This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 05/05/03 Revision Number Description Date Page Number 00 None Accreditations and Authorizations FCC Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP Northwest EMC, Inc. is accredited under the United States Department of Commerce, National Institute of Standards and Technology, and National Voluntary Laboratory Accreditation Program for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 2004/108/EC, and ANSI C63.4. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. NVLAP LAB CODE 200629-0 NVLAP LAB CODE 200630-0 NVLAP LAB CODE 200676-0 NVLAP LAB CODE 200761-0 NVLAP LAB CODE 200881-0 Industry Canada Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS-Gen, Issue 2 and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. (Site Filing Numbers - Hillsboro: 2834D-1, 2834D-2, Sultan: 2834C-1, Irvine: 2834B-1, 2834B-2, Brooklyn Park: 2834E-1) CAB Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. NEMKO Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Accreditations and Authorizations Australia/New Zealand The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). VCCI Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Numbers. - Hillsboro: C-1071, R-1025, G-84, C-2687, T-1658, and R-2318, Irvine: R-1943, G-85, C- 2766, and T-1659, Sultan: R-871, G-83, C-1784, and T-1511, Brooklyn Park: R-3125, G-86, G-141, C-3464, and T-1634). BSMI Northwest EMC has been designated by NIST and validated by C-Taipei (BSMI) as a CAB to conduct tests as described in the APEC Mutual Recognition Agreement (US0017). License No.SL2-IN-E-1017. GOST Northwest EMC, Inc. has been assessed and accredited by the Russian Certification bodies Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC, to perform EMC and Hygienic testing for Information Technology Products. As a result of their laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification KCC Northwest EMC, Inc is a CAB designated by MRA partners and recognized by Korea. (Assigned Lab Numbers: Hillsboro: US0017, Irvine: US0158, Sultan: US0157) VIETNAM Vietnam MIC has approved Northwest EMC as an accredited test lab. Per Decision No. 194/QD-QLCL (dated December 15, 2009), Northwest EMC test reports can be used for Vietnam approval submissions. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ Northwest EMC Locations Oregon Labs EV01-EV12 22975 NW Evergreen Pkwy Suite 400 Hillsboro, OR 97124 (503…

Text truncated - open the document above for the full version.

Digi International WMP100 GSM Cellular Modem Report No. DGII0004 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2010 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Last Date of Test: March 12, 2010 Digi International Model: WMP100 GSM Cellular Modem Emissions Test Description Specification Test Method Pass/Fail Field Strength of Spurious Emissions FCC 24E:2010 ANSI/TIA/EIA-603-C-2004 Pass Field Strength of Spurious Emissions FCC 22H:2010 ANSI/TIA/EIA-603-C-2004 Pass Effective Radiated Power (EIRP) FCC 24E:2010 ANSI/TIA/EIA-603-C-2004 Pass Effective Radiated Power (ERP) FCC 22H:2010 ANSI/TIA/EIA-603-C-2004 Pass Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 9349 W Broadway Ave. Brooklyn Park, MN 55445 Phone: (763) 425-2281 Fax: (763) 424-3469 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada (Site filing #2834E-1). Approved By: Don Facteau, IS Manager NVLAP Lab Code: 200881-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 06/29/09 Revision Number Description Date Page Number 00 None Barometric Pressure The recorded barometric pressure has been normalized to sea level. Accreditations and Authorizations FCC Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP Northwest EMC, Inc. is accredited under the United States Department of Commerce, National Institute of Standards and Technology, and National Voluntary Laboratory Accreditation Program for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 2004/108/EC, and ANSI C63.4. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. NVLAP LAB CODE 200629-0 NVLAP LAB CODE 200630-0 NVLAP LAB CODE 200676-0 NVLAP LAB CODE 200761-0 NVLAP LAB CODE 200881-0 Industry Canada Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS-Gen, Issue 2 and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. (Site Filing Numbers - Hillsboro: 2834D-1, 2834D-2, Sultan: 2834C-1, Irvine: 2834B-1, 2834B-2, Brooklyn Park: 2834E-1) CAB Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. NEMKO Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Accreditations and Authorizations Australia/New Zealand The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). VCCI Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Numbers. - Hillsboro: C-1071, R-1025, G-84, C-2687, T-1658, and R-2318, Irvine: R-1943, G-85, C- 2766, and T-1659, Sultan: R-871, G-83, C-1784, and T-1511, Brooklyn Park: R-3125, G-86, G-141, C-3464, and T-1634). BSMI Northwest EMC has been designated by NIST and validated by C-Taipei (BSMI) as a CAB to conduct tests as described in the APEC Mutual Recognition Agreement (US0017). License No.SL2-IN-E-1017. GOST Northwest EMC, Inc. has been assessed and accredited by the Russian Certification bodies Certinform VNIINMASH, CERTINFO, SAMTES, …

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 4-2445-01-04/07 Date: 2007-03-03 Page 1 of 64 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: IC 3463A-1 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 4-2445-01-04/07 Applicant : Wavecom S.A. Type : WMP100 Test Standard : FCC Part 22, 24 RSS-132, -133 FCC ID : 09EWMP100 Certification No. IC : 3651C-WMP100 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license CETECOM ICT Services Gmb…

Text truncated - open the document above for the full version.
