MCQ-WVABWireless BT Vehicle Adapter

Hardware file:///C|/Doc%20Projects/TechPubs/Dreamweaver%20projects/90001930%20Wireless%20Vehicle%20Bus%20Adapter%20Application%20Developers%20Guide/Files/hardware.html[12/6/2013 6:29:00 PM] Wireless Vehicle Bus Adapter Application Developer's Guide Application Developer's Guide Introduction Hardware Web Services Programming Other Documentation Documentation page Getting Started Guide Device Cloud Resources Device Cloud Need Help? Contact Digi Support Digi Support Site Hardware Specifications | Connector Pinout | Wiring Harness | Regulatory Information & Certifications Hardware Specifications SpecificationValue Power requirements Power input/Power supply9-36 VDC; +12 V battery systems Power consumption Idle: 1.5W Max: 2.5W Sleep: 30mW Temperature Functional operating temperature* -40° C to +70° C* (-40° F to +158° F) *70° C operating temperature achieved with 0.85 meters/sec of airflow. Touch temperature safety limits -40° C to + 55° C (-40° F to 131° F) The upper temperature safety limit of + 55° C, per Standard UL/IEC 60950-1, is less than the upper limit of +70° C for functional operating temperature owing to the limitations on physical contact with product. Storage temperature-40° C to +85° C (-40° F to +185° F) Hardware Interfaces Vehicle bus J1939 - Two J1708 - One Diagnostic port connector9-pin Deutsch connector; see pinout here. Internal sensors Vibration: Wakes the WVA from sleep mode; feature configured through the Power Management - Wake on Movement configuration settings. Voltage: Wakes the WVA from sleep mode; feature onfigured through the Power Management - Wake on Alternator configuration settings. Vehicle voltage measurement Maximum range of +33V Button Performs several functions: Resets the WVA to factory defaults: press and hold for ten seconds. Silences the buzzer/audible alarm; only applicable when the alarm is enabled through applications. Wakes the WVA from sleeping; must be configured through the WVA's Power Management configuration settings. Buzzer/audible alarmApplication-defined buzzer capability. The buzzer is controlled programmatically through the web services resource hw/buzzer. LEDs Two LEDs: - Power: Green when power is applied to unit. - Application-defined: Amber when enabled. The use of this LED is controlled through the application programming interface (API). Hardware file:///C|/Doc%20Projects/TechPubs/Dreamweaver%20projects/90001930%20Wireless%20Vehicle%20Bus%20Adapter%20Application%20Developers%20Guide/Files/hardware.html[12/6/2013 6:29:00 PM] LEDs are controlled programmatically through two web services resources: hw/leds and hw/leds/led_name USBHigh Speed Type A; Host Mode Only. 0.5A current available at port Wi-Fi 802.11b/g/n internet speeds Data rateUp to 72.2 Mbps Transmit power+12 dBm typical (varies by mode and channel) Receiver sensitivity Varies by data rate: 1Mb: -91dBm 11Mb: -89dBm 54Mb: -75dBm 65Mb: -71dBm SecurityWPA2 Firmware & software interfaces Configuration and management interface Web user interface Programming interfaceRESTful web services interface Security WPA2 with pre-shared key (PSK) HTTP authentication See also Security in the WVA Memory Total memory128 MB flash, 64 MB RAM Available user space20 MB flash Real time clock Real time clock for setting system time; interface to setting system time is the web services resource /ws/hw/time. Dimensions Height2.33 in (5.92 cm) Diameter2.15 in (5.46 cm) Height, installed2.57 in (6.53 cm) Weight0.26 lb (0.12 kg) Environmental/regulatory approvals AutomotiveISO-10452, ISO-10605, SAE 1455, ISO 7637-2, -3 International EMC (Electromagnetic Emissions/Immunity/Safety) standards Emissions: CE, FCC PART 15 (Class B), CISPR25, EN5502 Immunity: EN55024, EN301, SAE J1113 Safety: UL 60950-1, EN 60950-1, CSA 22.2 No. 60950 Environmental Automotive Environmental tests per SAE 1455. Resistant to the following chemicals, per SAE J1455 Section 4.4: gasoline, fuel additives, diesel fuel. NEMAIP54 Connector Pinout The connector on the WVA is a 9-pin Deutsch connector with the following pin orientation and pinout. Hardware file:///C|/Doc%20Projects/TechPubs/Dreamweaver%20projects/90001930%20Wireless%20Vehicle%20Bus%20Adapter%20Application%20Developers%20Guide/Files/hardware.html[12/6/2013 6:29:00 PM] WVA 9-pin connector pinout PinSignal APower (-) BPower (+) CCAN J1939 HI (+) DCAN J1939 LO (+) ECAN J1939 Shield FJ1708 (+) GJ1708 (-) HCAN J1939 HI (+) JCAN J1939 LO (+) Notes: 1. Reference Vehicle Wiring Schematics for additional wiring information: wire color, locations. 2. Consult vehicle manufacturer for recommended connection methods. Available Interfaces On the Wiring Harness The wiring harness for the WVA is available for purchase separately; Digi part number is 76000931. The wiring harness uses a 9-pin Deutsch connector. Hardware file:///C|/Doc%20Projects/TechPubs/Dreamweaver%20projects/90001930%20Wireless%20Vehicle%20Bus%20Adapter%20Application%20Developers%20Guide/Files/hardware.html[12/6/2013 6:29:00 PM] The following interfaces are available on the wiring harness. Labels on the wires indicate their interface function. Power Ground and 12V power for powering the WVA Ground and 12V power for powering a CAN simulator J1939+ and J1939- A second J1939+ and J1939- J1708+ and J1708- Regulatory Information and Certifications RF Exposure Guidance This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and persons. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. FCC Part 15 Class B Certifications and Regulatory Information (USA Only) All Wireless Vehicle Bus Adapter products comply with the FCC Part 15 Class B standards cited in this section: Hardware file:///C|/Doc%20Projects/TechPubs/Dreamweaver%20projects/90001930%20Wireless%20Vehic…

Text truncated - open the document above for the full version.

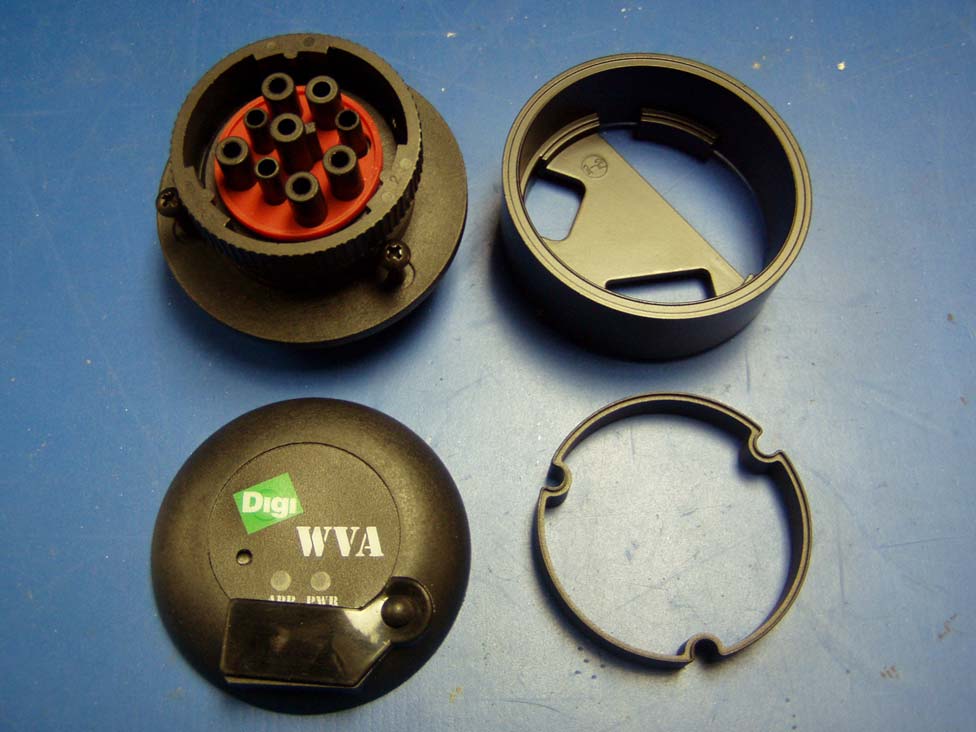

Product Top Product Back Side Views Mechanical Parts – View 1 Mechanical Parts – View 2

REV CAGE CODE SHEET SCALE SIZE DESIGNER/ENGINEER: MFG/OPS: ALL DIMENSIONS AND TOLERANCES ARE IN INCHES AND SHALL BE INTERPRETED PER ASME Y14.5M - 1994. DRAWING TOLERANCES ARE AS FOLLOWS: FRACTIONS DECIMALS ANGLES 1/64 .X.1 1 .XX.02 .XXX.010 THIS DWG AND SPECIFICATION ARE THE PROPERTY OF DIGI INTERNATIONAL AND SHALL NOT BE REPRODUCED OR COPIED WITHOUT THEIR WRITTEN PERMISSION. TITLE UNLESS OTHERWISE SPECIFIED - PRO/ENGINEER GENERATED DRAWING - HW ENGINEER: DWG NO DATE: DATE: C A B C D A B C D 1 23 4 5 6 7 8 1 2 345678 NOTES: UNLESS OTHERWISE SPECIFIED BALLOON DESIGNATION SYMBOL ITEM NUMBER ITEM QUANTITY 14 3 DRAFTER: THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND, EXCEPT WITH WRITTEN PERMISSION OF DIGI, SUCH INFORMATION SHALL NOT BE PUBLISHED OR DISCLOSED TO OTHERS, OR USED FOR ANY PURPOSE AND THE DOCUMENT SHALL NOT BE COPIED IN WHOLE OR IN PART PRODUCT MANAGER DATE: DATE: DATE: 1.190 .100 THRU HOLE .200 BUTTON EMBOSS .125 CLEAR WINDOWS .383 .0 .383.115.130.235.368 .455 .0 .200 .143 .280 .012 REVISION HISTORY DRW/CHKDATEDESCRIPTIONECOREV TJM/MJL03/01/13INITIAL RELEASE NPRO002784B TJM/MJL9/25/13UPDATE NOTES004710C 1 OF 1 DO NOT SCALE DRAWING1:101-Mar-13N.HERMAN C64000471-XXO8TP3D 01-Mar-13 T.MILLER OVERLAY, WVA 01-Mar-13R. OLSEN 01-Mar-13N.CARLSON DIGI INTERNATIONAL 11001 BREN ROAD EAST, MINNETONKA, MN 55343 01-Mar-13T.MILLER 1. MATERIAL: .010" THK LEXAN HP92W. 2. ADHESIVE: 3M TYPE #350 - 9482PC. 3. REFER TO MASTER SILK-SCREEN ARTWORK FOR CURRENT REVISION LEVEL. ARTWORK WILL BE SUPPLIED UPON REQUEST. ARTWORK P/N: SEE TABLE. 4. COLORS USED FOR THIS LABEL MUST MATCH DIGI INTERNATIONAL SPECIFICATIONS. MUST BE SCREEN PRINTED USING UV INKS ONLY. OPACITY LEVEL MUST BE 100%. 5. ADD DIGI P/N, REVISION, DATE CODE, AND VENDOR LOGO USING PERMANENT INK OR A LABEL (CONTRASTING IN COLOR) TO THE PERIMETER AREA OF THE SHEET OR TO THE OPTIONAL BACKING RELEASE TAB. 6. OPTIONAL BACKING RELEASE TAB (IF USED): SCORE MATERIAL AND ADHESIVE IN AREA SHOWN FOR BACKING RELEASE TAB. DO NOT CUT THROUGH PROTECTIVE BACKING. OTHER FORMS OF BACKING RELEASE MUST BE APPROVED BY DIGI INTERNATIONAL. OPTIONAL BACKING RELEASE TAB HEIGHT AND WIDTH SHALL BE .25 MINIMUM. HEIGHT MAY NOT EXTEND INTO RADIUS. 7. ALL MATERIALS USED IN PRODUCTION SHALL BE ROHS COMPLIANT PER 2011/65/EC. COPYRIGHT 2013 DIGI INTERNATIONAL, UNPUBLISHED WORK - ALL RIGHTS RESERVED. PART NUMBER PART REVISION DESCRIPTION ARTWORK NUMBER ARTWORK REVISION 64000471-01COVERLAY, WVA68001582B FRONT VIEW SCALE 5:1 REV CAGE CODE SHEET SCALE SIZE DESIGNER/ENGINEER: MFG/OPS: ALL DIMENSIONS AND TOLERANCES ARE IN INCHES AND SHALL BE INTERPRETED PER ASME Y14.5M - 1994. DRAWING TOLERANCES ARE AS FOLLOWS: FRACTIONS DECIMALS ANGLES 1/64 .X .1 1 .XX .02 .XXX .010 THIS DWG AND SPECIFICATION ARE THE PROPERTY OF DIGI INTERNATIONAL AND SHALL NOT BE REPRODUCED OR COPIED WITHOUT THEIR WRITTEN PERMISSION. TITLE UNLESS OTHERWISE SPECIFIED - PRO/ENGINEER GENERATED DRAWING - HW ENGINEER: DWG NO DATE: DATE: C A B C D A B C D 1 23 4 5 6 7 8 1 2 345678 NOTES: UNLESS OTHERWISE SPECIFIED BALLOON DESIGNATION SYMBOL ITEM NUMBER ITEM QUANTITY 14 3 DRAFTER: THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND, EXCEPT WITH WRITTEN PERMISSION OF DIGI, SUCH INFORMATION SHALL NOT BE PUBLISHED OR DISCLOSED TO OTHERS, OR USED FOR ANY PURPOSE AND THE DOCUMENT SHALL NOT BE COPIED IN WHOLE OR IN PART PRODUCT MANAGER DATE: DATE: DATE: 1. SEE B.O.M. FOR POPULATION OPTIONS. 2. ASSEMBLY TORQUE VALUES: #4-40 SCREWS: 4.0 0.5 IN-LBS 3. BAG AND TAG LOOSE HARDWARE FOR SHIPPING OR STORAGE. 4. FINISHED PART SHALL BE ROHS COMPLIANT PER 2011/65/EC. THE FACILITY PERFORMING THIS WORK SHALL PERFORM TESTS OR OBTAIN TESTING INFORMATION THAT CONFIRMS COMPLIANCE. TEST RECORDS SHALL BE MADE AVAILABLE UPON REQUEST. REVISION HISTORY DRW/CHKDATEDESCRIPTIONECOREV TJM/MJL6/27/13INITIAL RELEASE 002767B TJM/MJL9/25/13UPDATE COMPONENTS004710C TJM/MJL11/25/13UPDATE DRAWING; ADD ITEM # 20004869D 1 OF 1 DO NOT SCALE DRAWING1:127/JUN/13J.CROMER D50001817-XXO8TP3D 27/JUN/13 T.MILLER ASSY, WVA 27/JUN/13R. OLSEN 27/JUN/13N.CARLSON DIGI INTERNATIONAL 11001 BREN ROAD EAST, MINNETONKA, MN 55343 27/JUN/13T.MILLER COPYRIGHT 2013 DIGI INTERNATIONAL, UNPUBLISHED WORK - ALL RIGHTS RESERVED. ISOMETRIC VIEW FOR REFERENCE ONLY SCALE 4:5 1 1 19 1 18 1 6 1 2 1 10 1 3 1 13 1 11 1 4 1 8 1 9 3 5 1 20 1 The label location is either number 8,18,20 in the mechanical exploded view diagram. Label showing FCC and IC ID numbers Label showing Model number 50001917-03 68001582 Rev B 04/22/13 BLACK CUTLINE DOES NOT PRINT CLEAR WINDOWS DO NOT PRINT WHITE Please Print Approver's NameApprover's Signature NO CHANGES NEEDEDWITH INDICATED CHANGES Customer alterations may be charged to the customer and may delay production depending on their complexity. There will be slight color variances between proofs and actual production printing. Spot colors or PMS colors will not be well represented by this proof. BACKGROUND COLOR - (BLACK) - PANTONE PROCESS LOGO - (GREEN) - PANTONE PMS 335 C TEXT - (WHITE) - PANTONE PROCESS PMS 355 GREEN APPPWR WVA Label & Location of Company Name

All three boards minus mechanicals - Assembled All three boards – Top All three boards – Bottom Assembly minus top, RF board, heatsink, cpu board, support ring Assembly minus top, RF board, heatsink assembly minus top, RF board Assembly minus top Base Interior Processor board bottomside RF Board bottomside

December 06, 2013 TUV SUD BABT Octagon House, Concorde Way Segensworth Rd N, Fareham PO15 5RL Attention: Director of Certification RE: Analysis of RF Exposure/SAR Exemption for FCC compliance purposes FCC ID: MCQ-WVAB FCC Portable Exposure SAR Exemption Per FCC KDB 447498 D01 RF Exposure v05r01 Maximum power = 6.21 mW f(GHz) = 2.402 min. test separation distance = 5mm [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation17 The result is rounded to one decimal place for comparison [Ref: Clause 4.3.1.1] [(6.21mW)/(5, mm)] ·[√2.402(GHz)] ≤ 3.0 1.924 ≤ 3.0 Therefore, the device meets the FCC SAR exemption requirements.

TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev. 080408 TEST RESULT SUMMARY FCC Part 15 Subpart C Section 15.247 Industry Canada RSS-210 Issue 8 MANUFACTURER Digi International 11001 Bren Road East Minnetonka MN 55343 DESCRIPTION OF EQUIPMENT Truck vehicle data bus to WiFi / Bluetooth adapter NAME OF EQUIPMENT Vehicle Adapter (Bluetooth radio) MODEL NUMBER(S) TESTED 50001817-02 SERIAL NUMBER(S) TESTED 0001 TEST REPORT NUMBER NC1305468.3 TEST DATE(S) 08 July – 28 August 2013 TÜV SÜD America Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the applicable requirements of FCC Part 15 Subpart C Section 15.247 “Operation within the bands 902- 928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz”, and Industry Canada RSS-210 Issue 8 “Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment”. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. Date: 22 October 2013 Tested by: Approved by: Location: Taylors Falls MN Greg Jakubowski Joel T Schneider USA Senior EMC Technician Senior EMC Engineer Not Transferable FCC IC: MCQ-WVAB IC: 1846A-WVAB TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev. 080408 EMC TEST REPORT Test Report No. NC1305468.3 Date of issue: 22 October 2013 Product Description Truck vehicle data bus to WiFi / Bluetooth adapter Product Name Vehicle Adapter (Bluetooth radio) Model No(s) Tested 50001817-02 Serial No(s) Tested 0001 Manufacturer Digi International Address 11001 Bren Road East Minnetonka MN 55343 Test Result  Positive Negative TÜV SÜD America Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV SÜD America Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD America Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. TÜV SÜD America’s Wild River Lab maintains A2LA accreditation to ISO/IEC 17025 for the specific tests listed in A2LA Certificate #2955.12 as an Electrical Testing Laboratory and TÜV SÜD America’s Oakwood Lab maintains A2LA accreditation to ISO/IEC 17025 for the specific tests listed in A2LA Certificate #2955.10 as an Electrical Testing Laboratory. A portion of the test results included in this report was performed at each facility. TÜV SÜD America Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NARTE, and VCCI. Test Report NC1305468.3Page 1 of 47 FCC IC: MCQ-WVAB IC: 1846A-WVAB TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev. 080408 REVISION RECORD REVISION TOTAL NUMBER OF PAGES DATE DESCRIPTION 47 22 October 2013 Initial Release Test Report NC1305468.3Page 2 of 47 FCC IC: MCQ-WVAB IC: 1846A-WVAB TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev. 080408 TEST REPORT CONTENTS Page(s) Revision Record 2 Directory 3 Test Regulations 4 Environmental Conditions 4 Power Supply 4 Test Equipment Traceability 4 Test Information Carrier frequency separation FCC 15.247(a)1), IC RSS-210 A8.1(b) 5 - 6 Number of Hopping Frequencies FCC 15.247(a)1)iii), IC RSS-210 A8.1(d) 7 - 10 Time of Occupancy FCC 15.247(a)1)iii), IC RSS-210 A8.1(d) 11 - 12 20 dB Bandwidth FCC 15.247(a)1), IC RSS-210 A8.1(a) 13 - 14 Peak output power FCC 15.247(b)1), IC RSS-210 A8.4(2) 15 - 19 Band edge compliance FCC 15.247(d) RSS-210 A8.5 20 - 26 Spurious Emissions - Conducted FCC 15.247(d) IC RSS-210 A8.5 27 - 29 Spurious Emissions - Radiated in restricted bands FCC 15.209(d), IC RSS-210 A8.5 30 - 31 Test-setup Photos 32 - 35 Equipment Under Test Information 36 General Remarks, Deviations, Summary 37 Appendix A Constructional Data Form 38 - 45 Appendix B Measurement Protocol 46 - 47 Test Report NC1305468.3Page 3 of 47 FCC IC: MCQ-WVAB IC: 1846A-WVAB TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev. 080408 EMC TEST REGULATIONS: The tests were performed according to the following regulations: - FCC Part 15 Subpart C Sections 15.247(a)1, (b)1), (d) - Industry Canada RSS-210 Issue 8 Sections A8.1(a)(b)(d), A8.4(2), A8.5 ENVIRONMENTAL CONDITIONS IN THE LAB Actual Temperature: : 20-23°C Atmospheric pressure : 98-99 kPa Relative Humidity : 65-75% POWER SUPPLY UTILIZED Power supply system : 13.5 VDC TEST EQUIPMENT All measurement instrumentation is traceable to the National Institute of Standards and Technology and is calibrated according to internal procedure. SIGN EXPLANATIONS  - not applicable  - applicable. Test Report NC1305468.3Page 4 of 47 FCC IC: MCQ-WVAB IC: 1846A-WVAB TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev. 080408 Carrier frequency separation FCC 15.247(a)1), IC RSS-210 A8.1(b) Test summary The requirements are:  - MET  - NOT MET Testing per FCC DA 00-705 “Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems” Carrier frequency separation is 1 MHz, which is the 20 dB bandwidth Test location  - Wild River Lab Large Test Site (Open Area Test Site)  - Wild River Lab Small Test Site (Open Area Test…
