MCQ-XB9XRDigi XBee XR 900

Digi XBee® XR 900 RF Module User Guide Revision history—90002474 RevisionDateDescription ANovember 2022Initial release. Trademarks and copyright Digi, Digi International, and the Digi logo are trademarks or registered trademarks in the United States and other countries worldwide. All other trademarks mentioned in this document are the property of their respective owners. © 2022-2023 Digi International Inc. All rights reserved. Disclaimers Information in this document is subject to change without notice and does not represent a commitment on the part of Digi International. Digi provides this document “as is,” without warranty of any kind, expressed or implied, including, but not limited to, the implied warranties of fitness or merchantability for a particular purpose. Digi may make improvements and/or changes in this manual or in the product(s) and/or the program(s) described in this manual at any time. Warranty To view product warranty information, go to the following website: www.digi.com/howtobuy/terms Customer support Gather support information:Before contacting Digi technical support for help, gather the following information: Product name and model Product serial number (s) Firmware version Operating system/browser (if applicable) Logs (from time of reported issue) Trace (if possible) Description of issue Steps to reproduce Contact Digi technical support: Digi offers multiple technical support plans and service packages. Contact us at +1 952.912.3444 or visit us atwww.digi.com/support. Digi XBee® XR 900 RF Module User Guide 2 Feedback To provide feedback on this document, email your comments to [email protected] Include the document title and part number (Digi XBee® XR 900 RF Module User Guide, 90002474 A) in the subject line of your email. Digi XBee® XR 900 RF Module User Guide 3 Contents About the XBee XR 900 RF Module Applicable firmware and hardware16 Digi RF resources16 Safety instructions Safety instructions18 XBee modules18 Consignes de sécurité18 Modules XBee18 Configure the XBee XR 900 RF Module Configure the device using XCTU21 XBee bootloader21 Send a firmware image21 Software libraries22 XBee Network Assistant22 XBee Multi Programmer23 Specifications Power, sensitivity, and performance specifications25 Serial interface specifications26 RF communications specifications28 General specifications30 Electrical characteristics31 Regulatory conformity summary32 Electro Static Discharge (ESD)33 Secure access Secure Sessions35 Configure the secure session password for a device35 Start a secure session 35 End a secure session36 Secured remote AT commands36 Secure a node against unauthorized remote configuration36 Remotely configure a node that has been secured37 Digi XBee® XR 900 RF Module User Guide 4 Digi XBee® XR 900 RF Module User Guide 5 Send data to a secured remote node38 End a session from a server38 Secure Session API frames39 Secure transmission failures40 Data Frames - 0x10 and 0x11 frames40 Remote AT Commands- 0x17 frames40 XBIB-C development boards XBIB-C Micro Mount reference42 Incorrect42 Correct43 Attach the XBee XR 900 RF Module46 Micro46 Design notes Power supply design48 Board layout48 Antenna performance48 Pin signals Pin signals for the surface-mount XBee XR 900 RF Module51 Pin signals for the micro-mount XBee XR 900 RF Module54 Pin signals for the through-hole XBee XR 900 RF Module57 Recommended pin connections58 Connect the UART for flow control58 Mechanical drawings XBee XR 900 RF Module surface-mount antennas64 XBee XR 900 RF Module surface-mount - U.FL/RF pad antenna64 XBee XR 900 RF Module surface-mount - embedded antenna65 XBee XR 900 RF Module through-hole antennas66 XBee XR 900 RF Module through-hole - PCB antenna66 XBee XR 900 RF Module through-hole - U.FL antenna66 XBee XR 900 RF Module through-hole - RPSMA antenna67 XBee XR 900 RF Module micro antennas68 U.FL/RF Pad68 Copper keepout for test points68 Modes Transparent operating mode71 API operating mode71 Command mode71 Enter Command mode71 Troubleshooting72 Send AT commands 72 Response to AT commands73 Apply command changes73 Digi XBee® XR 900 RF Module User Guide 6 Make command changes permanent73 Exit Command mode73 Transmit mode73 Receive mode73 I/O support Digital I/O support75 Analog I/O support75 Monitor I/O lines76 I/O sample data format77 API frame support77 On-demand sampling77 Example: Command mode78 Example: Local AT command in API mode78 Example: Remote AT command in API mode79 Periodic I/O sampling80 Source80 Destination80 Digital I/O change detection80 I/O line passing81 Digital line passing81 Example: Digital line passing81 Output sample data82 I/O behavior during sleep82 Digital I/O lines82 Serial communication Serial interface84 Serial receive buffer84 Serial transmit buffer84 UART operation84 Flow control85 Serial data85 SPI operation87 SPI communications87 Full duplex operation88 Low power operation88 Select the SPI port89 Force UART operation90 Networking Network identifiers92 Delivery methods92 Point-to-multipoint92 DigiMesh networking92 Broadcast addressing93 Unicast addressing94 Route discovery 94 Routing94 Routers95 Digi XBee® XR 900 RF Module User Guide 7 Repeater/directed broadcast95 Encryption95 Maximum payload95 Network commissioning and diagnostics Local configuration97 Remote configuration97 Send a remote command97 Apply changes on remote devices97 Remote command response97 Build aggregate routes98 DigiMesh routing examples98 Replace nodes99 Test links between adjacent devices99 Trace route option101 NACK messages102 RSSI indicators102 Associate LED102 The Commissioning Pushbutton103 Definitions103 Use the Commissioning Pushbutton104 Node discovery104 Discover all the devices on a network104 Directed node discovery105 Destination Node105 Discover devices within RF range105 Sleep support Sleep modes108 Asynchronous sleep modes108 Asynchronous Pin Sleep mode (SM = 1)108 Asynchronous Cyclic Sleep mode (SM = 4)109 Asynchronous Cyclic Sleep with Pin Wake-up mode (SM = 5)10…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: December 4, 2023 Subject: Attestation Statements Parts 2.911(d)(5)(i) and 2.911(d)(5)(ii) Filing Applicant: Digi International Inc FCC ID: MCQ- XB9XR Attestation for 47 CFR section 2.911(d)(5)(i) Digi International Inc., (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Attestation for 47 CFR section 2.911(d)(5)(ii) Digi International Inc, (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Erik Reynolds

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: February 28, 2024 Subject: Attestation Statements Parts 2.911(d)(7) Applicant: Digi International Inc FCC ID: MCQ-XB9XR Dear Sir/Madam: Digi International Inc (“the applicant”) certifies that, as of the date of the filing of the application, Digi International Inc is our designated U.S. agent for service of process for the above referenced FCC ID. Digi International Inc accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Digi International Inc accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Digi International Inc. FRN: 0010283307 Address:9350 Excelsior Blvd, Suite 700, Hopkins, MN 55343 Contact Person: Erik Reynolds Tel.: 952-912-3444 Email: [email protected] Sincerely, Digi International Inc Erik J Reynolds Dir, Test Engineering

Date: February 23, 2024 To Whom It May Concern Subject: Product Variants Attestation Applicant: Digi International Inc FCC ID: MCQ-XB9XR Dear Sir/Madam: Digi attests that there will be five variants listed in the filing for the XBee XR 900, Model: XB9XR, under FCC ID: MCQ-XB9XR. The variants to be included in the family listed are: PN Description XB-9XR-DMCS-001 XBee XR 900 MHz DigiMesh, Chip Antenna, Surface Mount XB-9XR-DMUS-001 XBee XR 900 MHz DigiMesh, U.FL, Surface Mount XB-9XR-DMUT-001 XBee XR 900 MHz DigiMesh, U.FL, Through Hole XB-9XR-DMST-001 XBee XR 900 MHz DigiMesh, SMA, Through Hole XB-9XR-DMUM-001 XBee XR 900 MHz DigiMesh U.FL Antenna, MMT Details are provided in the following pages. Regards Paul Dahl Sr. Manager of Engineering Digi International Inc. XB-9XR-DMUM-001 XBee XR 900 MHz DigiMesh U.FL Antenna, MMT XBee 900XR. Micro surface mount form factor, U.FL connector for RF output, 19 dBm. RF IC: EFR32FG13P231F512GM48 same RF match including BALUNS, inductors, Capacitors, filters, LNA RF output to U.FL connector Photograph XB-9XR-DMUS-001 XBee XR 900 MHz DigiMesh, U.FL, Surface Mount XBee 900XR. Surface mount form factor, U.FL on the micro mount for RF output, 19 dBm RF IC: EFR32FG13P231F512GM48 same RF match including BALUNS, inductors, Capacitors, filters, LNA This product is a surface mount carrier with a production tested radio module mounted. The mounted module has the U.FL connector. There is no RF routed by trace on the carrier board. Photograph XB-9XR-DMUT-001 XBee XR 900 MHz DigiMesh, U.FL, Through Hole XBee 900XR. Through hole pins form factor, U.FL for RF output, 19 dBm RF IC: EFR32FG13P231F512GM48 same RF match including BALUNS, inductors, Capacitors, filters, LNA This product is a through hole carrier with a production tested radio module mounted. The RF routed by trace on the carrier board to a U.FL connector on the reverse side of the carrier. Photographs XBee XR 900 with RF-pad output on pin side of module carrier U.FL on reverse side of carrier XB-9XR-DMST-001 XBee XR 900 MHz DigiMesh, SMA, Through Hole XBee 900XR. Through hole pins form factor, RP-SMA for RF output, 19 dBm RF IC: EFR32FG13P231F512GM48 same RF match including BALUNS, inductors, Capacitors, filters, LNA This product is a through hole carrier with a production tested radio module mounted. The RF routed by trace on the carrier board to a RP-SMA connector on the reverse side of the carrier. Photographs XBee XR 900 with RF-pad output on pin side of module carrier RP-SMA on reverse side of carrier XB-9XR-DMCS-001 XBee XR 900 MHz DigiMesh, Chip Antenna, Surface Mount XBee 900XR. Surface mount form factor, Ceramic chip antenna for RF output, 19 dBm RF IC: EFR32FG13P231F512GM48 same RF match including BALUNS, inductors, Capacitors, filters, LNA This product is a surface mount carrier with a production tested radio module mounted. The RF routed by trace on the carrier board to a ceramic chip antenna with a matching network. Photographs

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: December 4, 2023 SUBJECT: FCC Application for FCC ID: MCQ-XB9XR To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Supplier's Declaration of Conformity (SDoC) procedure pursuant to Part 15, Subpart B - Unintentional Radiators, portion of this composite filing. Regards, Paul Dahl Sr. Manger of Engineering Digi International Inc.

Date: December 4, 2023 To Whom It May Concern Subject: Authority to Act as an Agent Applicant: Digi International Inc FCC ID: MCQ-XB9XR Dear Sir/Madam: I hereby appoint UltraTech Engineering Labs Inc. (UltraTech) to act as my agent in preparation of this application for authorization of above equipment under F.C.C. Rules. The applicant hereby certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a “party” for these purposes. I also certify that the information provided, properly describe the device or system for which authorization is required. Regards Paul Dahl Sr. Manager of Engineering Digi International Inc.

June 11, 2021 To whom it may concern: Digi duly authorizes the following persons to sign regulatory applications, authorization letters, declarations, and other documents required for the use in regulatory files to the Federal Communications Commission, ISED Canada, and other agencies, on behalf of Digi International Inc. Matt Ramsay VP of Engineering Dan Kobylarz Sr. Director of Engineering Harald Remmert Sr. Director of Engineering Erik Reynolds Director of Engineering David Iacovelli Director of Engineering Paul Dahl Sr. Manager of Engineering Pedro Perez Sr. Manager of Engineering Brad Ferguson Pr. Engineer Nathan Carlson Sr. Engineer Sincerely, Erik Reynolds Director of Engineering

Date: December 4, 2023 To Whom It May Concern Subject: Confidentiality Letter Applicant: Digi International Inc FCC ID: MCQ-XB9XR Dear Sir/Madam: The applicant would like to request the following documents submitted with this application for certification be withheld from public disclosure as per Section 0.457 & 0.459 of FCC Rules. 1. Operational Description 2. Block Diagram 3. Schematic(s) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Regards Paul Dahl Sr. Manger of Engineering Digi International Inc.

April 1, 2024 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: FCC Certification Authorization Application Under FCC Part 15, Subpart C, Section 15.247 - Frequency Hopping Spread Spectrum (FHSS) Operating in 902 - 928 MHz Band Applicant: Digi International Inc Product: XBee XR 900 Model No.: XB9XR FCC ID: MCQ-XB9XR Dear Sir/Madam: As appointed agent for Digi International Inc, we submit the application for certification of the above product. Kindly review all files uploaded to your electronic filing site. This application is subject to FCC certification for modular approval; kindly refer to Applicant’s letter requesting for modular approval according to the modular approval requirements in Section 15.212 rules. If you have any queries, please do not hesitate to contact us. Yours truly, Dan Huynh Dan Huynh Authorized Agent UltraTech Group of Labs Accreditations: APEC TEL CA0001 1309 CA 0001/2049 AT-1945 SL2-IN-E-1119R Korea KCC-RRA CA0001 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

Modular Approval Request Applicant: Digi International Inc FCC ID: MCQ-XB9XR December 4, 2023 To Whom It May Concern: Pursuant to Section 15.212(a)(1) of the FCC rules, the Applicant, request for single modular approval, compliance with the requirements are addressed below. Single Modular Approval Requirements Justification (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The modular transmitter has its own shield (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. The modular transmitter modulation inputs are buffered (iii) The modular transmitter must have its own power supply regulation. The modular transmitter has its own power supply regulator (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The modular transmitter has a “unique” connector/coupler and will be noted to have “professional installation” required (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in § 15.207. AC or DC power lines and data input/output lines connected to the The modular transmitter is tested in stand- alone configuration module must not contain ferrites, unless they will be marketed with the module (see § 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to ensure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see § 15.31(i)). (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: ‘‘Contains Transmitter Module FCC ID: XYZMODEL1’’ or ‘‘Contains FCC ID: XYZMODEL1.’’ Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the The modular transmitter will have a permanently affixed label. The FCC ID will be visible on the label. The end user/integrator will be instructed to add “Contains FCC ID: XB9XR” or similar wording to their product label. following: ‘‘Contains FCC certified transmitter module(s).’’ Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The modular transmitter complies with the rules for complete transmitter (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The modular transmitter will comply with RF exposure requirements Sincerely, Paul Dahl Sr. Manager of Engineering Digi International Inc.

Digi XBee XR 900 ID Label and Placement DIGI MODEL: XB9XR XB‐9XR‐DMUM‐001 FCC ID: MCQ‐XB9XR IC: 1846A‐XB9XR MAC N /A DIGI MODEL: XB9XR XB‐9XR‐DMUS‐001 FCC ID: MCQ‐XB9XR IC: 1846A‐XB9XR MAC Unknown DIGI MODEL: XB9XR XB‐9XR‐DMUT‐001 FCC ID: MCQ‐XB9XR IC: 1846A‐XB9XR MAC Unknown DIGI MODEL: XB9XR XB‐9XR‐DMST‐001 FCC ID: MCQ‐XB9XR IC: 1846A‐XB9XR MAC Unknown DIGI MODEL: XB9XR XB‐9XR‐DMCS‐001 FCC ID: MCQ‐XB9XR IC: 1846A‐XB9XR MAC Unknown

FCC Part 15, Subpart C, Section 15.247 – FHSS Page 82 of 85 XBee XR 900, Model XB9XR FCC ID: MCQ-XB9XR ULTRATECH GROUP OF LABS File #: 24MCRS201_FCC15C247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 March 27, 2024 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.6. RF EXPOSURE REQUIRMENTS [§§ 15.247(i), 1.1310 & 2.1091] § 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 6141.63*(100) 6 3.0-30 1842/f4.89/f*(900/f 2 ) 6 30-300 61.40.1631.0 6 300-1500 f/300 6 1500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 6141.63*(100) 30 1.34-30 824/f2.19/f*(180/f 2 ) 30 30-300 27.50.0730.2 30 300-1500 f/1500 30 1500-100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Note 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. 5.6.1. Method of Measurements Calculation Method of Power Density/RF Safety Distance: 22 44r EIRP r PG S      Where, P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm FCC Part 15, Subpart C, Section 15.247 – FHSS Page 83 of 85 XBee XR 900, Model XB9XR FCC ID: MCQ-XB9XR ULTRATECH GROUP OF LABS File #: 24MCRS201_FCC15C247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 March 27, 2024 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.6.2. RF Evaluation Frequency (MHz) Tune-up Power (dBm) Maximum Antenna Assembly Gain (dBi) EIRP (dBm) EIRP (mW) Evaluation Distance, r (cm) Power Density, S (mW/cm 2 ) MPE Limit (mW/cm 2 ) Margin (mW/cm 2 ) 902.5 19 14.48 33.48 2228.435 26 0.262 0.602 -0.340

XBee XR 900 Model: XB9XR FCC ID: MCQ-XB9XR Applicant: Digi International Inc 9350 Excelsior Blvd. Suite 700 Hopkins, MN 55343 In Accordance With Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.247 Frequency Hopping Spread Spectrum (FHSS) UltraTech's File No.: 24MCRS201_FCC15C247 This Test report is Issued under the Authority of Tri M. Luu Vice President of Engineering UltraTech Group of Labs Date: March 27, 2024 Report Prepared by: Dan Huynh Issued Date: March 27, 2024 Tested by: Angus Au Test Dates: December 6 - 21, 2023 January 2- March 21, 2024  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by any agency of the US Government.  This test report shall not be reproduced, except in full, without a written approval from UltraTech UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] Korea KCC-RRA 0685 APEC TEL CA0001 1309 CA 0001/2049AT-1945SL2-IN-E-1119R CA0001 FCC Part 15, Subpart C, Section 15.247 – FHSS Contents i XBee XR 900, Model XB9XR FCC ID: MCQ-XB9XR ULTRATECH GROUP OF LABS File #: 24MCRS201_FCC15C247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 March 27, 2024 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION .............................................................................................................................................. 1 1.1. SCOPE ........................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 1 1.3. NORMATIVE REFERENCES ...................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT ................................................................................................................... 2 2.1. EQUIPMENT UNDER TEST (EUT) INFORMATION ................................................................................................... 2 2.2. EUT’S TECHNICAL SPECIFICATIONS ....................................................................................................................... 3 2.3. ASSOCIATED ANTENNA DESCRIPTIONS ................................................................................................................ 3 2.4. LIST OF EUT’S PORTS ............................................................................................................................................... 3 2.5. ANCILLARY EQUIPMENT ........................................................................................................................................... 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS .............................................. 5 3.1. CLIMATE TEST CONDITIONS .................................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS ..................................................................... 5 EXHIBIT 4. SUMMARY OF TEST RESULTS ..................................................................................................................... 6 4.1. LOCATION OF TESTS ................................................................................................................................................ 6 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS ....................................................................... 6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ................................................ 6 EXHIBIT 5. TEST DATA ..................................................................................................................................................... 7 5.1. POWER LINE CONDUCTED EMISSIONS [§15.207(a)] .............................................................................................. 7 5.2. COMPLIANCE WITH FCC PART 15 – GENERAL TECHNICAL REQUIREMENTS ................................................. 28 5.3. PROVISIONS FOR FREQUENCY HOPPING SYSTEMS [§ 15.247(a)(1)] ................................................................ 30 5.4. PEAK CONDUCTED OUTPUT POWER [§ 15.247(b)(2)] .......................................................................................... 50 5.5. TRANSMITTER SPURIOUS RADIATED EMISSIONS AT 3 METERS [§§ 15.247(d), 15.209 & 15.205] .................. 79 5.6. RF EXPOSURE REQUIRMENTS [§§ 15.247(i), 1.1310 & 2.1091] .................................................................. .......... 82 EXHIBIT 6. TEST EQUIPMENT LIST ............................................................................................................................... 84 EXHIBIT 7. MEASUREMENT UNCERTAINTY ................................................................................................................ 85 APPENDIX A. XB-9XR-DMUM-001 TRANSMITTER SPURIOUS RADIATED EMISSIONS AT 3M APPENDIX B. XB-9XR-DMUS-001 TRANSMITTER SPURIOUS RADIATED EMISSIONS AT 3M APPENDIX C. XB-9XR-DMUT-001 TRANSMITTER SPURIOUS RADIATED EMISSIONS AT 3M APPENDIX D. XB-9XR-DMST-001 TRANSMITTER SPURIOUS RADIATED EMISSIONS AT 3M APPENDIX E. XB-9XR-DMCS-001 TRANSMITTER SPURIOUS RADIATED EMISSIONS AT 3M FCC Part 15, Subpart C, Section 15.247 – FHSS Page 1 of 85 XBee XR 900, Mode…

Text truncated - open the document above for the full version.

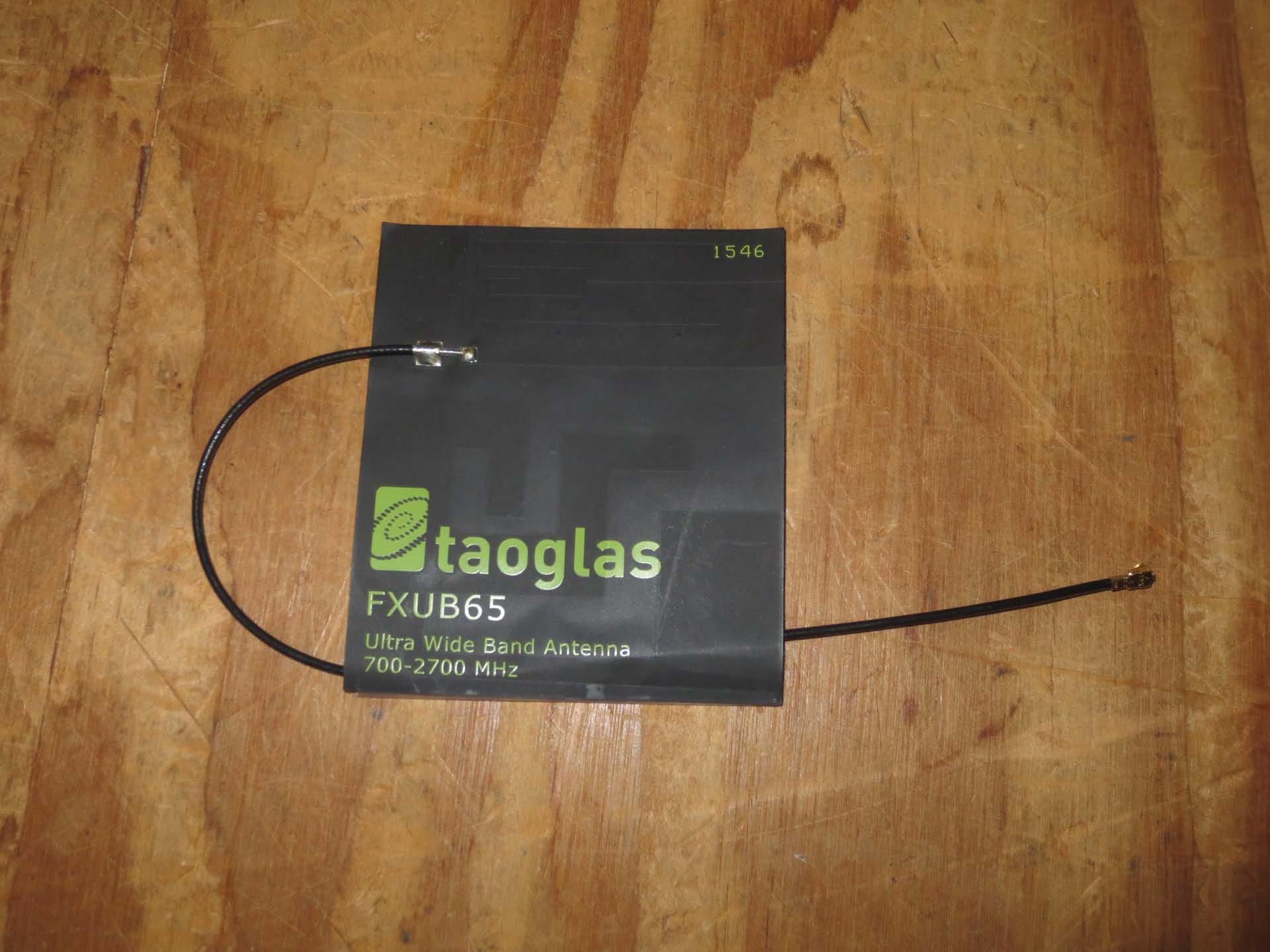

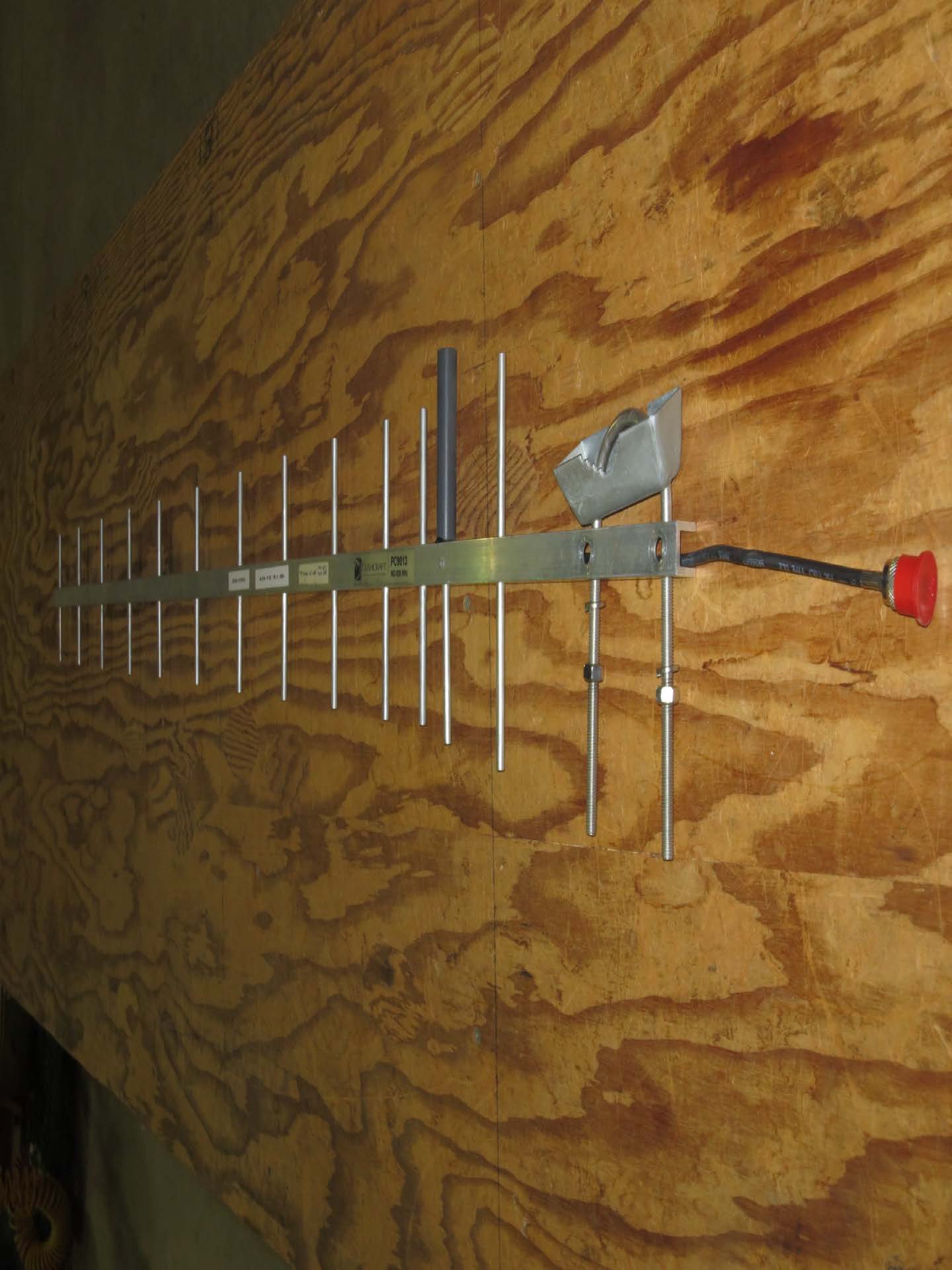

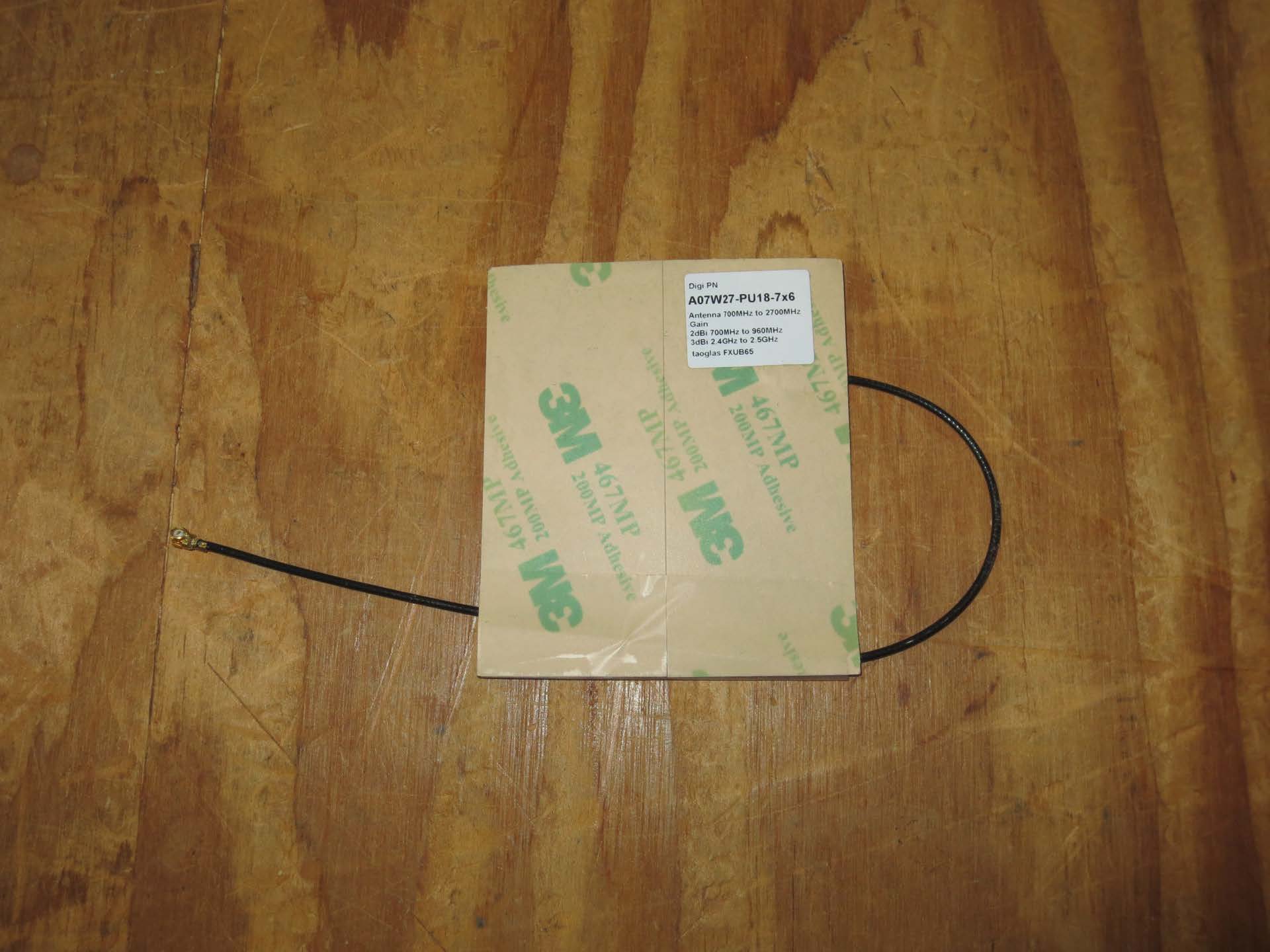

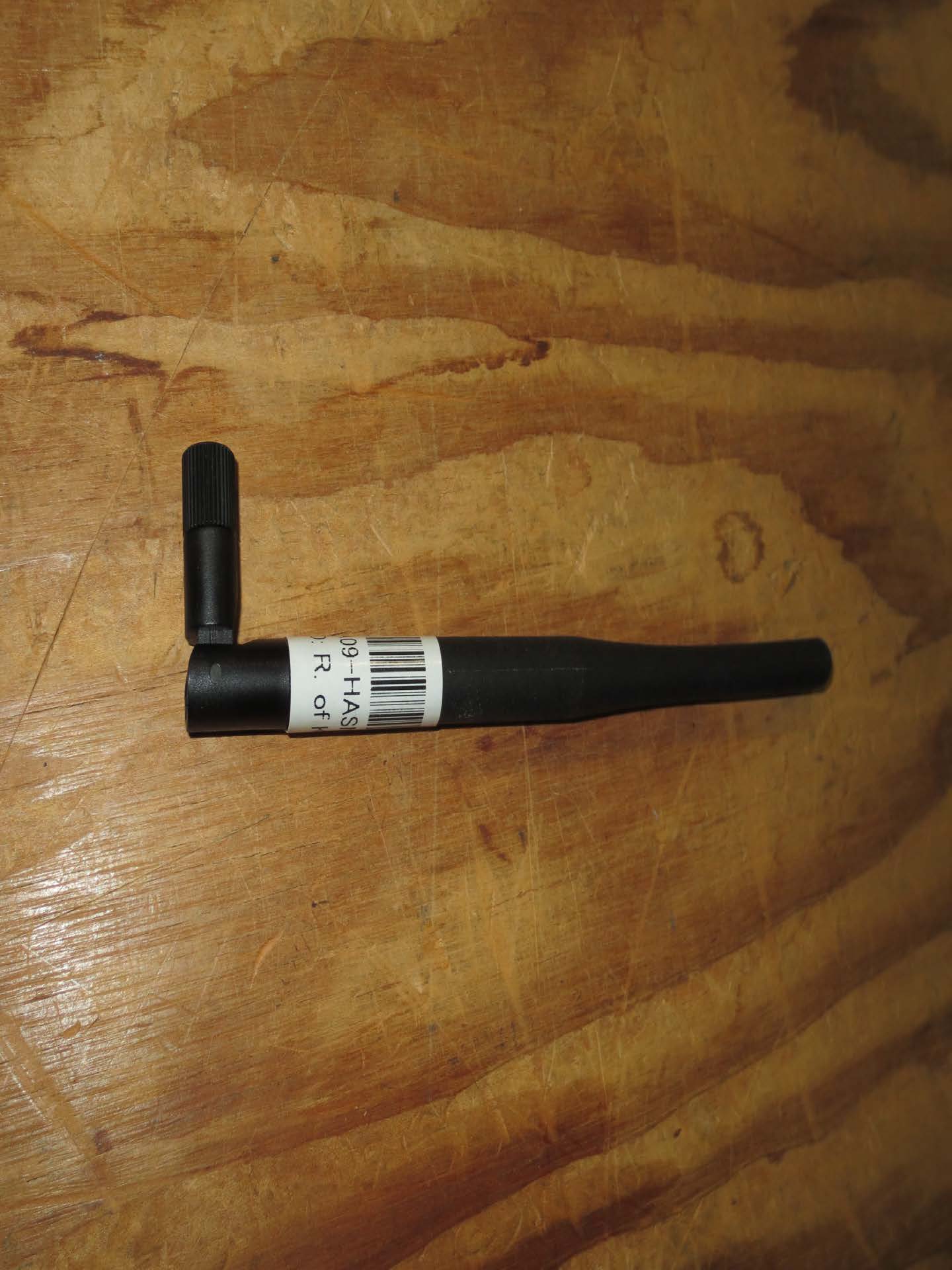

Antennas used in testing Model: XB9XR Date: January 17, 2024 Antenna family Yagi antennas Digi part number A09-Y15NF Manufacturer part number Cushcraft PC9013 Description 915MHz Yagi Antenna Gain 15.1 dBi Antenna family Omni antennas Digi part number A09-F8NF Manufacturer part number Antenex/Laird FG9026 Description Omni Antenna Gain 8.0 dBi Antenna family Dipole antennas Digi part nu…
