MCQ-XBPS3BXBEE PRO XSC

11001 Bren Road East Minnetonka, MN 55343 www.digi.com XBee-PRO® XSC RF Module XBee-PRO® XSC RF Module RF Module Operation RF Module Configuration Appendices Product Manual For RF Module Part Number: XBP09-XC... 900 MHz OEM RF Modules by Digi International Inc. 90000938_C 11, 3, 2011 XBee‐PRO®XSC RF Module ‐ Product Manual © 2011 Digi International, Inc. ii © 2011 Digi International, Inc. All rights reserved No part of the contents of this manual may be transmitted or reproduced in any form or by any means without the written permission of Digi International, Inc. XBee‐PRO® is a registered trademark of Digi International Inc. Technical Support: Phone: (801) 765‐9885 Live Chat: www.digi.com Contents XBee‐PRO® XSC OEM RF Modules © 2011 Digi Internaitonal, Inc. 1 1. XBee-PRO® XSC OEM RF Module 4 Key Features 4 Worldwide Acceptance 4 Specifications 5 Pin Signals 6 Electrical Characteristics 7 Timing Specifications 7 Mechanical Drawings 8 2. RF Module Operation 9 Serial Communications 9 UART-Interfaced Data Flow 9 Serial Data 9 Flow Control 10 Modes of Operation 11 Idle Mode 11 Transmit Mode 11 Sleep Mode 13 Command Mode 15 3. RF Module Configuration 18 XBee Programming Examples 18 AT Commands 18 Binary Commands 18 Command Reference Table 19 Command Descriptions 20 Agency Certifications 37 FCC (United States) Certification 37 Labeling Requirements 37 FCC Notices 37 Limited Modular Approval 38 FCC-approved Antennas 38 IC (Industry Canada) Certification 38 Additional Information 42 1-Year Warranty 42 Contact Digi 42 XBee‐PRO® XSC OEM RF Modules © 2011 Digi International, Inc. 4 1. XBee‐PRO® XSC OEM RF Module The XBee-PRO XSC (900 MHz) OEM RF Modules were engineered to afford OEMs and integrators an easy-to-use RF solution that provides reliable delivery of critical data between remote devices. These modules come configured to sustain reliable long-range wireless links. The XBee Module is a drop-in wireless solution that transfers a standard asynchronous serial data stream. 1.1. Key Features 1.1.1. Worldwide Acceptance FCC Certified (USA) - Refe r to Appe ndix A for F CC Requ ire me nts . Systems that include XBee-PRO Modules inherit Digi’s FCC Certification ISM (Industrial, Scientific & Medical) frequency band Manufactured under ISO 9001:2000 registered standards XBee-PRO™ XSC (900 MHz) OEM RF Modules are approved for use in US and Canada. RoHS compliant Long Range Data Integrity XBee-PRO XSC- S3: • Indoor/Urban: 1200' (370m) • Outdoor line-of-sight: Up to 6 miles (9.6 km) • Outdoor line-of-sight: Up to 15 miles (24 km) w/ high gain antenna • Receiver Sensitivity: -106 dBm, XBee-PRO XSC-S3B: • Indoor/Urban range: 2000’ (610 m) • Outdoor line-of-sight range: 9 miles (14 km) • Receiver Sensitivity: -109 dBm Advanced Networking & Security • True peer-to-peer (no “master” required) communications • Point-to-point & point-to-multipoint topolo- gies supported • Retries and Acknowledgements • 7 hopping channels, each with over 65,000 available network addresses • FHSS (Frequency Hopping Spread Spec- trum) Easy-to-Use • Continuous RF data stream up to 9600 bps • No configuration required for out-of-the-box RF data communications • Advanced configurations available through standard AT & binary Commands • Portable (small form factor easily designed into a wide range of data radio systems) • Software-selectable serial interface baud rates • I/O Support: CTS, RTS (& more) • Support for multiple data formats (parity, start and stop bits, etc.) • Power-saving Sleep Modes XBee‐PRO® XSC OEM RF Modules © 2011 Digi International, Inc. 5 1.2. Specifications Table 1‐01. XBee‐PRO XSC OEM RF Module Specifications Specification XBee-PRO XSC (S3) (900 MHz) OEM RF Module XBee-PRO XSC (S3B) Performance Indoor/Urban RangeUp to 1200ft (370m)up to 2000ft (610m) Outdoor line-of-sight Range Up to 6 miles (9.6km) w/ dipole antenna Up to 15 miles (24 km) w/ high-gain antenna Up to 9 miles (14km) w/ dipole antenna Up to 28 miles (45km) w/ high-gain antenna Interface Data Rate 125 - 65,000 bps (Software selectable, includes non-standard baud rates) Throughput Data Rate9,600 bps9.6 kbps or 19.2kbs RF Data Rate10 kbps10 kbps or 20kbs Transmit Power Output100 mW (+20 dBm)24dBm @ 215mA Receiver Sensitivity-106dBm -109dBm at 9600 baud -107dBm at 19200 baud Power Requirements Supply Voltage3.0-3.6 VDC regulated2.4 to 3.6v Receive Current 65mA26mA typical Transmit Current265mA215mA at 24dBm Power Down Current 50 uA2.5uA typical @3.3v General Frequency Range902-928 MHz (located in the 900MHz ISM Band) Spread SpectrumFrequency Hopping Network TopologyPoint-to-Point, Peer-to-Peer, Point-to-Multipoint Channel Capacity7 hop sequences share 25 frequencies Board-level Serial Data Interface (S3B)3V CMOS UART (5V-tolerant)3V CMOS UART Physical Properties Module Board Size 1.297" x 0.962" x 0.215 (3.29 cm x 2.44 cm x 0.546 cm) Note: Dimensions do not include connector/antenna or pin lengths Weight 5 to 8 grams, depending on the antenna option Connector2 rows of 10 pins, 22mm apart with 2mm spaced male Berg-type headers Operating Temperature -40 to 85º C (industrial) Antenna Options Integrated Wire¼ wave monopole, 3.25” (8.26 cm) length, 1.9 dBi Gain Integrated Helical 0.315" (0.8 cm) height RF ConnectorReverse-polarity SMA or U.FL Impedance50 ohms unbalanced Certifications) FCC Part 15.247MCQ-XBEEXSCMCQ-XBPS3B Industry Canada (IC)1846A-XBEEXSC1846A-XBPS3B EuropeN/A RoHSCompliant AustraliaN/APending XBee‐PRO® XSC OEM RF Modules © 2011 Digi International, Inc. 6 1.3. Pin Signals Figure 1‐01. XBee‐PRO XSC OEM RF Module Pin Numbers (top view, shield underneath) Table 1‐02. J1 Pin Signal Descriptions (Low‐asserted signals distinguished with a horizontal line over signal name.) Note:*S3 has a 100k pull‐up. S3B has internal pull‐up. **S3 has 10k pull‐up. S3B has internal pull‐ up. Module PinPublic SignalNotesI/O When Active Function 1VCCISupply Voltage 2DO (Data Out)On/a Serial data exiting the module (to the UART host). Refer to the Serial Communicati…

Text truncated - open the document above for the full version.

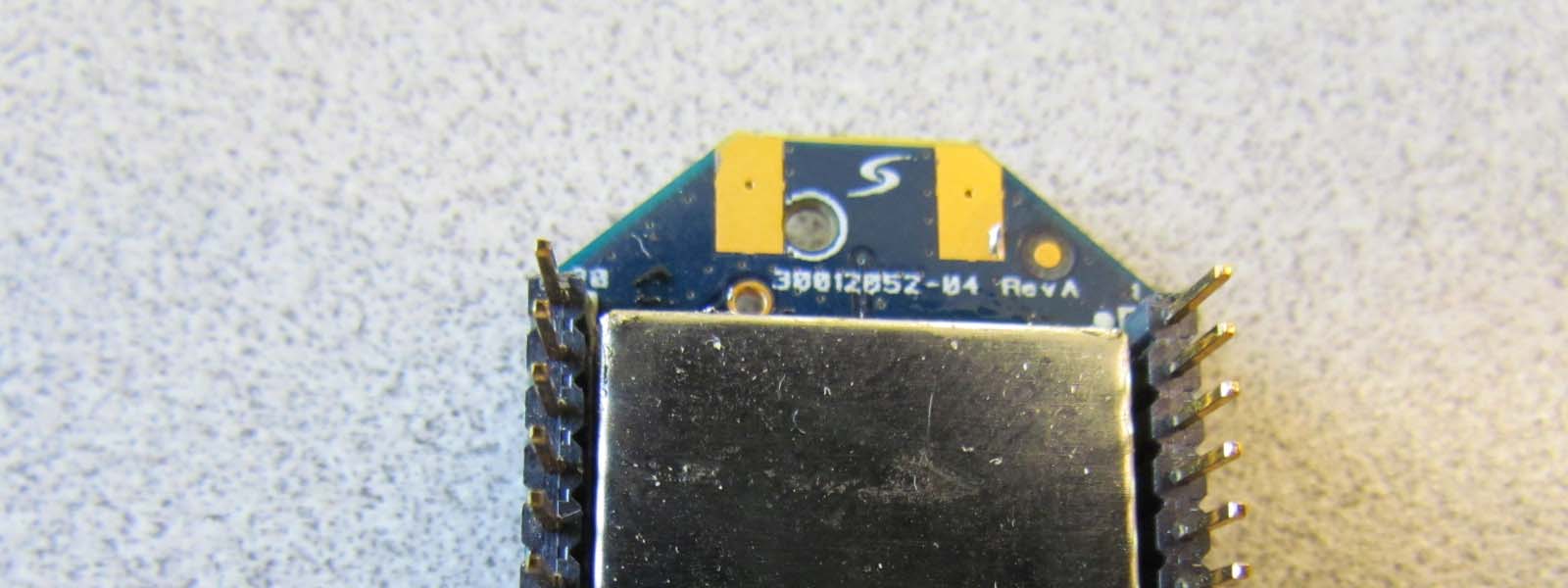

the wireless lab 17 November 2011 Digi International DIGI22 – XBee Pro S3B External Photographs Module front MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab Module back with shield Page 2 of 2

the wireless lab 17 November 2011 Digi International DIGI22 – XBee Pro S3B Internal Photographs Module front MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab Module back with shield Page 2 of 3 the wireless lab Module back with shield removed Page 3 of 3

COVER PAGE Test of Digi International XBPS3B To: FCC 47 CFR Part15.247 & IC RSS-210 Test Report Serial No.: DIGI22-U1 Rev B TITLE PAGE TEST REPORT FROM Test of Digi International XBPS3B To FCC 47 CFR Part15.247 & IC RSS-210 Test Report Serial No.: DIGI22-U1 Rev B This report supersedes: DIGI22-U1 Rev A Manufacturer: Digi International 355 South 520 West, Suite 180 Lindon Utah 84042 USA Product Function: General Data and Control Radio Copy No: pdf Issue Date: 17th November 2011 MiCOM Labs is an ISO 17025 Accredited Testing Laboratory CERTIFICATE #2381.01 This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 440 Boulder Cour t, Suite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. Title: Digi International XBPS3B To: Serial #: Issue Date: Page: FCC 47 CFR Part15.247 & IC RSS-210 DIGI22-U1 Rev B 17th November 2011 3 of 92 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com This page has been left intentionally blank Title: Digi International XBPS3B To: Serial #: Issue Date: Page: FCC 47 CFR Part15.247 & IC RSS-210 DIGI22-U1 Rev B 17th November 2011 4 of 92 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com TABLE OF CONTENTS ACCREDITATION & LISTINGS.......................................................................................5 RECOGNITION................................................................................................................ 6 PRODUCT CERTIFICATION........................................................................................... 7 1. TEST RESULT CERTIFICATE .................................................................................9 2. REFERENCES AND MEASUREMENT UNCERTAINTY ......................................10 2.1. Normative References .......................................................................................... 10 2.2. Test and Uncertainty Procedures ......................................................................... 10 3. PRODUCT DETAILS AND TEST CONFIGURATIONS ........................................11 3.1. Technical Details .................................................................................................. 11 3.2. Scope of Test Program ......................................................................................... 12 3.3. Equipment Model(s) and Serial Number(s) .......................................................... 14 3.4. Antenna Details .................................................................................................... 14 3.5. Cabling and I/O Ports ........................................................................................... 14 3.6. Test Configurations............................................................................................... 15 3.7. Equipment Modifications....................................................................................... 15 3.8. Deviations from the Test Standard ....................................................................... 15 3.9. Subcontracted Testing or Third Party Data .......................................................... 15 4. TEST SUMMARY ....................................................................................................16 5. TEST RESULTS ......................................................................................................18 5.1. Device Characteristics .......................................................................................... 18 5.1.1. 20 dB Bandwidth ....................................................................................... 18 5.1.2. Transmitter Channels - Channel Spacing ............................................... 24 5.1.3. Transmitter Channels................................................................................ 27 5.1.4. Output Power ............................................................................................ 33 5.1.5. Maximum Permissible Exposure............................................................... 36 5.1.6. Conducted Spurious Emissions Transmitter ............................................. 37 5.1.7. Conducted Receiver Spurious Emissions ................................................. 45 5.1.8. Radiated Emissions .................................................................................. 53 5.1.9. AC Wireline Conducted Emissions (150 kHz – 30 MHz) .......................... 82 6. PHOTOGRAPHS.....................................................................................................84 6.1. General Measurement Test Set-Up ...................................................................... 84 6.2. Radiated Emissions >1 GHz................................................................................. 86 6.3. Radiated Emissions <1 GHz................................................................................. 88 7. TEST EQUIPMENT DETAILS.................................................................................91 Title: Digi International XBPS3B To: Serial #: Issue Date: Page: FCC 47 CFR Part15.247 & IC RSS-210 DIGI22-U1 Rev B 17th November 2011 5 of 92 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of t…

Text truncated - open the document above for the full version.

the wireless lab 10 November 2011 Digi International DIGI22 – XBee Pro S3B Test Setup Photographs General Measurement Test Set-Up MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab Page 2 of 7 the wireless lab Omni Directional Antenna Page 3 of 7 the wireless lab Yagi Directional Antenna Page 4 of 7 the wireless lab Omni Directional Antenna Page 5 of 7 the wireless lab Yagi Directional Antenna Page 6 of 7 the wireless lab Yagi Directional Antenna Page 7 of 7
