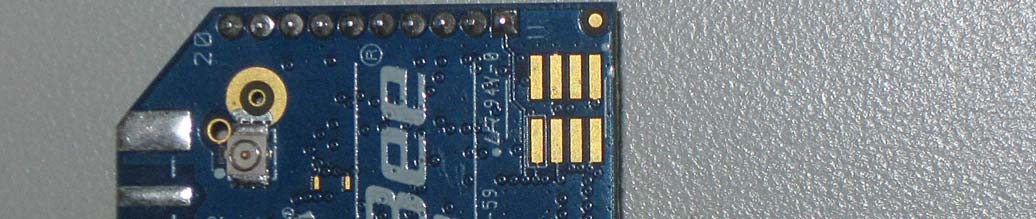

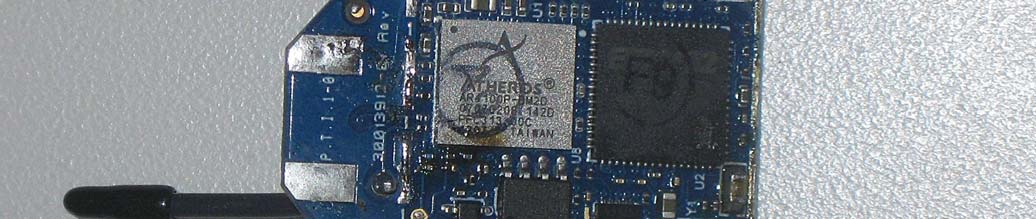

MCQ-XBS6BXBee Wi-Fi S6B Module

XBee® Wi-Fi RF Module WiFi RF Modules by Digi International Firmware version: 200x 11001 Bren Road East Minnetonka, MN 55343 877 912-3444 or 952 912-3444 http://www.digi.com 90002180_A XBee® Wi-Fi RF Modules © 2012 Digi International, Inc. 2 © 2012 Digi International, Inc. All rights reserved No part of the contents of this manual may be transmitted or reproduced in any form or by any means without the written permission of Digi International, Inc. XBee® is a registered trademark of Digi International, Inc. Technical Support Phone: (866) 765-9885 toll-free U.S.A. & Canada (801) 765-9885 Worldwide 8:00 am - 5:00 pm [U.S. Mountain Time] Online Support: http://www.digi.com/support/eservice/login.jsp Email: rf [email protected] XBee® Wi-Fi RF Modules © 2012 Digi International, Inc. 3 Contents XBee® Wi-Fi RF Module .......................................................................................................................... 1 1.Overview.............................................................................................................................................. 7 Specifications ...................................................................................................................................... 8 General Specifications .................................................................................................................... 8 RF Specifications ............................................................................................................................. 8 Electrical Specifications ................................................................................................................ 14 Serial Communications Specifications .......................................................................................... 14 UART ............................................................................................................................................. 14 SPI ................................................................................................................................................. 15 GPIO Specifications ........................................................................................................................... 15 Agency Approvals ............................................................................................................................. 16 Pin Signals ......................................................................................................................................... 16 Design Notes ..................................................................................................................................... 17 Power Supply ................................................................................................................................ 17 Recommended Pin Connections .................................................................................................. 17 Board Layout ................................................................................................................................ 17 Mounting Considerations ............................................................................................................. 19 2. RF Module Operation ....................................................................................................................... 21 Serial Communications ..................................................................................................................... 21 UART Communications ................................................................................................................. 21 SPI Communications ..................................................................................................................... 22 Serial Buffers .................................................................................................................................... 24 Serial Receive Buffer ..................................................................................................................... 24 Serial Transmit Buffer ................................................................................................................... 24 UART Flow Control ....................................................................................................................... 25 Serial Interface Protocols ................................................................................................................. 26 Transparent Operation ................................................................................................................. 26 API Operation ............................................................................................................................... 26 A Comparison of Transparent and API Operation ........................................................................ 27 Modes of Operation ......................................................................................................................... 28 Idle Mode ..................................................................................................................................... 28 Transmit Mode ............................................................................................................................. 28 Receive Mode ............................................................................................................................... 28 Command Mode ........................................................................................................................... 28 XBee® Wi-Fi RF Modules © 2012 Digi International, Inc. 4 Configuration Mode ......................................................................................................................... 29 Forcing Entry into Configuration Mode ...............................................................................…

Text truncated - open the document above for the full version.

UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 FCC 91038 1309 46390-2049 NvLap Lab Code 200093-0 SL2-IN-E-1119R Korea KCC-RRL CA2049 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] October 26, 2012 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Application for Equipment Certification under FCC Part 15, Subpart C, Section 15.247 - Digital Modulation Systems (DTS) Operating in 2400 - 2483.5 MHz Band. Applicant: Digi International Inc. Product: XBee S6B Model No.: XBEES6B FCC ID: MCQ-XBS6B Dear Sir/Madam: As appointed agent for Digi International Inc, we submit the application for certification of the above product. Kindly review all files uploaded to your electronic filing site. This application is subject to FCC certification for modular approval, kindly refer to Applicant’s letter requesting for limited modular approval according to the modular approval requirements in Section 15.212 rules. If you have any queries, please do not hesitate to contact us. Yours truly, Dan Huynh Dan Huynh Authorized Agent

FCC Part 15, Subpart C, Section 15.247 – DTS Page 167 XBee S6B, Model XBEES6B FCC ID: MCQ-XBS6B ULTRATECH GROUP OF LABS File #: DIGI-064F15C247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 26, 2012 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.7. RF EXPOSURE REQUIRMENTS [§§ 15.247(e)(i), 1.1310 & 2.1091] The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation. FCC 47 CFR § 1.1310: 5.7.1. Method of Measurements Refer to Sections 1.1310, 2.1091 In order to demonstrate compliance with MPE requirements (see Section 2.1091), the following information is typically needed: (1) Calculation that estimates the minimum separation distance (20 cm or more) between an antenna and persons required to satisfy power density limits defined for free space. (2) Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement (3) Any caution statements and/or warning labels that are necessary in order to comply with the exposure limits (4) Any other RF exposure related issues that may affect MPE compliance FCC Part 15, Subpart C, Section 15.247 – DTS Page 168 XBee S6B, Model XBEES6B FCC ID: MCQ-XBS6B ULTRATECH GROUP OF LABS File #: DIGI-064F15C247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 26, 2012 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) Calculation Method of RF Safety Distance : 22 44r EIRP r GP S       Where: P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm 5.7.2. RF Evaluation Evaluation of RF Exposure Compliance Requirements RF Exposure Requirements Compliance with FCC Rules Minimum calculated separation distance between antenna and persons required: *17.8 cm Manufacturer’ instruction for separation distance between antenna and persons required: 20 cm minimum Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement Antenna installation and device operating instructions shall be provided to installers to maintain and ensure compliance with RF exposure requirements. Caution statements and/or warning labels that are necessary in order to comply with the exposure limits Refer to user’s manual for RF exposure Information. Any other RF exposure related issues that may affect MPE compliance None. *The minimum separation distance between the antenna and bodies of users are calculated using the following formula: S EIRP S GP r      44 S = 1.0 mW/cm 2 EIRP = 36 dBm = 10 (36/10) mW = 3981 mW (Worst Case) (Minimum Safe Distance, r) = cm S EIRP 8.17 )0.1(4 3981 4     

XBee S6B Model: XBEES6B FCC ID: MCQ-XBS6B Applicant: Digi International Inc. 11001 Bren Road East Minnetonka, MN 55343 In Accordance With Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.247 Digital Modulation Systems (DTS) Operating in 2400 – 2483.5 MHz Band UltraTech's File No.: DIGI-064F15C247 This Test report is Issued under the Authority of Tri M. Luu Vice President of Engineering UltraTech Group of Labs Date: October 26, 2012 Report Prepared by: Dan Huynh Issued Date: October 26, 2012 Tested by: Mr. Hung Trinh Test Dates: October 2 -10, 2012  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] FCC Korea KCC-RRL 91038 1309 46390-2049 NvLap Lab Code 200093-0 SL2-IN-E-1119R CA2049 FCC Part 15, Subpart C, Section 15.247 – DTS Contents i XBee S6B, Model XBEES6B FCC ID: MCQ-XBS6B ULTRATECH GROUP OF LABS File #: DIGI-064F15C247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 26, 2012 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION.............................................................................................................................................. 1 1.1. SCOPE ........................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 1 1.3. NORMATIVE REFERENCES ...................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT.................................................................................................................... 2 2.1. CLIENT INFORMATION .............................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ................................................................................................... 2 2.3. EUT’S TECHNICAL SPECIFICATIONS....................................................................................................................... 3 2.4. ASSOCIATED ANTENNA DESCRIPTIONS ................................................................................................................ 3 2.5. LIST OF EUT’S PORTS............................................................................................................................................... 3 2.6. ANCILLARY EQUIPMENT ........................................................................................................................................... 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS............................................... 5 3.1. CLIMATE TEST CONDITIONS.................................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS..................................................................... 5 EXHIBIT 4. SUMMARY OF TEST RESULTS ..................................................................................................................... 6 4.1. LOCATION OF TESTS ................................................................................................................................................ 6 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS .......................................................................6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ................................................ 6 EXHIBIT 5. TEST DATA ..................................................................................................................................................... 7 5.1. POWER LINE CONDUCTED EMISSIONS [§15.207(a)].............................................................................................. 7 5.2. OCCUPIED BANDWIDTH [§ 15.247(a)(2)] ................................................................................................................ 10 5.3. PEAK CONDUCTED OUTPUT POWER - DTS [§ 15.247(b)(3)] ............................................................................... 58 5.4. TRANSMITTER BAND-EDGE & SPURIOUS CONDUCTED EMISSIONS [§ 15.247(d)].......................................... 61 5.5. TRANSMITTER SPURIOUS RADIATED EMISSIONS AT 3 METERS [§§ 15.247(d), 15.209 & 15.205]................ 136 5.6. POWER SPECTRAL DENSITY [§ 15.247(e)] .......................................................................................................... 142 5.7. RF EXPOSURE REQUIRMENTS [§§ 15.247(e)(i), 1.1310 & 2.1091]..................................................................... 167 EXHIBIT 6. TEST EQUIPMENT LIST ............................................................................................................................. 169 EXHIBIT 7. MEASUREMENT UNCERTAINTY............................................................................................................... 170 7.1. LINE CONDUCTED EMISSION MEASUREMENT UNCERTAINTY .......................................................................170 7.2. RADIATED EMISSION MEASUREMENT UNCERTAINTY .......................................…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOS Digi International Inc. XBee S6B, Model XBEES6B FCC ID: MCQ-XBS6B A1 - 1 Power Line Conducted Emissions ANNEX 1 - TEST SETUP PHOTOS Digi International Inc. XBee S6B, Model XBEES6B FCC ID: MCQ-XBS6B A1 - 2 Power Line Conducted Emissions ANNEX 1 - TEST SETUP PHOTOS Digi International Inc. XBee S6B, Model XBEES6B FCC ID: MCQ-XBS6B A1 - 3 Radiated Emissions @ 3 m, Orthogonal Position 1 ANNEX 1 - TEST SETUP PHOTOS Digi International Inc. XBee S6B, Model XBEES6B FCC ID: MCQ-XBS6B A1 - 4 Radiated Emissions @ 3 m, Orthogonal Position 2 ANNEX 1 - TEST SETUP PHOTOS Digi International Inc. XBee S6B, Model XBEES6B FCC ID: MCQ-XBS6B A1 - 5 Radiated Emissions @ 3 m, Orthogonal Position 3
