MCQ-XLRPXLR PRO Module

XLR PRO ® Radio Frequency (RF) Module User Guide PRELIMINARY DRAFT Disclaimers Information in this document is subject to change without notice and does not represent a commitment on the part of Digi International. Digi provides this document “as is,” without warranty of any kind, expressed or implied, including, but not limited to, the implied warranties of fitness or merchantability for a particular purpose. Digi may make improvements and/or changes in this manual or in the product(s) and/or the program(s) described in this manual at any time. Trademarks and Copyright Digi, Digi International, the Digi logo, and XLR PRO are trademarks or registered trademarks in the United States and other countries worldwide. All other trademarks mentioned in this document are the property of their respective owners. © 2014 Digi International. All rights reserved. Customer Support If you need assistance, contact technical support: • Telephone (8:00 am - 5:00 pm—U.S. Mountain Time): (866) 765-9885 toll-free U.S.A. & Canada (801) 765-9885 Worldwide • Fax: 952-912-4952 • Online: www.digi.com/support/eservice/ • Email: [email protected] XLR PRO Radio Frequency Module User Guide Part Number 90001407 RevisionDateDescription P1April 2014Preliminary draft. PRELIMINARY DRAFT XLR PRO Radio Frequency Module User Guide3 Contents About the XLR PRO Radio Frequency (RF) Module XLR PRO RF Module Technical Specifications 5 XLR PRO RF Module Receiver Sensitivity 6 XLR PRO RF Module Pin Signals 6 XLR PRO RF Module Data Rates 9 XLR PRO Certifications FCC (United States) Certification 11 FCC Labeling Requirements 11 FCC Notices 12 FCC Limited Modular Approval 12 FCC-Approved Antennas 12 IC (Industry Canada) Certification 13 IC Labeling Requirements 13 XLR PRO Approved Antennas Omni-Directional Antennas 15 Yagi Antennas 16 PRELIMINARY DRAFT 4 XLR PRO Radio Frequency Module User Guide PRELIMINARY DRAFT XLR PRO Radio Frequency Module User Guide5 About the XLR PRO Radio Frequency (RF) Module The XLR PRO Application Name is a high performance, industrial grade long-range RF solution using Chirp Spread Spectrum (CSS) technology to maximize range and significantly increase immunity to interference. XLR PRO Application Name Technical Specifications SpecificationDescription Transmit Power (Software Selectable)30 dBm (highest power level) Receiver SensitivityUp to -120 dBm (see XLR PRO RF Module Receiver Sensitivity on page 6) Throughput Data Rate (Software Selectable) TBD RF Data Rate9 kbps to 3.1 Mbps Networking and Security TransmissionChirp Spread Spectrum (CSS) ModulationQuadrature Phase Shift Keying (QPSK) Supported Network TopologiesPoint-to-point, Point-to-multipoint, Broadcast repeater InterfaceSerial CMOS UART and I/O lines Encryption128bit AES Power Requirements Supply Voltage3.8 to 5.5VDC Note Operation below 4.5V may reduce radio transmit power performance and LNA sensitivity. PRELIMINARY DRAFT 6 XLR PRO Radio Frequency Module User Guide XLR PRO RF Module Receiver Sensitivity XLR PRO Application Name Pin Signals Receive Current295 mA at 5 V Transmit Current1.5 A at 5 V Shutdown Mode Power Down3 μA Environmental Operating Temperature-40 C to 70 C Certifications FCC IDMCQ-XLRP (pending) IC1846A-XLRP (pending) Hazardous LocationsC1D2 (pending) SpecificationDescription Data Rate Receiver Sensitivity (25°C) (dBm) 9 kbps-120 28 kbps-119 65 kbps-116 140 kbps-113 290 kbps-109 590 kbps-106 1.1 Mbps-104 2.3 Mbps-100 3.1 Mbps-98 Pin #NameDescription 1ReservedDo not connect 2ReservedDo not connect 3ReservedDo not connect PRELIMINARY DRAFT XLR PRO Radio Frequency Module User Guide7 XLR PRO Application Name Pin Signals 4ReservedDo not connect 5GNDGround 6VDD-5VPower Supply 7ReservedDo not connect 8ReservedDo not connect 9ReservedDo not connect 10ReservedDo not connect 11VDD-5VPower Supply 12GNDGround 133.3V_OUTRegulated Output Voltage from VDD_5V. Controlled by nSHUTDOWN. 143.3V_INVoltage Supply for the Primary Processor and the I/O Voltages 153.3V_ADJUSTVoltage Control of 3.3V_OUT 16nRESETModule Reset 17ReservedDo not connect 18DIO0/AD0/CommBtnGPIO/Analog Input/Commissioning Button 19ReservedDo not connect 20DIO1/AD1GPIO/Analog Input 21ReservedDo not connect 22DIO2/AD2GPIO/Analog Input 23ReservedDo not connect 24DIO1/AD1GPIO/Analog Input 25ReservedDo not connect 26DIO4GPIO 27ReservedDo not connect 28DIO5/ASSOCGPIO/Associate Indicator 29DIO19/SPI_nATTNGPIO/SPI Attention Pin #NameDescription PRELIMINARY DRAFT 8 XLR PRO Radio Frequency Module User Guide 30DIO8/nDTR/SLP_RQGPIO/Pin Sleep Control Line 31DIO17/SPI_nSSELGPIO/SPI Slave Select 32DIO9/ON_nSLEEPGPIO/Module Status Indicator 33DIO16/SPI_SIGPIO/SPI Slave In 34VREFUsed internally used for programmable secondary processor. For compatibility with other XLR modules, we recommend connecting this pin to the voltage reference if Analog Sampling is desired. Otherwise, connect to GND. 35DIO15/SPI_SOGPIO/SPI Slave Out 36DIO10/PWM0/RSSI/DAC0GPIO/RX Signal Strength Indicator 37DIO18/SPI_CLKGPIO/SPI Clock 38DIO11/PWM1/DAC1GPIO/Pulse Witdh Modulator 39DIO7/nCTSGPIO/Clear-to-Send Flow Control 40DIO12/CD/PWM2/ADTRGGPIO/Pulse Width Modulator 41DIO6/nRTSGPIO/Request-to-Send Flow Control 42GNDGround 43DIO13/DOUTUART Data out 44ReservedDo not connect 45DIO14/DIN/nConfigUART Data in 46nSHUTDOWNModule Shutdown 47GNDGround 48VDD_5VPower Supply 49ReservedDo not connect 50ReservedDo not connect 51ReservedDo not connect 52ReservedDo not connect Pin #NameDescription PRELIMINARY DRAFT XLR PRO Radio Frequency Module User Guide9 XLR PRO Application Name Data Rates XLR PRO Application Name Data Rates RF Baud Rate Setting Raw Data Rate 9605 Mhz BW (Kbps) 0x009.380 0x0112.50 0x0228.14 0x0337.52 0x0465.66 0x0587.55 0x06140.7 0x07187.6 0x08290.8 0x09387.7 0x0A590.9 0x0B787.8 0x0C1191 0x0D1588 0x0E2392 0x0F3189 PRELIMINARY DRAFT 10 XLR PRO Radio Frequency Module User Guide PRELIMINARY DRAFT XLR PRO Radio Frequency Module User Guide11 XLR PRO Certifications The XLR PRO radio frequency (RF) module, when used with…

Text truncated - open the document above for the full version.

External Bottom External Top

XLR PRO Label Information XLR PRO Model: XLRP FCC ID: MCQ-XLRP IC: 1846A-XLRP Part Number Barcode Label Digi International Logo

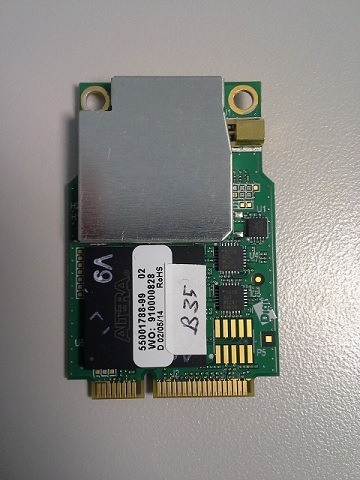

Internal Top

DIGI44-U2 Maximum Permissible Exposure FCC, Part 15 §1.1310 Industry Canada RSS-Gen §5.6 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4d 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 The calculations in the table below use highest gain antennas for the client EUT. Where the antenna gain exceeds 6dBi the transmitter power is reduced where necessary to meet the EIRP requirements. These calculations represent worst case in terms of the exposure levels. Freq. Band (MHz) Antenna Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Safe Distance @ 1mW/cm 2 Limit(cm) Minimum Separation Distance (cm) 900 - 928 8.1 6.5 28.1 645.7 18.3 20 900 - 928 15.1 32.4 20.9 123.0 17.8 20 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits FCC §1.1310 Limit = 1mW / cm 2 from 1.310 Table 1 RSS-Gen §5.6 Category I and Category II equipment shall comply with the applicable requirements of RSS-102. Laboratory Measurement Uncertainty for Power Measurements Measurement uncertainty 1.33 dB
