MDZ-WN4517R-M802.11b/g/n 1T1R Wireless Lan USB Module

Page 1/16 PRODUCT SPECIFICATION 802.11n, 2.4G 1T1R Wireless LAN USB Module WN4617R(M) Version 1.0 * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC Page 2/16 CONTENT PRODUCT FEATURES .................................................................................................................... 3 PRODUCT SPECIFICATIONS ........................................................................................................ 4 FUNCTIONAL SPECIFICATIONS ............................................................................................................... 4 PIN ASSIGMENT ............................................................................................................................... 5 USB CONNECTOR SPEC ................................................................................................................. 6 MECHANICAL .................................................................................................................................. 9 METAL ANTENNA SPEC .............................................................................................................. 10 LABEL DRAWING .......................................................................................................................... 11 MODULE PHOTO ........................................................................................................................... 11 EEPROM INFORMATION ............................................................................................................ 13 ENVIRONMENTAL ........................................................................................................................ 13 OPERATING .......................................................................................................................................... 13 STORAGE .............................................................................................................................................. 13 FCC WARNING STATEMENT ..................................................................................................... 14 Page 3/16 PRODUCT FEATURES  Operate at ISM frequency Band (2.4GHz)  Support 1 transmission and 1 receiving, transmission rate can up to 150Mbps (Physical Rate) in downstream and upstream  20MHz/40MHz Bandwidth Support  USB 2.0 support for date rates up to 12Mbps full speed and 480Mbps high speed  IEEE standards support: 802.11b, 802.11g and 802.11n  Enterprise level security supporting: WPA, WPA2, TKIP, AES,  Low power with advanced Power Management  RoHS compliance  Low Halogen compliance Page 4/16 PRODUCT SPECIFICATIONS MAIN CHIPSET MAC/ Baseband/ RF: Ralink RT5370 FUNCTIONAL SPECIFICATIONS Wi-Fi Function Standard IEEE802.11b; IEEE 802.11g; IEEE 802.11n Bus Interface USB2.0 Data Rate 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 7 for HT20MHz MCS 0 to 7 for HT40MHz Media Access Control CSMA/CA with ACK Modulation Techniques 802.11b: CCK, DQPSK, DBPSK 802.11g: 64QAM, 16QAM, QPSK, BPSK 802.11n: BPSK, QPSK, 16QAM, 64QAM Network Architecture Ad-hoc mode (Peer-to-Peer) Infrastructure mode Operation Channel 2.4GHz 11: (Ch. 1-11) – United States Frequency Range 802.11bg 2.412 ~ 2.4835 GHz Transmit Output Power – 1x1 (Tolerance: ±1.5dBm) 802.11b: 17 dBm@1Mbps 17 dBm@11Mbps 802.11g: 15 dBm@6Mbps 15 dBm@54Mbps 802.11n: 20MHz: 14 dBm@MCS0 14 dBm@MCS7 40MHz: 12 dBm@MCS7 12 dBm@MCS7 Receiver Sensitivity 802.11b: -88 dBm@11Mbps 802.11g: -74 dBm@54Mbps Page 5/16 802.11n: 20MHz -73 dBm@MCS7 40MHz -69 dBm@MCS7 Security WPA, WPA2, WPS, WEP 64b&128bit, IEEE 802.1X, IEEE 802.11i Operating Voltage 3.3V ± 5% I/O supply voltage OS Supported Microsoft Windows XP/Vista/Win7/Win8; Linux based Power Consumption Test Condition: - Operate at HT40 - File Transmission - Record MAX value TX Mode: 235 mA RX Mode: 210 mA Standby Mode: 50 mA Antenna Type Metal Antenna PIN ASSIGMENT Pin. Pin Define Status 1 GND YES 2 USB_D+ YES 3 USB_D- YES 4 +3.3V YES 5 RESET YES Page 6/16 USB CONNECTOR SPEC Manufacturer:加煒 Approval Sheet: See Appendix A-1 ( Page 31 ~46 ) Page 7/16 Page 8/16 Manufacturer: Greenconn Approval Sheet: See Appendix A-2 ( Page 47 ~56 ) Page 9/16 MECHANICAL Page 10/16 METAL ANTENNA SPEC Manufacturer: Maglayers(美磊) Approval Sheet: See Appendix D ( Page72~82 ) Page 11/16 LABEL DRAWING MODULE PHOTO Top Side Bottom Side Page 12/16 Page 13/16 EEPROM INFORMATION Reg Domain US Channel 1~11 Active Scan Offset 0x38 for 5G: 0x00 Offset 0x39 for 2.4G: 0x00 Antenna Diversity Control Offset 0x37: 0x30 Vendor ID 0x148F Product ID 0x5370 ENVIRONMENTAL Operating Operating Temperature: 0 to 60 C (32 to 140 F) Relative Humidity: 5-90% (non-condensing) Storage Temperature: -20 to 70 C (-4 to 158 F) Relative Humidity: 5-95% (non-condensing) Page 14/16 FCC WARNING STATEMENT FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particula…

Text truncated - open the document above for the full version.

Modular Approval Request FCC (per FCC 15.212) FCC ID: MDZ-WN4517R-M Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Please review external photos. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The buffered integrated in chip RT5370. (Chip_U4). 3. The modular transmitter must have its own power supply regulation. The buffered integrated in chip RT5370. (Chip_U4). 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Please review external photos or test report. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Please review test setup photos. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Please refer to the user manual instructions. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): J.C. Cheng / Senior Enginner Date: Nov. 07, 2012 Signature:

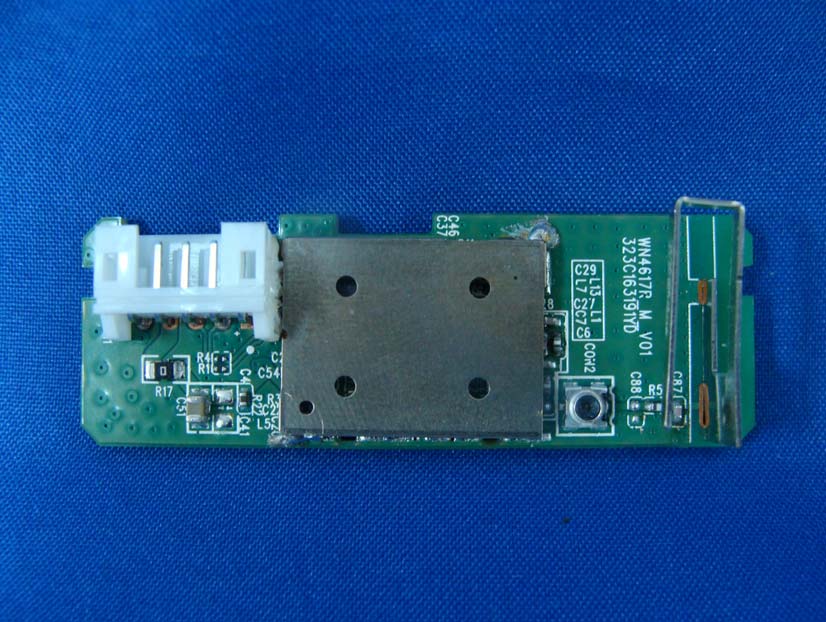

Report No.: 12A055R-RFUSP42V01 Page : 1 of 4 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 12A055R-RFUSP42V01 Page : 2 of 4 (3) EUT Photo (4) EUT Photo

Amtran Technology Co., Ltd FCC ID.: MDZ-WN4517R-M 17F., No.268, Liancheng Rd., Jhonghe, New Taipei City, Taiwan, R.O.C..Tel : 886-2-8228-0505 FCC ID Label

Amtran Technology Co., Ltd FCC ID.: MDZ-WN4517R-M 17F., No.268, Liancheng Rd., Jhonghe, New Taipei City, Taiwan, R.O.C..Tel : 886-2-8228-0505 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 12A055R-RFUSP42V01 Page : 3 of 4 (5) EUT Photo (6) EUT Photo Antenna Report No.: 12A055R-RFUSP42V01 Page : 4 of 4 (7) EUT Photo

Report No. 12A055R-RFUSP42V01 Page: 1 of 4 RF Exposure Evaluation declaration Product Name 802.11b/g/n 1T1R Wireless Lan USB Module Model No. WN4617R (M) FCC ID MDZ-WN4517R-M Applicant Amtran Technology Co., Ltd Address 17F., No.268, Liancheng Rd., Jhonghe, New Taipei City, Taiwan, R.O.C. Date of Receipt Oct. 01, 2012 Date of Declaration Oct, 17, 2012 Report No. 12A055R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 12A055R-RFUSP42V01 Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 12A055R-RFUSP42V01 Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product : 802.11b/g/n 1T1R Wireless Lan USB Module Test Item : RF Exposure Evaluation Test Site : No.3 OATS 802.11b (1Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (4.72dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 100.4616 0.059256 6 2437.00 89.5365 0.052812 11 2462.00 88.1049 0.051967 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11g (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (4.72dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 239.8833 0.141492 6 2437.00 255.8586 0.150914 11 2462.00 237.1374 0.139872 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-20MHz_7.2Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (4.72dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 208.4491 0.122951 6 2437.00 216.2719 0.127565 11 2462.00 195.4339 0.115274 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). Report No. 12A055R-RFUSP42V01 Page: 4 of 4 802.11n-40MHz_15Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (4.72dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 3 2422.00 121.3389 0.071570 6 2437.00 157.0363 0.092625 9 2452.00 149.9685 0.088457 Power density in column 4 is much lower than the limit (1 mW/cm 2 ).

Report No. 12A055R-RFUSP42V01 Page : 1 of 124 Test Report Product Name 802.11b/g/n 1T1R Wireless Lan USB Module Model No WN4617R (M) FCC ID. MDZ-WN4517R-M Applicant Amtran Technology Co., Ltd Address 17F., No.268, Liancheng Rd., Jhonghe, New Taipei City, Taiwan, R.O.C. Date of Receipt Oct. 01, 2012 Issue Date Oct, 17, 2012 Report No. 12A055R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 12A055R-RFUSP42V01 Page : 2 of 124 Test Report Certification Issue Date: Oct, 17, 2012 Report No.: 12A055R-RFUSP42V01 Product Name 802.11b/g/n 1T1R Wireless Lan USB Module Applicant Amtran Technology Co., Ltd Address 17F., No.268, Liancheng Rd., Jhonghe, New Taipei City, Taiwan, R.O.C. Manufacturer DONG GUAN G-COM COMPUTER CO., LTD. Model No. WN4617R (M) FCC ID. MDZ-WN4517R-M EUT Rated Voltage DC 3.3V EUT Test Voltage AC 120V/60Hz Trade Name Amtran Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Engineering Adm. Specialist / Anita Chou ) Tested By : ( Engineer / Vincent Chu ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 12A055R-RFUSP42V01 Page : 3 of 124 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Procedure .............................................................................................................................14 3.5. Uncertainty ..................................................................................................................................14 3.6. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................19 4.1. Test Equipment............................................................................................................................19 4.2. Test Setup ....................................................................................................................................20 4.3. Limits ..........................................................................................................................................21 4.4. Test Procedure .............................................................................................................................22 4.5. Uncertainty ..................................................................................................................................22 4.6. Test Result of Radiated Emission................................................................................................23 5. RF antenna conducted test........................................................................................................39 5.1. Test Equipment................................................…

Text truncated - open the document above for the full version.

Report No. 12A055R-RFUSP42V01 Page : 98 of 124 7. Occupied Bandwidth 7.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2012 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2012 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 7.2. Test Setup 7.3. Limits The minimum bandwidth shall be at least 500 kHz. 7.4. Test Procedure The EUT was setup according to ANSI C63.4: 2003; tested according to DTS test procedure of Jan. 2012 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW = 1-5% of the emission bandwidth, VBW≥3*RBW 7.5. Uncertainty ± 150Hz SMA EUT Spectrum Analyzer RF Cable Report No. 12A055R-RFUSP42V01 Page : 99 of 124 7.6. Test Result of Occupied Bandwidth Product : 802.11b/g/n 1T1R Wireless Lan USB Module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412 12300 >500 Pass Figure Channel 1: Report No. 12A055R-RFUSP42V01 Page : 100 of 124 Product : 802.11b/g/n 1T1R Wireless Lan USB Module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 12300 >500 Pass Figure Channel 6: Report No. 12A055R-RFUSP42V01 Page : 101 of 124 Product : 802.11b/g/n 1T1R Wireless Lan USB Module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462 12300 >500 Pass Figure Channel 11: Report No. 12A055R-RFUSP42V01 Page : 102 of 124 Product : 802.11b/g/n 1T1R Wireless Lan USB Module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412 16350 >500 Pass Figure Channel 1: Report No. 12A055R-RFUSP42V01 Page : 103 of 124 Product : 802.11b/g/n 1T1R Wireless Lan USB Module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 16400 >500 Pass Figure Channel 6: Report No. 12A055R-RFUSP42V01 Page : 104 of 124 Product : 802.11b/g/n 1T1R Wireless Lan USB Module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462 16350 >500 Pass Figure Channel 11: Report No. 12A055R-RFUSP42V01 Page : 105 of 124 Product : 802.11b/g/n 1T1R Wireless Lan USB Module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412 17500 >500 Pass Figure Channel 1: Report No. 12A055R-RFUSP42V01 Page : 106 of 124 Product : 802.11b/g/n 1T1R Wireless Lan USB Module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 17450 >500 Pass Figure Channel 6: Report No. 12A055R-RFUSP42V01 Page : 107 of 124 Product : 802.11b/g/n 1T1R Wireless Lan USB Module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462 17450 >500 Pass Figure Channel 11: Report No. 12A055R-RFUSP42V01 Page : 108 of 124 Product : 802.11b/g/n 1T1R Wireless Lan USB Module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2422MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 3 2422 36100 >500 Pass Figure Channel 1: Report No. 12A055R-RFUSP42V01 Page : 109 of 124 Product : 802.11b/g/n 1T1R Wireless Lan USB Module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 36100 >500 Pass Figure Channel 4: Report No. 12A055R-RFUSP42V01 Page : 110 of 124 Product : 802.11b/g/n 1T1R Wireless Lan USB Module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2452MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 9 2452 36100 >500 Pass Figure Channel 7: Report No. 12A055R-RFUSP42V01 Page : 111 of 124 8. Power Density 8.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2012 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2012 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 8.2. Test Setup 8.3. Limits The transmitted power density averaged over any 1 second interval shall not be greater +8dBm in any 3kHz bandwidth. 8.4. Test Procedure The EUT was setup according to ANSI C63.4, 2003; tested according to DTS test procedure of Jan. 2012 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW= 100 kHz, VBW≥300KHz, SPAN to 5-30 % greater than the EBW, Scale the observed power level to an equivalent value in 3 kH…

Text truncated - open the document above for the full version.

Report No.: 12A055R-RFUSP42V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 12A055R-RFUSP42V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 12A055R-RFUSP42V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
