MDZ-WN4617R-F802.11b/g/n 1T1R Wireless Lan USB Module

8 8 0 0 2 2 . . 1 1 1 1 n n 2 2 . . 4 4 G G 1 1 T T 1 1 R R W W i i r r e e l l e e s s s s L L A A N N U U S S B B M M o o d d u u l l e e W W N N 4 4 6 6 1 1 7 7 R R ( ( F F ) ) User’s Manual REGULATORY STATEMENTS FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: MDZ-WN4617R-F” Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. For product available in the USA market, only channel 1~11 can be operated. Selection of other channels is not possible. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the user manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p) is not more than that permitted for successful communication. This radio transmitter FCCID: MDZ-WN4617R-F has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Antenna List No. Manufacturer Part No. Antenna Type Peak Gain 1 MAG.LAYERS MSA-3420-25GC4-A1 PIFA 2.37 dBi for 2.4 GHz 2 MAG.LAYERS MSA-3422-25GC4-A2 PIFA 2.18 dBi for 2.4 GHz 3 MAG.LAYERS MSA-3422-25GC4-A3 PIFA 2.01 dBi for 2.4 GHz 4 MAG.LAYERS MSA-3415-25GC4-A1 PIFA 1.67 dBi for 2.4 GHz 5 MAG.LAYERS MSA-3415-25GC4-A2 PIFA 1.67 dBi for 2.4 GHz 6 MAG.LAYERS MSA-3415-25GC4-A3 PIFA 1.67 dBi for 2.4 GHz Note: The antenna connector is I-PEX type. INTRODUCTION The 802.11b/g/n 1T1R USB WLAN Module is a device that allows you connect your computer to a wireless local area network (LAN). A wireless LAN allows your system to use wireless Radio Frequency (RF) technology to transmit and receive data without physically attaching to the network. The Wireless protocols that come with this product ensure data security and isolation from interference generated by ot…

Text truncated - open the document above for the full version.

Amtran Technology Co., Ltd 17F., No.268, Liancheng Rd., Jhonghe, New Taipei City, Taiwan, R.O.C. TEL No: 886-2-8228-0505 FAX No.: 886-2-8228-0513 Attestation for FCC Declaration of Conformity FCC ID: MDZ-WN4617R-F Data: Dec. 21, 2012 Please be notified that we, the undersigned, Amtran Technology Co., Ltd. .declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 12C262R-RFUSP24V02. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, -------------------------------------- J.C. Cheng / Senior Enginner Amtran Technology Co., Ltd Tel : 886-2-8228-0505 Fax: 886-2-8228-0513 Email: [email protected]

Amtran Technology Co., Ltd FCC ID.: MDZ-WN4617R-F 17F., No.268, Liancheng Rd., Jhonghe, New Taipei City, Taiwan, R.O.C..Tel : 886-2-8228-0505 Federal Communications Commission Dec. 21, 2012 Authorization and Evaluation Division ATTESTATION FCC ID: MDZ-WN4617R-F Product: 802.11b/g/n 1T1R Wireless Lan USB Module Model: WN4617R (F) We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ------------------------------------------ J.C. Cheng / Senior Enginner Amtran Technology Co., Ltd

Amtran Technology Co., Ltd FCC ID.: MDZ-WN4617R-F 17F., No.268, Liancheng Rd., Jhonghe, New Taipei City, Taiwan, R.O.C. Tel : 886-2-8228-0505 Amtran Technology Co., Ltd 17F., No.268, Liancheng Rd., Jhonghe, New Taipei City, Taiwan, R.O.C. Tel : 886-2-8228-0505 Fax: 886-2-8228-0513 Federal Communications Commission Dec. 21, 2012 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (WN4617R (F)) Schem Block Diagram: (WN4617R (F)) BlkDia Operational Description : (WN4617R (F)) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, -------------------------------------------- J.C. Cheng / Senior Enginner Amtran Technology Co., Ltd

RF_160, Issue 03 Amtran Technology Co., Ltd Declaration of Authorization We Name: Amtran Technology Co., Ltd Address: 17F., No.268, Liancheng Rd., Jhonghe, New Taipei City, Taiwan, R.O.C. City: New Taipei City . Country: Taiwan, R.O.C.. Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: 802.11b/g/n 1T1R Wireless Lan USB Module Type designation: WN4617R (F) Trademark: Amtran on our behalf. Date:  2012/12/21.. City:  New Taipei City  Name:  Mr J.C Cheng . (2) Function: Senior Enginner. Signature: -------------------------------------- Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Modular Approval Request FCC (per FCC 15.212) FCC ID: MDZ-WN4617R-F Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Please review external photos. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The buffered integrated in chip RT5370. (Chip_U4). 3. The modular transmitter must have its own power supply regulation. The buffered integrated in chip RT5370. (Chip_U4). 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Please review external photos or test report. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Please review test setup photos. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Please refer to the user manual instructions. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): J.C. Cheng / Senior Enginner Date: Dec. 21, 2012 Signature:

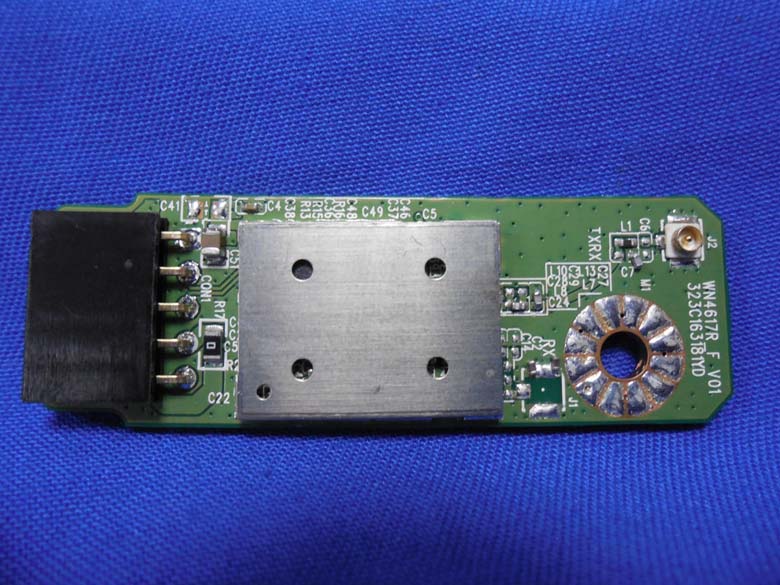

Report No.: 12C262R-RFUSP42V01 Page : 1 of 9 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Amtran Technology Co., Ltd FCC ID.: MDZ-WN4617R-F 17F., No.268, Liancheng Rd., Jhonghe, New Taipei City, Taiwan, R.O.C..Tel : 886-2-8228-0505 FCC ID Label

Amtran Technology Co., Ltd FCC ID.: MDZ-WN4617R-F 17F., No.268, Liancheng Rd., Jhonghe, New Taipei City, Taiwan, R.O.C..Tel : 886-2-8228-0505 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 12C262R-RFUSP42V01 Page : 2 of 9 (3) EUT Photo (4) EUT Photo Report No.: 12C262R-RFUSP42V01 Page : 3 of 9 (1) EUT Photo (Antenna-MSA-3420-25GC4-A1) (2) EUT Photo (Antenna-MSA-3420-25GC4-A1) Report No.: 12C262R-RFUSP42V01 Page : 4 of 9 (3) EUT Photo (Antenna-MSA-3420-25GC4-A1) (4) EUT Photo (Antenna-MSA-3422-25GC4-A2) Report No.: 12C262R-RFUSP42V01 Page : 5 of 9 (5) EUT Photo (Antenna-MSA-3422-25GC4-A2) (6) EUT Photo (Antenna-MSA-3422-25GC4-A2) Report No.: 12C262R-RFUSP42V01 Page : 6 of 9 (7) EUT Photo (Antenna-MSA-3422-25GC4-A3) (8) EUT Photo (Antenna-MSA-3422-25GC4-A3) Report No.: 12C262R-RFUSP42V01 Page : 7 of 9 (9) EUT Photo (Antenna-MSA-3422-25GC4-A3) (10) EUT Photo (Antenna-MSA-3415-25GC4-A1) Report No.: 12C262R-RFUSP42V01 Page : 8 of 9 (11) EUT Photo (Antenna-MSA-3415-25GC4-A2) (12) EUT Photo(Antenna-MSA-3415-25GC4-A3) Report No.: 12C262R-RFUSP42V01 Page : 9 of 9 (5) EUT Photo

Report No. 12C262R-RFUSP42V01 Page: 1 of 4 RF Exposure Evaluation declaration Product Name 802.11b/g/n 1T1R Wireless Lan USB Module Model No. WN4617R (F) FCC ID MDZ-WN4617R-F Applicant Amtran Technology Co., Ltd Address 17F., No.268, Liancheng Rd., Jhonghe, New Taipei City, Taiwan, R.O.C. Date of Receipt Dec. 03, 2012 Date of Declaration Dec, 21, 2012 Report No. 12C262R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 12C262R-RFUSP42V01 Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 12C262R-RFUSP42V01 Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product : 802.11b/g/n 1T1R Wireless Lan USB Module Test Item : RF Exposure Evaluation Test Site : No.3 OATS Operation Frequency 2412~2462MHz Maximum Conducted output power 24.06dBm Antenna gain 2.37dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 254.6830 0.087444 Power density in column 4 is much lower than the limit (1 mW/cm 2 ).

Report No. 12C262R-RFUSP42V01 Page : 1 of 125 Test Report Product Name 802.11b/g/n 1T1R Wireless Lan USB Module Model No WN4617R (F) FCC ID. MDZ-WN4617R-F Applicant Amtran Technology Co., Ltd Address 17F., No.268, Liancheng Rd., Jhonghe, New Taipei City, Taiwan, R.O.C. Date of Receipt Dec. 03, 2012 Issue Date Dec, 21, 2012 Report No. 12C262R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 12C262R-RFUSP42V01 Page : 2 of 125 Test Report Certification Issue Date: Dec, 21, 2012 Report No.: 12C262R-RFUSP42V01 Product Name 802.11b/g/n 1T1R Wireless Lan USB Module Applicant Amtran Technology Co., Ltd Address 17F., No.268, Liancheng Rd., Jhonghe, New Taipei City, Taiwan, R.O.C. Manufacturer DONG GUAN G-COM COMPUTER CO., LTD. Model No. WN4617R (F) FCC ID. MDZ-WN4617R-F EUT Rated Voltage DC 3.3V EUT Test Voltage AC 120V/60Hz Trade Name Amtran Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2003, ANSI C63.10: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Engineering Adm. Specialist / Anita Chou ) Tested By : ( Engineer / Vincent Chu ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 12C262R-RFUSP42V01 Page : 3 of 125 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Procedure .............................................................................................................................14 3.5. Uncertainty ..................................................................................................................................14 3.6. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................19 4.1. Test Equipment............................................................................................................................19 4.2. Test Setup ....................................................................................................................................20 4.3. Limits ..........................................................................................................................................21 4.4. Test Procedure .............................................................................................................................22 4.5. Uncertainty ..................................................................................................................................22 4.6. Test Result of Radiated Emission................................................................................................23 5. RF antenna conducted test........................................................................................................39 5.1. Test Equipment.............................…
