MDZM220NV-WLWLAN USB CARD WN7511E 2-LF-MT

Product Specification 1 Product Specification WN7511E 2-LF-MT IEEE 802.11n USB2.0 Adapter v.04 Product Specification 2 Table of Contents Chapter 1 Introduction ________________________________________________________ 4 1. Introduction ________________________________________________________ 4 1.1 Product Features ____________________________________________________ 4 1.2 Applications _______________________________________________________ 4 Chapter 2 Hardware _______________________________________________________ 5 2.1 General Overview __________________________________________________ 5 2.2 Hardware Architecture _______________________________________________ 5 2.3 Main Chipset Information ____________________________________________ 5 2.6 Pin Define_________________________________________________________7 2.7 Antenna Cable______________________________________________________8 Chapter 3 Software ______________________________________________________ 11 3.1 Operating System Supported _________________________________________ 11 3.2 Wireless Mode Supported ___________________________________________ 11 3.3 Security__________________________________________________________ 11 3.4 Configuration _____________________________________________________ 11 Chapter 4 Appearance ____________________________________________________ 12 Chapter 5 Specifications __________________________________________________ 13 Table 1: Modulation Scheme and Nominal Transmit Power _________________________ 15 Product Specification 3 Revision History Edition # Reason for revision Issue date Written by V 0.1 ♦ Initial Document 2009/0918 Troy Chen V 0.2 ♦ Update PCB outline & Antenna cable 2009/12/11 Andre Lin V 0.3 ♦ Update photo for Chapter 2.6 2010/02/10 Andre Lin V 0.4 Edited photo for Chapter 2.6 2010/03/09 Andre Lin Product Specification 4 Chapter 1 Introduction 1. Introduction WN7511E is a wireless 1x1 802.11n USB Adapter which enables wireless networking systems to attain data communication speeds up to 150 megabits-per-second (Mbps), while remaining backward compatible to the existing installed base of Wi-Fi systems worldwide. It supports operation to the IEEE 802.11b and IEEE 802.11g ,and draft IEEE 802.11n standards. WN7511E will enable a next generation of high-data-rate platforms for operation in the 2.4 GHz band that deliver a five-fold speed increase. The cost and performance advantages will make it an ideal solution for high bandwidth enterprise applications, such as wireless video conferencing and large file transfers. It is compatible with 802.11g standard's mandatory modulation schemes—Complementary Code Keying (CCK), which is used in 802.11b, and Orthogonal Frequency Division Multiplexing (OFDM), used in 802.11g and draft 802.11n. Using CCK ensures backward-compatibility with the installed Wi-Fi 802.11b base, while OFDM provides the speed required for today's high-bandwidth applications. 1.1 Product Features ♦ High speed for wireless LAN connection, RX up at 150 Mbps data rate. ♦ Backward compatible to the existing IEEE 802.11b/g WLAN infrastructure. ♦ Support USB2.0 1.2 Applications ♦ WiFi Module for TV Product Specification 5 Chapter 2 Hardware 2.1 General Overview ♦ USB 2.0 Interface and 802.11 n chipset-on-board design. ♦ 1 antenna connector 2.2 Hardware Architecture BRCM 4319 2.3 Main Chipset Information BRCM 4319: Dual-band 2.4 GHz 802.11 b, g, and n. integrated with MAC/Baseband/RF Product Specification 6 2.6 Pin define Product Specification 7 2.7 Antenna Cable M22 Product Specification 8 M47 Product Specification 9 M55 Product Specification 10 Chapter 3 Software 3.1 Operating System Supported ♦ Windows 2000, XP, Vista 3.2 Wireless Mode Supported ♦ AP (Infrastructure) Client mode 3.3 Security ♦ AP (Infrastructure) mode supports ♦ Static WEP that support both 64 and 128 bit keys. ♦ WPA(TKIP) with PSK ♦ Ad-hoc mode supports ♦ None (plaintext) ♦ Static WEP that supports both 64 and 128 bit keys. Product Specification 11 Chapter 4 Appearance TBD Product Specification 12 Chapter 5 Specifications ♦ Frequency Band: Draft 802.11n Radio: 2.4 GHz 802.11g Radio: 2.4 GHz 802.11b Radio: 2.4 GHz USA – FCC 2412~2462MHz (Ch1~Ch11) Canada – IC 2412~2462MHz (Ch1~Ch11) Europe – ETSI 2412~2472MHz (Ch1~Ch13) Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14) ♦ Operating Channels: IEEE 802.11b/g/n compliant: 11 channels (US, Canada) 13 channels (ETSI) 14 channels (Japan) ♦ Transmit Power and Sensitivity: TX Output Power:(Typical) 11g 16.5 +/- 1 dBm 11n 12 +/- 1 dBm Rx Sensitivity:(Typical) -88 dBm @6 Mbps -87 dBm @9 Mbps -84 dBm @12 Mbps -81dBm @18 Mbps -79dBm @24 Mbps -75dBm @36 Mbps -71dBm @48 Mbps -70 dBm @54 Mbps -64 dBm @64-QAM, 20MHz channel spacing -61 dBm @64-QAM, 40MHz channel spacing ♦ Modulation DBPSK @1Mbps DQPSK@2Mbp [email protected]/11Mbps Product Specification 13 BPSK@6/9 Mbps QPSK@12/18Mbps 16-QAM@24Mbps 64-QAM@48/54Mpb and above, RX up to 150Mbps ♦ Current consumption(5V DC): TX: 170mA, HT20; 180mA, HT40 at 3.3V RX: 160mA, HT20; 160 mA HT40 at 3.3V Idle: 90mA Radio off 52mA ♦ Operating Temperature: 0 ~ 40 o C ambient ♦ Storage Temperature: -10 ~ 70 o C ambient ♦ Humidity: 5 ~ 90% and must be non-condensing ♦ Regulation and certification compliance available: ♦ WHQL ♦ ETSI/CE ♦ ESD: EN61000-4-2, which specifies 4kV contact and 8kV air discharge. Product Specification 14 References ♦ BRCM Reference Design Functional Specification ♦ IEEE 802.11b Standard Specification ♦ IEEE 802.11g Standard Specification ♦ IEEE 802.11n draft Standard Specification The drawings, specifications and the data contain herein are the exclusive property of Arcadyan Technology Corp. issued in strict confidence and shall not, without the prior written permission of Arcadyan Technology Corp., be reproduced, copied or used, in parts or as a whole, for any purpose whatsoever, except the manufacture of articles for Arcadyan Technology Corp. Arcadyan makes no warranties with respect to the correctness, accuracy or wholeness of this specif…

Text truncated - open the document above for the full version.

Page No. : 22 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2010/4/22 FCC ID: MDZM220NV-WL Dear Reviewer, We, Sporton International Inc., are authorized by Amtran Technology Co., Ltd. to have their state-of-the-art WLAN USB CARD WN7511E 2-LF-MT approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip BCM4319GKUBG or BCM4319XKUBG. 3. The requirement of power supply regulation: The part number of the power regulator is CM2860GSIM89. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

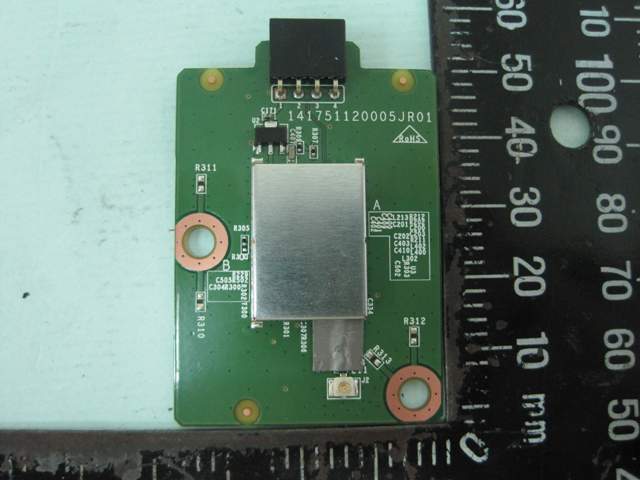

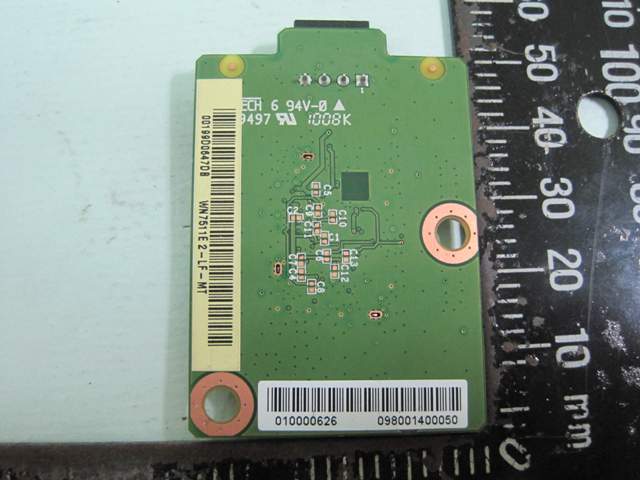

SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 20, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT EUT 1 (With 2.4GHz and 5GHz Band Module) SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 20, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 20, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 20, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 20, 2010 FAX : 886-2-2696-2255 EUT 2 (With 2.4GHz Band Module) SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 20, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 20, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 20, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 20, 2010 FAX : 886-2-2696-2255

Label size: 25*15mm Model number: 098001400050 Model number: 098001400060 Model number: 098001400070 Model number: 098001400120

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 20, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT EUT 1 (With 2.4GHz and 5GHz Band Module) SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 20, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 20, 2010 FAX : 886-2-2696-2255 EUT 2 (With 2.4GHz Band Module) SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 20, 2010 FAX : 886-2-2696-2255

Report No.: FR031924 FCC ID: MDZM220NV-WL Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR031924 FCC ID: MDZM220NV-WL Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR031924 FCC ID: MDZM220NV-WL Page No. : 3 of 3 1.3. Calculated Result and Limit For EUT 1 (With 2.4GHz and 5GHz Band Module) Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11g : 20.15dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 20.1500 103.5142 0.032655 1 Complies For EUT 2 (With 2.4GHz Band Module) Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n 20MHz : 19.96dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 19.9600 99.0832 0.031257 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 02 FCC RADIO TEST REPORT Applicant’s company Amtran Technology Co., Ltd. Applicant Address 17F, No.268, Lien Chen Rd., Chung Ho City, Taipei County 23553, Taiwan ROC FCC ID MDZM220NV-WL Product Name WLAN USB CARD WN7511E 2-LF-MT Brand Name VIZIO Model Name 098001400050, 098001400060, 098001400070, 098001400120 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Mar. 02, 2010 Final Test Date Apr. 28, 2010 Submission Type Original Equipment Multiple Listing Please refer to section 3.7 Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR031924 Report Format Version: 02 Page No. : iof ii FCC ID: MDZM220NV-WL Issued Date : Apr. 28, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Multiple Listing......................................................................................................................................................................9 3.8. Table for Supporting Units ...................................................................................................................................................................9 3.9. Table for Parameters of Test Software Setting .....................................................................................................................................9 3.10. Test Configurations ...........................................................................................................................................................................11 4. TEST RESULT ................................................................................................................................................... 13 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................13 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................17 4.3. Power Spectral Density Measurement ..............................................................................................................................................28 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................39 4.5. Radiated Emissions Measurement ....................................................................................................................................................50 4.6. Band Edge Emissions Measurement .................................................................................................................................................82 4.7. Antenna Requirements .....................................................................................................................................................................99 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 100 6. TEST LOCATION............................................................................................................................................ 102 7. TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 103 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A13 APPENDIX B. TEST PHOTOS................................................…

Text truncated - open the document above for the full version.

Report No.: FR031924 FCC ID: MDZM220NV-WL Page No. : 1 of 6 Appendix B. Test Photos Report No.: FR031924 FCC ID: MDZM220NV-WL Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR031924 FCC ID: MDZM220NV-WL Page No. : 3 of 6 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR031924 FCC ID: MDZM220NV-WL Page No. : 4 of 6 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR031924 FCC ID: MDZM220NV-WL Page No. : 5 of 6 Above 1GHz FRONT VIEW REAR VIEW Report No.: FR031924 FCC ID: MDZM220NV-WL Page No. : 6 of 6 SIDE VIEW
