MDZXVT473SV-WLWLAN USB CARD WN8522B 3-LF-MT

Product Specification WN8522B 3 1 Product Specification WN8522B 3-LF-MT IEEE Dual Band 802.11n USB2.0 module for DTV v.03 Product Specification WN8522B 3 2 Table of Contents Chapter 1 Introduction _____________________________________________________ 4 1. Introduction ________________________________________________________ 4 1.1 Product Features ____________________________________________________ 4 1.2 Applications _______________________________________________________ 4 Chapter 2 Hardware _______________________________________________________ 5 2.1 General Overview __________________________________________________ 5 2.2 Hardware Architecture _______________________________________________ 5 2.3 Main Chipset Information ____________________________________________ 5 2.4 PCB dimension ___________________________________ 錯誤! 尚未定義書籤。 2.5 Pin Define _________________________________________________________ 6 2.6 Antenna Cable ______________________________________________________ 7 Chapter 3 Specifications ___________________________________________________ 12 References ________________________________________________________________ 14 Product Specification WN8522B 3 3 Revision History Edition # Reason for revision Issue date Written by V 0.1  Initial Document 2009/09/17 Troy Chen V0.2  Update PCB outline & Antenna cable 2009/12/10 Andre Lin V03 5G spec listed 2010/06/26 Troy Chen Product Specification WN8522B 3 4 Chapter 1 Introduction 1. Introduction WN8522B 3 is a dual band wireless 802.11n USB module for DTV, Bluray Players, etc.. which enables consumer devices to support wireless connectivity over 802.11a/b/g/n WLAN . 1.1 Product Features  High speed for wireless LAN connection, RX up at 300 Mbps data rate.  Backward compatible to the existing IEEE 802.11a/b/g WLAN infrastructure.  Support USB v2.0 1.2 Applications  Module for Connected TV Product Specification WN8522B 3 5 Chapter 2 Hardware 2.1 General Overview  USB 2.0 Interface  2 * antenna connectors 2.2 Hardware Architecture Broadcom 4323 single chip USB2.0 2.3 Main Chipset Information BCM4323: MIMO MAC + Baseband processor and RF with fully forward compatible with IEEE 802.11n draft2.0 standard. 2.4 PCB dimension Product Specification WN8522B 3 6 2.5 Pin define Product Specification WN8522B 3 7 2.5 Antenna Cable XVT32/ XVT37 Product Specification WN8522B 3 8 XVT42/ XVT47 Product Specification WN8522B 3 9 XVT55 Product Specification WN8522B 3 10 Chapter 3 Software 3.1 Operating System Supported  Windows 2000, XP, Vista 3.2 Wireless Mode Supported  AP (Infrastructure) Client mode 3.3 Security  AP (Infrastructure) mode supports  Static WEP that support both 64 and 128 bit keys.  WPA(TKIP) with PSK  Ad-hoc mode supports  None (plaintext)  Static WEP that supports both 64 and 128 bit keys. Product Specification WN8522B 3 11 Chapter 4 Appearance TBD Product Specification WN8522B 3 12 Chapter 5 Specifications  Frequency Band: 802.11n Radio: 2.4 GHz 802.11g Radio: 2.4 GHz 802.11b Radio: 2.4 GHz USA – FCC 2412~2462MHz (Ch1~Ch11) Canada – IC 2412~2462MHz (Ch1~Ch11) Europe – ETSI 2412~2472MHz (Ch1~Ch13) Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14) 802.11a Radio : 5 GHz 5.150~5.250GHz 5.250~5.350 GHz 5.470~5.725 GHz 5.725~5.850GHz  Operating Channels: IEEE 802.11b/g/n compliant: 11 channels (US, Canada) 13 channels (ETSI) 14 channels (Japan)  Transmit Power and Sensitivity: TX Output Power:(Typical) 11b 16.5 +/- 1.5 dBm 11g 14.5 +/- 1.5 dBm@54Mbps 11n 13.5 +/- 1.5 dBm 11a 13.5 +/- 1.5 dBm Rx Sensitivity:(Typical) -84 dBm @11 Mbps -72 dBm @54 Mbps -64 dBm @64-QAM, 20MHz channel spacing -61 dBm @64-QAM, 40MHz channel spacing  Modulation DBPSK @1Mbps DQPSK@2Mbp Product Specification WN8522B 3 13 [email protected]/11Mbps BPSK@6/9 Mbps QPSK@12/18Mbps 16-QAM@24Mbps 64-QAM@48/54Mpb and above, RX up to 300Mbps  Current consumption(5V DC): TX: <480mA Max, @MCS15, 40MHz RX: <380 mA Max, @MCS15, 40MHz Radio OFF mode: <60 mA  Operating Temperature: 0 ~ 40 o C ambient  Storage Temperature: -10 ~ 70 o C ambient  Humidity: 5 ~ 90% and must be non-condensing  Regulation and certification compliance available:  WHQL  ETSI/CE  ESD: EN61000-4-2, which specifies 4kV contact and 8kV air discharge. Product Specification WN8522B 3 14 References  BRCM Reference Design Functional Specification  IEEE 802.11b Standard Specification  IEEE 802.11g Standard Specification  IEEE 802.11n draft Standard Specification The drawings, specifications and the data contain herein are the exclusive property of Arcadyan Technology Corp. issued in strict confidence and shall not, without the prior written permission of Arcadyan Technology Corp., be reproduced, copied or used, in parts or as a whole, for any purpose whatsoever, except the manufacture of articles for Arcadyan Technology Corp. Arcadyan makes no warranties with respect to the correctness, accuracy or wholeness of this specification. The information in this document is subject to change without notice. Arcadyan reserves the right to make revisions to this document and the product described herein without obligation to notify any person or entity of any such changes. WARNING This document is intended for internal use only. A Non-Disclosure Agreement (NDA) is required to release this document under any circumstances Product Specification WN8522B 3 15 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio …

Text truncated - open the document above for the full version.

Amtran Technology Co., Ltd. 17F, No.268, Lien Chen Rd., Chung Ho City, Taipei County 23553, Taiwan ROC Tel: 886-2-82280505#1908 Fax: 886-2-82280555 Date: March 31, 2010 Subject: Ad Hoc Mode Function Declaration FCC ID: MDZXVT473SV-WL To Whom it may concern, We, Amtran Technology Co., Ltd., declare that the device (FCC ID: MDZXVT473SV-WL ) 1. is acting as slave and master and operating on 2.4GHz and 5.8 GHz band. 2. Ad Hoc function is available. 3. does not work in non-US/Canada frequencies for 2.4 GHz. 4. does not work in UNII (5250-5350 and 5470-5725 MHz) TCBs may not approve master devices. Please contact the one signed below or the authorized agent for this filing. Thank you.

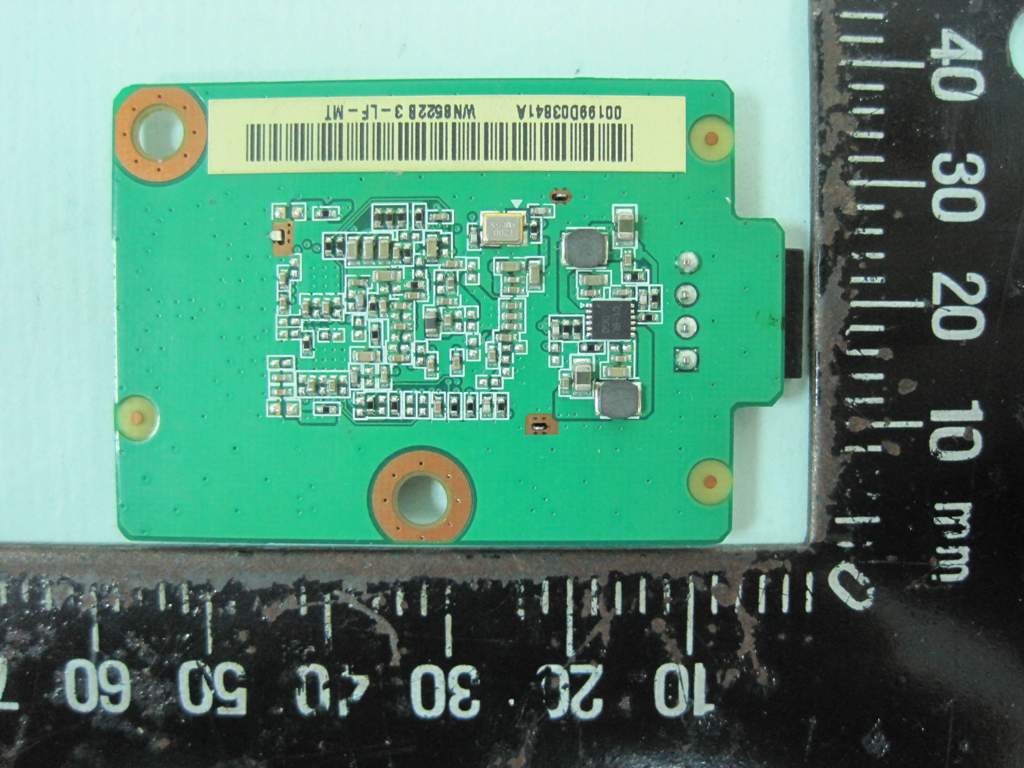

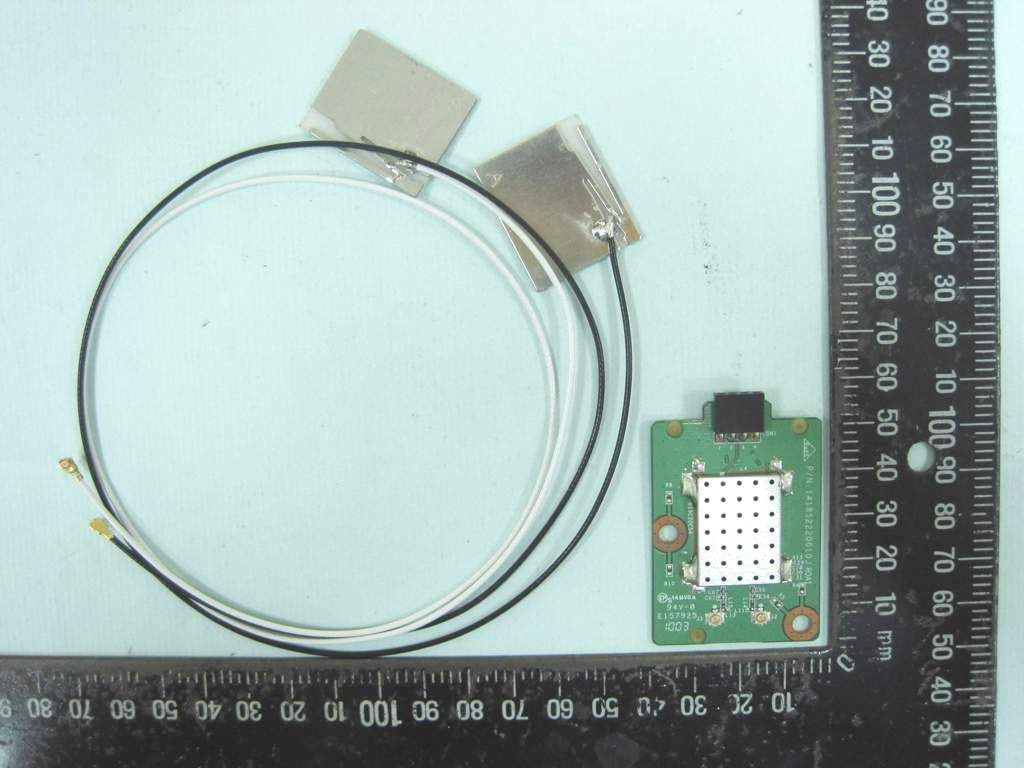

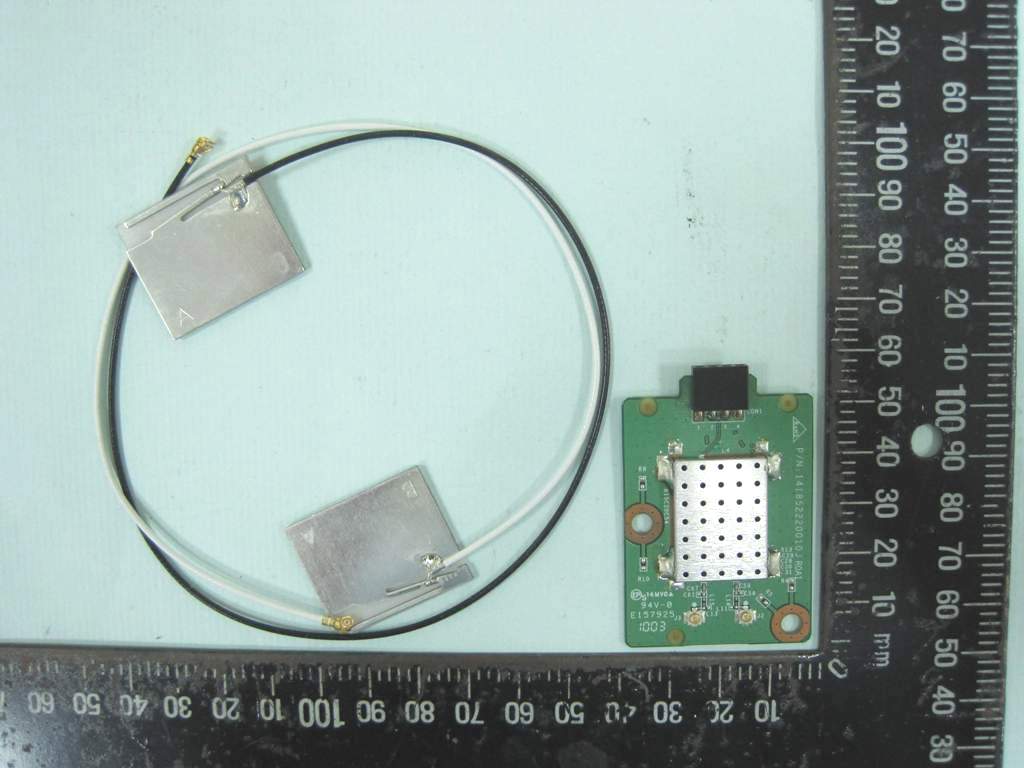

SPORTON International Inc. PAGE NUMBER : A1 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2010 FAX : 886-2-2696-2255 Ant. A Model No.: 120800001900J SPORTON International Inc. PAGE NUMBER : A3 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2010 FAX : 886-2-2696-2255 Ant. B Model No.: 120800002000J SPORTON International Inc. PAGE NUMBER : A5 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2010 FAX : 886-2-2696-2255 Ant. C Model No.: 120800002100J SPORTON International Inc. PAGE NUMBER : A7 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2010 FAX : 886-2-2696-2255 Ant. D Model No.: 120800002200J SPORTON International Inc. PAGE NUMBER : A9 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2010 FAX : 886-2-2696-2255 Ant. E Model No.: 120800002600J SPORTON International Inc. PAGE NUMBER : A11 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A12 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2010 FAX : 886-2-2696-2255

Label size: 25*15mm Model number: 098001400081 Model number: 098001400091 Model number: 098001400101 Model number: 098001400110 Model number: 098001400140

SPORTON International Inc. PAGE NUMBER : A1 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2010 FAX : 886-2-2696-2255

Report No.: FR032405 FCC ID: MDZXVT473SV-WL Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR032405 FCC ID: MDZXVT473SV-WL Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR032405 FCC ID: MDZXVT473SV-WL Page No. : C3 of C3 1.3. Calculated Result and Limit <For 5GHz Band>: For UNII Band: Antenna Type : PIFA Antenna Max Conducted Power for 802.11a IEEE 802.11n MCS8 40MHz Ant. C-1 + Ant. C-2: 19.47 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 19.4707 88.5249 0.027926 1 Complies For ISM Band: Antenna Type : PIFA Antenna Max Conducted Power for 802.11a IEEE 802.11n MCS8 40MHz Ant. C-1 + Ant. C-2 : 18.29 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 18.2907 67.4632 0.021282 1 Complies <For 2.4GHz Band>: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n MCS8 40MHz Ant. C-1 + Ant. C-2: 20.85 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 20.8506 121.6360 0.038372 1 Complies
