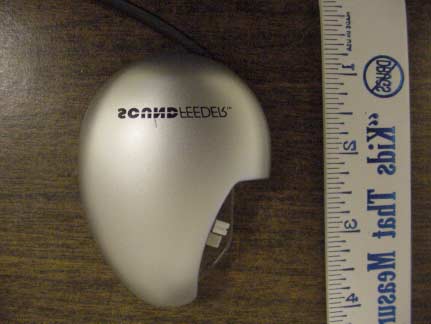

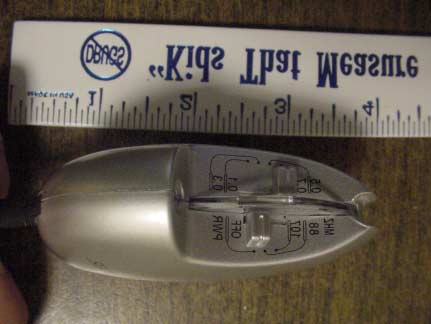

ME2-SF250 Exterior Photos Page 1 of 3 EUT Bottom View ME2-SF250 Exterior Photos Page 2 of 3 EUT Top View ME2-SF250 Exterior Photos Page 3 of 3 EUT Side View

ME2-SF250 FCC ID Location Page 1 of 1 FCC ID Location on rear of EUT

ME2-SF250 FCC ID Sample Page 1 of 1

ME2-SF250 Interior Photos Page 1 of 2 PCB Top View ME2-SF250 Interior Photos Page 2 of 2 EUT Top View

ME2-SF250 Operational/Functional Description. The Arkon Sound Feeder SF250 is a wireless audio transmitter designed to be a high quality, low cost, audio transmission system mobile use. This system will wirelessly transmit an analog stereo audio signal from any audio music source to any FM band radio. The frequency band chosen for this product is the 88-108 MHz broadcast band. The transmitter has 8 preset tune frequencies, 88.1, 88.3, 88.5, 88.7, 107.1, 107.3, 107.5, and 107.7 MHz. Two switches on the side of the device are used to select the operating frequency. Two “AAA” alkaline batteries power the unit. Transmitter Device Operation The stereo analog input of the Sound Feeder Unit can be directly connected to any stereo audio source. The device uses an off the shelf FM modulator chip as its basis for operation. Two “AAA” alkaline batteries power the unit.

Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 119-04 TEST REPORT TO INDUSTRY CANADA RSS 210 SECTION 6.2.2(k) FEDERAL COMMUNICATIONS COMMISSION CFR47 PART15.239 Low Power License-Exempt Radiocommunication Devices Intentional Radiators 88-108 MHz Band for Arkon Resources, Inc. 20 La Porte St. Arcadia, CA 91006 626-254-9005 of 88 and 107 MHz FM Modulator SF 250 FCC ID: ME2-SF250 on 1/23/04 Tested by _____________________________________ Clifton P. Brick Reviewed by _____________________________________ Larry K. Stillings This report may not be duplicated, except in full without written permission from Compliance Worldwide, Inc. Page 2 of 23 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 119-04 TABLE OF CONTENTS • Test Description • Test Results and Conclusions • Test Procedures • RSS 210 /Part 15 Subpart C Test Limits • Test Facility Description • Test Setup and Connection Information • Test Measurements and Results Radiated Measurements Radiated Output Power & Occupied Bandwidth Conducted Measurements • Notes and Comments Page 3 of 23 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 119-04 TEST DESCRIPTION 1. TEST OBJECTIVE To test the 88 and 107 MHz FM Modulator SF 250 to RSS 210 / Part 15 Subpart C Rules and write a report. 2. E.U.T. DESCRIPTION GENERAL The 88 and 107 MHz FM Modulator SF 250 is a short range low power transmitter used to allow a portable audio device to be linked with a broadcast band stereo receiver. SERIAL NUMBERS: Pre Production Prototype Page 4 of 23 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 119-04 TEST RESULTS AND CONCLUSIONS PRODUCT TESTED – 88 and 107 MHz FM Modulator MODEL NUMBER - SF 250 RADIATED TEST RESULTS The test results show that the emissions radiated from this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C. OCCUPIED BANDWIDTH & OUTPUT POWER The test results show that the occupied bandwidth and output power of this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C . CONDUCTED TEST RESULTS The test results show that the emissions conducted through the power line from this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C. ANALYSIS AND CONCLUSIONS Based upon the radiated and conducted measurements we find that this equipment is within the limits of the IC Rules RSS 210 / FCC Rules Part 15 Subpart C. All results are based on a test of one sample, and represent other production units, only in as much as a sample represents other production units. If any significant changes are made to the unit, the changes shall be evaluated and a retest may be required. NOTES (Special conditions unique to this test) None. Page 5 of 23 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 119-04 TEST PROCEDURES 1. TEST EQUIPMENT A. HP 8546A (9 kHz - 6.5 GHz) EMI Receiver w/ RF Filter Section, S/N 3704A00323 / 3650A00360. Calibration Date 1-16-2004, calibrated annually. B. Com-Power Biconilog Antenna, Model AC220, S/N 25509. Calibration Date 3-11-2003, calibrated annually. C. EMCO LISN, Model EM 3825/2, S/N 9109-1860. Calibration Date: 3-9-2003, calibrated annually. 2. FREQUENCY RANGE TO BE SCANNED. A. Radiated Test from 30 MHz to 40 GHz (or the 10 th harmonic of the highest frequency whichever is lower). B. Conducted Test from 150 kHz to 30 MHz. Page 6 of 23 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 119-04 3. TEST PROCEDURES. Radiated test procedure: The EUT, associated cables and peripheral devices are placed on the supporting table and any support equipment is placed off the site. The EUT is turned on and any necessary operating or test software installed and allowed to warm up. The EUT is pre-scanned in our ferrite tile lined chamber where it is rotated 360 degrees and examined in both horizontal and vertical polarization, all emission frequencies are identified and recorded. The EUT is then moved to the OATS and the frequency band from 30 MHz to 40 GHz is scanned, all frequencies identified in the chamber are investigated, as well as harmonic frequencies of the EUT. When an emission is found the emission is maximized by varying the bundle position of the connecting cables, the antenna height, the antenna polarization (vertical and horizontal) and the table orientation (360 degrees). The maximum reading is recorded and the next signal is searched for. Conducted test procedure: The power line of the EUT is connected to the LISN (Line Impedance Stabilization Network). A measurement of the emissions are made from the power line for both phase and neutral on the analyzer in the frequency range from 150 kHz to 30 MHz. The maximum readings are recorded for each phase. All measurements are made according to the procedures defined in: "ANSI C63.4-2001 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz” Page 7 of 23 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 119-04 RSS 210/ FCC Part 15 TEST LIMITS 1. FCC Part 15.209, 15.235, 15.239, 15.249 Radiation Limits: Limits are using a Quasi-Peak detector unless otherwise noted. Frequency MHz Distance meters Limit dBμV/m Limit μV/m 1.705 - 30 30 29.5* 30* 30 - 88 3 40.0 100 49.82 - 49.90 3 80.0* 10,000* 88-108 3 48.0* 250* 88 - 216 3 43.5 150 216 - 960 3 46.0 200 902 - 928 3 94.0* 50,000* 960 - 1000 3 54.0 500 1000 - 40000 3 54.0* 500* *NOTE: Average Limits 2. RSS 210 Se…
