ME2-SF280WIRELESS STEREO MUSIC ADAPTER

Owners Manual For SOUND FEEDER SF280 Mini USB Wireless Music Adapter I. INTRODUCTION SF280 SOUND FEEDER Mini USB Wireless Adapter is a multi-purpose, USB-powered FM stereo music transmitter suitable for use with many types of consumer audio equipment. Use SF280 to transmit the music from your portable music player—including laptop computer, PDA, MP3 player, compact disc player, etc.—to any nearby FM receiver, whether in the car or at home. II. SET UP & OPERATION 1. Select a suitable transmission frequency for your area. We suggest you start with one of the frequencies in the 88-89MHz-band area since these stations are more likely to be unused in your area. Turn the frequency switch on the Sound Feeder to point to the letter or number that corresponds to the desired frequency listed on the backside of the Sound Feeder. 2. Then insert the Sound Feeder into the USB slot on the Car power adapter and insert the car power adapter into the lighter socket of a vehicle. 3. Then use the audio cord provided to connect the Sound Feeder to the headphone jack or line out jack of your portable music player. 4. Turn on your music player and make sure it has a medium (disc, tape, etc.) or an electronic file to produce sound. 5. Turn on your FM radio to medium volume and set it to the FM frequency your have selected in step 1 above. You should hear your music played over the FM radio. If you find that another broadcaster is already using the frequency you selected in step 1 above, then select another frequency. III. OPERATING TIPS Once you have discovered the best transmitting frequency for your area, you can make a note of the frequency and then directly tune to that frequency in the future or store this frequency as one of your preset stations. If you drive to another city and are listening to Sound Feeder, you may encounter interference from a radio station in that city that is using the same frequency that you are. If that is the case, you may need to select another frequency out of the total of 12 possible frequencies. VI. FCC WARNING NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help. • Shielded interface cables must be used in order to comply with the emission limits. THIS PRODUCT COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS; (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OERATE THE EQUIPMENT. ARKON RESOUCRES, INC. 20 La Porte St. Arcadia, CA 91006 Tel: 626-254-9005 www.arkon.com

Audio In MPX Section DC In USB RF Out Arkon Resources Arcadia California SF-280 Block Diagram 10/19/04

RESOURCES INC. Request for Confidentiality Date: 29 September 2004 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: RE: Certification Application FCC ID: ME2-SF280 To Whom It May Concern: We request that the following information be held confidential on behalf of ARKON RESOURCES, INC. : l Schematic Diagram The application contains technical information which ARKON RESOURCES, INC. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. J ‘I Thank you for your attention to this matter. 20 La Porte Street l Arcadia l CA 91006Tel f626j 254-9005 l Fax:f626/ 254-9266wwwxkon. corn

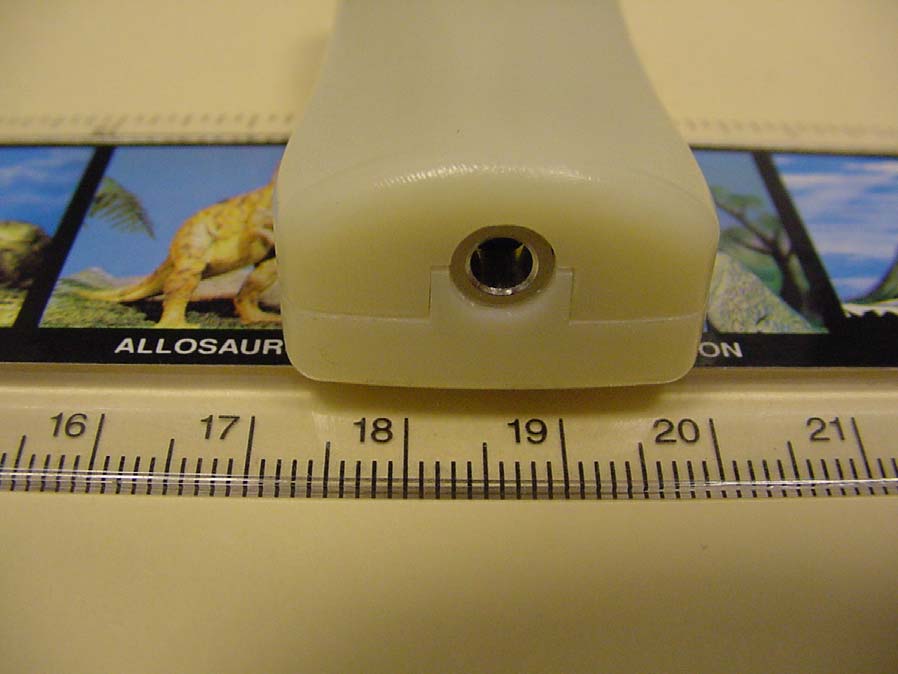

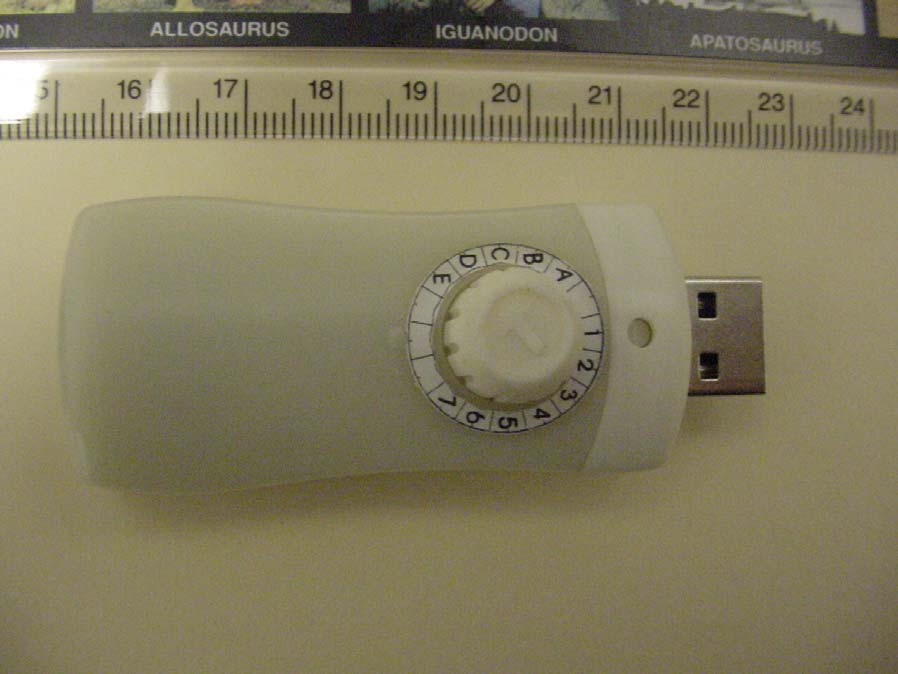

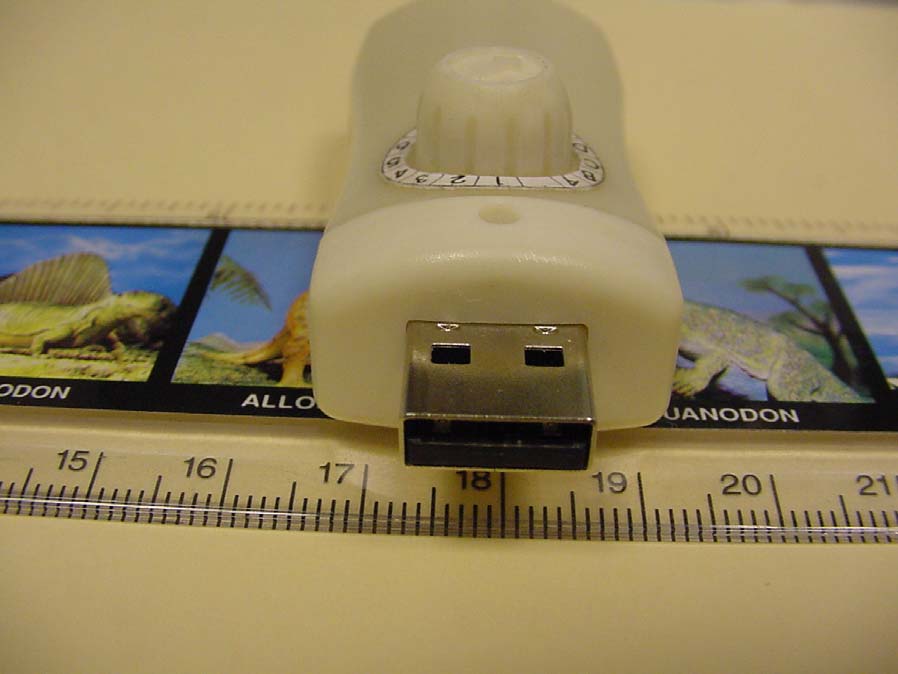

ME2-SF280 Exterior Photos Page 1 of 4 EUT Top ME2-SF280 Exterior Photos Page 2 of 4 EUT Bottom ME2-SF280 Exterior Photos Page 3 of 4 End of EUT showing stereo 1/8 connector. ME2-SF280 Exterior Photos Page 4 of 4 End of EUT showing USB connector (used for power only)

ME2-SF280 Interior Photos Page 1 of 3 Interior top of PCB showing antenna. ME2-SF280 Interior Photos Page 2 of 3 Top of PCB ME2-SF280 Interior Photos Page 3 of 3 Bottom of PCB

ME2-SF280 Operational/Functional Description. The Arkon Sound Fee der SF280 is a wireless audio transmitter designed to be a high quality, low cost, audio transmission system mobile use. This system will wirelessly transmit an analog stereo audio signal from any audio music source to any FM band radio. The frequency band chosen for this product is the 88-108 MHz broadcast band. The transmitter has 12 preset tune frequencies, 88.1, 88.3, 88. 5, 88.7, 88.9, 106.7, 106.9, 107.1, 107.3, 107.5, 107.7 and 107.9 MHz. The rotary switch on the device is used to select the operating frequency. The unit is powered from a USB port on a PC or from an Auto adapter. Transmitter Device Operation The stereo analog input of the Sound Feeder Unit can be directly connected to any stereo audio source. The device uses an off the shelf FM modulator chip as its basis for operation.

Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 339-04 RevB TEST REPORT TO INDUSTRY CANADA RSS 210 SECTION 6.2.2(k) FEDERAL COMMUNICATIONS COMMISSION CFR47 PART15.239 Low Power License-Exempt Radiocommunication Devices Intentional Radiators 88-108 MHz Band for Arkon Resources, Inc. 20 La Porte St. Arcadia, CA 91006 626-254-9005 of 88 and 108 MHz FM Modulator SF 280 FCC ID: ME2-SF280 on 11-3-2004 Tested by Andrew Mertinooke Reviewed by Clifton P. Brick This report may not be duplicated, except in full without written permission from Compliance Worldwide, Inc. Page 2 of 36 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 339-04 RevB TABLE OF CONTENTS • Test Description • Test Results and Conclusions • Test Procedures • RSS 210 /Part 15 Subpart C Test Limits • Test Facility Description • Test Setup and Connection Information • Test Measurements and Results Radiated Measurements Radiated Output Power & Occupied Bandwidth Conducted Measurements • Notes and Comments Page 3 of 36 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 339-04 RevB TEST DESCRIPTION 1. TEST OBJECTIVE To test the 88 and 108 MHz FM Modulator SF 280 to RSS 210 / Part 15 Subpart C Rules and write a report. 2. E.U.T. DESCRIPTION GENERAL The 88 and 108 MHz FM Modulator SF 280 is a short range low power transmitter used to allow a portable audio device to be linked with a broadcast band stereo receiver. The SF-280 is a low power FM transmitter that receives an input signal from a portable audio device such as a CD Player and transmits to a regular FM Receiver such as a car radio. It is designed to play the signal from the CD Player through the car stereo. It is approximately 3”x1.5”x0.75” and weighs less than 2 ounces. Available channels, 88.1, 88.3, 88.5, 88.7, 88.9, 106.7, 106.9, 107.1, 107.3, 107.5, 107.7, 107.9 SERIAL NUMBERS: Pre Production Prototype Page 4 of 36 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 339-04 RevB TEST RESULTS AND CONCLUSIONS PRODUCT TESTED – 88 and 108 MHz FM Modulator MODEL NUMBER - SF 280 RADIATED TEST RESULTS The test results show that the emissions radiated from this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C. OCCUPIED BANDWIDTH & OUTPUT POWER The test results show that the occupied bandwidth and output power of this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C . CONDUCTED TEST RESULTS The test results show that the emissions conducted through the power line from this equipment are in compliance with IC Rules RSS 210 / FCC Rules Part 15 Subpart C. ANALYSIS AND CONCLUSIONS Based upon the radiated and conducted measurements we find that this equipment is within the limits of the IC Rules RSS 210 / FCC Rules Part 15 Subpart C. All results are based on a test of one sample, and represent other production units, only in as much as a sample represents other production units. If any significant changes are made to the unit, the changes shall be evaluated and a retest may be required. Page 5 of 36 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 339-04 RevB TEST PROCEDURES 1. TEST EQUIPMENT A. HP 8546A (9 kHz - 6.5 GHz) EMI Receiver w/ RF Filter Section, S/N 3704A00323 / 3650A00360. Calibration Date 1-16-2004, calibrated annually. B. Com-Power Biconilog Antenna, Model AC220, S/N 25509. Calibration Date 7-16-2004, calibrated annually. C. EMCO LISN, Model EM 3825/2, S/N 9109-1860. Calibration Date: 3-10-2004, calibrated annually. 2. FREQUENCY RANGE TO BE SCANNED. A. Radiated Test from 30 MHz to 40 GHz (or the 10 th harmonic of the highest frequency whichever is lower). B. Conducted Test from 150 kHz to 30 MHz. Page 6 of 36 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 339-04 RevB 3. TEST PROCEDURES. Radiated test procedure: The EUT, associated cables and peripheral devices are placed on the supporting table and any support equipment is placed off the site. The EUT is turned on and any necessary operating or test software installed and allowed to warm up. The EUT is pre-scanned in our ferrite tile lined chamber where it is rotated 360 degrees and examined in both horizontal and vertical polarization, all emission frequencies are identified and recorded. The EUT is then moved to the OATS and the frequency band from 30 MHz to 40 GHz is scanned, all frequencies identified in the chamber are investigated, as well as harmonic frequencies of the EUT. When an emission is found the emission is maximized by varying the bundle position of the connecting cables, the antenna height, the antenna polarization (vertical and horizontal) and the table orientation (360 degrees). The maximum reading is recorded and the next signal is searched for. Conducted test procedure: The power line of the EUT is connected to the LISN (Line Impedance Stabilization Network). A measurement of the emissions are made from the power line for both phase and neutral on the analyzer in the frequency range from 150 kHz to 30 MHz. The maximum readings are recorded for each phase. All measurements are made according to the procedures defined in: "ANSI C63.4-2001 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz” Page 7 of 36 Compliance Worldwide, Inc. – 357 Main Street – Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 339-04 RevB RSS 210/ FCC Part 15 TEST LIMITS 1. FCC Part 15.209, 15.235, 15.239, 15.249 Radiation Limits: Limits are using a Quasi-Peak de…

Text truncated - open the document above for the full version.

ME2-SF280 Test Setup Photos Page 1 of 4 Radiated Test setup Front ME2-SF280 Test Setup Photos Page 2 of 4 Radiated Test Setup Rear ME2-SF280 Test Setup Photos Page 3 of 4 Conducted Test Setup Front ME2-SF280 Test Setup Photos Page 4 of 4 Conducted Test Setup Rear
