MG3URC033RF Remote Control

Dolphin TM Water-Proof Remote Control Instruments Balboa Incorporated 23 TABLE OF CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . .3 Features And Functions . . . . . . . . . . . . . . . .4 Key Charts . . . . . . . . . . . . . . . . . . . . . . . . . .5 Installing Batteries . . . . . . . . . . . . . . . . . . . .7 Programming TV Control . . . . . . . . . . . . . . .8 Setup Codes for TVs . . . . . . . . . . . . . . . . . . .8 Programming VCR Control . . . . . . . . . . . . .12 Setup Codes for VCRs . . . . . . . . . . . . . . . . .12 Programming TV/VCR Combo Control . . . . .16 Setup Codes for TV/VCRs . . . . . . . . . . . . . .17 Programming Cable Converter (or DBS Receiver) Control . . . . . . . . . . . . .18 To Unlock the Cable Key . . . . . . . . . . . . . . .18 To Program the Cable Key . . . . . . . . . . . . . .18 To Lock the Cable Key . . . . . . . . . . . . . . . .19 Setup Codes for Cable Converters . . . . . . . .19 Setup Codes for DBS Receivers . . . . . . . . . .20 Programming Channel Control Lock . . . . . .21 To Activate Channel Control Lock . . . . . . . .21 To De-Activate Channel Control Lock . . . . . .21 Programming Audio Control . . . . . . . . . . . .22 Setup Codes for CD Players . . . . . . . . . . . . .23 Setup Codes for DVD Players . . . . . . . . . . .24 Setup Codes for Stereo Receivers . . . . . . . .24 Setup Codes for Stereo Amplifiers . . . . . . . .25 Setup Codes for DBS Audio Services . . . . . .25 Searching For Your Code . . . . . . . . . . . . . .26 Checking The Codes . . . . . . . . . . . . . . . . . .27 Re-Assigning Device Keys . . . . . . . . . . . . . .28 Changing Volume Lock . . . . . . . . . . . . . . . .29 To Change Volume Lock to the CABLE Mode 29 To Change Volume Lock to the TV Mode . . .29 To Change Volume Lock to the VCR Mode . .29 To Change Volume Lock to the RCVR Mode .29 Using the Learning Feature . . . . . . . . . . . . .30 Using the IR/RF Command Center . . . . . . . .32 Specifications . . . . . . . . . . . . . . . . . . . . . .34 Compliance with FCC Rules and Regulations 35 Troubleshooting . . . . . . . . . . . . . . . . . . . . .36 INTRODUCTION The Universal Dolphin™ Remote is Balboa’s latest generation remote control. It is designed with sophisticated technology that will allow you to consolidate many of your existing remote controls along with the entertainment system in your spa. It’s packed with easy-to-use features such as: •Preprogrammed to operate the cable converter supplied by your cable system provider •Preprogrammed technology for easy setup •Instant “Tune-In”keys for assignment to your favorite channels • Color-coded keys to quickly locate popular functions • Code library for video and audio components • Code Search to help program control of older or discontinued components • Learning function to allow programming with another infrared (IR) remote. • Combination IR and RF (radio frequency) capability that can send commands, through the optional RF base station, to devices in another room. Before you can use your new remote control, you will need to program it to operate the specific home entertainment components you wish to control. Follow the instructions detailed in this manual to set up your Dolphin Remote and enjoy your new remote control. 4 5 FEATURES AND FUNCTIONS Use the illustration below to locate the Dolphin features and study the key locations (on the next two pages) to learn how they function. The LED (red light) blinks to show that the remote control is working and is sending signals. Press POWER once to turn on or off the selected home entertainment component. Use SETUP for all programming sequences. Press AUDIO, VCR, TV, or CBL once to select a home entertainment component to control. See next page for descriptions of the buttons in this circular area of the remote Use volume + (or volume -) to raise (or lower) the sound volume. Use CH + (or CH -) to select the next higher (or lower) channel. Press MUTE once to turn sound off or on. Press LAST once to recall the last channel and to page back one screen in the main menu. Use the GREEN phosphorescent buttons to control available spa functions. Use the keypad (0 ~ 9) to directly select channels (e.g., 09 or 31). Press TV/VCR once to switch the VCR to view TV channels or tape.This key will also control the input select feature on most TVs. Press ENTER once after entering channel numbers on some TV models. In the VCR and TV modes, use the REW, PLAY, FF, REC, STOP, and PAUSE keys to control your VCR. To record a program, press REC twice. Continued on next page... 7 Use GUIDE to display the program guide. Use EXIT to exit out of your cable converter’s menu and guide. Use the four directional keys to move the cursor in the program guide and menu screens. Use SELECT/OK to choose options,PPV events, and to tune programs from the program guide. Use INFO to display current channel and program information. Press MENU once to display your cable converter’s screen menu. FEATURES AND FUNCTIONS ...Continued INSTALLING BATTERIES 1. On the back of the Dolphin Remote, remove the screws that hold the battery cover in place and lift off the battery cover. 2Obtain two (2) fully-charged AA alkaline batteries. Match the + and – marks on the batteries to the + and – marks in the battery case, then insert the new batteries. 3. Press the battery cover back into place, being careful to align the rubber seal. 4. Replace the screws that hold the cover by carefully starting each one without tightening it. Once they are all started, snug up one screw and then do the same to the screw on the opposite side of the door. Repeat this in a crossing pattern until all screws are snug. Do not over-tighten them. This will assure an adequate water seal around the battery door. 4. Test the unit by pressing POWER and any mode key (e.g. AUDIO,VCR, TV, or CBL). If the batteries are inserted correctly, the LED will blink once. NOTE: Whenever batteries need replacement, the Dolphin will blink tw…

Text truncated - open the document above for the full version.

1 Scott McCutchan From: Scott McCutchan [[email protected]] Sent: Monday, January 06, 2003 12:43 PM To: [email protected] Subject: FCC ID: MG3URC033 Mr. Fujimoto, In order for processing of this application (FCC ID: MG3URC033) to continue, the following issue(s) will have to be addressed: 1) The FCC ID on the label does not meet the requirements of CFR 47, Part 2, Section 2.925(a)(1). The term "FCC ID" must be on the same line as the actual identifier. 2) The fundamental and harmonic data contained within the test report appears to be corrupted. Please submit a new set of data. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please upload your response to our electronic filing website using a correspondance number of "MG3URC033-1". If you have any questions, feel free to contact me. Best regards, Scott McCutchan Operations Manager Compatible Electronics TCB (714) 579-1489 fax (714) 579-1850 http://www.celectronics.com Correspondence by Project Project Number: 1860617400 Correspondence Number Memo MG3URC033-1 1. The FCC-ID Label has been revised to show the term "FCC ID" on the same line as the actual identifier. Please see the revised FCC-ID Label in the exhibits. 2. Appendix E of the test report (the data sheets) have been re-uploaded as a separate exhibit. This is due to the fact the computer corrupts the data when we try to sign electronically, and scanning in the page with the signatures would cause the file to exceed 4 MB. Appendix E will be 17 pages and include all of the data contained.

FCC ID: MG3URC033 Block diagram of the URC-1033BJ0 IR/RF Remote Control Micro-controller 8 Bit Keypad input EEPROM 8.000 MHz Clock Infrared learner Infrared (IR) transmitter 433.92 MHz Oscillator/Transmitter 6 Pin Download Interface

114 OLINDA DRIVE • •• • BREA, CALIFORNIA 92823 • •• • (714) 579-0500 • •• • FAX (714) 579-1850 December 10, 2002 CETCB 114 Olinda Drive Brea, CA 92823 Subject: Request for Certification of the Universal Electronics, Inc. RF Remote Control Model: URC-1033BJ0 FCC ID: MG3URC033 Gentlemen: We have enclosed a package for the certification of the Universal Electronics, Inc. RF Remote Control Model: URC-1033BJ0 We have enclosed the completed Form 731 with the applicable exhibits. If you have any questions or need any additional information, please give me a call at (714) 579-0500. Sincerely, Kyle Fujimoto Test Engineer

Page 1 of 1 http://www.celectronics.com:3000/WorldClient.dll/01033.jpg?Session=GCEBSZN&View=Attachment&Part=2.0&Filename=01033.jpg1/8/03

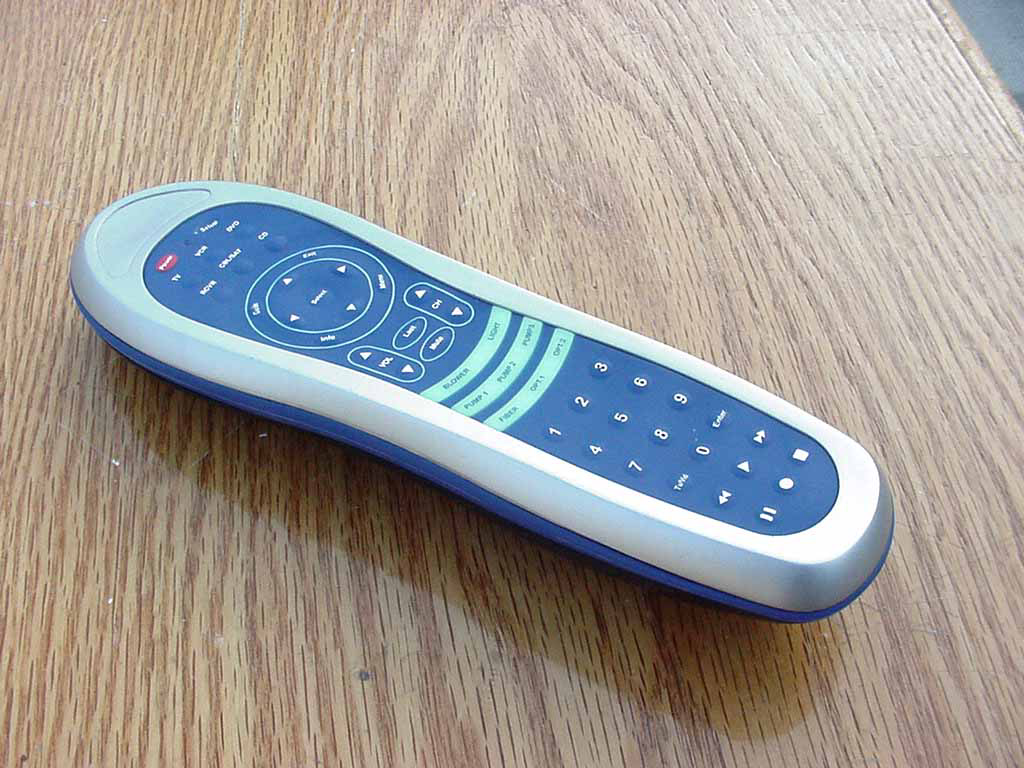

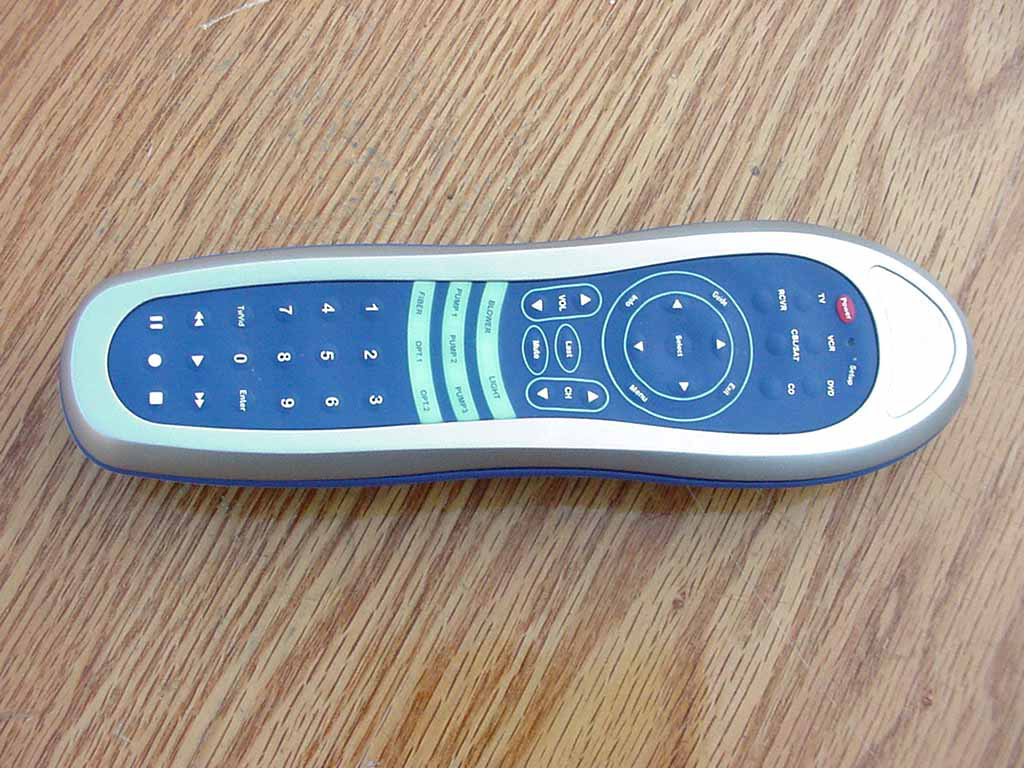

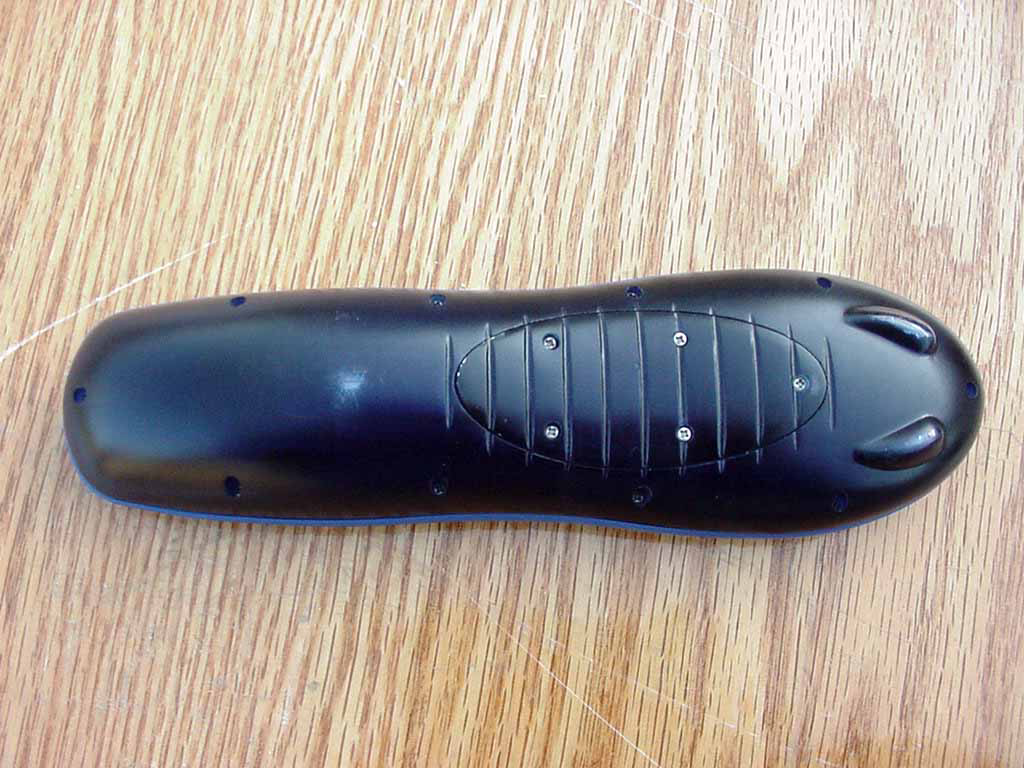

FCC ID: MG3URC033 Description of the URC-1033BJ0 RF Remote Control The URC-1033BJ0 RF is a universal remote control that allows users to operate audio/video (A/V) and spa equipment using radio frequency (RF) or infrared (IR) signals. When used in conjunction with the 8-in-1 Command Center receiver, this remote control can operate audio/video equipment up to 100 feet, not necessarily in line of sight with respect to the user. The URC-1033BJ0 RF can also be used as a stand-alone IR remote control unit, and can control up to six A/V devices. This device is part of an extensive line of infrared and RF remote control products that Universal Electronics Inc. designs, manufactures, and sell in the United States and abroad.

Balboa spa remote FCC ID: MG3URC033 Universal Electronics, Inc. 6101 Gateway Drive, Cypress, CA 90630-4841 Tel: 714 820-1000 FAX: 714-820-1010 May 7, 2003, Scott McCutchan Operations Manager Compatible Electronics TCB (714) 579-1489 fax (714) 579-1850 RE:FCC ID: MG3URC033 When a remote key that transmits RF at 433.92 MHz is released the RF transmitter is disabled automatically. Any key that transmits RF is disabled typically 3.8 milli seconds before the remote’s time base ceramic oscillator (8.0 MHz) stops oscillating. Even if some reason a key that transmits RF is stuck, it transmits RF for 30 seconds and then the remote times out. We refer to this as the stuck key time out. Here again the RF key is disabled 3.8 milli seconds before the ceramic oscillator reaches the 30 seconds time out. Regards, Jesse Mendez Staff Electrical Engineer.

123456 A B C D 654321 D C B A This document contains information which is confidential and proprietary to Universal Electronics Inc. CONFIDENTIAL: 11 UEIS-102531 19-Nov-200215:49:54C:\My Documents\Releases Packages\Balboa Instruments 6 Device Spa Remote\10253_1.sch Title Size:Number: Date:File: Revision: SheetofTime: C Balboa Instruments 6 Device Spa Remote URC-1033BJ0 Drawn By:Design by: Universal Electronics Inc. 6101 Gateway Drive Cypress, CA 90630 Phone 714-820-1000 FAX 714-820-1010 * C2 0.1μF + * C1 470μF NOTE: * PLACEMENT PER UEI SPEC-0029 T. Murry IN OUT A0 1 A1 2 A2 3 WP 7 SDA 5 SCL 6 VDD 8 GND 4 U2 (16) (2K) R19 10K 12 34 56 JP1 DOWNLOAD INTERFACE VE2 SDA SCL GND RST VDD R25 100 OHM C11 0.1μF VDD * R35 1.1M VDD VE2 VBATT BT1 1.5V AA BT2 1.5V AA CONN1 + TERMINAL CONN5 - TERMINAL CONN3 +/- TERMINAL 0123 2 3 4 5 INPUT # OUTPUT # 4 6 7 5 S11 S12 S04S14S24 S15 S25S35 S13S03 S34 S31 S30 S33 S00S10 S01 S02S32 S20 S05 S40 S42 S43 S44 S06S16S26 S07 S36 S17 S50 S52 S53 S54 S46 S47S27S37 S41S51 S55S45 S23 S21 S22 R11 180 OHM LED1 RED LED VBATT P2.0/ INT5 25 P2.6/INT9 6 RESET 7 XOUT 3 VSS 1 VDD 32 TEST/VPP 4 XIN 2 P0.0/ INT0 17 P0.1/ INT1 18 P0.2/ INT2 19 P0.3/ INT3 20 SDAT/P1.0 9 SCLK/P1.1 10 P1.2 11 P1.3 12 P2.1/ INT6 26 P0.4/ INT4 21 P0.5/ INT4 22 P0.6/ INT4 23 P0.7/ INT4 24 P2.7/INT9 8 P2.2/ INT7 27 P2.3/ INT8 28 P2.4/INT9 29 P2.5/INT9 5 P3.0/PWM/0CAP/1CAP 30 P3.1/REM/T0CK 31 P1.4 13 P1.5 14 P1.6 15 P1.7 16 U1 (SOP) S3C80F9XJT-SOB7 R10 10 OHM 0 1 R13 1M R12 1K R14 10K C6 0.1μF Q3 2N3904 R20 10K VDD C7 10pF R21 100 OHM NOTE: PLACE AS CLOSE R18 1K C18 10pF R23 1K R24 10K Q5 2N3904 Q4 2N3904 TO IR1 AS POSSIBLE DATA OUT ENABLE VBATT Q1 2N4403 R4 100K R5 1.0 OHM R6 100 OHM IR1 IR LED IR2 IR LED 1/4W IR IN 6 S60 S56 S57 TV SETUP POWER VOL + VOL - CH + CH - MUTE CBL/SATRCVR4DVDUPOPT. 2 DOWNCD5LASTVCR REWINFO6MENULEFT RIGHTGUIDE7EXITPLAY SELECTBLOWER81FFWD PUMP 3LIGHT92STOP FIBERPUMP 103PAUSE OPT. 1PUMP 2TV/VIDENTERREC 433.92MHz 3V SAW TX IR IN R36 10K R37 100K R33 2.2K R31 6.8K R32 47 OHM C36 390pF C32 10pF C33 15pF Q31 2N4403 Y31 TL-R433A R34 27 Ohm C31 39pF C35 8.2pF L31 8.2nH L32 18nH ANTENNA Q32 BFR92A C34 10pF C39 10nF VDD ANT-433-HETH 1/4 wavelenght, 17.2cm 433.92MHz Y1 8MHz Layout Notes: ◊◊◊◊ 1.) Place Learner circuit as close to IR1 as possible. 2.) Place DATA OUT TRACE well away from the RED LED TRACE and the VBATT TRACE. ** Layout Notes: ** Align IR1 with mark on plastics. R38 0 OHM C37 NOT INSTALLED 3 pF RF GND RF GND Vbatt - (Negative battery terminal) NOTE

Report Number: B21206X1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RF Remote Control Model: URC-1033BJ0 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 17 FCC PART 15, SUBPART B and C TEST REPORT for RF REMOTE CONTROL MODEL: URC-1033BJ0 Prepared for UNIVERSAL ELECTRONICS, INC. 6101 GATEWAY DRIVE CYPRESS, CALIFORNIA 90630 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: DECEMBER 16, 2002 REPORT APPENDICES TOTAL BODY A B C D E PAGES 17 2 2 2 12 17 52 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B21206X1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RF Remote Control Model: URC-1033BJ0 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 17 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. Description of Test Configuration 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment (Lab X) 11 5.3 EMI Test Equipment (Lab A) 12 6. TEST SITE DESCRIPTION 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 7. Test Procedures 14 7.1 Radiated Emissions (Spurious and Harmonics) Test 14 7.2 Bandwidth of the Fundamental 16 8. CONCLUSIONS 17 Report Number: B21206X1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RF Remote Control Model: URC-1033BJ0 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 17 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Radiated Site Report Number: B21206X1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RF Remote Control Model: URC-1033BJ0 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 17 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: RF Remote Control Model: URC-1033BJ0 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: Universal Electronics, Inc. 6101 Gateway Drive Cypress, California 90630 Test Dates: November 27; December 5 and 6, 2002 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209, and 15.231 Test Procedure: ANSI C63.4: 1992 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 450 kHz - 30 MHz This test was not performed because the EUT operates on battery power only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions, 10 kHz - 4500 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B21206X1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RF Remote Control Model: URC-1033BJ0 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 17 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the RF Remote Control Model: URC-1033BJ0. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B21206X1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RF Remote Control Model: URC-1033BJ0 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 17 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel Universal Electronics, Inc. Jesse Mendez Electrical Engineer Compatible Electronics, Inc. Kyle Fujimoto Test Engineer Michael Christensen Test Engineer 2.4 Date Test Sample was Received The test sample was received on November 27, 2002. 2.5 Disposition of the Test Sample The sample was returned to Universal Electronics, Inc. on December 10, 2002. 2.6 Abbreviati…

Text truncated - open the document above for the full version.

Report Number: B21206X1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RF Remote Control Model: URC-1033BJ0 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E1 APPENDIX E DATA SHEETS Report Number: B21206X1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RF Remote Control Model: URC-1033BJ0 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E2 RADIATED EMISSIONS DATA SHEETS RADIATED EMISSIONS (FCC SECTION 15.205 AND 15.231) 0.0 COMPANY DATE 11/27 & 12/5 2002 EUT DUTY CYCLE 35.5 % MODEL PEAK TO AVG -8.99543294 dB S/N TEST DIST. 3 Meters TEST ENGINEER LAB A Frequency Peak Antenna Antenna EUT EUT EUT Antenna Cable Amplifier Distance Mixer *Corrected Delta Spec Reading Polar. Height Azimuth Axis Tx Factor Loss Gain Factor Factor Reading ** Limit MHz (dBuV) (V or H) (meters) (deg rees) (X,Y,Z) C hannel (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dB) (dBuV/m) Comments 433.9000 103.1 94.2 A H X LOW 15.9 2.6 34.7 0.0 0.0 78.0 -2.8 80.8 433.9000 84.5 A H Y LOW 15.9 2.6 34.7 0.0 0.0 68.3 -12.5 80.8 433.9000 101.8 92.9 A H Z LOW 15.9 2.6 34.7 0.0 0.0 76.7 -4.1 80.8 433.9000 82.3 A V X LOW 15.9 2.6 34.7 0.0 0.0 66.1 -14.7 80.8 433.9000 94.1 85.2 A V Y LOW 15.9 2.6 34.7 0.0 0.0 69.0 -11.8 80.8 433.9000 85.8 A V Z LOW 15.9 2.6 34.7 0.0 0.0 69.6 -11.2 80.8 * CORRECTED READING = METER READING + ANTENNA FACTOR + CABLE LOSS - AMPLIFIER GAIN ** DELTA = SPEC LIMIT - CORRECTED READING PAGE 1 of PAGE 10 Average (A) or Quasi- Peak (QP) N/AUNIVERSAL ELECTRONICS, INC.RF REMOTE CONTROLURC-1033BJ0JAMES ROSS & MICHAEL CHRISTENSEN Doc. No.: EMI_PART15TX-B-0-50 Rev. A 04/11/00 RADIATED EMISSIONS (FCC SECTION 15.205 AND 15.231) 0.0 COMPANY DATE 11/27 & 12/5 2002 EUT DUTY CYCLE 35.5 % MODEL PEAK TO AVG -8.99543294 dB S/N TEST DIST. 3 Meters TEST ENGINEER LAB A Frequency Peak Antenna Antenna EUT EUT EUT Antenna Cable Amplifier Distance Mixer *Corrected Delta Spec Reading Polar. Height Azimuth Axis Tx Factor Loss Gain Factor Factor Reading ** Limit MHz (dBuV) (V or H) (meters) (deg rees) (X,Y,Z) C hannel (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dB) (dBuV/m) Comments 867.8000 69.3 60.4 A H X LOW 22.1 4.5 33.8 0.0 0.0 53.3 -7.5 60.8 867.8000 57.9 A H Y LOW 22.1 4.5 33.8 0.0 0.0 50.8 -10.0 60.8 867.8000 64.7 55.8 A H Z LOW 22.1 4.5 33.8 0.0 0.0 48.7 -12.1 60.8 867.8000 55.9 A V X LOW 22.1 4.5 33.8 0.0 0.0 48.8 -12.0 60.8 867.8000 68.5 59.6 A V Y LOW 22.1 4.5 33.8 0.0 0.0 52.5 -8.3 60.8 867.8000 63.1 54.2 A V Z LOW 22.1 4.5 33.8 0.0 0.0 47.1 -13.7 60.8 * CORRECTED READING = METER READING + ANTENNA FACTOR + CABLE LOSS - AMPLIFIER GAIN ** DELTA = SPEC LIMIT - CORRECTED READING PAGE 2 of PAGE 10 UNIVERSAL ELECTRONICS, INC.RF REMOTE CONTROLURC-1033BJ0N/AJAMES ROSS & MICHAEL CHRISTENSEN Average (A) or Quasi- Peak (QP) Doc. No.: EMI_PART15TX-B-0-50 Rev. A 04/11/00 RADIATED EMISSIONS (FCC SECTION 15.205 AND 15.231) 0.0 COMPANY DATE 11/27 & 12/5 2002 EUT DUTY CYCLE 35.5 % MODEL PEAK TO AVG -8.99543294 dB S/N TEST DIST. 3 Meters TEST ENGINEER LAB A Frequency Peak Antenna Antenna EUT EUT EUT Antenna Cable Amplifier Distance Mixer *Corrected Delta Spec Reading Polar. Height Azimuth Axis Tx Factor Loss Gain Factor Factor Reading ** Limit MHz (dBuV) (V or H) (meters) (deg rees) (X,Y,Z) C hannel (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dB) (dBuV/m) Comments 1301.7000 54.3 45.4 A H X LOW 28.2 3.0 33.1 0.0 0.0 43.5 -10.5 54.0 1301.7000 48.1 A H Y LOW 28.2 3.0 33.1 0.0 0.0 46.2 -7.8 54.0 1301.7000 51.4 42.5 A H Z LOW 28.2 3.0 33.1 0.0 0.0 40.6 -13.4 54.0 1301.7000 56.1 47.2 A V X LOW 28.2 3.0 33.1 0.0 0.0 45.3 -8.7 54.0 1301.7000 57.0 48.1 A V Y LOW 28.2 3.0 33.1 0.0 0.0 46.2 -7.8 54.0 1301.7000 56.2 47.3 A V Z LOW 28.2 3.0 33.1 0.0 0.0 45.4 -8.6 54.0 * CORRECTED READING = METER READING + ANTENNA FACTOR + CABLE LOSS - AMPLIFIER GAIN ** DELTA = SPEC LIMIT - CORRECTED READING PAGE 3 of PAGE 10 UNIVERSAL ELECTRONICS, INC.RF REMOTE CONTROLURC-1033BJ0N/AJAMES ROSS & MICHAEL CHRISTENSEN Average (A) or Quasi- Peak (QP) Doc. No.: EMI_PART15TX-B-0-50 Rev. A 04/11/00 RADIATED EMISSIONS (FCC SECTION 15.205 AND 15.231) 0.0 COMPANY DATE 11/27 & 12/5 2002 EUT DUTY CYCLE 35.5 % MODEL PEAK TO AVG -8.99543294 dB S/N TEST DIST. 3 Meters TEST ENGINEER LAB A Frequency Peak Antenna Antenna EUT EUT EUT Antenna Cable Amplifier Distance Mixer *Corrected Delta Spec Reading Polar. Height Azimuth Axis Tx Factor Loss Gain Factor Factor Reading ** Limit MHz (dBuV) (V or H) (meters) (deg rees) (X,Y,Z) C hannel (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dB) (dBuV/m) Comments 1735.6000 46.3 AH 1.5 90 X LOW 30.7 3.7 32.3 0.0 0.0 48.4 -12.4 60.8 1735.6000 47.7 AH 1.8 180 Y LOW 30.7 3.7 32.3 0.0 0.0 49.8 -11.0 60.8 1735.6000 42.2 AH 2.0 270 Z LOW 30.7 3.7 32.3 0.0 0.0 44.3 -16.5 60.8 1735.6000 43.5 AV 2.0 90 X LOW 30.7 3.7 32.3 0.0 0.0 45.6 -15.2 60.8 1735.6000 46.9 AV 2.3 0 Y LOW 30.7 3.7 32.3 0.0 0.0 49.0 -11.8 60.8 1735.6000 44.9 AV 1.5 90 Z LOW 30.7 3.7 32.3 0.0 0.0 47.0 -13.8 60.8 * CORRECTED READING = METER READING + ANTENNA FACTOR + CABLE LOSS - AMPLIFIER GAIN ** DELTA = SPEC LIMIT - CORRECTED READING PAGE 4 of PAGE 10 UNIVERSAL ELECTRONICS, INC.RF REMOTE CONTROLURC-1033BJ0N/AJAMES ROSS & MICHAEL CHRISTENSEN Average (A) or Quasi- Peak (QP) Doc. No.: EMI_PART15TX-B-0-50 Rev. A 04/11/00 RADIATED EMISSIONS (FCC SECTION 15.205 AND 15.231) 0.0 COMPANY DATE 11/27 & 12/5 2002 EUT DUTY CYCLE 35.5 % MODEL PEAK TO AVG -8.99543294 dB S/N TEST DIST. 3 Meters TEST ENGINEER LAB A Frequency Peak Antenna Antenna EUT EUT EUT Antenna Cable Amplifier Distance Mixer *Corrected Delta Spec Reading Polar. Height Azimuth Axis Tx Factor Loss Gain Factor Factor Reading ** Limit MHz (dBuV) (V or H) (meters) (deg rees) (X,Y,Z) C hannel (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dB) (dBuV/m) Comments 2169.5000 53.0 AH 2.0 270 X LOW 32.4 4.1 32.4 0.0 0.0 57.0 -3.8 60.8 2169.5000 49.7 AH 1.2 0 Y LOW 32.4 4.1 32.4 0.0 0.0 53.7 -7.1 60.8 2169.5000 55.3 46.4 AH 2.5 270 Z LOW 32.4 4.1 32.4 0.0 0.0 50.4 -10.4 60.8 2169.5000 53.3 44.4 AV 2.0 270 X …

Text truncated - open the document above for the full version.
