1 PCMCIA 11M Wireless LAN Card User Manual Rev 1.0 i Regulatory Compliance Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ii Statement Needed to be Shown on End Product Since this module is installed inside the end product, the end product should be affixed a label on visible area showing that this product contain a RF module, and also its FCC ID. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) iii and Obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example access points, routers, wireless ASDL modems, and similar equipment). The final end product must be labeled in a visible area with the following: “ Contains TX FCC ID: MIBR50702-02 ”. Manual Information That Must be Included The users manual for end users must include the following information in a prominent location “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” Wireless LAN card user manual About this manual This manual describes how to install and operate your Wireless LAN card. Please read this manual before you install the product. This manual includes the following topics: ÿ Product description, features and specifications ÿ Hardware installation procedure ÿ Software installation procedure ÿ Trouble shooting procedures 1 Introduction This high-speed Wireless LAN card provides you with an innovative wireless networking solution. The Card is easy to set up and use. With this innovative wireless technology, you can share files and printers on the network—without inconvenient wires! Now you can carry the LAN in your pocket! Features l Wire-free access to networked resources from anywhere beyond the desktop l Low interference & high susceptibility guarantee reliable performance l Delivers data rate up to 11 Mbps l Dynamically shifts between 11, 5.5, 2, and 1 Mbps network speed, based on signal strength, for maximum availability and reliability of connection l External dipole antenna l Uses 2.4GHz frequency band, which complies with worldwide requirement l Supports most popular operating systems: Window 95/98/2000/NT 4.0/ME l Ensures great security by providing the Wired Equivalent Privacy (WEP) defined in the IEEE 802.11 standard 2 What is Wireless LAN? Wireless Local Area Network (WLAN) systems offer a great number of advantages over traditional wired systems. WLANs are flexible and easy to setup and manage. They are also more economical than wired LAN systems. Using radio frequency (RF) technology, WLANs transmit and receive data through the air. WLANs combine data connectivity with user mobility. For example, users can roam from a conference room to their office with- out being disconnected from the LAN. Using WLANs, users can conve…

Text truncated - open the document above for the full version.

FCC ID: MIBRF50702-02 Report No.: 910816H01 ADT No.: 910816H01 Modular Approval Request Letter Advance Data Technology Sep. 19, 2002 Dear Application Examiner, RF-LINK system Inc.’s WLAN Card, FCC ID: MIBRF50702-02, would like to have your authorization for Limited Module Approval specific to the mobile device such as Access Point, Router. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in ISL3871. 3. “The modular transmitter must have its own power supply regulation.” There is a regulator in the DC input port, the part number is MAX8867. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA adapter card. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: MIBRF50702-02 Report No.: 910816H01 ADT No.: 910816H01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Line Manager of Hsinchu Certification Service Div. Advance Data Technology

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 23, 2002 RE: RF-LINK SYSTEMS, INC. FCC ID: MIBRF50702-02 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The antenna connectors listed in the application (page 47 of test report) state that the connectors are an MMCX. This may be the connector at the EUT antenna port, however it appears that the connectors at the antennas may be SMA. Please comment on the type of connectors that these are. 2) Page 5 & 6 of the users manual mentions and shows attaching the device to a laptop. It is our understanding that this device is only for integration only into access points and similar devices. Please correct the users manual. 3) Please update page 4 of the users manual to include the proper FCC ID Number. 4) FYI, The maximum conducted power measured was 25 mW. Part 15.247 devices should list the conducted power (not EIRP) on the 731 form. Timothy R. Johnson Examining Engineer Direct Phone: 404-414-8071 mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dear Timothy, Thanks for your kind help on this project. Here are our reply for the comments, 1) the antenna connector is a Reversed SMA type, it is not normal connector. 2) all laptop description were deleted, the correct user's manual will be put on ATCB site. 3) the FCC ID has been corrected on the user's manual. 4) It is our mistake, the conducted power has been corrected and the correct 731 Form will be put on ATCB site. For above, if you have any further questions or comments, please feel free to contact us. Best Regards, Eric Lin ADT Hsinchu lab. To: "Timothy R. Johnson" <[email protected]> Cc: [email protected] Subject: =?big5?B?pl6rSKFHIFJlOiBSZXZpc2VkIENvbW1lbnRzIFJlZ2FyZGluZw==?= Application FCC ID: MIBRF50702-02 Page 1 of 1In 9/24/2002Printed for "Timothy R. Johnson" <[email protected]>

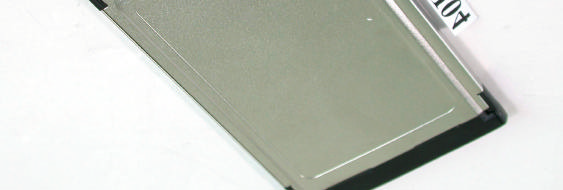

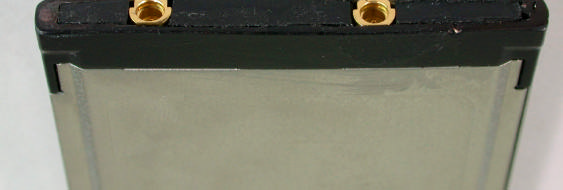

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

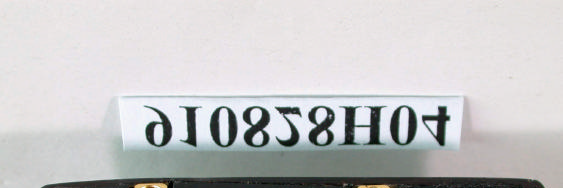

(Fig. 1) FCC ID: MIBRF50702-02 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID: MIBRF50702-02 Report No.: RF910828H04 ADT No.: 910828H04 Operational Description The transmitter of the EUT (WLAN Card) is powered by host equipment via a PCMCIA interface. The antenna is Dipole antenna, and the antenna connector type is MMCX. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This project is seeking the authorization of limited module approval specific to the mobile device such as Access Point and Router. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID:MIBRF50702-02 Report No.: RF910928H04 ADT No.: 910828H04 FCC TEST REPORT REPORT NO.: RF910928H04 MODEL NO.: RF50702-02 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: RF-LINK SYSTEMS INC. ADDRESS: 1F, No 9 Chan Yen Road 1 Science-Based Industrial Park ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID:MIBRF50702-02 Report No.: RF910928H04 ADT No.: 910828H04 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20 cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID:MIBRF50702-02 Report No.: RF910928H04 ADT No.: 910828H04 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID:MIBRF50702-02 Report No.: RF910928H04 ADT No.: 910828H04 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1 dBi or 1.26 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241225.001.58 6243722.231.49 11246221.781.32 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: MIBRF50702-02 Report No.: RF910828H041Issued: Sep. 19, 2002 ADT No.: 910808H04 FCC TEST REPORT REPORT NO.: RF910828H04 MODEL NO.: RF50702-02 RECEIVED: Aug. 28, 2002 TESTED: Aug. 30 to Sep. 03, 2002 APPLICANT: RF-LINK SYSTEMS INC. ADDRESS: 1F, No 9 Chan Yen Road 1 Science-Based Industrial Park ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 52 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: MIBRF50702-02 Report No.: RF910828H042Issued: Sep. 19, 2002 ADT No.: 910808H04 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 4TEST TYPES AND RESULTS................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.......................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................9 4.1.2TEST INSTRUMENTS.............................................................................................9 4.1.3TEST SETUP..........................................................................................................10 4.1.4EUT OPERATING CONDITIONS........................................................................11 4.1.5TEST RESULTS......................................................................................................12 4.2RADIATED EMISSION MEASUREMENT..........................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................18 4.2.2TEST INSTRUMENTS (please check again).....................................................19 4.2.3TEST PROCEDURES...........................................................................................20 4.2.4TEST SETUP..........................................................................................................21 4.2.5EUT OPERATING CONDITIONS........................................................................21 4.2.6TEST RESULTS......................................................................................................22 4.36dB BANDWIDTH MEASUREMENT..................................................................27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................27 4.3.2TEST INSTRUMENTS...........................................................................................27 4.3.3TEST PROCEDURE..............................................................................................28 4.3.4TEST SETUP..........................................................................................................28 4.3.5EUT OPERATING CONDITIONS........................................................................28 4.3.6TEST RESULTS......................................................................................................29 4.4MAXIMUM PEAK OUTPUT POWER..................................................................33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............33 4.4.2TEST INSTRUMENTS...........................................................................................33 4.4.3TEST PROCEDURES...........................................................................................34 4.4.4TEST SETUP..........................................................................................................34 4.4.5EUT OPERATING CONDITIONS........................................................................34 4.4.6TEST RESULTS......................................................................................................35 FCC ID: MIBRF50702-02 Report No.: RF910828H043Issued: Sep. 19, 2002 ADT No.: 910808H04 4.5POWER SPECTRAL DENSITY MEASUREMENT...........................................36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.......................36 4.5.2TEST INSTRUMENTS...........................................................................................36 4.5.3TEST PROCEDURE..............................................................................................37 4.5.4TEST SETUP..........................................................................................................37 4.5.5EUT OPERATING CONDITIONS........................................................................37 4.5.6TEST RESULTS......................................................................................................38 4.6BAND EDGES MEASUREMENT.........................................................................42 4.6.1LIMITS OF BAND EDGES MEASUREMENT....................................................42 4.6.2TEST INSTRUMENTS...........................................................................................42 4.6.3TEST PROCEDURE..............................................................................................42 4.6.4EUT OPERATING CONDITION..........................................................................…

Text truncated - open the document above for the full version.

FCC ID: MIBRF50702-02 Report No.: RF910828H0449Issued: Sep. 19, 2002 ADT No.: 910808H04 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: MIBRF50702-02 Report No.: RF910828H0450Issued: Sep. 19, 2002 ADT No.: 910808H04 FCC ID: MIBRF50702-02 Report No.: RF910828H0451Issued: Sep. 19, 2002 ADT No.: 910808H04 RADIATED EMISSION TEST FCC ID: MIBRF50702-02 Report No.: RF910828H0452Issued: Sep. 19, 2002 ADT No.: 910808H04
