MIBRF50702-03WLAN Card

1 PCMCIA 11M Wireless LAN Card User Manual Rev 1.0 i Regulatory Compliance Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ii IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. iii Wireless LAN card user manual About this manual This manual describes how to install and operate your Wireless LAN card. Please read this manual before you install the product. This manual includes the following topics: ÿ Product description, features and specifications ÿ Hardware installation procedure ÿ Software installation procedure ÿ Trouble shooting procedures Table of contents CHAPTER 1...................................................................................1 Introduction............................................................................1 Features..........................................................................1 iv What is Wireless LAN?.........................................................2 LAN Modes............................................................................3 Notes on wireless LAN configuration...................................4 CHAPTER 2...................................................................................5 Hardware installation............................................................5 What’ s in the package..........................................................5 Hardware description............................................................5 Inserting the Wireless LAN card..........................................6 Status LED..............................................................................7 Ejecting the Wireless LAN card...........................................8 CHAPTER 3...................................................................................9 DRIVER INSTALLATION FOR WINDOWS....................9 3.1. Installation Overview......................................................9 3.2. Install Procedure for Windows 98/ME/2000/XP..........9 CHPATER 4..................................................................................14 Using the Wireless Utility....................................................14 Appendix A...................................................................................17 Troubleshooting....................................................................17 Q&A......................................................................................17 Appendix B...................................................................................19 Specifications........................................................................19 1 CHAPTER 1 Introduction Thank you for purchasing the Wireless LAN card. This high-speed Wireless LAN card provides you with an innovative wireless networking solution. The Card is easy to set up and use. With this innovative wireless technology, you can share files and printers on the network—without inconvenient wires! Now you can carry the LAN in your pocket! Features l Wire-free access to networked resources from anywhere beyond the desktop l Low interference & high susceptibility guarantee reliable performance l Delivers data rate up to 11 Mbps l Dynamically shifts between 11, 5.5, 2, and 1 Mbps network speed, based on signal strength, for maximum availability and reliability of connection l Antenna is built in to the card with LED indicating Power and Link l Uses 2.4GHz frequency band, which complies with worldwide requirement l Supports most popular operating systems: Window 95/98/2000/NT 4.0/ME l Ensures great security by providing the Wired Equivalent Privacy (WEP) defined in the IEEE 802.11 standard 2 What is Wireless LAN? Wireless Local Area Network (WLAN) systems offer a great number of advantages over traditional wired systems. WLANs are flexible and easy to setup and manage. They are also more economical than wired LAN sy- stems. Using radio frequency (RF) technology, WLANs transmit and receive da- ta through the air. WLANs combine data connectivity with user mobility. For example, users can roam from a conference room to their office with- out being disconnected from the LAN. Using WLANs, users can conveniently access shared information, and network administrators can configure and augment networks without ins- talling or moving network cables. WLAN techn…

Text truncated - open the document above for the full version.

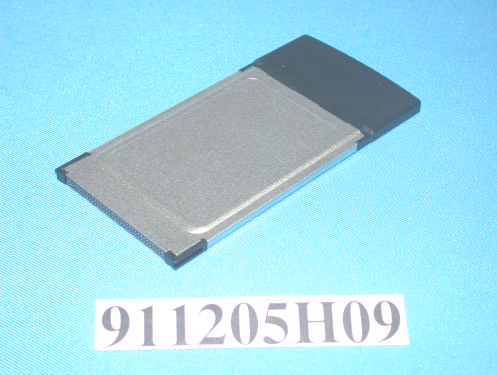

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: MIBRF50702-03 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received. Including interference that may cause undesired operation. 11Mbps Wireless LAN Card FOR HOME OR OFFICE USE FCC ID:MIBRF50702-03Model Number:RF50702-03 IEEE 802.11b Compliant

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID: MIBRF50702-03 Report No.: RF911205H09 ADT No.: 911205H09 Operational Description The transmitter of the EUT (WLAN Card) is powered by host equipment via a PCMCIA interface. The antenna is Printed antenna with no antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: MIBRF50702-03 Report No.: SA911205H091Issued: Dec. 20, 2002 SAR TEST REPORT REPORT NO.: SA911205H09 MODEL NO.: RF50702-03 RECEIVED: Dec. 12, 2002 TESTED: Dec. 19, 2002 APPLICANT: RF-Link Systems Inc. ADDRESS: No. 6, Nan-Ke 5 th Rd., Tainan Science-Based Industrial Park Hsin-Shi, Tainan County, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 13 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. FCC ID: MIBRF50702-03 Report No.: SA911205H092Issued: Dec. 20, 2002 Table of Contents 1.CERTIFICATION.......................................................................................................3 2.GENERAL INFORMATION.....................................................................................4 2.1GENERAL DESCRIPTION OF EUT......................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS...................................4 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS..........................5 4.DESCRIPTION OF SUPPORT UNITS..................................................................6 5.TEST RESULTS........................................................................................................7 5.1TEST PROCEDURES.............................................................................................7 5.2MEASURED SAR RESULT.....................................................................................7 5.3SAR LIMITS...............................................................................................................8 5.4EUT CONDUCTED POWER VARIATION............................................................8 5.5TISSUE.......................................................................................................................9 5.6TEST EQUIPMENT..................................................................................................9 6.SYSTEM VALIDATION..........................................................................................10 7.MEASUREMENT UNCERTAINTIES...................................................................11 8.INFORMATION ON THE TESTING LABORATORIES.....................................13 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: MIBRF50702-03 Report No.: SA911205H093Issued: Dec. 20, 2002 1. CERTIFICATION PRODUCT : WLAN Card MODEL NO. : RF-LINK system Inc. BRAND : RF50702-03 APPLICANT : RF-LINK SYSTEMS INC. STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01) We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on Dec. 19, 2002. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts for the measurements of the sample's EMC characteristics under the conditions herein specified. CHECKED BY:, DATE:Dec. 20, 2002 (Amanda Chu ) APPROVED BY:, DATE: Dec. 20, 2002 (Dr. Alan Lane Manager ) FCC ID: MIBRF50702-03 Report No.: SA911205H094Issued: Dec. 20, 2002 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT WLAN Card MODEL NO. RF50702-03 POWER SUPPLY 3.3VDC powered by host MODULATION TYPE BPSK, QPSK, CCK RADIO TECHNOLOGY DSSS TRANSFER RATE 1/2/5.5/11Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 CONDUCTED OUTPUT POWER 24.95 mW (13.97dBm) ANTENNA TYPE Printed Antenna PEAK SAR 0.318 W/Kg DATA CABLE NA I/O PORTS PCMCIA ASSOCIATED DEVICES NA 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS According to the specifications of the manufacturer, this product must comply with the requirements of the following standards: FCC CFR 47 Part 2 (2.1093) FCC OET Bulletin 65, Supplement C (01- 01) All tests have been performed and recorded as per the above standards. FCC ID: MIBRF50702-03 Report No.: SA911205H095Issued: Dec. 20, 2002 3. DESCRIPTION OF TEST MODES AND CONFIGURATIONS CARRIER MODULATION UNDER TEST Un-modulated CW Carrier CREST FACTOR 1.0 CHANNEL FREQUENCIES UNDER TEST AND ITS CONDUCTED OUTPUT POWER Ch. 1: 2412MHz / 13.97 dBm Ch. 6: 2437MHz / 13.68 dBm Ch. 11: 2462MHz / 13.09 dBm ANTENNA CONFIGURATION Printed Antenna EUT POWER SOURCE From Host Notebook HOST POWER SOURCE Fully Charged Battery The following test configurations have been applied in this test report: Mode 1:EUT in the bottom PCMCIA slot of the notebook, the keyboard face of the notebook is perpendicular to the bottom of the flat phantom and the EUT is located between notebook and phantom. The separation distance is 15 mm between the tip of the EUT and the bottom of the flat phantom. Mode 2:EUT in the bottom PCMCIA slot of the notebook, the bottom of the notebook contact the bottom of the flat phantom with 0 cm separation distance. Mode 3:EUT in the bottom PCMCIA slot of the notebook, the keyboard face of the notebook is perpendicular to the bottom of the flat phantom and the EUT is located between notebook and phantom. The separation distance is 0 mm between the tip of the EUT and the bottom of the flat phantom. Note 1: Please reference “APPENDIX A” for the photos of test configuration. Note 2: The output power of the un-modulated CW carrier has been adjusted to be the same with that of modulated signal. FCC ID: MIBRF50702-03 Report No.: SA911205H096Issued: Dec. 20, 2002 4. DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or ac…

Text truncated - open the document above for the full version.

FCC ID: MIBRF50702-03 Report No.: RF911205H091Issued: Dec. 23, 2002 ADT No.: 911205H09 FCC TEST REPORT REPORT NO.: RF911205H09 MODEL NO.: RF50702-03 RECEIVED: Dec. 05, 2002 TESTED: Dec. 05 to 12, 2002 APPLICANT: RF-LINK SYSTEMS INC. ADDRESS: NO.6, Nan-Ke 5th Rd.,Tainan Science-Based Industrial Park Hsin-Shi,Tainan County Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 49 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: MIBRF50702-03 Report No.: RF911205H092Issued: Dec. 23, 2002 ADT No.: 911205H09 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 4TEST TYPES AND RESULTS................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.......................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................9 4.1.2TEST INSTRUMENTS.............................................................................................9 4.1.3TEST SETUP..........................................................................................................10 4.1.4EUT OPERATING CONDITIONS........................................................................11 4.1.5TEST RESULTS......................................................................................................12 4.2RADIATED EMISSION MEASUREMENT..........................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................18 4.2.2TEST INSTRUMENTS...........................................................................................19 4.2.3TEST PROCEDURES...........................................................................................20 4.2.4TEST SETUP..........................................................................................................21 4.2.5EUT OPERATING CONDITIONS........................................................................21 4.2.6TEST RESULTS......................................................................................................22 4.36dB BANDWIDTH MEASUREMENT..................................................................27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................27 4.3.2TEST INSTRUMENTS...........................................................................................27 4.3.3TEST PROCEDURE..............................................................................................28 4.3.4TEST SETUP..........................................................................................................28 4.3.5EUT OPERATING CONDITIONS........................................................................28 4.3.6TEST RESULTS......................................................................................................29 4.4MAXIMUM PEAK OUTPUT POWER..................................................................33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............33 4.4.2TEST INSTRUMENTS...........................................................................................33 4.4.3TEST PROCEDURES...........................................................................................34 4.4.4TEST SETUP..........................................................................................................34 4.4.5EUT OPERATING CONDITIONS........................................................................34 4.4.6TEST RESULTS......................................................................................................35 FCC ID: MIBRF50702-03 Report No.: RF911205H093Issued: Dec. 23, 2002 ADT No.: 911205H09 4.5POWER SPECTRAL DENSITY MEASUREMENT...........................................36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.......................36 4.5.2TEST INSTRUMENTS...........................................................................................36 4.5.3TEST PROCEDURE..............................................................................................37 4.5.4TEST SETUP..........................................................................................................37 4.5.5EUT OPERATING CONDITIONS........................................................................37 4.5.6TEST RESULTS......................................................................................................38 4.6BAND EDGES MEASUREMENT.........................................................................42 4.6.1LIMITS OF BAND EDGES MEASUREMENT....................................................42 4.6.2TEST INSTRUMENTS...........................................................................................42 4.6.3TEST PROCEDURE..............................................................................................42 4.6.4EUT …

Text truncated - open the document above for the full version.

FCC ID: MIBRF50702-03 Report No.: RF911205H091Issued: Dec. 23, 2002 ADT No.: 911205H09 FCC TEST REPORT REPORT NO.: RF911205H09 MODEL NO.: RF50702-03 RECEIVED: Dec. 05, 2002 TESTED: Dec. 05 to 12, 2002 APPLICANT: RF-LINK SYSTEMS INC. ADDRESS: NO.6, Nan-Ke 5th Rd.,Tainan Science-Based Industrial Park Hsin-Shi,Tainan County Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 49 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: MIBRF50702-03 Report No.: RF911205H092Issued: Dec. 23, 2002 ADT No.: 911205H09 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 4TEST TYPES AND RESULTS................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.......................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................9 4.1.2TEST INSTRUMENTS.............................................................................................9 4.1.3TEST SETUP..........................................................................................................10 4.1.4EUT OPERATING CONDITIONS........................................................................11 4.1.5TEST RESULTS......................................................................................................12 4.2RADIATED EMISSION MEASUREMENT..........................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................18 4.2.2TEST INSTRUMENTS...........................................................................................19 4.2.3TEST PROCEDURES...........................................................................................20 4.2.4TEST SETUP..........................................................................................................21 4.2.5EUT OPERATING CONDITIONS........................................................................21 4.2.6TEST RESULTS......................................................................................................22 4.36dB BANDWIDTH MEASUREMENT..................................................................27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................27 4.3.2TEST INSTRUMENTS...........................................................................................27 4.3.3TEST PROCEDURE..............................................................................................28 4.3.4TEST SETUP..........................................................................................................28 4.3.5EUT OPERATING CONDITIONS........................................................................28 4.3.6TEST RESULTS......................................................................................................29 4.4MAXIMUM PEAK OUTPUT POWER..................................................................33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............33 4.4.2TEST INSTRUMENTS...........................................................................................33 4.4.3TEST PROCEDURES...........................................................................................34 4.4.4TEST SETUP..........................................................................................................34 4.4.5EUT OPERATING CONDITIONS........................................................................34 4.4.6TEST RESULTS......................................................................................................35 FCC ID: MIBRF50702-03 Report No.: RF911205H093Issued: Dec. 23, 2002 ADT No.: 911205H09 4.5POWER SPECTRAL DENSITY MEASUREMENT...........................................36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.......................36 4.5.2TEST INSTRUMENTS...........................................................................................36 4.5.3TEST PROCEDURE..............................................................................................37 4.5.4TEST SETUP..........................................................................................................37 4.5.5EUT OPERATING CONDITIONS........................................................................37 4.5.6TEST RESULTS......................................................................................................38 4.6BAND EDGES MEASUREMENT.........................................................................42 4.6.1LIMITS OF BAND EDGES MEASUREMENT....................................................42 4.6.2TEST INSTRUMENTS...........................................................................................42 4.6.3TEST PROCEDURE..............................................................................................42 4.6.4EUT …
