Date: December 14, 2012 MIVCNN0301 Declaration The MIVCNN0301 module that is to be integrated into the host (MIVRTT2211) is electrically identical to the MIVCNN0301 module that was originally approved. The original test results continue to be representative. Sincerely, Todd Gallagher Manager, Regulatory Engineering

Enfora, Inc. 251 Renner Pkwy Richardson, TX 75080 USA Phone: 972-633-4400 Fax: 972-633-4444 Email: [email protected] www.enfora.com Date: January 23, 2013 RTT2211 Duty Factor Attestation To whom it may concern, The RTT2211 (MT 3050) supports CDMA technology in 1xRTT mode that is configured in the factory during manufacturing and it is not possible for user or installer to configure the RTT2211 to transmit at a rate greater than that described below. The length of each transmission depends of the amount of data needed to be transferred. Normal transfer per message is approximately 150 bytes per transmission. In the event where data is buffered, a maximum of 650 messages will be transmitted. The output rate is firmware controlled whereby it does not allow transmissions of no more than 4 messages every 2 seconds. Each report sent over the wireless network takes under 8ms. Sincerely, Todd Gallagher Manager – Regulatory Engineering Enfora, Inc. ,

Enfora, Inc. 251 Renner Pkwy Richardson, TX 75080 USA Phone: 972-633-4400 Fax: 972-633-4444 Email: [email protected] www.enfora.com AGENCY LETTER Date: December 12, 2012 RFI Global Services Ltd Pavilion A Ashwood Park Ashwood Way Basingstoke Hampshire RG23 8BG England To whom it may concern; This is to certify that Enfora authorizes RFI Global Services Ltd to act on our behalf for the application of the RTT2211. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Sincerely, Todd Gallagher Manager – Regulatory Engineering

Revision 2 Enfora, Inc. December 12, 2012 251 Renner Pkwy Richardson, TX 75080 USA Phone: 972-633-4400 Fax: 972-633-4444 Email: [email protected] www.enfora.com Date: December 12, 2012 RFI Global Services Ltd Pavilion A Ashwood Park Ashwood Way Basingstoke Hampshire RG23 8BG England Subject: Request for Confidentiality FCC ID: MIVRTT2211 To Whom It May Concern: In accordance with 47CFR0.457 and 0.459, Enfora requests long term confidentiality for the following items; 1) Schematic Diagrams contained in electronic files: a. Schematic_MTX9200NV803_Rev1.pdf (host) b. Schematic_MTX9200NV810_Rev1.pdf (host) c. CNN0301NV801_RevA.pdf (module) 2) Block Diagrams located in electronic files: a. RTT2211_Block_Diagram.pdf (host) b. CNN0301_Block_Diagram_20120424.pdf (module) 3) Bill of Materials (BOM) located in electronic file: a. RTT2211-00_BOM.pdf (host and module) 4) Tune-Up Procedure (module) located in electronic file: a. CNN0301 Tune up Procedure - Revised.pdf 5) Operational Description (host) located in electronic file: a. RTT2211_ OperationalDescription.pdf Enfora requests short-term confidentiality for the following items; 1) External and Internal Photographs (host) contained in electronic files: a. RTT2211_External_photographs.pdf b. RTT2211_Internal Pictures.pdf 2) User’s Guide (host) contained in electronic file: a. 11_EMT3050UG001 - MT 3050 User Guide.pdf The requested short-term confidentiality release date is May 18, 2013. These items contain detailed system and equipment description and related information about the product which Enfora considers to be proprietary, confidential, and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Enfora also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Revision 2 Enfora, Inc. December 12, 2012 251 Renner Pkwy Richardson, TX 75080 USA Phone: 972-633-4400 Fax: 972-633-4444 Email: [email protected] www.enfora.com Sincerely, Todd Gallagher Manager – Regulatory Engineering

FCC ID: MIVRTT2211 This is to confirm that the module test report for FCC ID: MIVCNN0301 is considered acceptable to support the Part 22/ 24 requirements for application MIVRTT2211 based on the manufacturer’s attestation letter that states continual module compliance to Part 22/ 24. RFI Global Services Ltd (Trading as UL)

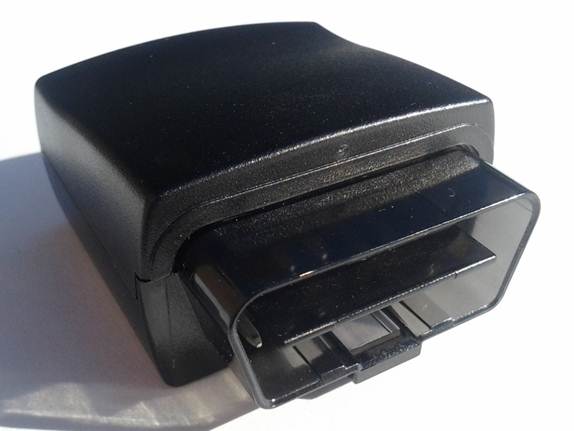

External_Top_Angle External_Bottom_Angle

Revision 1 Enfora, Inc. November 27, 2012 251 Renner Pkwy Richardson, TX 75080 USA Phone: 972-633-4400 Fax: 972-633-4444 Email: [email protected] www.enfora.com RTT2211 Label Location 1. Label Placement 2. Label Housing bottom Label position

Device Name: RTT2211 FCC ID: MIVRTT2211 Maximum Rated Power: Cellular 850 Band Rated Spec= 282mW (24.5dBm) PCS1900 Rated Spec= 282mW (24.5dBm) Maximum Measured Power: Cellular 850Band Measured= 214mW (23.3dBm) PCS1900 Measured= 195mW (22.9dBm) Source Based Time Average transmitter Power Evaluation The device under: The device under is a RTT2211 that Communicates with vehicle’s OBD interface and transmit GPS data OTA. The device supports CDMA technology in 1xR TT mode, voice mode is not supported. It is not possible for the user or installer to configuration the device to deviate from the operation uplink description outlined in this document. The device source based time average transmitter power is use to determine if SAR exemption is applicable. The device is self-contained and has no user control interface. It connects directly to the OBD-II connector in a vehicle. Among all the signals provided by OBD-II connector, only five are passed through to the device and are associated with following OBD protocols: J1850 PWM, J1850 VPW, ISO-9141-2, ISO-14230 KWP2000, and ISO-15765 CAN. 3 LEDs are used to indicate the status (GPS, Cellular, & OBD) of the device. All communications are initiated by the device. The device requests data, such as VIN and status information, from the vehicle. The data is encrypted and then transmitted to a remote server through a Cellular network. The number of data call per day is defined by the user but limited by the software. The length of each transmission depends of the amount of data needed to be transferred. Normal transfer per message is approximately 150 bytes per transmission. In the event where data is buffered, a maximum of 650 messages will be transmitted. The output rate is firmware controlled whereby it does not allow transmissions of more than 4 messages every 2 seconds The device enters sleep mode once it transmits a data packet. During sleep mode, no data will be exchanged between the device and the remote serve. The user is restricted from altering the functionality of the device via firmware controlled. The actual transmission time is calculated as: Rate for 1xRTT: 150Kbaud/s (Uplink) 150Kbaud/8 (8 bits in a byte)=18750 bytes per second 150 bytes / 18750 bytes per second = 8 ms (time it takes to transmit 1 message) Since the device can only transmit a maximum of 4 messages every 2 seconds, the worst case transmission case would be a transmission every 32ms every 2 second. Calculation for Source-base average power:  Source based time average duty factor = 0.032 / 2 (sec) = 0.016 equ (1)  Technology (1xRTT) Operation duty factor = 1/1 = 1 = 100% equ (2)  Maximum duty factor = equ(1) * equ (2) = 0.016 * 1 = 0.016 equ (3)  At 850 MHz the device maximum rated average power = 282mW equ (4) o With max duty factor applied average power = 0.016 * 282 = 4.5mW equ (5)  At 1900 MHz the device maximum rated average power = 282mW equ (4) o With duty factor applied average power = 0.0016 * 282 = 4.5mW equ (5) Limit for SAR applicability: as per FCC KDB procedure 447498 D01 Mobile Portable RF Exposure v05. Conclusion:  SAR is not required at Cellular 850 Band as output power < SAR Test Exclusion Threshold (16mW) for 835 MHz at 5mm separation.  SAR is not required at PCS1900 Band as output power < SAR Test Exclusion Threshold (11mW) for 1900 MHz at 5mm separation.

Device Name: RTT2211 FCC ID: MIVRTT2211 Justification for 5mm test separation distance for RTT2211 The FCC was contacted and based on the documents provided the DUT meets the requirements for SAR exclusion based upon source-based, time average output power. The following KDB tracking number 782374 was acquired for the inquiry. As per document “SBTA Duty factor Calculation V7_CDMA” the device output power with most conservative operation consideration is as follow:  CDMA850 = 4.5mW  CDMA1900 = 4.5mW The device is mounted in vehicles and plugged into the OBD II plug which is mounted within the dashboard region. It is not body-worn and therefore does not come into direct contact with the user. Based on the device output power a separation distance of 5mm is applicable. Therefore the following Limits for SAR are applicable: as per FCC KDB procedure 447498 D01 Mobile Portable RF Exposure v05. For exclusion distance: Conclusion:  SAR is not required at CDMA850 Band as output power < SAR Test Exclusion Threshold (4.5mW) for 835 MHz at 5mm separation.  SAR is not required at CDMA1900 Band as output power < SAR Test Exclusion Threshold (4.5mW) for 1900 MHz at 5mm separation.

RFI Global Services Ltd trading as UL Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG, UK Telephone: +44 (0)1256 312000 Facsimile: +44 (0)1256 312001 TEST REPORT Test Report No. : UL-RPT-RP88249JD02A V4.0 Manufacturer : Enfora Inc. Model No. : RTT2211 FCC ID IC ID : : MIVRTT2211 4160A- RTT2211 Test Standard(s) : FCC Parts 22.913(a) & 24.232; Industry Canada RSS-132 4.4 & RSS-133 6.4 1. This test report shall not be reproduced in full or partial, without the written approval of RFI Global Services Ltd trading as UL. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above standard(s). 4. The test results in this report are traceable to the national or international standards. 5. Version 4.0 supersedes all previous versions. Date of Issue: 21 December 2012 Checked by: Steven White WiSE Project Lead Issued by : pp John Newell Group Quality Manager, WiSE Basingstoke, UL Verification Services This laboratory is accredited by UKAS. The tests reported herein have been performed in accordance with its’ terms of accreditation. TEST REPORT SERIAL NO: UL-RPT-RP88249JD02A VERSION 4.0 ISSUE DATE: 21 DECEMBER 2012 Page 2 of 13 RFI Global Services Ltd trading as UL This page has been left intentionally blank. TEST REPORT SERIAL NO: UL-RPT-RP88249JD02A VERSION 4.0 ISSUE DATE: 21 DECEMBER 2012 RFI Global Services Ltd trading as UL Page 3 of 13 Table of Contents 1. Customer Information .................................................................................................................4 2. Summary of Testing ....................................................................................................................5 2.1. General Information 5 Summary of Test Results 5 2.2. Methods and Procedures 6 2.3. Deviations from the Test Specification 6 3. Equipment Under Test (EUT) .....................................................................................................7 3.1. Identification of Equipment Under Test (EUT) 7 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 7 4. Operation and Monitoring of the EUT during Testing ..............................................................8 4.1. Operating Modes 8 4.2. Configuration and Peripherals 8 5. Measurements, Examinations and Derived Results .................................................................9 5.1. General Comments 9 5.2. Test Results – Part 22 10 5.2.1. Transmitter Output Power (ERP) 10 5.3. Test Results – Part 24 11 5.3.1. Transmitter Output Power (EIRP) 11 6. Measurement Uncertainty ........................................................................................................12 7. Report Revision History ...........................................................................................................13 TEST REPORT SERIAL NO: UL-RPT-RP88249JD02A VERSION 4.0 ISSUE DATE: 21 DECEMBER 2012 Page 4 of 13 RFI Global Services Ltd trading as UL 1. Customer Information Company Name: Enfora Inc. Address: 251 Renner Parkway Richardson Texas TX 75080 United States TEST REPORT SERIAL NO: UL-RPT-RP88249JD02A VERSION 4.0 ISSUE DATE: 21 DECEMBER 2012 RFI Global Services Ltd trading as UL Page 5 of 13 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR22 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2012: Part 22 Subpart H (Public Mobile Services) Specification Reference: 47CFR24 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2012: Part 24 Subpart E (Personal Communication Services) Specification Reference: RSS-132 Issue 2 Sep 2005 Specification Title: Cellular Telephones Employing New Technologies Operating in the Bands 824-849 MHz and 869-894 MHz Specification Reference: SRSP-503 Issue 7 Sep 2008 Specification Title: Technical Requirements for Cellular Radiotelephone Systems Operating in the Bands 824 – 849 MHz and 869 – 894 MHz Specification Reference: RSS-133 Issue 5 Feb 2009 Specification Title: 2 GHz Personal Communications Services Specification Reference: SRSP-510 Issue 5 Feb 2009 Specification Title: Technical Requirements for Personal Communications Services (PCS) in the Bands 1850-1915 MHz and 1930-1995 MHz Site Registration: FCC: 209735; Industry Canada: 3245B-2 Location of Testing: RFI Global Services Ltd trading as UL, Wade Road, Basingstoke, Hampshire, RG24 8AH Test Dates: 20 December 2012 Summary of Test Results FCC Reference (47CFR) IC Reference Measurement Result Part 22 & RSS-132 Part 22.913(a) RSS-132 4.4 SRSP-503 5.1.3 Transmitter Output Power (ERP) Part 24 & RSS-133 Part 24.232 RSS-133 6.4 SRSP-510 5.1.2 Transmitter Output Power (EIRP) Key to Results = Complied = Did not comply TEST REPORT SERIAL NO: UL-RPT-RP88249JD02A VERSION 4.0 ISSUE DATE: 21 DECEMBER 2012 Page 6 of 13 RFI Global Services Ltd trading as UL 2.2. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile Communications Equipment, Measurements and performance Standards 2.3. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: UL-RPT-RP88249JD02A VERSION 4.0 ISSUE DATE: 21 DECEMBER 2012 RFI Global Services Ltd trading as UL Page 7 of 13 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: MT 3050 Model Name or Number: ABBA RTT2211 MEID: A1000013C3E962 Hardware Version Number: 1 Software Version Number: 10.2 FCC ID: MIVRTT2211 Industry Canada ID: 4160A- RTT2211 3.2. Description of EUT The equipment under test was a Mobile Tracker OBD with 1xRTT CDMA capabilities. Contains FCC ID MIVCNN0301 and Industry Canada Certification Number 4160A-CNN0301. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. 3.4. Additional Inform…
