MK8CPX-05-WLM54GCOMPEX WIRELESS-G NETWORK MINI-PCI ADAPTER

Compex Inc

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Oct 27, 2005
Application Purpose: Original Equipment
Date of Application: Oct 27, 2005
Equipment Note: COMPEX WIRELESS-G NETWORK MINI-PCI ADAPTER
Frequency Range: 2412.00000000 - 2462.00000000
Company: Compex Inc
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Quick Install Guide Compex Wireless Mini PCI Adapter WLM54G Version 1.1 3.Introduction This mini PCI adapter, Compex WLM54G contains a dual-mode single chip MAC/BB/Radio for IEEE 802.11b/g Wireless LAN. Based on the latest industry standard Wi-Fi Certified IEEE 802.11g specification, the Compex WLM54G offers maximum channel speeds of up to 108 Mbps. The Compex WLM54G maintains interoperability within the 2.4 GHz frequency band, offering full compatibility with 802.11b networks. It supports key security features like Wi-Fi Protected Access (WPA), WPA2, WEP and 802.1x. WLM54G has two variants in its family : ∑WLM54G 1A: This mini PCI adapter’s “G” chipset offers maximum channel speeds of up to 54Mbps ∑WLM54G 1B: This mini PCI adapter’s “Super-G” chipset offers maximum channel speeds of up to108Mbps You can find this adapter that is seated inside the wireless products such as the NetPassage 28G. WLM54G can be removed from or inserted on the PCBA of the NetPassage 28G. 4.Packaging Contents The Compex NetPassage 28G retail package contains the following items to start you off: 1x Compex NetPassage 28G 1x External Power Adapter 1x Quick Install Guide with Warranty Registration Form 1x Product CD (containing User’s Manual, Firmware Recovery Tool & Utilities) 1x Wall-Mounting Template 1 x UTP MDI RJ45 Ethernet Straight Cable 5.Network Infrastructure Only a few simple steps are required to set up the NetPassage 28G to begin your broadband Internet sharing as part of your wired and wireless network infrastructure. 6.Hardware Installation NETPASSAGE Example: BroadBand Internet Access Distribution to a Fast Ethernet Network & Wireless Network Connect from Cable/ADSL Modem to WAN port Connect from computers to the integrated 3-port 10/100Mbps switch to form LAN Wireless LAN clients access the Internet and the wired LAN via NetPassage 28G Compex NetPassage 28G Figure 1 Compex WLM54G Figure 2 Setting up Compex NetPassage 28G FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20cm between the radiator & your body. other antenna or transmitter. This transmitter must not be co-located or operating in conjunction with any Connect an Ethernet cable from the cable/ADSL modem to the WAN port of the NetPassage 28G. For Wired user, connect an Ethernet cable from your computer’s network port to any of the LAN ports of the NetPassage 28G. Connect the power adapter from the main power supply to NetPassage 28G. Please do not turn on the power during the installation for safety reasons. Once the hardware setup is done, you may power on the device now. NOTE For Wired Network users, please skip Section 5 and go to Section 6. 7.Configuring Wireless Network Connection Depending on your client’s wireless adapter, you may set up Windows XP’s Wireless Network Connection as follows: 1.Right-click on Wireless Network Connection corresponding to the wireless Ethernet adapter you wish to connect with the NetPassage 28G, and click on Properties. 2.At the Wireless Networks tab, click on the Add button under Preferred Networks. 3.At the Network name (SSID) field, type in ‘compex’ ( the factory default of NetPassage 28G ). Click OK. 8.Configuring TCP/IP Settings You should configure your PC or wireless client to obtain IP address automatically. For users of Microsoft Windows XP, you may configure the TCP/IP settings as follows: 1.Click the Start button. Select Settings and click the Control Panel icon. Then double-click the Network Connection icon. Right click on Local Area Connection or Wireless Network Connection corresponding to the Ethernet adapter you wish to connect to NetPassage 28G. 2.Under General tab at This connection uses the following item, make sure the box next to Internet Protocol (TCP/IP) is checked. Then highlight Internet Protocol (TCP/IP), and click the Properties button. 3.Check the radio button next to Obtain an IP address automatically . Then click the OK button on this page, and the OK button on the previous page it returns you to. Restart your computer to complete the PC configuration. 9.Getting Started with Wizard Setup 1.Insert the Product CD to your CD- ROM drive, go to Utilities section and run the uConfig program, select Wireless-G Multimedia Gateway and click on OpenWeb button. Alternatively, launch Internet Explorer Browser ( or Netscape). At the Address field, key in http://192.168.168.1. The default password is pre-entered in the field provided. Just click on the LOGIN! button to access the main page of Compex NetPassage 28G. The factory default password is ‘password’. 2.Check the radio button next to Basic Setup. Click on the Next button. NOTE The Advanced Setup is not mentioned in this quick guide. Please refer to User’s Manual for more information. 3.The first page of Setup Wizard is an overview of the basic setup. ∑ ∑∑ ∑Internet Connection This functionality lets you specify the type of Internet Connection you want to use. ∑ ∑∑ ∑ Wireless Setup This functionality lets you configure the settings of the gateway to suit your wireless network. ∑ ∑∑ ∑USB Device This functionality gives you a quick glimpse of the summary on the USB devices that are connected to the gateway. ∑ ∑∑ ∑NetPassage Settings This functionality lets you identify the gateway and create a workgroup for the gateway. It also lets you set up the time zone of the locale. NOTE For more details, please refer to User’s Manual. Alternatively, refer to Help on the right side of the main page here. 4.To setup your WAN connection, select the following types of Internet Connection such as: ∑ ∑∑ ∑Static IP For configuring Static IP, you need to manually enter IP Address, Network Mask and Gateway IP Address that are provided by your ISP. ∑ ∑∑ ∑Dynamic IP ( used as an example in this guide) ∑ ∑∑ ∑PPPoE For configuring PPPoE, you have to enter Username and Password that…

Text truncated - open the document above for the full version.

Block Diagram

Page 1 of 2 iWavePort WLM54G 1A – Wi reless G M ini P CI (B lock Diagram) Page 2 of 2 AR2413 (Block Diagram)

Block Diagram

Page 1 of 3 iWavePort WLM54G 1B – MiniPCI (Block Diagram) Page 2 of 3 AR2414 (Block Diagram)

External Photos

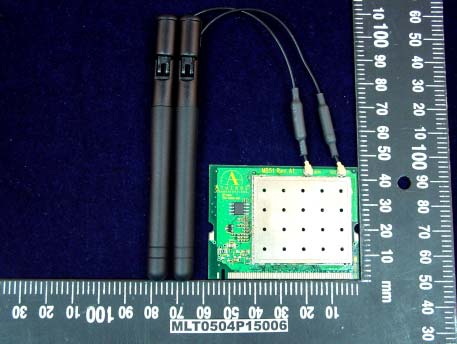

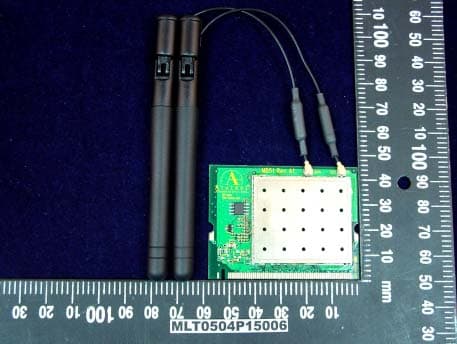

MAX LIGHT Report Number: MLT0504P15004 FCC ID: MK8CPX-05-WLM54G Technology Lab 802.11 b & g Card MAX LIGHT Report Number: MLT0504P15004 FCC ID: MK8CPX-05-WLM54G Technology Lab 802.11 b & g Card MAX LIGHT Report Number: MLT0504P15004 FCC ID: MK8CPX-05-WLM54G Technology Lab 802.11 b & g Card MAX LIGHT Report Number: MLT0504P15004 FCC ID: MK8CPX-05-WLM54G Technology Lab 802.11 b & g & Super G Card MAX LIGHT Report Number: MLT0504P15004 FCC ID: MK8CPX-05-WLM54G Technology Lab 802.11 b & g & Super G Card MAX LIGHT Report Number: MLT0504P15004 FCC ID: MK8CPX-05-WLM54G Technology Lab 802.11 b & g & Super G Card

ID Label/Location Info

MAX LIGHT Report Number: MLT0504P15006 FCC ID: MK8CPX-05-WLM54G Technology Lab Label Format: Label Position: This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) This device must accept any interference received ,including. Interference that may cause undesired operation. Model No. : iWavePort WLM54G 1A / iWavePort WLM54G 1B FCC ID : MK8CPX-05-WLM54G Equipment Label 2.0cmX1.0cm Rear View

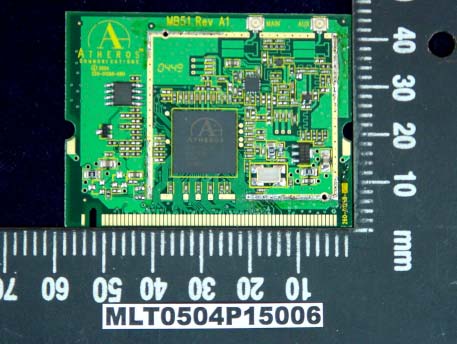

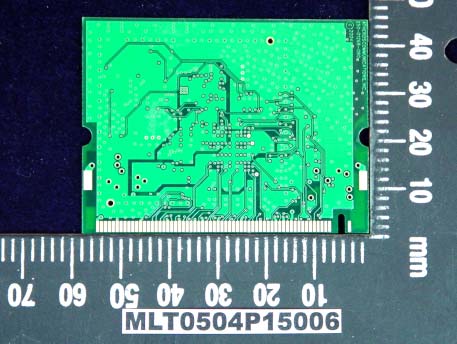

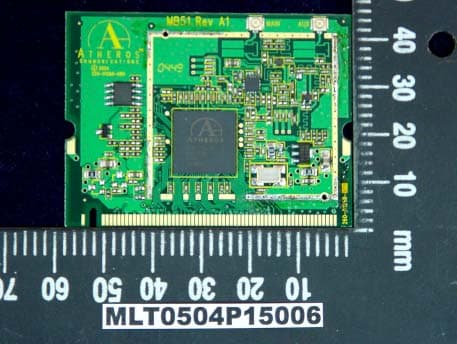

Internal Photos

RF Exposure Info

MAX LIGHT MEASUREMENT REPORT Report Number: MLT0504P15006 FCC ID: MK8CPX-05-WLM54G Technology Lab M M a a x x i i m m u u m m P P e e r r m m i i s s s s i i b b l l e e E E x x p p o o s s u u r r e e EUT : Compex Wireless-G Network Mini-PCI Adapter Applicant : Compex Inc. 840 Columbia Street, Suite B, Brea, CA92821, USA Manufacturer : Compex Inc. 840 Columbia Street, Suite B, Brea, CA92821, USA Model No : iWavePort WLM54G 1A / iWavePort WLM54G 1B FCC ID : M8KCPX-05-WLM54G Basis of Calculations: E^2/3770 = S, mW/cm2 E, V/ m = (Pwatts*Ggai n*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) Test Result: Max RF Power (dBm) TX Antenna Gain (dBi) Testing Result (mW/cm^2) MPE Limit (mW/cm^2) 16.02 2.0 0.0 126 1 NOTE: For mobile or fixed location transmitters, minimum separation distance is 20cm, even if calculations indicate MPE distance is less.

Schematics

55 44 33 22 11 D D C C B B A A iWavePort WLM54G 1A WAKE ON LAN MB51 Connector and Digital Atheros Communications, Inc. Thursday, July 15, 2004 25 C 529 Almanor AvenueSunnyvale, CA 94085 000 245-01268-083 Size DWG NO Rev Sheet of Title Date AD26AD16IRDY_LAD12AD0AD1GNT_LAD6AD19AD4AD25AD31AD22AD18CBE1_LAD3AD30PARAD20AD9AD24SERR_LPERR_LAD17REQ_LAD7CLKRUN_LTRDY_LAD13AD14AD15AD29CLK_LCBE0_LAD23AD8AD2AD21FRAME_LAD10STOP_LDEVSEL_LAD11AD27CBE2_LCBE3_LINT_LAD5AD28IDSELRST_L AD11AD9 AD14AD17AD19 AD18 AD21 AD20 AD23AD25 CBE0_LAD2 CBE1_L AD4AD22 AD27CBE2_LCBE3_L AD6 AD29 AD24 AD1SERR_LPERR_L AD26RST_L AD31RX_CLEARAD3CLKRUN_L AD28 REQ_LAD5 IDSELPME_L AD7 FRAME_LTRDY_LSTOP_L IRDY_LCLK_L GNT_LDEVSEL_LPARINT_LAD30AD13 AD8 AD15 AD10 AD16 AD12 3.3V_AUX POR_L POR_EN RX_CLEAR PCI_MODE PME_L AD0 LED_1 LED_1 MPCI_11 3 MPCI_13 3,4 MPCI_12 3 MPCI_14 3 LED_1 3 GPIO_5 3 3.3V 3.3V_CON 3.3V_CON VDD33 VDD33 3.3V_CON 3.3V VDD33 VDD33 VDD33 1K R13 R R48 U8A AR2413A-00 PCI Interface M1M3M2 R1N2 P3P1 N4 P4 R5 P5 N6 P6 N7 P7 N8 N12 P11 R12 P12 R13 P13 R14R15N15N14 M14 L14L15L13 M15M13 R3R7 R11 P15 R10 L1 R4N1R8 P8P9 N9 P10 N10 K1 L2 R6 K14 L3 K3 R9 PCI_AD31PCI_AD30PCI_AD29PCI_AD28PCI_AD27PCI_AD26PCI_AD25PCI_AD24PCI_AD23PCI_AD22PCI_AD21PCI_AD20PCI_AD19PCI_AD18PCI_AD17PCI_AD16PCI_AD15PCI_AD14PCI_AD13PCI_AD12PCI_AD11PCI_AD10PCI_AD9PCI_AD8PCI_AD6PCI_AD7PCI_AD5PCI_AD0PCI_AD1PCI_AD2PCI_AD3PCI_AD4PCI_CBE3_LPCI_CBE2_LPCI_CBE1_LPCI_CBE0_LPCI_PERR_LPCI_REQ_LPCI_IDSELPCI_PME_LPCI_FRAME_LPCI_IRDY_LPCI_SERR_LPCI_TRDY_LPCI_DEVSEL_LPCI_STOP_LPCI_INT_LPCI_GNT_LPCI_PARPCI_MODEPCI_RST_LPCI_CLKPCI_CLKRUN_L U9C AR2413A-00 Digital Interface F3K2 A6B6 C6 K13K15 E3R2B3 P14 TX_FRAME RX_FRAME POR_ENPOR_LF2D2ENBT_ACTIVEPLLBYPASS CLKOBS RX_CLEAR SLEEP RFTEST Q Q4 3 1 2 J1 Mini PCI -Type III 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 TIP RING 8PMJ-3 8PMJ-1 8PMJ-6 8PMJ-2 8PMJ-7 8PMJ-4 8PMJ-8 8PMJ-5 LED1-GRNP LED2-YELP LED1-GRNN LED2-YELN CHSGND RESERVED1 INTB# 5V 3.3V INTA# RESERVED2 RESERVED3 GND 3.3VAUX CLK RST# GND 3.3V REQ# GNT# 3.3V GND AD31 PME# AD29 RESERVED4 GND AD30 AD27 3.3V AD25 AD28 RESERVED5 AD26 CBE3# AD24 AD23 IDSEL GND GND AD21 AD22 AD19 AD20 GND PAR AD17 AD18 CBE2# AD16 IRDY# GND 3.3V FRAME# CLKRUN# TRDY# SERR# STOP# GND 3.3V PERR# DEVSEL# CBE1# GND AD14 AD15 GND AD13 AD12 AD11 AD10 GND GND AD9 AD8 CBE0# AD7 3.3V 3.3V AD6 AD5 AD4 RESERVED6 AD2 AD3 AD0 5V RESERVED-WIP1 AD1 RESERVED-WIP2 GND GND AC_SYNC M66EN AC_SDATA_IN AC_SDATA_OUT AC_BIT_CLK AC_CODEC_ID0# AC_CODEC_ID1# AC_RESET# MOD_AUDIO_MON RESERVED7 AUDIO_GND GND SYS_AUDIO_OUT SYS_AUDIO_IN SYS_AUDIO_OUT_GND SYS_AUDIO_IN_GNDAUDIO_GND AUDIO_GND RESERVED8 MPCIACT# VCC5VA 3.3VAUX E2 TP12 1 C C1 E1 R R136 E4 0 R47 QQ5 3 1 2 10K R1 NC7WZ07 U7 13 64 25 A1A2 Y1Y2 GND VCC 187 1% R43 E3 R R45 187 1% R44 10K R49 0 R12 R R46 TP13 1 TP10 1 TP11 1 55 44 33 22 11 D D C C B B A A PRELIMINARY BIASREF XTAL ATHEROS CONFIDENTIAL LEDS EEPROM ALTERNATE IMPORTANT NOTE: NEVER INSTALL R69 AND R76. MB51 Radio Interface Atheros Communications, Inc. Thursday, July 15, 2004 35 C 529 Almanor AvenueSunnyvale, CA 94085 000 245-01268-083 Size DWG NO Rev Sheet of Title Date RFOUT_NRFOUT_P VREG_COMPXBIASBIASREFVREG_OUT XTALI XTALO XTALO ANTB GPIO_1 ANTAANTC LED_1GPIO_0LED_0GPIO_3 LED_0GPIO_1GPIO_2 LED_0LED_1GPIO_0GPIO_2 XTALI GPIO_5GPIO_3 RFOUT_P 4 P_DET 4 RFIN 4 XBIAS 4 ANTA 4ANTB 4ANTC 4 MPCI_11 2MPCI_12 2 MPCI_13 2,4MPCI_14 2 N_DET 4 LED_1 2 GPIO_5 2 1.8V_A 1.8V_A 3.3V_A 3.3V_A 1.8V_A VDD33 3.3V 1.8V_A 3.3V 3.3V 0 R79 TP15 1 2.2pF C59 40.000MHZ Y1 1 3 Y XY1 1 3 3.3nH L7 TP21 1 CXT2907A Q2 12 3 R R68 120pF C2 RFDATAIN_3 = U0_CTS_LRFDATAIN_2 = U0_CLKRFDATAIN_1 = U0_SINRFDATAIN_0 = EPRM_SCKRFDATAOUT = EPRM_SDARFSHIFT = ANTDRFLOAD = ANTBRFRST_L = ANTA U11B AR2413A-00 EJTAG, GPIO, UART, EPRM, ANT E2E1F2F1G2G1 A3A2A1B1 C1 H3H2J2J1H1D1D2D3A4A5B4B5C4C5 GPIO_5GPIO_4GPIO_3GPIO_2GPIO_1GPIO_0 TDITDOTMSTRST_LTCLK U0_SOUT U0_RTS_LU0_CTS_L U0_CLK U0_SIN EPRM_SCKEPRM_SDA EPRM_EN_L ANTDANTC ANTBANTA LED_1LED_0 1pF C4 12 10pF C8 TP22 1 43K R17 R R69 TP23 1 10K R2 390 R20 R R76 15pF C10 TP24 1 R R77 6.19K 1% R21 M24C32WMN6U3 2 4 731 5 8 6 E1 VSS WCE2E0 SDA VCC SCL 0 R71 2.2pF C7 0 R4 1 R16 R R5 0 R72 10K R3 10pF C3 10K R67 22pF C9 0 R78 47 R22 3.3nH L6 U10D AR2413A-00 Radio Interface A8 C8 A9 C9 A12A13 A7A10 G15G14 E14E15 C15C14C2F13J14G13J13 J15 C11 RFOUTN PDETN RFOUTP PDETPRFINNRFINP RFOUTN_BIAS RFOUTP_BIAS ADC_DAC_IPADC_DAC_INADC_DAC_QPADC_DAC_QN ATBP ATBN TX2 BIASREF XTALO VREG_OUT VREG_COMP XTALIIDDQ 55 44 33 22 11 D D C C B B A A S=5L=140W=17 PRELIMINARY ATHEROS CONFIDENTIAL TRANSMIT FILTER OUTPUT MATCHING INPUT MATCHING RECEIVE FILTER W8 L335 W8 L285 W8 L210 W8 L30 W8 L95 50 OHM LINES W17 L175 W5 L550 0 W17 L160 W5 L550 Keep good ground near filter. Keep good ground near filter. W5 L550 W5 L550 W5 L550 W5 L550 W10 L110 MB51 Front End Atheros Communications, Inc. Thursday, July 15, 2004 45 C 529 Almanor AvenueSunnyvale, CA 94085 000 245-01268-083 Size DWG NO Rev Sheet of Title Date XBIAS 3 RFOUT_P 3 RFIN 3 P_DET 3N_DET 3 ANTC 3 ANTA 3 ANTB 3 MPCI_13 2,3 3.3V_A 1.8V_A1.8V_A 3.3V_A 10pF C144 10pF C41 100 R129 C C146 221 1% R33 5.1K R81 1.1K R53 C C45 C C147 5.6pF C76 5.1K R84 5.6pF C77 3.9nHL4 F1 1 2 I O 221 1% R133 R R82 10pF C21 10 R37 F24-PIN-COUPLER 12 34 1.8pF C26 750 1% R52 1uF 10V C12 2.2pF C149 10pF C142 R R80 221 1% R134 R R128 L L11 PRINTED BPF RX F5 4 5 3 1 2 6 IN OUT GND GND GND C 3.3pF C43 R R35 10 R39 2N3906 Q7 1 23 10pF C31 L L12 3.3pF C44 GP1214 U6 1 234 5 67 8 16 10119 13 12 1415 17 NC RF INRF INVB1 VCC VB2VB3 REF VC1 RF OUTRF OUT DET NC VC3 VC2NC GND 0.01uF 25V C19 82.51% R54 10pF C13 SMP1345-518 S2 2 1 3 4 R R51 3.3pF C28 10pF C40 0.01uF 25V C33 221 1% R24 3.3pF C38 SM…

Text truncated - open the document above for the full version.

Schematics

55 44 33 22 11 D D C C B B A A iWavePort WLM54G 1B WAKE ON LAN MB51 Connector and Digital Atheros Communications, Inc. Thursday, July 15, 2004 25 C 529 Almanor AvenueSunnyvale, CA 94085 000 245-01268-483 Size DWG NO Rev Sheet of Title Date AD26AD16IRDY_LAD12AD0AD1GNT_LAD6AD19AD4AD25AD31AD22AD18CBE1_LAD3AD30PARAD20AD9AD24SERR_LPERR_LAD17REQ_LAD7CLKRUN_LTRDY_LAD13AD14AD15AD29CLK_LCBE0_LAD23AD8AD2AD21FRAME_LAD10STOP_LDEVSEL_LAD11AD27CBE2_LCBE3_LINT_LAD5AD28IDSELRST_L AD11AD9 AD14AD17AD19 AD18 AD21 AD20 AD23AD25 CBE0_LAD2 CBE1_L AD4AD22 AD27CBE2_LCBE3_L AD6 AD29 AD24 AD1SERR_LPERR_L AD26RST_L AD31RX_CLEARAD3CLKRUN_L AD28 REQ_LAD5 IDSELPME_L AD7 FRAME_LTRDY_LSTOP_L IRDY_LCLK_L GNT_LDEVSEL_LPARINT_LAD30AD13 AD8 AD15 AD10 AD16 AD12 3.3V_AUX POR_L POR_EN RX_CLEAR PCI_MODE PME_L AD0 LED_1 LED_1 MPCI_11 3 MPCI_13 3,4 MPCI_12 3 MPCI_14 3 LED_1 3 GPIO_5 3 3.3V 3.3V_CON 3.3V_CON VDD33 VDD33 3.3V_CON 3.3V VDD33 VDD33 VDD33 1K R13 R R48 Q Q4 3 1 2 J1 Mini PCI -Type III 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 TIP RING 8PMJ-3 8PMJ-1 8PMJ-6 8PMJ-2 8PMJ-7 8PMJ-4 8PMJ-8 8PMJ-5 LED1-GRNP LED2-YELP LED1-GRNN LED2-YELN CHSGND RESERVED1 INTB# 5V 3.3V INTA# RESERVED2 RESERVED3 GND 3.3VAUX CLK RST# GND 3.3V REQ# GNT# 3.3V GND AD31 PME# AD29 RESERVED4 GND AD30 AD27 3.3V AD25 AD28 RESERVED5 AD26 CBE3# AD24 AD23 IDSEL GND GND AD21 AD22 AD19 AD20 GND PAR AD17 AD18 CBE2# AD16 IRDY# GND 3.3V FRAME# CLKRUN# TRDY# SERR# STOP# GND 3.3V PERR# DEVSEL# CBE1# GND AD14 AD15 GND AD13 AD12 AD11 AD10 GND GND AD9 AD8 CBE0# AD7 3.3V 3.3V AD6 AD5 AD4 RESERVED6 AD2 AD3 AD0 5V RESERVED-WIP1 AD1 RESERVED-WIP2 GND GND AC_SYNC M66EN AC_SDATA_IN AC_SDATA_OUT AC_BIT_CLK AC_CODEC_ID0# AC_CODEC_ID1# AC_RESET# MOD_AUDIO_MON RESERVED7 AUDIO_GND GND SYS_AUDIO_OUT SYS_AUDIO_IN SYS_AUDIO_OUT_GND SYS_AUDIO_IN_GNDAUDIO_GND AUDIO_GND RESERVED8 MPCIACT# VCC5VA 3.3VAUX E2 TP12 1 C C1 E1 R R136 E4 0 R47 QQ5 3 1 2 10K R1 NC7WZ07 U7 13 64 25 A1A2 Y1Y2 GND VCC U1A AR2414A-00 PCI Interface M1M3M2 R1N2 P3P1 N4 P4 R5 P5 N6 P6 N7 P7 N8 N12 P11 R12 P12 R13 P13 R14R15N15N14 M14 L14L15L13 M15M13 R3R7 R11 P15 R10 L1 R4N1R8 P8P9 N9 P10 N10 K1 L2 R6 K14 L3 K3 R9 PCI_AD31PCI_AD30PCI_AD29PCI_AD28PCI_AD27PCI_AD26PCI_AD25PCI_AD24PCI_AD23PCI_AD22PCI_AD21PCI_AD20PCI_AD19PCI_AD18PCI_AD17PCI_AD16PCI_AD15PCI_AD14PCI_AD13PCI_AD12PCI_AD11PCI_AD10PCI_AD9PCI_AD8PCI_AD6PCI_AD7PCI_AD5PCI_AD0PCI_AD1PCI_AD2PCI_AD3PCI_AD4PCI_CBE3_LPCI_CBE2_LPCI_CBE1_LPCI_CBE0_LPCI_PERR_LPCI_REQ_LPCI_IDSELPCI_PME_LPCI_FRAME_LPCI_IRDY_LPCI_SERR_LPCI_TRDY_LPCI_DEVSEL_LPCI_STOP_LPCI_INT_LPCI_GNT_LPCI_PARPCI_MODEPCI_RST_LPCI_CLKPCI_CLKRUN_L 187 1% R43 E3 R R45 187 1% R44 10K R49 0 R12 R R46 TP13 1 TP10 1 TP11 1 U1C AR2414A-00 Digital Interface F3K2 A6B6 C6 K13K15 E3R2B3 P14 TX_FRAME RX_FRAME POR_ENPOR_LF2D2ENBT_ACTIVEPLLBYPASS CLKOBS RX_CLEAR SLEEP RFTEST 55 44 33 22 11 D D C C B B A A PRELIMINARY BIASREF XTAL ATHEROS CONFIDENTIAL LEDS EEPROM ALTERNATE IMPORTANT NOTE: NEVER INSTALL R69 AND R76. MB51 Radio Interface Atheros Communications, Inc. Thursday, July 15, 2004 35 C 529 Almanor AvenueSunnyvale, CA 94085 000 245-01268-483 Size DWG NO Rev Sheet of Title Date RFOUT_NRFOUT_P VREG_COMPXBIASBIASREFVREG_OUT XTALI XTALO XTALO ANTB GPIO_1 ANTAANTC LED_1GPIO_0LED_0GPIO_3 LED_0GPIO_1GPIO_2 LED_0LED_1GPIO_0GPIO_2 XTALI GPIO_5GPIO_3 RFOUT_P 4 P_DET 4 RFIN 4 XBIAS 4 ANTA 4ANTB 4ANTC 4 MPCI_11 2MPCI_12 2 MPCI_13 2,4MPCI_14 2 N_DET 4 LED_1 2 GPIO_5 2 1.8V_A 1.8V_A 3.3V_A 3.3V_A 1.8V_A VDD33 3.3V 3.3V 1.8V_A 3.3V TP15 1 0 R79 2.2pF C59 40.000MHZ Y1 1 3 Y XY1 1 3 3.3nH L7 TP21 1 CXT2907A Q2 12 3 RFDATAIN_3 = U0_CTS_LRFDATAIN_2 = U0_CLKRFDATAIN_1 = U0_SINRFDATAIN_0 = EPRM_SCKRFDATAOUT = EPRM_SDARFSHIFT = ANTDRFLOAD = ANTBRFRST_L = ANTA U1B AR2414A-00 EJTAG, GPIO, UART, EPRM, ANT E2E1F2F1G2G1 A3A2A1B1 C1 H3H2J2J1H1D1D2D3A4A5B4B5C4C5 GPIO_5GPIO_4GPIO_3GPIO_2GPIO_1GPIO_0 TDITDOTMSTRST_LTCLK U0_SOUT U0_RTS_LU0_CTS_L U0_CLK U0_SIN EPRM_SCKEPRM_SDA EPRM_EN_L ANTDANTC ANTBANTA LED_1LED_0 120pF C2 R R68 10pF C8 1pF C4 12 TP22 1 R R69 43K R17 10K R2 TP23 1 390 R20 R R76 15pF C10 TP24 1 6.19K 1% R21 R R77 U1D AR2414A-00 Radio Interface A8 C8 A9 C9 A12A13 A7A10 G15G14 E14E15 C15C14C2F13J14G13J13 J15 C11 RFOUTN PDETN RFOUTP PDETPRFINNRFINP RFOUTN_BIAS RFOUTP_BIAS ADC_DAC_IPADC_DAC_INADC_DAC_QPADC_DAC_QN ATBP ATBN TX2 BIASREF XTALO VREG_OUT VREG_COMP XTALIIDDQ 0 R4 2.2pF C7 0 R71 1 R16 R R5 0 R72 10K R3 10pF C3 10K R67 0 R78 22pF C9 47 R22 3.3nH L6 M24C32WMN6U3 2 4 731 5 8 6 E1 VSS WCE2E0 SDA VCC SCL 55 44 33 22 11 D D C C B B A A S=5L=140W=17 PRELIMINARY ATHEROS CONFIDENTIAL TRANSMIT FILTER OUTPUT MATCHING INPUT MATCHING RECEIVE FILTER W8 L335 W8 L285 W8 L210 W8 L30 W8 L95 50 OHM LINES W17 L175 W5 L550 0 W17 L160 W5 L550 Keep good ground near filter. Keep good ground near filter. W5 L550 W5 L550 W5 L550 W5 L550 W10 L110 MB51 Front End Atheros Communications, Inc. Thursday, July 15, 2004 45 C 529 Almanor AvenueSunnyvale, CA 94085 000 245-01268-483 Size DWG NO Rev Sheet of Title Date XBIAS 3 RFOUT_P 3 RFIN 3 P_DET 3N_DET 3 ANTC 3 ANTA 3 ANTB 3 MPCI_13 2,3 3.3V_A 1.8V_A1.8V_A 3.3V_A 10pF C144 10pF C41 100 R129 221 1% R33 C C146 5.1K R81 1.1K R53 C C45 C C147 5.6pF C76 5.1K R84 5.6pF C77 200 R130 3.9nHL4 221 1% R133 F1 1 2 I O 10pF C21 R R82 10 R37 F24-PIN-COUPLER 12 34 1.8pF C26 1uF 10V C12 750 1% R52 2.2pF C149 10pF C142 R R80 221 1% R134 R R128 PRINTED BPF RX F5 4 5 3 1 2 6 IN OUT GND GND GND C L L11 R R35 3.3pF C43 2N3906 Q7 1 23 10 R39 10pF C31 L L12 0.01uF 25V C19 GP1214 U6 1 234 5 67 8 16 10119 13 12 1415 17 NC RF INRF INVB1 VCC VB2VB3 REF VC1 RF OUTRF OUT DET NC VC3 VC2NC GND 3.3pF C44 SMP1345-518 S2 2 1 3 4 10pF C13 82.51% R54 R R51 10pF C40 3.3pF C28 221 1% R24 0.01uF 25V C33 3.3pF…

Text truncated - open the document above for the full version.

Test Report

P P a a r r t t 1 1 5 5 S S u u b b p p a a r r t t B B & & C C ( ( 1 1 5 5 . . 2 2 4 4 7 7 ) ) Product : Compex Wireless-G Network Mini-PCI Adapter Applicant : Compex Inc. FCC ID : M8KCPX-05-WLM54G Trade Name : Compex Model No. : iWavePort WLM54G 1A / iWavePort WLM54G 1B Report No. : MLT0504P15006 Issue Date : May 10,2005 Test By Max Light Technology Co.,Ltd. Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan., R.O.C. Tel: 886-2-2363-2447 Fax: 886-2-2363-2597 T T h h e e t t e e s s t t r r e e p p o o r r t t c c o o n n s s i i s s t t s s o o f f 1 1 6 6 9 9 p p a a g g e e s s i i n n t t o o t t a a l l . . I I t t m m a a y y b b e e d d u u p p l l i i c c a a t t e e d d c c o o m m p p l l e e t t e e l l y y f f o o r r l l e e g g a a l l u u s s e e w w i i t t h h t t h h e e a a l l l l o o w w a a n n c c e e o o f f t t h h e e a a p p p p l l i i c c a a n n t t . . I I t t s s h h a a l l l l n n o o t t b b e e r r e e p p r r o o d d u u c c e e d d e e x x c c e e p p t t i i n n f f u u l l l l , , w w i i t t h h o o u u t t t t h h e e w w r r i i t t t t e e n n a a p p p p r r o o v v a a l l o o f f o o u u r r l l a a b b o o r r a a t t o o r r y y . . MAX LIGHT MEASUREMENT REPORT Page: 2/169 Report Number: MLT0504P15006 FCC ID: MK8CPX-05-WLM54G Technology Lab MAX LIGHT MEASUREMENT REPORT Page: 3/169 Report Number: MLT0504P15006 FCC ID: MK8CPX-05-WLM54G Technology Lab CERTIFICATION We here by verify that : The test data, data evaluation, test procedures and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2001. All test were conducted by MLT(Max Light Technology Co.,Ltd) Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan, R.O.C Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with Class B radiated and conducted emission limit of FCC Rules Part 15 Subpart B & C (15.247). EUT : Compex Wireless-G Network Mini-PCI Adapter Applicant : Compex Inc. 840 Columbia Street, Suite B, Brea, CA92821, USA Manufacturer : Compex Inc. 840 Columbia Street, Suite B, Brea, CA92821, USA Model No : iWavePort WLM54G 1A / iWavePort WLM54G 1B FCC ID : M8KCPX-05-WLM54G Prepared by : Approved by : MAX LIGHT MEASUREMENT REPORT Page: 4/169 Report Number: MLT0504P15006 FCC ID: MK8CPX-05-WLM54G Technology Lab 1.1 Introduction The following measurement report is submitted on behalf of Compex Inc. . In support of a Class B Digital Device certification in accordance with Part2 Subpart J and Part 15 Subpart A And B&C of the Commission’s and Regulations. 1.2 Description of EUT EUT : Compex Wireless-G Network Mini-PCI Adapter Applicant : Compex Inc. 840 Columbia Street, Suite B, Brea, CA92821, USA Manufacturer : Compex Inc. 840 Columbia Street, Suite B, Brea, CA92821, USA Model No : iWavePort WLM54G 1A / iWavePort WLM54G 1B FCC ID : M8KCPX-05-WLM54G Power Type : Powered by PC(Via +3.3Vdc) Frequency of Channel : See Next page Type of Modulation : Direct Sequence Spread Spectrum Type of Antenna : 1/4 DIOPLE Antenna During testing the EUT was operated at Tx or Rx mode for each emission measured. This was done in order to ensure that maximum emission levels were attained. MAX LIGHT MEASUREMENT REPORT Page: 5/169 Report Number: MLT0504P15006 FCC ID: MK8CPX-05-WLM54G Technology Lab Frequency of Each Channel / 802.11b (Working Frequency) Channel No. Frequency (MHz) 01 2412 02 2417 03 2422 04 2427 05 2432 06 2437 07 2442 08 2447 09 2452 10 2457 11 2462 Frequency of Each Channel / 802.11g (Working Frequency) Channel No. Frequency (MHz) 01 2412 02 2417 03 2422 04 2427 05 2432 06 2437 07 2442 08 2447 09 2452 10 2457 11 2462 Frequency of Each Channel / 802.11 Super G (Working Frequency) Channel No. Frequency (MHz) 6 2437 Note: The super G function only for iWavePort WLM54G 1B MAX LIGHT MEASUREMENT REPORT Page: 6/169 Report Number: MLT0504P15006 FCC ID: MK8CPX-05-WLM54G Technology Lab 1.3 Summary Of Tests 47 CFR Part 15 Subpart C Reference Test Results Note 15.107 AC Power Conducted Emission PASS (1) 15.247(c) Transmitter Radiated Emissions PASS (2) 15.247(b) Max. Output Power PASS 15.247(a)(2) 6dB RF Bandwidth PASS 15.247(d) Max. Power Density PASS 15.247(c) Out of Band Conducted Spurious Emission PASS 15.247(c) Band Edge Measurement PASS 15.203 Antenna Requirement PASS Note: (1) The EUT has two model numbers, the testing report only record the worst case (iWavePort WLM54G 1B). (2) The iWavePort WLM54G 1A(CH01/CH06/CH11) & iWavePort WLM54G 1B( CH01/CH06/CH11) have been pretested. For under 1GHz’s Radiated Emissions, the testing report only record the worst cases which are WLM54G 1B( 802.11B ‘s CH01) & WLM54G 1B( 802.11G ‘s CH11)&WLM54G 1B( 802.11 SuperG ). For above 1GHz’s Radiated Emissions, the testing report only record the worst cases which are WLM54G 1B( 802.11B ‘s CH01/CH06/CH11) & WLM54G 1B( 802.11G ‘s CH01/CH06/CH11) &WLM54G 1B( 802.11 SuperG ). 1.4 Difference Description (Model No.: iWavePort WLM54G 1A & iWavePort WLM54G 1B) 1. The circuit & Layout for these two models are identical. 2. Only main chip (U1) is different , the other components are identical. 3. The iWavePort WLM54G 1A supports 802.11B & 802.11G. 4. The iWavePort WLM54G 1B supports 802.11B & 802.11G & Super G. MAX LIGHT MEASUREMENT REPORT Page: 7/169 Report Number: MLT0504P15006 FCC ID: MK8CPX-05-WLM54G Technology Lab 1.4 Description of Support Equipment In order to construct the minimum system which required by the ANSI C63.4-2001, following equipments were used as the support units. Computer : Compaq Model No. : 17XL360 Serial No. : CM2080 FCC ID : FCC DOC Printer : PANASONIC Model No. : KX-P1080I Serial No. : TCKAKE93933 FCC ID : FCC ID: ACJ5Z6KX-P1080I 1.5 Configuration of System Under Test During testing the EUT(Wireless Adapter) ’s Mini PCI interface via a PCMCIA to mini-PCI extender connected to the Notebook, and the printer connected to Notebook’ …

Text truncated - open the document above for the full version.

Test Setup Photos

MAX LIGHT MEASUREMENT REPORT Report Number: MLT0504P15006 FCC ID: MK8CPX-05-WLM54G Technology Lab Front View of The Test Configuration MAX LIGHT MEASUREMENT REPORT Report Number: MLT0504P15006 FCC ID: MK8CPX-05-WLM54G Technology Lab Rear View of The Test Configuration MAX LIGHT MEASUREMENT REPORT Report Number: MLT0504P15006 FCC ID: MK8CPX-05-WLM54G Technology Lab Front View of The Test Configuration MAX LIGHT MEASUREMENT REPORT Report Number: MLT0504P15006 FCC ID: MK8CPX-05-WLM54G Technology Lab Rear View of The Test Configuration

Contact Information

Applicant

Yaw Thiam Teng(R&D Manager)

[email protected]65-63810192Fax: 65-6283833765-

Test Firm

Max Light Technology Co., Ltd.Jesse Tien

[email protected]8862-266633486Fax: 866-2-26633582

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	40.00 mW

Modular Type

Single Modular Approval

Grant Notes

Modular Approval. Power listed is conducted. Approval is limited to OEM installation only. The OEM installer must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This transmitter is restricted for use with the specific antenna(s) tested in this application for Certification and must not be co-located or operating in conjunction with any other antenna or transmitter. OEM integrators and End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. The instruction manual furnished with the intentional radiator shall contain language in the installation instructions informing the operator and the installer of this responsibility. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device.
