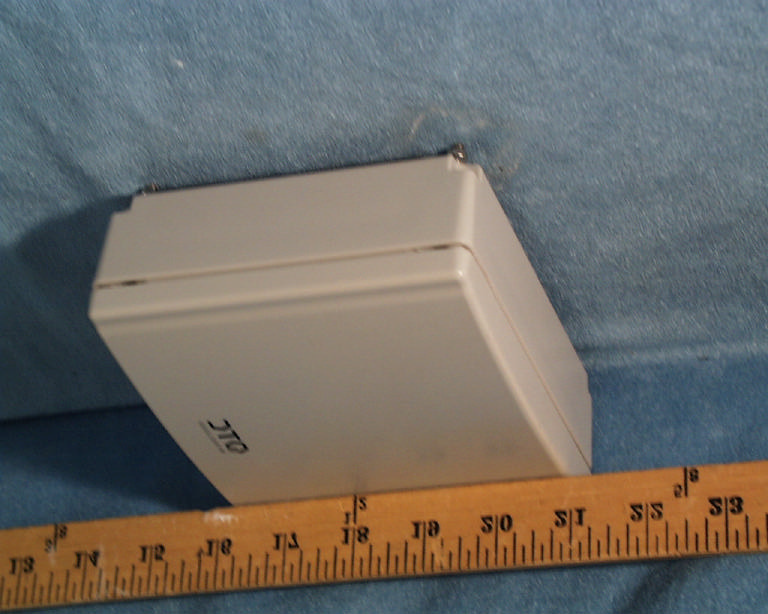

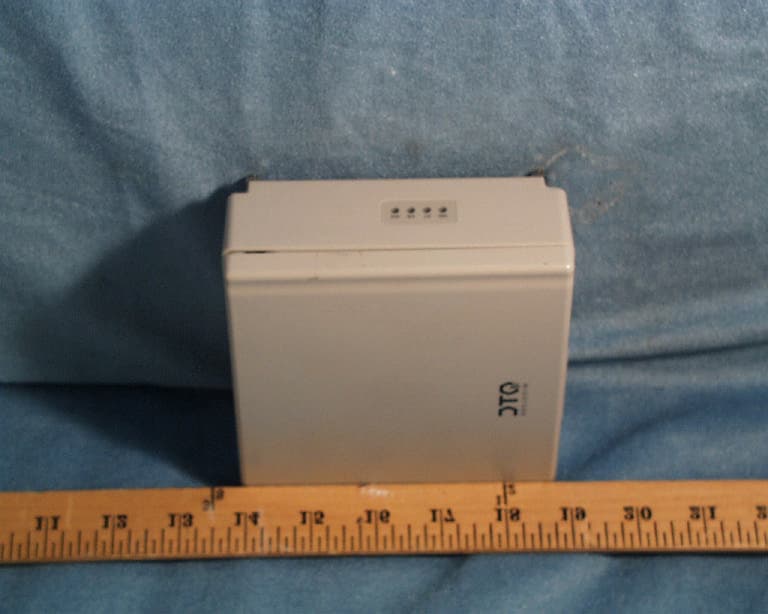

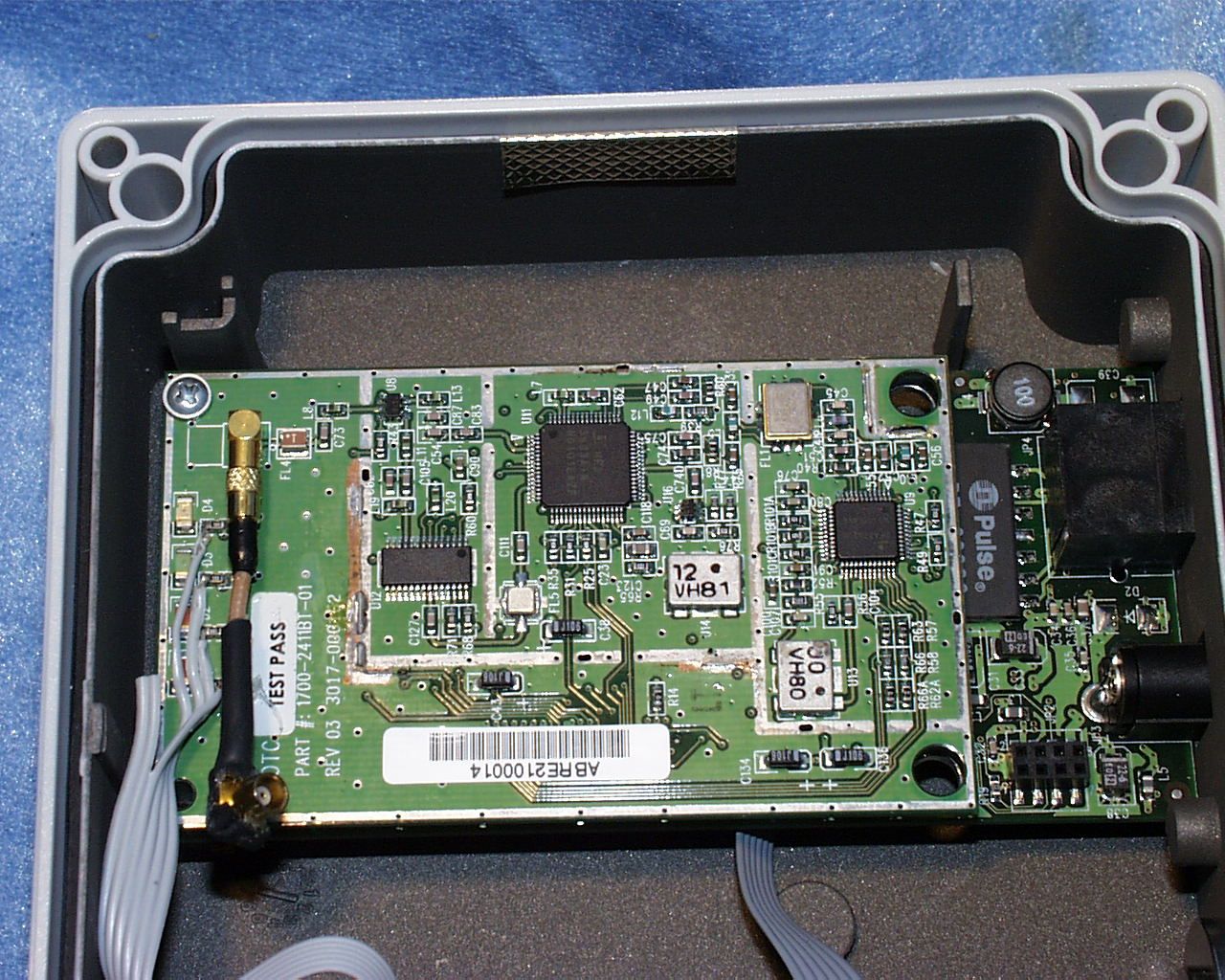

MKZ0207WODU09802.11b Radio Outdoor Package

Virtual Cable Wi-Fi Wi-Fi Ethernet Radio User Guide Virtual Cable Wi-Fi Wireless Ethernet User’s Manual Copyright Information in this document is subject to change without notice. Complying with all applicable copyright laws is the responsibility of the user. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of the seller. If, however, your only means of access is electronic, permission to print one copy is hereby granted. The seller provides this documentation without warranty, term, or condition of any kind. The seller may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. Other product and company names herein may be trademarks of their respective owners. Copyright 2001, 2002 OTC Wireless, Inc. All rights reserved. Revision: v1.11 Contents Virtual Cable Wi-Fi User’s Manual Chapter 1 Introduction 1 Data Sheet 2 Chapter 2 Installation 3 Installing the Hardware 3 Power 3 Ethernet connection 3 Status LEDs 4 Installing the Utility Software 4 Chapter 3 Utility Software 6 Use the Utility Program 6 Overview of the Tabs 6 Configure Virtual Cable Wi-Fi 6 Configure Virtual Cable Wi-Fi as an Access Point 7 Configure Virtual Cable Wi-Fi as a Station 10 Set up the Encryption 11 Obtain the Link Information 13 View the Packet Statistics 14 Uninstall the Utility Software 14 Chapter 4 Troubleshooting 15 Blank Pages Appear When Open the Utility Program 15 No Radio Link When Set Up As a Station 15 No Radio Link When Set Up As an AP 15 No Network Connection While the Radio Link is Good 15 Poor Link Quality 16 Radio Interference 17 Technical Support 17 Appendix A: Limited Warranty 18 Wireless LAN Hardware 18 Wireless LAN Software 18 Appendix B: Regulatory Compliance 19 Appendix C: Application Scenarios PC to PC connections 20 Multiple Wireless PC connections 21 Wireless LAN/WAN Connections 22 Multiple Wireless LAN Connection 23 Multiple LAN Through a Single Wireless Connection 24 Glossary 25 1 Chapter 1 Introduction The Virtual Cable Wi-Fi is an 802.11b compliant radio with a 10-BaseT interface, Power-Over-Ethernet (POE), and an indoor/ outdoor enclosure. The Virtual Cable Wi-Fi is available with an integrated 9dBi or 15 dBi patch antenna, or an N-type external antenna connector. Note: Throughout this user guide, the terms “Virtual cable Wi-Fi” and “Wireless Ethernet adapter” are used interchangeably. Model numbers for the Virtual Cable Wi-Fi are as follows: Product Name Description AVCW-100 802.11b outdoor radio with external antenna connector, access point AVCW-200 802.11b outdoor radio with external antenna connector, station AVCW-109 802.11b outdoor radio with 9 dBi built-in antenna, access point AVCW-209 802.11b outdoor radio with 9 dBi built-in antenna, station AVCW-115 802.11b outdoor radio with 15 dBi built-in antenna, access point AVCW-215 802.11b outdoor radio with 15 dBi built-in antenna, station Two features separate Virtual Cable Wi-Fi from many other 802.11b-compliant radios. Firstly, this 802.11b-compliant (Wi-Fi) radio can be configured as either a Station or an Access Point (AP). Secondly, when configured as a Station, the 10- BaseT interface affords it a true plug-and-play feature that is unavailable from any other 802.11b radios that are based on either a PCMCIA or a USB interface and require the installation of a driver on the host computer. This driver-less feature also means that the operation of the radio is OS (operating system) independent. When configured as a Station, the driver-less feature enables wireless connectivity for any computing devices/systems installed with any OS (operating system), as long as an Ethernet communication port is available. Special computing/networking devices, such as printer servers, POS (point of sales) machines may not even have an easy way of installing a driver for a radio, making the Wi-Fi Virtual Cable an ideal solution. With link distances of several miles, the Wi-Fi Virtual cable can even be connected to a router to interconnect networks or provide access to the Internet. When configured as an AP, Virtual Cable Wi-Fi offers a no-frill, seamless way of fitting a wireless network into an existing wired LAN infrastructure. It does not even require the assignment of an extra IP address. Existing wired-network resources such as DHCP, VPN, firewall, etc., reach across the Virtual Cable Wi- Fi AP to the client workstations with total transparency. Unlike many other 802.11b Access Points on the market, which offer network functions that are duplicative to the existing network, this AP simply wirelessly collects a group of 2 workstations or other kinds of computing devices into the existing network—just like a hub. A Utility program is needed to pre-configure Virtual Cable Wi-Fi prior to putting the radio in operation. And the Utility program can be used to monitor the communication condition once the radio is in operation. Once configured, the radio runs self-sufficiently without the aid of any driver program in the host computer connected to the radio. This Utility program therefore is intended to be, in most cases, just a tool for the network operators. An end user simply plugs the pre-configured radio into a host computer or a network device equipped with a RJ-45 receptacle without ever being exposed to this Utility program. The Utility program is simple to install and easy to use through its graphic user interface. The details are described in Chapter 3. Virtual Cable Wi-Fi Radio Key Features q Highest degree of security provided by Dynamic WEP encryption key distribution q Configurable as either an Access Point or a Station q Plug & Play as a Station— o No driver on the host device is required for radio operation o Radio operation is independent of the operating system on the host device (Windows 98/2000/ME, Linux, Unix, embedded, etc.), as long as an Ethernet port is…

Text truncated - open the document above for the full version.

PROPOSED FCC ID LABEL AND LOCATION FCC ID LABEL OTC WIRELESS, INC This device complies with Part 15 of FCC rules. MKZ0207WODU09

APPLICANT: OTC Wireless FCC ID: MKZ0207W0DU09 MPE CALCULATION FOR 9 dBi ANTENNA Formula used in the MPE Calculations: E^2/3770 = S, mW/cm2 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5 --------- (A) Since S (mW/cm2) = 1.00 from 1.1310 Table 1 P (dBm) = 15.80 EUT output power G (dBi) = 9.00 EUT antenna gain Substitute these parameters into the A above, we have MPE safe distance d (cm) = 4.90 NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less

FCC CFR47 PART 15 CERTIFICATION TEST REPORT FOR 2.4 GHz 802.11b Radio Outdoor Package MODEL: AVCW-109/209 FCC ID: MKZ0207WODU09 REPORT NUMBER: 02U1399-1 ISSUE DATE: JULY 24 2002 Prepared for OTC WIRELESS, INC. 48507 MILMONT DRIVE FREMONT, CA 94538 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 2 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION.........................................................................................................................4 3. EUT MODIFICATION......................................................................................................................4 4. TEST METHODOLOGY..................................................................................................................4 5. TEST FACILITY...............................................................................................................................5 6. ACCREDITATION AND LISTING................................................................................................5 6.1. LABORATORY ACCREDITATIONS AND LISTINGS..........................................................................6 7. CALIBRATION AND UNCERTAINTY.........................................................................................7 7.1. MEASURING INSTRUMENT CALIBRATION.....................................................................................7 7.2. MEASUREMENT UNCERTAINTY....................................................................................................7 7.3. TEST AND MEASUREMENT EQUIPMENT.......................................................................................8 8. SUPPORT EQUIPMENT / EUT SETUP.........................................................................................8 9. APPLICABLE RULES AND BRIEF TEST RESULT.................................................................10 10. TEST SETUP, PROCEDURE AND RESULT..........................................................................13 10.1. PEAK POWER OUTPUT......................................................................................................13 10.2. 6 DB BANDWIDTH MEASUREMENT...............................................................................17 10.3. CONDUCTED SPURIOUS EMISSION...............................................................................21 10.4. PEAK POWER SPECTRAL DENSITY................................................................................34 10.5. RADIATED EMISSION........................................................................................................38 10.5.1. RADIATED EMISSION, BANDEDGES & RESTRICTED BANDS....................................38 10.6. POWER LINE CONDUCTED EMISSION...........................................................................52 10.7. SETUP PHOTOS...................................................................................................................54 REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 3 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: OTC WIRELESS, INC. 48507 MILMONT DRIVE FREMONT, CA 94538 USA CONTACT PERSON: YAN ZHENG / PRODUCTION ENGINEER TELEPHONE NO: (510) 490-8288 extension 215 EUT DESCRIPTION: 2.4GHZ 802.11B RADIO OUTDOOR PACKAGE MODEL NAME: AVCW-109/209 DATE TESTED: JULY 24 2002 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE 2.4GHz RADIO MEASUREMENT PROCEDURE ANSI 63.4 / 1992, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 15 Subpart C Compliance Certification Services, Inc. tested the above equipment for compliance with the requirement set forth in CFR 47, PART 15 Subpart C. The equipment in the configuration described in this report, shows the measured emission levels emanating from the equipment do not exceed the specified limit. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: STEVE CHENG FRANK IBRAHIM EMC ENGINEERING MANAGER EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 4 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. …

Text truncated - open the document above for the full version.

REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 31 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. HIGH CHANNEL CONDUCTED SPURIOUS EMISSIONS CH11 (30-1000MHz) REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 32 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. HIGH CHANNEL CONDUCTED SPURIOUS EMISSIONS CH11 (1-2.68GHz) REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 33 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. HIGH CHANNEL CONDUCTED SPURIOUS EMISSIONS CH11 (2.68-25GHz) REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 34 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 10.4. PEAK POWER SPECTRAL DENSITY TEST SETUP Detector Function Setting of Test Receiver Frequency Range (MHz) Detector Function Resolution Bandwidth Video Bandwidth Above 1000 Peak 3 kHz 10 kHz TEST PROCEDURE The transmitter output was connected to the spectrum analyzer. The bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3 kHz RBW and 10 kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3KHz for a full response of the mixer in the spectrum analyzer. Result: No non-compliance noted. See below plots for LOW, MID, HIGH channels CHANNEL FREQ (MHz) RESULT (dBm) LOW 2412 -14.6 MIDDLE 2437 -15.2 HIGH 2462 -15.2 HOST EUT Spectrum Analyzer REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 35 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. LOW CHANNEL PSD CH1 REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 36 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. MIDDLE CHANNEL PSD CH6 REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 37 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. HIGH CHANNEL PSD CH11 REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 38 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 10.5. RADIATED EMISSION 10.5.1. RADIATED EMISSION, BANDEDGES & RESTRICTED BANDS TEST SETUP Detector Function Setting of Test Receiver Frequency Range (MHz) Detector Function Resolution Bandwidth Video Bandwidth 30 to 1000 Peak Quasi Peak 100 KHz 1 MHz 100 KHz 1 MHz Above 1000 Peak Average 1 MHz 1 MHz 1 MHz 10 Hz REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 39 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TEST PROCEDURE 1. The EUT was placed on the turntable 0.8 meter above ground in 3 meter open area test site. 2. Set the resolution b…

Text truncated - open the document above for the full version.

REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 54 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 10.7. SETUP PHOTOS Radiated Emission below 1 GHz Measurement REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 55 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Conducted Emission Measurement REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 56 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Radiated Emission above 1 GHz Measurement REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 57 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Antenna Port Terminal and Bandedges Measurements REPORT NO: 02U1399-1 DATE: JULY 24, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Package FCC ID: MKZ0207WODU09 Page 58 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT
