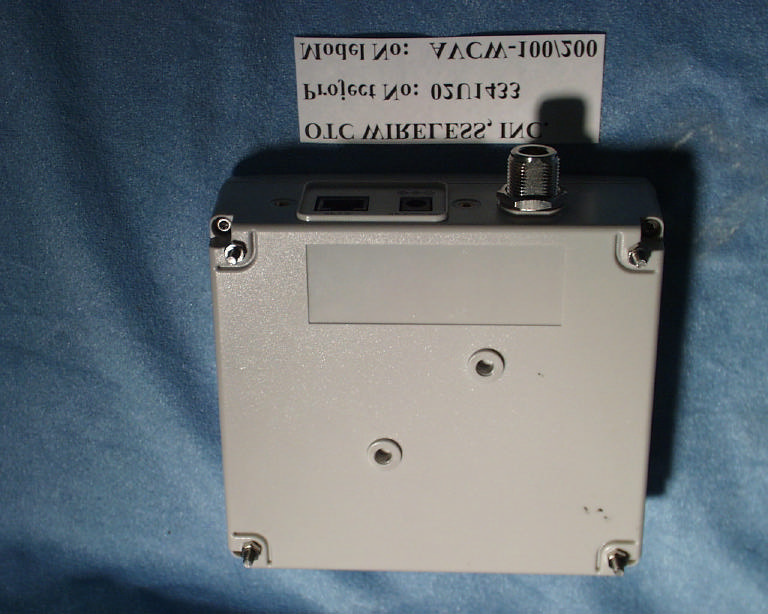

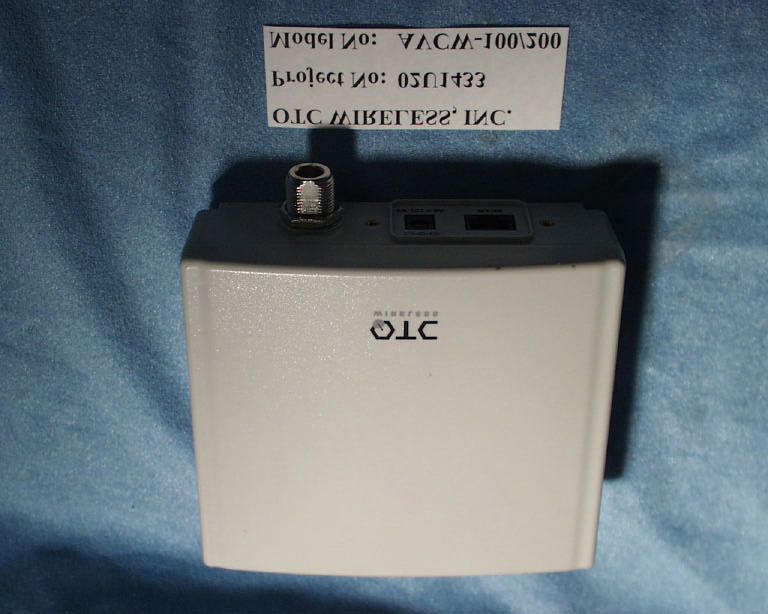

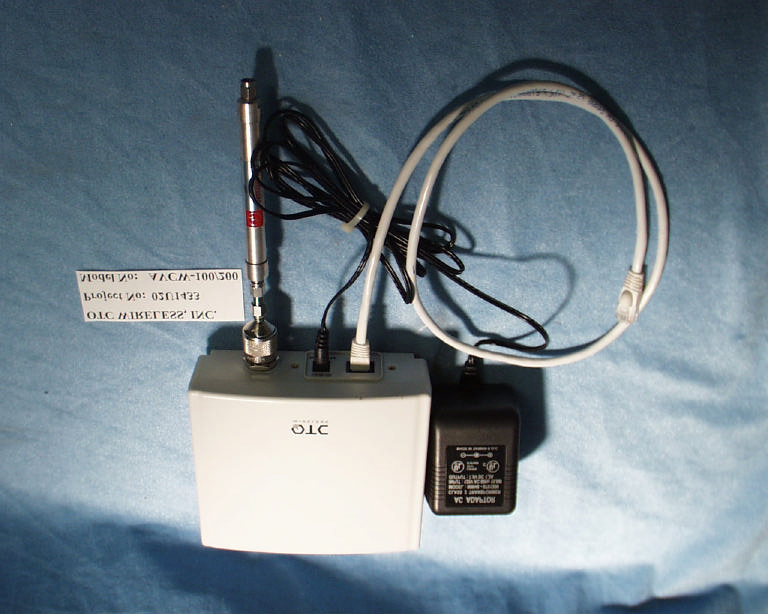

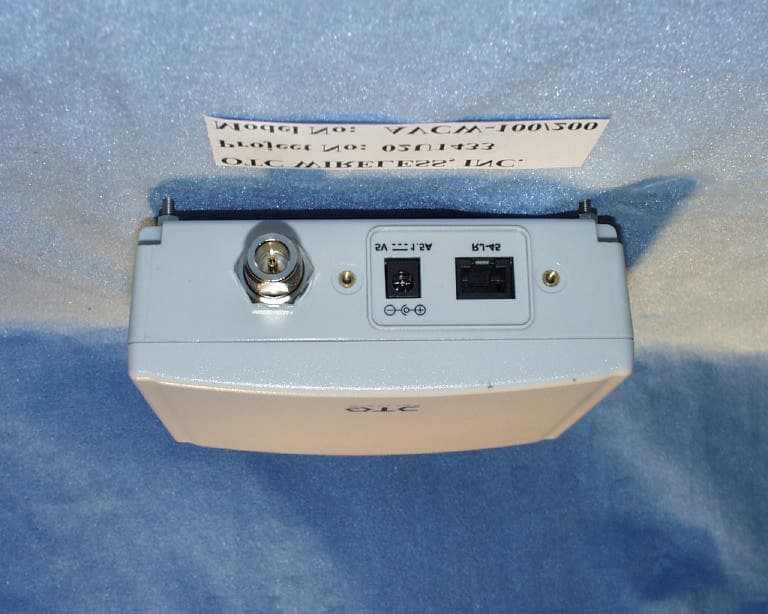

MKZ0208WODU0E802.11b Radio Outdoor Unit

Virtual Cable Wi-Fi Wi-Fi Ethernet Radio User Guide Virtual Cable Wi-Fi Wireless Ethernet User Manual Copyright Information in this document is subject to change without notice. Complying with all applicable copyright laws is the responsibility of the user. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of the seller. If, however, your only means of access is electronic, permission to print one copy is hereby granted. The seller provides this documentation without warranty, term, or condition of any kind. The seller may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. Other product and company names herein may be trademarks of their respective owners. Copyright 2001, 2002 OTC Wireless, Inc. All rights reserved. Revision: v1.16 Dec 11, 2002 Table of Contents Virtual Cable Wi-Fi User’s Manual Chapter 1 INTRODUCTION 1 Data Sheet 2 Chapter 2 INSTALLATION 4 Installing the Hardware 4 Power 4 Ethernet connection 4 Status LEDs 5 Installing the Utility Software 6 System Requirement 6 Installation 6 Chapter 3 UTILITY SOFTWARE 7 Use the Utility Program 7 Overview of the Tabs 7 Configure Virtual Cable Wi-Fi 7 Configure Virtual Cable Wi-Fi as an Access Point 8 Configure Virtual Cable Wi-Fi as a Station 12 Set up the Encryption 13 Obtain the Link Information 15 View the Packet Statistics 16 Uninstall the Utility Software 17 Chapter 4 TROUBLESHOOTING 18 Blank Pages Appear When Open the Utility Program 18 No Radio Link When Set Up As a Station 18 No Radio Link When Set Up As an AP 18 No Network Connection While the Radio Link is Good 19 Poor Link Quality 19 Radio Interference 20 Technical Support 20 Appendix A: LIMITED WARRANTY 21 Wireless LAN Hardware 21 Wireless LAN Software 21 Appendix B: REGULATORY COMPLIANCE 22 Appendix C: APPLICATION SCENARIOS 23 PC to PC connections 23 Multiple Wireless PC connections 24 Wireless LAN/WAN Connections 25 Multiple Wireless LAN Connection 26 Multiple LAN through a Single Wireless Connection 27 GLOSSARY 28 Chapter 1 INTRODUCTION The Virtual Cable Wi-Fi is an 802.11b compliant radio with a 10-BaseT interface, Power-Over-Ethernet (POE), and an indoor/ outdoor enclosure. The Virtual Cable Wi-Fi is available with an integrated 9dBi or 15 dBi patch antenna, or an N- type external antenna connector. Note: Throughout this user guide, the terms “Virtual cable Wi-Fi” and “Wireless Ethernet adapter” are used interchangeably. Model numbers for the Virtual Cable Wi-Fi are as follows: Product Name Description AVCW-100 802.11b outdoor radio with external antenna connector, access point AVCW-200 802.11b outdoor radio with external antenna connector, station AVCW-109 802.11b outdoor radio with 9 dBi built-in antenna, access point AVCW-209 802.11b outdoor radio with 9 dBi built-in antenna, station AVCW-115 802.11b outdoor radio with 15 dBi built-in antenna, access point AVCW-215 802.11b outdoor radio with 15 dBi built-in antenna, station Two features separate Virtual Cable Wi-Fi from many other 802.11b-compliant radios. Firstly, this 802.11b-compliant (Wi-Fi) radio can be configured as either a Station or an Access Point (AP). Secondly, when configured as a Station, the 10- BaseT interface affords it a true plug-and-play feature that is unavailable from any other 802.11b radios that are based on either a PCMCIA or a USB interface and require the installation of a driver on the host computer. This driver-less feature also means that the operation of the radio is OS (operating system) independent. When configured as a Station, the driver-less feature enables wireless connectivity for any computing devices/systems installed with any OS (operating system), as long as an Ethernet communication port is available. Special computing/networking devices, such as printer servers, POS (point of sales) machines may not even have an easy way of installing a driver for a radio, making the Wi-Fi Virtual Cable an ideal solution. With link distances of several miles, the Wi-Fi Virtual cable can even be connected to a router to interconnect networks or provide access to the Internet. 1 When configured as an AP, Virtual Cable Wi-Fi offers a no-frill, seamless way of fitting a wireless network into an existing wired LAN infrastructure. It does not even require the assignment of an extra IP address. Existing wired-network resources such as DHCP, VPN, firewall, etc., reach across the Virtual Cable Wi- Fi AP to the client workstations with total transparency. Unlike many other 802.11b Access Points on the market, which offer network functions that are duplicative to the existing network, this AP simply wirelessly collects a group of workstations or other kinds of computing devices into the existing network—just like a hub. A Utility program is needed to pre-configure Virtual Cable Wi-Fi prior to putting the radio in operation. And the Utility program can be used to monitor the communication condition once the radio is in operation. Once configured, the radio runs self-sufficiently without the aid of any driver program in the host computer connected to the radio. This Utility program therefore is intended to be, in most cases, just a tool for the network operators. An end user simply plugs the pre-configured radio into a host computer or a network device equipped with a RJ-45 receptacle without ever being exposed to this Utility program. The Utility program is simple to install and easy to use through its graphic user interface. The details are described in Chapter 3. Virtual Cable Wi-Fi Radio 2 Key Features ‰ Highest degree of security provided by Dynamic WEP encryption key distribution ‰ Configurable as either an Access Point or a Station ‰ Plug & Play as a Station— o No driver on the host device is required for radio operation o Radio operation is independent of the operating system on the host device (Windows 98/2000/ME, …

Text truncated - open the document above for the full version.

OTC Wireless WiSER2000 Block Diagram DM9008F Ethernet port (RJ45)

From: Anne Liang Sent: Wednesday, December 11, 2002 3:46 PM To: Mike Kuo; CLIENT ADVOCATES Cc: Steve Cheng Subject: RE: OTC WIRELESS, INC., FCC ID:MKZ0208WODU0E, AN02T2268 (02U1433) Hi, Mike, 1. Please see attached cover letter on professional installation. The Users Manual had been revised and is attached here; 2. FCC ID was corrected on page 25 in the attached manual; 3. The RF exposure warning statement was added on page 25 of the revised manual. Thank you very much, Anne -----Original Message----- From: CERTADM Sent: Tuesday, December 10, 2002 2:59 PM To: '[email protected]' Subject: OTC WIRELESS, INC., FCC ID:MKZ0208WODU0E, AN02T2268 Notice_content ------------- Question #1: This equipment is equipped with N type connector which is not the unique connector per the requirement stated in section 15.203 of FCC rules. Based upon the description of user manual, this equipment may require professional installation. However, in the user manual there is no where mentioned professional installation is required. If this device is required to have professional installation, please provide a cover letter to justify professional installation requirement and modify the user manual to include such requirements. Question #2: The FCC ID number listed on the page 25 of user manual does not match with proposed FCC ID number. Please explain. Question #3: The RF exposure warning statement listed in the page 25 of user manual does not including the following restriction. Please add the following statement and provide revised user manual. " This antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter." Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

PROPOSED FCC ID LABEL AND LOCATION FCC ID LABEL OTC WIRELESS, INC This device complies with Part 15 of FCC rules. FCC ID: MKZ0208WODU0E

Principle of Operation AVCW-109/209, 802.11b outdoor unit (the Device) is a time-division-duplex wireless spread spectrum transceiver for computer data communication applications. The Device functions both as a transmitter and a receiver. The transmitting and the receiving operations are time-domain duplexed. AVCW-109/209, 802.11b outdoor unit employs direct sequence spread spectrum modulation. When operating in the transmitting mode, the Device takes digital data bits to be transmitted from a computer and feeds the bits into a spreader. The spreader employs the Complimentary-Code Keying (CCK). Every 8 bits of data is grouped into a symbol. CCK uses 6 bits from each symbol to select one of 64 complex CCK sequences, each 8-bit long, and uses the remaining two bits to QPSK modulate the sequence. Each bit in the CCK sequence is referred as a chip. The symbol clock rate is1.375 MHz. The chip clock rate is 11 MHz. The Device then modulates the chips onto a radio frequency carrier. By combining CCK with QPSK modulation, a data rate of 11 Mbps is achieved. The transmitting power is less than 0.1 watts. During the receiving mode operation, the Device receives the radio signal from an antenna and demodulates the received signal into a base band signal corresponding to the chips sent from the transmitting end. The Device then feeds the base band signal into a dispreader which recovers the original information data bits from the chips and sends the digital information to a computer. The data interface between AVCW-109/209, 802.11b outdoor unit and the computer is through a conventional Ethernet 10BaseT port. The transmitting computer sends the data to be transmitted through the Ethernet 10BaseT port to AVCW-109/209, 802.11b outdoor unit. On the receiving end AVCW-109/209, 802.11b outdoor unit sends the received data bits to the computer also through an Ethernet 10BaseT port. AVCW-109/209, 802.11b outdoor unit employs the carrier sensing multiple access (CSMA) protocol to facilitate the networking function. Prior to each Device ‘s transmission of the signal, it has to ensure that there is no other transmission already in progress. AVCW-109/209, 802.11b outdoor unit employs packet data transmission with CRC to ensure data integrity.

APPLICANT: OTC Wireless FCC ID: MKZ0208WODU0E MPE CALCULATION FOR 15 dBi ANTENNA Formula used in the MPE Calculations: E^2/3770 = S, mW/cm2 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5 --------- (A) Since S (mW/cm2) = 1.00 from 1.1310 Table 1 P (dBm) = 15.80 EUT output power G (dBi) = 15.00 EUT antenna gain Substitute these parameters into the A above, we have MPE safe distance d (cm) = 4.37 NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less MPE CALCULATION FOR 24 dBi ANTENNA Formula used in the MPE Calculations: E^2/3770 = S, mW/cm2 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5 --------- (A) Since S (mW/cm2) = 1.00 from 1.1310 Table 1 P (dBm) = 15.80 EUT output power G (dBi) = 24.00 EUT antenna gain Substitute these parameters into the A above, we have MPE safe distance d (cm) = 12.33 NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less

FCC CFR47 PART 15 CERTIFICATION TEST REPORT FOR 2.4 GHz 802.11b Radio Outdoor Unit with External Antenna MODEL: AVCW-100/200 FCC ID: MKZ0208WODU0E REPORT NUMBER: 02U1433-1 ISSUE DATE: September 19, 2002 Prepared for OTC WIRELESS, INC. 48507 MILMONT DRIVE FREMONT, CA 94538 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 02U1433-1 DATE: SEPTEMBER 19, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Unit with External Antenna FCC ID: MKZ0208WODU0E Page 2 of 76 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION.........................................................................................................................4 3. EUT MODIFICATION......................................................................................................................4 4. TEST METHODOLOGY..................................................................................................................5 5. TEST FACILITY...............................................................................................................................5 6. ACCREDITATION AND LISTING................................................................................................5 6.1. LABORATORY ACCREDITATIONS AND LISTINGS..........................................................................6 7. CALIBRATION AND UNCERTAINTY.........................................................................................7 7.1. MEASURING INSTRUMENT CALIBRATION.....................................................................................7 7.2. MEASUREMENT UNCERTAINTY....................................................................................................7 7.3. TEST AND MEASUREMENT EQUIPMENT.......................................................................................8 8. SUPPORT EQUIPMENT / EUT SETUP.........................................................................................8 9. APPLICABLE RULES AND BRIEF TEST RESULT.................................................................10 10. TEST SETUP, PROCEDURE AND RESULT..........................................................................13 10.1. PEAK POWER OUTPUT......................................................................................................13 10.2. 6 DB BANDWIDTH MEASUREMENT...............................................................................17 10.3. CONDUCTED SPURIOUS EMISSION...............................................................................21 10.4. PEAK POWER SPECTRAL DENSITY................................................................................34 10.5. RADIATED EMISSION........................................................................................................38 10.5.1. RADIATED EMISSION, BANDEDGES & RESTRICTED BANDS....................................38 10.6. POWER LINE CONDUCTED EMISSION...........................................................................68 10.7. SETUP PHOTOS...................................................................................................................70 REPORT NO: 02U1433-1 DATE: SEPTEMBER 19, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Unit with External Antenna FCC ID: MKZ0208WODU0E Page 3 of 76 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: OTC WIRELESS, INC. 48507 MILMONT DRIVE FREMONT, CA 94538 USA EUT DESCRIPTION: 2.4GHZ 802.11B RADIO OUTDOOR UNIT WITH EXTERNAL ANTENNA MODEL NAME: AVCW-100/200 DATE TESTED: JULY 3, 2002 -SEPTEMBER 4, 2002 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE 2.4GHz RADIO MEASUREMENT PROCEDURE ANSI 63.4 / 1992, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 15 Subpart C Compliance Certification Services, Inc. tested the above equipment for compliance with the requirement set forth in CFR 47, PART 15 Subpart C. The equipment in the configuration described in this report, shows the measured emission levels emanating from the equipment do not exceed the specified limit. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: MIKE HECKROTTE FRANK IBRAHIM CHIEF ENIGNEER EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 02U1433-1 DATE: SEPTEMBER 19, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Unit with External Antenna FCC ID: MKZ0208WODU0E Page 4 of 76 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in …

Text truncated - open the document above for the full version.

REPORT NO: 02U1433-1 DATE: SEPTEMBER 19, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Unit with External Antenna FCC ID: MKZ0208WODU0E Page 36 of 76 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. MIDDLE CHANNEL PSD CH6 REPORT NO: 02U1433-1 DATE: SEPTEMBER 19, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Unit with External Antenna FCC ID: MKZ0208WODU0E Page 37 of 76 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. HIGH CHANNEL PSD CH11 REPORT NO: 02U1433-1 DATE: SEPTEMBER 19, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Unit with External Antenna FCC ID: MKZ0208WODU0E Page 38 of 76 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 10.5. RADIATED EMISSION 10.5.1. RADIATED EMISSION, BANDEDGES & RESTRICTED BANDS TEST SETUP Detector Function Setting of Test Receiver Frequency Range (MHz) Detector Function Resolution Bandwidth Video Bandwidth 30 to 1000 Peak Quasi Peak 100 KHz 1 MHz 100 KHz 1 MHz Above 1000 Peak Average 1 MHz 1 MHz 1 MHz 10 Hz REPORT NO: 02U1433-1 DATE: SEPTEMBER 19, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Unit with External Antenna FCC ID: MKZ0208WODU0E Page 39 of 76 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TEST PROCEDURE 1. The EUT was placed on the turntable 0.8 meter above ground in 3 meter open area test site. 2. Set the resolution bandwidth to 100KHz in the test receiver and select Peak function to scan the frequency below 1 GHz. 3. Shift the interference-receiving antenna located in antenna tower upwards and downwards between 1 and 4 meters above ground and find out the local peak emission on frequency domain. 4. Locate the interference-receiving antenna at the position where the local peak reach the maximum emission. 5. Rotate the turntable and stop at the angle where the measurement device has maximum reading. 6. Shift the interference-receiving antenna again to detect the maximum emission of the local peak. 7. If the reading of the local peak under Peak function is lower than limit by 6dB, then Quasi Peak detection is not needed and this reading should be recorded. And if it is REPORT NO: 02U1433-1 DATE: SEPTEMBER 19, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Unit with External Antenna FCC ID: MKZ0208WODU0E Page 40 of 76 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. higher than Peak limit, then the test is fail. Others, switch the receiver to Quasi Peak function, set the resolution bandwidth to 100kHz and repeat the procedures (3)~(6). If the reading is lower than limit, this reading should be recorded, otherwise, the test is fail. 8. Set the resolution and video bandwidth of the spectrum analyzer to 1MHz and repeat procedures (3)~(6) for frequency band from 1 GHz to 10 times carrier frequency. 9. If the reading for the local peak is lower than the Average limit, no further testing is needed in this local peak and this reading should be recorded. If it is higher than Average limit but lower than Peak limit, then set the resolution bandwidth to 1MHz and video bandwidth to 10Hz. Repeat procedures (3)~(6). If the maximum reading is lower than Average limit, then this reading should be recorded. If it is higher, then the test is fail. RESULT No non-compliance noted. See data below. 02U1399-1 020703C1 07/03/0211:58 AM Thanh Nguyen OTC WIRELESS< INC. 2.4GHz 802.11b Radio Outdoor Package. Model # AirEZY2411-BT-9 EUT, DC Injector FCC Part 15, Class B Rx 07/03/02 Freq.ReadingAFCloss Pre-ampLevelLimitMarginPolAzHeightMark (MHz)(dBuV)(dB)(dB)(dB)(dBuV/m)FCC_B(dB)(H/V)(Deg)(Meter)(P/Q/A) 440.0051.4016.503.1827.5943.4946.00-2.513mV180.001.00P 572.0049.0018.593.7428.0843.2646.00-2.743mV180.001.00P 616.0048.0019.243.9228.1043.0546.00-2.953mV180.001.00P 528.0048.5018.263.5728.0042.3246.00-3.683mV180.001.00P 748.5043.6021.324.4027.9341.4046.00-4.603mV180.001.00P 132.0050.5013.061.5027.1937.8643.50-5.643mV180.001.00P << Main Sheet Company: EUT Description: Test Configuration : Type of Test: Mode of Operation: FCC, VCCI, CISPR, CE, AUSTEL, NZ UL, CSA, TUV, BSMI, DHHS, NVLAP 561F MONTEREY ROAD, SAN JOSE, CA 95037-9001 PHONE: (408) 463-0885 FAX: (408) 463-0888 Project #: Report #: Date& Time: Test Engr: Company: EUT Description: Test Configuration : Type of Test: Mode of Operation: FCC, VCCI, CISPR, CE, AUSTEL, NZ UL, CSA, TUV, BSMI, DHHS, NVLAP 561F MONTEREY ROAD, SAN JOSE, CA 95037-9001 PHONE: (408) 463-0885 FAX: (408) 463-0888 Project #: Repo…

Text truncated - open the document above for the full version.

REPORT NO: 02U1433-1 DATE: SEPTEMBER 19, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Unit with External Antenna FCC ID: MKZ0208WODU0E Page 70 of 76 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 10.7. SETUP PHOTOS Radiated Emission below 1 GHz Measurement REPORT NO: 02U1433-1 DATE: SEPTEMBER 19, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Unit with External Antenna FCC ID: MKZ0208WODU0E Page 71 of 76 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Conducted Emission Measurement REPORT NO: 02U1433-1 DATE: SEPTEMBER 19, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Unit with External Antenna FCC ID: MKZ0208WODU0E Page 72 of 76 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Radiated Emission above 1 GHz Measurement, Omni Antenna, 1-18 GHz, Vertical Radiated Emission above 1 GHz Measurement, Omni Antenna, 1-18 GHz, Horizontal REPORT NO: 02U1433-1 DATE: SEPTEMBER 19, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Unit with External Antenna FCC ID: MKZ0208WODU0E Page 73 of 76 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Radiated Emission above 1 GHz Measurement, Omni Antenna, 18-25 GHz, Vertical Radiated Emission above 1 GHz Measurement, Omni Antenna, 18-25 GHz, Horizontal REPORT NO: 02U1433-1 DATE: SEPTEMBER 19, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Unit with External Antenna FCC ID: MKZ0208WODU0E Page 74 of 76 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Radiated Emission above 1 GHz Measurement, Parabolic Antenna, 1-18 GHz, Vertical Radiated Emission above 1 GHz Measurement, Parabolic Antenna, 1-18 GHz, Horizontal REPORT NO: 02U1433-1 DATE: SEPTEMBER 19, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Unit with External Antenna FCC ID: MKZ0208WODU0E Page 75 of 76 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Antenna Port Terminal and Bandedges Measurements REPORT NO: 02U1433-1 DATE: SEPTEMBER 19, 2002 EUT: 2.4GHz 802.11b Radio Outdoor Unit with External Antenna FCC ID: MKZ0208WODU0E Page 76 of 76 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT
