MLBHLSS-3B2R Smart Key system(FOB)

Information Keys.........................................................P. 95 Instruments, Controls, & Other Features......P. 97 Fuels Containing Alcohol.......................P. 98 Catalytic Converter ................................P. 99 Caring for Your Motorcycle.................P. 100 Storing Your Motorcycle .....................P. 103 Transporting Your Motorcycle ............P. 104 You & the Environment .......................P. 105 Serial Numbers .....................................P. 106 Information 16 RC1000VS-G 32MJT600.book 94 ページ ２０１５年７月２２日 水曜日 午後８時５８分 Keys 95 Information Keys Carrying the Honda SMART Key allows you to operate the motorcycle. This motorcycle has two Honda SMART Key and a key number plate. The Honda SMART Key is equipped with a fuel fill cap key and steering lock key. The Honda SMART Key contains electronic circuits that are activated by the Honda SMART Key system. If the circuits are damaged, the Honda SMART Key will not operate. ●Do not drop the Honda SMART Key or set heavy objects on them. ●Protect the Honda SMART Key from direct sunlight, high temperature, and high humidity. ●Do not scratch or puncture. ●Do not store near any magnetized products such as a magnetized key chain. ●Always keep the Honda SMART Key away from electric appliances such as a TV, radio, PC or low-frequency massage device. ●Keep the Honda SMART Key away from liquids. If it gets wet, dry it immediately with a soft cloth. ●Keep the Honda SMART Key away from the motorcycle while washing the motorcycle. ●Do not burn. ●Do not wash in the ultrasonic cleaner. ●If fuel, wax, or grease adhere to the Honda SMART Key, wipe it off immediately to avoid cracking or warping. ●Do not disassemble the Honda SMART Key other than when changing a battery. Only the case of the Honda SMART Key can be disassembled. Do not disassemble other parts. ●Do not lose your Honda SMART Key. If you lose it, you will need to register a new Honda SMART Key by your dealer. The battery in the Honda SMART Key system. normally lasts about 2 years. Do not keep mobile phones or other radio transmitting devices near the seat. The radio frequency from the devices will interrupt the Honda SMART Key system. To get add additional Honda SMART Key, take the Honda SMART Key and the motorcycle to your dealer. Honda SMART Key Honda SMART Key Key number plate Honda SMART Key Steering lock key Fuel fill cap key continued 16 RC1000VS-G 32MJT600.book 95 ページ ２０１５年７月２２日 水曜日 午後８時５８分 Keys 96 Information 16 RC1000VS-G 32MJT600.book As required by the FCC (USA only): This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

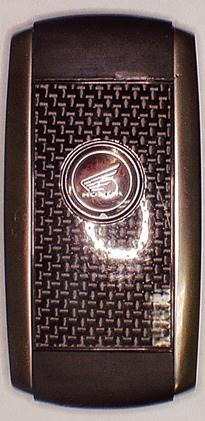

11/12 製品写真（Product photography） UPPER LOWER RIGHT SIDE LEFT SIDE BACK FRONT

Ṹᵡᵭᵬᵲᵰᵭᵪ ᵳᵬᵧᵲ Ṹᵤᵭᵠ ᵟᵱᵱᵷ

ᵏᵎᵍᵏᵐ ᙌԼϙჇίᵮᶐᶍᶂᶓᶁᶒᴾᶎᶆᶍᶒᶍᶅᶐᵿᶎᶆᶗὸ ᵤᵭᵠ ᵤᵰᵭᵬᵲᴾᵴᵧᵣᵵ ᵠᵟᵡᵩᴾᵴᵧᵣᵵ ᵟᵱᵱᵷ ᵮᵡᵠ

Test report No. : 10828763H-B Page : 2 of 21 Issued date : July 2, 2015 FCC ID : MLBHLSS-3B UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10828763H-B Revision Test report No. Date Page revised Contents - (Original) 10828763H-B July 2, 2015 - - Test report No. : 10828763H-B Page : 3 of 21 Issued date : July 2, 2015 FCC ID : MLBHLSS-3B UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ·············································································· 4 SECTION 2: Equipment under test (E.U.T.) ···································································· 4 SECTION 3: Test specification, procedures & results························································· 5 SECTION 4: Operation of E.U.T. during testing ······························································· 8 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 9 SECTION 6: Automatically deactivate ········································································· 10 SECTION 7: -20dB and 99% Occupied Bandwidth ························································· 10 APPENDIX 1: Test data ···························································································· 11 Automatically deactivate................................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 12 Radiated Spurious Emission (Plot data, Worst case) ........................................................................ 13 -20dB and 99% Occupied Bandwidth ............................................................................................... 14 Duty Cycle ........................................................................................................................................ 15 APPENDIX 2: Test Instruments ················································································· 18 APPENDIX 3: Photographs of test setup ······································································· 19 Radiated emission ............................................................................................................................. 19 Worst case position ........................................................................................................................... 20 Test report No. : 10828763H-B Page : 4 of 21 Issued date : July 2, 2015 FCC ID : MLBHLSS-3B UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Honda Lock Mfg. Co., Ltd. Address : 535-14 Oaza-Ishizue, Takanezawamachi, Shioya-Gun, Tochigi, 329-1225 Japan Telephone Number : +81-50-3757-5700 Facsimile Number : +81-28-680-1045 Contact Person : Sadanori Watarai SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : 2R Smart Key system (FOB) Model No. : HLSS-3 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 3.0 V (CR2032 x 1) Receipt Date of Sample : April 18, 2015 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product description Model No: HLSS-3 (referred to as the EUT in this report) is the 2R Smart Key system (FOB). General Specification Clock frequencies in the system : 5 MHz Radio Specification [Transmitter] Radio Type : Transceiver Frequency of Operation : 433.92 MHz Modulation : ASK Antenna type : Pattern antenna Method of Frequency Generation : SAW Resonator Operating voltage (Radio part) : DC 2.0 V to 3.3 V Operating temperature range : -20 to +60 deg. C [Receiver] *1) Radio Type : Receiver Frequency of Operation : 133.3 kHz Operating temperature range : -20 to +60 deg. C Receiver Bandwidth : 120 kHz *1) The test of receiver part was performed separately from this test report, and the conformability is confirmed. Test report No. : 10828763H-B Page : 5 of 21 Issued date : July 2, 2015 FCC ID : MLBHLSS-3B UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2015, final revised on January 21, 2015 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz * The EUT complies with FCC Part 15 Subpart B: 2015, final revised on January 21, 2015. 3.2 Procedures and results Item Test Procedure Specification Worst marginResults Remarks Conducted emission FCC: ANSI C63.4:2009 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A*1) - IC: RSS-Gen 8.8 IC: RSS-Gen 8.8 Automatically Deactivate FCC: ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.231(b) 24.2 dB 433.920 MHz Horizontal / Vertical Complied Radiated IC: RSS-Gen 6.12 IC: RSS-210 A1.1.2 Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) 3.2 dB 1301.760 MHz Vertical Complied Radiated IC: RSS-Gen 6.13 IC: RSS-210 A1.1.2, 2.5.1 RSS-Gen 8.9 -20dB Bandwidth FCC: ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.231(c) N/A Complied Radiated IC: - IC…

Text truncated - open the document above for the full version.

Test report No. : 10828763H-B Page : 19 of 21 Issued date : July 2, 2015 FCC ID : MLBHLSS-3B UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 10828763H-B Page : 20 of 21 Issued date : July 2, 2015 FCC ID : MLBHLSS-3B UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst case position (Horizontal: X-axis/Vertical : Y-axis) X-axis Y-axis Z-axis Test report No. : 10828763H-B Page : 21 of 21 Issued date : July 2, 2015 FCC ID : MLBHLSS-3B UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst case position Mechanical Key (Inserted) Worst Above 1GHz Mechanical Key (Not Inserted) Worst Below 1GHz Mechanical Key (Not Inserted) Mechanical Key (Not Inserted) End of Report
