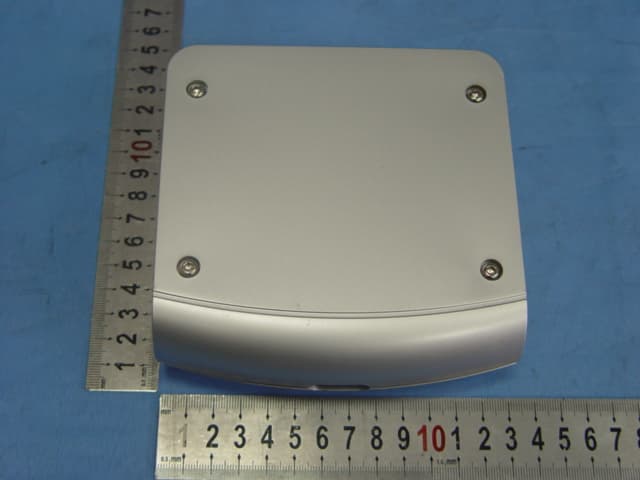

MNISI494Wireless Stereo Speaker System Transmitter

Sharper Image, The

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: May 22, 2005
Application Purpose: Original Equipment
Date of Application: May 22, 2005
Equipment Note: Wireless Stereo Speaker System Transmitter
Frequency Range: 2410.00000000 - 2410.00000000
Company: Sharper Image, The
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Operational Description

SI494 Transmitter Functional Operation Description: After the audio signals captured or received from jacks / zip terminal / ipod terminal, it is to be amplified by pre-amp. Then they send to encoder and encoding the signals and fit into mixer. The encoded signals are mixed with localized oscillator. Then the selected signals are passed out band pass filter. Moreover, it is amplified by RF amplifier. Finally, it transmits into air from the build-in antenna which mount on the TX PCB.

Test Report

Page 1of 27 FCC ID: MNISI494 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE2005639 FCC CERTIFICATION On Behalf of The Sharper Image Wireless Stereo Speaker System Transmitter Model No.: SI494 FCC ID: MNISI494 Prepared for : The Sharper Image Address : 650 Davis Street, San Francisco, CA94111, U.S.A Prepared by : ACCURATE TECHNOLOGY CO. LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE2005639 Date of Test : April 27-29, 2005 Date of Report : May 12, 2005 Page 2of 27 FCC ID: MNISI494 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE2005639 TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION.......................................................................................................... 4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Description of Test Facility......................................................................................................................4 1.3. Measurement Uncertainty.........................................................................................................................4 2. MEASURING DEVICE AND TEST EQUIPMENT..................................................................... 5 3. FUNDAMENTAL AND HARMONICS RADIATED EMISSION MEASURMENT................ 6 3.1. Block Diagram of Test Setup....................................................................................................................6 3.2. The Emission Limit..................................................................................................................................6 3.3. Configuration of EUT on Measurement...................................................................................................7 3.4. Operating Condition of EUT....................................................................................................................7 3.5. Test Procedure..........................................................................................................................................7 3.6. The Field Strength of Radiation Emission Measurement Results............................................................8 4. RADIATED EMISSION FOR FCC PART 15 SECTION 15.249(D)........................................... 9 4.1. Block Diagram of Test Setup....................................................................................................................9 4.2. The Emission Limit For Section 15.249(d)..............................................................................................9 4.3. EUT Configuration on Measurement.....................................................................................................11 4.4. Operating Condition of EUT..................................................................................................................11 4.5. Test Procedure........................................................................................................................................11 4.6. The Emission Measurement Result........................................................................................................12 5. BAND EDGES FOR FCC PART 15 SECTION 15.249(D)......................................................... 13 5.1. The Requirement For Section 15.249(d)................................................................................................13 5.2. EUT Configuration on Measurement.....................................................................................................13 5.3. Operating Condition of EUT..................................................................................................................13 5.4. Test Procedure........................................................................................................................................13 5.5. The Measurement Result........................................................................................................................14 6. CONDUCTED EMISSION FOR FCC PART 15 SECTION 15.207(A).................................... 15 6.1. Block Diagram of Test Setup..................................................................................................................15 6.2. The Emission Limit For Section 15.207(a)............................................................................................15 6.3. EUT Configuration on Measurement.....................................................................................................16 6.4. Operating Condition of EUT..................................................................................................................16 6.5. Test Procedure........................................................................................................................................16 6.6. Power Line Conducted Emission Measurement Results........................................................................17 7. ANTENNA REQUIREMENT........................................................................................................ 18 7.1. The Requirement....................................................................................................................................18 7.2. Antenna Construction.............................................................................................................................18 APPENDIX I ( TEST CURVES) (8pages) Page 3of 27 Test Report Certification Applicant : The Sharper Image Manufacturer : Mei Hua Electronics Factory EUT Description : Wireless Stereo Speaker System Transmitter (A) MODEL NO.: SI494 (B) SERIAL NO.: N/A (C) POWER SUPPLY: 12Vd.c. with adapter Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart C Section 15.249, Section 15…

Text truncated - open the document above for the full version.
