MQ4PLW7211ac WiFi Extender Smart Plug / 11ac WiFi Extender

PLW72TME/PLW72TMK/PLW72TMA 11ac WiFi Extender Smart Plug Quick Install Guide Setup for Repeater Mode 1 Power on the Device Step1. Plug your Wireless Extender into an electrical socket. Step2. Check the LEDs: the power LED should be always on when system is ready. Connect to the Wireless Extender 2 Step1. Default SSID is “PLW721MS-24” and security key is “12345678”. Step2. Set your wireless adapter in DHCP client and waiting for getting IP Address from the Wireless Extender. Step3. Open a web browser and enter “192.168.1.254” in URL field to open the configuration page. Step4. Default user name is “admin” and password is “password” to access WEB GUI. 3 Manually Configuration: Step1. Open Wireless Settings / AP Client page. Step2. Setup the SSID and Security of AP that you want to connect to: Click APPLY to finish. Notes: The Wireless Extender is designed as a pure wireless device, so there are no any RJ-45 ports for Ethernet cable to connect to. Please prepare any IEEE802.11 ac/b/g/n compliant wireless adapter for next setup step. OR you can use “SCAN” to refresh the wireless network and select an AP to connect to. “The product shall be used in the residential environment notwithstanding use in commercial, business environments. If you want to use other than the above environments, please contact AboCom first.” WPS Configuration: Step1. Press the WPS button of the Wireless Extender over 3 seconds. Step2. Then press the WPS button of the wireless router/AP over 3 seconds too. Step 1 and Step 2 need to be done in 200 seconds. WPS button behavior: Less than 2 sec → N/A, WPS LED no blinking. More than 2 sec → Do WPS, WPS LED start blinking Reset button behavior: Less than 2 sec → N/A, D5-D1 LEDs no blinking. 2-5 seconds → Do REBOOT, D5-D1 LEDs fast blinking. More than 5 sec→ Do Factory Default, D5-D1 LEDs blinking slowly. Check if Connected 4 The green–checked icon ahead is the Wireless Router/AP which the Wireless Extender is working to. Hardware Button Behavior 5 FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

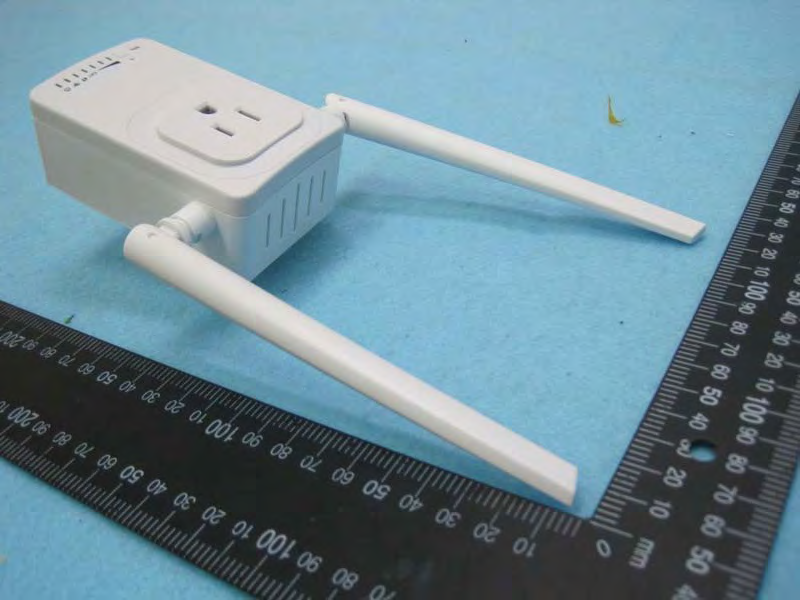

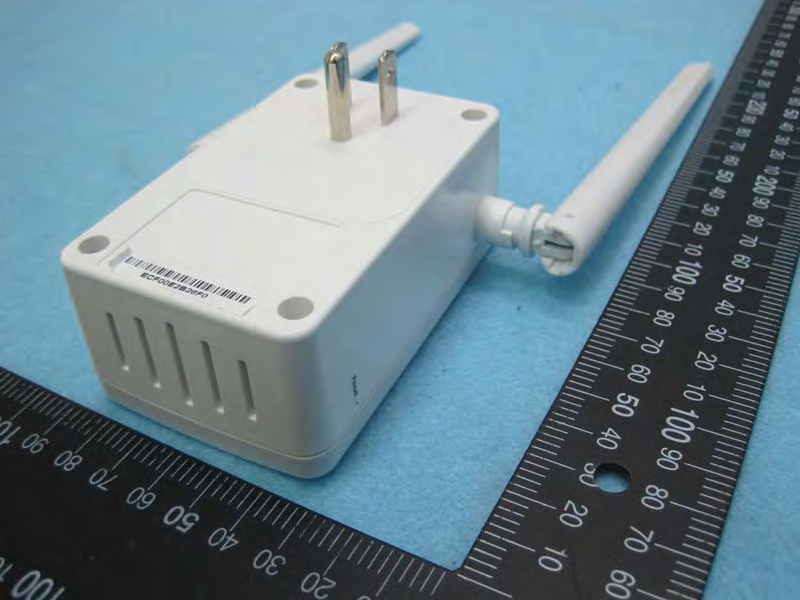

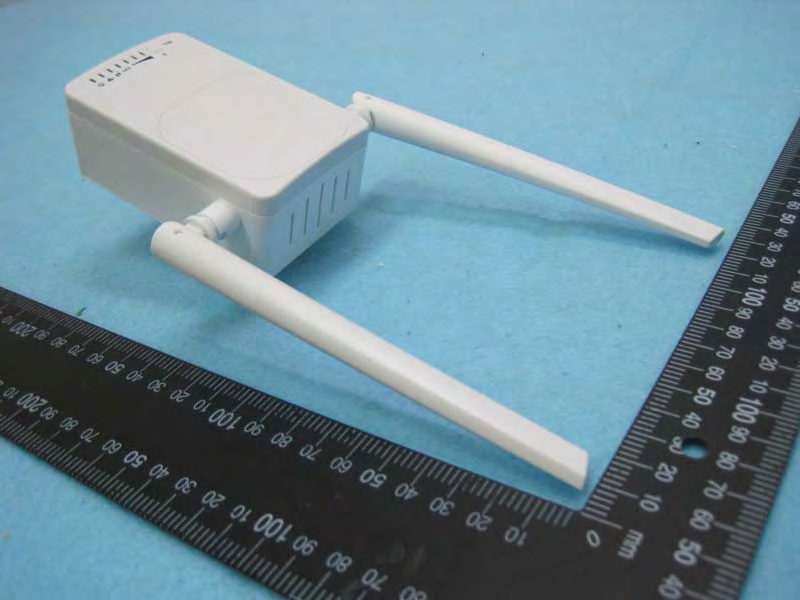

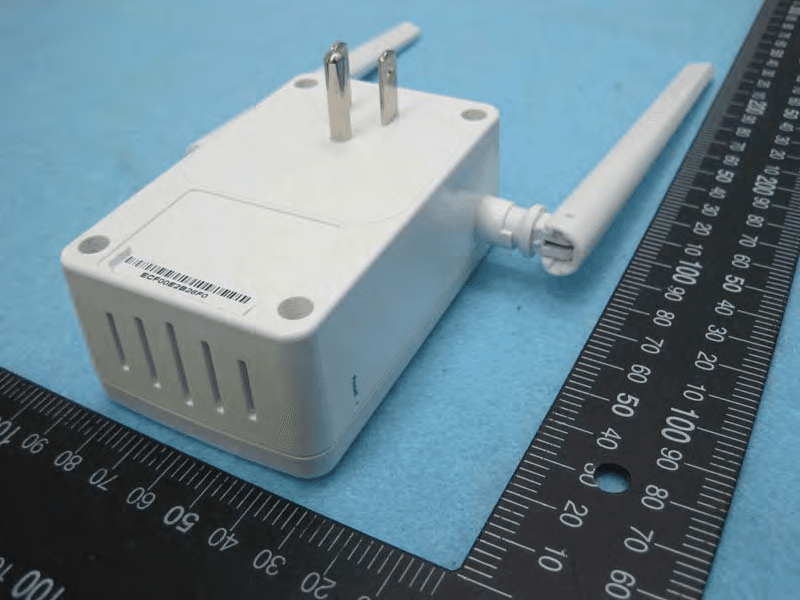

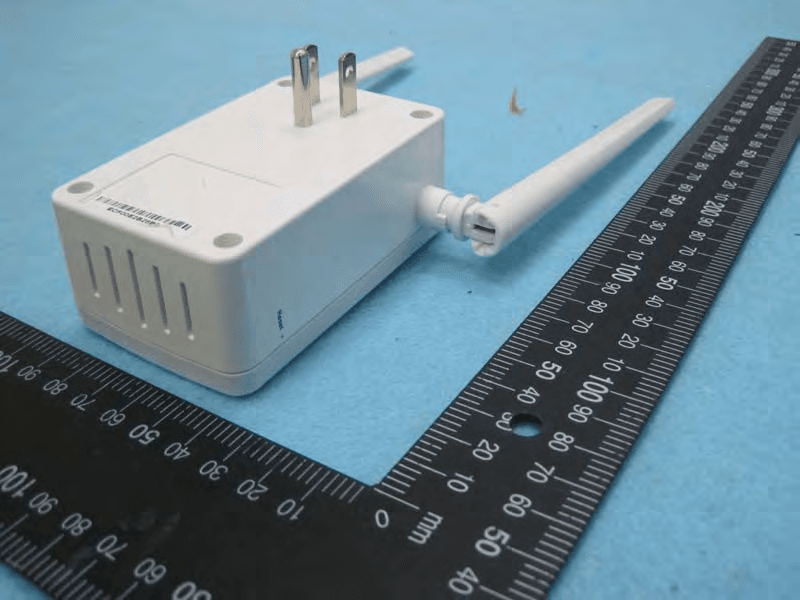

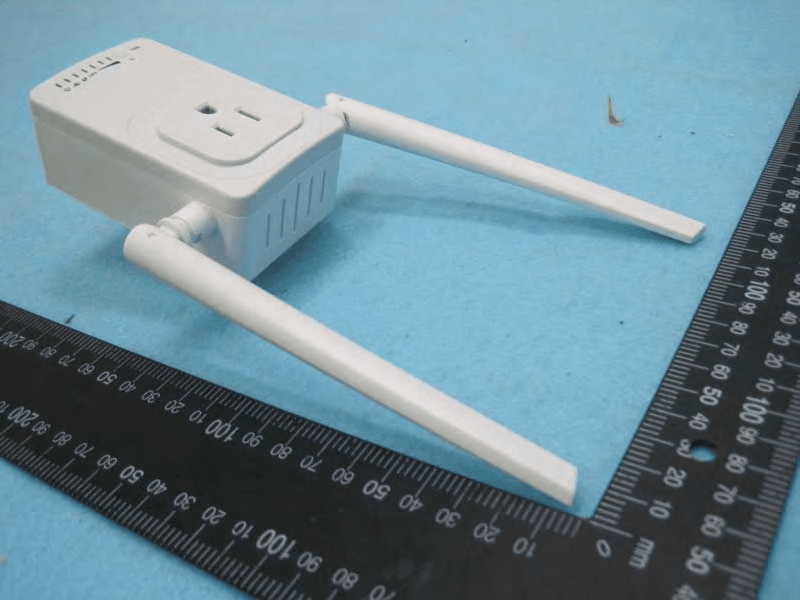

Report No.: 4D0314-01 SPORTON International Inc. PAGE NUMBER : 1 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Mar. 18, 2015 FAX : 886-3-327-0973 Photographs of EUT Model No.: PLW72TMA Report No.: 4D0314-01 SPORTON International Inc. PAGE NUMBER : 2 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Mar. 18, 2015 FAX : 886-3-327-0973 Report No.: 4D0314-01 SPORTON International Inc. PAGE NUMBER : 3 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Mar. 18, 2015 FAX : 886-3-327-0973 Model No.: PLW72PMA Report No.: 4D0314-01 SPORTON International Inc. PAGE NUMBER : 4 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Mar. 18, 2015 FAX : 886-3-327-0973 Model No.: PLW722MA Report No.: 4D0314-01 SPORTON International Inc. PAGE NUMBER : 5 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Mar. 18, 2015 FAX : 886-3-327-0973

: :36.5x30mm R=1mmx3 : 25 + ( ) :M74-FDA01-182 Model No:PLW72TME Input:100-240Vac 50/60Hz 13A Output:100-240Vac 13A Max S/N: UID: XXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXXXX Password: Mac: EU Pin PLW52SMx Device Sticker Model No:PLW72TMK Input:100-240Vac 50/60Hz 13A Output:100-240Vac 13A Max S/N: UID: XXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXXXX Password: Mac: UK Pin Model No:PLW72TMA Input:100-240Vac 50/60Hz 15A Output:100-240Vac 15A Max S/N: UID: FCC ID:MQ4PLW72 XXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXXXX Password: Mac: US Pin

Report No.: FR4D0314-01 FCC ID: MQ4PLW72 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR4D0314-01 FCC ID: MQ4PLW72 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR4D0314-01 FCC ID: MQ4PLW72 Page No. : B3 of B3 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz UNII Band: Antenna Type : Dipole Antenna Conducted Power for IEEE 802.11a : 22.28 dBm Average Output Power Distance (m) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 3.50 2.2387 22.2800 169.0441 0.075327 1 Complies For 2.4GHz Band: Antenna Type : Dipole Antenna Conducted Power for IEEE 802.11b: 17.76 dBm The maximum combined Average Output Power Distance (m) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 4.10 2.5704 17.7571 59.6637 0.030525 1 Complies Conclusion: Both of the WLAN 2.4GHz Repeater function with 2.4GHz + 5GHz AP function can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.030525 / 1 +0.030525 / 1 + 0.075327 / 1 = 0.136377, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. Both of the WLAN 5GHz Repeater function with 2.4GHz + 5GHz AP function can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.075327 / 1 + 0.030525 / 1 + 0.075327 / 1 = 0.181179, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR4D0314-01 FCC ID: MQ4PLW72 Page No. : C1 of C5 Appendix C. Radiated Emission Co-location Report Report No.: FR4D0314-01 FCC ID: MQ4PLW72 Page No. : C2 of C5 1. Results of Radiated Emissions for Co-located Temperature 26°C Humidity 68% Test Engineer Lucas Huang Configurations Mode 1. EUT standing (2.4GHz Repeater function with 2.4GHz + 5GHz AP function) Horizontal Report No.: FR4D0314-01 FCC ID: MQ4PLW72 Page No. : C3 of C5 Vertial Report No.: FR4D0314-01 FCC ID: MQ4PLW72 Page No. : C4 of C5 Temperature 26°C Humidity 68% Test Engineer Lucas Huang Configurations Mode 2. EUT standing (5GHz Repeater function with 2.4GHz + 5GHz AP function) Horizontal Report No.: FR4D0314-01 FCC ID: MQ4PLW72 Page No. : C5 of C5 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company AboCom Systems, Inc. Applicant Address No.77, Yu-Yih Rd., Chu-Nan, Miao-Lih County 35059, Taiwan R.O.C. FCC ID MQ4PLW72 Manufacturer’s company AboCom Systems, Inc. Manufacturer Address No.77, Yu-Yih Rd., Chu-Nan, Miao-Lih County 35059, Taiwan R.O.C. Product Name 11ac WiFi Extender Smart Plug / 11ac WiFi Extender Brand Name AboCom Model No. PLW72TMA / PLW72PMA / PLW722MA Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250 MHz / 5725 ~ 5850 MHz Received Date Dec. 03, 2014 Final Test Date Jan. 16, 2015 Submission Type Original Equipment Statement Test result included is for the IEEE 802.11n and IEEE 802.11a/ac of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2013, 47 CFR FCC Part 15 Subpart E, KDB789033 D02 v01, KDB662911 D01 v02r01, KDB644545 D03 v01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR4D0314-01AB Report Format Version: Rev. 01 Page No. : i of ii FCC ID: MQ4PLW72 Issued Date : Mar. 18, 2015 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................9 3.7. Table for Multiple Listing......................................................................................................................................................................9 3.8. Table for Supporting Units .................................................................................................................................................................10 3.9. Table for Parameters of Test Software Setting ...................................................................................................................................11 3.10. EUT Operation during Test .................................................................................................................................................................11 3.11. Duty Cycle ........................................................................................................................................................................................11 3.12. Test Configurations ...........................................................................................................................................................................12 4. TEST RESULT ................................................................................................................................................... 15 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................15 4.2. 26dB Bandwidth and 99% Occupied Bandwidth Measurement......................................................................................................19 4.3. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................30 4.4. Maximum Conducted Output Power Measurement .........................................................................................................................35 4.5. Power Spectral Density Measurement ..............................................................................................................................................38 4.6. Radiated Emissions Measurement ....................................................................................................................................................47 4.7. Band Edge Emissions Measurement .................................................................................................................................................72 4.8. Frequency Stability Measurement ............................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR4D0314-01 FCC ID: MQ4PLW72 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR4D0314-01 FCC ID: MQ4PLW72 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR4D0314-01 FCC ID: MQ4PLW72 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR4D0314-01 FCC ID: MQ4PLW72 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR4D0314-01 FCC ID: MQ4PLW72 Page No. : A5 of A5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
