MQDMIL-538TRemote Control Car

JP-46338 Remote Car Instruction Manual FEATURES: CAR LENGTH: 180 MM FUNCTIONS: Forward, Turn left, Turn right, Stop Reverse left, Reverse right, Headlights. BATTERY INSTALLATION • Open the battery compartment cover at the bottom of the car, install four "AA" nickel Cadmium or Alkaline batteries, whereas, for the transmitter, use one 9V battery. • Make sure the polarity (+ and -) is correct. • Use Nickel Cadmium or Alkaline batteries instead of the ordinary type can achieve the best performance for your car. OPERATION • Extend the antenna of the controller to full length. • For maximum range of control always keep the antennae straight up and hold the transmitter at upright position. • Set the power switch of car to "ON" position. • Use two hands to operate the control sticks. On the left hand side, the level control the car to go forward and backward, whereas, the right hand side lever controls it's forward and backward turning actions. • Attempt to operate the forward/backward action, and turning action at the same time. • Plug the earphone into the earphone jack. You can receive the voice nearby the car, This is called "SPY". • If the car does not go straight, adjust the 'ALIGNMENT' at the bottom of the car. • When not in use, switch OFF the car. If you do not intend to use the car for a long time, remove the batteries, weak or dead batteries can leak damaging chemicals. • For best performance, use alkaline batteries. HINTS • Since the unit operates on 27 MHz, you may experience interference from CB radio, which is in the same band of frequencies. Under such conditions, better change location or wait until interference ceases. Also two or more R/C cars (or other devices) cannot operate in the same area, they may interfere each other. • Range of operating distance will depend on surroundings, buildings, and large metal objects. You will obtain better performance in open area. • Never operate your car in the street, in water, sand, or on thick carpet, do not allow it to go through rain, rust can be formed inside hair or dust. Remove such materials from the wheel bearings carefully. • Do not allow the car to fall off a high sledge, a fall might damage it. • Never disassemble your car or the transmitter. • Do not store the car either near a source of heat or in direct sun for an extended period. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OF TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. "Modifications not authorized by the manufacturer may void users authority to operate this device" NOTE: This equipment has been tested and found to comply with limits fos a Class B digital device,pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and cad radiate radio frequency energy and,If not installed and used in accordance with the instruction, may cause harmful interference to radio communications.However,these is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct this interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. BATTERY DOOR BATTERY FOR REMOTE DEVICE ON/OFF LED EARPHONE BUD OF REMOTE DEVICE TURN FORWARD/BACK OF REMOTE DEVICE TURN LEFT/RIGHT BATTERY FOR CAR BATTERY DOOR ANTENNA ALIGNMENT ON/OFF SWITCH BACK WHEEL FRONT WHEEL MICROPHONE HEADLIGHT ANTENNA

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

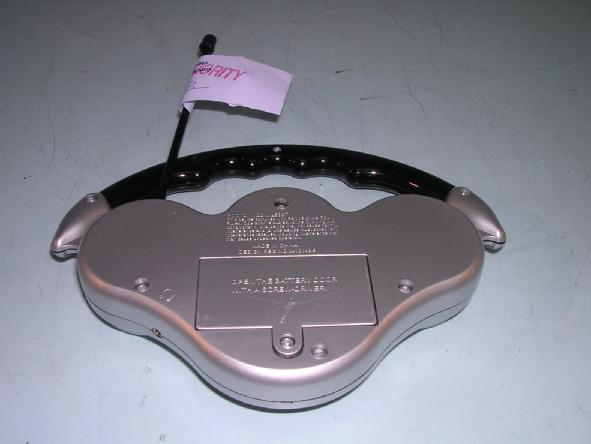

LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL FCC ID label

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

FCC ID: MQDMIL-538T Circuit Description The 27.145 MHz crystal oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by IC. The output of Q2 has the matching network consisting of T2 and C1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 11.5 cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery Operation Descriptions The transmitter is a remote control toy operating at 27.145MHz band. The transmitter is powered by a 9V battery (“6F22” size battery x 1) and the transmitting frequency is crystal controlled. There are 4 button to control the forward reverse motor and director of movement. The operation is achieved by different combinations of form pulse modulating signal on the 27.145 MHz carrier frequency. Remarks: The transmitter is a 4 button transmitter. The EUT continues to transmit while button is being pressed. It is button transmitter, Modulation by IC ; and type is Pulse modulation.

FCC ID: MQDMIL-538T Antenna, Ground and Power Source The antenna consists of a 11.5 cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery Antenna

STC Test Report Date : 2007-05-17 Page 1 of 17 No. : HM158784 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (Code): J P Products Co Ltd. Rm 1303 Grandmark 8A-10 Granville Road, Tism Sha Tsui, Kln., Hong Kong. Manufacturer: Million Industrial Ltd. 9/F, Flat A Rodeo Centre 73-79 Larch St, Tai Kok Tsui, Kln., Hong Kong. Description of Samples: Product: Remote Control Car Model no.: MQDMIL-538T Brand Name: N/A FCC ID: MQDMIL-538T Date Samples Received: 2007-05-14 Date Tested: 2007-05-15 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4:2003 for FCC Certification. Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- LEE Kam Chuen, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2007-05-17 Page 2 of 17 No. : HM158784 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 1.0 General Details 1.1 Test Laboratory Page 4 of 17 1.2 Applicant Details Page 4 of 17 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 17 Description of EUT operation 1.4 Date of Order Page 5 of 17 1.5 Submitted Samples Page 5 of 17 1.6 Test Duration Page 5 of 17 1.7 Country of Origin Page 5 of 17 2.0 Technical Details 2.1 Investigations Requested Page 6 of 17 2.2 Test Standards and Results Summary Page 6 of 17 3.0 Test Results 3.1 Emission Page 7-10 of 17 3.2 Bandwidth Measurement Page 11-12 of 17 STC Test Report Date : 2007-05-17 Page 3 of 17 No. : HM158784 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 13 of 17 Appendix B Duty Cycle Correction During 100 msec Page 14-15 of 17 Appendix C Photographs Page 16-17 of 17 STC Test Report Date : 2007-05-17 Page 4 of 17 No. : HM158784 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant J P Products Co Ltd. Rm 1303 Grandmark 8A-10 Granville Road, Tism Sha Tsui, Kln., Hong Kong. Manufacturer Million Industrial Ltd. 9/F, Flat A Rodeo Centre 73-79 Larch St, Tai Kok Tsui, Kln., Hong Kong. STC Test Report Date : 2007-05-17 Page 5 of 17 No. : HM158784 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Product: Remote Control Car Manufacturer: Million Industrial Ltd. Model Number: MQDMIL-538T Brand Name: N/A Rating: 9Vd.c (“6F22” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a J P Products Co Ltd., Remote Control Car. The transmitter is a 4 button transmitter. The EUT continues to transmit while button is being pressed, It is pulse transmitter, Modulation by IC, and type is pulse modulation. 1.4 Date of Order 2007-05-14 1.5 Submitted Sample(s): 2 Samples 1.6 Test Duration 2007-05-15 1.7 Country of Origin China STC Test Report Date : 2007-05-17 Page 6 of 17 No. : HM158784 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severit…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
