MRISI583ROBOT TOY

FCC ID: MRISI583 FCC ID: MRISI583 FCC ID: MRISI583 &

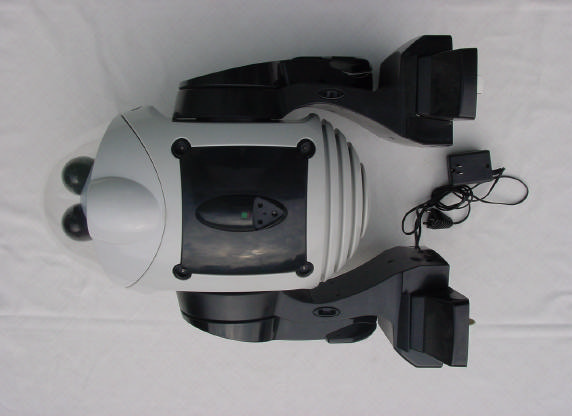

Report No.: 0A110701F FCC ID: MRISI583 Interocean EMC Technology Corp. FCC Test Report Page 23 of 26 7 Photographs of EUT Front View of Appearance (ROBOT) Rear View of Appearance (ROBOT)

FCC ID:MRISI583 & MRISI583R ID label and location info ROBOT FCC ID: MRISI583

Report No.: 0A110701F FCC ID: MRISI583 Interocean EMC Technology Corp. FCC Test Report Page 24 of 26 Inside Configuration Main Control Board (Component Side) Report No.: 0A110701F FCC ID: MRISI583 Interocean EMC Technology Corp. FCC Test Report Page 25 of 26 Main Control Board (Solder Side) RF Module (ROBOT, Component Side) Report No.: 0A110701F FCC ID: MRISI583 Interocean EMC Technology Corp. FCC Test Report Page 26 of 26 RF Module (ROBOT, Solder Side)

Report No.: 0A110701F FCC ID: MRISI583 Interocean EMC Technology Corp. FCC Test Report Page 1 of 26 Test Report (Declaration of Conformity) for Electromagnetic Interference of E.U.T.: ROBOT 2000 Trade Name: STL Model Number: SI583 Prepared for STL Electronics Limited 16D, CDW Building, 388 Castle Peak Road, Tsuen Wan, Hong Kong TEL: +852 2499 8911 FAX: +852 2413 6035 Prepared by Interocean EMC Technology Corp. No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL.+886 2 2600 6861 FAX.+886 2 2600 6859 NVLAP LAB. Code: 200458-0 Caution 1. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. 2. No Single part of this report may be reproduced without written permission from Interocean EMC Technology Corp. 3. This test data is traceable to National or International Standards. Report No.: 0A110701F FCC ID: MRISI583 Interocean EMC Technology Corp. FCC Test Report Page 2 of 26 Table of Contents 1 General Information 4 1.1 Description of Equipment Under Test 4 1.2 Tested Supporting System Detail 5 Do not Support system. 5 1.3 Test Facility 6 2 Power Line Conducted Emission Measurement 7 2.1 Instrument 7 2.2 Block Diagram of Test Configuration 7 2.3 Conducted Limit 8 2.4 Instrument configuration 8 2.5 Measured Mode 8 2.6 Configuration of Measurement 8 2.7 Configuration of EUT 8 2.8 Test Result 8 3 Radiated Emission Measurement 12 3.1 Instrument 12 3.2 Block Diagram of Test Configuration 12 3.3 Radiated Limit 13 3.4 Instrument configuration 13 3.5 Measured Mode 13 3.6 Configuration of Measurement 13 3.7 Configuration of EUT 13 3.8 Test Result 14 4 Frequency Measurements 17 4.1 Instrument 17 4.2 Measurement Operating Frequency 17 4.3 Measurement Frequency Stability vs. Temperature 17 5 Occupied Bandwidth Measurements 18 5.1 Instrument 18 5.2 Instrument configuration 18 5.3 Result 18 6 Photographs of Measurement 20 6.1 Power Line Conducted Emission Measurement 20 6.2 Radiated Emission Measurement 21 7 Photographs of EUT 23 Report No.: 0A110701F FCC ID: MRISI583 Interocean EMC Technology Corp. FCC Test Report Page 4 of 26 1 General Information 1.1 Description of Equipment Under Test Equipment Under Test : ROBOT 2000 Model Number : SI583 Serial Number : N/A Type of Sample Tested : Proto-type, Pre-production, Mass Production Applicant : STL Electronics Limited 16D, CDW Building, 388 Castle Peak Road, Tsuen Wan, Hong Kong Manufacturer : STL Electronics Limited Block 15, Huang Gong Industrial Area, Huang Gong, Fu Tian, Shenzhen, P.R.C. Power Supply : AC/DC Adapter M/N: MEC-B5678 Input: 120Vac, 100mA, 60Hz Output: 15Vdc, 700mA Cable: Non-Shielded, Un-detachable, 1.8m Data Cable : N/A Date of Receipt of Sample : Nov. 07, 2000 Date of Test : Nov. 10 ~ Dec. 22, 2000 Description of E.U.T. : The EUT is ROBOT. The ROBOT device can be controlled with a wireless remote system. The power system is used rechargeable battery. This wireless system is multi-functional. It provides not only with control signal but also voice, audio and video signal. There are two frequencies for communication: 1) 2.4 GHz for audio and video data transmission. There are two channel from ROBOT sent to signal: a) 2.411 GHz b) 2.453 GHz 2) 900 MHz for voice transmission. There are 3 channel from ROBOT & Remote Controller: ROBOT Channel 1 903.00 Channel 2 903.75 Channel 3 904.50 Report No.: 0A110701F FCC ID: MRISI583 Interocean EMC Technology Corp. FCC Test Report Page 5 of 26 1.2 Tested Supporting System Detail Do not Support system. Report No.: 0A110701F FCC ID: MRISI583 Interocean EMC Technology Corp. FCC Test Report Page 6 of 26 1.3 Test Facility Site Description : OATS 1 OATS 2 Name of Firm : Interocean EMC Technology Corp. Site Location : No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. Site Filing : ??Federal Communication Commissions – USA Registration No.: 96399 ??Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Registration No. (Conducted Room): C-1094 Registration No. (OATS 1): R-1040 Registration No. (OATS 2): R-1041 Site Accreditation : ??Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS13438 / CISPR22 SL2-A1-E-0026 for CNS13783-1 / CISPR14 ??National Voluntary Laboratory Accreditation Program (NVLAP) - USA Lab Code: 200458-0 ??NEMKO ELA 181 1.3.1 Test Methodology Both conducted and Radiated Emission Measurement was performed according to the procedures in ANSI C63.4-1992 and Part 15 subpart C. Radiated Emission Measurement was performed at 3 meters distance from antenna to EUT. 1.3.2 Measurement Uncertainty The uncertainty is calculated in accordance with NAMAS document NIS 81. Conducted Uncertainty Uc = 2.96dB. Radiated Uncertainty Uc = 3.67dB. Report No.: 0A110701F FCC ID: MRISI583 Interocean EMC Technology Corp. FCC Test Report Page 7 of 26 2 Power Line Conducted Emission Measurement 2.1 Instrument Instrument Manufacturer Model Serial No. Last Calibration EMI Test Receiver Rohde & Schwarz ESCS 30 830245/027 2000/07/26 L.I.S.N. Schwarzbeck NNLK8121 8121417 2000/09/08 L.I.S.N. Rohde & Schwarz ESH3-Z5 829996/016 2000/06/16 Pulse Limiter Rohde & Schwarz ESH3-Z2 830836/026 2000/07/29 RF Cable IETC CBL04 N/A 2000/10/11 Note: All instrument upon which need to calibrated are with calibration period of 1 year. 2.2 Block Diagram of Test Configuration Configuration of Testing Setup Configuration of EUT Setup H.C. V.C. EU LISN 40c 80c ROBOT Adaptor Report No.: 0A110701F FCC ID: MRISI583 Interocean EMC Technology Corp. FCC Test Report Page 8 of 26 2.3 Conducted Limit FCC Part 15 Class B Frequency (MHz) uV dBuV 0.45 ~ 1.705 250 48 1.705 ~ 30 250 48 2.4 Instrument configuration 2.4.1 The EMI test receiver frequency range set from 450 KHz to 30 MHz. 2.4.2 The EMI test receiver bandwidth set at 9kHz. 2.4.3 The EMI test receiver detector set as Quasi-Peak (Q.P.). 2.5 Measured Mode 2.5.1 The test mode for preliminary test as following: M…

Text truncated - open the document above for the full version.

Report No.: 0A110701F FCC ID: MRISI583 Interocean EMC Technology Corp. FCC Test Report Page 20 of 26 6 Photographs of Measurement 6.1 Power Line Conducted Emission Measurement Front View (ROBOT) Rear View (ROBOT) Report No.: 0A110701F FCC ID: MRISI583 Interocean EMC Technology Corp. FCC Test Report Page 21 of 26 6.2 Radiated Emission Measurement Front View (ROBOT, 30~1000MHz) Rear View (ROBOT, 30~1000MHz) Report No.: 0A110701F FCC ID: MRISI583 Interocean EMC Technology Corp. FCC Test Report Page 22 of 26 Front View (ROBOT, 1000MHz above) Rear View (ROBOT, 1000MHz above)
