MRISI583RRemote Controller for ROBOT Toy

FCC ID: MRISI583R FCC ID: MRISI583R FCC ID: MRISI583 &

FCC ID: MRISI583R FCC ID: MRISI583R FCC ID: MRISI583 & FCC ID: MRISI583 & MRISI583R Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

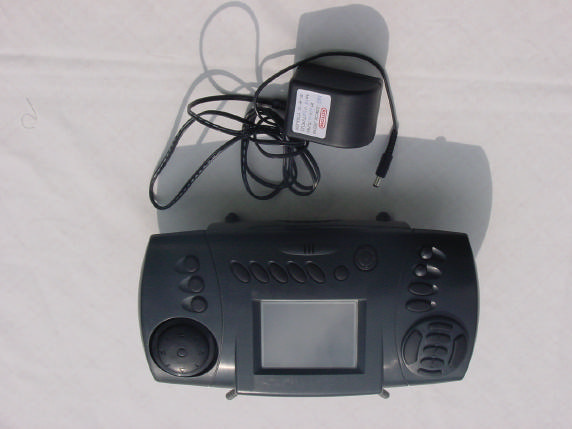

Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 22 of 28 7 Photographs of EUT Front View of Appearance (Remote Controller) Rear View of Appearance (Remote Controller)

FCC ID:MRISI583 & MRISI583R Remote Controller FCC ID: MRISI583R

FCC ID:MRISI583 & MRISI583R Remote Controller FCC ID: MRISI583R

FCC ID:MRISI583 & MRISI583R Remote Controller FCC ID: MRISI583R

Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 23 of 28 Inside Configuration Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 24 of 28 LCD Panel (Rear) LCD Panel (Front) Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 25 of 28 LCD Control Board (Solder Side) LCD Control Board (Component Side) Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 26 of 28 RF Module – Audio & Video (Remote Controller, Component Side) RF Module – Audio & Video (Remote Controller, Solder Side) Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 27 of 28 RF Module – Data & Voice (Remote Controller, Component Side) RF Module – Data & Voice (Remote Controller, Solder Side) Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 28 of 28 Keypad (Component Side) Keypad (Solder Side)

Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 1 of 28 Test Report (Declaration of Conformity) for Electromagnetic Interference of E.U.T.: ROBOT 2000 Remote Controller Trade Name: STL Model Number: SI583R Prepared for STL Electronics Limited 16D, CDW Building, 388 Castle Peak Road, Tsuen Wan, Hong Kong TEL: +852 2499 8911 FAX: +852 2413 6035 Prepared by Interocean EMC Technology Corp. No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL.+886 2 2600 6861 FAX.+886 2 2600 6859 NVLAP LAB. Code: 200458-0 Caution 1. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. 2. No Single part of this report may be reproduced without written permission from Interocean EMC Technology Corp. 3. This test data is traceable to National or International Standards. Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 2 of 28 Table of Contents 1 General Information 4 1.1 Description of Equipment Under Test 4 1.2 Tested Supporting System Detail 5 Do not Support system. 5 1.3 Test Facility 6 2 Power Line Conducted Emission Measurement 7 2.1 Instrument 7 2.2 Block Diagram of Test Configuration 7 2.3 Conducted Limit 8 2.4 Instrument configuration 8 2.5 Measured Mode 8 2.6 Configuration of Measurement 8 2.7 Configuration of EUT 8 2.8 Test Result 8 3 Radiated Emission Measurement 12 3.1 Instrument 12 3.2 Block Diagram of Test Configuration 12 3.3 Radiated Limit 13 3.4 Instrument configuration 13 3.5 Measured Mode 13 3.6 Configuration of Measurement 13 3.7 Configuration of EUT 13 3.8 Test Result 14 4 Frequency Measurements 17 4.1 Instrument 17 4.2 Measurement Operating Frequency 17 4.3 Measurement Frequency Stability vs. Temperature 17 5 Occupied Bandwidth Measurements 18 5.1 Instrument 18 5.2 Instrument configuration 18 5.3 Result 18 6 Photographs of Measurement 19 6.1 Power Line Conducted Emission Measurement 19 6.2 Radiated Emission Measurement 20 7 Photographs of EUT 22 Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 4 of 28 1 General Information 1.1 Description of Equipment Under Test Equipment Under Test : ROBOT 2000 Remote Controller Model Number : SI583R Serial Number : N/A Type of Sample Tested : Proto-type, Pre-production, Mass Production Applicant : STL Electronics Limited 16D, CDW Building, 388 Castle Peak Road, Tsuen Wan, Hong Kong Manufacturer : STL Electronics Limited Block 15, Huang Gong Industrial Area, Huang Gong, Fu Tian, Shenzhen, P.R.C. Power Supply : AC/DC Adapter M/N: MEC-B5678 Input: 120Vac, 100mA, 60Hz Output: 15Vdc, 700mA Cable: Non-Shielded, Un-detachable, 1.8m Data Cable : N/A Date of Receipt of Sample : Nov. 07, 2000 Date of Test : Nov. 10 ~ Dec. 22, 2000 Description of E.U.T. : The EUT is ROBOT remote controller for ROBOT 2000. The power system is used rechargeable battery. This wireless system is multi-functional. It provides only with control signal. There are three channel for communication: 1) 900 MHz for data transmission. There are 3 channel from Remote Controller: Remote Controller Channel 1 925.50 Channel 2 926.25 Channel 3 927.00 Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 5 of 28 1.2 Tested Supporting System Detail Do not Support system. Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 6 of 28 1.3 Test Facility Site Description : OATS 1 OATS 2 Name of Firm : Interocean EMC Technology Corp. Site Location : No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. Site Filing : ??Federal Communication Commissions – USA Registration No.: 96399 ??Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Registration No. (Conducted Room): C-1094 Registration No. (OATS 1): R-1040 Registration No. (OATS 2): R-1041 Site Accreditation : ??Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS13438 / CISPR22 SL2-A1-E-0026 for CNS13783-1 / CISPR14 ??National Voluntary Laboratory Accreditation Program (NVLAP) - USA Lab Code: 200458-0 ??NEMKO ELA 181 1.3.1 Test Methodology Both conducted and Radiated Emission Measurement was performed according to the procedures in ANSI C63.4-1992 and Part 15 subpart C. Radiated Emission Measurement was performed at 3 meters distance from antenna to EUT. 1.3.2 Measurement Uncertainty The uncertainty is calculated in accordance with NAMAS document NIS 81. Conducted Uncertainty Uc = 2.96dB. Radiated Uncertainty Uc = 3.67dB. Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 7 of 28 2 Power Line Conducted Emission Measurement 2.1 Instrument Instrument Manufacturer Model Serial No. Last Calibration EMI Test Receiver Rohde & Schwarz ESCS 30 830245/027 2000/07/26 L.I.S.N. Schwarzbeck NNLK8121 8121417 2000/09/08 L.I.S.N. Rohde & Schwarz ESH3-Z5 829996/016 2000/06/16 Pulse Limiter Rohde & Schwarz ESH3-Z2 830836/026 2000/07/29 RF Cable IETC CBL04 N/A 2000/10/11 Note: All instrument upon which need to calibrated are with calibration period of 1 year. 2.2 Block Diagram of Test Configuration Configuration of Testing Setup Configuration of EUT Setup H.C. V.C. EU LISN 40c 80c Remote Controller Adaptor Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 8 of 28 2.3 Conducted Limit FCC Part 15 Class B Frequency (MHz) uV dBuV 0.45 ~ 1.705 250 48 1.705 ~ 30 250 48 2.4 Instrument configuration 2.4.1 The EMI test receiver frequency range set from 450 KHz to 30 MHz. 2.4.2 The EMI test receiver bandwidth set at 9kHz. 2.4.3 The EMI test receiver detector set as Quasi-Peak (Q.P.). 2.5 Measured Mode 2.5.1 The test mode for preliminary test as following: Mode 1: Remote Controller 2.5.2 Selected the worst case mode when after preliminary test for final test, the mode as following: Mode 1: Remote C…

Text truncated - open the document above for the full version.

Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 19 of 28 6 Photographs of Measurement 6.1 Power Line Conducted Emission Measurement Front View (Remote Controller) Rear View (Remote Controller) Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 20 of 28 6.2 Radiated Emission Measurement Front View (Remote Controller, 30~1000MHz) Rear View (Remote Controller, 30~1000MHz) Report No.: 0A110701F FCC ID: MRISI583R Interocean EMC Technology Corp. FCC Test Report Page 21 of 28 Front View (Remote Controller, 1000MHz above) Rear View (Remote Controller, 1000MHz above)
