MTHWN900RFID-ADual Channel RF/ ID Reader

MODEL WN900RFID-A DUAL CHANNEL RF/ID READER USER MANUAL © 1997 WaveNet International Inc. All rights reserved. WaveNet International Inc. reserves the right to amend the contents of this guide at any time to reflect product development and product improvements. Regulations and Approvals This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. The equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the proper instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area will cause harmful interference, in which case the user will be required to correct the interference at the user’s own expense. All external cables must be shielded to ensure compliance with the Class A FCC limits. In situations where the user elects to install WaveNet specified equipment including high gain antenna kits, the user will be responsible for adhering to all pertinent FCC, fire and safety/building code regulations pertaining to the installation. WARNING: Changes or modifications to the equipment, not expressly approved by WaveNet International Inc. could void the user’s authority to operate the equipment and void the warranty. For more information on regulatory approvals, contact your local WaveNet representative. RF EXPOSURE WARNING In order to ensure user safety and to satisfy RF exposure requirements for mobile transmitting devices, a minimum separation distance of 50 cm. (20 inches) must be maintained between the transmitting device and the user (or other nearby persons) during device operation. Operation at smaller separation distances is not recommended. ANTENNA GAIN The maximum gain of an antenna connected to the Model WN900RFID-A must not exceed 9.5dbi Technical Description The Dual Channel RF/ID Reader is designed to read AAR (Association of American Railroads) transponder tags operating in the frequency range 902 - 904mhz and 909.75 – 921.75 mhz. The maximum R.F. power output measured at the transmitter is 1 Watt. The RF module is composed of an RF oscillator, RF amplifier, a homodyne receiver and a video amplifier. The RF module is responsible for transmitting and receiving radio energy. This energy is transmitted through the antenna and the RF energy reflected by the tag is also received by the same antenna. The RF module transmits a single frequency of RF energy and receives that same frequency after it is reflected by the tag. The homodyne receiver is used to separate the transmitted continuous wave energy from the information reflected by the tag. The reflected energy from the tag is encoded into 20 and 40 Khz signals which modulate the RF energy reflected by the tag. Installation The Model WN900RFID-A is a completely self-contained AEI (Automatic Equipment Identification) tag reader. The module should be installed in a sealed enclosure and connected to a directional antenna having a gain of no greater than 9.5 dbi using low loss 50 ohm cable. The module requires a power source of 12 to 16 volts at 1 amp. (max). and communicates with an external controller on a RS-232 serial channel. Power and serial input/output signals are available on connector J11: Pin no. Signal 1 +12v 2 +12v 3 +12v 4 n/c 5 Transmit data 6 Gnd 7 Receive data 8 Gnd 9 Gnd 10 Gnd The power/communication cable must be shielded and a ferrite block (part no. Steward S28A2025-0A0) should be installed close to J11 for FCC/IC compliance. If Wheel sensors and Track switch sensors are to be connected, use only WaveNet supplied shielded and filtered cables.

November 11, 2002 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Type Acceptance Application under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 903-921 MHz. Applicant: WaveNet International Inc. Product: Dual Channel RF/ID Reader Model: WN900RFID-A FCC ID: MTHWN900RFID-A Dear Sir/Madam, As appointed agent for WaveNet International Inc., we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all necessary files uploaded to FCC OET site. This application is for Modular Approval of the above device for OEM integration only, using antenna with a 9.5 dBi or lower gain for mobile/base and fixed station devices. Devices operating with this module shall be installed to provide a separation distance of 50 cm or more between the antenna and persons for satisfying the mobile transmitter requirements of section 2.1091. OEM integrators and end-users shall be provided with appropriate instructions for satisfying RF exposure compliance. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.: 1-877-747-6381 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

«Report_Date» FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Authority to Act as an Agent to FCC Applicant: WaveNet International Inc. Product: Dual Channel RF/ID Reader Model: WN900RFID-A FCC ID: MTHWN900RFID-A Dear Sir/Madam, I hereby appoint UltraTech Engineering Labs Inc. (UltraTech) to act as my agent in preparation of this application to F.C.C. for authourization of equipment under F.C.C. Rules. I also certify that the information provided, properly described the device or system for which authourization is required. Regards (V.Sondhi) 5825 Kennedy Road, Mississauga, Ontario, Canada L4Z 2G3 Tel : (905) 712 4700 Fax : (905) 712 4703 e-m a il : wa ve net@wa ve net-rf.c om www.wa venet-rf.c om WaveNet International, Inc

OCTOBER 21, 2002 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Request for withholding from public disclosure the schematic diagrams and system block diagrams pursuant to an application for certification. Applicant: WaveNet International Inc. Product: Dual Channel RF/ID Reader Model: WN900RFID-A FCC ID: MTHWN900RFID-A Dear Sir/Madam, We, , would like to request that the schematic diagrams, parts list, system block diagrams and Technical Decription, submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission's Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize as a withholding from public inspection materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any queries, please do not hesitate to contact us by our TOLL FREE numbers: OUR TELEPHONE NO.: (905) 712-4700 Yours truly, (V.Sondhi) 5825 Kennedy Road, Mississauga, Ontario, Canada L4Z 2G3 Tel : (905) 712 4700 Fax : (905) 712 4703 e-m a il : wa ve net@wa ve net-rf.c om www.wa venet-rf.c om WaveNet International, Inc

DUAL RF/ID READER FCC/IC LABEL WaveNet™ Mississauga, Ont., L4Z 2G3 Dual Channel RF/ID Reader Serial No. Model WN900RFID-A FCC ID: MTHWN900RFID-A IC: 2516A-900RFIDA This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and; (2) this device must accept any interference received including interference that may cause undesired operation. Made in Canada by WaveNet 5 5 4 4 3 3 2 2 1 1 DD CC BB AA DUAL CHANNEL RF/ID READER BOTTOM CHASSIS FCC ID LABEL xxx1 DUAL CHANNEL RF/ID READER FCC/IC LABEL LOCATION A 11Tuesday, November 05, 2002 Title SizeDocument NumberRev Date:Sheetof SAMPLE EXTERIOR LABEL FOR ENCLOSED MODULE WaveNet™ Mississauga, Ont., L4Z 2G3 RF/ID ANTENNA MODULE Serial No. Model TRA Contains transmitter module: FCC ID :MTHWN900RFID-A IC: 2516A-900RFIDA This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and; (2) this device must accept any interference received including interference that may cause undesired operation. Made in Canada by WaveNet

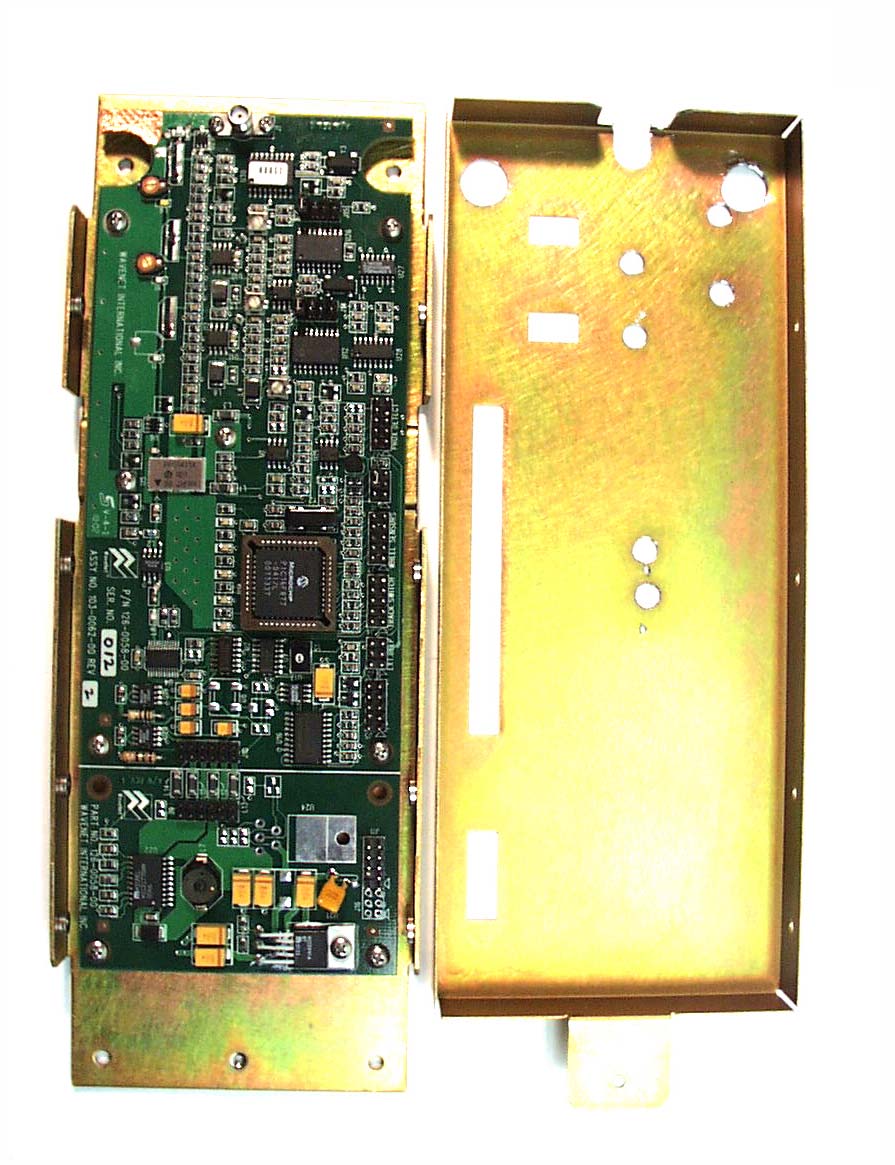

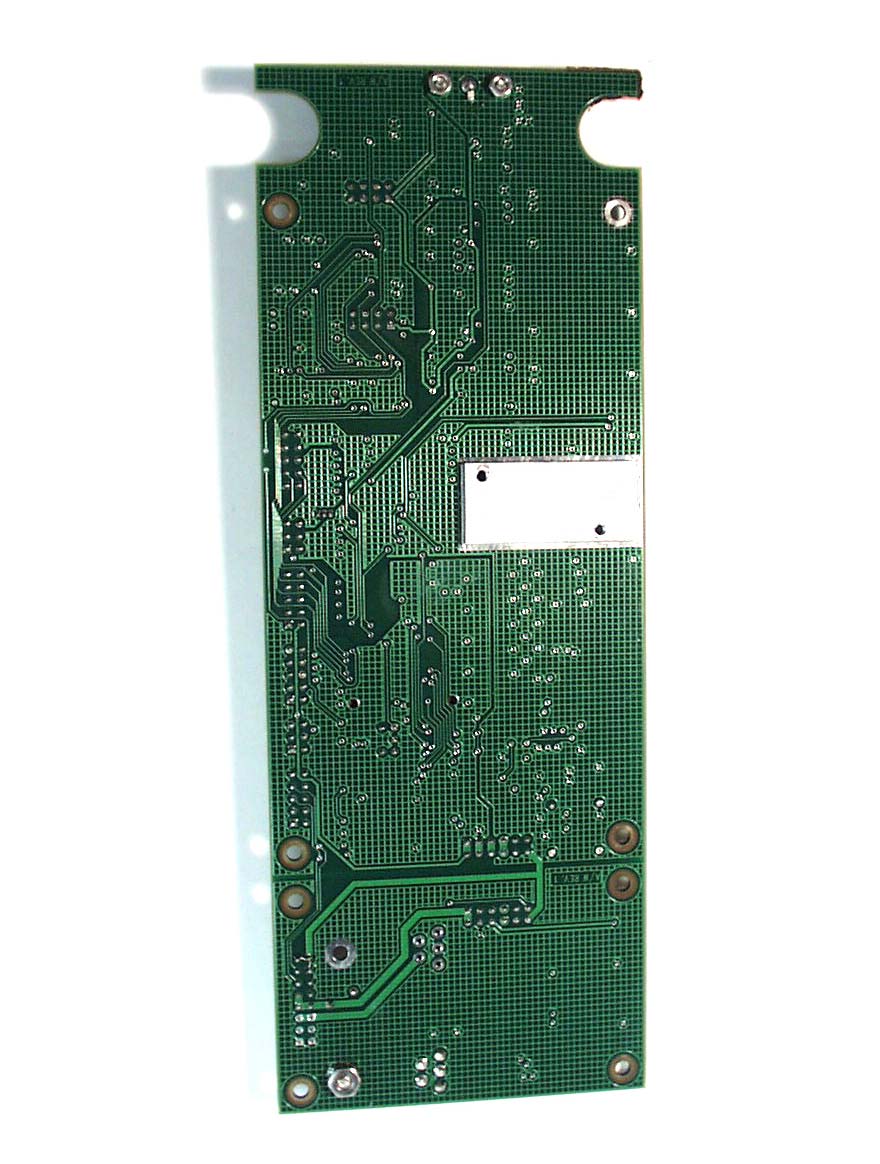

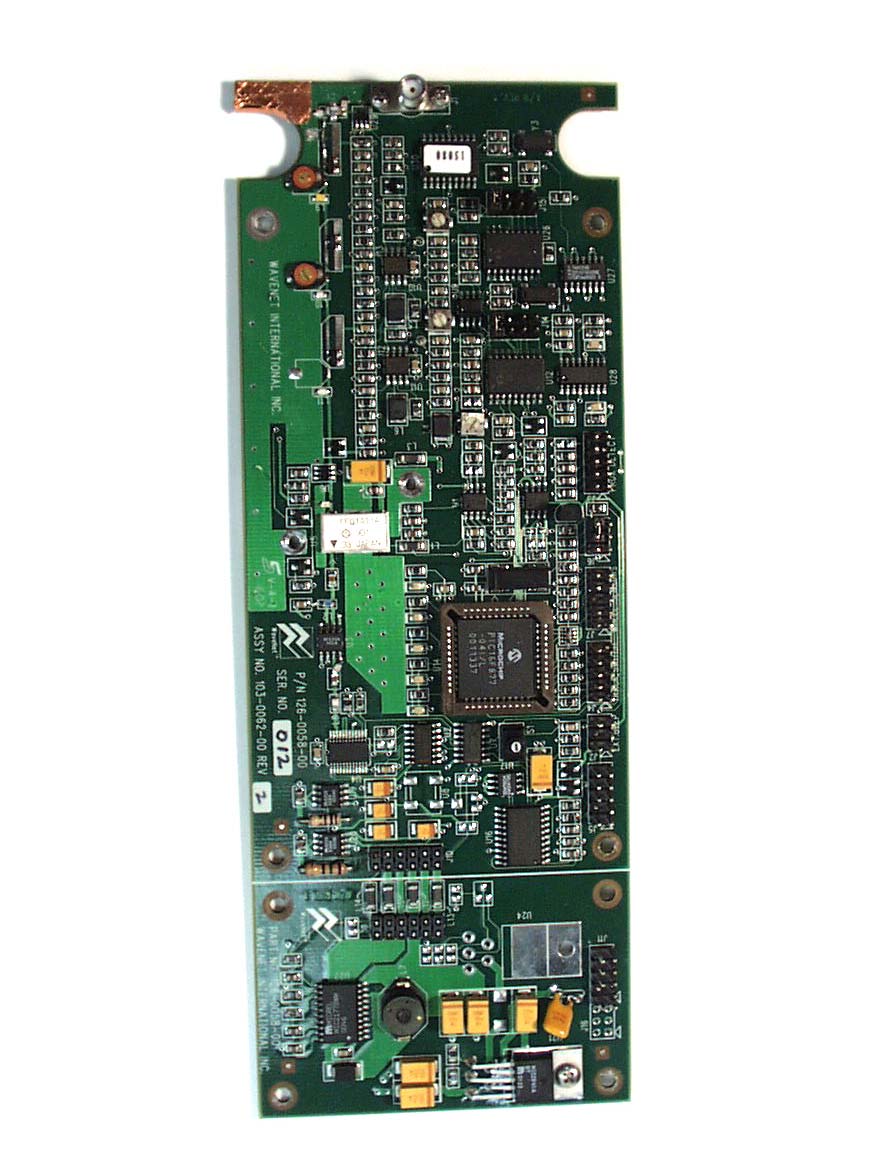

ANNEX 4 – INTERNAL EUT PHOTOS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A4 - 1 ANNEX 4 – INTERNAL EUT PHOTOS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A4 - 2 ANNEX 4 – INTERNAL EUT PHOTOS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A4 - 3 ANNEX 4 – INTERNAL EUT PHOTOS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A4 - 4

© 1997 WaveNet International Inc. All rights reserved. WaveNet International Inc. reserves the right to amend the contents of this guide at any time to reflect product development and product improvements. Regulations and Approvals This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. The equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the proper instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area will cause harmful interference, in which case the user will be required to correct the interference at the user’s own expense. All external cables must be shielded to ensure compliance with the Class A FCC limits. In situations where the user elects to install WaveNet specified equipment including high gain antenna kits, the user will be responsible for adhering to all pertinent FCC, fire and safety/building code regulations pertaining to the installation. WARNING: Changes or modifications to the equipment, not expressly approved by WaveNet International Inc. could void the user’s authority to operate the equipment and void the warranty. For more information on regulatory approvals, contact your local WaveNet representative. RF EXPOSURE WARNING In order to ensure user safety and to satisfy RF exposure requirements for mobile transmitting devices, a minimum separation distance of 50 cm. (20 inches) must be maintained between the transmitting device and the user (or other nearby persons) during device operation. Operation at smaller separation distances is not recommended. ANTENNA GAIN The maximum gain of an antenna connected to the Model WN900RFID-A must not exceed 9.5dbi

Dual Channel RF/ID Reader Model No.: WN900RFID-A FCC ID: MTHWN900RFID-A Applicant: WaveNet International Inc. 5825 Kennedy Road Mississauga, Ontario Canada, L4Z 2G3 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, PARTS 2 and 90 (Subpart I) UltraTech's File No.: WTI-020F90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: November 11, 2002 Report Prepared by: Dan Huynh Tested by: Mr. Hung Trinh, EMI/RFI Technician Issued Date: November 11, 2002 Test Dates: October 2-3, 6-7, 2002 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 00-034 FCC Parts 2 & 90, Subpart I, Non-Broadcast Radio Transceivers Contents i Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A ULTRATECH GROUP OF LABS File #: WTI-020F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 11, 2002 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST...................................................................................................................... 1 EXHIBIT 2. INTRODUCTION ....................................................................................................................................... 2 2.1. SCOPE....................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 2 2.3. NORMATIVE REFERENCES ................................................................................................................................. 2 EXHIBIT 3. PERFORMANCE ASSESSMENT ............................................................................................................ 3 3.1. CLIENT INFORMATION ........................................................................................................................................... 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION.................................................................................................... 3 3.3. EUT’S TECHNICAL SPECIFICATIONS................................................................................................................ 4 3.4. LIST OF EUT’S PORTS................................................................................................................................................ 4 3.5. ANCILLARY EQUIPMENT............................................................................................................................................. 5 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................. 6 4.1. CLIMATE TEST CONDITIONS........................................................................................................................................ 6 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS..................................................................... 6 EXHIBIT 5. SUMMARY OF TEST RESULTS ............................................................................................................. 7 5.1. LOCATION OF TESTS ............................................................................................................................................ 7 5.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS................................................................................... 7 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES.................................................................. 7 5.4. DEVIATION OF STANDARD TEST PROCEDURES ...........................................................................................7 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS............................. 8 6.1. TEST PROCEDURES..................................................................................................................................................... 8 6.2. MEASUREMENT UNCERTAINTIES................................................................................................................................. 8 6.3. MEASUREMENT EQUIPMENT USED...............................................................................................................................8 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER...................................... 8 6.5. RF POWER OUTPUT @ FCC 2.1046 & 90.205 ............................................................................................................. 9 6.5.1. Limits @ FCC 90.205 ........................................................................................................................................ 9 6.5.2. Method of Measurements................................................................................................................................... 9 6.5.3. Test Equipment List ........................................................................................................................................... 9 6.5.4. Test Arrangement .....................................................................................................................................…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST DATA PLOTS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A1 - 1 Plot # 1 99 % Occupied Bandwidth Carrier Frequency: 903 MHz Power: 1 W Modulation: None ANNEX 1 - TEST DATA PLOTS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A1 - 2 Plot # 2 99% Occupied Bandwidth Carrier Frequency: 915 MHz Power: 1 W Modulation: None ANNEX 1 - TEST DATA PLOTS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A1 - 3 Plot # 3 99% Occupied Bandwidth Carrier Frequency: 921 MHz Power: 1 W Modulation: None ANNEX 1 - TEST DATA PLOTS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A1 - 4 Plot # 4 20dB Occupied Bandwidth Carrier Frequency: 903 MHz Power: 1 W Modulation: None ANNEX 1 - TEST DATA PLOTS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A1 - 5 Plot # 5 20dB Occupied Bandwidth Carrier Frequency: 915 MHz Power: 1 W Modulation: None ANNEX 1 - TEST DATA PLOTS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A1 - 6 Plot # 6 20dB Occupied Bandwidth Carrier Frequency: 921 MHz Power: 1 W Modulation: None ANNEX 1 - TEST DATA PLOTS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A1 - 7 Plot # 7 Emission Mask K – Non-Multilateration Transmitter Carrier Frequency: 903 MHz Power: 1 W Modulation: None ANNEX 1 - TEST DATA PLOTS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A1 - 8 Plot # 8 Emission Mask K – Non-Multilateration Transmitter Carrier Frequency: 915 MHz Power: 1 W Modulation: None ANNEX 1 - TEST DATA PLOTS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A1 - 9 Plot # 9 Emission Mask K – Non-Multilateration Transmitter Carrier Frequency: 921 MHz Power: 1 W Modulation: None ANNEX 1 - TEST DATA PLOTS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A1 - 10 Plot # 10 Spurious Emissions at Antenna Terminals Carrier Frequency: 903 MHz Power: 29.70 dBm Modulation: None ANNEX 1 - TEST DATA PLOTS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A1 - 11 Plot # 11 Spurious Emissions at Antenna Terminals Carrier Frequency: 903 MHz Power: 29.70 dBm Modulation: None ANNEX 1 - TEST DATA PLOTS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A1 - 12 Plot # 12 Spurious Emissions at Antenna Terminals Carrier Frequency: 915 MHz Power: 29.10 dBm Modulation: None ANNEX 1 - TEST DATA PLOTS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A1 - 13 Plot # 13 Spurious Emissions at Antenna Terminals Carrier Frequency: 915 MHz Power: 29.10 dBm Modulation: None ANNEX 1 - TEST DATA PLOTS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A1 - 14 Plot # 14 Spurious Emissions at Antenna Terminals Channel Spacing: 12.5 kHz Power: 28.80 dBm Modulation: None ANNEX 1 - TEST DATA PLOTS WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A1 - 15 Plot # 15 Spurious Emissions at Antenna Terminals Carrier Frequency: 921 MHz Power: 28.80 dBm Modulation: None

ANNEX 2 - TEST SETUP PHOTOS (Radiated Emissions at 3 Meters Distance) WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A2 - 1 ANNEX 2 - TEST SETUP PHOTOS (Radiated Emissions at 3 Meters Distance) WaveNet International Inc. Dual Channel RF/ID Reader, Model WN900RFID-A FCC ID: MTHWN900RFID-A A2 - 2
