MU7FPCWL02Spread Spectrum Transceiver

This getting started guide contains information on using your Bluetooth TM Modem Station hard- ware and software with a Bluetooth PC Card. We strongly recommend that you read this guide before using the device, even if you are already familiar with Bluetooth technology and personal computers. INSTRUCTIONS Bluetooth ™ Modem Station Getting Started Guide Fujitsu PC Corporation 2 Special Notices Electrical Information The Fujitsu Modem Station could malfunction in the event of a change in voltage due to electrical disturbance. To protect against voltage sag, use of an uninterruptible power supply (UPS) is recommended. The frequency band used for the Modem Station is the same as for some types of industrial, scientific, and medical equipment, including microwave ovens, as well as on- premises radio stations (subject to a license) for identifica- tion of mobile units, e.g., radio stations installed in produc- tion lines in factories, and other application-specific low- output radio stations (not subject to a license). In the event the Modem Station causes radio interference to an on-premises radio station for identification of mobile units, immediately change the frequency used or break off connection, and consult FM Information Service about preventive measures against radio interference (for example, installation of partitions). If you have a problem with the Modem Station, such as radio interference to an application-specific low-output radio station for identification of mobile units, contact FM Information Service for help. Safety Instructions This section provides information that you must follow to avoid personal injury or damage to property when using the 3 Modem Station. Before reading this guide, read the following information thoroughly.
Do not install the Modem Station near medical elec- tronic equipment.
Don’t use the Modem Station near an automatic door or fire alarm, otherwise radio waves transmitted by the Modem Station could affect its automatic control unit.
Do not insert or pull out the AC adapter with a wet hand.
Insert the AC adapter firmly as far as it will go. If not, this may cause an electric shock or a fire due to heat generation.
Pull out the AC adapter immediately when you find any abnormality. Do not use the Modem Station in the abnormal conditions, e.g., the unit is damaged, a foreign smell is given off, a foreign substance is put in the unit, smoke is emitted, or the unit is heated excessively. This may cause a fire or electric shock.
Do not cover or enclose the AC adapter in use. The accumulated heat may cause a fire.
Do not exceed the rating of a wall outlet or wiring acces- sories or use voltages other than 100 VAC.
If you do not use the AC adapter for a long time, pull out the plug.
Never disassemble, repair, or modify the unit. Touching internal components could cause you to get an electric shock. 4 Do not leave the unit in the following places:
Where it is subject to excessive moisture, dust, heat, or cold
On an unstable surface
Where it is subject to mechanical shock During communication
You can call up or be called up on the telephone connected to the Modem Station irrespective of whether the power to the personal computer or the Modem Station is turned on or off. The telephone also functions as a message phone. However, it cannot be used during communication using the Modem Station.
When multiple computers have been registered in one Modem Station, only one personal computer can be used at a time for communications.
When a communications application can not be termi- nated normally, confirm that the status indicator lamps (“OFF HOOK” and “CONNECT”) of the Modem Station go off. If they do not go off, turn off the power switch once and turn it on again. (Telephone charges will accrue if the “OFF HOOK” and “CONNECT” lamps remain lit.)
Avoid using the unit for extended periods of time. 5 This chapter describes basic matters that you should fully understand before performing communications using the Modem Station. Before proceeding, be sure to carefully review the important safety information starting on page page 2. Verification of Connector Type Before connecting the Modem Station, verify the connector to which you will connect is one of the types shown below. Figure 1. Jack Configurations Modular Jack Rosette 3-Terminal Jack 4-Terminal Jack Getting Started 6 Make a change as described below when the line branch point used is other than a modular jack. - For rosette Replace the line branch point with a modular jack. - For three- or four-terminal jack Replace the line branch point with a modular jack or use a commercial conversion adapter for connection with a modular plug as shown below. Figure 2. Conversion Adapter Using the Modem Station in conjunction with a Bluetooth PC Card, you can browse Web pages or send and receive e- mail by connecting wirelessly to the Internet. You can also send or receive faxes using commercial fax software. Using the Modem Station 7 Wireless communications can be performed via an analog line when a Bluetooth PC Card is used together with the Modem Station. Figure 3. Connecting with an Analog line Analog Line Modem Station Computer containing Bluetooth Card Wireless Communication 8 Items included with the Modem Station Make sure all the following items are contained in the package. If any item is missing or damaged, contact your reseller immediately. Figure 4. Contents of Modem Station Package Modem Station AC Adapter Serial Cable Modem Setup Tool Disk Warranty Card Modular Cable Mounting Screws User’s GuideNetwork List 9 Names and functions of the parts Figure 5. Fujitsu Modem Station Status indicator lamps Note that all lamps blink for a few seconds when the power is turned first on. POWER: Lights while power to this unit is on. OFF HOOK: Lights from the time that you start the connec- tion (you begin to call up a provider) until you disconnect the line. CONNECT: Lights from the time you call …

Text truncated - open the document above for the full version.

System block diagram Bluetooth TM Chip Flash Memory Tx Balun Low Noise Amplifier Tx/Rx RF Switch Band Pass Filter Crystal Power Amplifier Power Control Switch Control Data Address Tx ARx PCMCIA Connector Antenna Tx B PCMCIA - UART Interface ASI C Serial EEPROM Crystal

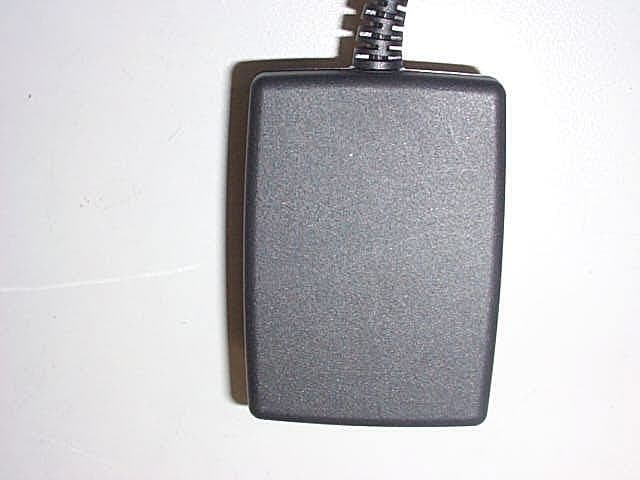

Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management GroupPage 28 of 39 Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. ATTACHMENT N – EXTERNAL PHOTOS EUT: FPCWL02(1) EUT: FPCWL02(2) Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management GroupPage 29 of 39 Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. EUT: FPCWL02(3) EUT: FPCWL02(4) Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management GroupPage 30 of 39 Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. EUT: FPCWL02(5) AC/DC Adapter (1) Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management GroupPage 31 of 39 Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. AC/DC Adapter (2) AC/DC Adapter (3) Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management GroupPage 32 of 39 Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. AC/DC Adapter (4)

Test Report #: FUJ-0201-2871-TCBTest Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp.Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management GroupPrepared by EMC Compliance Management GroupPage Page 55 of 42 of 42 Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. ATTACHMENT P – PROPOSED FCC ID LABEL AND LOCATIONATTACHMENT P – PROPOSED FCC ID LABEL AND LOCATION In accordance with the requirements of Sections 15.19 (a), 2.925 and 2.926 of the FCC Rules, the following information will be permanently affixed to the Fujitsu PC Corp., Model FPCWL02 as shown in the photograph on this page. The Model: FPCWL02 is also a Class B computer peripheral and is therefore subject to the Declaration of Conformity (DOC) labeling requirements, shown below is the DOC label. Proposed FCC ID LabelProposed FCC ID Label Proposed FCC ID Location Fujitsu PC Corp.Model: FPCWL02FCC ID #: MU7FPCWL02 Tested To Comply With FCC Standards This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. “CAUTION: To comply with FCC RF exposure requirements, a separation distance of at least 8 inches (20cm) must be maintained between the antenna of this and all persons.”

Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management GroupPage 33 of 39 Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. ATTACHMENT O – INTERNAL PHOTOS EUT: FPCWL02 Internal(1) EUT: FPCWL02 Internal(2) Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management GroupPage 34 of 39 Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. EUT: FPCWL02 Internal(3) EUT: FPCWL02 Internal with Heatsink Removed (4) Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management GroupPage 35 of 39 Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. EUT: FPCWL02 Internal(5) EUT: FPCWL02 Radio Portion with Shield Removed(1) Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management GroupPage 36 of 39 Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. EUT: FPCWL02 Radio Portion (2) EUT: FPCWL02 Antenna (1) Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management GroupPage 37 of 39 Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. EUT: FPCWL02 Antenna (2)

Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management Group Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. OPERATIONAL DESCRIPTION TECHNICAL SPECIFICATION InterfaceLINE (modem) terminal Incorporated into the Modem Station. Data56kbps (V.90- and K56flex-compatible) FAX14.4 kbps Modular JackRJ-11 TEL terminal Modular JackRJ-11 Serial connectionRS-232C D-sub 9-pin (Not currently used; provided for future applications) Power RequirementsInput 12VDC (AC adapter, Input 100VAC, 50Hz/60Hz) Power ConsumptionApproximately 5W or less during communication. Approximately 4W or less during non-communication and power-on sequence. Approximately 3.5W or less during power-off sequence. Communication SystemBluetooth Specification Ver. 1.0B Transmission RateApproximately 720 kbps during asymmetric-type communications Approximately 430 kbps during symmetric-type communications Communication DistanceApproximately 160 feet (50m) depending upon the wave state and operating environment Output6.7dBm (maximum), Power Class 1. (The efficiency of the antenna is not contained here). Outer dimensions (W x D xApproximately 134mm x 32 mm x 110mm The Fujitsu PC Corp. Model FPCWL02 (EUT) is a free standing wireless communication device and a 56K Modem combined. The EUT consist of radio design and chips from Cambridge Technologies. The EUT has a build-in antenna within the unit. EUT provide convenient wireless connections and share one phone line without adding individual phone lines to each workstations. The radio is design in accordance with BlueTooth™ standard. The EUT, contains the following blocks: 1) 56kbps modem to connected to public telephone service, 2) Digital signal processor takes care of all modulation/demodulation for Frequency Hopping Spread Spectrum. Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management Group Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. H) Weight300g (Approximately) Operating environmentTemperature: 5°C to 35°C Humidity: 30% to 80%RH (non-condensing) Operating SystemsWindows Me, Windows 2000 and Windows 98

EMC Compliance Management Group 670 National Avenue Mountain View, CA 94043 Tel. (650) 988-0900 Fax (650) 988-6647 NVLAP Lab code: 200068-0 FCC PART 15.247 REPORT On Model: FPCWL02 Prepared for Fujitsu PC Corp. According to FCC 15.247 Requirements FCC ID #:MU7FPCWL02 Test Report #:FUJ-0201-2871-TCB Prepared by: Paul Chen i Table of ContentsTable of Contents DISCLAIMER NOTICEDISCLAIMER NOTICE__________________________________________________________________________________________11 REPRODUCTION CLAUSEREPRODUCTION CLAUSE____________________________________________________________________________________11 ADMINISTRATIVE DATAADMINISTRATIVE DATA______________________________________________________________________________________22 EUT DESCRIPTIONEUT DESCRIPTION________________________________________________________________________________________________22 TEST SUMMARYTEST SUMMARY____________________________________________________________________________________________________33 TEST LOCATIONTEST LOCATION____________________________________________________________________________________________________55 ACCREDITATION BODIESACCREDITATION BODIES____________________________________________________________________________________55 EUT EXERCISE SOFTWAREEUT EXERCISE SOFTWARE________________________________________________________________________________66 EQUIPMENT MODIFICATIONEQUIPMENT MODIFICATION______________________________________________________________________________66 TEST SYSTEM DETAILSTEST SYSTEM DETAILS________________________________________________________________________________________66 CONFIGURATION OF TESTED SYSTEMCONFIGURATION OF TESTED SYSTEM____________________________________________________________77 ATTACHMENT A – PRODUCT INFORMATIONATTACHMENT A – PRODUCT INFORMATION__________________________________________________88 ATTACHMENT B – CFR15.205 RESTRICTED BANDATTACHMENT B – CFR15.205 RESTRICTED BAND____________________________________1010 ATTACHMENT C – CFR15.203 ANTENNA REQUIREMENTATTACHMENT C – CFR15.203 ANTENNA REQUIREMENT________________________1111 ATTACHMENT D – CFR 15.247(A)(1)(II) 20DB BANDWIDTH (CONDUCTED)ATTACHMENT D – CFR 15.247(A)(1)(II) 20DB BANDWIDTH (CONDUCTED) ______________________________________________________________________________________________________________________________1212 ATTACHMENT E – CFR 15.247(A)(1) FREQUENCY SEPARATIONATTACHMENT E – CFR 15.247(A)(1) FREQUENCY SEPARATION (CONDUCTED)(CONDUCTED)____________________________________________________________________________________________________1313 ATTACHMENT F – CFR 15.247(A)(1)(II) TIME OF OCCUPANCYATTACHMENT F – CFR 15.247(A)(1)(II) TIME OF OCCUPANCY (CONDUCTED)(CONDUCTED)____________________________________________________________________________________________________1414 ATTACHMENT G – CFR15.247(B) MAXIMUM PEAK OUTPUT POWERATTACHMENT G – CFR15.247(B) MAXIMUM PEAK OUTPUT POWER MEASUREMENT (CONDUCTED)MEASUREMENT (CONDUCTED)________________________________________________________________________1616 ATTACHMENT H – CFR15.247(B)(4) RF EXPOSURE COMPLIANCEATTACHMENT H – CFR15.247(B)(4) RF EXPOSURE COMPLIANCE________1818 ATTACHMENT I – CFR15.247(C) RADIATED EMISSION MEASUREMENTATTACHMENT I – CFR15.247(C) RADIATED EMISSION MEASUREMENT 1GHZ - 25GHZ (FUNDAMENTAL AND HARMONICS)1GHZ - 25GHZ (FUNDAMENTAL AND HARMONICS)________________________________1919 ATTACHMENT I – CFR15.247 (C) RADIATED EMISSION MEASUREMENTATTACHMENT I – CFR15.247 (C) RADIATED EMISSION MEASUREMENT 1GHZ - 25GHZ (FUNDAMENTAL AND HARMONICS) (CONT.)1GHZ - 25GHZ (FUNDAMENTAL AND HARMONICS) (CONT.)________________2020 ATTACHMENT I – CFR15.247(C) RADIATED EMISSION MEASUREMENTATTACHMENT I – CFR15.247(C) RADIATED EMISSION MEASUREMENT 1GHZ - 25GHZ (FUNDAMENTAL AND HARMONICS) (CONT.)1GHZ - 25GHZ (FUNDAMENTAL AND HARMONICS) (CONT.)________________2121 ATTACHMENT J – CFR15.209(A) RADIATED EMISSION MEASUREMENTATTACHMENT J – CFR15.209(A) RADIATED EMISSION MEASUREMENT 212-R-01)212-R-01)__________________________________________________________________________________________________________2323 ATTACHMENT K - CFR15.207 (A) CONDUCTED EMISSION TEST RESULTSATTACHMENT K - CFR15.207 (A) CONDUCTED EMISSION TEST RESULTS ______________________________________________________________________________________________________________________________2727 ATTACHMENT L - TEST EQUIPMENTATTACHMENT L - TEST EQUIPMENT______________________________________________________________3030 ATTACHMENT M – LISN SPECIFICATIONSATTACHMENT M – LISN SPECIFICATIONS____________________________________________________3131 ATTACHMENT N – EXTERNAL PHOTOSATTACHMENT N – EXTERNAL PHOTOS________ERROR! BOOKMARK NOT DEFINED. Fujitsu PC Corp. FCC ID #: MU7FPCWL02Fujitsu PC Corp. FCC ID #: MU7FPCWL02 i ATTACHMENT O – INTERNAL PHOTOSATTACHMENT O – INTERNAL PHOTOS____________ERROR! BOOKMARK NOT DEFINED. ATTACHMENT P – PROPOSED FCC ID LABEL AND LOCATIONATTACHMENT P – PROPOSED FCC ID LABEL AND LOCATIONERROR! BOOKMARK NOT DEFINED. ATTACHMENT Q – PLOTS OF TESTSATTACHMENT Q – PLOTS OF TESTS________________ERROR! BOOKMARK NOT DEFINED. APPENDIX 1 - RADIATED MEASUREMENTS AT A BANDEDGEAPPENDIX 1 - RADIATED MEASUREMENTS AT A BANDEDGEERROR! BOOKMARK NOT DEFINED. Fujitsu PC Corp. FCC ID #: MU7FPCWL02Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCBTest Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp.Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management GroupPrepared by EMC Compliance Management GroupPage Page 11 of 42 of 42 Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. Disclaimer NoticeDisclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may hav…

Text truncated - open the document above for the full version.

Fujitsu PC Corp. FCC ID #: MU7FPCWL02Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCBTest Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp.Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management GroupPrepared by EMC Compliance Management Group Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. APPENDIX 1 - RADIATED MEASUREMENTS AT A BANDEDGEAPPENDIX 1 - RADIATED MEASUREMENTS AT A BANDEDGE Scope This report contains the results of the Band-edge testing performed on the Fujitsu PC Corp. model: PFCWL02. The tests were carried out in accordance with FCC CFR 15.247(c). Applicable References 1. FCC CFR 15.247(c). 2. ANSI C63.4-1992. 3. “RADIATED MEASUREMENTS AT A BANDEDGE” by FCC FCC Requirements Band-edge radiated emission measurements may be necessary to demonstrate compliance with radiated emission limits in Sections 15.249(c) or 15.205 when a restricted band is located adjacent to a 15.247 band (e.g., the restricted band beginning at 2483.5 MHz). Test Equipment Test EquipmentManufacturer/ ModelSerial No.Last Cal.Cal. Due Date EMI ReceiverR&S / ESMI-RF849937/00603/01/0103/01/02 EMI ReceiverR&S / ESAI-D825035/00503/01/0103/01/02 Horn AntennaEMCO / 3115 w/ Miteq Amp00110/28/0010/28/01 Horn AntennaEMCO / 3116 w/ Miteq Amp00210/28/0010/28/01 Method of Measurement 1. Perform an in-band field strength measurement of the fundamental emission using the RBW and detector function required by C63.4. For transmitters operating above 1 GHz, use a 1 MHz RBW and a peak detector (as required by Section 15.35). Repeat the measurement with an average detector (i.e., 1 MHz RBW with 10 Hz video bandwidth). 2. Set the analyzer RBW to 1% of the total span, but never use a RBW less than 30 kHz. Use a video bandwidth equal to or greater than the RBW. Fujitsu PC Corp. FCC ID #: MU7FPCWL02Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCBTest Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp.Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management GroupPrepared by EMC Compliance Management Group Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. Record the peak levels of the fundamental emission and the relevant band-edge emission (i.e., run several sweeps in peak hold mode). Observe the stored trace and measure the amplitude delta between the peak of the fundamental and the peak of the band-edge emission. 3. Subtract the delta measured in (2) from the field strengths measured in (1). The resultant field strengths (CISPR QP, average, or peak, as appropriate) are then used to determine band-edge compliance as required by CFR 15.205. 4. Use the above "delta" measurement technique for measuring emissions that are up to two "standard" bandwidths away from the band-edge, where a "standard" bandwidth is the bandwidth specified by C63.4 for the frequency being measured. For example, for band-edge measurements in the restricted band that begins at 2483.5 MHz, C63.4 specifies a measurement bandwidth of at least 1 MHz. Plot Fujitsu PC Corp. FCC ID #: MU7FPCWL02Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCBTest Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp.Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management GroupPrepared by EMC Compliance Management Group Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. Test Results: Freq.RAW Reading Correction Factors Polar.DetectorField Strength MarginNotes (MHz)(dBuV)(dB/m)(V/H)(Peak/Ave)(dBuV/m)(dB) Low Channel 4804.0029.4715.96HAve45.44-8.56RB 4804.0133.5615.96VAve49.53-4.47RB 7205.9921.8923.17HPeak48.13-22.14NRB 7206.0023.3823.17VPeak46.55-23.72NRB 9645.7<20.00-VPeak--NRB Mid Channel 4880.0534.0715.56HAve49.63-4.37RB 7320.128.3222.50HAve50.82-3.18RB 9760.00<20.00-HPeak--NRB 12202.13<20.00-HPeak--RB High Channel 4960.0233.6316.21HAve49.84-4.16RB 7440.0526.5023.70HAve50.2-3.80RB 9920.10< 30.00-HPeak--NRB 12399.98< 30.00-HPeak--NRB Legends: NRB = Non Restricted Band, Limits should be 20 dB below the Operating Frequency. RB = Frequency within the Restricted Bands according to CFR15.205, Limits shall comply with CFR15.209. In this case the limit is 500uV/m (54dBuV/m). Notes: 1. An EMI receiver peak scan is made from 1 – 25 GHz frequency range using RBW/VBW = 100kHz. 2. Average measurements above 1 GHz are using RBW= 1 MHz, VBW = 10 Hz. 3. During this test EUT is manipulated through typical positions, polarity and length, the worst case emissions are reported above.

Fujitsu PC Corp., FCC ID #: MUTFPCWL01 plot 1 plot 2 plot 3 Test Report #: FUJ-0101-2849-TCB Prepared for Fujitsu PC Corp. Prepared By EMC Compliance Management Group Page 1 of 5 Fujitsu PC Corp., FCC ID #: MUTFPCWL01 plot 4 Fund. Frequency:(Vert.) plot 5 plot 6 Test Report #: FUJ-0101-2849-TCB Prepared for Fujitsu PC Corp. Prepared By EMC Compliance Management Group Page 2 of 5 Fujitsu PC Corp., FCC ID #: MUTFPCWL01 plot 7 plot 8 plot 9 Spurious Emissions, Low Channel (Conducted Measurement, to 25GHz) RBW/VBW = 100kHz, Peak Mode, Max Hold Test Report #: FUJ-0101-2849-TCB Prepared for Fujitsu PC Corp. Prepared By EMC Compliance Management Group Page 3 of 5 Fujitsu PC Corp., FCC ID #: MUTFPCWL01 Band-edge Measurement, Low Channel Band-edge Measurement, Low Channel, Freq. Hopping Mode Test Report #: FUJ-0101-2849-TCB Prepared for Fujitsu PC Corp. Prepared By EMC Compliance Management Group Page 4 of 5 Fujitsu PC Corp., FCC ID #: MUTFPCWL01 Band-edge Measurement, High Channel Band-edge Measurement, High Channel, Freq. Hopping Mode Test Report #: FUJ-0101-2849-TCB Prepared for Fujitsu PC Corp. Prepared By EMC Compliance Management Group Page 5 of 5

Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management Group Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. Radiated Emission Test Photo Fujitsu PC Corp. FCC ID #: MU7FPCWL02 Test Report #: FUJ-0201-2871-TCB Prepared for Fujitsu PC Corp. Prepared by EMC Compliance Management Group Bluetooth is a trademark of Telefonaktiebolaget LM Ericsson and Fujitsu is licensed to use its logo. Conducted Emission Setup Conducted Emission Setup, showing cable placement
