MUDFR-100Family Radio Transceiver

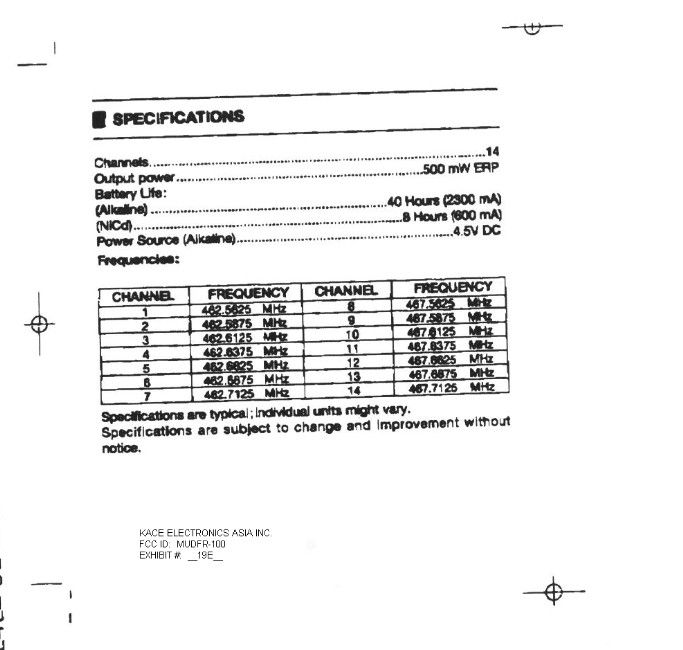

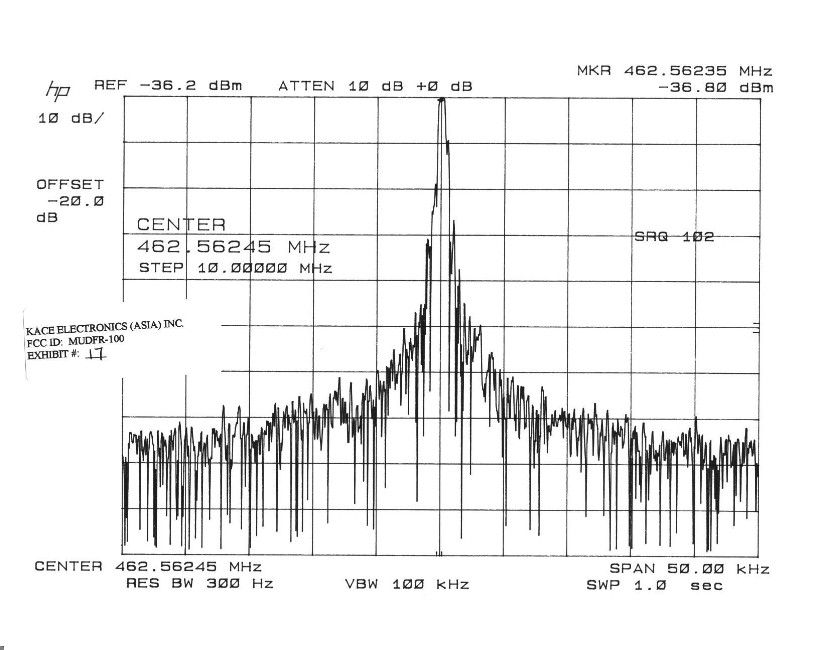

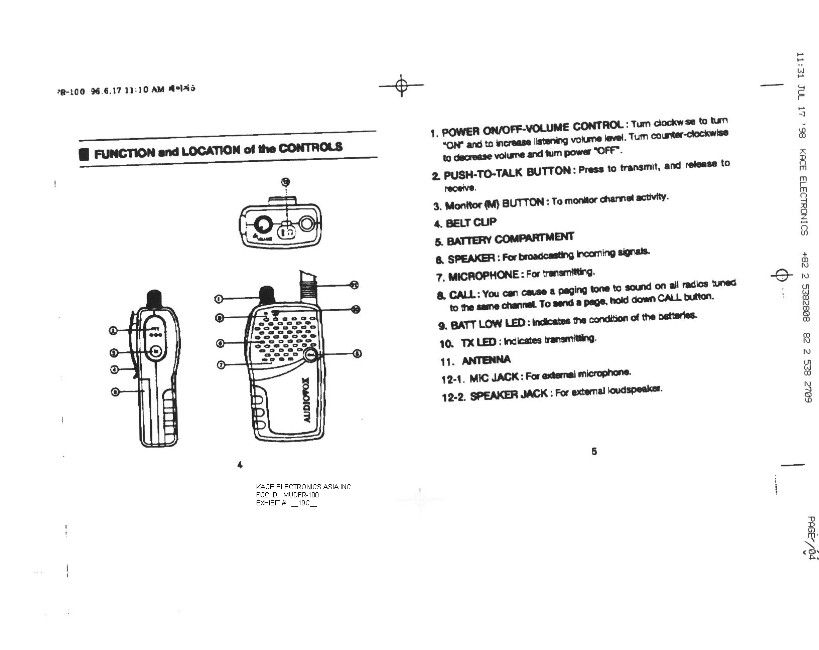

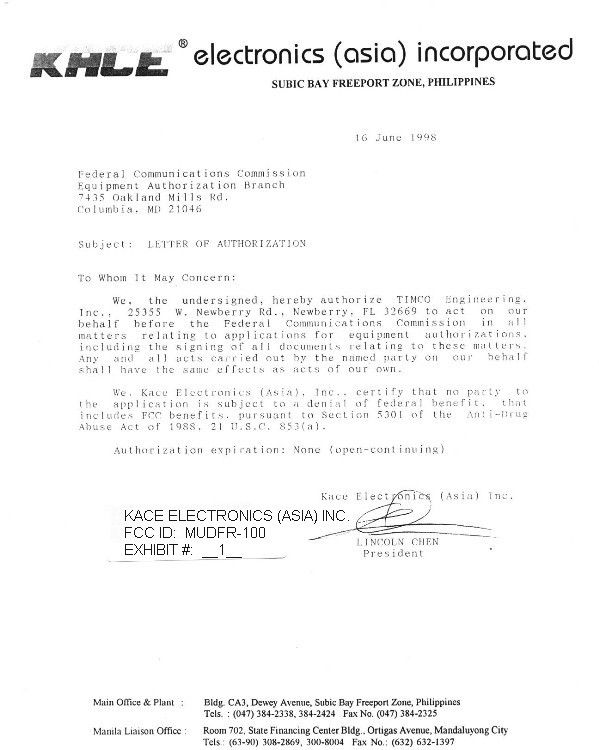

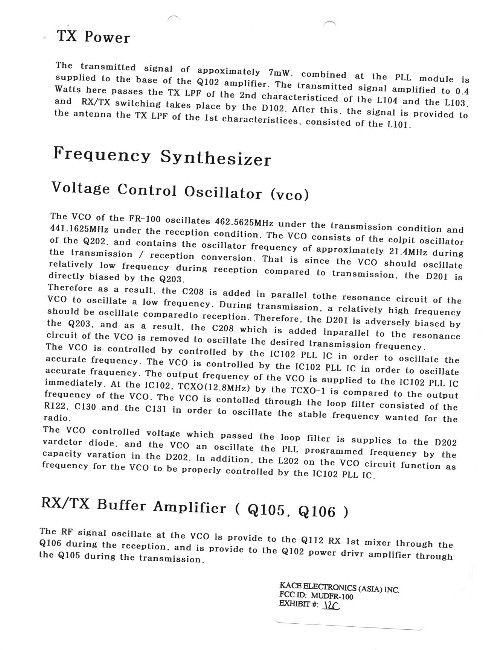

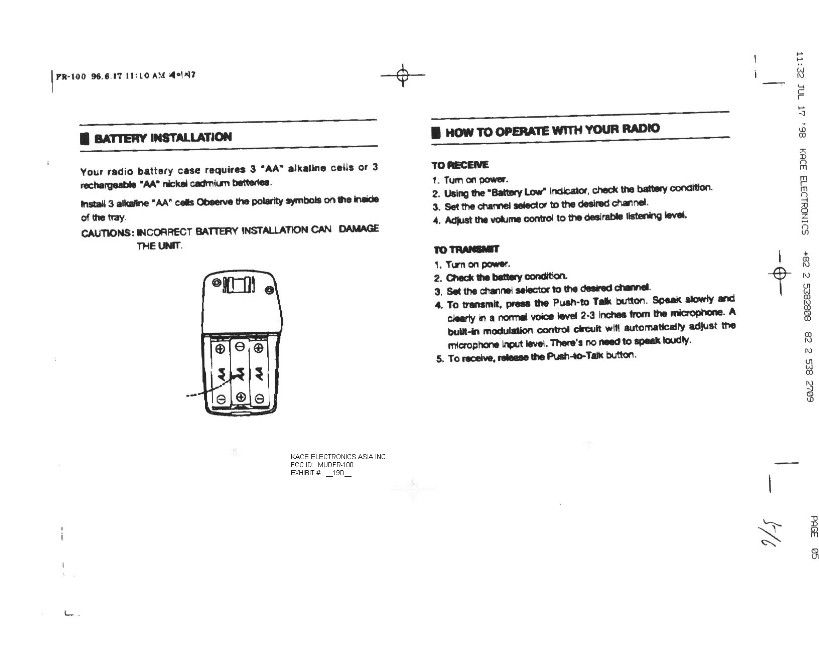

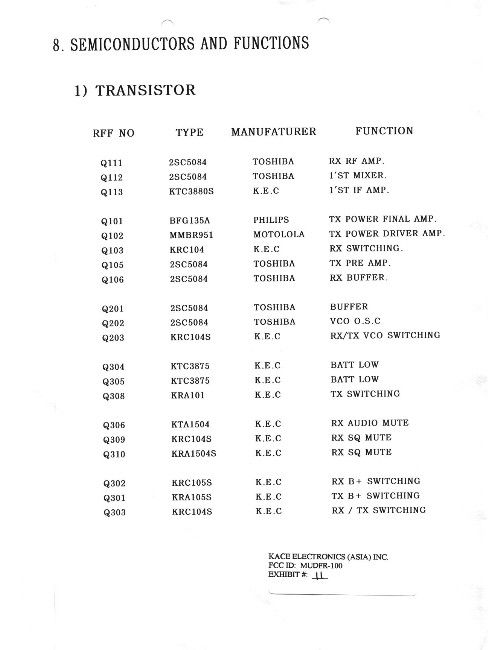

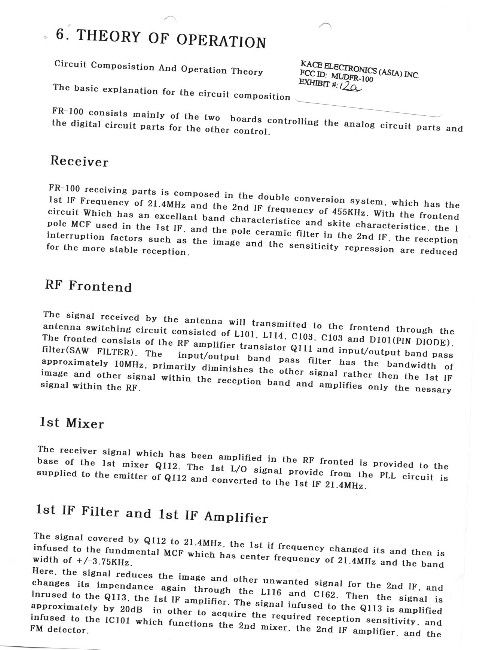

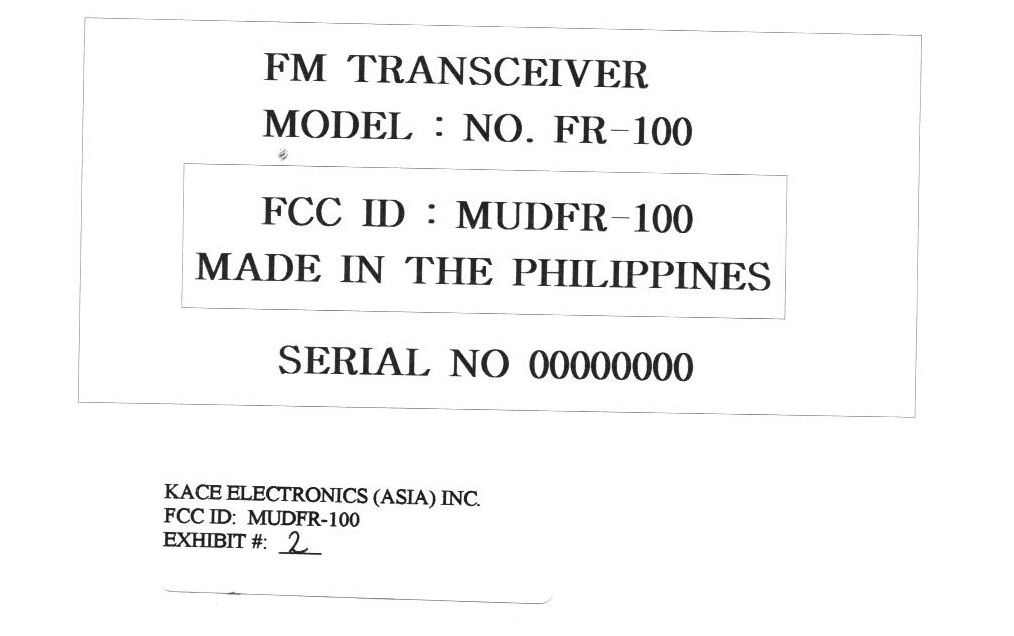

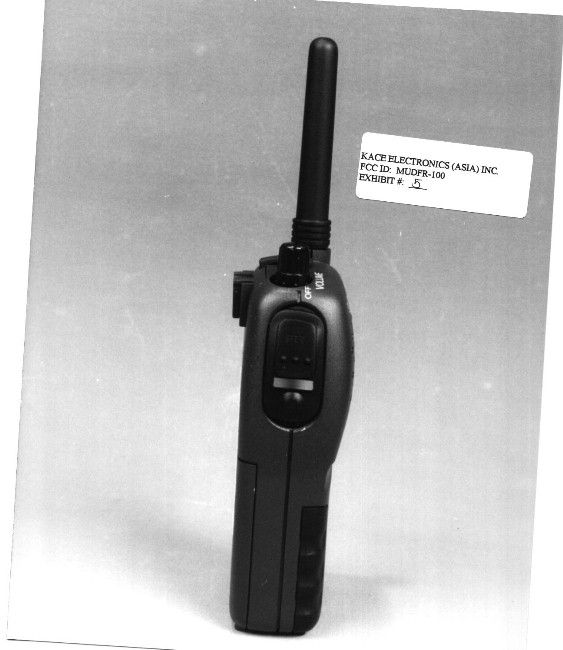

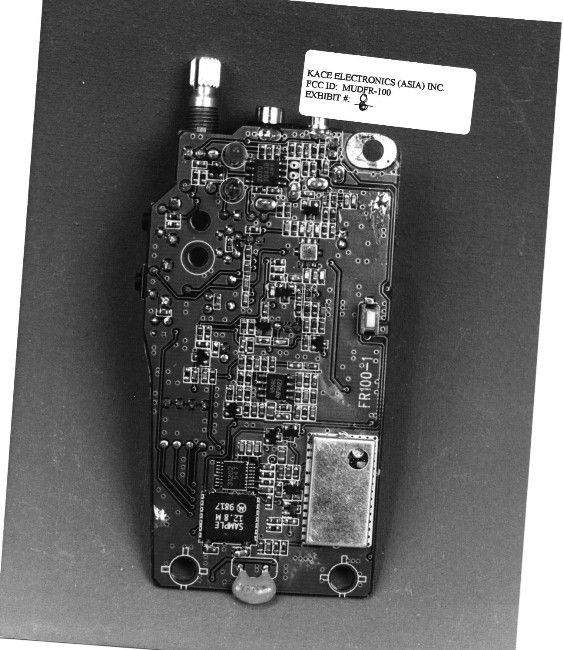

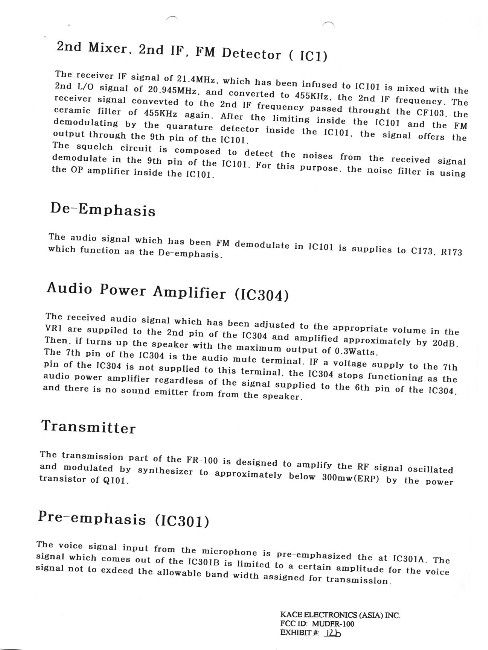

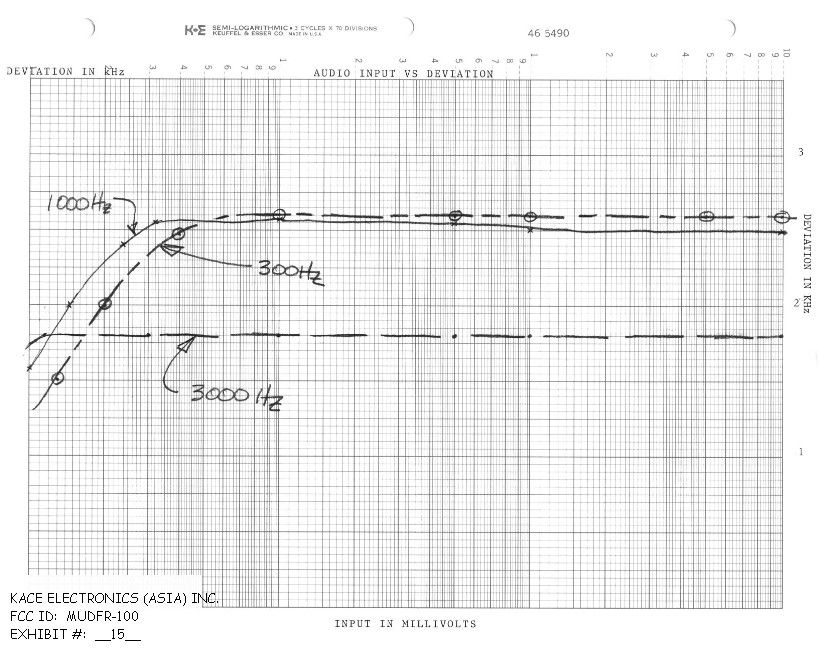

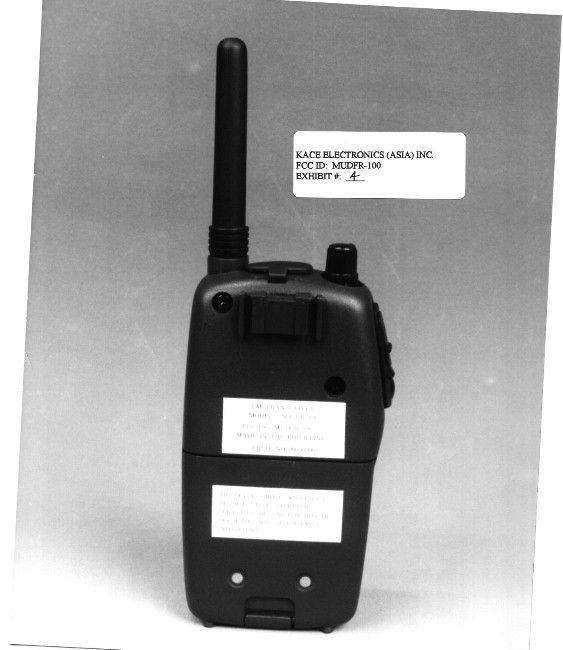

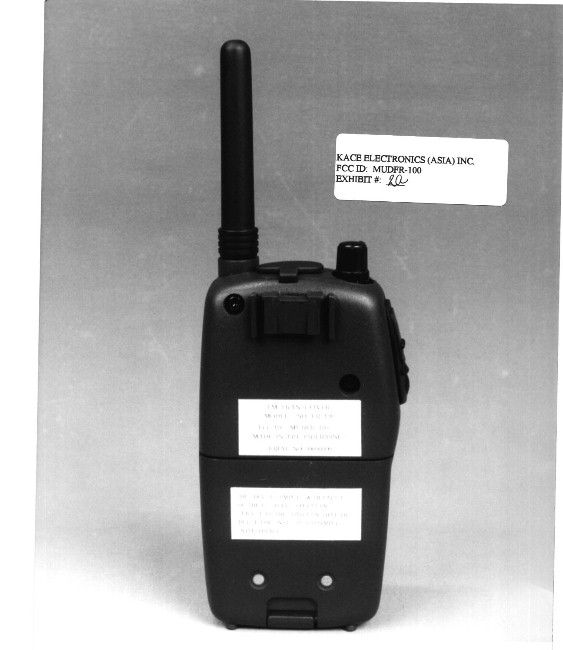

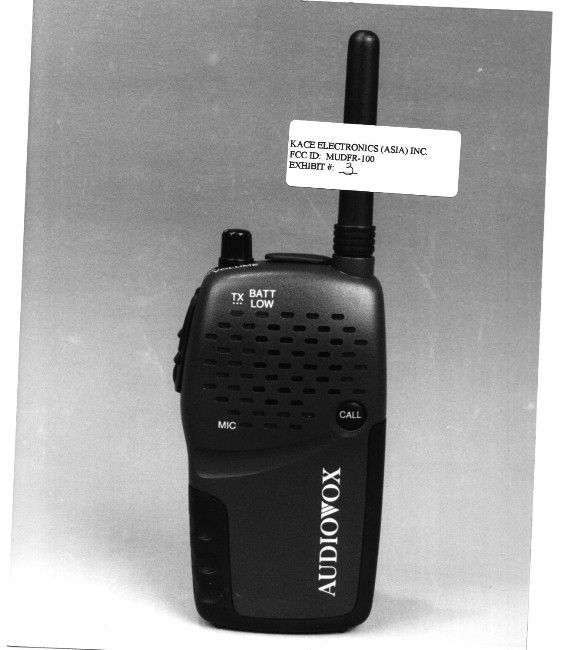

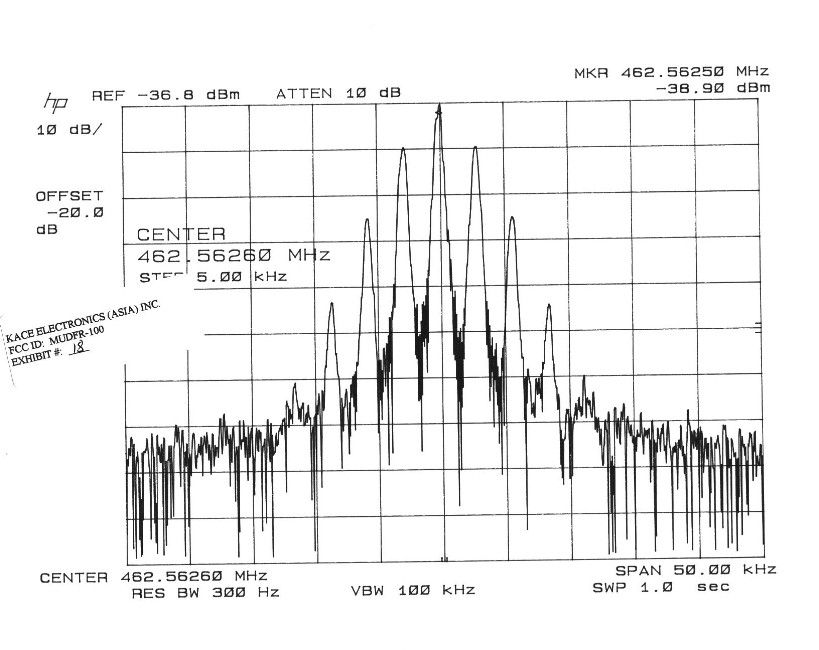

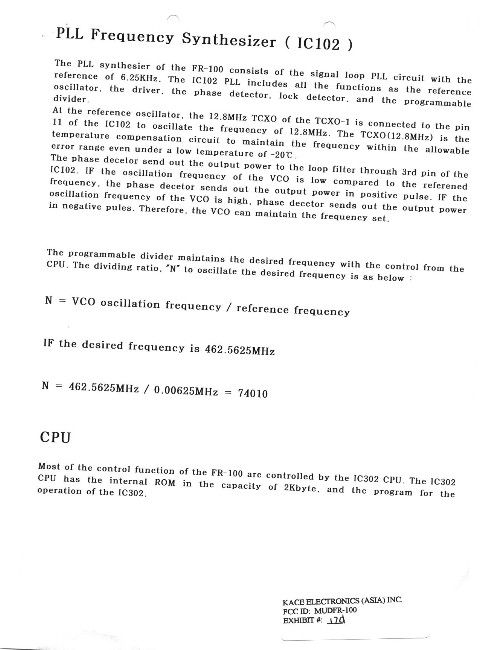

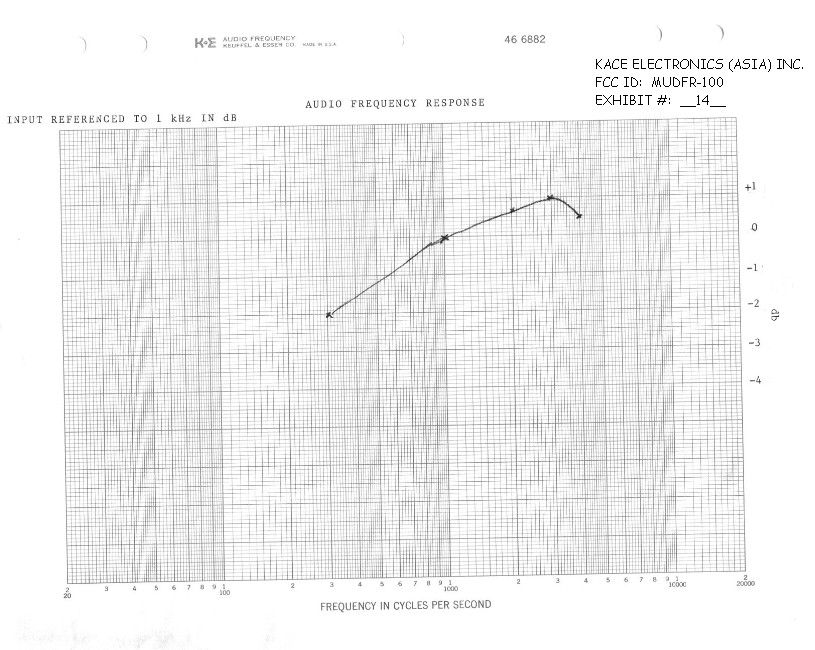

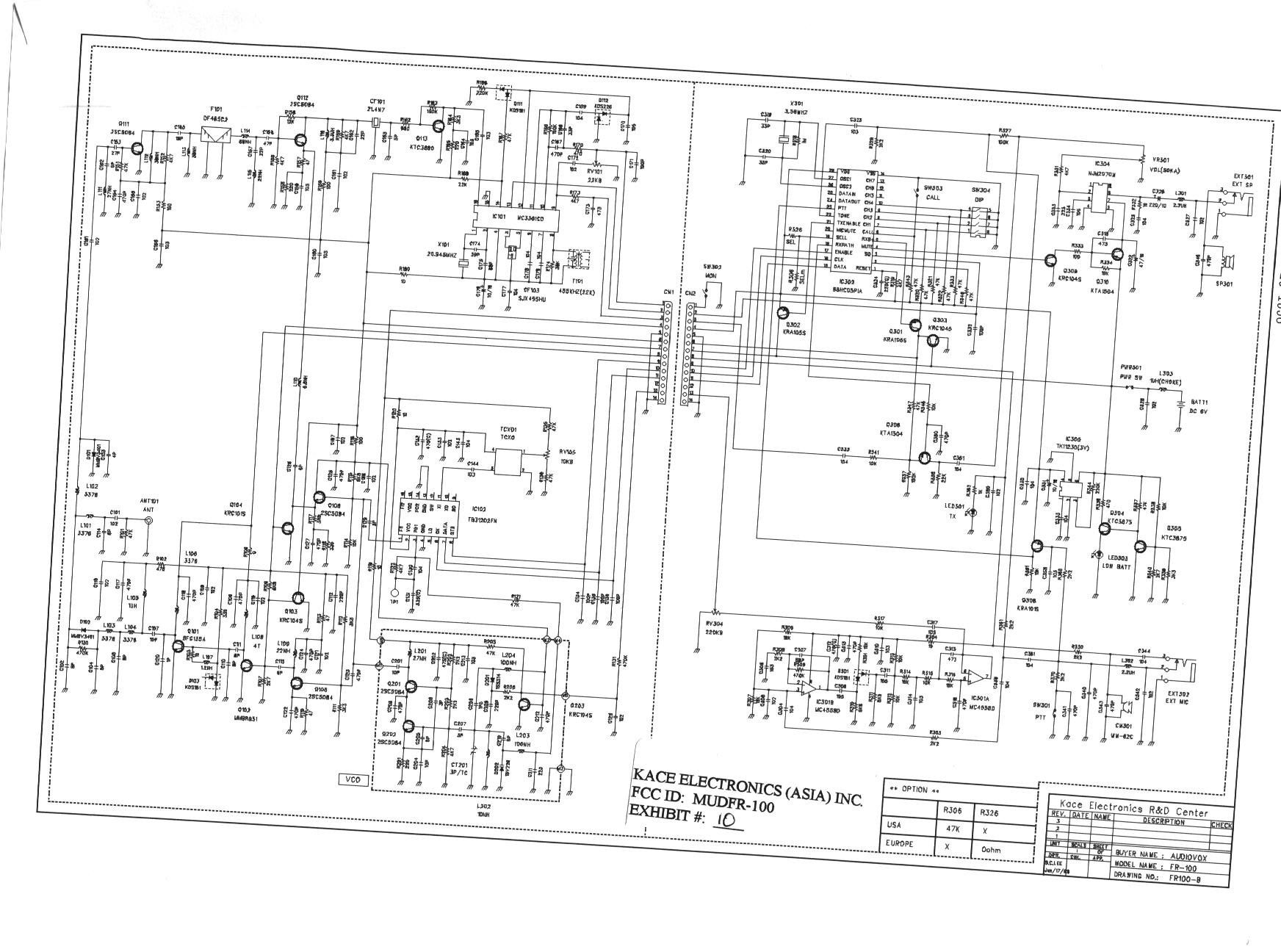

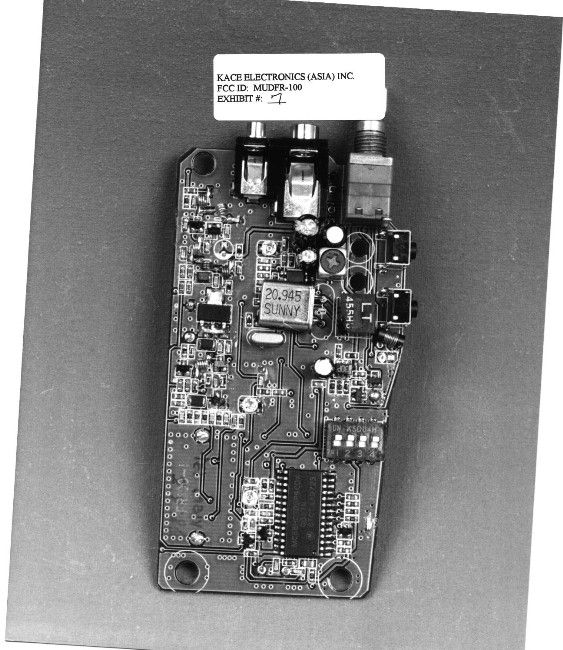

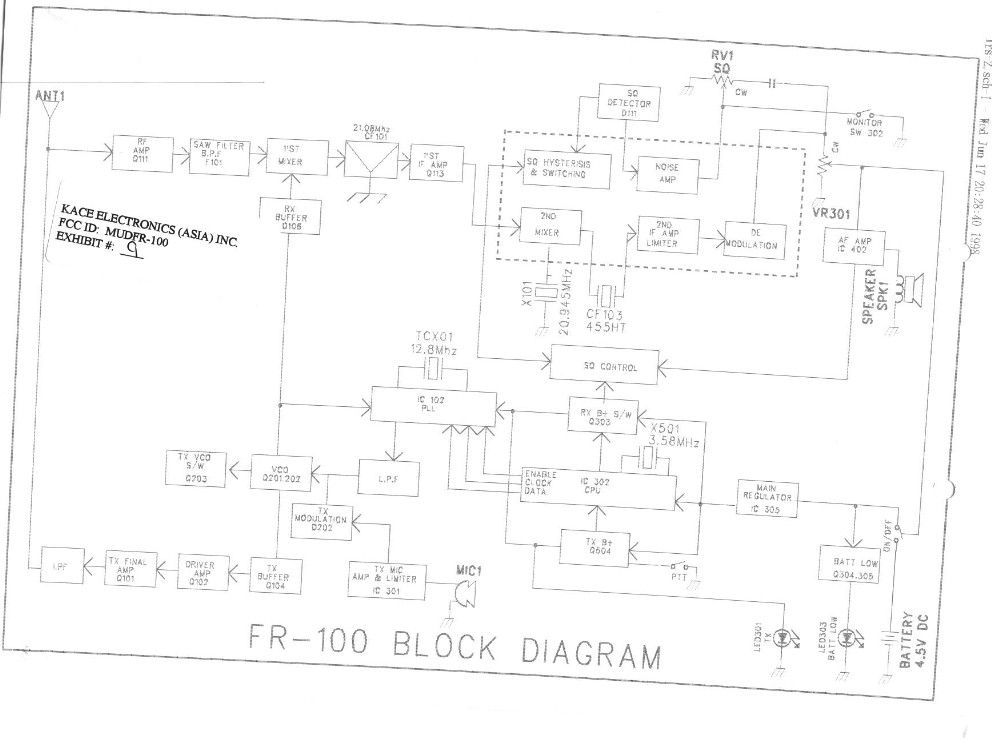

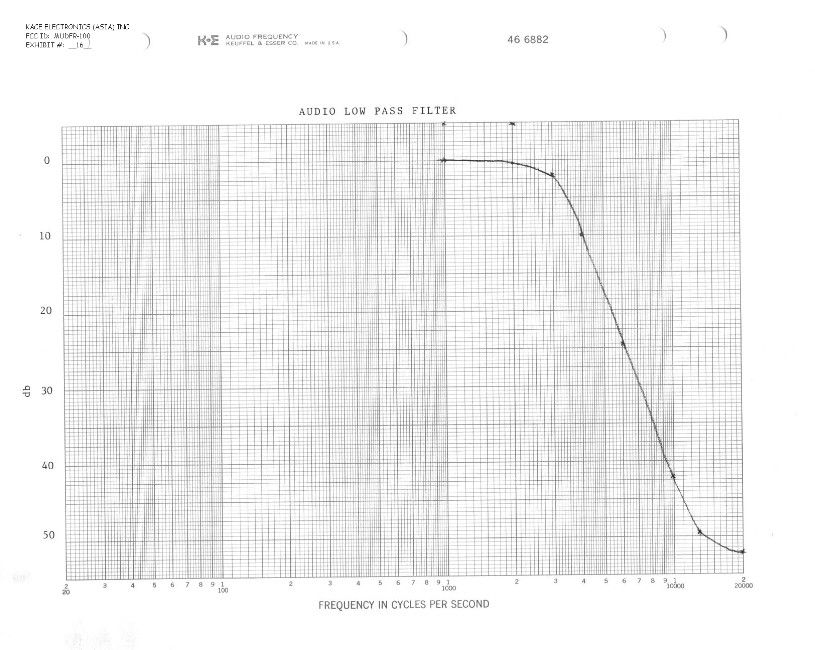

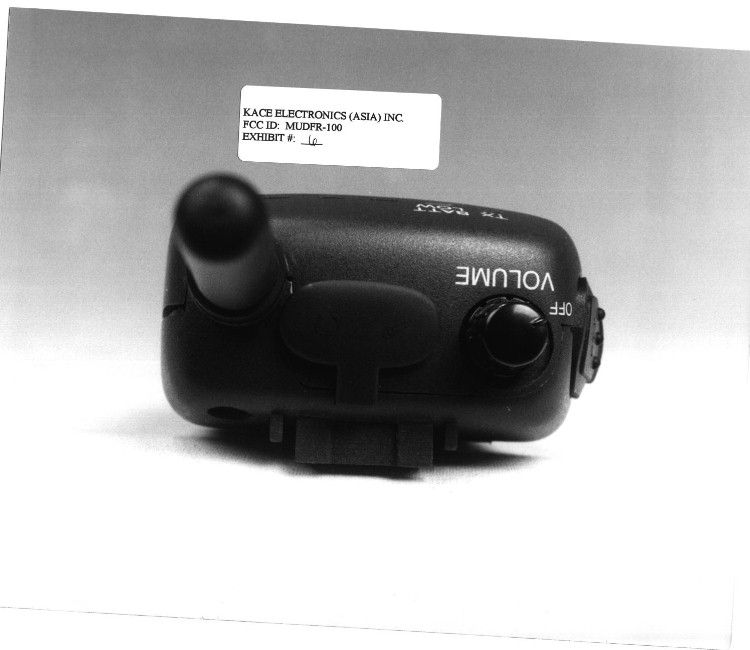

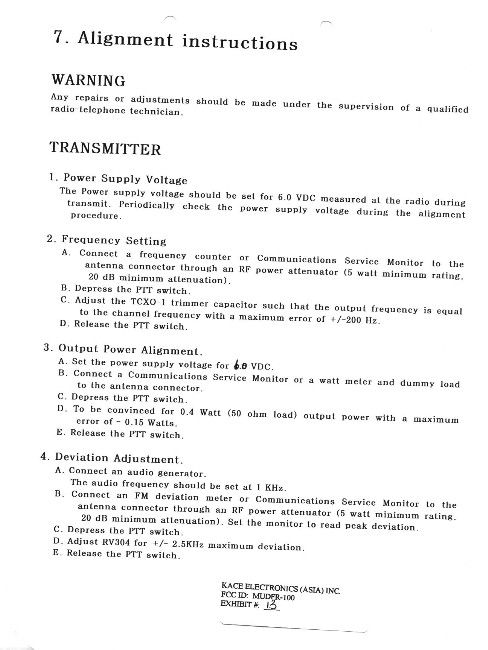

TABLE OF CONTENTS LIST APPLICANT: KACE ELECTRONICS ASIA INC.. FCC ID: MUDFR-100 TEST REPORT: PAGE 1........COVER SHEET-GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2........TECHNICAL DESCRIPTION CONTINUED PAGE 3........RF POWER OUTPUT PAGE 4........MODULATION CHARACTERISTICS PAGE 5........OCCUPIED BANDWIDTH PAGE 6........UNWANTED RADIATION EMISSIONS TEST DATA PAGE 7........METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 8........FREQUENCY STABILITY PAGE 9........CERTIFICATION OF TECHNICAL DATA PAGE 10........LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1......POWER OF ATTORNEY LETTER EXHIBIT 2......FCC ID LABEL SAMPLE EXHIBIT 2A.....FCC ID LABEL LOCATION EXHIBIT 3......FRONT VIEW EXTERNAL PHOTO EXHIBIT 4......REAR VIEW EXTERNAL PHOTO EXHIBIT 5......SIDE VIEW EXTERNAL PHOTO EXHIBIT 6......TOP VIEW EXTERNAL PHOTO EXHIBIT 7......COMPONENT SIDE INTERNAL PHOTO EXHIBIT 8......COPPER SIDE INTERNAL PHOTO EXHIBIT 9......BLOCK DIAGRAM EXHIBIT 10.....SCHEMATIC EXHIBIT 11.....LIST OF ACTIVE DEVICES EXHIBIT 12A-D..THEORY OF OPERATION EXHIBIT 13.....ALIGNMENT INSTRUCTIONS EXHIBIT 14.....AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 15.....AUDIO INPUT VERSUS MODULATION GRAPH EXHIBIT 16.....AUDIO LOW PASS FILTER GRAPH EXHIBIT 17.....OCCUPIED BANDWIDTH CW PLOT EXHIBIT 18.....OCCUPIED BANDWIDTH 3KZ TONE EXHIBIT 19A-E..USER'S MANUAL APPLICANT: KACE ELECTRONICS ASIA INC.. FCC ID: MUDFR-100 REPORT #: F:\CUS\K\KACE\KAC177A8.RPT PAGE: TABLE OF CONTENTS GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.983 (a,b,c) KACE ELECTRONICS ASIA INC.. will manufacture the FCCID: MUDFR-100 FAMILY RADIO SERVICES SINGLE CHANNEL TRANSCEIVER in quantity, for use under FCC RULES PART 95. 2.983 (d) TECHNICAL_DESCRIPTION 2.983 (d) (1) Type of Emission: 8K0F3E 95.629 Bn = 2M + 2DK M = 3000 D = 1.8K Bn = 2(3.0)+2(1.8) = 9.6K Authorized Bandwidth 12.5KHz 2.983 (d) (2) Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.983 (d) (3) Power Output shall not exceed 0.500Watts effective 95.637 radiated power. There can be no provisions for 95.647 increasing the power. 2.983 (d) (4) Maximum Output Power Rating: 250 milliWatts 95.637 effective radiated power. 95.645 The antenna is an intergral part to the unit, it cannot be removed without rendering the unit inoperative. In order to remove the antenna the case must unscrewed, then the PCB assemblies must be removed then the antenna can be removed. 2.983 (d) (5) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY Vce = 6.0 Volts DC Ice = 0.12A. Pin = 0.74 Watts 2.983 (d) (6) Function of each electron tube or semiconductor device or other active circuit device: SEE EXHIBIT 11 ATTACHED. APPLICANT: KACE ELECTRONICS ASIA INC.. FCC ID: MUDFR-100 REPORT #: F:\CUS\K\KACE\KAC177A8.RPT PAGE #: 1 2.983(d) (7) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 10 of this report. The block diagram is included as EXHIBIT 9 of this report. 2.983(d) (8) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 19. 2.983 (d) (9) Tune-up procedure. The tune-up procedure is included as EXHIBIT 13. (10) Description of all circuitry and devices provided for determining and stabilizing frequency is given in INCLUDED IN EXHIBIT 19. The crystal specifications are included as PAGES NA. 2.983 (d)(11) Description of any circuits or devices employed for suppression of spurious radiation, for limit- ing modulation, and for limiting power will be INCLUDED IN EXHIBIT 19. (12) Digital modulation. This unit does not use digital modulation. 2.983(e) The data required by 2.985 through 2.997 is submit ted below. APPLICANT: KACE ELECTRONICS ASIA INC.. FCC ID: MUDFR-100 REPORT #: F:\CUS\K\KACE\KAC177A8.RPT PAGE #: 2 2.985(a) RF_power_output. 95.637 RF power is measured by measuring the radiated power at 3 meters and then replacing the transmitte with a signal generator to determine the effective radiated power. The ERP shall not exceed 0.500 Watts. MEASURED POWER OUTPUT = 250 milliWatts ERP R.F. POWER OUTPUT HP TEST SET UP Spectrum Analyzer /-------\ /-----------------\ | | | | TRANSMITTER | | | | | UNDER TEST WITH | \--| | | INTERNAL ANTENNA| | | | \-----------------/ | | | | | \-------/ | | |<-- 3.0 meters-->| /-------------\ | SIGNAL | DIPOLE | Tuned, Calibrated | GENERATOR | ANTENNA | Antenna which may | |----------/ be raised from 1 \-------------/ to 4 meters above ground and changed in polarization Equipment placed 1 meter above ground on a rotatable platform. APPLICANT: KACE ELECTRONICS ASIA INC.. FCC ID: MUDFR-100 REPORT #: F:\CUS\K\KACE\KAC177A8.RPT PAGE #: 3 2.987(a)(b) Modulation_characteristics: AUDIO_FREQUENCY_RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See graph in EXHIBIT 14. 2.987(b) 1 Audio_input_versus_modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 3000 Hz. See graph in EXHIBIT 15. 95.635(b) Post Limiter Filter The filter must be between the modulation limiter and the modulated stage. At any frequency between 3 & 20KHz the filter must have an attenuation of 60log (f/3) greater tha the attenuation at 1KHz. See graph in EXHIBIT 16. APPLICANT: KACE ELECTRONICS ASIA INC.. FCC ID: MUDFR-100 REPORT #: F:\CUS\K\KACE\KAC177A8.RPT PAGE #: 4 2.989(c) EMISSION BANDWIDTH: 95.633(b)(1)(3)(7) Data in the plots shows that the sidebands from greater than 50% to 100% of the authorized bandwidth must be atten…
