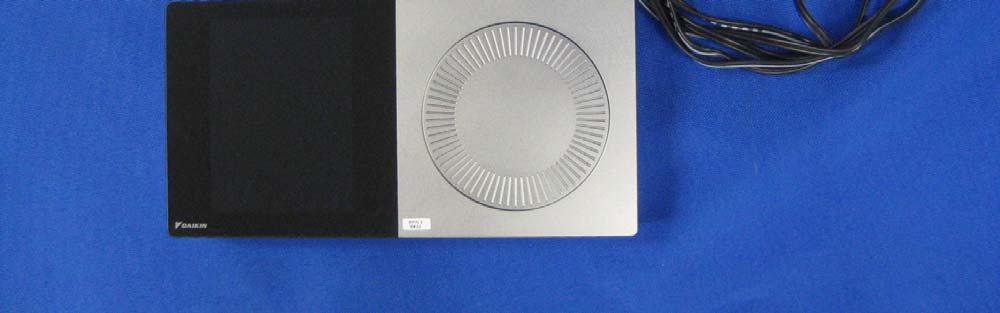

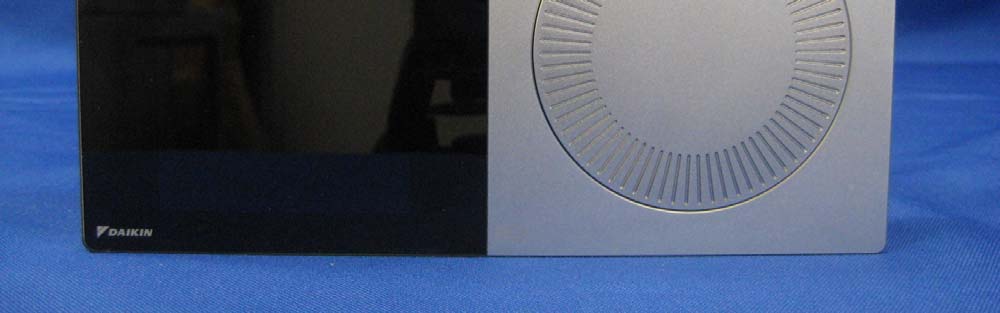

MUH-DAIKIN1PThermostat with Wireless Capabilities

Homeowner Guide 2www.daikincomfort.com The home screen displays the current temperature, the current system mode, and icons leading to each of the top level screens. 72 ° main room The adjust screen displays the current temperature on the left and set-points on the right. Change the set-points by dragging them or by turning the dial. Everything you expect in a smart thermostat backed by the world’s leading HVAC manufacturer The schedule screen displays upcoming set-point changes and scheduled times. It also offers access to edit mode, where you can adjust the schedule. Getting Started 1 Tap the bottom navigation icons to move between the 5 main screens: HomeAdjustAwayAir QualitySchedule The away screen displays energy saving set-points. Energy saving can be invoked manually or automatically when the mobile app recognizes everyone is away. The air quality screen * displays indoor air quality levels when a Daikin One home air monitor is connected. Outdoor air quality and weather will be displayed when connected to the internet and thermostat added in the mobile app under home location. moderate filter ok good AQI 22 air quality indoor outdoor weatherrain 57% 45% 72 ° 80 ° circulate airon a schedule fan speedlow * Actual screen may vary for different indoor unit models. The Daikin One home air monitor only works with ducted units. 3DAIKIN ONE+ SMART THERMOSTAT HOMEOWNER GUIDE Air Quality Alert Examples * : TO DOWNLOAD THE DAIKIN ONE HOME MOBILE APP, SCAN THE QR CODE OR VISIT: WWW.DAIKINONE.COM/SMART_ THERMOSTATS/ONEPLUS/APP good filter ok good AQI 22 air quality indoor outdoor weatherrain 57% 45% 72 ° 80 ° circulate airon a schedule fan speedlow air filter ok For more accurate readings, the system iscalculating baseline valuesfor your home. good indoor air quality chemicals particles Good View Example:Example of Additional Details: * Actual screen may vary for different indoor unit models. The Daikin One home air monitor only works with ducted units and is sold separately. 4www.daikincomfort.com Mobile App When WiFi is enabled on your Daikin One+ smart thermostat, the Daikin One Home mobile app can help you manage and remotely control multiple Daikin One+ smart thermostats in your home. Additional Smart Features Enabling WiFi adds smart features to your thermostat: » Automatic software updates. » Remote control with mobile app. » Alerts when you are away from home. » Voice control capabilities when connected to Amazon Alexa and/or Google Assistant devices. – Download the Amazon Alexa or the Google Assistant app and follow the instructions within the app to set up the Daikin One+ smart thermostat voice control capabilities properly. » Geo-fencing, to detect when you are away from home, reducing energy costs. You can connect the Daikin One+ smart thermostat to WiFi by following these steps: 1. Connect to WiFi » Navigate to the settings menu. (Tap the menu icon in the top right of the home menu and select settings.) » Tap the configuration menu » Home WiFi. (Ensure the use WiFi box is checked.) » Tap networks » Then select your network from the list. (You’ll be prompted to enter your network’s password and then connect.) 2. Pair to App Thermostat Steps » Navigate to the settings menu. (Tap the menu icon in the top right of the home menu and select settings.) » Tap the configuration menu » Account. » Use the code displayed to input into the app. App Steps » Download the app and create an account. (iOS App Store or Google Play.) » Add home location. (A prompt will appear after initial account creation.) » Use the code displayed on the thermostat to pair. home wifi use wifi connectedtoDaikin OneCloud networkcoolnet connectedtothe internet NOTE: The pair code will expire in 15 minutes, but you can always get a new code if needed. 2 5DAIKIN ONE+ SMART THERMOSTAT HOMEOWNER GUIDE Connection to Amazon Alexa Connecting Daikin One+ smart thermostat to Amazon Alexa will enable voice command through Alexa like “Alexa, set my Kitchen to 75 degrees” 3 How to connect? Complete setup on Daikin One+ smart thermostat and Daikin One Home mobile app. Login to Alexa account from phone/tablet device. Use the instructions below: This will successfully link Daikin One+ smart thermostat to Amazon Alexa. Voice Commands » Alexa, set [my / the] {{THERMOSTAT NAME}} to (cool/ heat/auto/off). » Alexa, set [my / the] {{THERMOSTAT NAME}} [temperature] to X [degrees]. » Alexa, (increase / decrease) [my] {{THERMOSTAT NAME}} [temperature] by X [degrees]. » Alexa, (increase / decrease / lower / cool down / warm up) [the] {{THERMOSTAT NAME}}. » Alexa, make [my] {{THERMOSTAT NAME}} (warmer / cooler). » Alexa, what is {{THERMOSTAT NAME}} set to? 1. Click on menu icon 2. Select “Skills & Games” 3. Click on “Search” icon 4. Type “Daikin”, click search 5. Select “Daikin One Smart Thermostat” 6. Select “Enable to use” (This will display a Daikin sign in window at login.daikinskyport.com) 7. Enter Daikin One Home mobile app login credentials Connection to Google Home Connecting Daikin One+ smart thermostat to Google Home will enable voice command through Google Assistant like “Ok Google, set my bedroom to cool“. 4 How to connect? Complete setup on Daikin One+ smart thermostat and Daikin One Home mobile app. Login to Google Home account from phone/tablet device Voice Commands 1. Click “Add” device 2. Select “Set up device” 3. Select “have something already set up?“ 4. Click on search icon 5. Type “Daikin One Smart Thermostat” and Select. (This will display a Daikin sign in window at login. daikinskyport.com) 6. Enter Daikin One Home mobile app login credentials. » Ok Google, set [my / the] {{THERMOSTAT NAME}} to (cool/heat). » Ok Google, turn (up / down) [the] {{THERMOSTAT NAME}}. » Ok Google, set [my / the] {{THERMOSTAT NAME}} [temperature] to X [degrees]. » Ok Google, (increase / decrease) [my] {{THERMOSTAT NAME}} [temperature] by X [degrees]. » Ok Google, (increase / decrease) [my] {{THERMOSTAT NAME}}. » Ok Google, make [my] {{THERMOST…

Text truncated - open the document above for the full version.

Back of unit

Regarding TCB Question on 2.925(d), the manufacturer declares the following: The Daikin1p unit in installed onto a baseplate which powers up the unit. The baseplate does not come attached. The baseplate must be installed/wired first before the unit can be powered up. It would be impossible to install/power the unit without attaching/detaching the baseplate and exposing the FCC/IC ID labeling.

-A

RADIO FREQUENCY EXPOSURE REPORT FOR THE Device: Wifi Transmitter Model: OnePlus Report No.: 102105-12 Date of issue: March 20, 2019 PREPARED FOR: Venstar, Inc. 9250 Owensmouth Avenue Chatsworth CA 91311 PREPARED BY: S. YAMAMOTO CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 2 of 8 Report No: 102105-12 Purpose: To demonstrate compliance with United States, Canada, Australia and/or European Union RF Exposure requirements for Portable equipment (devices used ≤20cm from the body) with power output below exemption levels or Mobile equipment (devices used >20cm from the body) where Maximum Permissible Exposure (MPE) Calculations apply. Device and Antenna Operating Configuration: Device operating at maximum output power with continuous transmission of modulated data. Test Procedure: This equipment is evaluated in accordance with the guidelines set forth in KDB 447498 & ANSI C95.1 for the US, Health Canada Safety Code 6 & RSS 102 for Canada. Other Considerations: Report considers stand-alone configurations only. RF Exposure limits are calculated at the mid-point of each operating band. Multi-transmitter devices are assumed to permit simultaneous transmission, unless indicated otherwise. Simultaneous transmissions aggregated providing a worst case assessment. Referenced Test Reports: The following test reports were referenced in conjunction with this assessment: CKC reports 102105-7, 102105-10 Bureau Veritas Consumer Products Services (H.K.) Lts., Taoyuan Branch report RF151228C18 Page 3 of 8 Report No: 102105-12 RF Exposure Power Density Assessment (Multi Transmitter, Simultaneous Transmission) MPE Calculation: 푃표푤푒푟 퐷푒푛푠푖푡푦 ( 푆 ) = 퐸퐼푅푃 4휋 푑 2 Given: EIRP in mW or W and d in cm or m For multi-band devices with simultaneous transmission, assessment of compliance to MPE limits is based on fractional analysis for each band of operation: ∑ 푆 푖 푀푃퐸 퐿푖푚푖푡 푖 푖 ≤1. US MPE Assessment Power Reported is: ☒ Peak ☐ Average Limit Used is: ☒ General Population ☐ Occupational Exposure Operating Band MHz Power dBm Ant Type/Gain dBi EIRP dBm Distance cm MPE mW/cm 2 Limit mW/cm 2 S/Limit 2412MHz to 2462MHz 22.41 -0.97 21.44 20 0.0277 1 0.0277 902.2MHz to 927.8MHz 9.1 -1.58 7.52 20 0.0011 0.61 0.0018 Aggregate: 0.030 IC MPE Assessment Power Reported is: ☒ Peak ☐ Average Limit Used is: ☒ General Population ☐ Occupational Exposure Operating Band MHz Power dBm Ant Type/Gain dBi EIRP dBm Distance m MPE W/m 2 Limit W/m 2 S/Limit 2412MHz to 2462MHz 22.41 -0.97 21.44 0.2 0.02772 5.40 0.0513 902.2MHz to 927.8MHz 9.1 -1.58 7.52 0.2 0.0112 2.77 0.0041 Aggregate: 0.055 Page 4 of 8 Report No: 102105-12 Summary: Exemptions: Equipment demonstrating compliance by portable RF exposure exemption have been evaluated, without further testing, for use under either portable or mobile RF exposure configurations. Additional configurations including collocation or simultaneous transmission with other transmitters (including necessary separation distances) are subject to further assessment. Certain exemption criteria may define specific separation distances. It is assumed that the manufacturer shall design the equipment such that these minimum separation distance is met. MPE Calculation Results: Equipment demonstrating compliance with MPE calculations have been evaluated, without further testing, for use under mobile RF exposure configurations as identified herein. Additional configurations including collocation or simultaneous transmission with other transmitters (including necessary separation distances) are subject to further assessment. It is assumed that the manufacturer shall design the equipment such that the minimum separation distance of 20cm (or greater, as listed above) is met or that the manufacturer provides a protection guide (e.g. installation instructions) to the end user such that the antenna(s) may be installed in accordance with the manufacturer’s instructions in such a manor to maintain the minimum separation distance. General Comments: The absorption and distribution of Electromagnetic energy in the body is a very complex phenomena that depends on the mass, shape and physiological condition of the body; the orientation of the body with respect to the fields; and, the electrical properties of the body and the environment. Variables that may play a substantial role in possible biological effects are those that characterize the environment (including but not limited to: ambient temperature, air velocity, relative humidity and body insulation); and those that characterize the individual (including but not limited to: age, gender, activity level and existing debilitation or disease). Because innumerable factors may interact to determine specific biological effects of exposure to electromagnetic fields, any protection guide should consider both intended and unintended operational environments and provide guidance for installation and use of the product such that proper separation distances can be maintained. (ANSI C95.1) Page 5 of 8 Report No: 102105-12 APPENDIX A - RF Exposure Limits United States Compliance Requirements (1.1310): RF Exposure Evaluation Limits Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842 / f MHz 4.89 / f MHz *(900 / f MHz 2 ) 6 30-300 61.4 0.163 1 6 300-1500 --- --- f…

Text truncated - open the document above for the full version.

This report contains a total of 53 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Venstar, Inc. REVISED TEST REPORT TO 102105-7 Wifi Thermostat Model: OnePlus Tested to The Following Standards: FCC Part 15 Subpart C Section(s) 15.207 & 15.247 (FHSS 902-928 MHz) Report No.: 102105-7A Date of issue: June 28, 2019 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Test Certificate # 803.02 Page 2 of 53 Report No.: 102105-7A TABLE OF CONTENTS Administrative Information .......................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Revision History ......................................................................................................................................................... 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Software Versions ...................................................................................................................................................... 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Modifications During Testing ..................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 General Product Information..................................................................................................................................... 6 FCC Part 15 Subpart C ................................................................................................................................... 7 15.247(a) Transmitter Characteristics ....................................................................................................................... 7 15.247(a)(1) 20 dB Bandwidth ............................................................................................................................... 8 15.247(a)(1) Carrier Separation ........................................................................................................................... 10 15.247(a)(1)(i) Number of Hopping Channels ..................................................................................................... 11 15.247(a)(1)(i) Time of Occupancy ...................................................................................................................... 13 15.247(b)(1) Output Power ..................................................................................................................................... 16 15.247(d) RF Conducted Emissions & Band Edge .................................................................................................... 22 15.247(d) Radiated Emissions & Band Edge ............................................................................................................ 31 15.207 AC Conducted Emissions .............................................................................................................................. 43 Supplemental Information .......................................................................................................................... 52 Measurement Uncertainty ...................................................................................................................................... 52 Emissions Test Details .............................................................................................................................................. 52 Page 3 of 53 Report No.: 102105-7A ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: Venstar, Inc. 9250 Owensmouth Avenue Chatsworth CA 91311 Darcy Thompson CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Representative: Alex Garashin Project Number: 102105 DATE OF EQUIPMENT RECEIPT: February 22, 2019 DATE(S) OF TESTING: February 22-25, 2019 Revision History Original: Testing of the Wifi Thermostat, Model: OnePlus to FCC Part 15 Subpart C Section(s) 15.207 & 15.247 (FHSS 902-928 MHz). Revision A: To correct the RBW used in the frequency range of measurement 9kHz to 9.28GHz on the data in Section 15.247(d) Radiated Emissions & Band Edge. Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the equipment provided by the client, tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the clien…
