MUH-SKYPORT14Thermostat with WiFi, BLE, Subgig

Venstar Inc
Thermostat with WiFi, BLE, Subgig - FCC ID MUH-SKYPORT14 - Venstar Inc
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jan 31, 2021
Application Purpose
Original Equipment
Date of Application
Jan 28, 2021
Equipment Note
Thermostat with WiFi, BLE, Subgig
Frequency Range
2412.00000000 - 2462.00000000
Company
Venstar Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

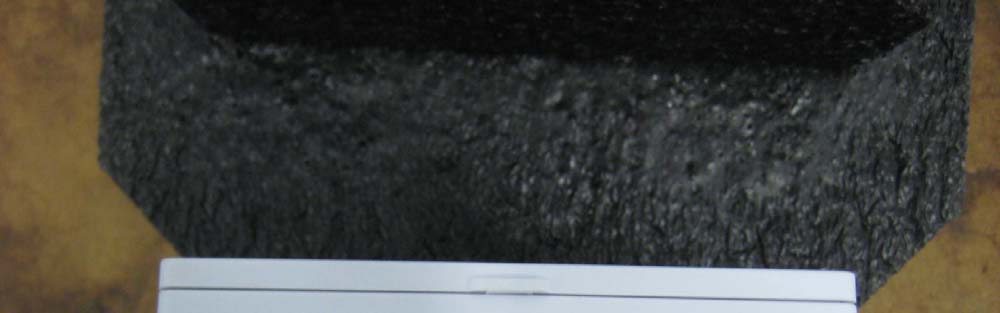

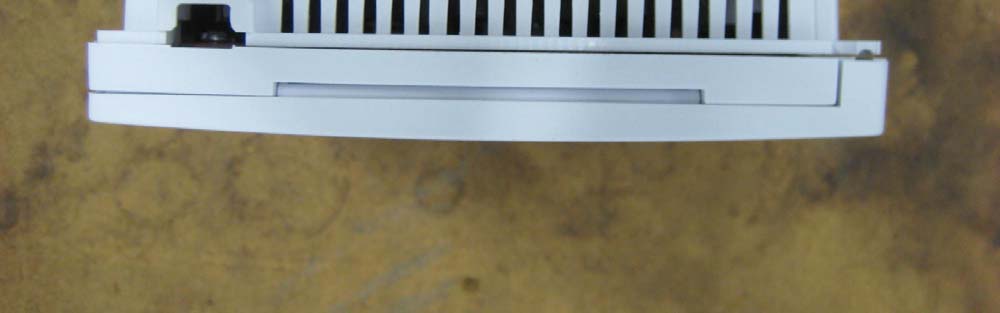

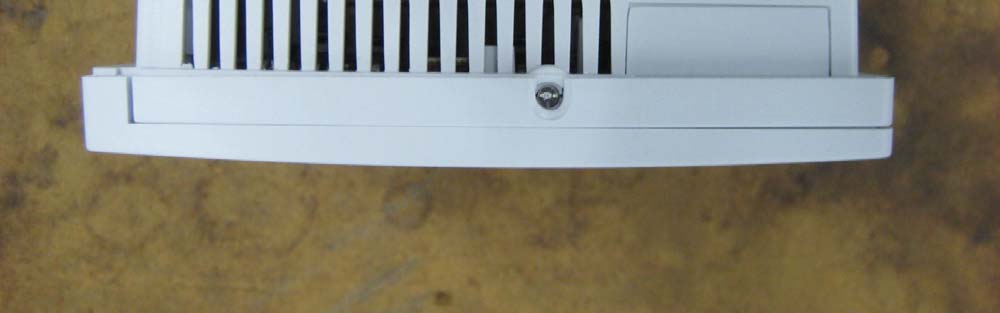

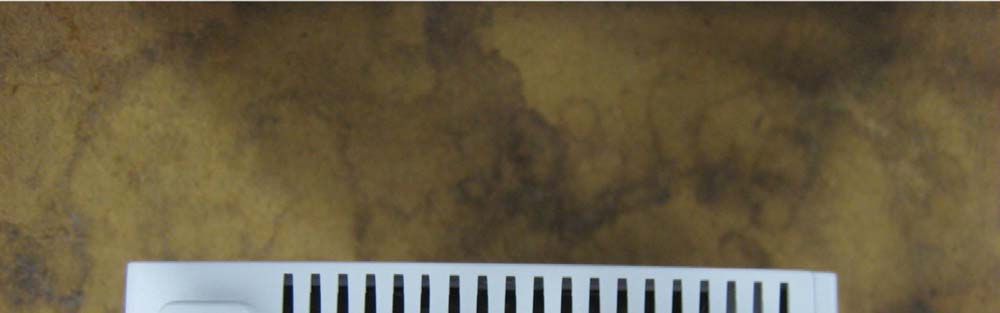

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗
↗
↗

Test Setup Photos

↗
↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

& HEAT COOL HEAT PUMP DIGITAL THERMOSTAT Owner’s Manual and Installation Instructions Up to 4 Heat & 2 Cool Stages With Air Patrol, Humidity Control, & Dual Fuel Capable RESIDENTIAL T3950-IAQ 5.0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Daikin could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit di-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help 5.0 This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. LL’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement Table of Contents GET TO KNOW YOUR THERMOSTAT ............................................................................ HOW TO USE YOUR THERMOSTAT............................................................................... AIR PATROL ..................................................................................................................... SETUP STEPS - USER SETTINGS Program Mode (non-programmable or 7 day programmable) .................................... Available Modes (heat only, cool only, heat/cool, auto) .............................................. Backlight (on/off, intensity, nighttime dimming) .......................................................... View equipment runtimes (filter, heat, cool, aux heat, UV, humidifier) ............................................................. Set / Reset Service Filter .............................................................................................. Language (English, Spanish, French) ........................................................................... Setpoint limits ............................................................................................................... Programmable fan (run fan on a schedule) .................................................................. Select Fahrenheit or Celsius ......................................................................................... Smart Recovery............................................................................................................. Air Patrol (air quality range, fan runtime) ..................................................................... Show Clock ................................................................................................................... Clear all messages ........................................................................................................ SETUP STEPS - INSTALLER SETTINGS *Equipment Timers and Heat/Cool spread .................................................................. *Set number of heating and cooling stages ................................................................ *Deadbands and interstage timers .............................................................................. *Using a wired remote sensor ...................................................................................... *Which sensor to use for temperature control............................................................. *Dry Contact Input ........................................................................................................ *Humidify / Dehumidify Outputs ................................................................................... *Automated Demand Response ................................................................................... *Humidity settings ......................................................................................................... *Lockout heatpump or electric heat on outdoor temp ................................................ *Dualfuel ........................................................................................................................ *Fan Off delay ................................................................................................................ *Skyport (on, off) ...............................…

Text truncated - open the document above for the full version.

ID Label/Location Info

EXPLORER 2 FCC JAN 05, 2021 LASER MARKED FCC ID: MUH-SKYPORT14 IC: 12547A-SKYPORT14 T3950-IAQ VENSTAR FCC ID: MUH-SKYPORT14 IC: 12547A-SKYPORT14 T4950-IAQ VENSTAR FCC ID: MUH-SKYPORT14 IC: 12547A-SKYPORT14 T4950SCH-IAQ VENSTAR FCC ID: MUH-SKYPORT14 IC: 12547A-SKYPORT14 T4975-IAQ VENSTAR Enclosed Energy Management Equipment Serial Number: XXXXXXXX Input: 24VAC, 200mA, Class 2 Made In China E162563

RF Exposure Info

RADIO FREQUENCY EXPOSURE REPORT FOR THE Device: Thermostat with WiFi, Subgig, and BLE Model: Explorer 2 Report No.: 104728-17 Date of issue: January 15, 2021 PREPARED FOR: Venstar, Inc. 9250 Owensmouth Avenue Chatsworth, CA 91311 PREPARED BY: Don Nguyen CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 2 of 10 Report No: 104728-17 Purpose: To demonstrate compliance with United States, Canada, Australia and/or European Union RF Exposure requirements for Portable equipment (devices used ≤20cm from the body) with power output below exemption levels or Mobile equipment (devices used >20cm from the body) where Maximum Permissible Exposure (MPE) Calculations apply. Device and Antenna Operating Configuration: Device operating at maximum output power with continuous transmission of modulated data. Test Procedure: This equipment is evaluated in accordance with the guidelines set forth in KDB 447498 & ANSI C95.1 for the US, Health Canada Safety Code 6 & RSS 102 for Canada, ARPANSA RPS3 for AU and EN 62479 or EN 62311 for EU. Other Considerations: Report considers stand-alone configurations only. RF Exposure limits are calculated at the mid-point of each operating band. Multi-transmitter devices are assumed to permit simultaneous transmission, unless indicated otherwise. Simultaneous transmissions aggregated providing a worst case assessment. Referenced Test Reports: The following test reports were referenced in conjunction with this assessment: 104728-10, 104728-11, 104728-12, 104728-14, 104728-15, 104728-16 Page 3 of 10 Report No: 104728-17 RF Exposure Power Density Assessment (Multi Transmitter, Simultaneous Transmission) MPE Calculation: 푃표푤푒푟 퐷푒푛푠푖푡푦 ( 푆 ) = 퐸퐼푅푃 4휋 푑 2 Given: EIRP in mW or W and d in cm or m For multi-band devices with simultaneous transmission, assessment of compliance to MPE limits is based on fractional analysis for each band of operation: ∑ 푆 푖 푀푃퐸 퐿푖푚푖푡 푖 푖 ≤1. US MPE Assessment Power Reported is: ☒ Peak ☐ Average Limit Used is: ☒ General Population ☐ Occupational Exposure Operating Band MHz Power dBm Ant Type/Gain dBi EIRP dBm Distance cm MPE mW/cm 2 Limit mW/cm 2 S/Limit 915 13.30 -1 12.30 20 0.00338 0.61 0.0055 2404-2480 1.62 2.5 4.12 20 0.00051 1 0.0005 2412-2462 13.80 1.9 15.7 20 0.00739 1 0.0074 Aggregate: 0.0134 IC MPE Assessment Power Reported is: ☒ Peak ☐ Average Limit Used is: ☒ General Population ☐ Occupational Exposure Operating Band MHz Power dBm Ant Type/Gain dBi EIRP dBm Distance m MPE W/m 2 Limit W/m 2 S/Limit 915 13.30 -1 12.30 0.2 0.0338 2.77 0.012 2404-2480 1.62 2.5 4.12 0.2 0.0051 5.41 0.001 2412-2462 13.80 1.9 15.7 0.2 0.0739 5.40 0.014 Aggregate: 0.027 Page 4 of 10 Report No: 104728-17 Summary: Exemptions: Equipment demonstrating compliance by portable RF exposure exemption have been evaluated, without further testing, for use under either portable or mobile RF exposure configurations. Additional configurations including collocation or simultaneous transmission with other transmitters (including necessary separation distances) are subject to further assessment. Certain exemption criteria may define specific separation distances. It is assumed that the manufacturer shall design the equipment such that these minimum separation distance is met. MPE Calculation Results: Equipment demonstrating compliance with MPE calculations have been evaluated, without further testing, for use under mobile RF exposure configurations as identified herein. Additional configurations including collocation or simultaneous transmission with other transmitters (including necessary separation distances) are subject to further assessment. It is assumed that the manufacturer shall design the equipment such that the minimum separation distance of 20cm (or greater, as listed above) is met or that the manufacturer provides a protection guide (e.g. installation instructions) to the end user such that the antenna(s) may be installed in accordance with the manufacturer’s instructions in such a manor to maintain the minimum separation distance. General Comments: The absorption and distribution of Electromagnetic energy in the body is a very complex phenomena that depends on the mass, shape and physiological condition of the body; the orientation of the body with respect to the fields; and, the electrical properties of the body and the environment. Variables that may play a substantial role in possible biological effects are those that characterize the environment (including but not limited to: ambient temperature, air velocity, relative humidity and body insulation); and those that characterize the individual (including but not limited to: age, gender, activity level and existing debilitation or disease). Because innumerable factors may interact to determine specific biological effects of exposure to electromagnetic fields, any protection guide should consider both intended and unintended operational environments and provide guidance for installation and use of the product such that proper separation distances can be maintained. (ANSI C95.1) Page 5 of 10 Report No: 104728-17 APPENDIX A - RF Exposure Limits United States Compliance Requirements (1.1310): RF Exposure Evaluation Limits Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842 / f MHz 4.89 / f MHz *…

Text truncated - open the document above for the full version.

Test Report

This report contains a total of 143 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Venstar, Inc. TEST REPORT FOR Thermostat with WiFi, Subgig, and BLE Model: Explorer 2 Tested to The Following Standards: FCC Part 15 Subpart C Section(s) 15.207 & 15.247 (DTS 2400-2483.5 MHz) Report No.: 104728-10 Date of issue: January 15, 2021 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Test Certificate # 803.01 Page 2 of 143 Report No.: 104728-10 TABLE OF CONTENTS Administrative Information .......................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Software Versions ...................................................................................................................................................... 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Modifications During Testing ..................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 General Product Information..................................................................................................................................... 7 FCC Part 15 Subpart C ................................................................................................................................. 11 15.247(a)(2) 6dB Bandwidth .................................................................................................................................... 11 15.247(b)(3) Output Power ..................................................................................................................................... 22 15.35(c) Duty Cycle Correction Factor ................................................................................................................. 33 15.247(e) Power Spectral Density ........................................................................................................................... 34 15.247(d) RF Conducted Emissions & Band Edge .................................................................................................... 45 15.247(d) Radiated Emissions & Band Edge ............................................................................................................ 67 15.207 AC Conducted Emissions ............................................................................................................................ 133 Supplemental Information ........................................................................................................................ 142 Measurement Uncertainty .................................................................................................................................... 142 Emissions Test Details ............................................................................................................................................ 142 Page 3 of 143 Report No.: 104728-10 ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: Venstar, Inc. 9250 Owensmouth Avenue Chatsworth, CA 91311 Kim Romero CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Representative: Alex Garashin Project Number: 104728 DATE OF EQUIPMENT RECEIPT: November 17, 2020 DATE(S) OF TESTING: November 17, 20, and 24, 2020 Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the equipment provided by the client, tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 4 of 143 Report No.: 104728-10 Test Facility Information Our laboratories are configured to effectively test a wide variety of product types. CKC utilizes first class test equipment, anechoic chambers, data acquisition and information services to create accurate, repeatable and affordable test results. TEST LOCATION(S): CKC Laboratories, Inc. 110 Olinda Place Brea, CA 92823 Software Versions CKC Laboratories Proprietary Software Version EMITest Emissi…

Text truncated - open the document above for the full version.

Test Report

Page 33 of 143 Report No.: 104728-10 Duty Cycle Correction Factor Test Data Summary Antenna Port Operational Mode Measured On Time (mS / P obs ) Calculated Duty Cycle D DCCF (dB) Wi-Fi 802.11b/1Mbps 11ms/11.76ms 0.935374 0.29 Wi-Fi 802.11b/11Mbps 1.212ms/1.454ms 0.833563 0.79 Wi-Fi 802.11g/6Mbps 1.891ms/2.078ms 0.91001 0.41 Wi-Fi 802.11g/54Mbps 0.4508ms/1.617ms 0.278788 5.55 Wi-Fi 802.11n20/MCS0 1.754ms/1.911ms 0.917844 0.37 Wi-Fi 802.11n20/MCS7 0.392ms/1.578ms 0.248416 6.05 Observation Period, P obs is the duration of the pulse train Measured results are calculated as follows: 푂푛 푇푖푚푒= (∑푅퐹 퐵푢푟푠푡 푂푛 푇푖푚푒+∑퐶표푛푡푟표푙 푆푖푔푛푎푙 푂푛 푡푖푚푒 퐶표푛푡푟표푙퐵푢푟푠푡푠 )| 푃 표푏푠 (max100푚푠) Duty Cycle Correction Factor (DCCF) is calculated in accordance with ANSI C63.10: 퐷퐶퐶퐹=10∙퐿표푔( 1 퐷 ) Test Setup Photo(s) Page 34 of 143 Report No.: 104728-10 15.247(e) Power Spectral Density Test Setup/Conditions Test Location: Brea Lab A Test Engineer: Don Nguyen Test Method: ANSI C63.10 (2013) KDB 558074 D01 15.247 Meas Guidance v05r02 Test Date(s): 11/17/2020 Configuration: 1 Test Setup: EUT is powered from 24Vac AC Adapter and connected to a laptop via USB cable and test board. The laptop is running software CC31XX/CC32XX Radio Tool ver.1.0.3.16 to activate transmitter. Software setting: Testing Frequency: 2412, 2437, 2462MHz Data Rate 802.11b: 1Mbps (DSSS), 11Mbps (CCK) 802.11g: 6Mbps (OFDM), 54Mbps (OFDM) 802.11n20: MCS0 (BPSK), MCS7 (64-QAM) Modulation: DSSS, CCK, OFDM, BPSK, 64-QAM Mode: Continuous TX/ Modulated Packet Size: 1400 Bytes TX Power Level: 0 Frequency of measurement: 2412, 2437, 2462MHz RBW=100kHz, VBW=300kHz Environmental Conditions Temperature (ºC) 23.5 Relative Humidity (%): 27 Test Equipment Asset# Description Manufacturer Model Cal Date Cal Due 03643 Spectrum Analyzer Agilent E4440 5/20/2020 5/20/2021 03431 Attenuator Aeroflex/Weinschel 89-20-21 12/20/2019 12/20/2021 P07246 Cable H&S 32022-29094K- 29094K-24TC 5/29/2020 5/29/2022 Page 35 of 143 Report No.: 104728-10 Test Data Summary - RF Conducted Measurement Measurement Method: AVGPSD-2 Frequency (MHz) Mode/Data Rate Measured (dBm/100kHz) Measured+DDCF (dBm/100kHz) Limit (dBm/3kHz) Results 2412 802.11b/1Mbps -3.659 -3.369 ≤8 Pass 2437 802.11b/1Mbps -3.134 -2.844 ≤8 Pass 2462 802.11b/1Mbps -3.310 -3.02 ≤8 Pass 2412 802.11b/11Mbps -3.770 -2.98 ≤8 Pass 2437 802.11b/11Mbps -4.039 -3.249 ≤8 Pass 2462 802.11b/11Mbps -3.958 -3.168 ≤8 Pass 2412 802.11g/6Mbps -10.701 -10.291 ≤8 Pass 2437 802.11g/6Mbps -6.054 -5.644 ≤8 Pass 2462 802.11g/6Mbps -11.228 -10.818 ≤8 Pass 2412 802.11g/54Mbps -15.216 -9.666 ≤8 Pass 2437 802.11g/54Mbps -14.660 -9.11 ≤8 Pass 2462 802.11g/54Mbps -15.846 -10.296 ≤8 Pass 2412 802.11n20/MCS0 -10.600 -10.23 ≤8 Pass 2437 802.11n20/MCS0 -7.532 -7.162 ≤8 Pass 2462 802.11n20/MCS0 -11.708 -11.338 ≤8 Pass 2412 802.11n20/MCS7 -15.438 -9.388 ≤8 Pass 2437 802.11n20/MCS7 -15.603 -9.553 ≤8 Pass 2462 802.11n20/MCS7 -16.774 -10.724 ≤8 Pass Plots 802.11b 1Mbps; Low Channel Page 36 of 143 Report No.: 104728-10 802.11b 1Mbps; Middle Channel 802.11b 1Mbps; High Channel Page 37 of 143 Report No.: 104728-10 802.11b 11Mbps; Low Channel 802.11b 11Mbps; Middle Channel Page 38 of 143 Report No.: 104728-10 802.11b 11Mbps; High Channel 802.11g 6Mbps; Low Channel Page 39 of 143 Report No.: 104728-10 802.11g 6Mbps; Middle Channel 802.11g 6Mbps; High Channel Page 40 of 143 Report No.: 104728-10 802.11g 54Mbps; Low Channel 802.11g 54Mbps; Middle Channel Page 41 of 143 Report No.: 104728-10 802.11g 54Mbps; High Channel 802.11n20 MCS0; Low Channel Page 42 of 143 Report No.: 104728-10 802.11n20MCS0; Middle Channel 802.11n20 MCS0; High Channel Page 43 of 143 Report No.: 104728-10 802.11n20 MCS7; Low Channel 802.11n20 MCS7; Middle Channel Page 44 of 143 Report No.: 104728-10 802.11n20 MCS7; High Channel Test Setup Photo(s) Page 45 of 143 Report No.: 104728-10 15.247(d) RF Conducted Emissions & Band Edge Test Setup / Conditions / Data Test Location: CKC Laboratories Inc. • 110 N. Olinda Pl. • Brea, CA 92823 • 714-993-6112 Customer: Venstar, Inc. Specification: 15.247(d) Conducted Spurious Emissions Work Order #: 104728 Date: 11/24/2020 Test Type: Conducted Emissions Time: 14:08:45 Tested By: Don Nguyen Sequence#: 2 Software: EMITest 5.03.19 24Vac Equipment Tested: Device Manufacturer Model # S/N Configuration 1 Support Equipment: Device Manufacturer Model # S/N Configuration 1 Test Conditions / Notes: EUT is powered from 24Vac AC Adapter and connected to a laptop via USB cable and test board. The laptop is running software CC31XX/CC32XX Radio Tool ver.1.0.3.16 to activate transmitter. Software setting: Testing Frequency: 2412, 2437, 2462MHz Data Rate 802.11b: 1Mbps Modulation: DSSS Mode: Continuous TX/ Modulated Packet Size: 1400 Bytes TX Power Level: 0 Frequency of Measurement: 9kHz-25GHz RBW=100kHz, VBW=300kHz Test Environment Conditions: Temperature: 24.9°C Relative Humidity: 26% Test Methods: ANSI C63.10 (2013) KDB 558074 D01 15.247 Meas Guidance v05r02 Page 46 of 143 Report No.: 104728-10 Test Equipment: ID Asset # Description Model Calibration Date Cal Due Date T1 ANP07246 Cable 32022-29094K- 29094K-24TC 5/29/2020 5/29/2022 T2 AN03431 Attenuator 89-20-21 12/20/2019 12/20/2021 AN03643 Spectrum Analyzer E4440A 5/20/2020 5/20/2022 Page 47 of 143 Report No.: 104728-10 Measurement Data: Reading listed by margin. Test Lead: Antenna Port # Freq Rdng T1 T2 Dist Corr Spec Margin Polar MHz dBμV dB dB dB dB Table dBμV dBμV dB Ant 1 4103.100M 34.9 +0.6 +19.3 +0.0 54.8 80.7 -25.9 Anten 2 4063.000M 34.5 +0.6 +19.3 +0.0 54.4 80.7 -26.3 Anten 3 4021.700M 33.7 +0.6 +19.3 +0.0 53.6 80.7 -27.1 Anten 4 3249.700M 30.3 +0.5 +19.3 +0.0 50.1 80.7 -30.6 Anten 5 3283.100M 30.1 +0.5 +19.3 +0.0 49.9 80.7 -30.8 Anten 6 7386.400M 29.6 +0.9 +19.3 +0.0 49.8 80.7 -30.9 Anten 7 7311.750M 29.5 +0.8 +19.2 +0.0 49.5 80.7 -31.2 Anten 8 7236.790M 29.4 +0.8 +19.2 +0.0 49.4 80.7 -31.3 Anten 9 3216.043M 28.8 +0.5 +19.3 +0.0 48.6 80.7 -32.1 Anten Page 48 of 143 Report No.: 104728-10 Test Location: CKC Laboratories …

Text truncated - open the document above for the full version.

Test Report

Page 76 of 143 Report No.: 104728-10 15 4104.750M 41.7 +0.0 +0.0 +4.2 +0.0 +0.0 +0.6 +0.0 -37.8 +0.5 +0.0 +32.4 +0.0 41.6 54.0 -12.4 Vert Ave ^ 4104.750M 52.2 +0.0 +0.0 +4.2 +0.0 +0.0 +0.6 +0.0 -37.8 +0.5 +0.0 +32.4 +0.0 52.1 54.0 -1.9 Vert 17 266.190M 39.5 -27.9 +12.6 +0.0 +5.9 +0.0 +0.0 +0.2 +0.0 +0.0 +3.0 +0.0 +0.0 33.3 46.0 -12.7 Horiz 18 7384.700M 34.5 +0.0 +0.0 +6.1 +0.0 +0.0 +0.9 +0.0 -37.3 +0.2 +0.0 +36.3 +0.0 40.7 54.0 -13.3 Vert Ave ^ 7384.700M 47.1 +0.0 +0.0 +6.1 +0.0 +0.0 +0.9 +0.0 -37.3 +0.2 +0.0 +36.3 +0.0 53.3 54.0 -0.7 Vert 20 109.090M 39.5 -28.0 +10.6 +0.0 +5.9 +0.0 +0.0 +0.1 +0.0 +0.0 +1.8 +0.0 +0.0 29.9 43.5 -13.6 Horiz 21 7385.180M 34.2 +0.0 +0.0 +6.1 +0.0 +0.0 +0.9 +0.0 -37.3 +0.2 +0.0 +36.3 +0.0 40.4 54.0 -13.6 Horiz Ave ^ 7385.180M 45.4 +0.0 +0.0 +6.1 +0.0 +0.0 +0.9 +0.0 -37.3 +0.2 +0.0 +36.3 +0.0 51.6 54.0 -2.4 Horiz 23 4874.000M 38.4 +0.0 +0.0 +4.5 +0.0 +0.0 +0.6 +0.0 -37.6 +0.3 +0.0 +33.2 +0.0 39.4 54.0 -14.6 Vert Ave ^ 4874.000M 49.7 +0.0 +0.0 +4.5 +0.0 +0.0 +0.6 +0.0 -37.6 +0.3 +0.0 +33.2 +0.0 50.7 54.0 -3.3 Vert 25 7311.000M 32.2 +0.0 +0.0 +6.1 +0.0 +0.0 +0.8 +0.0 -37.2 +0.2 +0.0 +36.2 +0.0 38.3 54.0 -15.7 Vert Ave ^ 7311.000M 47.7 +0.0 +0.0 +6.1 +0.0 +0.0 +0.8 +0.0 -37.2 +0.2 +0.0 +36.2 +0.0 53.8 54.0 -0.2 Vert 27 4063.000M 37.8 +0.0 +0.0 +4.2 +0.0 +0.0 +0.6 +0.0 -37.8 +0.5 +0.0 +32.4 +0.0 37.7 54.0 -16.3 Vert Ave ^ 4063.000M 50.5 +0.0 +0.0 +4.2 +0.0 +0.0 +0.6 +0.0 -37.8 +0.5 +0.0 +32.4 +0.0 50.4 54.0 -3.6 Vert 29 9848.030M 41.4 +0.0 +0.0 +7.4 +0.0 +0.0 +1.0 +0.0 -36.1 +0.4 +0.0 +38.3 +0.0 52.4 71.2 -18.8 Horiz 30 9848.080M 39.9 +0.0 +0.0 +7.4 +0.0 +0.0 +1.0 +0.0 -36.1 +0.4 +0.0 +38.3 +0.0 50.9 71.2 -20.3 Vert 31 189.090M 58.7 -28.0 +9.0 +0.0 +5.9 +0.0 +0.0 +0.2 +0.0 +0.0 +2.5 +0.0 +0.0 48.3 71.2 -22.9 Horiz Page 77 of 143 Report No.: 104728-10 32 214.590M 55.2 -27.9 +10.0 +0.0 +5.9 +0.0 +0.0 +0.2 +0.0 +0.0 +2.7 +0.0 +0.0 46.1 71.2 -25.1 Horiz 33 203.590M 55.4 -28.0 +9.2 +0.0 +5.9 +0.0 +0.0 +0.2 +0.0 +0.0 +2.6 +0.0 +0.0 45.3 71.2 -25.9 Horiz 34 553.450M 42.1 -27.6 +18.8 +0.0 +5.9 +0.0 +0.0 +0.4 +0.0 +0.0 +4.5 +0.0 +0.0 44.1 71.2 -27.1 Vert 35 304.140M 48.6 -27.9 +13.4 +0.0 +5.9 +0.0 +0.0 +0.3 +0.0 +0.0 +3.2 +0.0 +0.0 43.5 71.2 -27.7 Horiz 36 308.890M 47.9 -27.9 +13.6 +0.0 +5.9 +0.0 +0.0 +0.3 +0.0 +0.0 +3.3 +0.0 +0.0 43.1 71.2 -28.1 Horiz 37 544.050M 41.2 -27.6 +18.7 +0.0 +5.9 +0.0 +0.0 +0.4 +0.0 +0.0 +4.5 +0.0 +0.0 43.1 71.2 -28.1 Vert 38 544.050M 41.2 -27.6 +18.7 +0.0 +5.9 +0.0 +0.0 +0.4 +0.0 +0.0 +4.5 +0.0 +0.0 43.1 71.2 -28.1 Vert 39 546.350M 39.1 -27.6 +18.7 +0.0 +5.9 +0.0 +0.0 +0.4 +0.0 +0.0 +4.5 +0.0 +0.0 41.0 71.2 -30.2 Vert 40 503.550M 38.2 -27.7 +18.0 +0.0 +5.9 +0.0 +0.0 +0.3 +0.0 +0.0 +4.2 +0.0 +0.0 38.9 71.2 -32.3 Vert 41 218.150M 46.9 -27.9 +10.2 +0.0 +5.9 +0.0 +0.0 +0.2 +0.0 +0.0 +2.7 +0.0 +0.0 38.0 71.2 -33.2 Vert 42 214.550M 46.8 -27.9 +10.0 +0.0 +5.9 +0.0 +0.0 +0.2 +0.0 +0.0 +2.7 +0.0 +0.0 37.7 71.2 -33.5 Vert 43 396.540M 38.2 -27.9 +16.0 +0.0 +5.9 +0.0 +0.0 +0.3 +0.0 +0.0 +3.7 +0.0 +0.0 36.2 71.2 -35.0 Horiz 44 418.150M 36.6 -27.9 +16.5 +0.0 +5.9 +0.0 +0.0 +0.3 +0.0 +0.0 +3.8 +0.0 +0.0 35.2 71.2 -36.0 Vert 45 352.700M 38.5 -27.9 +14.9 +0.0 +5.9 +0.0 +0.0 +0.3 +0.0 +0.0 +3.5 +0.0 +0.0 35.2 71.2 -36.0 Vert Page 78 of 143 Report No.: 104728-10 46 306.450M 40.0 -27.9 +13.5 +0.0 +5.9 +0.0 +0.0 +0.3 +0.0 +0.0 +3.2 +0.0 +0.0 35.0 71.2 -36.2 Vert 47 308.950M 39.8 -27.9 +13.6 +0.0 +5.9 +0.0 +0.0 +0.3 +0.0 +0.0 +3.3 +0.0 +0.0 35.0 71.2 -36.2 Vert 48 458.550M 34.7 -27.8 +17.2 +0.0 +5.9 +0.0 +0.0 +0.3 +0.0 +0.0 +4.0 +0.0 +0.0 34.3 71.2 -36.9 Vert 49 363.600M 36.4 -27.9 +15.2 +0.0 +5.9 +0.0 +0.0 +0.3 +0.0 +0.0 +3.6 +0.0 +0.0 33.5 71.2 -37.7 Vert Page 79 of 143 Report No.: 104728-10 Test Location: CKC Laboratories Inc. • 110 N. Olinda Pl. • Brea, CA 92823 • 714-993-6112 Customer: Venstar, Inc. Specification: 15.247(d) / 15.209 Radiated Spurious Emissions Work Order #: 104728 Date: 11/24/2020 Test Type: Maximized Emissions Time: 10:51:00 Tested By: Don Nguyen Sequence#: 9 Software: EMITest 5.03.19 Equipment Tested: Device Manufacturer Model # S/N Configuration 2 Support Equipment: Device Manufacturer Model # S/N Configuration 2 Test Conditions / Notes: EUT is powered from 24Vac AC Adapter and set to transmit continuously. All IO ports are populated with unterminated cables. Software setting: Testing Frequency: 2412, 2437, 2462MHz Data Rate 802.11g: 6Mbps Modulation: OFDM Mode: Continuous TX/ Modulated Packet Size: 1400 Bytes TX Power Level: 0 Frequency of Measurement: 9kHz-25000MHz 9kHz to 150kHz RBW=0.2kHz, VBW=0.6kHz. 150kHz to 30MHz RBW=9kHz, VBW=27kHz. 30-1000MHz, RBW=120kHz, VBW=360kHz 1000-25000MHz, RBW=1MHz, VBW=3MHz -30dBc limit, RBW=100kHz, VBW=300kHz Test Environment Conditions: Temperature:20°C Relative Humidity: 48% Site A Test Methods: ANSI C63.10 (2013) KDB 558074 D01 15.247 Meas Guidance v05r02 Page 80 of 143 Report No.: 104728-10 Test Equipment: ID Asset # Description Model Calibration Date Cal Due Date AN00314 Loop Antenna 6502 4/13/2020 4/13/2022 T1 AN00309 Preamp 8447D 12/24/2019 12/24/2021 T2 ANP05281 Attenuator 1B 4/7/2020 4/7/2022 T3 ANP05050 Cable RG223/U 12/24/2018 12/24/2020 T4 ANP05198 Cable-Amplitude +15C to +45C (dB) 8268 12/4/2018 12/4/2020 T5 AN01993 Biconilog Antenna CBL6111C 6/11/2019 6/11/2021 T6 AN03643 Spectrum Analyzer E4440A 5/20/2020 5/20/2022 T7 AN00786 Preamp 83017A 5/20/2020 5/20/2022 T8 AN00849 Horn Antenna 3115 3/17/2020 3/17/2022 T9 ANP06360 Cable L1-PNMNM-48 8/8/2019 8/8/2021 T10 ANP07246 Cable 32022-29094K- 29094K-24TC 5/29/2020 5/29/2022 T11 AN03385 High Pass Filter 11SH10- 3000/T10000- O/O 5/13/2019 5/13/2021 AN01413 …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Corey McTigue(Engineering Manager)
[email protected]818 341-8760Fax: 818 341-8763

Test Firm

CKC Laboratories, Inc.Steve Behm
[email protected]209-966-5240Fax: 866 779 9776

Technical Specifications

#Rule PartsFrequency RangePower Output
315C2.41 GHz - 2.46 GHz23.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and is approved for collocated transmitters as listed in this filing. Transmitters must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.
