MUH-SEN9WiFi Temperature Sensor

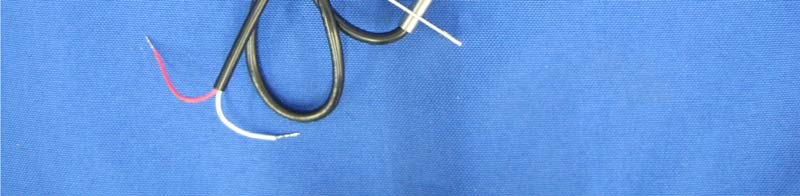

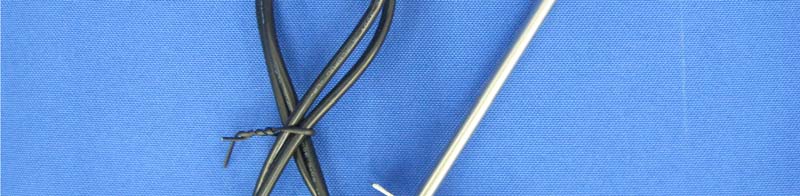

model: ACC-TSENWIFIPRO Temperature Sensor with Wi-Fi Installation Instructions Before you begin the installation: The Venstar Configurator App is needed to configure this sensor. This app may be downloaded from your mobile device store. Select a suitable location for the ACC-TSENWIFIPRO sensor. Please note that the sensor must have good Wi-Fi reception from the access point it is intended to join. Do not mount in direct sun or direct rain. Please have handy the Owner’s Manual for the thermostat that will be paired with the sensor. Venstar thermostats have unique pairing procedures. OVERVIEW This wireless temperature sensor may be used as a room remote temperature sensor, an outdoor temperature sensor, a return air temperature sensor or a supply air temperature sensor. The ACC-TSENWIFIPRO is equipped with an onboard temperature sensor. An external sensor, such as the duct sensor included in the ACC-TSENWIFIPRO box, may be connected to the rear terminals of the ACC-TSENWIFIPRO as an option. For accurate temperature sensing the 10k thermistor must adhere to the table on page 3. Venstar thermostats vary by model in the way they can use remote sensors. This includes averaging, control to, or monitoring features. Please consult the Owner’s Manual of the thermostat that you are going to pair this sensor with to understand its capabilities and pairing procedure. This sensor is compatible with all Venstar Wi-Fi thermostats that contain the latest firmware. Please consult Venstar.com for a complete listing of compatible thermostats. Note: This sensor must be connected to the same local network as the thermostat(s) that will use the sensor data. Configurator app icon fig. 1 AC POWER IN 24V AC REMOTE SENSOR Link button Unit ID Sensor type Temperature Sensor fig. 2 To Connect the Sensor to an Access Point: 1. Remove sensor cover. 2. Configure the Sensor. (use fig. 2 as a guide) A Set the Type: 1. Outdoor temperature is sampled and transmitted once every 5 minutes. 2. Return temperature is sampled and transmitted once every 20 seconds. a. Must be connected to 24Vac for 20 second sample rate. If battery powered; 1 minute sample rate. 3. Remote temperature is sampled and transmitted once every minute. 4. Supply temperature is sampled and transmitted once every 20 seconds. a. Must be connected to 24Vac for the 20 second sample rate. If battery powered; 1 minute sample rate. B Set the Unit ID: If more than one ACC-TSENWIFIPRO is joined to an access point each sensor must have a unique UNIT ID# to operate properly. Up to 20 ACC-TSENWIFIPRO sensors may be joined to 1 access point. C Select the Temperature Sensor: i. Onboard will use the temperature sensor mounted on the circuit board of the ACC-TSENWIFIPRO. ii. Remote will use the sensor connected to the remote sensor terminals on the back of the ACC-TSENWIFIPRO. A B C USE PHONE CAMERA FOR MORE INFO Pair to your Explorer thermostat: 1. After successfully connecting the sensor to the access point, momentarily press and release the Link button of the Wi-Fi sensor. The LED will stay on for up to 2 seconds, then turn off. 2. Open the ‘small, inside door’ of the Explorer thermostat. 3. Press the Accessory Setup button. 4. Press the Mode button. 5. Upon successful pairing the thermostat display will acknowledge the paired sensor, along with the sensor’s ID. To Unpair the Wi-Fi sensor from the Explorer thermostat: 1. Open the ‘small, inside door’ of the Explorer thermostat. 2. Press the Accessory Status button. 3. Press the Cooler (down arrow) button. 4. If you have more than 1 sensor press the Mode button until the sensor you wish to unpair is displayed. 5. Simultaneously press the Warmer (up arrow) and Cooler (down arrow) buttons. 6. The thermostat display will acknowledge the sensor unpaired. Pair to your ColorTouch thermostat: 1. After successfully connecting the sensor to the access point, momentarily press and release the Link button of the Wi-Fi sensor. The LED will stay on for up to 2 seconds, then turn off. 2. Press ‘Menu’ on the bottom right of the ColorTouch display. 3. Select ‘Settings”. (you may need to scroll down to Settings) 4. Select ‘Installation Settings’. (you may need to scroll down to Installation Settings) 5. Select ‘Sensor Settings’. 6. Select ‘Wireless Sensors’. 7. Select ‘Add New Sensor’. 3. Install 4 AA batteries with the polarity as indicated on the ACC-TSENWIFIPRO housing. (see fig. 3) (Disregard the battery installation when 24Vac is connected to the sensor). a. Alkaline batteries are acceptable for operation in the temperature range of 0 ̊F to 120 ̊F. b. When operating between -20 ̊F to 130 ̊F it is recommended to use good quality Lithium AA batteries. 4. Press and hold the Link button (see fig. 2) until the Link LED starts to flash. 5. Use the Venstar Configurator App to setup the Wi-Fi connection. a. Select the Wi-Fi Sensor Setup by swiping the top half of the Configurator App to the left until the Wi-Fi Sensor appears. b. Select “Setup WI-FI” c. Follow the Wi-Fi setup instructions on the Configurator App. Notes: • The LED will stay solid while connecting to the access point. • If the connection is successful the LED will turn off. • If the connection is unsuccessful the LED will flash 5 times. • If the App detects that the sensor firmware is not up to date, then the user will be prompted and instructed how to update the sensor’s firmware. (continued from page 1) AC POWER IN 24V AC REMOTE SENSOR fig. 3 At the time of publication of this manual, Explorer models with firmware version 10 or greater and ColorTouch models T7850, T7900, T8850 and T8900 with firmware version 5 or greater are compatible with this sensor. To see the current list of compatible thermostats along with pairing and unpairing instructions for each thermostat, please visit Venstar.com. Rear Panel Connections When the ACC-TSENWIFIPRO type is configured to be a supply or return air temperature sensor, the sample rate is once every 20 seconds. External power (24Vac) …

Text truncated - open the document above for the full version.

LASER ENGRAVING, TOP FACE VENSTAR FCC ID: MUH-SEN9 IC: 12547A-SEN9 ACC-TSENWIFIPRO PROSTAT FCC ID: MUH-SEN9 IC: 12547A-SEN9 PRSWFPS SF FCC ID: MUH-SEN9 IC: 12547A-SEN9 SFTHAWFSENP VENSTAR WIFI SENSOR PRO FCC FEB 25, 2020

RADIO FREQUENCY EXPOSURE REPORT FOR THE Device: WiFi Temperature Sensor Model: WiFi Sensor Pro Report No.: 103607-10 Date of issue: March 5, 2020 PREPARED FOR: Venstar, Inc. 9250 Owensmouth Avenue Chatsworth CA 91311 PREPARED BY: S. Yamamoto CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa CA 95338 The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 2 of 10 Report No: 103607-10 Purpose: To demonstrate compliance with United States, Canada, Australia and/or European Union RF Exposure requirements for Portable equipment (devices used ≤20cm from the body) with power output below exemption levels or Mobile equipment (devices used >20cm from the body) where Maximum Permissible Exposure (MPE) Calculations apply. Device and Antenna Operating Configuration: Device operating at maximum output power with continuous transmission of modulated data. Test Procedure: This equipment is evaluated in accordance with the guidelines set forth in KDB 447498 & ANSI C95.1 for the US, Health Canada Safety Code 6 & RSS 102 for Canada, ARPANSA RPS3 for AU and EN 62479 or EN 62311 for EU. Other Considerations: Report considers stand-alone configurations only. RF Exposure limits are calculated at the mid-point of each operating band. Multi-transmitter devices are assumed to permit simultaneous transmission, unless indicated otherwise. Simultaneous transmissions aggregated providing a worst-case assessment. Referenced Test Reports: The following test reports were referenced in conjunction with this assessment: 103607-6 and 103607-8 Page 3 of 10 Report No: 103607-10 RF Exposure Power Density Assessment (Single Transmitter, Stand Alone) MPE Calculation: 푃표푤푒푟 퐷푒푛푠푖푡푦 ( 푆 ) = 퐸퐼푅푃 4휋 푑 2 Given: EIRP in mW or W and d in cm or m US MPE Assessment Power Reported is: ☐ Peak ☒ Average Limit Used is: ☒ General Population ☐ Occupational Exposure Operating Band MHz Power dBm Ant Type/Gain dBi EIRP dBm Distance cm MPE mW/cm 2 Limit mW/cm 2 Comments 2412-2462 14.50 2 16.50 20 0.0089 1 Pass IC MPE Assessment Power Reported is: ☐ Peak ☒ Average Limit Used is: ☒ General Population ☐ Occupational Exposure Operating Band MHz Power dBm Ant Type/Gain dBi EIRP dBm Distance m MPE W/m 2 Limit W/m 2 Comments 2412-2462 14.50 2 16.50 0.2 0.089 5.4 Pass Page 4 of 10 Report No: 103607-10 Summary: Exemptions: Equipment demonstrating compliance by portable RF exposure exemption have been evaluated, without further testing, for use under either portable or mobile RF exposure configurations. Additional configurations including collocation or simultaneous transmission with other transmitters (including necessary separation distances) are subject to further assessment. Certain exemption criteria may define specific separation distances. It is assumed that the manufacturer shall design the equipment such that these minimum separation distance is met. MPE Calculation Results: Equipment demonstrating compliance with MPE calculations have been evaluated, without further testing, for use under mobile RF exposure configurations as identified herein. Additional configurations including collocation or simultaneous transmission with other transmitters (including necessary separation distances) are subject to further assessment. It is assumed that the manufacturer shall design the equipment such that the minimum separation distance of 20cm (or greater, as listed above) is met or that the manufacturer provides a protection guide (e.g. installation instructions) to the end user such that the antenna(s) may be installed in accordance with the manufacturer’s instructions in such a manor to maintain the minimum separation distance. General Comments: The absorption and distribution of Electromagnetic energy in the body is a very complex phenomena that depends on the mass, shape and physiological condition of the body; the orientation of the body with respect to the fields; and, the electrical properties of the body and the environment. Variables that may play a substantial role in possible biological effects are those that characterize the environment (including but not limited to: ambient temperature, air velocity, relative humidity and body insulation); and those that characterize the individual (including but not limited to: age, gender, activity level and existing debilitation or disease). Because innumerable factors may interact to determine specific biological effects of exposure to electromagnetic fields, any protection guide should consider both intended and unintended operational environments and provide guidance for installation and use of the product such that proper separation distances can be maintained. (ANSI C95.1) Page 5 of 10 Report No: 103607-10 RF Exposure Limits United States Compliance Requirements (1.1310): RF Exposure Evaluation Limits Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842 / f MHz 4.89 / f MHz *(900 / f MHz 2 ) 6 30-300 61.4 0.163 1 6 300-1500 --- --- f MHz / 300 6 1500-100,000 --- --- 5.0 6 RF Exposure Evaluation Limits General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824 / f MHz 2.19 / f MHz *(180 / f MHz 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 --- --- f MHz / 1500 30 1500-100,000 --- --- 1.0 30 * …
