MUH-SKYPORT1Wi-Fi Accessory

Package Contents: 1) Skyport Wi-Fi Key, 1) Locking Clip, 1) Instruction Sheet Insert the Sykport Wi-Fi Key all the way into the SD slot of the ColorTouch Thermostat. The ‘cut corner’ of the Key’s circuit board faces up as shown in figure 1. A Locking Clip is included for added security. The Locking Clip helps prevent unauthorized removal of the Skyport Key. Please refer to the steps below for installation of the Locking Clip. Copyright 2012, Venstar, Inc. All Rights Reserved 88-954 Rev.1 VENSTAR VENSTAR ACC0454 Installation Instructions Skyport Wi-Fi Key Cut corner up fig. 1 fig. 2 fig. 3 INSERT With the thermostat removed from the backplate, insert the Skyport Key. Install the Locking Clip as shown in figure 2. The Locking Clip is seated all the way down next to the circuit board as shown in figure 3. Reinstall the thermostat on the backplate. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment. C c F Skyport Key ACC0454 FCC ID MUH-SKYPORT1 This device must be installed properly and operated more than 20 cm from the human body.

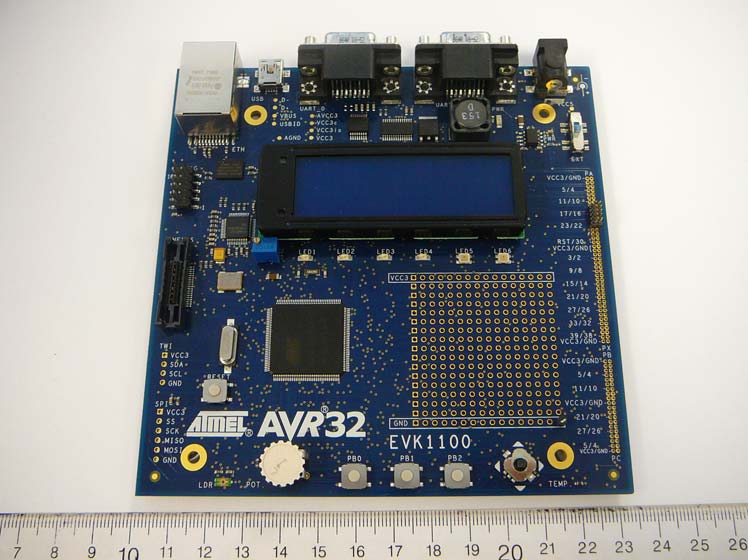

Venstar, Inc. FCC ID: MUH-SKYPORT1 Report Number: R1202133-247 Page 52 of 56 FCC Part 15C Test Report 15 Exhibit C - EUT Photographs 15.1 EUT – Front View 15.2 EUT- Back View Venstar, Inc. FCC ID: MUH-SKYPORT1 Report Number: R1202133-247 Page 53 of 56 FCC Part 15C Test Report 15.3 EUT on the Evaluation Kit 15.4 Evaluation Kit (EVK1100) Front View EUT Venstar, Inc. FCC ID: MUH-SKYPORT1 Report Number: R1202133-247 Page 54 of 56 FCC Part 15C Test Report 15.5 Evaluation Kit (EVK1100) Rear View 15.6 AC/DC Power Supply of Support Board View

Venstar, Inc. FCC ID: MUH-SKYPORT1 Report Number: R1202133-247 Page 55 of 56 FCC Part 15C Test Report 15.7 EUT – Disassemble View 15.8 EUT- Main PCB Board Top View Antenna Venstar, Inc. FCC ID: MUH-SKYPORT1 Report Number: R1202133-247 Page 56 of 56 FCC Part 15C Test Report 15.9 EUT – Main PCB Board Bottom View --- END OF RE PORT ---

Venstar, Inc. FCC ID: MUH-SKYPORT1 Report Number: R1202133-247 Page 10 of 56 FCC Part 15C Test Report 4 FCC §15.247 (i) & §2.1091 - RF Exposure 4.1 Applicable Standard According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 * (100) 30 1.34-30 824/f 2.19/f * (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results Maximum peak output power at antenna input terminal (dBm):16.85 Maximum peak output power at antenna input terminal (mW): 48.42 Prediction distance (cm): 20 Prediction frequency (MHz): 2412 Maximum Antenna Gain, typical (dBi): 2.0 Maximum Antenna Gain (numeric): 1.58 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.0152 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.0152 mW/cm 2 , Limit is 1.0 mW/cm 2 .

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15 SUBPART C TEST AND MEASUREMENT REPORT For Venstar Inc. 9250 Owensmouth Ave., Chatsworth, CA 91311, USA Report Type: Original Report Product Type: 802.11 b/g Wi-Fi Accessory Test Engineers: Lionel Lara Report Number: R1202133-247 Report Date: 2012-03-01 Reviewed By: Victor Zhang EMC/RF Lead Prepared By: (SP) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 FCC ID: MUH-SKYPORT1 Venstar, Inc. FCC ID: MUH-SKYPORT1 Report Number: R1202133-247 Page 2 of 56 FCC Part 15C Test Report TABLE OF CONTENTS 1 General Description .................................................................................................................................................... 5 1.1 Product Description for Equipment Under Test (EUT) ....................................................................................... 5 1.2 Mechanical Description of EUT .......................................................................................................................... 5 1.3 Objective.............................................................................................................................................................. 5 1.4 Related Submittal(s)/Grant(s) .............................................................................................................................. 5 1.5 Test Methodology................................................................................................................................................ 5 1.6 Measurement Uncertainty.................................................................................................................................... 5 1.7 Test Facility......................................................................................................................................................... 6 2 System Test Configuration ......................................................................................................................................... 7 2.1 Justification.......................................................................................................................................................... 7 2.2 EUT Exercise Software ....................................................................................................................................... 7 2.3 Special Equipment ............................................................................................................................................... 7 2.4 Equipment Modifications .................................................................................................................................... 7 2.5 Local Support Equipment .................................................................................................................................... 7 2.6 Power Supply List and Details............................................................................................................................. 7 2.7 EUT Internal Configuration Details .................................................................................................................... 8 2.8 External I/O Cabling List and AC Cord .............................................................................................................. 8 3 Summary of Test Results ............................................................................................................................................ 9 4 FCC §15.247 (i) & §2.1091 - RF Exposure ................................................................................................................ 10 4.1 Applicable Standard .......................................................................................................................................... 10 4.2 MPE Prediction.................................................................................................................................................. 10 4.3 MPE Results ...................................................................................................................................................... 10 5 FCC §15.203 – Antenna Requirements ..................................................................................................................... 11 5.1 Applicable Standard .......................................................................................................................................... 11 5.2 Antenna Connector Construction....................................................................................................................... 11 6 FCC §15.207 – AC Line Conducted Emissions ......................................................................................................... 12 6.1 Applicable Standards ......................................................................................................................................... 12 6.2 Test Setup .......................................................................................................................................................... 12 6.3 Test Procedure ................................................................................................................................................... 12 6.4 Test Setup Block Diagram.........................................................................................................................…

Text truncated - open the document above for the full version.

Venstar, Inc. FCC ID: MUH-SKYPORT1 Report Number: R1202133-247 Page 49 of 56 FCC Part 15C Test Report 14 Exhibit B - Test Setup Photographs 14.1 AC Line Conducted Emission Front View 14.2 AC Line Conducted Emission Side View Venstar, Inc. FCC ID: MUH-SKYPORT1 Report Number: R1202133-247 Page 50 of 56 FCC Part 15C Test Report 14.3 Radiated Emission Front View @ 3 Meter 14.4 Radiated Emission below 1 GHz Rear View @ 3 Meter Venstar, Inc. FCC ID: MUH-SKYPORT1 Report Number: R1202133-247 Page 51 of 56 FCC Part 15C Test Report 14.5 Radiated Emission above 1 GHz Rear View @ 3 Meter
