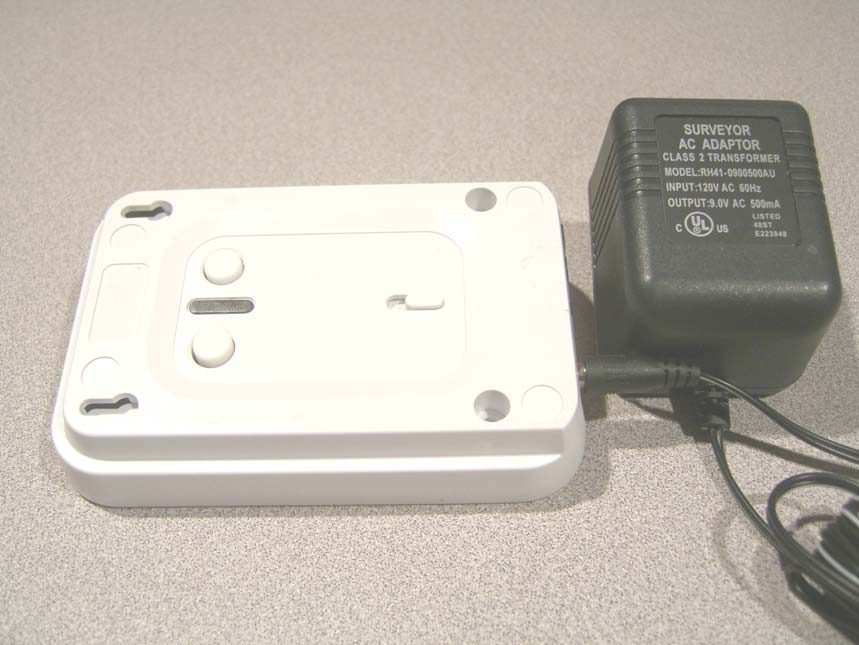

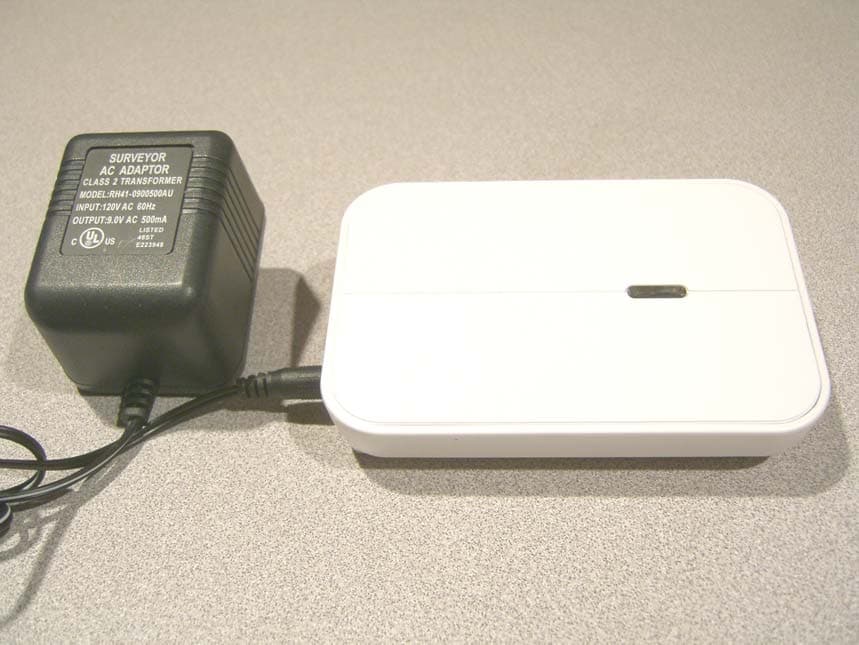

MUHBASE1Controller Base for Thermostat

Replacement Components Division Carrier Corporation 02/07 Complete Control from BASE STATION & RF WIRELESS MODULE BASE STATION & RF WIRELESS MODULE BASE STATION & RF WIRELESS MODULE BASE STATION & RF WIRELESS MODULE COMFORT CALL COMFORT CALL COMFORT CALL COMFORT CALL OWNER’S MANUAL OWNER’S MANUAL COMFORT CALL SYSTEM P/N P374-0433 COMFORT CALL SYSTEM P/N P374-0433 TOTALINE Compatible with thermostat models: P374-1700, P374-1800, P374-1900, P374-2700, P374-2800, & P374-2900 for a complete list contact RCD Overview Location of Controls, Indicators & Connections Table of Contents Installation & Setup Resetting the Access Code Operation Link up to 4 Thermostats to 1 Base Station Control of the Thermostat’s Auxiliary Output Menu of Touch Tone Keys Warranty Page 1 P/N P374-0433 Replacement Components Division Carrier Corporation 02/07 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. C c F Comfort Call P374-0433 FCC ID MUHBASE1 FCC ID MUHMODULE1 Overview Page 2 Comfort Call allows you to call and ‘talk’ to your compatible thermostat. Monitoring and controlling your thermostat is now simple and easy from any phone, from anywhere. Comfort Call employs the latest in voice recognition and synthesis technology. It can tell you the indoor temperature of your home and the outdoor temperature, provided there is a working outdoor sensor connected to the thermostat. Once on the phone with your system, you may tell your thermostat to change to your preset Comfort Settings or go into your preset ‘unoccupied’, Energy Savings Settings (page 15). Comfort Call consists of two parts: A base station (page 6) that connects to the phone line and a RF Wireless Module that plugs into your compatible thermostat (page 5). Once Comfort Call answers, you will be prompted to enter a Security Access Code. This code is preset to 1111. You may change this code to any four digit number, if desired (page 13). Some homes may have more than one thermostat. If there is more than one thermostat, Comfort Call will have a menu option to access up to four different thermostats (page 16). As an added feature, some of our compatible thermostat models allow for the remote control of an auxiliary output on the thermostat. This auxiliary output may be accessed and controlled from Comfort Call as well (pages 17 and 18). An example of the use of this auxiliary output: The output is connected to a Powerflash Interface PF284 to turn on or off the indoor lighting wirelessly. Overview continued Page 3 Comfort Call requires an analog telephone line. If this system is installed at a primary residence, then the ring selector on the base station should be set to pick up the line after seven rings (page 10). With this setting, Comfort Call will not answer before an occupant is likely to pick up the phone. If an answering machine or fax machine is connected to Comfort Call, then the answering/fax machine should be set to pick up before Comfort Call (the ring selector is set to seven rings). In the case of a connected answering machine, after the tone to leave a message is heard, the user enters the Comfort Call security code. Comfort Call will release the answering machine from the line and control of the thermostat is now possible. In the case of a fax machine, after the ‘handshake’ tones are heard, there are moments of silence; during this silent period the Comfort Call security code should be entered. Comfort Call will release the fax machine from the line and control of the thermostat will be possible. Please note that some phone services provide a ‘voicemail’ answering service. These services release the home phone line after a preset number of rings and transfer the call to an internal voicemail system. Comfort Call is not compatible with this type of voicemail system. Comfort Call is a solution for people who do not have the same occupied patterns every day for their homes. It is also a convenient way to call ahead to make sure the primary or vacation home is comfortable upon arrival. At the thermostat, select the mode (Auto, Heat Cool, or Off). Adjust the setpoints to the desired settings. Here, at the base station, press the corresponding button for 5 seconds. The LED will flash for 5 minutes. Within 5 minutes of pressing the button on the base station, press the link button on the receiver for 3 seconds. The LED on the receiver will flash twice. The base station will now remember your settings. You may change these settings at anytime by repeating the above steps. Refer to owner’s manual for more details 1 1 4 4 77 RINGS 11 22 33 44 9vac Power LINE Power and Link LED Indicator Comfort Settings Link Button Ring Selector Switch Link Button Link LED Indicator Energy Savings Link Button Location of Controls, Indicators & Connections Page 4 ANSWER MACH., FAX, OR PHONE ANSWER MACH., FAX, OR PHONE COMFORT CALL 9vac Power LINE energy comfort FAN OUTSIDE HUMIDITY PROGRAM VACATION SET CLOCK MODE Premier Residential Programmable Thermostat Connect the RF Wireless Module to the thermostat as shown below. Installation & Setup Page 5 Accessory release button Accessory jack located on bottom of thermostat RF Wireless Module To remove the RF Wireless Module from the thermostat, press and hold the accessory release button while removing the RF Wireless Module from the thermostat’s accessory jack. To connect the RF Wireless Module to the thermostat, insert the RF Wireless Module plug into the accessory jack of the thermostat. The RF Wireless Module has two tabs that fit into the ventilation slots of the thermostat for added stability. PROGRAM VACATION SET CLOCK MODE HUMIDITY OUTSIDE FAN Premier Residential Programmable Thermostat Installation & Setup Page 6 Connect the telephone line to the Base Station and power Comfort Call with the …
