MVAABH802-AT0-1-NBluetooth Headset

1 Accessories list: Use instructions Warranty card Bluetooth headset The LINE IN line Charging cable 1 USB c 2. The LINE IN line 3. Bluetooth headset .harging cable 1 2 Dear customer: Thank you for purchasing our high quality electronic product. This product uses international advanced Bluetooth wireless audio transmission technology, which has stable signal ( high frequency modulation, easily to avoid other signal interference), stereo Hi- Fi sound quality, strong versatility etc.. The scope of product: audio devices with Bluetooth , including PC, mobile phone, MP3, notebook, etc.. Note: Product Introduction Product Overview 3 1. When pair with the mobile phone ,function of the headset may change according to type of the mobile phone. 2. Some of the equipments , especially those without the Bluetooth Technology Alliance (SIG) testing or approval, may not be compatible with this product. available 2 Turn on the headset by pressing the Power button until the blue light flash,and it will be on the pair condition. On You must establish the connection between the headset and a compatible device by pairing before you can start using. LED Off Turn off the headset by pressing the Power button until the blue light shuts down. If the mobile device support Bluetooth and has a music player , you can play music by the headset . Pair power play / pause 3 A. Ensure that the mobile device or a music player is on and the headset is closed. B. Open the headset,it will enter pairing mode, the blue light starts to flash quickly. C.Use device Bluetooth function, begin to search for Bluetooth devices, select "ABH802" headsets from the list of devices. D. If necessary, please enter the password 0000 to pair the headset. For some of the devices , you may need to match, and then establish a connection. E . When the headset is connected to the device and ready for use, the blue light is on for the whole time. F. If you want to disconnect the connection between the headset and device or pair it with other device , you can press the power button until the blue light slow flash and then loose the power button .This time ,the headset is disconnected with device; the other device can be paired. The operation and function 4 click twice In order to achieve the most ideal effect,slip each one direction on the sensor board for 2/3 length. Forward/Backward: Slip left or right on sensor board. Play / Pause: Press the play / pause button or click the sensor board twice. Volume Up/ Down: Slip up or down to increase/ reduce the volume.When you want to continue increasing/ reducing the volume,slipe sensor board up/down for 2/3 length and then hold it. Answer: Press the play / pause button or click the sensor board twice.when you don`t want to answer the call,press the play / pause for 3 seconds. Hung: Press the play / pause button or click the sensor board twice after finishing the call. LINE IN function : When the USB MIRCO is connected to the audio line (3.5MM TO USB MIRCO B/M), it will automatically disconnect Bluetooth function and change to LINE IN, used as a wired headset. Low battery alarm function: When the battery power is low, the headset will issue a "beep" sound warning to turn off the headset. Operation: Headset reset function:If the headset stop working, you need to reset the headset, please connect the headset to a charging wire /adapter , then it will reset successfully;If it is in working , when you connect it to a charging wire /adapter ,the headset will automatically shut down, at this time please reset it for normal work. 5 When wearing headset, please pay attention to distinguish between left and right side of the headband. Headset on both sides has a telescopic headband design, you can adjust the headband length for more comfortable .Stretch length was 30 ± 1mm. 30±1mm NFC Automatically turn off function: If the headset is not connected with any equipment in about 10 minutes, it will automatically shut down for power saving. Wearing Warning: Using the headset will weaken your ability to hear outside sounds. Therefore, please do not use headset in the condition which may threaten your safety . NFC function: Mobile phone itself must have the function of NFC. Put mobile phone to the left side of ABH802 NFC region. If successfully connected, it will issue a“du” sound and shows the connection is successful on the phone. If you want to disconnect the headset,then put it again to the mobie phone NFC region,then they will disconnect. 6 USB Charging When it is charging , the green lights. When the charging is completed, the green indicator light is extinguished, charging adapter/wire can be removed. If the battery is completely run out , it may take several minutes for charging light to indicate the state of charge; When the charging cable is not in use, please disconnect it with the device. Excessive charging will shorten battery life. If you have a fully charged battery without using , the battery will discharge by itself after a period of time; The headset can be used when charging . Note: The headset is built with non removable and rechargeable battery inside, do not remove the battery or so as not to damage the headset . When charging for first time ,it should be charged for more than 4 hours and less than 8 hours, which can activate the battery in best status. After that, charging only needs 2-3 hours (do not charge more than 24 hours, or it will damage the battery life) 7 Safety In order to obtain the best sound effects, please pay attention to distinguish between left and right side of the headband.; do not disassemble the hardware; use dry and soft cotton to clean the headset etc. We recommend you take the following preventive measures to prevent hearing loss : If the volume is too large, may cause hearing loss.Adjust the appropriate volume from the minimum, increase slowly until the sound is comfortable, clear and without distortion. If in a comfortable volume, you have tinnitus or discomfort , please tu…

Text truncated - open the document above for the full version.

FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Uni-Art Precise Products Ltd 1 1-12/F,Yue Xiu Industrial Building,87 Hung To Road,Kowloon,Hong Kong FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Uni-Art Precise Products Ltd Addresss 11-12/F,Yue Xiu Industrial Building,87 Hung To Road,Kowloon,Hong Kong City Hongkong Country request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: MVA ABH802-AT0-1-N of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Operational Description Block Diagrams Schematics Diagrams Part list Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hongkong November 21, 2013 Simon Chan Sales Manager

Uni-Art Precise Products Ltd 11-12/F,Yue Xiu Industrial Building,87 Hung To Road,Kowloon,Hong Kong FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name Uni-Art Precise Products Ltd Address 11-12/F,Yue Xiu Industrial Building,87 Hung To Road,Kowloon,Hong Kong City Hongkong Country declare that the following representative (agent): Name (person) Ruby zhang Function Supervisor Company name Compliance Certification Services (Shenzhen) Inc. Addresss No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Bluetooth Headset Type or Model(s) ABH802,BH802 Tradename or Brand(s) ARTISTE/ARKON We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hongkong November 21, 2013 Simon Chan Sales Manager

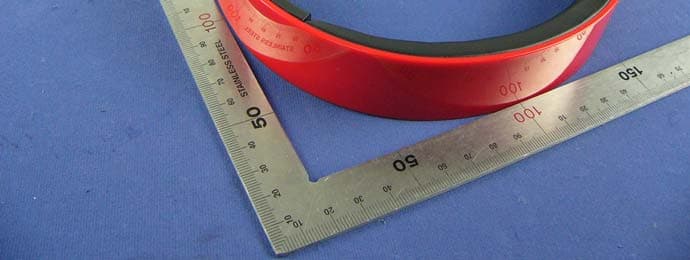

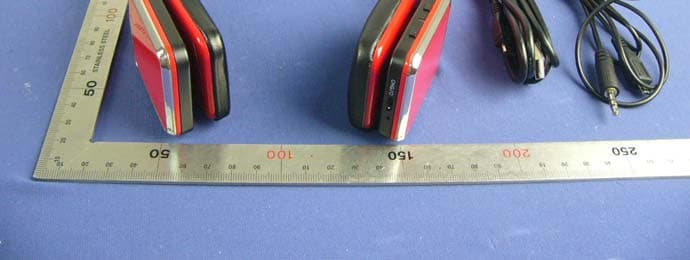

Report No: C131016Z01-RP1 Page 1 / 2 External Photos of EUT Report No: C131016Z01-RP1 Page 2 / 2

Label and Location

Report No: C131016Z01 Page 1 / 5 Internal Photos of EUT Report No: C131016Z01 Page 2 / 5 Report No: C131016Z01 Page 3 / 5 Report No: C131016Z01 Page 4 / 5 Report No: C131016Z01 Page 5 / 5

Report No.: C131016Z01-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. FCC ID: MVAABH802-AT0-1-N Page 1 / 63 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Bluetooth Headset Model: ABH802/BH802 Brand: ARTISTE/ARKON Test Report Number: C131016Z01-RP1 Prepared for Uni-Art Precise products Ltd 11-12/F,Yue Xiu Industrial Building,87 Hung To Road,Kowloon,Hong Kong Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: November 15, 2013 Report No.: C131016Z01-RP1 FCC ID: MVAABH802-AT0-1-N Page 2 of 63 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C131016Z01-RP1 Initial Issue ALL Sinphy Xie Report No.: C131016Z01-RP1 FCC ID:MVAABH802-AT0-1-N Page 3 of 63 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .....................................................................................4 2. EUT DESCRIPTION..........................................................................................................5 3. TEST METHODOLOGY....................................................................................................6 3.1 DESCRIPTION OF TEST MODES ................................................................................6 4. FACILITIES AND ACCREDITATIONS .............................................................................7 4.1 FACILITIES....................................................................................................................7 4.2 ACCREDITATIONS .......................................................................................................7 4.3 MEASUREMENT UNCERTAINTY ................................................................................7 5. SETUP OF EQUIPMENT UNDER TEST ..........................................................................8 5.1 SETUP CONFIGURATION OF EUT .............................................................................8 5.2 SUPPORT EQUIPMENT .............................................................................................8 6. FCC PART 15.247 REQUIREMENTS ..............................................................................9 6.1 20dB BANDWIDTH........................................................................................................9 6.2 PEAK POWER.............................................................................................................13 6.3 PEAK POWER SPECTRAL DENSITY ........................................................................14 6.4 BAND EDGES MEASUREMENT ................................................................................19 6.5 FREQUENCY SEPARATION ......................................................................................29 6.6 NUMBER OF HOPPING FREQUENCY ......................................................................32 6.7 TIME OF OCCUPANCY (DWELL TIME) .....................................................................35 6.8 SPURIOUS EMISSIONS .............................................................................................42 6.9 POWERLINE CONDUCTED EMISSIONS ..................................................................61 Report No.: C131016Z01-RP1 FCC ID: MVAABH802-AT0-1-N Page 4 of 63 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product: Bluetooth Headset Model: ABH802/BH802 Brand: ARTISTE/ARKON Tested: October 16~November 14, 2013 Applicant: Uni-Art Precise products Ltd 11-12/F,Yue Xiu Industrial Building,87 Hung To Road,Kowloon,Hong Kong Manufacturer: Uni-Art Precise products Ltd 11-12/F,Yue Xiu Industrial Building,87 Hung To Road,Kowloon,Hong Kong APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C131016Z01-RP1 FCC ID: MVAABH802-AT0-1-N Page 5 of 63 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product Bluetooth Headset Model Number ABH802/BH802 Brand ARTISTE/ARKON Model Discrepancy Only the model name and the brand name different. Identify Number C131016Z01-RP1 Power Supply DC5V supplied by the notebook or DC3.7V supplied by the battery Line In Cable Shielded, 1.50m USB Cable Unshielded, 1.50m Received Date October 16, 2013 Frequency Range 2402 ~ 2480 MHz Transmit Power GFSK : 4.32dBm 8DPSK : 1.10dBm Modulation Technique FHSS (GFSK for 1Mbps, π/4-DQPSK for 2Mbps, 8D…

Text truncated - open the document above for the full version.

Report No.: C131016Z01-RP1 FCC ID: MVAABH802-AT0-1-N Page 1/2 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: C131016Z01-RP1 FCC ID: MVAABH802-AT0-1-N Page 2/2 RADIATED EMISSION TEST Below 1GHz Above 1GHz
