MXF-M921015AG

Gemtek Technology Co., Ltd.

Wireless 11a+g mini-PCI

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Dec 28, 2003
Application Purpose: Original Equipment
Date of Application: Dec 28, 2003
Equipment Note: Wireless 11a+g mini-PCI
Frequency Range: 5180.00000000 - 5320.00000000
Company: Gemtek Technology Co., Ltd.
Country: Taiwan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

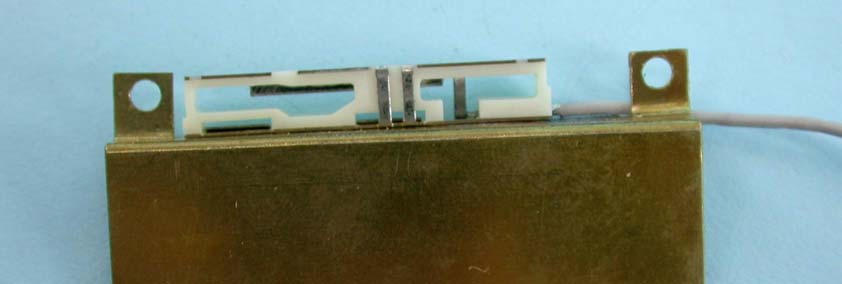

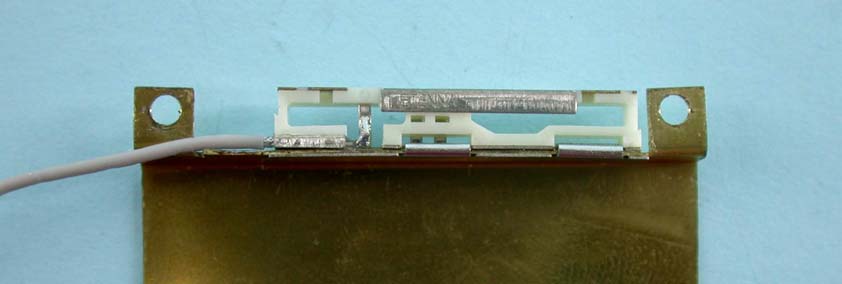

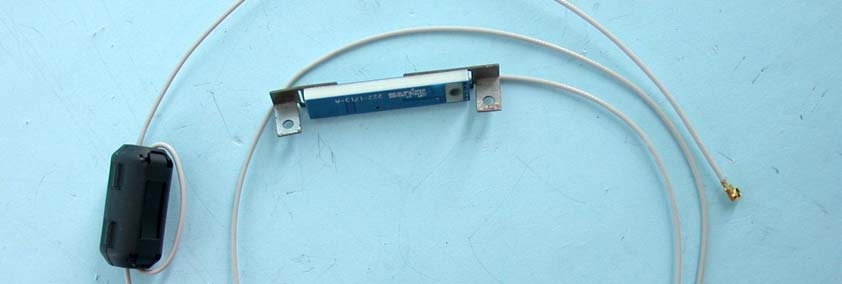

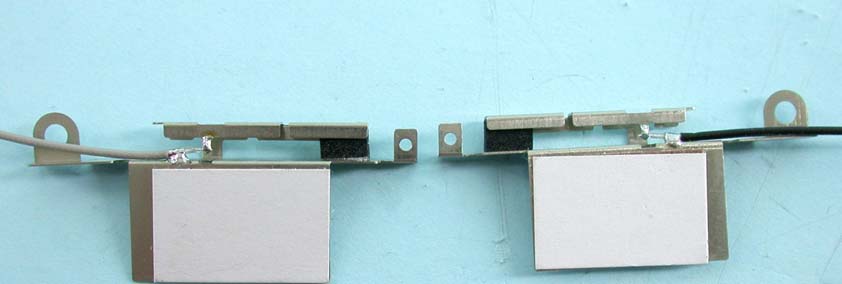

External Photos

ID Label/Location Info

Internal Photos

Operational Description

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Adam Wang(Manager)

[email protected]886 3-598-5535Fax: 886 3-597-6663

Technical Contact

Advance Data Technology CorporationEllis Wu

[email protected]+886-3-327-0910

13-1, Lane 19, WenShan 3rd., St. · Taoyuan · Taiwan

Non-Technical Contact

Advance Data Technology CorporationEllis Wu

[email protected]+886-3-327-0910

Test Firm

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchTommy Wu

[email protected]886-2-2605-2180-3Fax: 886-2-2605-2943

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15E	5.18 GHz - 5.32 GHz	45.00 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Power Output Listed is Conducted. Modular Approval restricted to OEM installation in configurations where the antenna is at least 20 cm from all persons. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and OEM integrators must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. OEM Integrators must satisfy the integral antenna requirements of 15.407(d) and advise the end user of the indoor restrictions of 15.407(e).
