N27TRINITY116M802.11 a/n Point-to-Point Wireless Radio Link

Trinity-100 Series Installation and Operational Guide Repeatit ABTel: +46 8 570 106 66 Hamngatan 33Fax: +46 8 570 106 67 172 66 SundbybergE-mail: [email protected] Swedenwww.repeatit.se Quick start WarningThis product transmitts information using microwave ra- dio signals. Installation of fixed outdoor radio links should only be performed by a qualified and trained technician familiar with local radio, electric and safety regulations. Before proceeding with the installation verify that the equipment works on the ground. Power up both units and put them between your computer and network access, you should have full commu- nication within a few minutes of powering up the units. (If the units have no internal antenna make sure you place the antenna connectors directly opposite each other.) The units are pre-configured and paired from factory with the fol- lowing parameters. Master Client IP address10.0.0.1 10.0.0.2 Usernameadminadmin Passwordpublicpublic Installing the link • Mount the first unit, point it towards the site of the second unit. Power it up and make sure the Power LED is lit and the status LED blinks slowly. • Mount the second unit. Power it up and adjust it for best signal using the status LED see section 1.9 for details . • Adjust the first unit for best signal using the Status LED. 1 Trinity-100 Series • Make sure all cables are secured and connect the link to the network. • Configure the distance parameters at the master unit to re- flect the correct distance between the units. NoteMake sure that the polarization on both units are in the same direction. Unaligned polarization will significantly reduce the signal strength. 2 Contents 1 Installation Guide4 1.1 Who should use this guide . . . . . . . . . . . . . . . . . 4 1.2 Package contents . . . . . . . . . . . . . . . . . . . . . . 4 1.3 Additional tools required . . . . . . . . . . . . . . . . . . 5 1.4 Unit description . . . . . . . . . . . . . . . . . . . . . . . 5 1.5 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1.6 Mounting a Trinity unit . . . . . . . . . . . . . . . . . . . 6 Mounting instruction for Trinity-116M . . . . . . . . . . 7 1.7 Ethernet cabling . . . . . . . . . . . . . . . . . . . . . . . 8 1.8 Installing the power supply . . . . . . . . . . . . . . . . 9 1.9 Finalizing the installation . . . . . . . . . . . . . . . . . . 9 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . 10 Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Securing the installation . . . . . . . . . . . . . . . . . . 11 2 Configuration12 2.1 Trinity-100 series Configuration concepts . . . . . . . . 12 Configuration areas . . . . . . . . . . . . . . . . . . . . . 12 2.2 Configuring using the Trinity-100 series web interface 13 Modifying the configuration . . . . . . . . . . . . . . . . 13 Applying a new configuration . . . . . . . . . . . . . . . 13 Saving settings to flash memory . . . . . . . . . . . . . 14 Rolling back settings . . . . . . . . . . . . . . . . . . . . 15 2.3 Configuration parameters . . . . . . . . . . . . . . . . . 16 Radio settings . . . . . . . . . . . . . . . . . . . . . . . . 17 Network settings . . . . . . . . . . . . . . . . . . . . . . 20 System settings . . . . . . . . . . . . . . . . . . . . . . . 20 3 Unit Operation22 3.1 Unit status . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Default view . . . . . . . . . . . . . . . . . . . . . . . . . 22 Extended information . . . . . . . . . . . . . . . . . . . . 22 Status information . . . . . . . . . . . . . . . . . . . . . . 23 3 Trinity-100 SeriesCONTENTS 3.2 Link Diagnostic Tools . . . . . . . . . . . . . . . . . . . . 24 Spectrum analyzer . . . . . . . . . . . . . . . . . . . . . 24 Speed test . . . . . . . . . . . . . . . . . . . . . . . . . . 25 3.3 Firmware upgrading . . . . . . . . . . . . . . . . . . . . . 26 3.4 Restore to defaults . . . . . . . . . . . . . . . . . . . . . 26 4 Support27 5 Technical Specifications28 6 Usage restrictions and legal information29 CONTENTS 4 Installation Guide 1.1 Who should use this guide Installing fixed outdoor radio links requires technical expertise and should only be carried out by a technician. You should only attempt to install and configure the Trinity link if you have • Experience with mounting outdoor radio equipment and an- tenna installation. • An understanding, or common knowledge, of network equip- ment. • Made sure that the installation site is suitable and complies with local radio, electrical and safety regulations. WarningRadio regulations differs between countries and all op- tions and/or combinations in this manual might not be allowed in your current region. Local radio regulations or legislation may im- pose restriction on allowed usage such as • Allowed radio channel frequencies for outdoor usage. • Maximum allowed EIRP. You are responsible for that your installation complies with local radio, electrical and safety regulations. 1.2 Package contents Please inspect the package before proceeding with the installa- tion. Your Trinity Lite package should contain the following content • Trinity-116M/116M Plus –2 Trinity-116 units with integrated dual polarization 17 dBi antenna –2 Mounting kits –2 PoE with power adapter for your local region 5 Trinity-100 SeriesInstallation Guide 1.3 Additional tools required Depending on the conditions at the installation site other tools might be needed, including, but not limited to • Cat5E Ethernet cable • RJ-45 crimp tool and RJ-45 connectors if not using a pre-assembled Ethernet cable • An adjustable wrench • Drill for wall mounting • Ground cables • Cable ties to secure cabling 1.4 Unit description There are three LEDs, power, status and Ethernet link/activity. LEDColour Status Power (P) Green OnPower on Status (S) Green FlashingSignal strength pattern BlinkingFirmware upgrade in progress Ethernet (E) Green On/blinking Reflects Ethernet traffic and link status OffNo Ethernet link 1.5 Installation Installing…

Text truncated - open the document above for the full version.

Repeatit AB Attestation for FCC Declaration of Conformity FCC ID: N27TRINITY116M Date: 2012/05/25 Please be notified that we, the undersigned, Repeatit AB declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DOC. And the DoC procedure shall be carried out prior to marketing the device in the US. Sincerely, Magnus Bergsten / Manager Repeatit AB

Repeatit AB Date: 2012-5-25 Federal Communications Commission Authorization and Evaluation Division FCC ID: N27TRINITY116M UATTESTATION FCC ID: N27TRINITY116M Product: Trinity116M Plus, SU116, Trinity116M Model: 801-1161, 802-1160, 801-1160 For US market, manufacturer will lock the operation frequency band 5500 - 5700 MHz will be switched off via software. The users can not be able to configure frequency range or channels out of ranges through website. Sincerely, Magnus Bergsten / Manager Repeatit AB

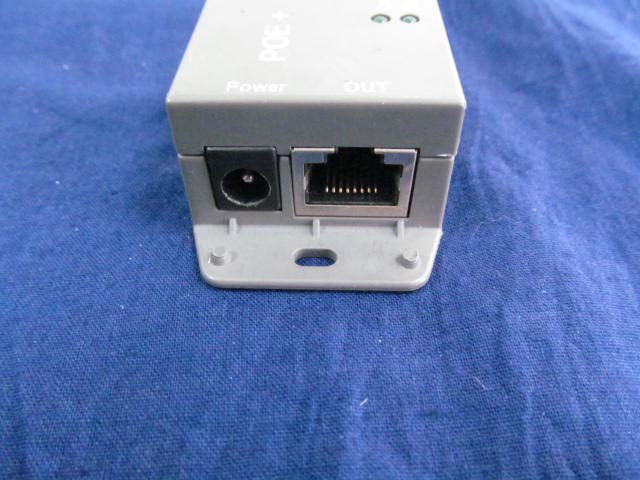

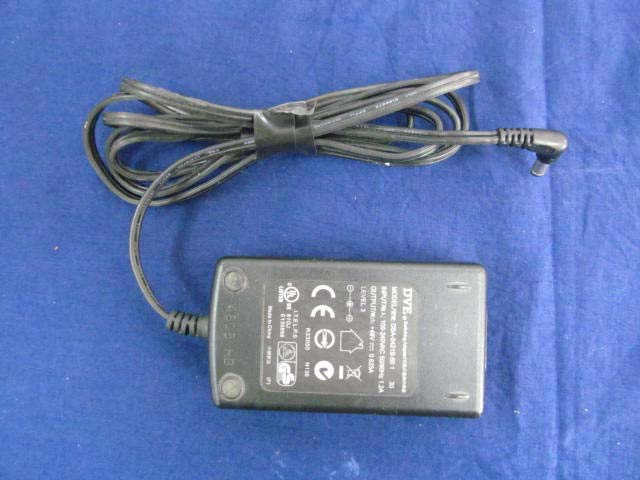

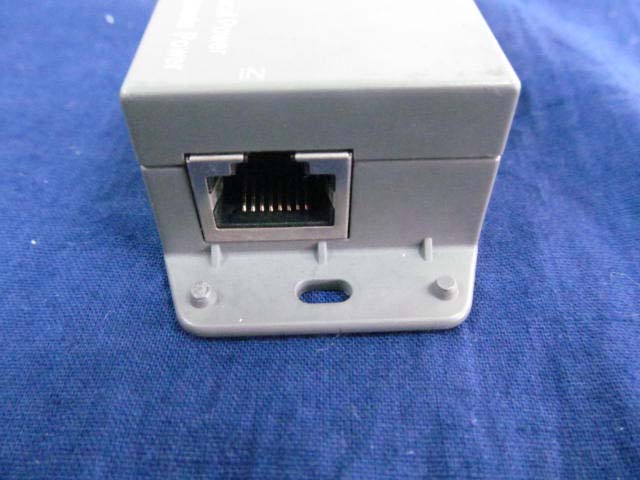

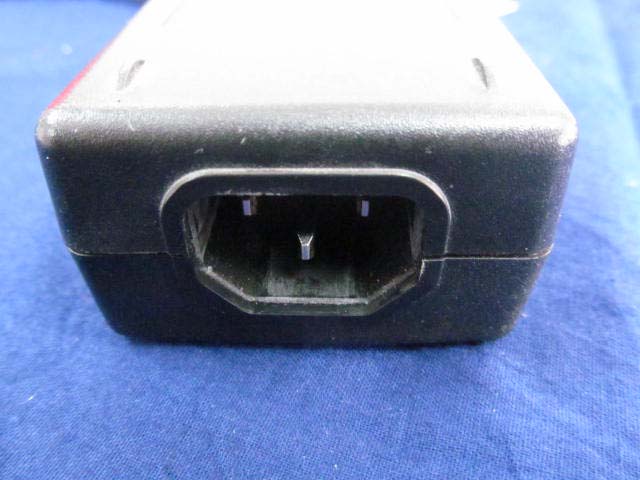

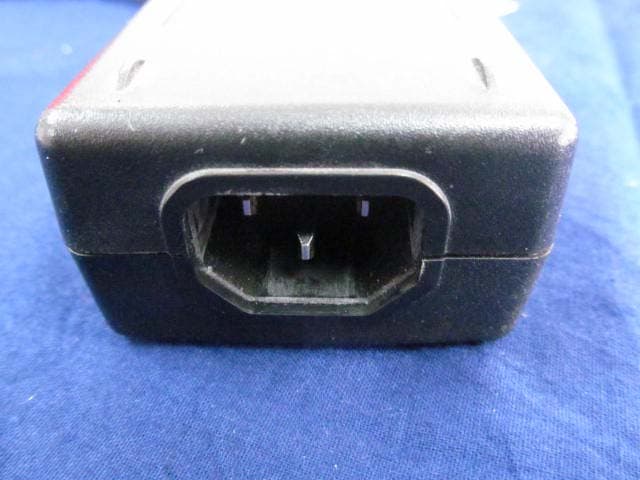

1. EUT Photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo

(1) EUT Photo (2) EUT Photo (Antenna) (3) EUT Photo (Antenna) (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo

RF Exposure Evaluation Declaration Product Name : Trinity116M Plus, SU116, Trinity116M Model No. : 801-1161, 802-1160, 801-1160 FCC ID : N27TRINITY116M Applicant : Repeatit AB Address : Hamngatan 33, 172 66 Sundbyberg, Sweden Date of Receipt : 18/04/2012 Issued Date : 26/06/2012 Report No. : 124S036R-RF-US Report Version : V1.1 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 124S036R-RF-US Page: 2 of 5 Test Report Certification Issued Date: 26/06/2012 Report No.: 124S036R-RF-US Product Name : Trinity116M Plus, SU116, Trinity116M Applicant : Repeatit AB Address : Hamngatan 33, 172 66 Sundbyberg, Sweden Manufacturer : Repeatit AB Address : Hamngatan 33, 172 66 Sundbyberg, Sweden Model No. : 801-1161, 802-1160, 801-1160 FCC ID : N27TRINITY116M EUT Voltage : DC 3.3V Trade Name : Repeatit AB Applicable Standard : FCC OET 65 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : ( Engineering ADM: Alice Ni ) Reviewed By : (Senior Engineer: Jame Yuan) Approved By : (Manager: Marlin Chen) Report No: 124S036R-RF-US Page: 3 of 5 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No: 124S036R-RF-US Page: 4 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No: 124S036R-RF-US Page: 5 of 5 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation Product : Trinity116M Plus, SU116, Trinity116M Antenna Gain: The following list antenna may be used with this wireless module card. Antenna Manufacturer Model No. Peak Gain Linear Scale Panel Antenna COMPEX 5N17 5GHz: 17dBi 50.12 RF Exposure Measurement Results: Operation Mode: 802.11an Antenna Used Frequency Range (MHz) Maximum Conducted Power (dBm) Limit of Power Density S(W/m 2 ) Safety Distance r (cm) Panel Antenna (MJE2-5N17) 5725 ~ 5850 26.51 10 42.26 So the safety distance should be kept with above table for different antenna installed, and Trinity116M Plus, SU116, Trinity116M shall be installed without any other radio equipment. The difference of models is for different marketing requirement.

FCC Part15.247 Test Report Product Name : Trinity116M Plus, SU116, Trinity116M Model No. : 801-1161, 802-1160, 801-1160 FCC ID : N27TRINITY116M Applicant : Repeatit AB Address : Hamngatan 33, 172 66 Sundbyberg, Sweden Date of Receipt : 18/04/2012 Test Date : 06/07/2010~25/07/2010 Issued Date : 26/06/2012 Report No. : 124S036R-RF-US-P05V01 Report Version : V1.2 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 124S036R-RF-US-P05V01 Page: 2 of 90 Test Report Certification Issued Date : 26/06/2012 Report No. : 124S036R-RF-US-P05V01 Product Name : Trinity116M Plus, SU116, Trinity116M Applicant : Repeatit AB Address : Hamngatan 33, 172 66 Sundbyberg, Sweden Manufacturer : Repeatit AB Address : Hamngatan 33, 172 66 Sundbyberg, Sweden Model No. : 801-1161, 802-1160, 801-1160 FCC ID : N27TRINITY116M EUT Voltage : DC 3.3V Trade Name : Repeatit AB Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2011 ANSI C63.4: 2009 ANSI C63.10: 2009 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392, IC Lab Code: 4075B Documented By : ( Engineering ADM: Alice Ni ) Reviewed By : (Senior Engineer: Jame Yuan) Approved By : (Manager: Marlin Chen) Report No: 124S036R-RF-US-P05V01 Page: 3 of 90 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No: 124S036R-RF-US-P05V01 Page: 4 of 90 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................6 1.1. EUT Description ......................................................................................................6 1.2. Mode of Operation...................................................................................................8 1.3. Tested System Details .............................................................................................9 1.4. Configuration of Tested System .............................................................................10 1.5. EUT Exercise Software.......................................................................................... 11 2. Technical Test ...............................................................................................................12 2.1. Summary of Test Result.........................................................................................12 2.2. Test Environment...................................................................................................13 3. Conducted Emission ....................................................................................................14 3.1. Test Equipment......................................................................................................14 3.2. Test Setup..............................................................................................................14 3.3. Limit.......................................................................................................................15 3.4. Test Procedure......................................................................................................15 3.5. Uncertainty ............................................................................................................15 3.6. Test Result.............................................................................................................16 4. Radiated Emission .......................................................................................................18 4.1. Test Equipment......................................................................................................18 4.2. Test Setup..............................................................................................................19 4.3. Limit.......................................................................................................................20 4.4. Test Procedure......................................................................................................20 4.5. Uncertainty .............................................................…

Text truncated - open the document above for the full version.

1. Test Setup Photograph Test Mode: Transmitting Description: Front View of Conducted Emission Test Setup Test Mode: Transmitting Description: Back View of Conducted Emission Test Setup Test Mode : Transmitting-Mode 1 Description : Front View of Radiated Emission Test Setup for Below 1GHz Test Mode : Transmitting-Mode 1 Description : Front View of Radiated Emission Test Setup for 1~18GHz Test Mode : Transmitting-Mode 1 Description : Front View of Radiated Emission Test Setup for Above 18GHz
