N2ARSB-VSB212Sound bar

MODEL VSB212 VIZIO QUICK START GUIDE Your Sound Bar is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Sound Bar from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Sound Bar. Keep these instructions in a safe place for future reference. • To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your Sound Bar. • Unplug the power cord before cleaning your Sound Bar. A damp cloth is sufficient for cleaning. Do not use a liquid or a spray cleaner on your Sound Bar. Do not use abrasive cleaners. • Always use the accessories recommended by the manufacturer to insure compatibility. • When moving your Sound Bar from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your Sound Bar to avoid causing fire, electric shock, or component damage. • A distance of at least 3 feet should be maintained between your Sound Bar and any heat source, such as a radiator, heater, oven, amplifier etc. Do not install your Sound Bar close to smoke. Operating your Sound Bar close to smoke or moisture may cause fire or electric shock. • Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Sound Bar and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your Sound Bar in a bookcase or cabinet unless proper ventilation is provided. • Never push any object into the slots and openings on your Sound Bar enclosure. Do not place any objects on the top of your Sound Bar. Doing so could short circuit parts causing a fire or electric shock. Never spill liquids on your Sound Bar. • Your Sound Bar should be operated only from the type of power source indicated on the label on the AC/DC Adapters. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. • Only power of the marked voltage can be used for your Sound Bar. Any other voltage than the specified voltage may cause fire or electric shock • The power cord must be replaced when using different voltage than the voltage specified. For more information, contact your dealer. • Your Sound Bar AC/DC Adapters are equipped with a three-pronged grounded plug (a plug with a third grounding pin). This plug will fit only into a grounded power outlet. This is a safety feature. If your outlet does not accommodate the three-pronged, have an electrician install the correct outlet, or use an adapter to ground your Sound Bar safely. • Do not defeat the safety purpose of the grounded plug. • When connected to a power outlet, power is always flowing into your Sound Bar. To totally disconnect power, unplug the power cord. • The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-isolated, dangerous voltage within your Sound Bar that may be of sufficient magnitude to constitute a risk of electric shock to persons. • The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying your Sound Bar. • Do not overload power strips and extension cords. Overloading can result in fire or electric shock. • The wall socket should be located near your Sound Bar and be easily accessible • Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms. • Unplug your Sound Bar during a lightning storm or when it will not be used for long periods of time. This will protect your Sound Bar from damage due to power surges. • Do not attempt to repair or service Sound Bar yourself. Opening or removing the front cover may expose you to high voltages, electric shock, and other hazards. If repair is required, contact your dealer and refer all servicing to qualified service personnel. • Keep your Sound Bar away from moisture. Do not expose your Sound Bar to rain or moisture. If water penetrates into your Sound Bar, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock. • Do not use your Sound Bar if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your Sound Bar yourself. • Avoid using dropped or damaged appliances. If your Sound Bar is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your Sound Bar may cause fire or electric shock. • Do not install your Sound Bar in an area with heavy dust or high humidity. Operating your Sound Bar in environments with heavy dust or high humidity may cause fire or electric shock. • Ensure that the power cord and any other cables are unplugged before moving your Sound Bar. • When unplugging your Sound Bar, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause fire or electric shock. When your Sound Bar will not be used for an extended period of time, unplug the power cord. • To reduce risk of electric shock, do not touch the connector with wet hands. • Insert the remote control battery in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote control or injure the operator. • If any of the following occurs, contact the dealer: - The power cord fails or frays - Liquid sprays or any object drops into your Sound Bar - Sound Bar is exposed to rain or other moisture - Sound Bar is dropped or damaged in any way - The performance of your Sound Bar changes substantially IMpOrtant SafEty I…

Text truncated - open the document above for the full version.

6 5 for the best surround sound experience, position the speakers as shown.* the Sound Bar should be close to ear level. Subwoofer is near the corner of the room, up to 60 feet away from the Sound Bar. Bass is projected outward. Sound Bar is centered below the tV. 8 When using the remote, point it at the right side of the Sound Bar. the sensor is located there. 9 turn your tV on, then press the Power button on the remote to turn the Sound Bar on. press the Input button to switch between the Input 1 and Input 2 audio sources. for example, if you connected your tV to Input 1, set the Sound Bar to Input 1. Setup is complete. Input power rEaDInG tHE InDICatOr LIGHtS Volume (White) as volume increases, more lights are displayed. Link (Orange) When Subwoofer is linked, light is solid. Light blinks when pairing. Lights are located here. SRS WOW HD (Orange) When WOW HD is on, light is solid. If your remote stops responding, you may need to replace the battery. to replace the battery, open the battery compartment as shown, then replace the old battery with a new Cr2025. Be sure that the + sign on the battery is facing up. Power press to turn on or off. Volume Up press to increase volume. Volume Down press to decrease volume. Input press to change input source. Mute press to mute/unmute. USInG tHE rEMOtE SUB - press to decrease subwoofer volume. SUB + press to increase subwoofer volume. On press to turn on SrS WOW HD. Off press to turn off SrS WOW HD. When using the remote, point it at the right side of the Sound Bar. the sensor is located there. 2 Be sure your screws are attached to wood studs or drywall anchors (for drywall) or concrete anchors (for brick/concrete walls). reattach stands using the included screw. 1 remove the screw from the Sound Bar stands and rotate as shown. If you are unfamiliar with power tools or the layout of electrical wiring in the walls of your home, consult a professional installer. 26 3/4” (67.95 cm) WaLL MOUntInG tHE SOUnD Bar Mounting hardware not included. rE-LInKInG tHE SUBWOOfEr you may need to re-link the Subwoofer to the Sound Bar if there is no sound coming from the Subwoofer and the greet light on the front of the Subwoofer is flashing in this pattern: LOnG On, SHOrt Off. Press and hold the LINK button on the back of the Subwoofer for 5 seconds. the green light on the Subwoofer will begin to blink rapidly. Press and hold the INPUT button on the top of the Sound Bar for 5 seconds. the green light on the front of the Sound Bar will blink then go solid. the Subwoofer is now linked with the Sound Bar. InputVol -Vol + 24V DC INPUT 1INPUT 2 1 2 HELp & trOUBLESHOOtInG There is no power. • Press the POWER button on the remote control or on the top of your Sound Bar. • Ensure the power cord is securely connected. • Ensure the light on the power adapter is glowing green. • Plug a different device into the electrical outlet to verify that the outlet is working correctly. There is no sound. • Increase the volume. Press Volume Up on the remote control or on the top of your Sound Bar. • Press MUTE on the remote to ensure the Sound Bar is not muted. • Press INPUT on the remote or on the top of your Sound Bar to select a different input source. • If you are using the 3.5mm output from your TV, be sure that is connected to an audio OUTPUT and not audio InpUt. Some tVs use 3.5mm audio InpUt for devices such as computers. • Your TV may be set to variable audio output. Confirm that the audio output setting is set to FIXED or StanDarD, not VarIaBLE. Consult your tV’s user manual for more detailed information. I hear buzzing or humming. • Ensure all cables and wires are securely connected. • Connect a different source device (TV, Blu-ray player, etc) to see if the buzzing persists. If it does not, the problem may be with the original device. • Connect your device to a different input on the Sound Bar. There is no bass. • Press the SUB + button on the remote control to increase the bass level. • Ensure the Subwoofer is linked to the Sound Bar. See Re-Linking the Subwoofer on the previous page. There is too much bass. • Press the SUB - button on the remote control to decrease the bass level. ON PARTS AND LABOR Covers units purchased as new in United States and Puerto Rico Only VIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one year of non-commercial usage and ninety (90) days of commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO will either repair or replace the Product at its sole option and discretion. To obtain warranty service, contact VIZIO Technical Support via email: [email protected] or via phone at 877 MY VIZIO (877.698.4946) from 6:00AM to 9:00PM Monday through Friday and 8:00AM to 4:00PM Saturday and Sunday, Pacific Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is required to show that a Product is within the warranty period. Parts and Labor There will be no charge for parts or labor during the warranty period. Replacement parts and Products may be new or recertified at VIZIO’s option and sole discretion. Replacement parts and Products are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service or replacement, whichever is greater. Type of Service Defective Products must be sent to a VIZIO service center to obtain warranty service. VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover return shipping to the customer. PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER FOR WARRANTY SERVICE. Product returns to VIZIO’s service centers must utilize either the original carton box and shipping material or packaging that affords an equal degree of protection. VIZIO Tec…

Text truncated - open the document above for the full version.

External Photos

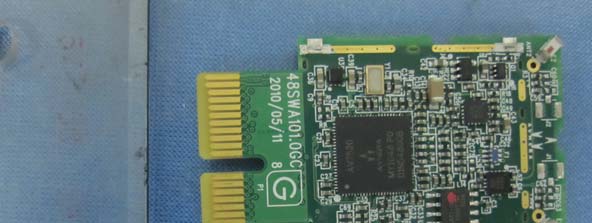

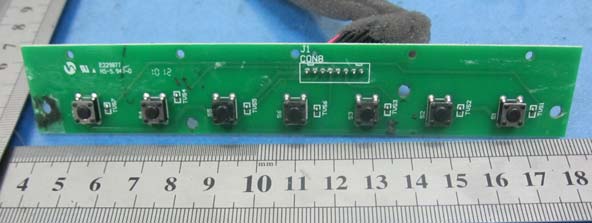

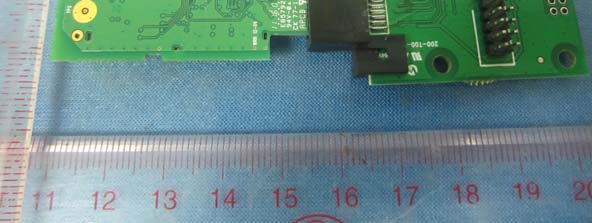

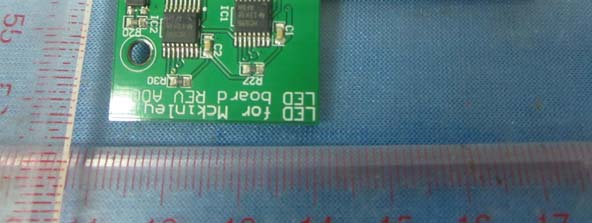

Internal Photos

FCC TEST REPORT 47 CFR FCC Part 15.249 Report Reference No......................: FCC ID..............................................: TRE12030093 N2ARSB-VSB212 Compiled by ( position+printed name+signature)..: File administrators Eric Zhang Supervised by ( position+printed name+signature)..: Test Engineer Tim Zhang Approved by ( position+printed name+signature)..: Manager Wenliang Li Date of issue.....................................: Jun 15, 2012 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address.............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: AuraSound (Hong Kong) Limited Address.............................................: Unit 06, 39/F, Metroplaza Tower II,223 Hing Fong Road, Kwai Fong, N.T. Hong Kong Manufacturer’s name.....................: Wuhan AuraSound CO.,LTD Address.............................................: Three layer G building, export processing zone, Zhuankou, wuhan, china Test specification: Standard..........................................: 47 CFR FCC Part 15 Subpart C & 15.249 ANSI C63.10: 2009 TRF Originator ..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment Under Test .................. : Sound bar Trade Mark .......................................: / Model/Type reference.......................: VSB212 Listed Models ..................................: / Result................................................: Complied Report No.: TRE12030093 Page 2 of 38 Issued: 2012-06-15 FCC ID: N2ARSB-VSB212 Shenzhen Huatongwei International Inspection Co., Ltd T E S T R E P O R T Test Report No. : TRE12030093 Jun 15, 2012 ______________________________________________________________________________________________ Date of issue Equipment under Test : Sound bar Model /Type : VSB212 Listed Models : / Applicant : AuraSound (Hong Kong) Limited Address : Unit 06, 39/F, Metroplaza Tower II,223 Hing Fong Road, Kwai Fong, N.T. Hong Kong Manufacturer : Wuhan AuraSound CO.,LTD Address : Three layer G building, export processing zone, Zhuankou, wuhan, china Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE12030093 Page 3 of 38 Issued: 2012-06-15 FCC ID: N2ARSB-VSB212 Shenzhen Huatongwei International Inspection Co., Ltd Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Adapter information: 5 2.4. Short description of the Equipment under Test (EUT) 5 2.5. EUT operation mode 5 2.6. Related Submittal(s) / Grant (s) 5 2.7. Modifications 5 3. TEST ENVIRONMENT............................................................... 6 3.1. Address of the test laboratory 6 3.2. Test Facility 6 3.3. Statement of the measurement uncertainty 7 3.4. Summary of standards and result 7 3.5. Environmental conditions 8 3.6. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................. 9 4.1. ANTENNA REQUIREMENT 9 4.2. Conducted Emissions Test 10 4.3. Radiated Emission Test 15 4.4. Out of band emissions 24 4.5. 20dB Bandwidth Measurement 26 5. TEST SETUP PHOTOS OF THE EUT .......................................... 29 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 31 Report No.: TRE12030093 Page 4 of 38 Issued: 2012-06-15 FCC ID: N2ARSB-VSB212 Shenzhen Huatongwei International Inspection Co., Ltd 1. TEST STANDARDS The tests were performed according to following standards: 47 CFR FCC Rules Part 15.249: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. ANSI C63.10: 2009 – American National Standard for Teating Unlicensed Wireless Devices Report No.: TRE12030093 Page 5 of 38 Issued: 2012-06-15 FCC ID: N2ARSB-VSB212 Shenzhen Huatongwei International Inspection Co., Ltd 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Apr 21, 2012 Testing commenced on : Apr 21, 2012 Testing concluded on : Jun 15, 2012 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ● 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ○ Other (specified in blank below) 2.3. Adapter information: ● AC Adapter 1 MODEL:S065BQ2400270 INPUT:100-240V～50/60Hz 1.8A OUTPUT: 24.0V DC 2.7A Power Cable: 200cm ◇ Shielded ◆ Unshielded ● AC Adapter 2 MODEL:YJS05-2402500D INPUT:100-240V～47/63Hz 1.5A OUTPUT: 24.0V DC 2.5A Power Cable: 200cm ◇ Shielded ◆ Unshielded 2.4. Short description of the Equipment under Test (EUT) 2.4 GHz (Transceiver), For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.5. EUT operation mode The EUT has been tested under typical operating condition. 2.6. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: N2ARSB-VSB212 filing to comply with Section 15.249 of the FCC Part 15, Subpart C Rules. 2.7. Modifications No modifications were implemented to meet testing criteria. Report No.: TRE12030093 Page 6 of 38 Issue…

Text truncated - open the document above for the full version.
