N2T30805313Radio Control Toys Transceiver (2.4GHz)

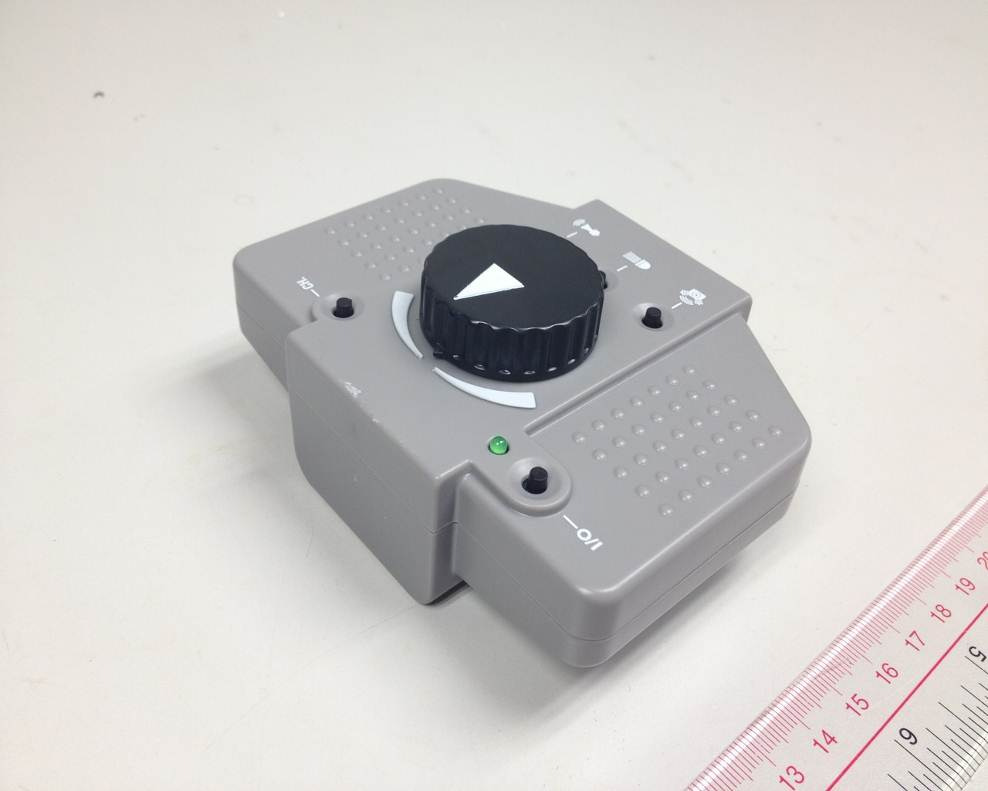

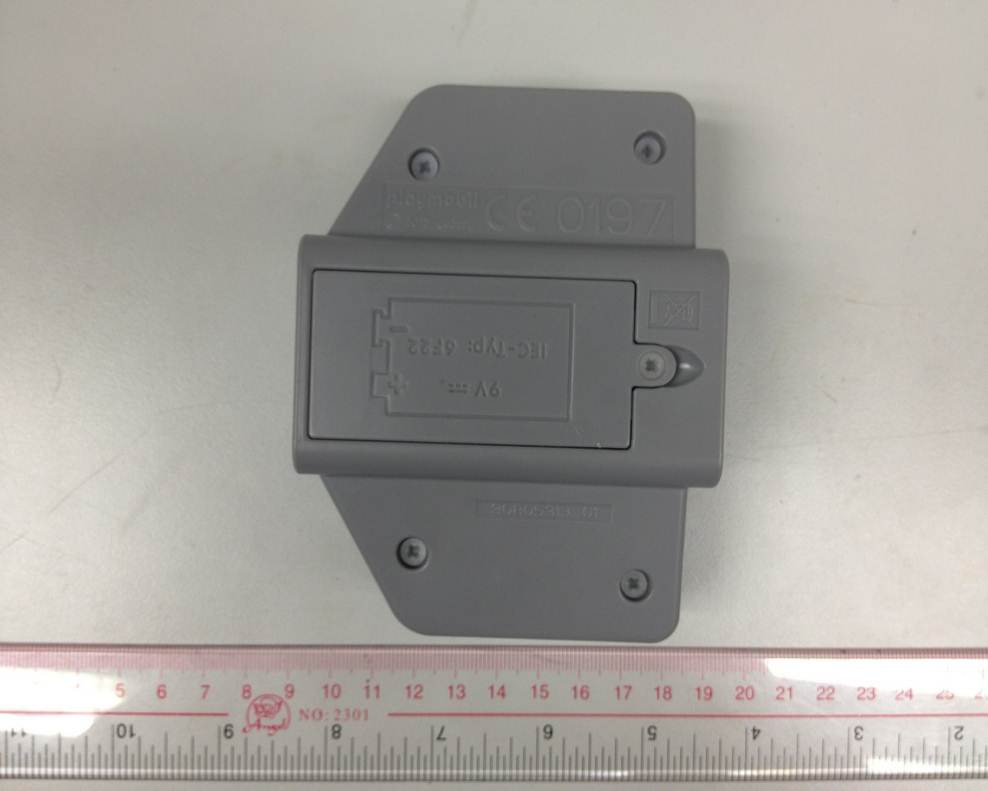

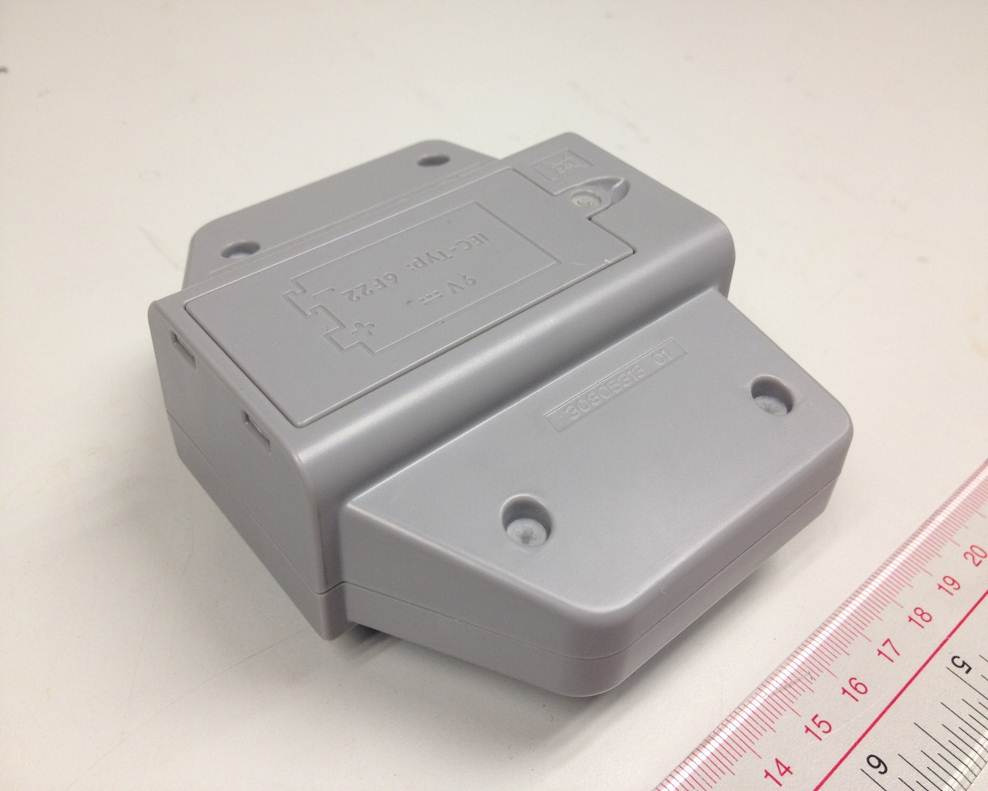

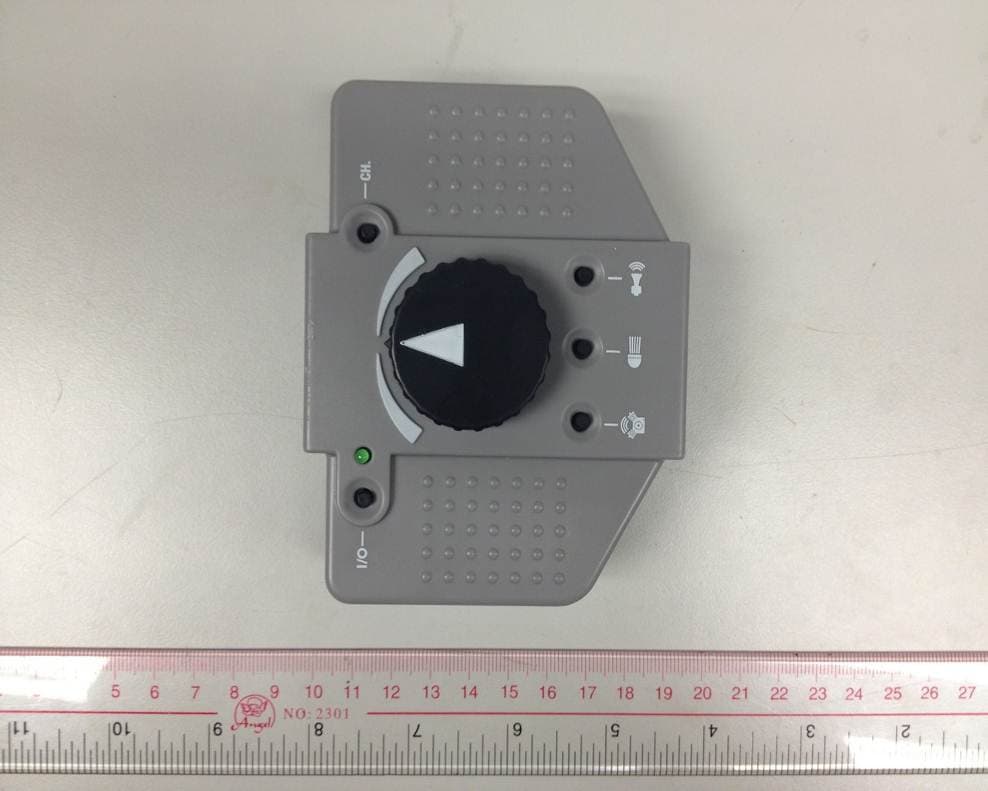

www.tuv.com Test Report No.: 14030416 001 Appendix 3 page 2 of 6 External View External View www.tuv.com Test Report No.: 14030416 001 Appendix 3 page 3 of 6 External View External View

www.tuv.com Test Report No.: 14030416 001 Appendix 4 page 2 of 25 1.1 FCCID Label Artwork

www.tuv.com Test Report No.: 14030416 001 Appendix 3 page 4 of 6 External View Internal View www.tuv.com Test Report No.: 14030416 001 Appendix 3 page 5 of 6 Internal View Internal View www.tuv.com Test Report No.: 14030416 001 Appendix 3 page 6 of 6 Internal View Internal View

www.tuv.com Test Report No.: 14030416 001 Date: 24.09.2012 page 2 of 8 Table of Content Page Cover Page .....................................................................................................................1 Table of Content ............................................................................................................2 Product information.......................................................................................................3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 3 Submitted documents................................................................................................................................. 3 List of Test and Measurement Instruments.................................................................4 Results FCC Part 15 – Subpart C .................................................................................5 Subclause 15.207 – Disturbance Voltage on AC Mains................................................... N/A................. 5 Subclause 15.205 – Band edge compliance of radiated emissions ............................ Pass................. 5 Subclause 15.215 (c) – 20 dB Bandwidth........................................................................ Pass................. 5 Subclause 15.249 (a) – Radiated Emission (Fundamental and Harmonics)................ Pass................. 6 Subclause 15.249 (d) – Spurious Radiated Emissions .................................................. Pass................. 8 Appendix 1 – Test Results 11 pages Appendix 2 – Test Setup Photos 2 pages Appendix 3 – Photo documentation 6 pages Appendix 4 – Product documentation 25 pages www.tuv.com Test Report No.: 14030416 001 Date: 24.09.2012 page 3 of 8 Product information Manufacturers declarations Transceiver Operating frequency range 2403 - 2475 MHz Type of modulation GFSK modulation Number of channels 16 Type of antenna Integral Power level fix Connection to public utility power line No Nominal voltage V nor : 9.0 V Product function and intended use The equipment under test (EUT) is a radio control toy transceiver operating at 2.4GHz. During pairing, EUT operates as transceiver. After pairing EUT operates as a transmitter only. The EUT is powered by batteries only. Submitted documents Circuit Diagram Block Diagram Bill of material User manual Rating Label www.tuv.com Test Report No.: 14030416 001 Date: 24.09.2012 page 4 of 8 List of Test and Measurement Instruments Hong Kong Productivity Council (Registration number: 90656) Radiated Emission Equipment Manufacturer Type S/N Due Date Semi-anechoic Chamber Frankonia Nil Nil 12-Apr-13 Test Receiver R & S ESU40 100190 26-May-13 Bi-conical Antenna R & S HK116 100242 05-May-13 Log Periodic Antenna R & S HL223 841516/020 06-May-13 Coaxial cable 50ohm Rosenberger RTK081-05S- 05S-10m LA2-001-10M / 001 15-Nov-13 Microwave amplifier 0.5-26.5GHz, 25dB gain HP 83017A 3950M00241 03-Oct-13 High Pass Filter (cutoff freq. =1000MHz) Trilithic 23042 9829213 28-Oct-13 Horn Antenna EMCO 3115 9002-3351 11-May-13 Active Loop Antenna EMCO 6502 9107-2651 19-Apr-13 FSP 30 Spectrum Analyser R & S FSP 30 100007 16-Sep-13 www.tuv.com Test Report No.: 14030416 001 Date: 24.09.2012 page 5 of 8 Results FCC Part 15 – Subpart C Subclause 15.207 – Disturbance Voltage on AC Mains N/A There is no AC power input or output ports on the EUT. Subclause 15.205 – Band edge compliance of radiated emissions Pass Test Specification : ANSI C63.4 – 2003 Mode of operation : Tx mode Port of testing : Enclosure Detector : Peak RBW/VBW : 100 kHz / 300 kHz for f < 1 GHz 1 MHz / 3 MHz for f > 1 GHz Supply voltage : 9.0VDC, 1 x 6F22 size new battery Temperature : 23ºC Humidity : 50% Requirement : Radiated emissions which fall in the restricted bans, as defined in 15.205 (a), must also comply with the radiated emission limits specified in 15.209(a). Results : There is no peak found in the restricted bands. For test protocols refer to Appendix 1, page 4-7. Subclause 15.215 (c) – 20 dB Bandwidth Pass Requirement: The intentional radiators must be designed to ensure that the 20dB bandwidth of the emission, is contained within the frequency band designated in the rule section under which the equipment is operated. Test Specification : ANSI C63.4 – 2003 Mode of operation : Tx mode Port of testing : Enclosure RBW/VBW : 100 kHz / 300 kHz for f < 1 GHz 1 MHz / 3 MHz for f > 1 GHz Supply voltage : 9.0VDC, 1 x 6F22 size new battery Temperature : 23ºC Humidity : 50% Results : For test protocols refer to Appendix 1, page 1-3. Frequency (MHz) 20 dB left (MHz) Limit (MHz) 20 dB right (MHz) Limit (MHz) 2403 2402.600 > 2400 2404.460 < 2483.5 2440 2439.610 > 2400 2441.430 < 2483.5 2475 2474.610 > 2400 2476.400 < 2483.5 www.tuv.com Test Report No.: 14030416 001 Date: 24.09.2012 page 6 of 8 Subclause 15.249 (a) – Radiated Emission (Fundamental and Harmonics) Pass Test Specification : ANSI C63.4 – 2003 Mode of operation : Tx mode Port of testing : Enclosure RBW/VBW : 100 kHz / 300 kHz for f < 1 GHz 1 MHz / 3 MHz for f > 1 GHz Supply voltage : 9.0VDC, 1 x 6F22 size new battery Temperature : 23ºC Humidity : 50% Requirement : The field strength of emissions from intentional radiators operated within these frequency bands shall comply with the following limit. Results : PASS Fundamental Frequency 2403MHz Vertical Polarization Freq Level Limit/ Detector MHz dBuV/m dBuV/m 2403.221 91.29 114.0 / P 2403.349 38.67 94.0 / A Fundamental Frequency 2403MHz Horizontal Polarization Freq Level Limit/ Detector MHz dBuV/m dBuV/m 2403.489 88.07 114.0 / P 2403.281 38.38 94.0 / A Harmonics 2403MHz Vertical Polarization Freq Level Limit/ Detector MHz dBuV/m dBuV/m 4806.660 58.45 74.0 / P 4806.163 33.35 54.0 / A 7210.140 61.63 74.0 / P 720…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14030416 001 Appendix 1 page 1 of 11 Appendix 1 Test Results www.tuv.com Test Report No.: 14030416 001 Appendix 1 page 2 of 11 20dB Bandwidth Tx frequency: 2403MHz Ref 10 dBm 2.40296 GHz Att 20 dB 2.40296 GHz * 2.40296 GHz A 2.40296 GHz 1 PK 2.40296 GHz MAXH 2.40296 GHz 500 kHz/ 2.40296 GHz Center 2.403 GHz 2.40296 GHz Span 5 MHz 2.40296 GHz * 2.40296 GHz RBW 100 kHz 2.40296 GHzVBW 300 kHz 2.40296 GHz SWT 2.5 ms 2.40296 GHz 2.40296 GHz 2.40296 GHz 2.40296 GHz 2.40296 GHz 2.40296 GHz 2.40296 GHz 2.40296 GHz 2.40296 GHz 2.40296 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.40296 GHz 1 Marker 1 [T1 ] -2.97 dBm 2.402960000 GHz 2 Delta 2 [T1 ] -20.51 dB -360.000000000 kHz 3 Delta 3 [T1 ] -20.16 dB 1.500000000 MHz MARKER 1 2.40296 GHz Date: 5.MAY.2012 12:14:40 Tx frequency: 2440MHz Ref 10 dBm 2.43996 GHz Att 20 dB 2.43996 GHz * 2.43996 GHz A 2.43996 GHz 500 kHz/ 2.43996 GHz Center 2.44 GHz 2.43996 GHz Span 5 MHz 2.43996 GHz * 2.43996 GHz RBW 100 kHz 2.43996 GHzVBW 300 kHz 2.43996 GHz SWT 2.5 ms 2.43996 GHz 1 PK 2.43996 GHz MAXH 2.43996 GHz 2.43996 GHz 2.43996 GHz 2.43996 GHz 2.43996 GHz 2.43996 GHz 2.43996 GHz 2.43996 GHz 2.43996 GHz 2.43996 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.43996 GHz 1 Marker 1 [T1 ] -2.94 dB m 2.439960000 GHz 2 Delta 2 [T1 ] -20.17 dB -350.000000000 kHz 3 Delta 3 [T1 ] -20.27 dB 1.470000000 MHz MARKER 1 2.43996 GHz Date: 5.MAY.2012 10:08:20 www.tuv.com Test Report No.: 14030416 001 Appendix 1 page 3 of 11 Tx frequency: 2475MHz Ref 10 dBm 2.47526 GHz Att 20 dB 2.47526 GHz * 2.47526 GHz 1 PK 2.47526 GHz MAXH 2.47526 GHz A 2.47526 GHz 500 kHz/ 2.47526 GHz Center 2.475 GHz 2.47526 GHz Span 5 MHz 2.47526 GHz * 2.47526 GHz RBW 100 kHz 2.47526 GHzVBW 300 kHz 2.47526 GHz SWT 2.5 ms 2.47526 GHz 2.47526 GHz 2.47526 GHz 2.47526 GHz 2.47526 GHz 2.47526 GHz 2.47526 GHz 2.47526 GHz 2.47526 GHz 2.47526 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.47526 GHz 1 Marker 1 [T1 ] -3.00 dBm 2.475260000 GHz 2 Delta 2 [T1 ] -20.59 dB -650.000000000 kHz 3 Delta 3 [T1 ] -20.20 dB 1.140000000 MHz MARKER 1 2.47526 GHz Date: 5.MAY.2012 09:44:56 www.tuv.com Test Report No.: 14030416 001 Appendix 1 page 4 of 11 Band Edge Compliance Tx frequency: 2403MHz (radiated measurement) Vertical polarization (Peak) www.tuv.com Test Report No.: 14030416 001 Appendix 1 page 5 of 11 Vertical polarization (Average) www.tuv.com Test Report No.: 14030416 001 Appendix 1 page 6 of 11 Horizontal polarization (Peak) www.tuv.com Test Report No.: 14030416 001 Appendix 1 page 7 of 11 Horizontal polarization (Average) www.tuv.com Test Report No.: 14030416 001 Appendix 1 page 8 of 11 Tx frequency: 2475MHz (radiated measurement) Vertical polarization (Peak) www.tuv.com Test Report No.: 14030416 001 Appendix 1 page 9 of 11 Vertical polarization (Average) www.tuv.com Test Report No.: 14030416 001 Appendix 1 page 10 of 11 Horizontal polarization (Peak) www.tuv.com Test Report No.: 14030416 001 Appendix 1 page 11 of 11 Horizontal polarization (Average)

www.tuv.com Test Report No.: 14030416 001 Appendix 2 page 2 of 2 Set-up for Radiated Emission Set-up for Radiated Emission
