N2T6766RFID Toy Transmitter

www.tuv.com Test Report No.: 14025300 001 Appendix 4 page 8 of 13 1.5 User Manual www.tuv.com Test Report No.: 14025300 001 Appendix 4 page 9 of 13 www.tuv.com Test Report No.: 14025300 001 Appendix 4 page 10 of 13 www.tuv.com Test Report No.: 14025300 001 Appendix 4 page 11 of 13 www.tuv.com Test Report No.: 14025300 001 Appendix 4 page 12 of 13 www.tuv.com Test Report No.: 14025300 001 Appendix 4 page 13 of 13

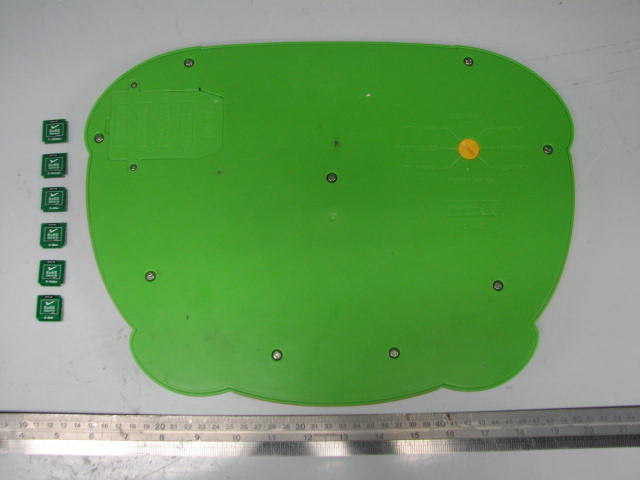

www.tuv.com Test Report No.: 14025300 001 Appendix 3 page 2 of 7 1.1 External view 1.1.1 Front view 1.1.2 Rear view 1

www.tuv.com Test Report No.: 14025300 001 Appendix 4 page 2 of 13 1.1 FCCID Label Artwork The yellow oval shows the location of the Rating Label.

www.tuv.com Test Report No.: 14025300 001 Appendix 3 page 3 of 7 Internal view 1.1.3 Internal view 1.1.4 Internal view 2 www.tuv.com Test Report No.: 14025300 001 Appendix 3 page 4 of 7 1.1.5 Internal view 3 1.1.6 Internal view 4 www.tuv.com Test Report No.: 14025300 001 Appendix 3 page 5 of 7 1.1.7 Internal view 5 1.1.8 Internal view 6 www.tuv.com Test Report No.: 14025300 001 Appendix 3 page 6 of 7 1.1.9 Internal view 7 1.1.10 Internal view 8 www.tuv.com Test Report No.: 14025300 001 Appendix 3 page 7 of 7 1.1.11 Internal view 9 1.1.12 Internal view 10

www.tuv.com Test Report No.: 14025300 001 Date: 28.03.2011 page 2 of 7 Table of Content Page Cover Page.............................................................................. 1 Table of Content ....................................................................... 2 Product information.......................................................................................................3 Submitted documents................................................................................................................................. 3 List of Test and Measurement Instruments.................................................................4 Measurement Uncertainty .............................................................................................4 Results FCC Part 15 – Subpart C .................................................................................5 Subclause 15.203 – Antenna Information ....................................................................... Pass................. 5 Subclause 15.204 – Antenna Information ....................................................................... Pass................. 5 Subclause 15.209 – Radiated Emissions (9KHz to 1GHz) ............................................ Pass................. 5 Subclause 15.215 (c) – 20 dB Bandwidth........................................................................ Pass................. 6 Subclause 15.225 (a-d) – Radiated Emission ................................................................ Pass................. 6 Subclause 15.225 (e) – Frequency Tolerance................................................................. Pass................. 7 Appendix 1 – Test protocols 3 pages Appendix 2 – Test setup 2 pages Appendix 3 – Photo documentation 7 pages Appendix 4 – Product documentation 13 pages www.tuv.com Test Report No.: 14025300 001 Date: 28.03.2011 page 3 of 7 Product information The equipment under test (EUT) is a batteries operated RFID Toys operating at 13.564MHz. It consist of a farm plate and six RFID tag on different toy item(animal), which provide different interactive sound function whenever it place on the farm plate. Submitted documents Circuit Diagram Block Diagram Bill of material User manual www.tuv.com Test Report No.: 14025300 001 Date: 28.03.2011 page 4 of 7 List of Test and Measurement Instruments Equipment used Manufacturer Model No. S/N Due Date Semi-anechoic Chamber Frankonia Nil Nil 27-Apr-11 Test Receiver R & S ESU26 100050 25-May-11 Bi-conical Antenna R & S HK116 100242 13-Apr-12 Log Periodic Antenna R & S HL223 841516/020 13-Apr-12 Coaxial cable 50ohm Rosenberger RTK081- 05S-05S- 10m LA2-001-10M / 001 08 Dec 11 Microwave amplifer 0.5- 26.5GHz, 25dB gain HP 83017A 3950M00241 03-Oct-11 High Pass Filter (cutoff freq. =1000MHz) Trilithic 23042 9829213 30-Oct-11 Horn Antenna EMCO 3115 9002-3351 16-Apr-12 Spectrum Analyser R & S FSP 30 100416 17-Sep-12 Active Loop Antenna EMCO 6502 9107-2651 06-Feb-11 Measurement Uncertainty The estimated combined standard uncertainty for radiated emissions measurements is ±5.10dB (30MHz to 200MHz) and ±5.08dB (200MHz to 1000MHz). www.tuv.com Test Report No.: 14025300 001 Date: 28.03.2011 page 5 of 7 Results FCC Part 15 – Subpart C Subclause 15.203 – Antenna Information Pass Requirement: No antenna other than that furnished by the responsible party shall be used with the device Results: Permanent attached antenna Verdict: Pass Subclause 15.204 – Antenna Information Pass Requirement: Provide information for every antenna proposed for the use with the EUT Results: a) Antenna type: PCB Antenna b) Manufacturer and model no: N.A. c) Gain with reference to an isotropic radiator: 0 dBi Verdict: Pass Subclause 15.209 – Radiated Emissions (30MHz to 1GHz) Pass Test Specification : ANSI C63.4 – 2003 Mode of operation : Operating mode Supply voltage : DC6V, 4 X AA size batteries Measurement distance : 3 meters Detector : Quasi-Peak detector for frequency below 1000MHz except for frequency bands 9-90KHz and 110-490KHz. Average detector for frequency bands 9-90KHz, 110-490KHz and above 1000MHz. Temperature : 23ºC Humidity : 50% Requirement: The emissions from an intentional radiator shall not exceed the field strength levels specified in the table mentioned in section 15.209. Vertical Polarization Freq Level Limit/ Detector MHz dBuV/m dBuV/m 132.945 32.7 43.5 / QP 298.415 28.3 46.0 / QP 366.236 27.1 46.0 / QP Horizontal Polarization Freq Level Limit/ Detector MHz dBuV/m dBuV/m 366.236 39.1 46.0 / QP 406.929 38.6 46.0 / QP 339.107 40.9 46.0 / QP 434.058 35.2 46.0 / QP 623.958 36.5 46.0 / QP www.tuv.com Test Report No.: 14025300 001 Date: 28.03.2011 page 6 of 7 Verdict: Pass Remark: There is no spurious emission found between 9kHz to 30 MHz. Subclause 15.215 (c) – 20 dB Bandwidth Pass Requirement: The intentional radiators must be designed to ensure that the 20dB bandwidth of the emission, is contained within the frequency band designated in the rule section under which the equipment is operated. Test Specification : ANSI C63.4 – 2003 Mode of operation : Operating mode RBW/VBW : 10KHz/10KHz Supply voltage : DC6V, 4 X AA size batteries Temperature : 23ºC Humidity : 50% Results: For test protocols refer to Appendix 1, page 2. Frequency (MHz) 20 dB left (MHz) Limit (MHz) 20 dB right (MHz) Limit (MHz) 13.564 13.449 > 13.110 13.677 < 14.010 Subclause 15.225 (a-d) – Radiated Emission Pass Field Strength Calculation The field strength at 3 m was established by adding the meter reading of the spectrum analyzer to the factors associated with antenna correction factor, cable loss, preamplifiers and filter attenuation. The equation is expressed as follow: MR = R + AF + CF + FA – PA Where MR = Measurement Results in dBuV/m at 3 meters. R = Reading of Spectrum Analyzer in dBuV. AF = Antenna Factor in dB. CF = Cable Attenuation Factor in dB. FA = Filter Attenuation Factor in dB. PA = Preamplifier Factor in dB. FA and PA are only be used for the measurin…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14025300 001 Appendix 1 page 1 of 3 Appendix 1 Test Results www.tuv.com Test Report No.: 14025300 001 Appendix 1 page 2 of 3 20dB Bandwidth A 13.564 MHz Ref -10 dBm 13.564 MHz Att 20 dB 13.564 MHz Center 13.564 MHz 13.564 MHz Span 500 kHz 13.564 MHz 50 kHz/ 13.564 MHz * 13.564 MHz RBW 10 kHz 13.564 MHz * 13.564 MHzVBW 10 kHz 13.564 MHz SWT 10 ms 13.564 MHz 1 PK 13.564 MHz MAXH 13.564 MHz 13.564 MHz 13.564 MHz 13.564 MHz 13.564 MHz 13.564 MHz 13.564 MHz 13.564 MHz 13.564 MHz 13.564 MHz -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 13.564 MHz 1 Marker 1 [T1 ] -26.13 dBm 13.564000000 MHz 2 Delta 2 [T1 ] -20.24 dB -115.000000000 kHz 3 Delta 3 [T1 ] -20.35 dB 113.000000000 kHz MARKER 1 13.564 MHz Date: 8.JUN.2011 16:09:26 www.tuv.com Test Report No.: 14025300 001 Appendix 1 page 3 of 3 Radiated Emission

www.tuv.com Test Report No.: 14025300 001 Appendix 2 page 2 of 2 Set-up for Radiation Emission Set-up for Radiation Emission
