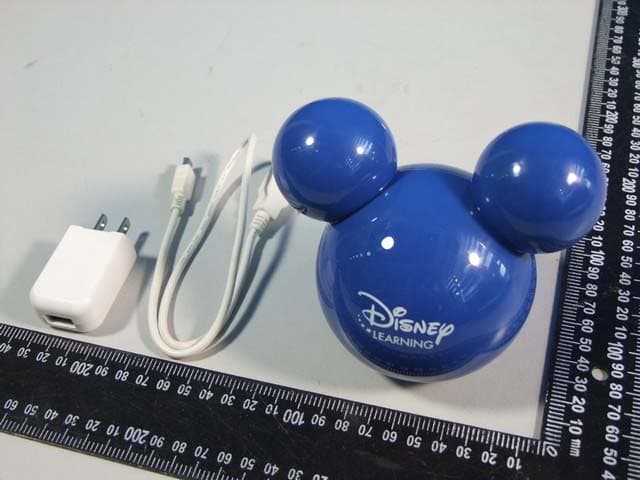

N2UDE9989blu boo Magic Box

– +

Date: June 21,2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lin Yixiang of Shenzhen Academy of Metrology & Quality Inspection and hereafter referred to as SMQ, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lin Yixiang of SMQ on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SMQ as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Printed Name: HAKAN KENI Company: A.E. Yayincilik Film REK.BILG.VE ORG.HIZ.LTD.STI Job title: General Manager REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Letter of Confidentity Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. A.E. Yayincilik Film REK.BILG.VE ORG.HIZ.LTD would like the following documents regarding this submission for FCC ID: N2UDE9989 to be kept confidential: 1. Schematic diagram . 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Ture-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Printed Name: HAKAN KENI Company: A.E. Yayincilik Film REK.BILG.VE ORG.HIZ.LTD.STI Job title: General Manager

Page 1 of 2 Page 2 of 2

Page 1 of 3 Page 2 of 3 Page 3 of 3

FCC ID: N2UDE9989 Page 1 of 2 1. MAXIMUM PERMISSIBLE EXPOSURE FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. FCC ID: N2UDE9989 Page 2 of 2 EQUATIONS Power density is given by: S = EIRP / (4 * Pi * D^2) where S = Power density in W/m^2 EIRP = Equivalent Isotropic Radiated Power in W D = Separation distance in m Power density in units of W/m^2 is converted to units of mWc/m^2 by dividing by 10. Distance is given by: D = SQRT (EIRP / (4 * Pi * S)) where D = Separation distance in m EIRP = Equivalent Isotropic Radiated Power in W S = Power density in W/m^2 In the table(s) below, Power and Gain are entered in units of dBm and dBi respectively and conversions to linear forms are used for the calculations. LIMITS From FCC §1.1310 Table 1 (B), the maximum value of S = 1.0 mW/cm^2 From IC Safety Code 6, Section 2.2 Table 5 Column 4, S = 10 W/m^2 RESULTS Band Mode Separation Distance (cm) Output Power (dBm) Antenna Gain (dBi) Duty Cycle (%) Source Based EIRP (mW) FCC Power Density (mW/cm^2) 2.4 GHz Bluetooth 20 7.36 0 100 5.44 0.001 2. SAR test exclusion threshold for portable condition Cal culation value :5.4(㎽) / 5(mm) x√2.48=.7 ≤ 3.0, SAR evaluation is not required.  [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR , SAR evaluation may then not required.

Report No.:WT138001510 Page 1 of 48 Ver:EMC2009A FCC TEST REPORT For Magic Box S Model Number: DE9989 FCC ID: N2UDE9989 Report Number : WT138001510 Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection National Testing Center for Digital Electronic Products Site Location : Bldg. Metrology and Quality Inspection, Longzhu Road, Shenzhen, Guangdong, China Tel : 0086-755-26941599 Fax : 0086-755-26941545 Web : www.smq.com.cn Report No.:WT138001510 Page 2 of 48 Ver:EMC2009A Test report declaration Applicant : A.E. Yayincilik Film REK.BILG.VE ORG.HIZ.LTD.STI Address : Menekseli Sk. 22, Levent – Istanbul 34330, Turkey Manufacturer : Shenzhen Deyu Baina Technology Co., Ltd. Address : 4th FL,Building J,WeiKangDe Industrial Park, ShangXue Area,JiHua RD,BanTian Committee,LongGang,SZ P.R.China EUT Description : Magic Box S Model No : DE9989 Trade mark : Blu.boo Serial Number : N/A FCC ID : N2UDE9989 Test Standards: FCC Part 15 15.207, 15.209, 15.247(2012) The EUT described above is tested by Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory to determine the maximum emissions from the EUT. Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory is assumed full responsibility for the accuracy of the test results. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with FCC Rules Part 15.207, 15.209 and 15.247. The test report is valid for above tested sample only and shall not be reproduced in part without written approval of the laboratory. Project Engineer: Date: July 1,2013 (Wu Feiyun) Checked by: Date: July 1,2013 (Yang Dongping) Approved by: Date: July 1,2013 (Lin Bin) Report No.:WT138001510 Page 3 of 48 Ver:EMC2009A TABLE OF CONTENTS TEST REPORT DECLARATION........................................................................................................2 1. TEST RESULTS SUMMARY...................................................................................................5 2. GENERAL INFORMATION......................................................................................................6 2.1. Report information..........................................................................................................6 2.2. Laboratory Accreditation and Relationship to Customer.........................................6 2.3. Measurement Uncertainty.............................................................................................7 3. PRODUCT DESCRIPTION.......................................................................................................8 3.1. EUT Description..............................................................................................................8 3.2. Related Submittal(s) / Grant (s)...................................................................................8 3.3. Block Diagram of EUT Configuration..........................................................................8 3.4. Operating Condition of EUT..........................................................................................9 3.5. Support Equipment List.................................................................................................9 3.6. Test Conditions...............................................................................................................9 3.7. Special Accessories.......................................................................................................9 3.8. Equipment Modifications...............................................................................................9 4. TEST EQUIPMENT USED......................................................................................................10 5. CONDUCTED DISTURBANCE TEST..................................................................................11 5.1. Test Standard and Limit..............................................................................................11 5.2. Test Procedure.............................................................................................................11 5.3. Test Arrangement.........................................................................................................11 5.4. Test Data.......................................................................................................................11 6. RADIATED DISTURBANCE TEST.......................................................................................15 6.1. Test Standard and Limit..............................................................................................15 6.2. Test Procedure.............................................................................................................15 6.3. Test Arrangement.........................................................................................................15 6.4. Test Data.......................................................................................................................16 7. 20DB BANDWIDTH MEASUREMENT................................................................................19 7.1. LIMITS OF 20dB BANDWIDTH MEASUREMENT.................................................19 7.2. TEST PROCEDURE....................................................................................................19 7.3. TEST SETUP................................................................................................................19 7.4. EUT OPERATING CONDITIONS..............................................................................19 7.5. Test Data.......................................................................................................................19 8. CARRIER FREQUENCY SEPARATION MEASUREMENT.............................................24 8.1. LIMITS OF Carrier frequ…

Text truncated - open the document above for the full version.

Page 1 of 3 Test Setup Photo Conducted Emission Page 2 of 3 Radiated Emission Radiated emission above 1GHz Page 3 of 3
