N2VSBT130Bluetooth Headset

SBT130 Manual Specifications Bluetooth specification: V2.0 Profiles supported: Headset, Handsfree Transmission power: Class 2 Working range: Up to 10m Talking time: Up to 7 Hours Standby time: Over 300 hours Dimensions: 50*14*10mm Basic operations Charging your headse        Before to using the headset for the first time, the battery need to be fully charged   The LED light turns Red while being charged, and will turns off automatically after being fully charged.   When the headset is running out of battery, the headset will “beep” to indicate and the headset will switch off automatically when the battery is drained. Turning on the headset    Under OFF mode, press and hold MFB until you hear a short “beep” and the LED flashes blue, then the headset enters into STANDBY mode Turning off the headset    Under ON mode, press and hold MFB until you hear a short “beep” and the LED flashes red, the turns off, the headset enters into OFF mode Pairing and Connecting    Ensure the headset is under OFF mode, and the distance enables the headset can be found   Press and hold MFB until the LED flashes blue shortly to PAIRING mode   Activate the Bluetooth function on the phone, search available Bluetooth devices (please check the Bluetooth instruction of your phone)   Select the headset “SBT130” from the found Bluetooth list of the phone   Pair the headset with the phone and connect the headset to the phone automatically, if password requested during the operation, enter “0000”. If failed, please redo above operation, or delete the available Bluetooth list from the phone, pair and connect again, if failed again, restart the headset and the phone.   If the headset had paired with your phone but disconnected, once it turns on within workable distance, it will pair and connect to the last phone connected automatically Answering a call    Press the MFB once Ending a call    Press the MFB once Rejecting a call    Press and hold MFB for about 2 seconds Voice dialing    Under STANDBY mode, press MFB twice and say the voice tag as soon as hearing the short “beep” (this function depends on whether the phone supports voice dialing function, and if the voice tag has been recorded) Last number redialing    Under STANDBY mode, press the MFB once about 2 seconds Adjusting volume    Press “+” or “-“ to adjust the volume, you will hear “beep” every adjustment until the volume max or mute Sleeping mode   If the headset is not active for few minutes, it will being SLEEPING mode, the LED will not flashes, if any operation activates the headset, the headset awakes up and connects to the phone, then it keeps on working status. SBT130 Manual Specifications Bluetooth specification: V3.0 Profiles supported: Headset, Handsfree Transmission power: Class 2 Working range: Up to 10m Talking time: Up to 7 Hours Standby time: Over 300 hours Dimensions: 50*14*10mm Basic operations Charging your headse        Before to using the headset for the first time, the battery need to be fully charged   The LED light turns Red while being charged, and will turns off automatically after being fully charged.   When the headset is running out of battery, the headset will “beep” to indicate and the headset will switch off automatically when the battery is drained. Turning on the headset    Under OFF mode, press and hold MFB until you hear a short “beep” and the LED flashes blue, then the headset enters into STANDBY mode Turning off the headset    Under ON mode, press and hold MFB until you hear a short “beep” and the LED flashes red, the turns off, the headset enters into OFF mode Pairing and Connecting    Ensure the headset is under OFF mode, and the distance enables the headset can be found   Press and hold MFB until the LED flashes blue shortly to PAIRING mode   Activate the Bluetooth function on the phone, search available Bluetooth devices (please check the Bluetooth instruction of your phone) WARNING: FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Guan gzhou Sunking Etech Co., Ltd. Addresss RM613 ,Fuli Jinxi Commercial Center,No. 5, Fuchang Road, Haizhu City Guangzhou Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: N2V SBT130 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) china 2012/04/24 Albert Wong Manager

Authorization Letter We, (the approval holder) Company name Guan gzhou Sunking Etech Co., Ltd. Addresss RM613,Fuli Jinxi Commercial Center,No. 5, Fuchang Road, Haizhu City Guangzhou Country China declare that the following representative (agent): Name (person) Bovey.yang Company name NTEK Testing Technology Co., Ltd. Addresss 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao ‘an District City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Description Bluetooth Headsets Type or Model(s) SBT130, SBT130M, SBT129, SBT101, SBT102, SBT103, SBT105, SBT108, SBT702, SBT304, SBT815, KBH101, KBH101M, KBH102, KBH103, KBH104, KBH105, KBH828, KBH829, KBH326, KBH336, KBH356, KBH366, KBH386, BH320, N95, 42211, ECO-V268 Tradename or Brand(s) KOV We also authorize BZT – TCP Certification GmbH, Ms.Wanida Patthanavoj (address: Hermann - Loens - Weg 6, 15859 Storkow b. Berlin Germany) to process the application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) china 2012/04/24 Albert Wong Manager

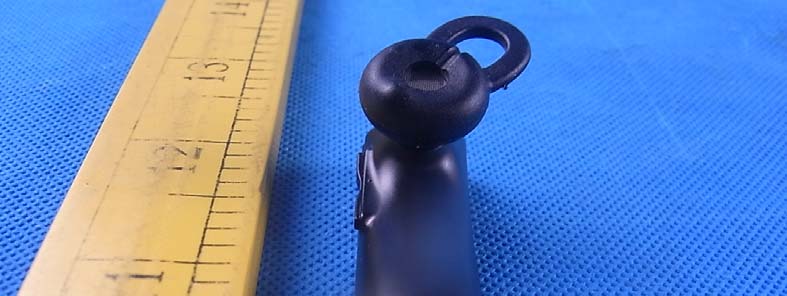

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS

Bluetooth Headsets M/N: SBT130 FCC ID: N2VSBT130

Page 1 of 51 Report No.: NTEK-2012NT120425025F FCC RADIO TEST REPORT Report Reference No. ............... : NTEK-2012NT120425025F Compiled by (+ signature) ........... Tom Zhang Approved by (+ signature) ........... Bovey Yang Applicant’s name........................... : Guangzhou Sunking Etech Co., Ltd Address....................................... : RM613,Fuli Jinxi Commercial Center,No. 5, Fuchang Road, Haizhu, Guangzhou, China Manufacture's Name...................... : Guangzhou Sunking Etech Co., Ltd Address....................................... : Bldg C, Dashan Industrial Park, Pingsha, Baiyun Guangzhou Test specification: Standard ..................................... : FCC Part15.247 Test procedure ............................... : ANSI C63.4-2003 Test item description Product name ........................ : Bluetooth Headsets FCC ID N2VSBT130 Trademark ............................ : KOV Model and/or type reference : SBT130, SBT130M, SBT129, SBT101, SBT102, SBT103, SBT105, SBT108, SBT702, SBT304, SBT815, KBH101, KBH101M, KBH102, KBH103, KBH104, KBH105, KBH828, KBH829, KBH326, KBH336, KBH356, KBH366, KBH386, BH320, N95, 42211, ECO-V268 Rating(s) ................................ : DC 3.7V by battery Testing Laboratory information: Testing Laboratory Name ..... : NTEK Testing Technology Co., Ltd Address ................................ : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao ＇an District, Shenzhen P.R. China. This device described above has been tested by NTEK Testing Technology Co., Ltd, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK Testing Technology Co., Ltd, this document may be altered or revised by NTEK Testing Technology Co., Ltd, personal only, and shall be noted in the revision of the documen Testing....................................................: Date of receipt of test item ......................: 17 Apr. 2012 Date (s) of performance of tests .............: 17 Apr. 2012 ~25 Apr. 2012 Date of Issue ...........................................: 25 Apr. 2012 Test Result...............................................: Pass Page 2 of 51 Report No.: NTEK-2012NT120425025F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 8 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 8 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3 . EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.1.2 TEST PROCEDURE 13 3.1.3 DEVIATION FROM TEST STANDARD 13 3.1.4 TEST SETUP 13 3.1.5 EUT OPERATING CONDITIONS 13 3.1.6 TEST RESULTS 14 3.2 RADIATED EMISSION MEASUREMENT 16 3.2.1 RADIATED EMISSION LIMITS 16 3.2.2 TEST PROCEDURE 17 3.2.3 DEVIATION FROM TEST STANDARD 17 3.2.4 TEST SETUP 18 3.2.5 EUT OPERATING CONDITIONS 19 3.2.6 TEST RESULTS (BELOW 30 MHZ) 20 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 21 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 4 . NUMBER OF HOPPING CHANNEL 29 4.1 APPLIED PROCEDURES / LIMIT 29 4.1.1 TEST PROCEDURE 29 4.1.2 DEVIATION FROM STANDARD 29 4.1.3 TEST SETUP 29 4.1.4 EUT OPERATION CONDITIONS 29 4.1.5 TEST RESULTS 30 5 . AVERAGE TIME OF OCCUPANCY 31 5.1 APPLIED PROCEDURES / LIMIT 31 Page 3 of 51 Report No.: NTEK-2012NT120425025F Table of Contents Page 5.1.1 TEST PROCEDURE 31 5.1.2 DEVIATION FROM STANDARD 31 5.1.3 TEST SETUP 32 5.1.4 EUT OPERATION CONDITIONS 32 5.1.5 TEST RESULTS 33 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 39 6.1 APPLIED PROCEDURES / LIMIT 39 6.1.1 TEST PROCEDURE 39 6.1.2 DEVIATION FROM STANDARD 39 6.1.3 TEST SETUP 39 6.1.4 EUT OPERATION CONDITIONS 39 6.1.5 TEST RESULTS 40 7 . BANDWIDTH TEST 42 7.1 APPLIED PROCEDURES / LIMIT 42 7.1.1 TEST PROCEDURE 42 7.1.2 DEVIATION FROM STANDARD 42 7.1.3 TEST SETUP 42 7.1.4 EUT OPERATION CONDITIONS 42 7.1.5 TEST RESULTS 43 8 . PEAK OUTPUT POWER TEST 45 8.1 APPLIED PROCEDURES / LIMIT 45 8.1.1 TEST PROCEDURE 45 8.1.2 DEVIATION FROM STANDARD 45 8.1.3 TEST SETUP 45 8.1.4 EUT OPERATION CONDITIONS 45 8.1.5 TEST RESULTS 46 9 . ANTENNA CONDUCTED SPURIOUS EMISSION 47 9.1 APPLIED PROCEDURES / LIMIT 47 9.1.1 TEST PROCEDURE 47 9.1.2 DEVIATION FROM STANDARD 47 9.1.3 TEST SETUP 48 9.1.4 EUT OPERATION CONDITIONS 48 9.1.5 TEST RESULTS 48 10 . EUT TEST PHOTO 50 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 51 Report No.: NTEK-2012NT120425025F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(c) Antenna conducted Spurious EmissionPASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(b)(1) Number of Hopping Frequency PASS 15.247(a)(1) Dwell Time PASS 15.205 Restricted Bands PASS 15.203 Antenna Requirement PASS Page 5 of 51 Report No.: NTEK-2012NT120425025F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC FRN Registration Nombre:238937; IC Registration Nombre:9270A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 Radiated Emission Test ±3.17dB 3 RF power,conducted ±0.16dB 4 Spurious emissions,conducted ±0.21dB 5 All emissions,radiated(<1G) ±4.68dB 6 All emissions,radiated(>1G) ±4.89dB Page 6 of 51 Repor…

Text truncated - open the document above for the full version.

Page 50 of 51 Report No.: NTEK-2012NT120425025F 10. EUT TEST PHOTO Radiated Measurement Photos Page 51 of 51 Report No.: NTEK-2012NT120425025F CONDUCTED EMISSION MEASUREMENT PHOTOS
