N48PSW-SERIES433.92MHz transmitter for remote control

KEF AUDIO (UK) Limited, Eccleston Road, Tovil, Maidstone, Kent, ME15 6QP UK Telephone: +44 (0) 1622 672261Fax: +44 (0)1622 750653 www.kef.com KEF America. 10, Timber Lane, Marlboro, New Jersey. 07746. USA. Telephone: +00 (1) 732 683 2356Fax: +00 (1) 732 683 2358 ModelPSW4000PSW5000 TypeBass reflex, downward firingBass reflex, downward firing LF Drive Unit300 mm (12 in.) long-throw380 mm (15 in.) long-throw Crossover Frequency L+R variable40 Hz - 140 Hz40 Hz - 140 Hz LFE fixed250 Hz250 Hz Frequency range (± 3 dB)25 Hz - 250 Hz18 Hz - 250 Hz Amplifier500 Watts1000 Watts SensitivityActive systemActive system Maximum Output (SPL)113 dB118 dB ImpedanceActive systemActive system Magnetic ShieldingYe sYe s Weight38 kg (83.6 lbs)60 kg (132 lbs) Dimensions (H x W x D)mm465 x 490 x 490545 x 590 x 590 in.18.3 x 19.3 x 19.321.5 x 23.2 x 23.2 Cabinet FinishBlack Ash, Maple orBlack Ash, Maple or Cherry real wood veneerCherry real wood veneer KEF AUDIO reserve the right, in line with continuous research and development, to amend or change specifications without prior notice. E. & O.E. (F) Spécifications(D) Technische Merkmale(I)Specifiche(ES) Especificaciones(P) Especificações(NL) Technische gegevens(DK) Specifikationer 9. SPECIFICATIONS 25 PSW4+5000 Manual ISSUE2 7/12/02 3:36 PM Page B Part No. 4301-7020-0 Issue 2: July 2002 INSTALLATION MANUAL (F) Manuel d’installation(D) Installationshandbuch (I)Manuale d’installazione (ES) Manual de instalación(P) Manual de instalação (NL) Installatie(DK) Installationsanvisning www.kef.com 40005000 & PSW4+5000 Manual ISSUE2 7/12/02 3:36 PM Page C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning:Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. • Consult the dealer or an experienced radio/TV technician for help. WARNING: Due to the mains switch being located on the rear panel, the apparatus must be located in an open area without anything obstructing access to the mains switch. FOR UK: The mains lead is terminated with a moulded three pin plug. Should the plug on the flexible cord not be of the type for your socket outlets do not use an adaptor but remove the plug from the cord and discard. Carefully prepare the end of the supply cord and fit a suitable plug. The fuse must be replaced with one of the same rating. IMPORTANT The wires in this mains lead are coloured in accordance with the following code: Blue:Neutral Brown:Live Yellow & Green:Earth As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Blue must be connected to the terminal which is marked by the letter N or coloured Black. The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Red. FOR EUROPE: A mains lead compatible with national earthing standards and complying with the local safety requirement is supplied. WARNING TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE • A combined mains power input lead and country specific mains plug is provided. • Check before connecting to your local mains supply that the local supply voltage is the same as that marked on the rear panel. If it is not, check with your supplier before proceeding. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Explanation of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of a sufficient magnitude to constitute a risk of electrical shock to persons. The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. SAFETY INFORMATION PSW4+5000 Manual ISSUE2 7/12/02 3:36 PM Page D Please take heed of the following before using the KEF Models PSW4000 and PSW5000. Note also that the word “appliance” shall refer to the KEF PSW4000 and PSW5000 subwoofer, or any part of it. 1.Read Instructions -All the Safety and Operating Instructions should be read before the appliance is operated. 2.Retain Instructions -The Safety and Operating Instructions should be retained for future reference. 3.Heed Warnings -All warnings on the appliance and in the Operating Instructions should be adhered to. 4.Follow Instructions -All Operating and Us…

Text truncated - open the document above for the full version.

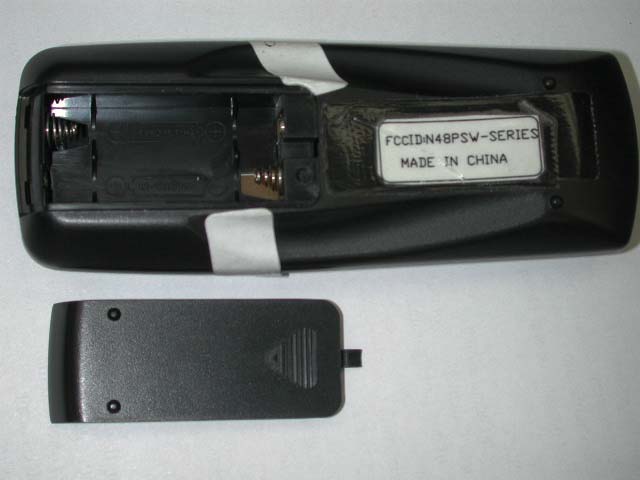

INTERTEK TESTING SERVICE Report no.: 0215173 Equipment Photographs Model : PSW5000 (External) FCC ID: N48PSW-SERIES INTERTEK TESTING SERVICE Report no.: 0215173 Equipment Photographs Model : PSW5000 (External) FCC ID: N48PSW-SERIES

INTERTEK TESTING SERVICE Report no.: 0215173 Equipment Photographs Model : PWS5000 (Internal) FCC ID: N48PSW-SERIES INTERTEK TESTING SERVICE Report no.: 0215173 Equipment Photographs Model : PWS5000 (Internal) FCC ID: N48PSW-SERIES INTERTEK TESTING SERVICE Report no.: 0215173 Equipment Photographs Model : PWS5000 (Internal) FCC ID: N48PSW-SERIES INTERTEK TESTING SERVICE Report no.: 0215173 Equipment Photographs Model : BW 6091 (Internal) FCC ID: N48PSW-SERIES

Page 1December 2001 TX4915 Low Power ASK Transmitter IC Advance Information HiMARK Technology, Inc. reserves the right to change the product described in this datasheet. All information con- tained in this datasheet is subject to change without prior notice. HiMARK Technology, Inc. assumes no responsibility for the use of any circuits shown in this datasheet. Description The TX4915 is a low power ASK transmitter IC intended for applications in the North American and European VHF/UHF bands. The integrated voltage-controlled oscillator (VCO), phase/frequency detector, prescaler, and reference oscillator require only the addition of an external crystal to provide a complete phase-locked loop (PLL). In addi- tion to the standard power-down mode, the chip also includes an automatic lock-detect feature that disables the transmitter output when the PLL is out-of-lock. Features ‹Output frequency range: 100 – 960MHz ‹Supply voltage range: 2.2 – 3.6V ‹Low current consumption with power down capability ‹On-chip VCO with integrated PLL (÷ 64/128) dual modulus prescaler ‹Out-of-lock inhibit circuit ‹SSOP-16 package (0.64mm pitch) Applications ‹Wireless mouse ‹Car alarm and home security systems ‹Remote control systems Block Diagram the wireless IC company 78 TXEN OSC OUT OSC IN 2 1 VREFPVSS2VCC2RESRES OSC VCO Prescaler ÷ 64/128 DO PFD and CP 3456 109 15 1614131211 VSSTXOUTVSS1VCC1MODIN AMP LD SW LD BIAS TX4915 the wireless IC company Page 2December 2001 Package and Pin Assignment SSOP-16 (0.64mm pitch) Symbol Dimensions in mmDimensions in inches min.nom.max.min.nom.max. A1.351.601.750.0530.0640.069 A10.10—0.250.004—0.010 A2—1.45——0.057— b0.200.250.300.0080.0100.012 C0.19—0.250.007—0.010 D4.80—5.000.189—0.197 E5.80—6.200.228—0.244 E13.80—4.000.150—0.157 e—0.64——0.025— L0.40—1.270.016—0.050 y——0.10——0.004 θ 0 ° — 8 ° 0 ° — 8 ° OSCIN OSCOUT TXEN VSS TXOUT VSS1 VCC1 MODIN SW LD DO RES RESB VREFP VSS2 VCC2 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 TX4915 HiMARK TX4915 the wireless IC company Page 3December 2001 Pin Descriptions NumberNameDescription 1OSCIN This pin is connected directly to the base of the reference oscillator transistor. The reference oscillator uses a modified Colpitts configuration. 2OSCOUTThis pin is connected directly to the emitter of the reference oscillator transistor. 3TXEN Transmitter enable control (TXEN = low = power down mode; TXEN = high = nor- mal operation mode). 4VSSGround connection for the transmit output amplifier. 5TXOUT Transmitter output. This pin is an open collector and requires a pull-up inductor for bias/matching and a tapped capacitor for matching. 6VSS1Ground connection for the transmit driver amplifier. 7VCC1Nominal supply voltage for the transmit driver amplifier. 8MODIN ASK modulation input. An external resistor is used to bias the entire transmit ampli- fier chain through this pin. 9VCC2Nominal supply voltage for the VCO and PLL circuitry. 10VSS2Ground connection for the PLL circuitry. 11VREFPBias voltage reference pin. 12RES Differential open collector VCO outputs. 13RES 14DO Output of the charge pump. An R-C network from this pin to ground is used to establish the PLL bandwidth. 15LD Lock detector output. This pin is used to set the threshold of the lock detect circuitry which enables or disables the transmit amplifier. A shunt capacitor should be used to set an R-C time constant with the on-chip series 1kΩ resistor. The time constant should be set to approximately 15 times the reference period. 16SWPrescaler modulus control input (SW = high = ÷ 64; SW = low = ÷ 128). TX4915 the wireless IC company Page 4December 2001 Absolute Maximum Ratings V SS , V SS1 , V SS2 = 0V Recommended Operating Conditions V SS , V SS1 , V SS2 = 0V ParameterRatingUnit Supply voltage range– 0.3 to +3.6 V DC Power-down voltage –0.3 to V CC V MODIN voltage–0.3 to +1.1V Operating ambient temperature–40 to +85°C Storage temperature–40 to +150°C ParameterSymbol Va l u e Unit min.typ.max. Supply voltage range V CC 2.23.03.6V Operating temperature T A –10+25+60 o C TX4915 the wireless IC company Page 5December 2001 Electrical Characteristics (V CC1 , V CC2 = 3V, V SS , V SS1 , V SS2 = 0V, TXEN = high, T A = 25°C, f RF = 433.92MHz unless otherwise noted) ParameterSymbolCondition Va l u e Unit min.typ.max. Power supply Supply voltageV CC1, V CC2 2.23.03.6V Total dc current (normal operation) I DC 50% duty cycle, 10kHz data applied to the MODIN input (R MODIN = 33kΩ) 8mA Total dc current (power-down mode) I standby TXEN = low1μA Overall RF input frequency rangef RF 100960MHz ModulationASK Modulation frequency100kHz Output power50 Ω load6dBm ON/OFF ratio80dB PLL Prescaler divide ratioSW = high = ÷ 64 SW = low = ÷ 128 64128 VCO gain K VCO Frequency and board layout dependent 12MHz/V Phase noise 10kHz offset, 5kHz loop BW–80dBc/Hz 100kHz offset, 5kHz loop BW–98dBc/Hz 2nd harmonic–20dBc 3rd harmonic–35dBc Reference frequency17MHz Crystal frequency spurs50kHz PLL loop BW–50dBc Charge pump currentI CP -5050μA Stand-by mode control Receiver enable/disable voltage V TXEN TXEN = high = normal operation Vcc - 0.3V V TXEN = low = power-down mode0.3V Turn-on time12ms Turn-off time12ms TX4915 the wireless IC company Page 6December 2001 Functional Description The TX4915 is a low-power ASK transmitter IC designed for applications operating within the frequency range of 100 to 960MHz. In particular, it is intended for transmitter applications in 315/433MHz band remote keyless entry and 868/915MHz ISM-band systems. In addition, the TX4915 possesses a PLL-only mode which allows it to be simply used as a local oscillator source. The integrated voltage-controlled oscil- lator (VCO), phase/frequency detector, prescaler, and reference oscillator require only the addition of an external crystal to provide a complete phase-locked loop. In addition to the normal operation mode, the chip also includes an automatic lock-detect feature that disables the transmitter output when the PLL is out- of-lock. Reference crystal…

Text truncated - open the document above for the full version.

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2745 8306 GPE International Ltd. Application For Certification (FCC ID: N48PSW-SERIES) Transmitter WO# 0215173(S1) AL/sc April 10 2003 FCC ID: N48PSW-SERIES INTERTEK TESTING SERVICES FCC ID: N48PSW-SERIES i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: N48PSW-SERIES ii MEASUREMENT/TECHNICAL REPORT GPE International Ltd. - MODEL: PSW5000 FCC ID: N48PSW-SERIES This report concerns (check one:) Original Grant X Class II Change _____ Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-18-01 Edition] provision. Report prepared by: Alfred Lo Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576, Castle Peak Road, Kowloon, Hong Kong Phone: 852-2173-8545 Fax: 852-2371-0914 INTERTEK TESTING SERVICES FCC ID: N48PSW-SERIES iii Table of Contents 1.0 General Description.............................................................................................................3 1.1 Product Description...............................................................................................................3 1.2 Related Submittal(s) Grants....................................................................................................3 1.3 Test Methodology..................................................................................................................4 1.4 Test Facility...........................................................................................................................4 2.0 System Test Configuration...................................................................................................6 2.1 Justification............................................................................................................................6 2.2 EUT Exercising Software.......................................................................................................6 2.3 Special Accessories...............................................................................................................6 2.4 Equipment Modification..........................................................................................................7 2.5 Support Equipment List and Description.................................................................................7 3.0 Emission Results....................................................................................................................9 3.1 Field Strength Calculation.....................................................................................................10 3.1 Field Strength Calculation (cont’d)........................................................................................11 3.2 Radiated Emission Configuration Photograph........................................................................12 3.3 Radiated Emission Data........................................................................................................13 4.0 Equipment Photographs.....................................................................................................16 5.0 Product Labelling................................................................................................................18 6.0 Technical Specifications.....................................................................................................20 7.0 Instruction Manual..............................................................................................................22 8.0 Miscellaneous Information................................................................................................24 8.1 Measured Bandwidth...........................................................................................................25 8.2 Discussion of Pulse Desensitization.......................................................................................26 8.3 Calculation of Average Factor..............................................................................................27 8.4 Emissions Test Procedures...................................................................................................28 8.4 Emissions Test Procedures (cont'd)......................................................................................29 INTERTEK TESTING SERVICES FCC ID: N48PSW-SERIES 1 List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated.pdf External Photo External Photo ophoto.pdf Internal Photo Internal Photo iphoto.pdf Block Diagram Block Diagram block.pdf Test Report Bandwidth Plot bw.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: N48PSW-SERIES 2 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: N48PSW-…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No:0215173 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : PSW 5000 Fig.1 FCC ID: N48PSW-SERIES i INTERTEK TESTING SERVICE Report No:0215173 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : PSW 5000 Fig.2 FCC ID: N48PSW-SERIES ii
