N48PSW3000315 Mhz Transmitter of Remote Control

GPE International Ltd.

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: Oct 23, 2001
Application Purpose: Original Equipment
Date of Application: Oct 23, 2001
Equipment Note: 315 Mhz Transmitter of Remote Control
Frequency Range: 315.00000000 - 315.00000000
Company: GPE International Ltd.
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Operational Description

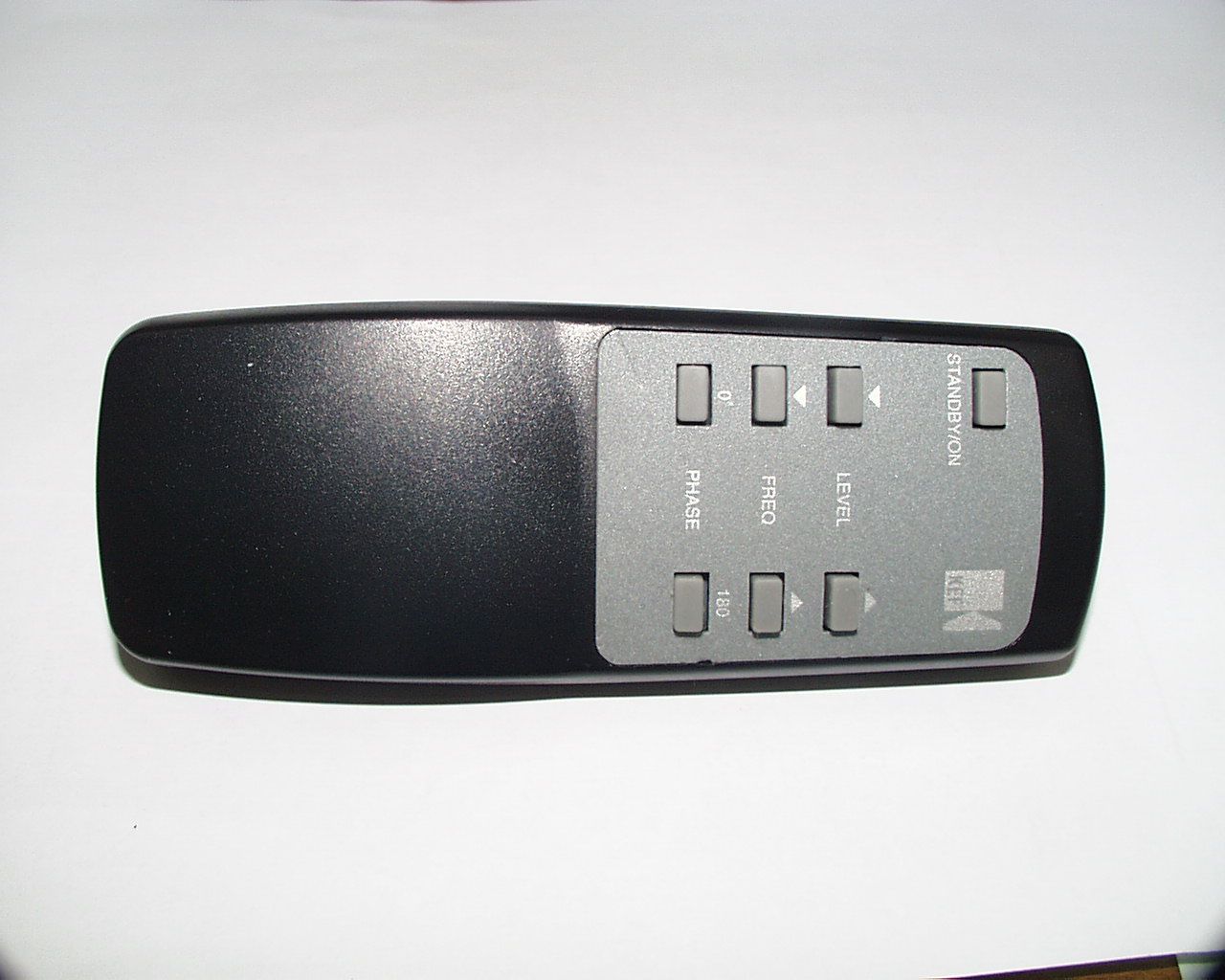

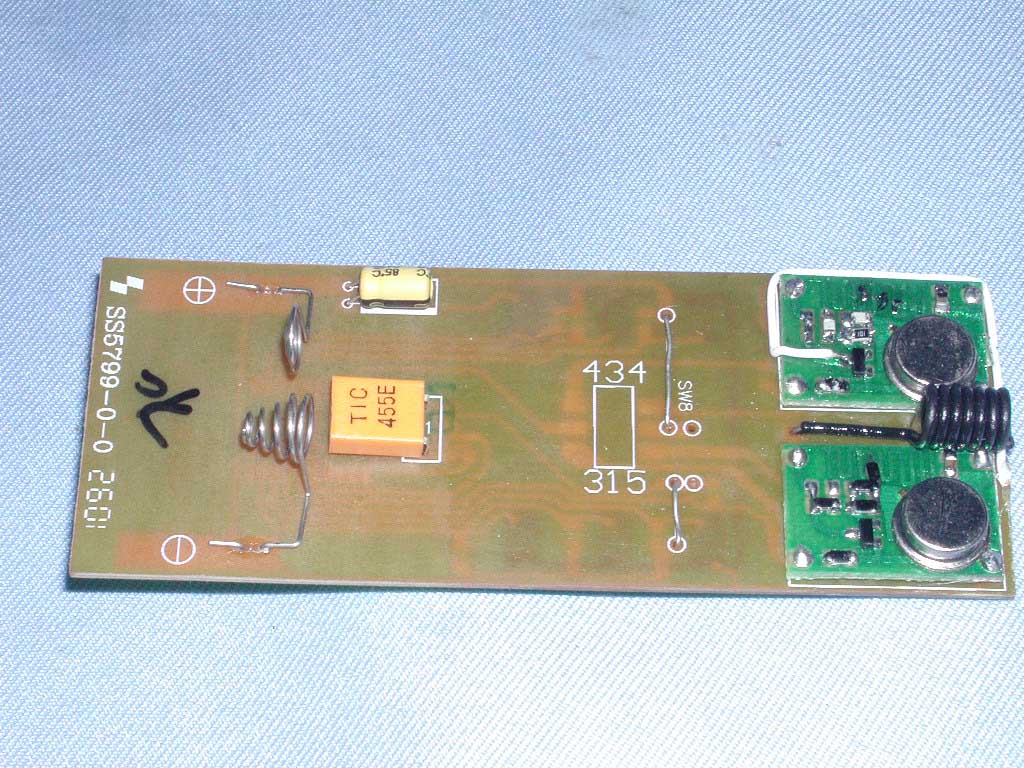

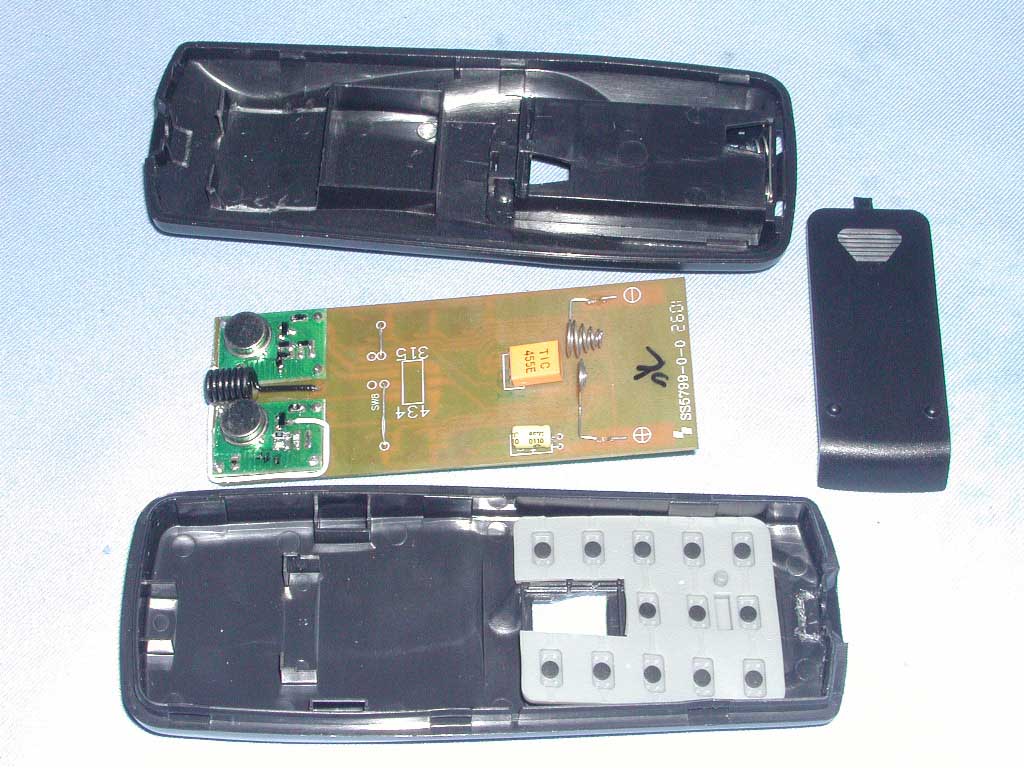

FCC ID:N48PSW3000 1.1Product Description The Equipment Under Test (EUT) is a remote control transmitter operating at 315MHz. The EUT is powered by DC3V "AAA" battery. There are 7 rubber control keys used to control up and down of volume, up and down of frequency, 0°< phase<180° phase and on or stand by mode. During manual operation, it transmits a signal to the receiver (the subwoofer), which will operate as the user commands. It ceases transmission in less than 1 second after being released the key. In addition, there is a switch found inside the sample; it was preset to operate at 315 MHz by manufacturer and cannot be accessed by user.

Test Report

Inte rte k Te sting Se rvice s Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2745 8306 September 28, 2001 GPE International Ltd. 6/F., Gold Peak Building, 30-34 Kwai Wing Road, Kwai Chung, New Territories, Hong Kong. Dear Mr. Ho Siu Chung: Enclosed you will find your file copy of a Part 15 report (FCC ID: N48PSW3000). For your reference, TCB will normally take another 15-20 days for reviewing the report. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Alfred Lo Senior Technical Supervisor Enclosure FCC ID: N48PSW3000 • The test results rep orted in this test rep ort shall refer only to the samp le actually tested and shall not refer or be deemed to refer to bulk from which such a samp le may be said to have been obtained. • This rep ort shall not be rep roduced excep t in full without p rior authorization from Intertek Testing Services Hong Kong Limit ed • For Terms And Conditions of the services, it can be p rovided up on request. Inte rte k Te sting Se rvice s Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2713 8888 Fax: (852) 2745 8306 GPE International Ltd. Application For Certification (FCC ID: N48PSW3000) Transmitter WO# 0110867 AL/sc September 28, 2001 FCC ID: N48PSW3000 INTERTEK TESTING SERVICES FCC ID: N48PSW3000i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 :General Description EXHIBIT 2 :System Test Configuration EXHIBIT 3 :Emission Results EXHIBIT 4 :Equipment Photographs EXHIBIT 5 :Product Labelling EXHIBIT 6 :Technical Specifications EXHIBIT 7 :Instruction Manual EXHIBIT 8 :Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: N48PSW3000ii MEASUREMENT/TECHNICAL REPORT GPE International Ltd. - MODEL: KEF PSW3000 FCC ID: N48PSW3000 This report concerns (check one:)Original Grant X Class II Change _____ Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-1-00 Edition] provision. Report prepared by:Alfred Lo Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576, Castle Peak Road, Kowloon, Hong Kong Phone:852-2173-8542 Fax:852-2371-0914 INTERTEK TESTING SERVICES FCC ID: N48PSW3000iii Table of Contents 1.0 General Description ................................................................................................................ 3 1.1 Product Description............................................................................................................. 3 1.2 Related Submittal(s) Grants.................................................................................................3 1.3 Test Methodology................................................................................................................ 4 1.4 Test Facility......................................................................................................................... 4 2.0 System Test Configuration ...................................................................................................... 6 2.1 Justification.......................................................................................................................... 6 2.2 EUT Exercising Software ....................................................................................................6 2.3 Special Accessories ............................................................................................................. 6 2.4 Equipment Modification......................................................................................................7 2.5 Support Equipment List and Description ............................................................................ 7 3.0 Emission Results ...................................................................................................................... 9 3.1 Field Strength Calculation .................................................................................................10 3.1 Field Strength Calculation (cont’d) ................................................................................... 11 3.2 Radiated Emission Configuration Photograph .................................................................. 12 3.3 Radiated Emission Data .................................................................................................... 13 4.0 Equipment Photographs ....................................................................................................... 16 5.0 Product Labelling .................................................................................................................. 18 6.0 Technical Specifications ........................................................................................................ 20 7.0 Instruction Manual ................................................................................................................ 22 8.0 Miscellaneous Information ................................................................................................... 24 8.1 Measured Bandwidth.........................................................................................................25 8.2 Discussion of Pulse Desensitization .................................................................................. 26 8.3 Calculation of Average Factor .......................................................................................... 27 8.4 Emissions Test Procedures ................................................................................................ 28 8.4 Emissions Test Procedur…

Text truncated - open the document above for the full version.
