N6AFJEE0402ENERGY SAVING LAMP

User’s Manual This light device has been tested and found to comply with the limits for Consumer RF Lighting Device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 1 Use only on 120V/60Hz. 2 Never disassemble or modify-any changes could void the user’ authority to operate this device. 3 Not for use in totally enclosed recessed fixtures. 4 Risk of electric shock-do not use with where directly exposed to water. 5 This device is not intended for use with emergency exit fixtures or emergency exit lights. 6 This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. 7 To prevent burns, do not touch the bulb during operation or immediately after switching off. 8 Not for use with dimmers, electronic timer or photocell devices or occupancy sensor.

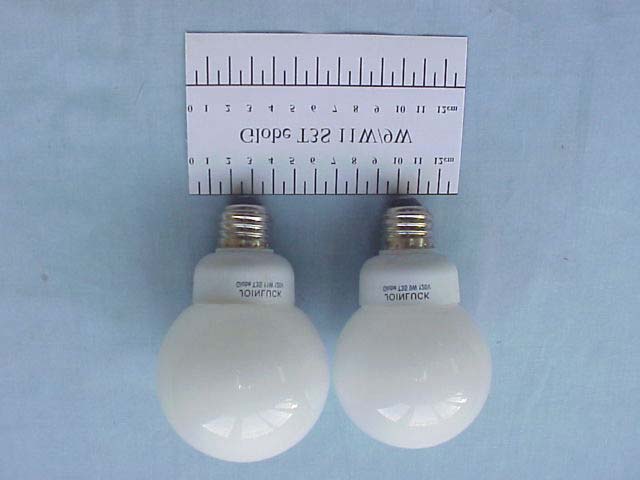

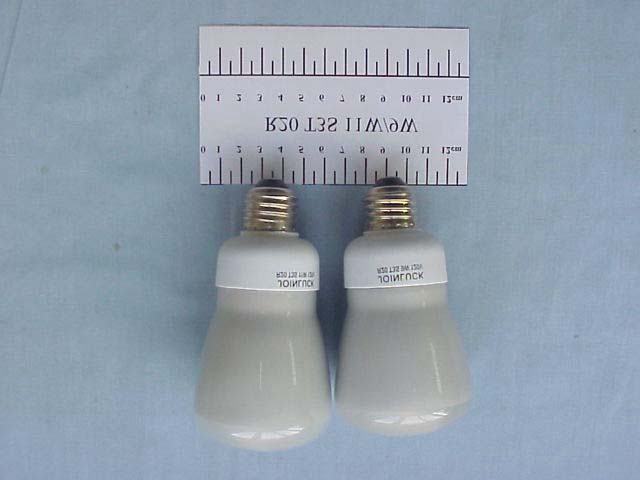

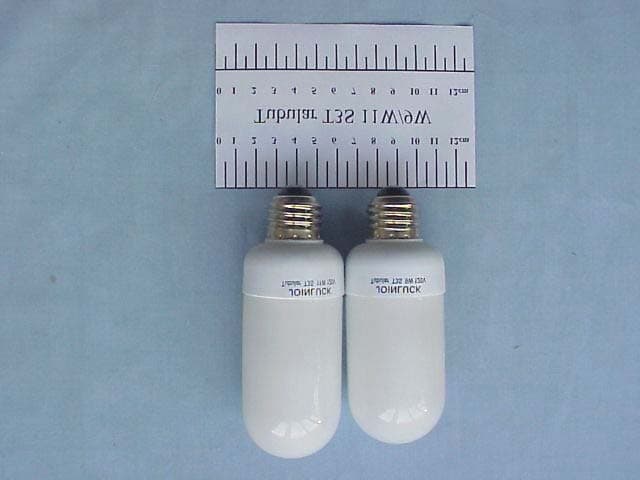

F IGURE 1 E NERGY S AVING L AMP (M/N: G LOBE T3S 11W/9W) G ENERAL A PPEARANCE F IGURE 2 E NERGY S AVING L AMP (M/N: A-T YPE T3S 11W/9W) G ENERAL A PPEARANCE F IGURE 3 E NERGY S AVING L AMP (M/N: R20 T3S 11W/9W) G ENERAL A PPEARANCE F IGURE 4 E NERGY S AVING L AMP (M/N: T UBULAR T3S 11W/9W) G ENERAL A PPEARANCE

Label Location Information Refer to the below red arrow: (For example)

Label Drawing JOINLUCK FCC ID: N6AFJEE0402

F IGURE 1 E NERGY S AVING L AMP (M/N: G LOBE T3S 11W/9W) C OVER R EMOVED F IGURE 2 E NERGY S AVING L AMP (M/N: G LOBE T3S 11W/9W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 3 E NERGY S AVING L AMP (M/N: G LOBE T3S 11W/9W) M AIN B OARD (S OLDERED S IDE ) F IGURE 4 E NERGY S AVING L AMP (M/N: A-T YPE T3S 11W/9W) C OVER R EMOVED F IGURE 5 E NERGY S AVING L AMP (M/N: A-T YPE T3S 11W/9W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 6 E NERGY S AVING L AMP (M/N: A-T YPE T3S 11W/9W) M AIN B OARD (S OLDERED S IDE ) F IGURE 7 E NERGY S AVING L AMP (M/N: R20 T3S 11W/9W) C OVER R EMOVED F IGURE 8 E NERGY S AVING L AMP (M/N: R20 T3S 11W/9W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 9 E NERGY S AVING L AMP (M/N: R20 T3S 11W/9W) M AIN B OARD (S OLDERED S IDE ) F IGURE 10 E NERGY S AVING L AMP (M/N: T UBULAR T3S 11W/9W) C OVER R EMOVED F IGURE 11 E NERGY S AVING L AMP (M/N: T UBULAR T3S 11W/9W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 12 E NERGY S AVING L AMP (M/N: T UBULAR T3S 11W/9W) M AIN B OARD (S OLDERED S IDE )

Schematics

Fujian Joinluck Electronic Enterprise Co., Ltd. FCC ID: N6AFJEE0402 Page 1 of 24 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F04037 Application for FCC Certificate On Behalf of Fujian Joinluck Electronic Enterprise Co., Ltd. Energy Saving Lamp FCC ID: N6AFJEE0402 Prepared For :Fujian Joinluck Electronic Enterprise Co., Ltd. Cangshan Industrial Area, Cangshan District, Fuzhou, Fujian, China. Prepared By :Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233. Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F04037 Date of Test : May 22, 2004 Date of Report : May 27, 2004 Model No.: Globe T3S 11W Globe T3S 9W A-Type T3S 11W A-Type T3S 9W R20 T3S 11W R20 T3S 9W Tubular T3S 11W Tubular T3S 9W Serial No.: F04050901 F04050902 F04050903 F04050904 F04050905 F04050906 F04050907 F04050908 Fujian Joinluck Electronic Enterprise Co., Ltd. FCC ID: N6AFJEE0402 Page 2 of 24 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F04037 TABLE OF CONTENTS Page 1 GENERAL INFORMATION.......................................................................................................... 4 1.1 Description of Equipment Under Test........................................................................................4 1.2 Description of Test Facility ........................................................................................................ 4 1.3 Measurement Uncertainty .......................................................................................................... 4 2 AC POWERLINE CONDUCTED EMISSION TEST ................................................................. 5 2.1 Test Equipment........................................................................................................................... 5 2.2 Block Diagram of Test Setup ..................................................................................................... 5 2.3 Conducted Emission Limits ....................................................................................................... 6 2.4 Test Configuration...................................................................................................................... 6 2.5 Operating Condition of EUT ...................................................................................................... 6 2.6 Test Procedures .......................................................................................................................... 6 2.7 Test Results ................................................................................................................................ 7 3 MAGNETIC FIELD EMISSION TEST ...................................................................................... 15 3.1 Test Equipment......................................................................................................................... 15 3.2 Block Diagram of Test Setup ................................................................................................... 15 3.3 Magnetic Field Emission Limit ................................................................................................ 15 3.4 EUT Configuration on Test ...................................................................................................... 16 3.5 Operating Condition of EUT .................................................................................................... 16 3.6 Test Procedures ........................................................................................................................ 16 3.7 Test Results .............................................................................................................................. 16 Fujian Joinluck Electronic Enterprise Co., Ltd. FCC ID: N6AFJEE0402 Page 3 of 24 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F04037 TEST REPORT FOR FCC CERTIFICATE Applicant : Fujian Joinluck Electronic Enterprise Co., Ltd. Manufacturer : Fujian Joinluck Electronic Enterprise Co., Ltd. EUT Description : Energy Saving Lamp (A) Model No. : Globe T3S 11W, Globe T3S 9W, A-Type T3S 11W, A-Type T3S 9W, R20 T3S 11W, R20 T3S 9W, Tubular T3S 11W, Tubular T3S 9W (B) Serial No. : F04050901, F04050902, F04050903, F04050904, F04050905, F04050906, F04050907, F04050908 (C) Power Supply : 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 CONSUMER DEVICES (2003.10) AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both conducted emissions and field strength. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Please see the EUT Description above), which was tested in 3m anechoic chamber on May 22, 2004, to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report contains data that are not covered by the NVLAP accreditation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Date of Test : May 22, 2004 Prepared by : Test Engineer : CATHRIN YIN (Assistant) HARRY ZHAO (Engineer) Reviewer : Approved Signatory : SAMMY CHEN (Engineer) BYRON KWO (Assistant Manager) Fujian Joinluck Electronic Enterprise Co., Ltd. FCC ID: N6AFJEE0402 Page 4 of 24 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F04037 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : Energy Saving Lamp Type of EUT : ; Production … Pre-product … Pro-type Model Number : Globe T3S 11W, G…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test 2. Field strength Test
