N6C-SDMAHEmbedded Wireless Module

(1/23) CONFIDENTIAL Title: SX-SDMAH Drawing Type : User Manual (2/23) CONFIDENTIAL 1. 適用 / Application ...................................................................................................................................................... 3 2. 概要 / Introduction ...................................................................................................................................................... 3 3. 仕様一覧 / Specifications ........................................................................................................................................ 4 3.1. 一般仕様 / General Specifications ................................................................................................................... 4 3.2. 環境条件 / Environmental Specifications ....................................................................................................... 5 3.3. 電気的仕様 / Electrical Specifications ............................................................................................................. 7 3.3.1. 絶対最大定格 / Absolute maximum rating ............................................................................................... 7 3.3.2. 推奨動作条件 / Recommended operating conditions ........................................................................... 7 3.4. 消費電流仕様 / Current consumption specifications ................................................................................. 8 3.5. RF機能仕様 / RF functional specifications .................................................................................................... 9 3.6. RF送信仕様 / RF Transmitter Specifications ............................................................................................. 10 3.7. RF受信仕様/ RF Receiver Specifications ..................................................................................................... 11 4. ブロック図 / Block Diagram .................................................................................................................................. 12 5. 適合規格 / Standards compliance ........................................................................................................................ 13 5.1. 適合規格 / Standards conformity .................................................................................................................. 13 5.2. 適合法規 / Law Regulation compliance ....................................................................................................... 13 6. RoHS指令 / RoHS Directive .................................................................................................................................. 13 7. 外観 / Outside Drawing ......................................................................................................................................... 14 8. 表示仕様 / Indication specifications .................................................................................................................... 15 9. 注意事項 / Notifications ......................................................................................................................................... 16 10. Federal Communication Commission Interference Statement ............................................... 18 11. Innovation, Science and Economic Development Canada statement: ................................. 21 (3/23) CONFIDENTIAL 1. 適用 / Application 本書はSX-SDMAH(US)のハードウェア製品仕様を記したものです。 This document describes the detail of hardware specifications for the SX-SDMAH(US) . 2. 概要 / Introduction SX-SDMAH(US)は、MM6108 (Morse Micro社)を採用した、915MHz ISM band IEEE 802.11 ah準拠の無線 モジュールです。本モジュールは、MAC/BBP/RF/RFフロントエンド及び各種電源/クロックなどの外部回 路を内蔵しています。SX-SDMAH(US)の製品形状は、表面実装型 (SMT)で、アンテナ接続のインターフェ イスは50 ohm MHFコネクタです。 The SX-SDMAH(US) is a 915MHz ISM band IEEE802.11ah WLAN module based on Morse Micro MM6108 chipset. This module includes MAC/BBP/RF/RF-Front-End, Power regulators and clock sources. Its form- factor is Surface Mount Technology (SMT) type, and it has 50ohm MHF antenna connector. 特徴 (Features)  IEEE802.11ah準拠 (915MHz ISM band / Region2) IEEE802.11ah compliant (915MHz ISM band / Region2)  1スペーシャルデータストリームシステム (1T1R) 1 spatial data stream system (1T1R)  変調帯域幅: 1, 2, 4, 8 MHz (PHYデータレート 150kbps to 32.5Mbps) Modulation Bandwidth: 1, 2, 4, 8MHz (PHY datarate 150kbps to 32.5Mbps)  ホストインターフェイス: SDIO v2.0 / SPI Host Interface: SDIO v2.0 / SPI (4/23) CONFIDENTIAL 3. 仕様一覧 / Specifications 3.1. 一般仕様 / General Specifications 区分/Items 内容/Description Units 備考/Note ホストボードへの接続方式 Connection with the host board 60-pin Land Grid Array (Direct solder) - アンテナ端子 Antenna port MHF1 connector x1 pcs アンテナ端子特性 Antenna port characteristics 50 Ω SWR < 2.0 ホストインターフェイス Host interface SDIO/SPI - 無線接続方式 RF interface IEEE802.11ah 重さ Weight 1.6 g Typ. 寸法 Dimensions W x H x D : 17.0 x 18.0 x 2.65 mm MTTF 90,000 H Min. アンテナコネクタ着脱回数 Antenna connector Desorption number of times 10 Times Max. I- PEX 90224-001 使用時 Use I-PEX 90224-001 リフロー回数 Reflow number of times 2 Times Max. *NOTE1 ESD耐性 ESD resistance +/- 2000 V Max. Human body model at RF port NOTE1 解析のためにモジュールをホストボードから取り外す際は、 JEDEC J-STD-33 Clause 6 BOARD REWORKに定める方法で取り外してください。 実装、取り外しに限らず、リフロー回数としてカウントしますので、取り外したモジュールの 再実装や2回リフロー後のモジュールの取り外しは3回目のリフローとなるため保証しませ ん。 In the case of removing the module from the board for the analysis, need to follow JEDEC J-STD-33 Clause 6 BOARD REWORK. Both re-assemblying the removed module and removing the module after reflow 2 times won’t be guaranteed since above actions may be counted as the number of reflow. (5/23) CONFIDENTIAL 3.2. 環境条件 / Environmental Specifications 区分/Items 仕様/Specifications Units 備考/Note Min Ty p Max 推奨動作温度 Recommended operating temperature -40 - +85 °C 周囲温度 *NOTE1 Ambient temperature *NOTE1 実装後電源電圧印加時 After assembled with powered 推奨動作湿度 Recommended operating humidity 15 - 95 % 結露無きこと No condensing 実装後電源電圧印加時 After assembled with powered 推奨保存温度 (実装後) Recommended storage temperature (After assembly) -40 - +85 °C 実装後電源電圧無印加時 After assembled with no- powe…

Text truncated - open the document above for the full version.

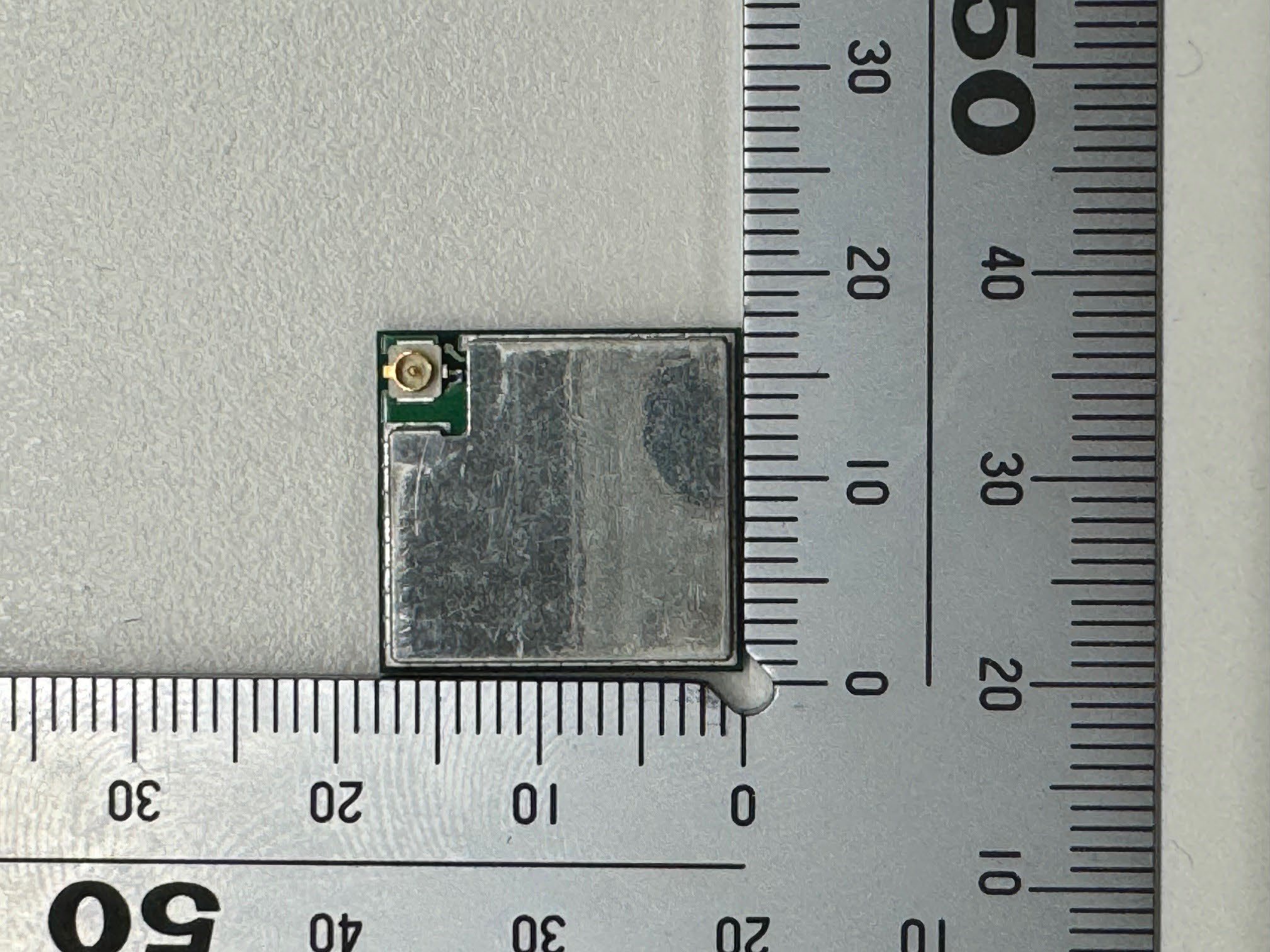

External Photo SILEX TECHNOLOGY INC. [Model: SX-SDMAH] External Photo SILEX TECHNOLOGY INC. [Model: SX-SDMAH] Front Back Right Left External Photo SILEX TECHNOLOGY INC. [Model: SX-SDMAH]

1. 表示仕様 / Indication specifications 製造者名 Manufacturer name Country of origin (English/French) モデル名 (HVIN) Model name (HVIN) IC ID FCC ID 2D Code Data Matrix (ECC200) Data: MAC Address MAC Address IMPROVEMENTREVISION FIRST EDITION DATEDESIGNED SHEET MATERIAL DWG No. TITLE FINISH SCALE A4SIZE APPROVEDCHECKED Confidential 123 1234 F E D C B A F E D C B A × × × × × Print Color:Black T.Minobe T.Kimoto2023.07.14 2：11/1 LINTEC HR5210-25 R411A PA-T1 LN121670XX Y.Shibuya T.Minobe T.Kimoto2023.12.25A1 Font size change Y.Shibuya Product Label 6-R1 14 ± 0.2 15 ± 0.2 11.5 ± 0.2 9.5 ± 0.2 silex technology,Inc. XXXXXX XXXXXX Model:SX-SDMAH IC:4908A-SDMAH FCC ID:N6C-SDMAH Fabriqué au Japon Made in Japan A 1.5 mm 9.7 mm Using a material for the adhesive that exceeds the product's lifespan.

Internal Photo SILEX TECHNOLOGY INC. [Model: SX-SDMAH] Internal Photo SILEX TECHNOLOGY INC. [Model: SX-SDMAH]

February 1, 2024January 31, 2024 FCC ID: N6C-SDMAH To whom it may concern, We, UL Japan, Inc, hereby declare that Embedded Wireless Module, model: SX-SDMAH (FCC ID: N6C-SDMAH) of Silex Technology, Inc is exempt from RF exposure SAR evaluation because the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula according to the Code of Federal Regulation title 47 section 1.1307(b)(3)(i)(B). This method is used at separation distances d (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive) for single RF sources. P th is given by: 푃 ௧௛ ሺ mW ሻ ൌ൜ 퐸푅푃 ଶ଴ ୡ୫ ሺ푑 / 20 cmሻ ௫ 퐸푅푃 ଶ଴ ୡ୫ 푑൑20 cm 20 cm ൏ 푑 ൑ 40 cm Where 푥ൌെlog ଵ଴ ቆ 60 퐸푅푃 ଶ଴ ୡ୫ ඥ 푓 ቇand 푓 is in GHz 퐸푅푃 ଶ଴ ୡ୫ ሺ mW ሻ ൌቊ 2040푓 3060 0.3 GHz൑푓൏1.5 GHz 1.5 GHz൑푓൑6 GHz When the minimum separation distance is shorter than 0.5 cm, 0.5 cm is applied. The SAR evaluation exemption threshold is calculated as below. [SX-SDMAH] 900MHz Band Pth (mW)1890.1(dBm)26.50 f (GHz)0.9265(mW)446.68 ERP 20 cm (mW)1890.13.40 d (cm)20.029.90 (dBm)27.76 (mW)597.04 The Maximum time-averaged power or ERP whichever greater is 597.1 mW. (Rounded up to two decimals place) Conducted Power Antenna Gain (dBi) EIRP (dBm) ERP [SX-SDMAX] [WLAN 2.4 GHz band part] Pth (mW)3060(dBm)18.50 f (GHz)2.462(mW)70.79 ERP 20 cm (mW) 30603.18 d (cm)20.021.68 (dBm)19.54 (mW)89.95 The Maximum time-averaged power or ERP whichever greater is 90 mW. (Rounded up to two decimals place) Conducted Power *1) Antenna Gain (dBi) EIRP (dBm) ERP [Bluetooth (BR / EDR / LE) part] Pth (mW)3060(dBm)6.50 f (GHz)2.48(mW)4.47 ERP 20 cm (mW) 30603.18 d (cm)20.09.68 (dBm)7.54 (mW)5.68 The Maximum time-averaged power or ERP whichever greater is 5.7 mW. (Rounded up to two decimals place) Conducted Power *1) Antenna Gain (dBi) EIRP (dBm) ERP [WLAN 5 GHz band part] Pth (mW)3060(dBm)16.50 f (GHz)5.825(mW)44.67 ERP 20 cm (mW) 30604.25 d (cm)20.020.75 (dBm)18.61 (mW)72.61 The Maximum time-averaged power or ERP whichever greater is 72.7 mW. (Rounded up to two decimals place) Conducted Power *1) Antenna Gain (dBi) EIRP (dBm) ERP *1) The refereced conducted power is the maximum output power that the device can output by specification of SX-SDMAX (FCC ID: N6C-SDMAX). Tran smitters used in mobile exposure conditions for simultaneous transmission operations according to KDB447498 D04. Value is calculated using the following formula according to the Code of Federal Regulation title 47 section 1.1307(b)(3)(ii)(B). ෎ 푃 ௜ 푃 ௧௛,௜ ௔ ௜ୀଵ ൅ ෎ 퐸푅푃 ௝ 퐸푅푃 ௧௛,௝ ௕ ௝ୀଵ ൅ ෎ 퐸푣푎푙푢푎푡푒푑 ௞ 퐸푥푝표푠푢푟푒 퐿푖푚푖푡 ௞ ௔ ௞ୀଵ ൑1 [SDMAH: 900MHz Band and SDMAX: WLAN 2.4 GHz] 597.1 / 1890.1 + 90.0 / 3060 =0.3159 +0.0294 = 0.3453 <1 [SDM AH: 900MHz Band, SDMAX: Bluetooth (BR/EDR/LE) and WLAN 5 GHz] 597.1 / 1890.1 + 5.7 / 3060 + 72.7 / 3060 = 0.3159 + 0.0019 + 0.0238 = 0.3416 <1 Thank you for your attention to this matter. Satofumi Matsuyama Engineer

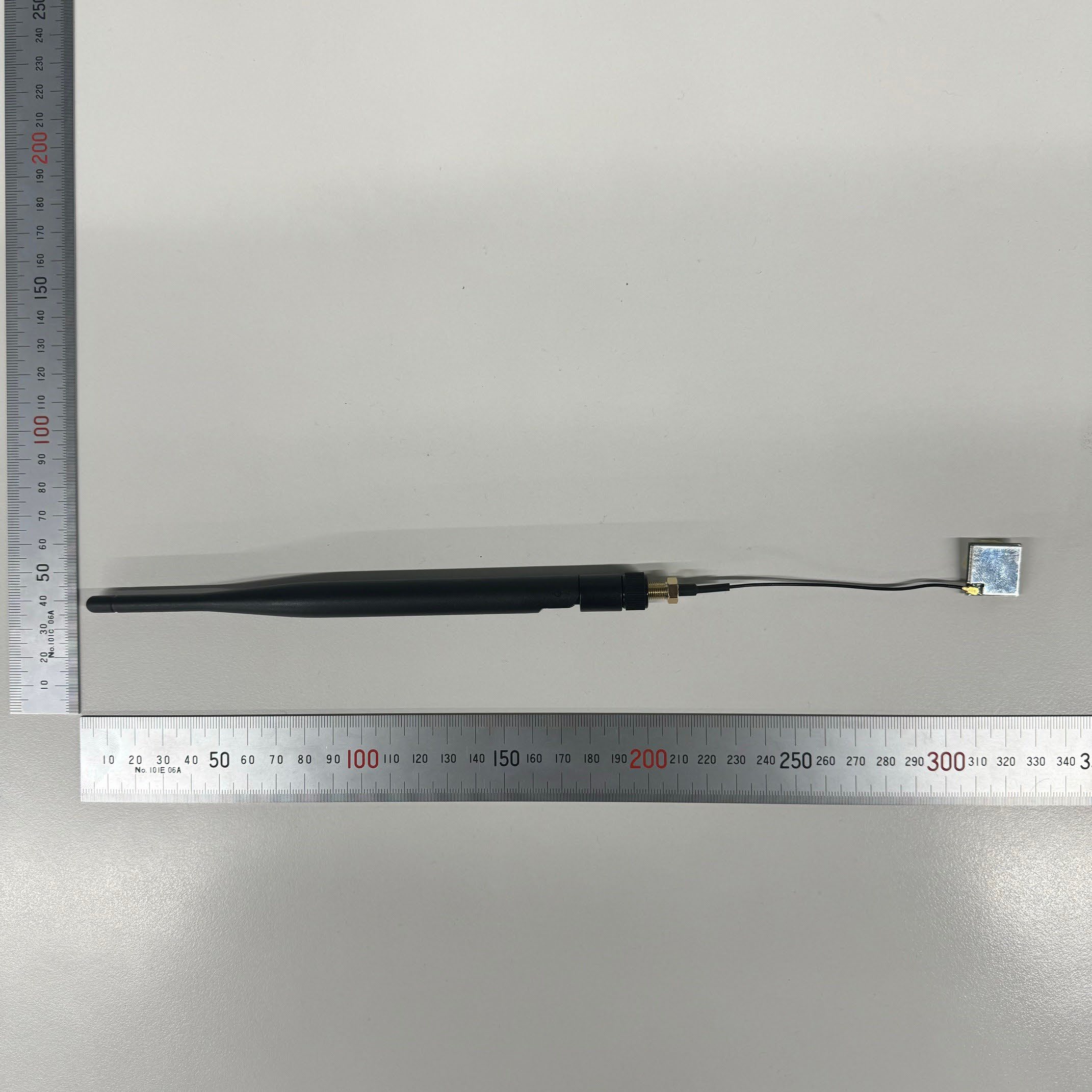

Electrical Specifications Typical Characteristics in Free Space and on a connected to a 200 x 200 mm ground plane and under PC/ABS plastic cover DATASHEET Part No. 9000984-XLPDNB Product: External Hinged ISM Antenna 2/20/2019Proprietary www.ethertronics.com Ordering Part Number9000984-XLPDNB Size (mm)196 x 13 Connector SMA Male (RP-SMAavailable upon request) HingeFoldable90 degrees at the hinge level ColorBlack (other colors available upon request) KEY BENEFITS Greater Flexibility Different connector options upon request. Small form factor and low profile. Independent of ground, the performances are maintained across design. Quicker Time-to-Market Standard antenna eliminates design fees, redesign cycle time and minimize risk associated with a customer solution. Quicker time to market. Reliability Products are the latest RoHS version compliant APPLICATIONS •Medical applications •Home automation •Smart metering •Industrial devices •IoT •Healthcare •Tracking •NB-IoT •Sigfox •LoRa •Cellular LPWAN •M2M Mechanical Specifications & Ordering Part Number Frequency790 MHz868 MHz915 MHz MountingOff Ground /On Ground Return Loss (dB) -4 / -4-17 / -13-9 / -13 Efficiency (%)40 / 4085 / 8075 / 82 Peak Gain (dBi)2.23.4 Impedance (Ω)50 Working Temperature -40ºC to +120ºC Part No. 9000984-XLPDNB External Hinged ISM Antenna 790 / 868 / 915 MHz Supports: NB-IoT, SigFox, LoRa, Cellular LPWA, RPMA, Tracking, LPWAN, Smart Metering External Hinged ISM Antenna 790 -960 MHz Ethertronics’ family of external antennas are designed to offer the best performances for a wide range of applications. This sleek hinged External ISM antenna covers 790Mhz, 868Mhz, and 915Mhz bands and is specifically designed for industrial communication implementation requiring a plug-and-play solution. Global Operations & Design Support Ethertronics’ global operations supports an integrated network of design centers that can take projects from concept to production. © 2019 Ethertronics tel +(1) 858.550.3820 | fax +(1) 858.550.3821 email: [email protected] 5501 OberlinDrive, Suite 100 San Diego, CA 92121 -USA Return Loss and Efficiency Plots Typical Characteristics (measurements taken in Free Space and on a 200 x 200 mm ground plane) External ISM/LoRa/Sigfox antenna specifications Ethertronics produces a wide variety of standard and custom antennas to meet user needs. 0 10 20 30 40 50 60 70 80 90 100 780790800810820830840850860870880890900910920930940950960 Efficiency (%) Frequency (MHz) -30 -25 -20 -15 -10 -5 0 780790800810820830840850860870880890900910920930940950960 Return Loss (dB) Frequency (MHz) Return Loss Efficiency Frequency (MHz) Frequency (MHz) 9000984-XLPDNB(Free Space) 9000984-XLPDNB(200 x 200 mm ground plane) DATASHEET | Part No. 9000984-XLPDNB © 2019 Ethertronics tel +(1) 858.550.3820 | fax +(1) 858.550.3821 email: [email protected] 5501 OberlinDrive, Suite 100 San Diego, CA 92121 -USA X Y Z External ISM/LoRa/Sigfox antenna specifications Ethertronics produces a wide variety of standard and custom antennas to meet user needs. Measured at 790 MHz Measured at 850 MHz Measured at 950 MHz DATASHEET | Part No. 9000984-XLPDNB 9000984-XLPDNB(Free Space) 9000984-XLPDNB(200 x 200 mm ground plane) Antenna Radiation Patterns Typical Characteristics (measurements taken in Free Space and on a 200 x 200 mm ground plane) © 2019 Ethertronics tel +(1) 858.550.3820 | fax +(1) 858.550.3821 email: [email protected] 5501 OberlinDrive, Suite 100 San Diego, CA 92121 -USA Antenna Dimensions Typical antenna dimensions, in mm. External ISM/LoRa/Sigfox antenna specifications Ethertronics produces a wide variety of standard and custom antennas to meet user needs. Part NumberA (mm)B (mm)C (mm)D (mm)Connector 9000984-XLPDNB 196 ±3.013.0 ±0.16.01 ±0.1165 ±2.0 SMA(Male) C A B DATASHEET | Part No. 9000984-XLPDNB D

SPE-11-8-068/D Page 1 of 6 SPECIFICATION Part No. : CAB.011 Product Name : Taoglas Cable Assembly IPEX MHFI to SMA(F)Bulkhead Straight Connector with 95mm 1.13 cable Photo : SPE-11-8-068/D Page 2 of 6 1. Cable Insertion Loss 2. 1.13 Cable Specification 2.1 Drawing – Cross Section CAB.011 -30 -25 -20 -15 -10 -5 0 010002000300040005000600070008000 Freq(M Hz) S21(dB) S21 SPE-11-8-068/D Page 3 of 6 2.2 Structure and Dimensions 2.3 Electrical & Physical Specification 1 Item: 32 AWG 2 Rating Temp Voltage: 105°C 30V UL 1979 3 Insulation Resistance: 1000 MEGA OHM-KM Min. 4 Conductor Resistance: 545 OHM/KM/20°C Max. 5 Dielectric Strength: AC 1.0 KV/minute 6 Spark test: 2.5 KV 7 Insulation Unaged Tensile Strength 2500 PSI Min.(1.76Kg/mm²) Elongation 200% min. Aged Tensile Strength Unaged Min 75%(168HRS*232°C) Elongation Unaged Min 75%(168HRS*232°C) 8 Jacket Unaged Tensile Strength 2500 PSI Min.(1.76Kg/mm²) Elongation 200% min. Aged Tensile Strength Unaged Min 75%(168HRS*232°C) Elongation Unaged Min 75%(168HRS*232°C) 9 Nom. Impedance 50  3 Ohms 10 Nom. Capacitance 96  3 pF/m 11 Nom. Vel. Of Prop. 69% 12 VSWR (0-6GHz) Max 1.3 13 Flame Test VW-1 OK 14 Attenuation (dB/1M) 2.0GHz 2.80 2.4GHz 3.10 3.0GHz 3.50 4.0GHz 4.00 5.0GHz 4.60 6.0GHz 5.10 SPE-11-8-068/D Page 4 of 6 3. Technical Drawing 3.1 CAB.011 SPE-11-8-068/D Page 5 of 6 3.2 Connectors 3.3 Recommended Mounting Hole – SMA(F) Bulkhead SPE-11-8-068/D Page 6 of 6 4. Packaging Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Taoglas: CAB.011

Test Report No. 15005197H-A-R3 Page 1 of 57 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 RADIO TEST REPORT Test Report No. 15005197H-A-R3 Customer Silex Technology, Inc Description of EUT Embedded Wireless Module Model Number of EUT SX-SDMAH FCC ID N6C-SDMAH Test Regulation FCC Part 15 Subpart C Test Result Complied Issue Date January 31, 2024 Remarks - Representative Test Engineer Approved By Takumi Nishida Engineer Satofumi Matsuyama Engineer CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Report Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 23.0 Test Report No. 15005197H-A-R3 Page 2 of 57 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 ANNOUNCEMENT REVISION HISTORY Original Test Report No.: 15005197H-A This report is a revised version of 15005197H-A. 15005197H-A is replaced with this report. Revision Test Report No. Date Page Revised Contents - (Original) 15005197H-A December 19, 2023 - 1 15005197H-A-R1 January 15, 2024 SECTION 2.1: Identification of EUT -Correction of test date November 6 to 16, 2023 → November 6, 2023 to January 10, 2024 1 15005197H-A-R1 January 15, 2024 SECTION 2.2: Product Description Radio Specification -Addition of frequency 908.0 MHz (8 MHz bandwidth) in Frequency of Operation. 1 15005197H-A-R1 January 15, 2024 SECTION 4.1: Operating Mode(s) *The Details of Operating Mode(s) -Addition of tested frequency 908.0 MHz (8 MHz bandwidth) for Radiated Spurious Emission, 6dB Bandwidth, Maximum Average Output Power, Power Density and 99% Occupied Bandwidth. 1 15005197H-A-R1 January 15, 2024 APPENDIX 1: Test Data -Addition of test data of 908.0 MHz (8 MHz bandwidth) for Radiated Spurious Emission, 6dB Bandwidth, Maximum Average Output Power, Power Density and 99% Occupied Bandwidth. 2 15005197H-A-R2 January 30, 2024 SECTION 3.2: Procedures and Results -Correction of worst margin. 2.4 dB, 928.0 MHz, PK, Vertical → 2.6 dB, 928.0 MHz, PK, Vertical 2 15005197H-A-R2 January 30, 2024 SECTION 4.2: Configuration and Peripherals Table for Description of EUT and Support Equipment -Correction of model number for Item No. F: ROD Antenna. X9000984-4GDSMB → 9000984-XLPDNB 2 15005197H-A-R2 January 30, 2024 SECTION 6: Radiated Spurious Emission -Deletion of following sentence. 15.35(c) Peak with Duty factor *1) *1) The test was performed that the Spurious evaluation as Peak with Duty factor since the pulse emission which is synchronous the worst duty cycle of IEEE 802.11ah . 2 15005197H-A-R2 January 30, 2024 APPENDIX 1: Test Data Burst rate confirmation -Deletion of Burst rate confirmation (Reference data for Peak with Duty factor). 2 15005197H-A-R2 January 30, 2024 APPENDIX 1: Test Data Radiated Spurious Emission -Replacement of following test data. 926.5 MHz (Channel Bandwidth 1 MHz) 915.0 MHz (Channel Bandwidth 2 MHz) 925.0 MHz (Channel Bandwidth 2 MHz) 2 15005197H-A-R2 January 30, 2024 APPENDIX 2: Test Instruments -Addition of following test instruments for radiated emission test. LIMS ID: 141507, 141902, 141951, 197990 3 15005197H-A-R3 January 31, 2024 SECTION 2.1: Identification of EUT -Correction of test date November 6, 2023 to January 10, 2024 → November 6, 2023 to January 31, 2024 3 15005197H-A-R3 January 31, 2024 APPENDIX 1: Test Data Power Density -Replacement of power density test data for channel Bandwidth 2M, 4M, 8M.  This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc.  The results in this report appl y only to the sample tested. (Laboratory was not involved in sampling.)  This sample tested is in compliance with the limits of the above re gulation.  The test results in this test report are traceable to the national or international standards.  This test report must not be used by the customer to claim product certification, approval, or endorsement b y the A2LA accreditation body.  This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable)  The all test items in this test report are conducted b y UL Japan, Inc. Ise EMC Lab.  The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited.  The information provided b y the customer for this report is identified in SECTION 1.  The laboratory is not responsible for information provided by the customer which can impact the validit y of the results.  For test report (s) referred in this report, the latest version (including any revisions) is always referred. Test Report No. 15005197H-A-R3 Page 3 of 57 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation ICES Interference-Causing Equipment Standard AC Alternating Current IEC International Electrotechnical Commission AFH Adaptive Frequency Hopping IEEE Institute of Electrical and Electronics Engineers AM Amplitude Modulation IF Intermediate Frequency Amp, AMP Amplifier ILAC International Laboratory Accreditation Conference ANSI American National Standards Institute ISED Innovation, Science and Economic Development Canada Ant, ANT Antenna ISO International Organization for Standardization AP Access Point JAB Japan Accreditation Board ASK Amplitude Shift Keying LAN Local Area Network Atten., ATT Attenuator LIMS Laboratory Information Management System AV Average MCS Modulation and Coding Scheme BPSK Binary Phase-Shift Keying MRA Mutual Recognition Arrangement BR Bluetooth Basic Rate N/A Not Applicable BT Bluetooth NIST National Institute of Standards and Technology BT LE Bluetooth Low Energy NS No signal detect. BW BandWidt…

Text truncated - open the document above for the full version.

Test Report No. 15005197H-A-R3 Page 52 of 57 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 APPENDIX 3: Photographs of Test Setup Conducted Emission Photo 1 Photo 2 Test Report No. 15005197H-A-R3 Page 53 of 57 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Radiated Spurious Emission (Below 1 GHz) Photo 1 Photo 2 Test Report No. 15005197H-A-R3 Page 54 of 57 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Radiated Spurious Emission (Above 1 GHz) Photo 1 Photo 2 Test Report No. 15005197H-A-R3 Page 55 of 57 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Worst Case Position (Below 1 GHz) (Module: Horizontal: Y-axis / Vertical: Y-axis) (Antenna: Horizontal: Z0-axis / Vertical: Y0-axis) (Above 1 GHz) (Module: Horizontal: Y-axis / Vertical: Y-axis) (Antenna: Horizontal: Z0-axis / Vertical: Y0-axis) Module X-axis Y-axis Z-axis Test Report No. 15005197H-A-R3 Page 56 of 57 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Antenna X0-axis X45-Axis X90-Axis Y0-axis Y45-Axis Y90-Axis Z0-axis Z45-Axis Z90-Axis Test Report No. 15005197H-A-R3 Page 57 of 57 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Antenna Terminal Conducted Tests Photo 1 Photo 2 End of Report
