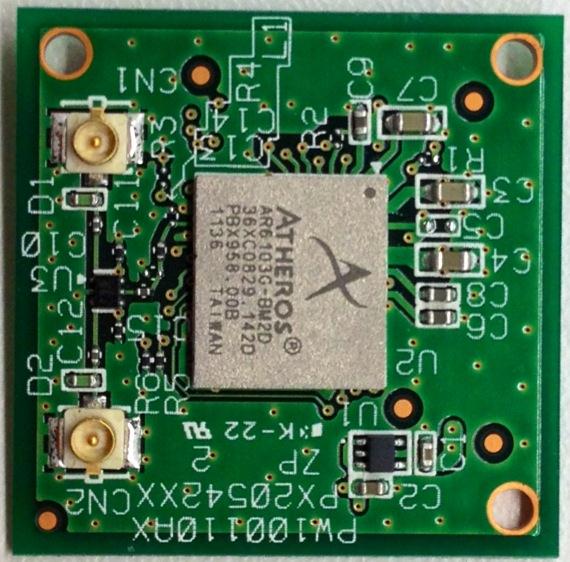

N6C-SDMGNSDIO Wireless Module

SX-SDMGN Users Manual June 28, 2012 SX-SDMGN Users Manual 1. Hardware specifications/Compliance ...................................................2 2. System Requirements (for the install) ..................................................5 3. Setup ..............................................................................5 1/4 SX-SDMGN Users Manual 2/4 1. Hardware specifications/Compliance FCC ID：N6C-SDMGN NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. IC：4908B-SDMGN This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition dans le Supplément C à OET65 et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles). This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. SX-SDMGN Users Manual 2/4 FCC WARNING： Antenna information: Omni-directional Gain 2 .1dBi authority to operate the equipment. Manual and Product Labeling information To The End User The end user manual shall include all required regulatory information/warning as show in this manual. And when this module is installed in the host product, you must include a "Contain FCC ID : N6C-SDMGN" and a “Contain IC: 4908B-SDMGN” in the label of the host product. This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle s'il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s SX-SDMGN Users Manual Operating environment ： Temperature：-20°C to +85°C, -4F to +185F Humidity：20% to 85% Storage environment ： Temperature：-40°C to…

Text truncated - open the document above for the full version.

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: silex technology, Inc. T ype of Equipment : SDIO Wireless Module Model No. : SX-SDMGN FCC ID: N6C-SDMGN IC Number:4908B-SDMGN silex technology, Inc. declares that Model : SX-SDMGN ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Ex posure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “SX-SDMGN“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 194.73 mW (Maximum peak output power) G = 1.62 Numerical Antenna gain; equal to2.10dBi r =20.0 cm For: SX-SDMGNS =0.06283 mW/cm 2 No. : 32IE0153-HO-01 RF Exposure / MPE Calculation

Test report No. : 32IE0153-HO-01-A-R2 Page : 2 of 53 Issued date : June 29, 2012 Revised date : July 10, 2012 FCC ID : N6C-SDMGN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Conducted Emission ............................................................................................................ 9 SECTION 6: Radiated Spurious Emission ............................................................................................ 10 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 11 APPENDIX 1: Data of EMI test .............................................................................................................. 12 Conducted Emission ......................................................................................................................... 12 6dB Bandwidth ................................................................................................................................. 13 Maximum Peak Output Power .......................................................................................................... 16 Radiated Spurious Emission ............................................................................................................. 19 Conducted Spurious Emission .......................................................................................................... 31 Conducted Emission Band Edge compliance ................................................................................... 43 Power Density ................................................................................................................................... 44 99%Occupied Bandwidth ................................................................................................................. 46 APPENDIX 2: Test instruments ............................................................................................................. 48 APPENDIX 3: Photographs of test setup ............................................................................................... 50 Conducted Emission ......................................................................................................................... 50 Radiated Spurious Emission ............................................................................................................. 51 Worst Case Position .......................................................................................................................... 52 Test report No. : 32IE0153-HO-01-A-R2 Page : 3 of 53 Issued date : June 29, 2012 Revised date : July 10, 2012 FCC ID : N6C-SDMGN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : silex technology, Inc. Address : 2-3-1 Hikaridai, Seika-cho, Kyoto 619-0237, Japan Telephone Number : +81-774-98-3878 Facsimile Number : +81-774-98-3758 Contact Person : Toshiro Kometani SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : SDIO Wireless Module Model No. : SX-SDMGN Serial No. : Refer to Clause 4.2 Rating : DC3.3V Receipt Date of Sample : April 11, 2012 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: SX-SDMGN (referred to as the EUT in this report) is the SDIO Wireless Module. General Specification Clock frequency(ies) in the system : 26MHz Radio Specification Radio Type : Transceiver Method of Frequency Generation : Synthesizer Power Supply (inner) : DC1.8V Antenna Gain : 2.1dBi IEEE802.11b IEEE802.11g IEEE802.11n (20 M band) Frequency of operation 2412-2462MHz 2412-2462MHz 2412 - 2462MHz Type of modulation DSSS (CCK, DQPSK, DBPSK) OFDM-CCK (64QAM, 16QAM, QPSK, BPSK) OFDM (64QAM, 16QAM, QPSK, BPSK) Channel spacing 5MHz 5MHz Antenna type Sleeve antenna (Omni-Directional) Antenna Connector type U.FL Alternative connector Test report No. : 32IE0153-HO-01-A-R2 Page : 4 of 53 Issued date : June 29, 2012 Revised date : July 10, 2012 FCC ID : N6C-SDMGN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on May 17, 2012 and effective June 18, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz *The revision on May 17, 2012 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 QP 12.4dB, 4.97081MHz, N AV 11.4dB, 5.86269MHz, L Complied - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 6dB Bandwidth FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(a)(2) See data. Complied Conducted IC: RSS-G…

Text truncated - open the document above for the full version.

Test report No. : 32IE0153-HO-01-A-R2 Page : 50 of 53 Issued date : June 29, 2012 Revised date : July 10, 2012 FCC ID : N6C-SDMGN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 32IE0153-HO-01-A-R2 Page : 51 of 53 Issued date : June 29, 2012 Revised date : July 10, 2012 FCC ID : N6C-SDMGN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 32IE0153-HO-01-A-R2 Page : 52 of 53 Issued date : June 29, 2012 Revised date : July 10, 2012 FCC ID : N6C-SDMGN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Antenna: (Horizontal: Z0-axis/ Vertical:Y0-axis) X0-axis X90-axis Y0-axis Y90-axis Z0-axis Z90-axis Test report No. : 32IE0153-HO-01-A-R2 Page : 53 of 53 Issued date : June 29, 2012 Revised date : July 10, 2012 FCC ID : N6C-SDMGN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Module: (Horizontal: X-axis/ Vertical:X-axis) X-axis Y-axis Z-axis End of Report
